Wiring Diagrams for BMW X3 G01 facelift (2021-2024)

Active bodyworks circuit

Automatic a/c circuit Independent heating circuit

Anti-lock brakes circuit

Access/start circuit Anti-theft & central locking circuit

Body control modules circuit

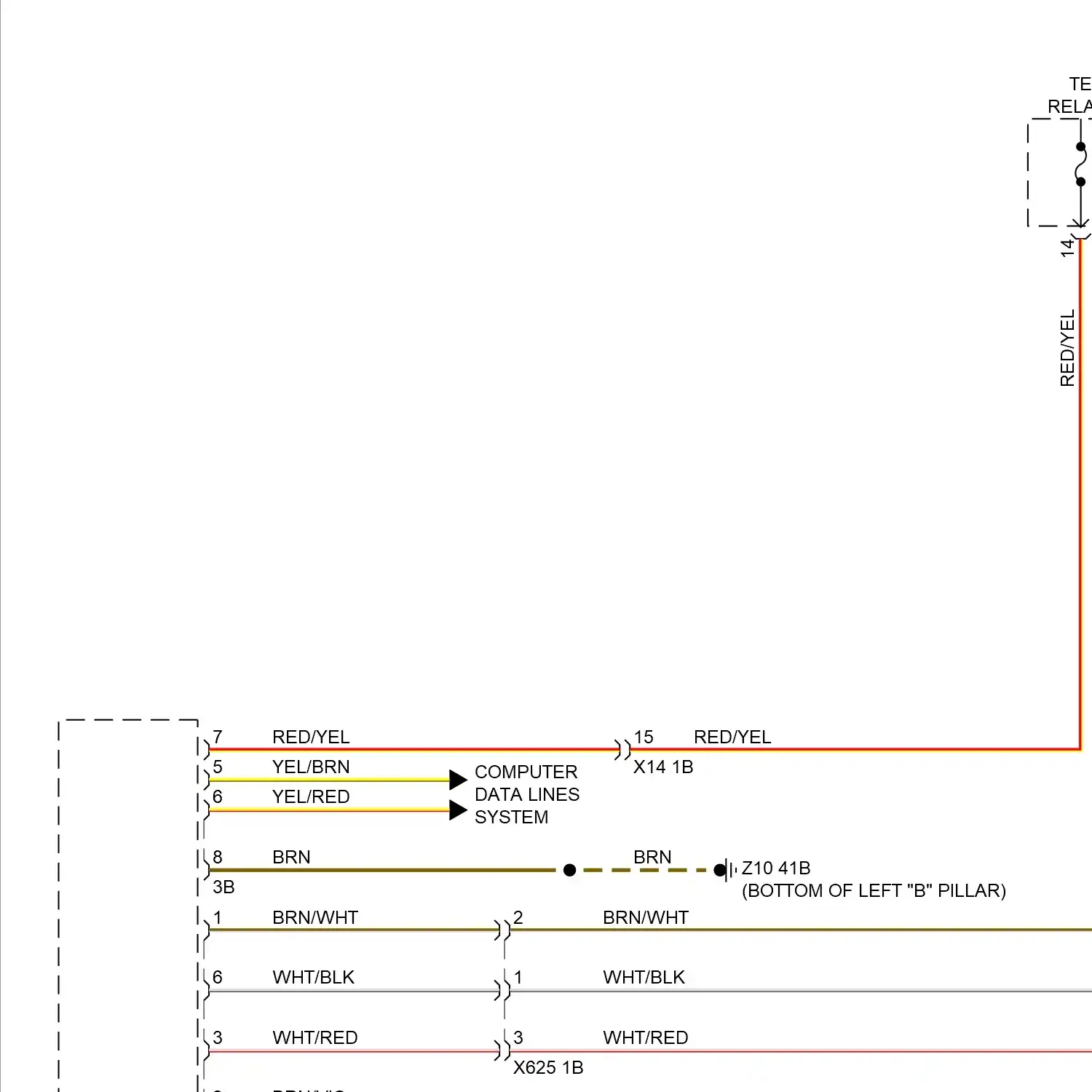

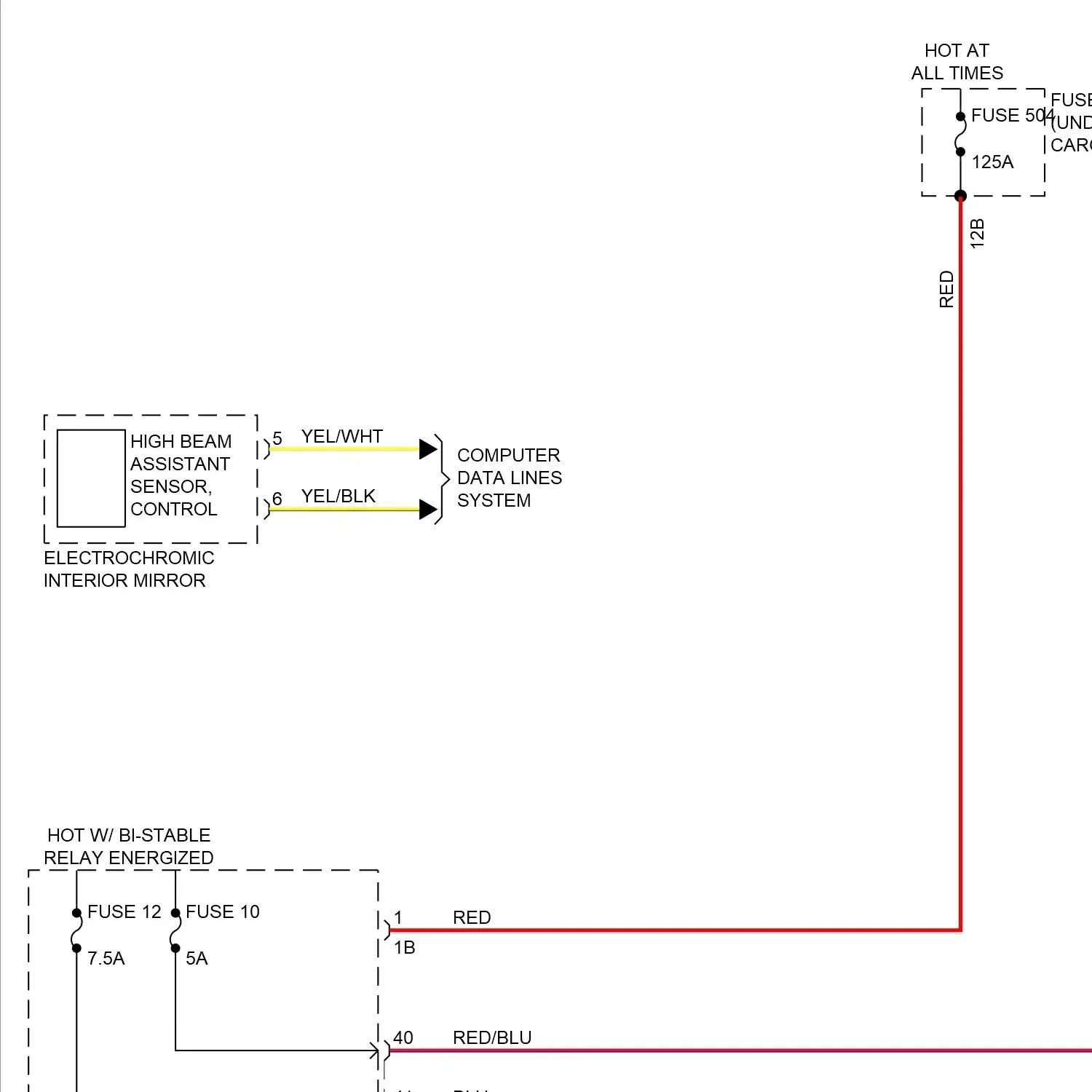

Computer data lines circuit

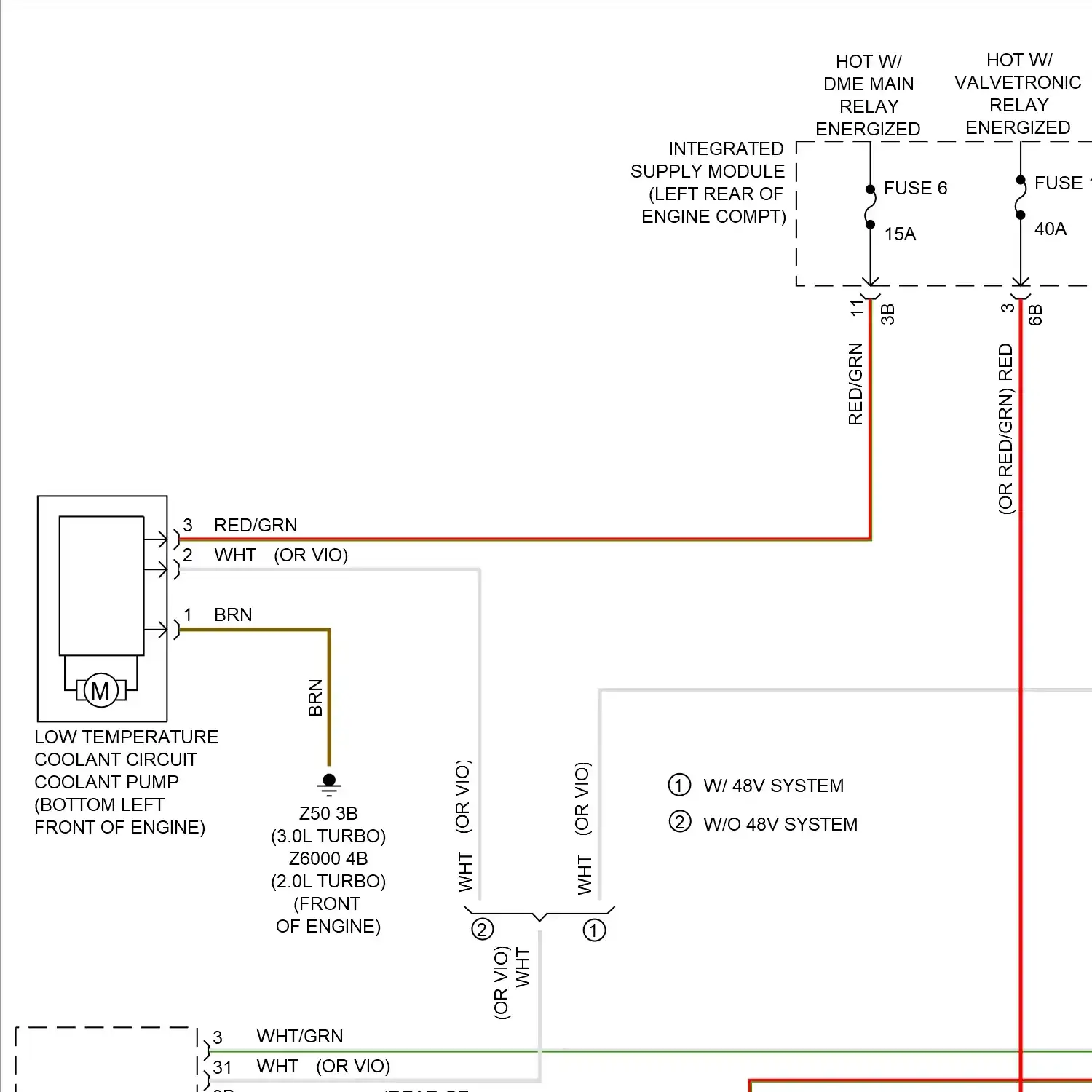

Cooling fan circuit

Cruise control circuit

Heated mirrors circuit, w/ lin bus function Heated mirrors circuit, w/o lin bus function Rear defogger circuit

Electronic power steering circuit

Air suspension circuit Dynamic drive suspension circuit

Wiring diagram engine performance 2.0l turbo

Wiring diagram engine performance 3.0l turbo

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit

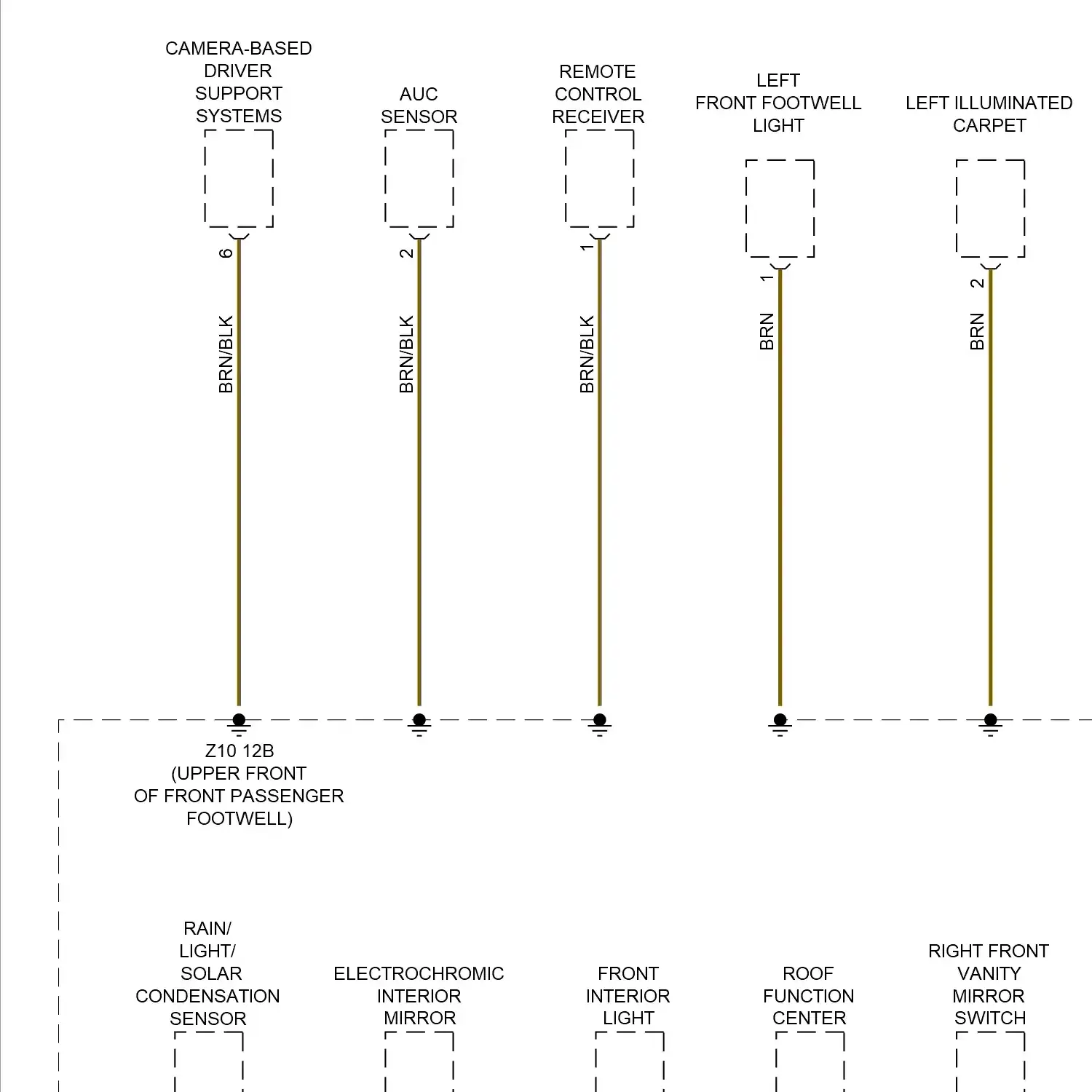

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit, w/ lin bus function Memory mirrors circuit, w/o lin bus function Passenger"s memory seat circuit

All around vision camera circuit Blind spot monitoring circuit, w/ front & rear radar sensors Blind spot monitoring circuit, w/ rear radar sensors Driver camera circuit Lane departure warning circuit, w/ camera Lane departure warning circuit, w/o camera w/ front & rear lane change sensors Lane departure warning circuit, w/o camera w/ rear lane change sensors Navigation circuit, base w/ receiver audio module Navigation circuit, high level w/ receiver audio module Navigation circuit, mid level w/ receiver audio module Navigation circuit, w/ hifi radio & active sound design Navigation circuit, w/ hifi radio w/o active sound design Navigation circuit, w/o hifi radio & active sound design Navigation circuit, w/o hifi radio w/ active sound design Parking assistant circuit Rear camera circuit

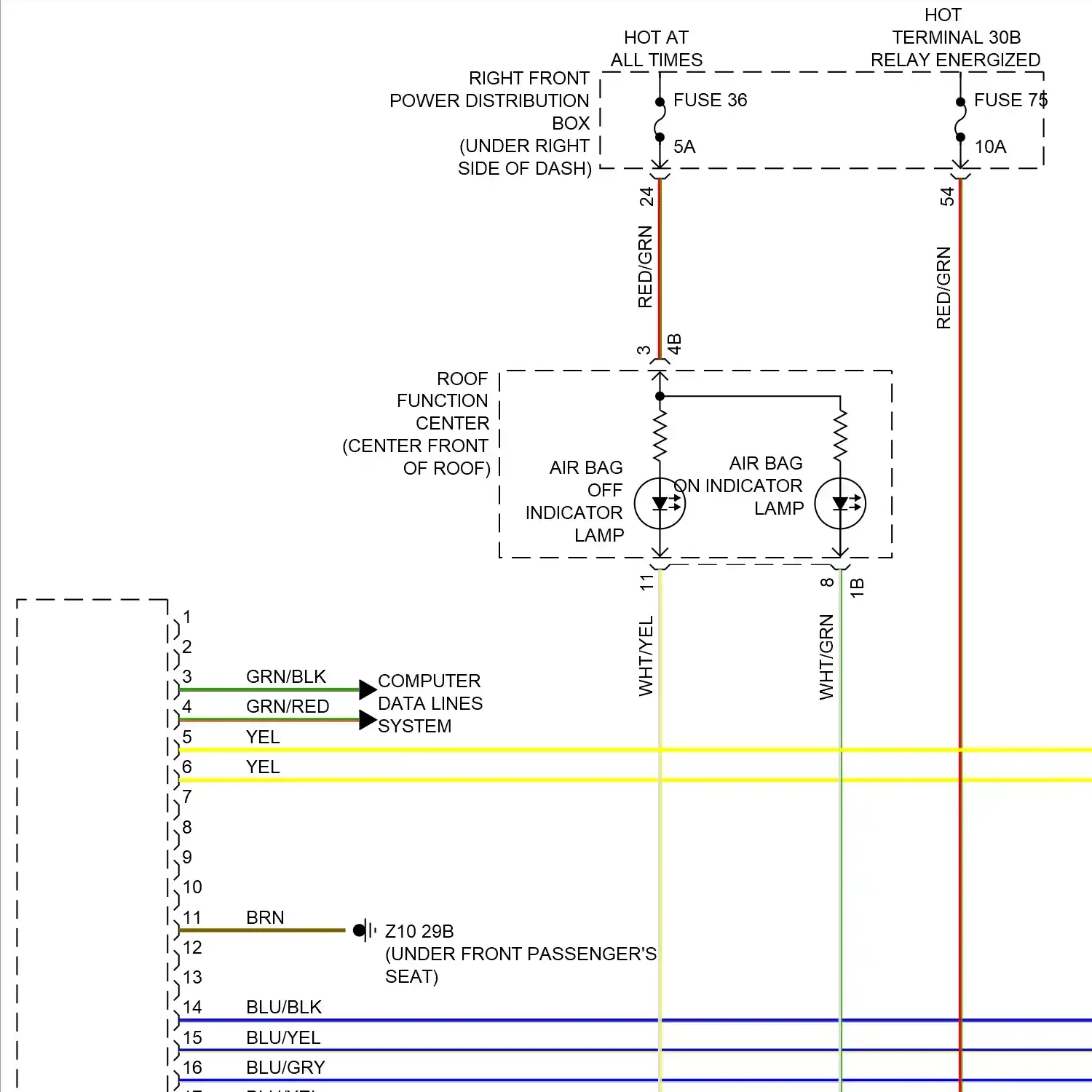

Passive restraints circuit

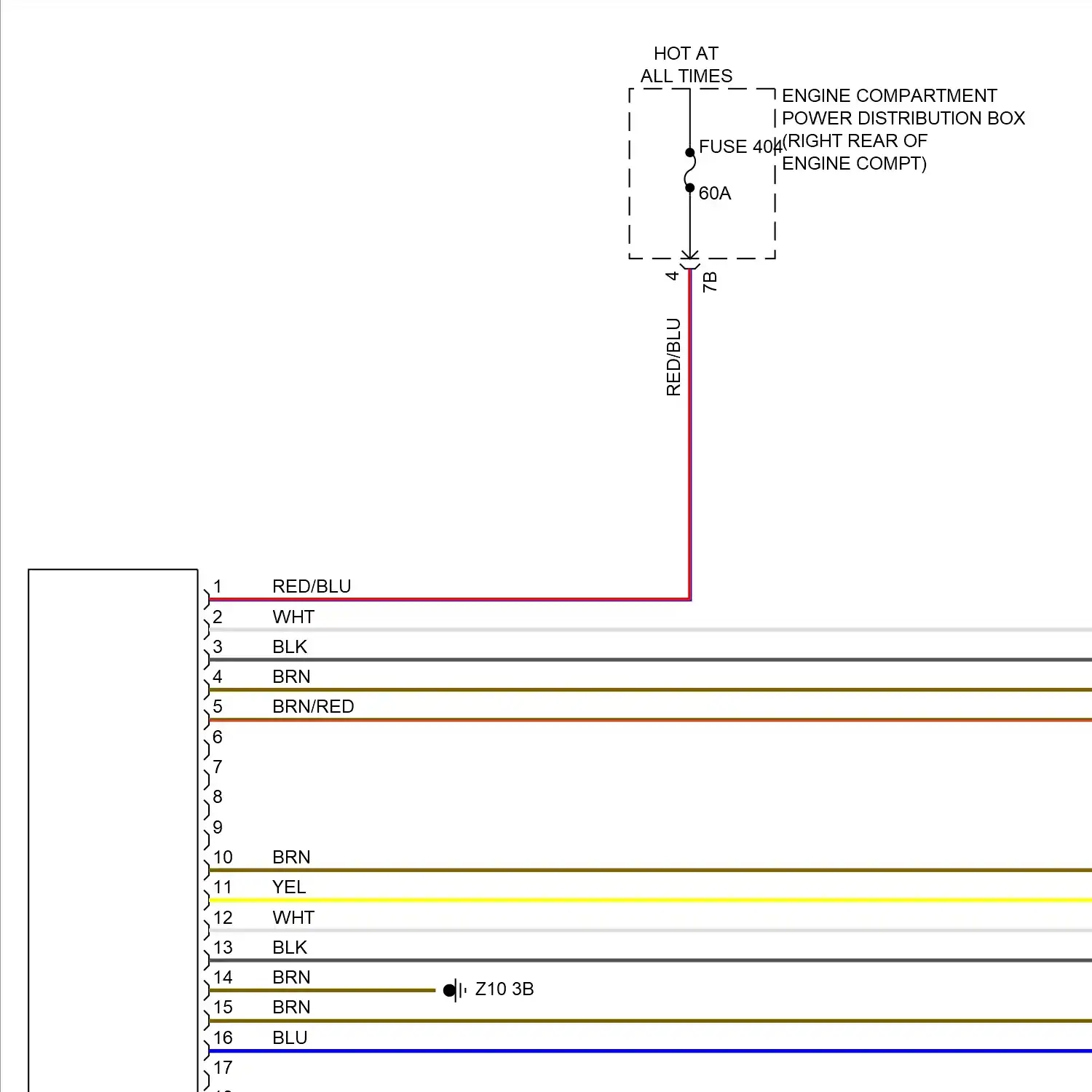

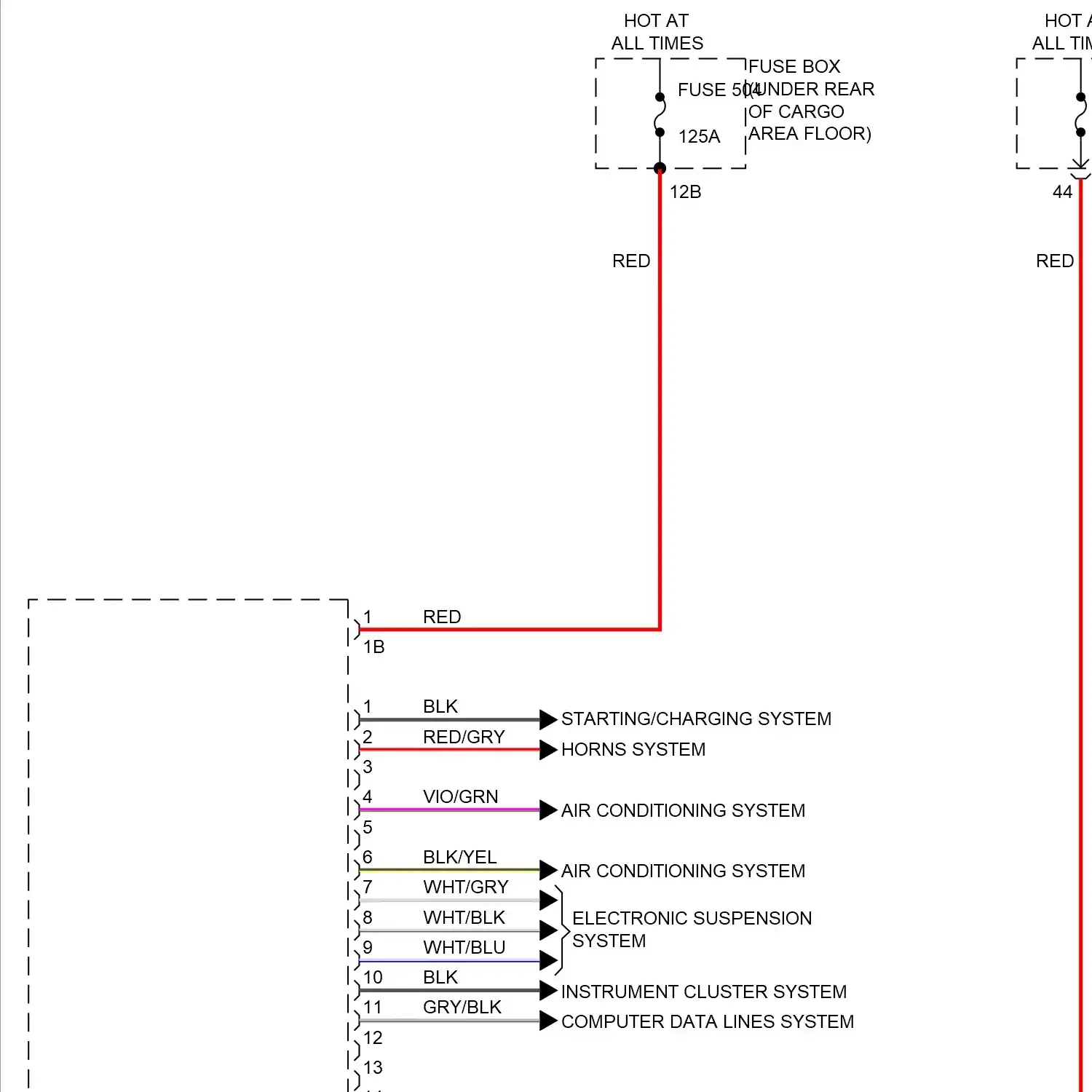

Power distribution circuit

Power door locks circuit

Power mirrors circuit

Front heated seats circuit, w/ memory Front heated seats circuit, w/o memory Heated steering wheel circuit Lumbar circuit, w/ backrest Lumbar circuit, w/o backrest Passenger power seat circuit Rear heated seats circuit Seat ventilation circuit Sport seats circuit, w/ lumbar Sport seats circuit, w/o lumbar

Power top/sunroof circuit

Power windows circuit

Base radio circuit, w/ active sound design Base radio circuit, w/o active sound design Hifi radio circuit, w/ active sound design Hifi radio circuit, w/o active sound design Most data bus circuit Receiver audio module circuit, base Receiver audio module circuit, high level Receiver audio module circuit, mid level Top hifi radio circuit Video system circuit

Shift interlock circuit

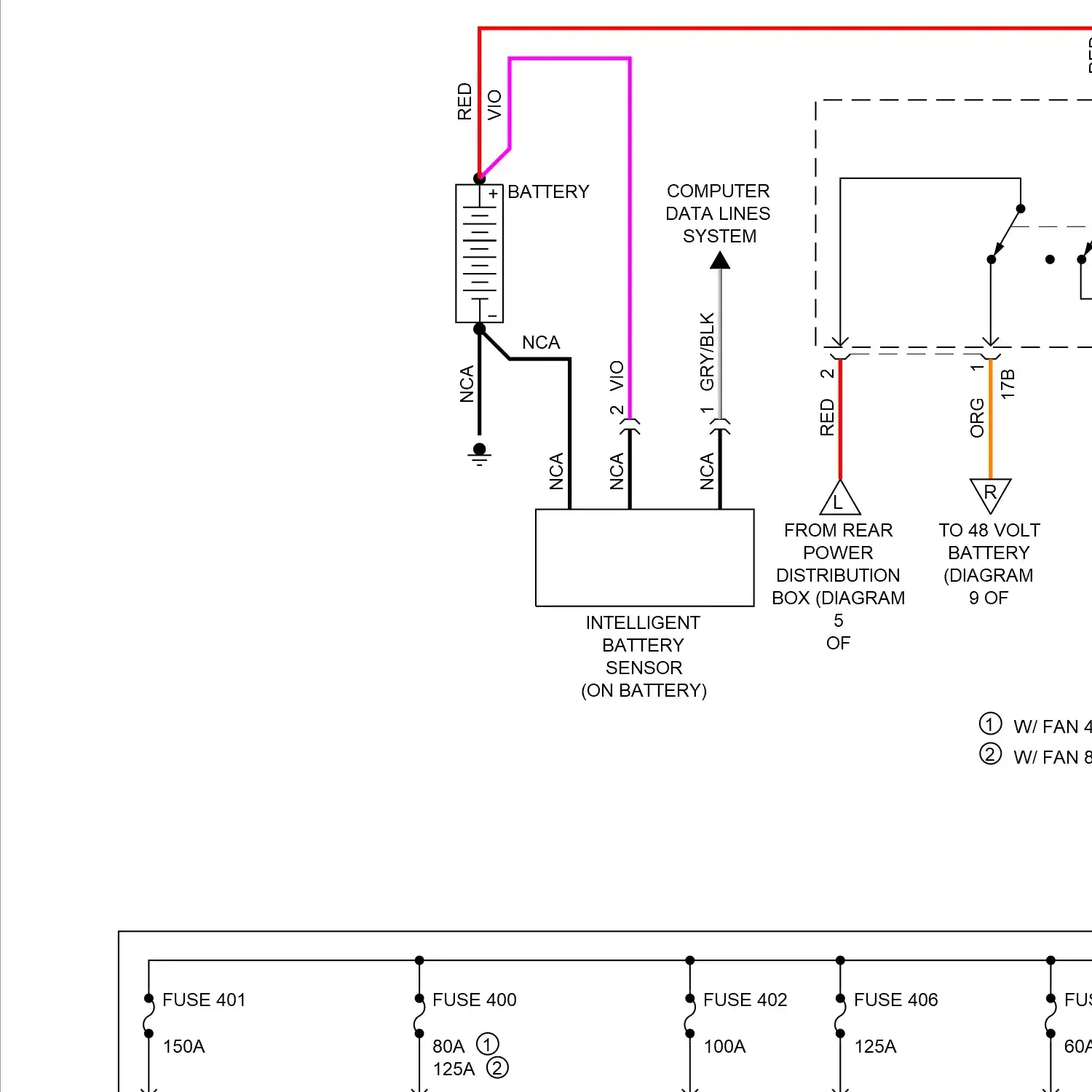

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit Rear axle circuit

Contact-free tailgate opening circuit Trunk & fuel door release circuit

Warning systems circuit

Wiper/washer circuit

48 VOLT BATTERY ANTI-LOCK BRAKES SYSTEM AUXILIARY BATTERY BOOT LID/TAILGATE LOCK CAN BUS TERMINAL RESISTOR 2 CAN BUS TERMINAL RESISTOR 3 CAN BUS TERMINAL RESISTOR 6 CENTER WASHER NOZZLE HEATING DRIVER BELT FORCE LIMITER GAS GENERATOR DRIVER KNEE AIR BAG GAS GENERATOR DRIVER SIDE AIR BAG GAS GENERATOR DRIVER'S DOOR LOCK FRONT PASSENGER BELT FORCE LIMITER GAS GENERATOR FRONT PASSENGER DOOR LOCK FRONT PASSENGER KNEE AIR BAG GAS GENERATOR FRONT PASSENGER SIDE AIR BAG GAS GENERATOR HIFI AMPLIFIER HIGH RANGE HORN IGNITION COIL CYLINDER 1 IGNITION COIL CYLINDER 2 IGNITION COIL CYLINDER 3 IGNITION COIL CYLINDER 4 IGNITION COIL CYLINDER 5 IGNITION COIL CYLINDER 6 LEFT FRONT VALVE COIL LEFT HEAD AIR BAG GAS GENERATOR LEFT REAR VALVE COIL LEFT WASHER NOZZLE HEATING LOW RANGE HORN ON BATTERY) REAR DRIVERS SIDE DOOR LOCK REAR PASSENGER'S SIDE DOOR LOCK REGULATED DIFFERENTIAL LOCK REGULATED DIFFERENTIAL LOCK SERVOMOTOR RIGHT FRONT VALVE COIL RIGHT HEAD AIR BAG GAS GENERATOR RIGHT REAR VALVE COIL RIGHT WASHER NOZZLE HEATING SUBWOOFER FANFARE HORN TAILGATE LOCK TOP HIFI AMPLIFIER TWEETER FANFARE HORN VEHICLE SOUND GENERATOR W/ CAN BUS TERMINAL RESISTOR 2 W/ REGULATED REAR AXLE DIFFERENTIAL LOCK W/O CAN BUS TERMINAL RESISTOR 2 W/O REGULATED REAR AXLE DIFFERENTIAL LOCK WIRELESS CHARGING ODDMENTS TRAY AERIAL AMPLIFIER

(RIGHT SIDE OF ENGINE AIR DISTRIBUTION FLAP MOTOR BLOWER MOTOR W/ OUTPUT STAGE DEFROSTER FLAP MOTOR DIGITAL MOTOR ELECTRONICS ELECTROMOTIVE THROTTLE ACTUATOR ENGINE COMPARTMENT POWER DISTRIBUTION BOX ENGINE COMPARTMENT POWER DISTRIBUTION BOX CAPACITOR BOX ENGINE CONTROLS SYSTEM ENGINE VENTILATION HEATING EXHAUST VANOS SOLENOID ACTUATOR FRESH AIR/ RECIRCULATED AIR FLAP MOTOR INTAKE VANOS SOLENOID ACTUATOR LEFT AIR DISTRIBUTION FLAP MOTOR LEFT FRONT STRATIFICATION FLAP MOTOR LEFT REAR PEDESTRIAN PROTECTION ACTUATOR MIXED AIR FLAP MOTOR REAR COMPARTMENT FLAP MOTOR REAR MIXED AIR FLAP MOTOR RIGHT AIR DISTRIBUTION FLAP MOTOR RIGHT FRONT STRATIFICATION FLAP MOTOR RIGHT REAR PEDESTRIAN PROTECTION ACTUATOR SERVO MOTOR STARTER MOTOR STARTER MOTOR GENERATOR 48 VOLTS VIBRATION ACTUATOR

ANTENNA DIVERSITY ANTENNA SIGNAL AMPLIFIER 2 ANTENNA SIGNAL AMPLIFIER 3 BLUETOOTH ANTENNA FRONT CENTER CONSOLE INTERIOR ANTENNA GPS ANTENNA LEFT EXTERIOR ANTENNA LEFT SIDE WINDOW ANTENNA LUGGAGE COMPARTMENT ANTENNA REAR CENTER CONSOLE INTERIOR ANTENNA REAR SPOILER ANTENNA REAR WINDOW ANTENNA RIGHT EXTERIOR ANTENNA RIGHT SIDE WINDOW ANTENNA RING ANTENNA ROOF ANTENNA SDARS ANTENNA TELEPHONE ANTENNA WIRELESS CHARGING SHELF ANTENNA AMPLIFIER WLAN ANTENNA

AUTOMATIC HOLD BUTTON DRIVER'S DOOR CENTRAL LOCKING BUTTON DTC BUTTON FANFARE HORN BUTTON FRONT PASSENGER'S DOOR CENTRAL LOCKING BUTTON HDC BUTTON HILL DESCENT CONTROL BUTTON HORN BUTTON OUTER TAILGATE BUTTON PARKING ASSISTANCE BUTTON PARKING BRAKE BUTTON PARKING BRAKE BUTTON PARKING BRAKE BUTTON REAR LID BUTTON REAR WINDOW HEATING BUTTON REFUELING BUTTON START-STOP BUTTON TAILGATE BUTTON VEHICLE INTERIOR TAILGATE BUTTON

ALL ROUND VISION CAMERA CAMERA BASED DRIVER SUPPORT SYSTEMS DRIVER CAMERA SYSTEM EXTERIOR MIRROR CAMERA FRONT CAMERA KAFAS CAMERA HEATING REAR VIEW CAMERA W/ CAMERA-BASED SUPPORT SYSTEM W/ DRIVER CAMERA SYSTEM W/ OMNIDIRECTIONAL CAMERA W/O CAMERA-BASED SUPPORT SYSTEM W/O DRIVER CAMERA SYSTEM W/O OMNIDIRECTIONAL CAMERA W/O SURROUND VIEW CAMERA

DIAGNOSTIC SOCKET TRAILER SOCKET USB CHARGING SOCKET 3 W/ TRAILER SOCKET W/O TRAILER SOCKET

AUXILIARY CONTROL UNIT DRIVER'S SEAT ANGLE ADJUSTMENT DRIVE UNIT DRIVER'S SEAT BACKREST ANGLE ADJUSTMENT DRIVE UNIT DRIVER'S SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE UNIT DRIVER'S SEAT HEIGHT ADJUSTMENT DRIVE UNIT HEAD UNIT LIGHT OPERATING UNIT POWER CONTROL UNIT POWER CONTROL UNIT 48 VOLTS SCR CONTROL UNIT STARTER UNIT SAFETY BATTERY TERMINAL GAS GENERATOR

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 18 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 28 FUSE 29 FUSE 32 FUSE 34 FUSE 35 FUSE 36 FUSE 38 FUSE 39 FUSE 40 FUSE 46 FUSE 47 FUSE 48 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 59 FUSE 60 FUSE 61 FUSE 62 FUSE 63 FUSE 64 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 71 FUSE 72 FUSE 73 FUSE 74 FUSE 75 FUSE 76 FUSE 105 FUSE 107 FUSE 110 FUSE 111 FUSE 203 FUSE 204 FUSE 206 FUSE 208 FUSE 209 FUSE 210 FUSE 212 FUSE 214 FUSE 215 FUSE 216 FUSE 217 FUSE 218 FUSE 220 FUSE 224 FUSE 225 FUSE 226 FUSE 230 FUSE 231 FUSE 240 FUSE 244 FUSE 252 FUSE 254 FUSE 255 FUSE 257 FUSE 262 FUSE 263 FUSE 264 FUSE 267 FUSE 269 FUSE 271 FUSE 273 FUSE 278 FUSE 279 FUSE 282 FUSE 284 FUSE 289 FUSE 295 FUSE 400 FUSE 401 FUSE 402 FUSE 404 FUSE 406 FUSE 407 FUSE 500 FUSE 501 FUSE 502 FUSE 504 FUSE 505 FUSE 701 FUSE BOX HOT AT ALL TIMES FUSE BOX

HEADLIGHT BEAM THROW ADJUSTMENT DRIVE HIGH BEAM HEADLIGHT LEFT FRONTAL LIGHT ELECTRONICS LEFT HEADLIGHT LEFT HEADLIGHT LOW BEAM HEADLIGHT RIGHT FRONTAL LIGHT ELECTRONICS RIGHT HEADLIGHT RIGHT HEADLIGHT

AUDIO MODE/ HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL AUDIO MODE/HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL DRIVER THIGH SUPPORT HEATING DRIVER'S SEAT BACKREST HEATING DRIVER'S SEAT HEATING ELECTRONICS DRIVER'S SEAT SURFACE HEATING FRONT ELECTRIC AUXILIARY HEATER FRONT PASSENGER SEAT HEATING ELECTRONICS FRONT PASSENGER THIGH SUPPORT HEATING FRONT PASSENGER'S SEAT BACKREST HEATING HEATING, AIR CONDITIONING SYSTEM AUDIO MODE CONTROL PANEL HEATING/ AIR CONDITIONING SYSTEM INDEPENDENT AUXILIARY HEATER MIRROR HEATER MIRROR HEATING REAR DRIVER'S SIDE BACKREST HEATING REAR DRIVER'S SIDE SEAT CUSHION HEATING REAR DRIVER'S SIDE SEAT HEATING MODULE REAR PASSENGER'S SIDE BACKREST HEATING REAR PASSENGER'S SIDE SEAT CUSHION HEATER REAR PASSENGER'S SIDE SEAT HEATING MODULE STEERING WHEEL HEATING W/ HEATING, AIR CONDITIONING SYSTEM BASIC VERSION W/ HEATING, AIR CONDITIONING SYSTEM HIGH VERSION

AIR BAG OFF INDICATOR LAMP AIR BAG ON INDICATOR LAMP BRAKE LIGHT/ TURN INDICATOR PARKING BRAKE INDICATOR LIGHT TURN INDICATOR

AUXILIARY STOP LAMP BACKUP LAMP LEFT LICENSE PLATE LAMP LUGGAGE COMPARTMENT LAMP PARKING LAMPS/ DAYTIME RUNNING LIGHTS LED MODULE RIGHT LICENSE PLATE LAMP SIDE LIGHTS/ DAYTIME DRIVING LIGHTS TAIL LAMP TURN SIGNALS/SIDE MARKER LIGHTS LED MODULE

AUXILIARY HEATER FUEL METERING PUMP AUXILIARY HEATER RECIRCULATING PUMP AUXILIARY WATER PUMP COOLANT PUMP IN LOW TEMPERATURE COOLANT CIRCUIT DRIVER'S SEAT PNEUMATIC PUMP ELECTRIC FUEL PUMP ELECTRIC FUEL PUMP CONTROL ELECTRONICS FRONT PASSENGER SEAT PNEUMATIC PUMP LOW TEMPERATURE COOLANT CIRCUIT COOLANT PUMP TURBOCHARGER COOLANT PUMP WINDSHIELD WASHER PUMP

BI-STABLE RELAY DME MAIN RELAY ELECTRIC FAN CUT-OFF RELAY HHS RELAY HOT W/ BI-STABLE RELAY ENERGIZED HOT W/ DME MAIN RELAY ENERGIZED HOT W/ POWER SUPPLY SENSORS/ ACTUATORS RELAY ENERGIZED HOT W/ VALVETRONIC RELAY ENERGIZED IGNITION, FUEL INJECTION RELAY POWER SUPPLY SENSORS/ ACTUATORS RELAY POWER SUPPLY SENSORS/ACTUATORS RELAY REAR WINDOW HEATING RELAY RELAY ENERGIZED VALVETRONIC RELAY

AUC SENSOR AUTOMATIC AIR RECIRCULATION CONTROL SENSOR BOOST PRESSURE SENSOR CHARGE AIR TEMPERATURE/ INTAKE MANIFOLD PRESSURE SENSOR CONTACT-FREE TAILGATE OPENING LOWER SENSOR CONTACT-FREE TAILGATE OPENING UPPER SENSOR COOLANT LEVEL SENSOR COOLANT TEMPERATURE SENSOR CRANKCASE TEMPERATURE SENSOR CRANKSHAFT SENSOR DRIVER SEAT POSITION SENSOR ENGINE OIL PRESSURE SENSOR EVAPORATOR TEMPERATURE SENSOR EXHAUST CAMSHAFT SENSOR EXHAUST GAS PRESSURE SENSOR GASOLINE PARTICULATE FILTER FRONT PASSENGER SEAT OCCUPANCY DETECTION SEAT CUSHION HEATER/SENSOR FRONT PASSENGER SEAT OCCUPANCY DETECTION SEAT SURFACE HEATING/SENSOR FRONT PASSENGER SEAT POSITION SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 GEARBOX OIL TEMPERATURE SENSOR HALL EFFECT SENSOR HEATING ACC SENSOR HIGH BEAM ASSISTANT SENSOR, CONTROL INTAKE AIR TEMPERATURE SENSOR INTAKE CAMSHAFT SENSOR INTELLIGENT BATTERY SENSOR KNOCK SENSOR KNOCK SENSOR #2 LEFT "B" PILLAR AIR BAG SENSOR LEFT FOOTWELL TEMPERATURE SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT BRAKE PRESSURE SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT DOOR AIR BAG SENSOR LEFT FRONT LEVEL SENSOR LEFT FRONT OUTER ULTRASONIC SENSOR LEFT FRONT SIDE NEAR RANGE RADAR SENSOR LEFT FRONT SIDE PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR LEFT FRONT VENTILATION TEMPERATURE SENSOR LEFT FRONT VERTICAL-ACCELERATION SENSOR LEFT FRONT WHEEL RPM SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR LEVEL SENSOR LEFT REAR NEAR RANGE RADAR SENSOR LEFT REAR OUTER ULTRASONIC SENSOR LEFT REAR ULTRASONIC SENSOR LEFT REAR VERTICAL ACCELERATION SENSOR LEFT REAR WHEEL RPM SENSOR LONG-DISTANCE RANGE FRONT RADAR SENSOR MEMORY FUNCTION HALL SENSOR OIL LEVEL SENSOR OUTSIDE TEMPERATURE SENSOR OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR BEFORE CATALYTIC CONVERTER POSITION SENSOR POWER TAILGATE ACOUSTIC SENSOR RADIATOR OUTLET TEMPERATURE SENSOR RAIL PRESSURE SENSOR RAIN/ LIGHT/ SOLAR/ CONDENSATION SENSOR RAIN/LIGHT/ SOLAR CONDENSATION SENSOR RAIN/LIGHT/SOLAR CONDENSATION SENSOR REAR CABIN FOOTWELL TEMPERATURE SENSOR REAR CABIN VENTILATION TEMPERATURE SENSOR REFRIGERANT PRESSURE SENSOR RIGHT "B" PILLAR AIR BAG SENSOR RIGHT FOOTWELL TEMPERATURE SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT BRAKE PRESSURE SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT DOOR AIR BAG SENSOR RIGHT FRONT OUTER ULTRASONIC SENSOR RIGHT FRONT SIDE NEAR RANGE RADAR SENSOR RIGHT FRONT SIDE PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR RIGHT FRONT VENTILATION TEMPERATURE SENSOR RIGHT FRONT VERTICAL-ACCELERATION SENSOR RIGHT FRONT WHEEL RPM SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR NEAR RANGE RADAR SENSOR RIGHT REAR OUTER ULTRASONIC SENSOR RIGHT REAR ULTRASONIC SENSOR RIGHT REAR VERTICAL ACCELERATION SENSOR RIGHT REAR WHEEL RPM SENSOR ROTOR POSITION SENSOR SIREN W/ TILT ALARM SENSOR STEERING TORQUE SENSOR VENTURI NOZZLE PRESSURE SENSOR WASHER FLUID LEVEL SENSOR

ACOUSTIC PEDESTRIAN PROTECTION SPEAKER ACOUSTIC PEDESTRIAN PROTECTION SPEAKER 2 CENTER FRONT MID-RANGE SPEAKER FRONT CENTER MID-RANGE SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT MID-RANGE SPEAKER LEFT REAR MID- RANGE SPEAKER 2 LEFT REAR MID-RANGE SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR MID- RANGE SPEAKER 2 RIGHT REAR MID-RANGE SPEAKER

BRAKE FLUID LEVEL SWITCH BRAKE LIGHT SWITCH DRIVE EXPERIENCE SWITCH DRIVER ASSISTANCE SYSTEM OPERATING FACILITY W/ HAZARD WARNING SWITCH DRIVER'S DOOR SEAT SWITCH CLUSTER DRIVER'S DOOR SWITCH BLOCK DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT SWITCH DRIVER'S SEAT LUMBAR SUPPORT SWITCH DRIVER'S SIDE REAR POWER WINDOW SWITCH DRIVER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK ETHERNET SWITCH FRONT PASSENGER DOOR POWER WINDOW SWITCH FRONT PASSENGER LUMBAR SUPPORT SWITCH FRONT PASSENGER SEAT BACKREST WIDTH ADJUSTMENT SWITCH FRONT PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK FRONT PASSENGER'S DOOR POWER WINDOW SWITCH FRONT PASSENGERS AIR BAG DEACTIVATION SWITCH GEAR SELECTOR SWITCH GLOVE COMPARTMENT LIGHT SWITCH HEATED STEERING WHEEL SWITCH HOOD CONTACT SWITCH LEFT FRONT VANITY MIRROR SWITCH LEFT MULTI-FUNCTION STEERING COLUMN SWITCH CLUSTER PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK PASSENGER'S SIDE REAR POWER WINDOW SWITCH PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK PRESSURE SWITCH RIGHT FRONT VANITY MIRROR SWITCH RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH CLUSTER SLIDING/ TILTING SUNROOF SWITCH STEERING COLUMN SWITCH CLUSTER W/ ETHERNET SWITCH W/O ETHERNET SWITCH

AUXILIARY HEATER COOLANT CHANGEOVER VALVE CONTROL VALVE COOLANT EXPANSION TANK SHUTOFF VALVE CRANKCASE COOLANT SHUTOFF VALVE DRIVER LUMBAR SUPPORT VALVE BLOCK DRIVER LUMBAR SUPPORT/ BACKREST WIDTH ADJUSTMENT VALVE BLOCK DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK ELECTRICAL WASTEGATE VALVE FRONT PASSENGER LUMBAR SUPPORT VALVE BLOCK FRONT PASSENGER LUMBAR SUPPORT/ BACKREST WIDTH ADJUSTMENT VALVE BLOCK FRONT PASSENGER SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK FUEL VENT VALVE OIL PRESSURE CONTROL VALVE QUANTITY CONTROL VALVE SHUTOFF VALVE FOR COOLANT EXPANSION TANK

(OR GRN/GRY WIRE (OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE ORG/YEL WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

2.0L TURBO 3.0L TURBO 48 VOLTS POWER DISTRIBUTION (NOT (OR A/C COMPRESSOR ACCELERATOR PEDAL MODULE ACTIVE CRUISE CONTROL ACTIVE SOUND DESIGN ADJUSTMENT DRIVE AIR CONDITIONING AIR CONDITIONING SYSTEM AIR DISTRIBUTION MICROSWITCH AIR FRESHENER ANTI-THEFT ALARM SYSTEM LED ANTI-THEFT SYSTEM AUTOMATIC A/C CIRCUIT AUTOMATIC HOLD FUNCTION LED AUTOMATIC REAR AIR CONDITIONING OPERATING FACILITY BACKUP LAMPS CIRCUIT BASIC VARIANT BASIS HIGH BODY DOMAIN CONTROLLER BOTTOM FRONT PASSENGER'S SIDE DASHBOARD LIGHTING BOTTOM RADIATOR BLIND DRIVE BRAKE LIGHT CAPACITOR BOX CAR SHARING MODULE CARD READER CENTER CONSOLE CONTROL CENTER CONSOLE CONTROL CENTER CENTER CONSOLE CONTROL PANEL CENTER CONSOLE OPERATING FACILITY CENTER DRIVER'S DOOR TRIM PANEL LIGHTING CENTER FRONT PASSENGER DOOR TRIM PANEL LIGHTING CENTER FRONT TWEETER CENTER REAR DRIVER'S SIDE DOOR TRIM PANEL LIGHTING CENTER REAR OF LUGGAGE COMPT) CENTER REAR PASSENGER'S SIDE DOOR TRIM PANEL LIGHTING CENTER REAR SEAT BELT BUCKLE CONTACT CENTER STACK LIGHTING CENTRAL INFORMATION DISPLAY CHARGING CIRCUIT COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES, NAVIGATION SYSTEMS CONTACT FREE TAILGATE OPENING EVALUATION ELECTRONICS COOLING FANS SYSTEM COOLING FANS, STARTING/CHARGING SYSTEMS CORNERING LIGHT CRASH SAFETY MODULE DEFOGGER SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVER BACKREST TRIM LIGHTING DRIVER DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS DRIVER EXTERIOR MIRROR DRIVER OUTER DOOR HANDLE ELECTRONICS DRIVER OUTSIDE DOOR HANDLE ELECTRONICS DRIVER RETRACTOR TENSIONER DRIVER SEAT MODULE DRIVER VEHICLE EXTERIOR MIRROR DRIVER'S AIR BAG GAS GENERATORS DRIVER'S BACKREST TRIM LIGHTING DRIVER'S DOOR ENTRANCE LIGHT DRIVER'S DOOR ENTRY LIGHTING DRIVER'S DOOR POCKET LIGHTING DRIVER'S DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS DRIVER'S SEAT BACKREST FAN 1 DRIVER'S SEAT BACKREST FAN 2 DRIVER'S SEAT BACKREST FAN 3 DRIVER'S SEAT BACKREST FAN 4 DRIVER'S SEAT BELT BUCKLE CONTACT DRIVER'S SEAT CUSHION FAN 1 DRIVER'S SEAT CUSHION FAN 2 DRIVER'S SEAT CUSHION FAN 3 DRIVER'S SEAT CUSHION FAN 4 DRIVER'S SIDE REAR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS DYNAMIC BRAKE LIGHT EARLY PRODUCTION ELECTRIC FAN ELECTRICAL EXHAUST FLAP ELECTRICAL EXHAUST FLAP 2 ELECTRICAL STEERING COLUMN ADJUSTMENT ELECTROCHROMIC INTERIOR MIRROR ELECTROCHROMIC INTERIOR REAR VIEW MIRROR ELECTROCHROMIC MIRROR ELECTROMECHANICAL POWER STEERING ELECTRONIC SUSPENSION SYSTEM ELECTRONIC TRANSMISSION CONTROL ELECTRONICS TOUCH DETECTION EMERGENCY LOUDSPEAKER EMITTER 2 FRONT CENTER ARMREST LIGHT FRONT CENTER TWEETER FRONT CENTER VENTILATION GRILLE FRONT INTERIOR LIGHT FRONT PASSENGER AIR BAG GAS GENERATORS FRONT PASSENGER BACKREST TRIM LIGHTING FRONT PASSENGER DOOR ENTRY LIGHTING FRONT PASSENGER DOOR POCKET LIGHTING FRONT PASSENGER DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS FRONT PASSENGER EXTERIOR MIRROR FRONT PASSENGER RETRACTOR TENSIONER FRONT PASSENGER SEAT ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT BACKREST ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT FORWARD/ BACK SEAT ADJUSTMENT FRONT PASSENGER SEAT FORWARD/ BACKWARD SEAT ADJUSTMENT FRONT PASSENGER SEAT HEADREST HEIGHT ADJUSTMENT DRIVE FRONT PASSENGER SEAT HEIGHT ADJUSTMENT DRIVE FRONT PASSENGER SEAT MODULE FRONT PASSENGER SEAT OCCUPANCY DETECTION EVALUATION ELECTRONICS FRONT PASSENGER VEHICLE EXTERIOR MIRROR FRONT PASSENGER'S DOOR POCKET LIGHTING FRONT PASSENGER'S SEAT BACKREST FAN 1 FRONT PASSENGER'S SEAT BACKREST FAN 2 FRONT PASSENGER'S SEAT BACKREST FAN 3 FRONT PASSENGER'S SEAT BACKREST FAN 4 FRONT PASSENGER'S SEAT BELT BUCKLE CONTACT FRONT PASSENGER'S SEAT CUSHION FAN 1 FRONT PASSENGER'S SEAT CUSHION FAN 2 FRONT PASSENGER'S SEAT CUSHION FAN 3 FRONT PASSENGER'S SEAT CUSHION FAN 4 FRONT POWER DISTRIBUTION BOX FUEL FILLER FLAP CENTRAL LOCKING DRIVE FUEL INJECTOR CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR CYLINDER 5 FUEL INJECTOR CYLINDER 6 GLOVE COMPARTMENT LIGHT GPS AERIAL HEAD-UP DISPLAY HEADLIGHTS SYSTEM HEAT MANAGEMENT MODULE HEATED REAR WINDOW BAND ELIMINATION CIRCUIT 2 HIGH BASIC HIGH VARIANT HORNS SYSTEM HOT AT ALL TIMES HOT FILM AIR MASS METER HOT W/ HOT W/ TERMINAL INFOTAINMENT FAN INSTRUMENT CLUSTER SYSTEM INSTRUMENT PANEL INTEGRATED SUPPLY MODULE INTERFERENCE SUPPRESSOR FILTER JUMP START TERMINAL JUNCTION BOX ELECTRONICS LANE CHANGE WARNING LED LATE PRODUCTION LED ANTI- THEFT ALARM SYSTEM LEFT "C" PILLAR) LEFT FOG LIGHT LEFT FRONT FOOTWELL LIGHT LEFT FRONT LANE CHANGE WARNING SLAVE LEFT FRONT MIXING FLAP DRIVE LEFT FRONT TWEETER LEFT FRONT VANITY MIRROR LIGHT LEFT FRONT VENTILATION GRILLE LEFT FRONT WHEEL ELECTRONICS SYSTEM LEFT FRONTAL LIGHT ELECTRONICS LEFT ILLUMINATED CARPET LEFT INNER TAILLIGHT LEFT OUTER TAILLIGHT LEFT PARKING BRAKE DRIVE LEFT REAR INTERIOR LIGHT LEFT REAR LANE CHANGE WARNING SLAVE LEFT REAR RETRACTOR TENSIONER LEFT REAR SEAT BELT BUCKLE CONTACT LEFT REAR TWEETER LEFT REAR TWEETER 2 LEFT REAR WHEEL ELECTRONICS SYSTEM LEFT REVERSIBLE ELECTROMOTIVE AUTOMATIC REEL LEFT REVERSIBLE ELECTROMOTIVE ELECTRICALLY MOTORIZED REEL LEFT SHIFT PADDLE LIGHT SOURCE 3 LIGHT SOURCE 4 LIGHT SOURCE 5 LIGHT SOURCE 6 LIGHT SOURCE 11 LIGHT SOURCE 16 LIN BUS SIG LIN POWER DISTRIBUTION BOX LUGGAGE COMPARTMENT LIGHT LUGGAGE COMPARTMENT LIGHT 2 LUGGAGE COMPARTMENT LIGHT BOOT LID/TAILGATE MAGNETIC CLUTCH MAP THERMOSTAT MICROPHONE 2 + MIRROR ELECTRONICS MIRROR FOLD- IN DRIVE MOST DATA BUS CIRCUIT NATURAL VACUUM LEAK DETECTION NAVIGATION SYSTEM NOISE SUPPRESSOR FILTER OPTIONAL EQUIPMENT SYSTEM PARKING MANEUVERING ASSISTANT PASSENGER DOOR ENTRANCE LIGHT PASSENGER ELECTRONIC OUTER DOOR HANDLE MODULE PASSENGER OUTER DOOR HANDLE ELECTRONICS PASSENGER OUTSIDE DOOR HANDLE ELECTRONICS PASSENGER'S BACKREST TRIM LIGHTING PASSENGER'S DOOR ENTRANCE LIGHT PASSENGER'S SIDE REAR FOOTWELL LIGHT PASSENGER'S SIDE REAR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS POWER DISTRIBUTION SYSTEM PREPARATION FOR TRAILER MODULE PLUG CONNECTION PREPARATION TRAILER BRAKE SYSTEM PLUG CONNECTION PREPARATION TRAILER MODULE PLUG CONNECTION PREPARING NFC READER PS CAN-H PS CAN-L REAR AIR VENT GRILLE REAR CENTER SEAT BELT BUCKLE CONTACT REAR DRIVER SIDE OUTER DOOR HANDLE ELECTRONICS REAR DRIVER'S SIDE COURTESY LIGHTING REAR DRIVER'S SIDE DOOR POCKET LIGHTING REAR DRIVER'S SIDE ELECTRONIC OUTER DOOR HANDLE MODULE REAR DRIVER'S SIDE ENTRY LIGHT REAR DRIVER'S SIDE FOOTWELL LIGHT REAR DRIVER'S SIDE OUTSIDE DOOR HANDLE ELECTRONICS REAR DRIVER'S SIDE SILL COURTESY LIGHT REAR FOG LIGHT/ DYNAMIC BRAKE LIGHT REAR INTERIOR LIGHT REAR PASSENGER SIDE COURTESY LIGHTING REAR PASSENGER SIDE ENTRY LIGHT REAR PASSENGER SIDE OUTER DOOR HANDLE ELECTRONICS REAR PASSENGER SIDE SILL COURTESY LIGHT REAR PASSENGER'S SIDE COURTESY LIGHTING REAR PASSENGER'S SIDE DOOR POCKET LIGHTING REAR PASSENGER'S SIDE ELECTRONIC OUTER DOOR HANDLE MODULE REAR PASSENGER'S SIDE FOOTWELL LIGHT REAR PASSENGER'S SIDE OUTSIDE DOOR HANDLE ELECTRONICS REAR POWER DISTRIBUTION BOX REAR POWER DISTRIBUTION BOX LIN POWER DISTRIBUTION BOX REAR WINDOW DEFOGGER REAR WINDOW DEFROSTER REAR WINDOW HEATED BAND ELIMINATION CIRCUIT 2 REAR WIPER REBOUND STAGE RECEIVER AUDIO MODULE REMOTE CONTROL RECEIVER RIGHT END OF DASH) RIGHT FOG LIGHT RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT LANE CHANGE WARNING SLAVE RIGHT FRONT MIXING FLAP DRIVE RIGHT FRONT POWER DISTRIBUTION BOX RIGHT FRONT TWEETER RIGHT FRONT VANITY MIRROR LIGHT RIGHT FRONT VENTILATION GRILLE RIGHT FRONT WHEEL ELECTRONICS SYSTEM RIGHT FRONTAL LIGHT ELECTRONICS RIGHT ILLUMINATED CARPET RIGHT INNER TAILLIGHT RIGHT OUTER TAILLIGHT RIGHT PARKING BRAKE DRIVE RIGHT REAR INTERIOR LIGHT RIGHT REAR LANE CHANGE WARNING MASTER RIGHT REAR RETRACTOR TENSIONER RIGHT REAR SEAT BELT BUCKLE CONTACT RIGHT REAR TWEETER RIGHT REAR TWEETER 2 RIGHT REAR WHEEL ELECTRONICS SYSTEM RIGHT REVERSIBLE ELECTROMOTIVE AUTOMATIC REEL RIGHT REVERSIBLE ELECTROMOTIVE ELECTRICALLY MOTORIZED REEL RIGHT SHIFT PADDLE ROOF AERIAL ROOF FUNCTION CENTER SDARS AERIAL SEATS SYSTEM SIDE MARKER LIGHT SIDE REPEATER SOUND SYSTEMS SOURCE 1 SOURCE 2 SOURCE 7 SOURCE 8 SOURCE 9 SOURCE 10 SOURCE 12 SOURCE 13 SOURCE 14 SOURCE 15 SOURCE 17 SOURCE 18 SPARK PLUG STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING WHEEL MODULE SWIVEL MODULE TAIL- LIGHT TAILGATE FUNCTION MODULE TAILLIGHT/ SIDE MARKER LIGHT TELEMATIC COMMUNICATION BOX TELEMATIC COMMUNICATION BOX LIN POWER DISTRIBUTION BOX TELEMATIC COMMUNICATION BOX SHIELD TELEMATICS AERIAL TELEPHONE AERIAL TERM 30 SPLY TERMINAL 30 SPLY TOP DRIVER'S DOOR TRIM PANEL LIGHTING TOP FRONT PASSENGER DOOR TRIM PANEL LIGHTING TOP RADIATOR BLIND DRIVE TOP REAR DRIVER'S SIDE DOOR TRIM PANEL LIGHTING TOP REAR PASSENGER DOOR TRIM PANEL LIGHTING TOP REAR PASSENGER'S DOOR TRIM PANEL LIGHTING TOUCH DETECTION ELECTRONICS TRAILER BRAKE SYSTEM PLUG CONNECTION TRAILER MODULE TRANSFER BOX TRANSMISSIONS SYSTEM TRUNK COMPARTMENT LIGHT 2 TRUNK COMPARTMENT LIGHT LID TRUNK LID AUTOMATIC SOFT CLOSE SYSTEM POWERTRAIN TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN IND USB CHARGING PORT 6 USB CONNECTION USB PORT USB PORT 2 USB PORT USB CONNECTION USB- HUB USED) VERTICAL DYNAMICS PLATFORM VIDEO MODULE W/ AIR FRESHENER W/ AUTOMATIC TRANSMISSION W/ CAN BUS W/ ELECTRICAL SEAT ADJUSTMENT W/ EXTENDABLE THIGH SUPPORT W/ EXTENDIBLE THIGH SUPPORT W/ HOT FILM AIR MASS METER W/ HOT FILM AIR MASS METER W/O HOT FILM AIR MASS METER W/ LANE CHANGE WARNING W/ LED W/ LED W/O LED W/ LIN BUS FUNCTION W/ M SPORTS STEERING WHEEL W/ MEMORY W/ OPTIONAL EQUIPMENT SYSTEM W/ PANORAMIC GLASS ROOF W/ PANORAMIC ROOF W/ PREPARATION TRAILER MODULE W/ RECEIVER AUDIO MODULE W/ SEAT MODULE W/ TELEMATICS W/ TRAILER MODULE W/ VERTICAL DYNAMICS MANAGEMENT W/O ACTIVE SEAT VENTILATION W/O CAN BUS W/O ELECTRICAL SEAT ADJUSTMENT W/O EXTENDABLE THIGH SUPPORT W/O EXTENDIBLE THIGH SUPPORT W/O HOT FILM AIR MASS METER W/O INTERIOR LIGHT PACKAGE W/O LANE CHANGE WARNING W/O LED W/O LED W/ LED W/O MEMORY W/O OPTIONAL EQUIPMENT SYSTEM W/O PANORAMIC ROOF W/O RECEIVER AUDIO MODULE W/O SEAT MODULE W/O TELEMATICS W/O TRAILER MODULE W/O VERTICAL DYNAMICS MANAGEMENT WASHER FLUID RESERVOIR) WIPER DRIVE WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WIRELESS CHARGING ODDMENTS TRAY WIRELESS CHARGING STORAGE
