BMW X3 G01 (2017-2021) right front vanity mirror light Wiring diagrams
This page contains all the electrical diagrams for the component. right front vanity mirror light, in which he is found in the car BMW X3 G01 (2017-2021). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

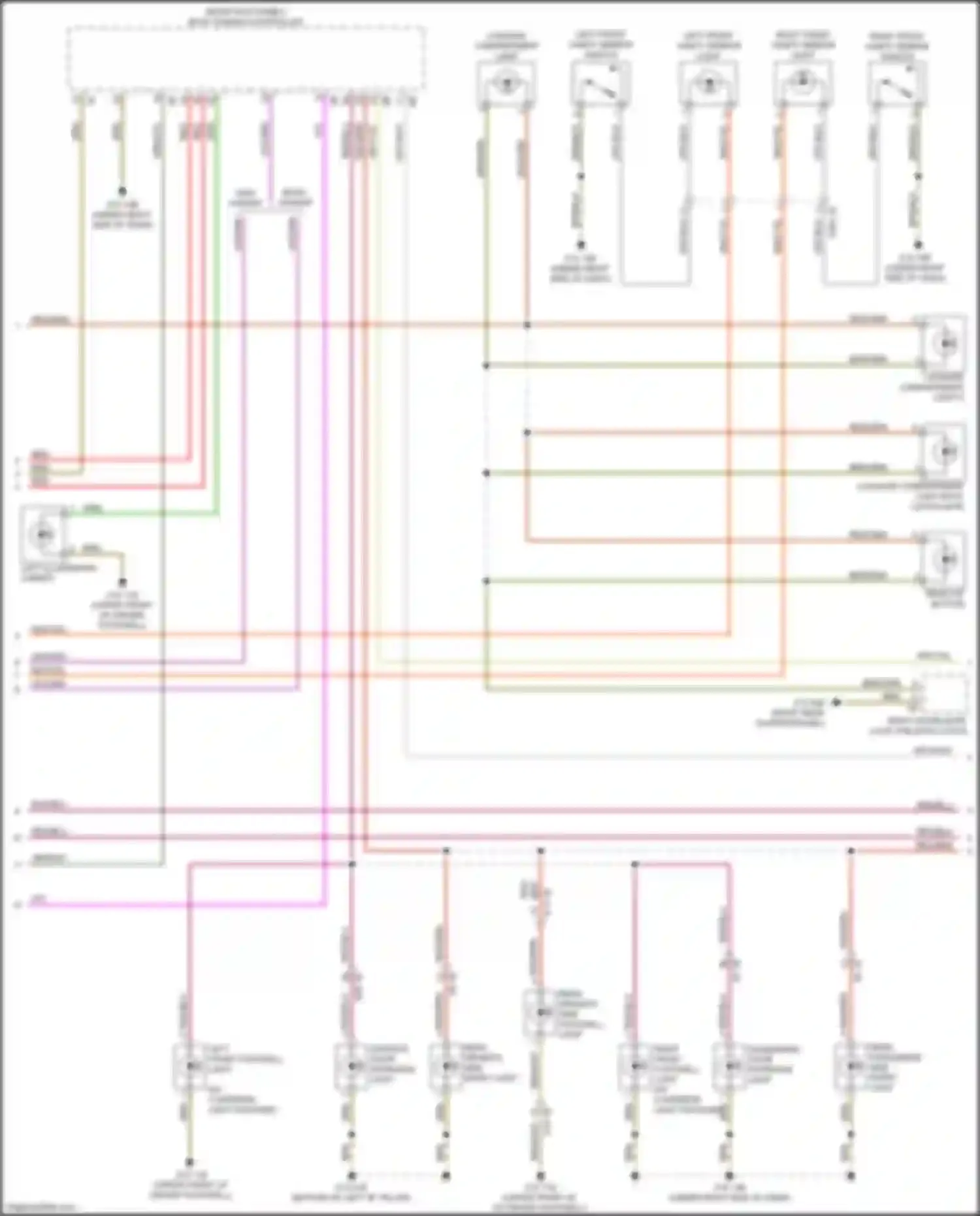

Wiring diagram right front vanity mirror light (1 of 2)
BASIC VARIANT
BOOT LID/TAILGATE LOCK (TAILGATE LATCH)
BRN WIRE
BRN/BLK WIRE
BRN/GRN WIRE
BRN/WHT WIRE
DRIVER'S DOOR ENTRANCE LIGHT
GRN WIRE
GRN/VIO WIRE
GRY/BLK WIRE
GRY/WHT WIRE
GRY/YEL WIRE
HIGH VARIANT
LEFT FRONT FOOTWELL LIGHT
LEFT FRONT VANITY MIRROR LIGHT
LEFT FRONT VANITY MIRROR SWITCH
LEFT ILLUMINATED CARPET
LUGGAGE COMPARTMENT LAMP
LUGGAGE COMPARTMENT LIGHT 2
LUGGAGE COMPARTMENT LIGHT BOOT LID/TAILGATE
PASSENGER DOOR ENTRANCE LIGHT
REAR DRIVER'S SIDE ENTRY LIGHT
REAR DRIVER'S SIDE FOOTWELL LIGHT
REAR LID BUTTON
REAR PASSENGER SIDE ENTRY LIGHT
RED WIRE
RED/BLU WIRE
RED/BRN WIRE
RED/GRN WIRE
RED/YEL WIRE
RIGHT FRONT FOOTWELL LIGHT
RIGHT FRONT VANITY MIRROR LIGHT
RIGHT FRONT VANITY MIRROR SWITCH
VIO WIRE
VIO/GRN WIRE
W/O INTERIOR LIGHT PACKAGE
Go to component -> Courtesy lamps circuit (2 of 4) -> RIGHT FRONT VANITY MIRROR LIGHT

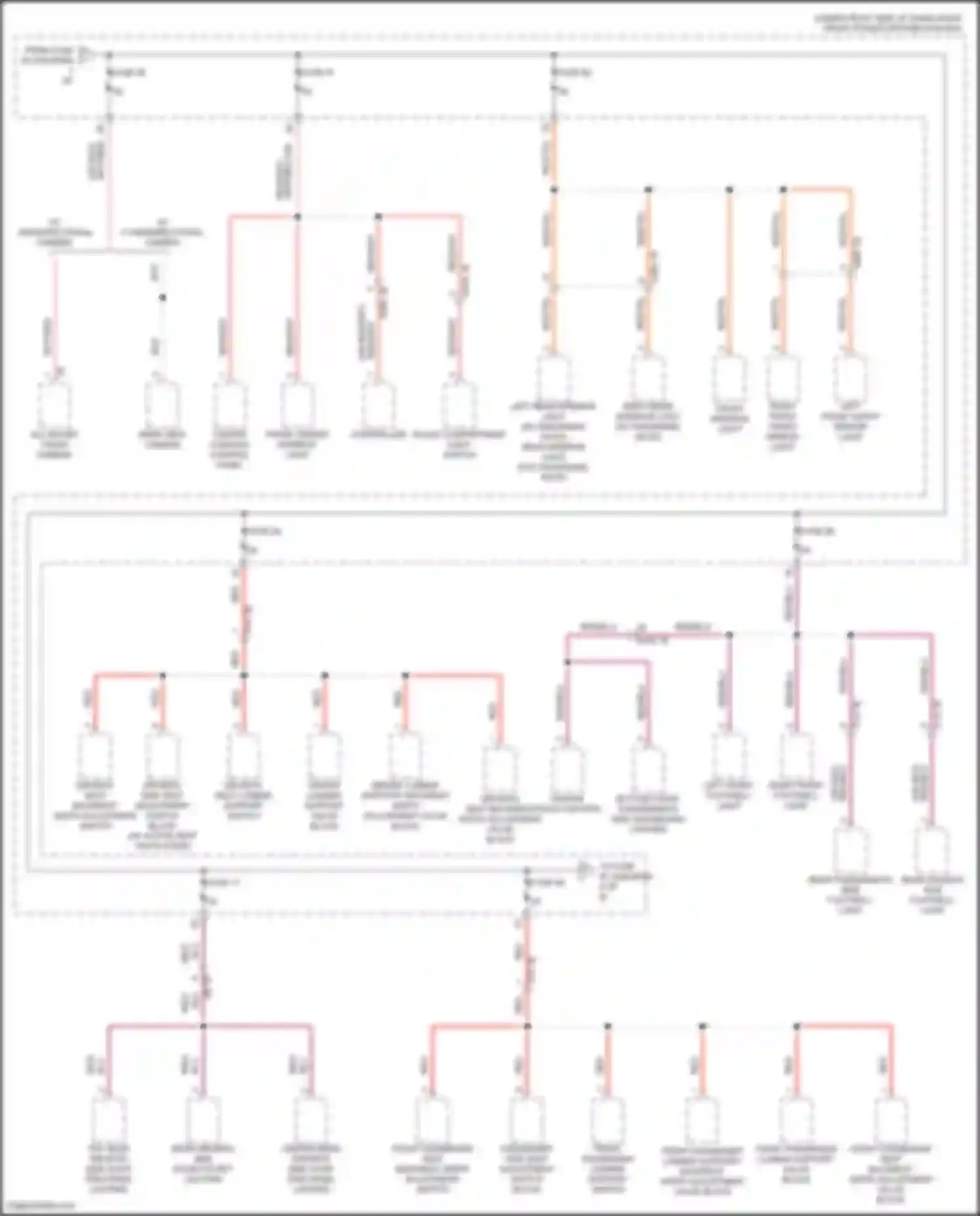

Wiring diagram right front vanity mirror light (2 of 2)
ALL ROUND VISION CAMERA
BLU WIRE
BOTTOM FRONT PASSENGER'S SIDE DASHBOARD LIGHTING
CENTER CONSOLE CONTROL PANEL
CENTER REAR DRIVER'S SIDE DOOR TRIM PANEL LIGHTING
CENTER STACK LIGHTING
CONTROLLER
DRIVER LUMBAR SUPPORT VALVE BLOCK
DRIVER LUMBAR SUPPORT/ BACKREST WIDTH ADJUSTMENT VALVE BLOCK
DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT SWITCH
DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK
DRIVER'S SEAT LUMBAR SUPPORT SWITCH
DRIVER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK
FROM FUSE 55 (DIAGRAM 3 OF 8)
FRONT CENTER ARMREST LIGHT
FRONT INTERIOR LIGHT
FRONT PASSENGER LUMBAR SUPPORT SWITCH
FRONT PASSENGER LUMBAR SUPPORT VALVE BLOCK
FRONT PASSENGER LUMBAR SUPPORT/ BACKREST WIDTH ADJUSTMENT VALVE BLOCK
FRONT PASSENGER SEAT BACKREST WIDTH ADJUSTMENT SWITCH
FRONT PASSENGER SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK
FUSE 60
FUSE 61
FUSE 62
FUSE 64
FUSE 65
FUSE 66
FUSE 71
GLOVE COMPARTMENT LIGHT SWITCH
LEFT FRONT FOOTWELL LIGHT
LEFT FRONT VANITY MIRROR LIGHT
LEFT REAR INTERIOR LIGHT
PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK
REAR DRIVER'S SIDE DOOR POCKET LIGHTING
REAR DRIVER'S SIDE FOOTWELL LIGHT
REAR INTERIOR LIGHT
REAR PASSENGER'S SIDE FOOTWELL LIGHT
REAR VIEW CAMERA
RED WIRE
RED/BLU (OR RED) WIRE
RED/BLU WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT FRONT FOOTWELL LIGHT
RIGHT FRONT VANITY MIRROR LIGHT
RIGHT REAR INTERIOR LIGHT
TO FUSE 67 (DIAGRAM 5 OF 8)
TOP REAR DRIVER'S SIDE DOOR TRIM PANEL LIGHTING
W/ OMNIDIRECTIONAL CAMERA
W/ PANORAMIC ROOF
W/O OMNIDIRECTIONAL CAMERA
W/O PANORAMIC ROOF
WHT WIRE
WHT/RED (OR RED/GRY) WIRE
WHT/RED WIRE
Go to component -> Power distribution circuit (4 of 8) -> RIGHT FRONT VANITY MIRROR LIGHT
