BMW X3 G01 (2017-2021) heating, air conditioning system audio mode control panel Wiring diagram
This page shows the only wiring diagram for the component.heating, air conditioning system audio mode control panel, which is found in the car BMW X3 G01 (2017-2021). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

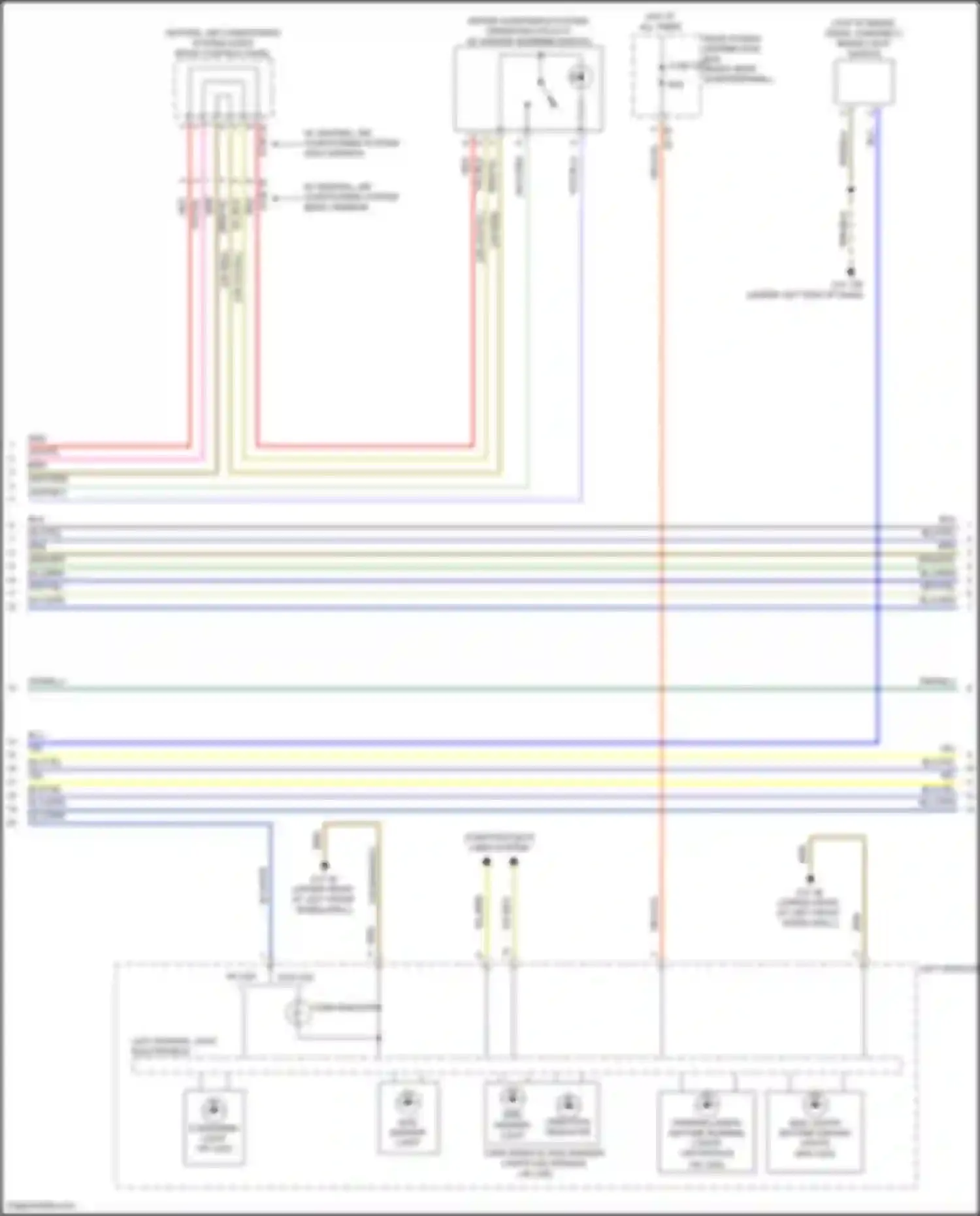

Wiring diagram heating, air conditioning system audio mode control panel (1 of 1)
BLK WIRE
BLU WIRE
BLU/BRN WIRE
BLU/GRN WIRE
BLU/YEL WIRE
BRAKE LIGHT SWITCH
BRN WIRE
BRN/BLK WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
CORNERING LIGHT
DIRECTION INDICATOR
DRIVER ASSISTANCE SYSTEM OPERATING FACILITY W/ HAZARD WARNING SWITCH
FUSE 225
GRN/BLU WIRE
GRN/GRY WIRE
GRY/YEL WIRE
HEATING, AIR CONDITIONING SYSTEM AUDIO MODE CONTROL PANEL
HOT AT ALL TIMES
LEFT FRONTAL LIGHT ELECTRONICS
LEFT HEADLIGHT
PARKING LAMPS/ DAYTIME RUNNING LIGHTS LED MODULE
REAR POWER DISTRIBUTION BOX
RED WIRE
RED/YEL WIRE
SIDE LIGHTS/ DAYTIME DRIVING LIGHTS
SIDE MARKER LIGHT
TURN INDICATOR
TURN SIGNALS/ SIDE MARKER LIGHTS LED MODULE
VIO/YEL WIRE
W/ HEATING, AIR CONDITIONING SYSTEM BASIC VERSION
W/ HEATING, AIR CONDITIONING SYSTEM HIGH VERSION
W/ LED
W/O LED
WHT/BLU WIRE
WHT/GRN WIRE
YEL WIRE
YEL/BLK WIRE
YEL/BRN WIRE
Go to component -> Exterior lamps circuit (2 of 4) -> HEATING, AIR CONDITIONING SYSTEM AUDIO MODE CONTROL PANEL
