Wiring Diagrams for BMW X2 F39 (2017-2023)

Automatic a/c circuit

Anti-lock brakes circuit

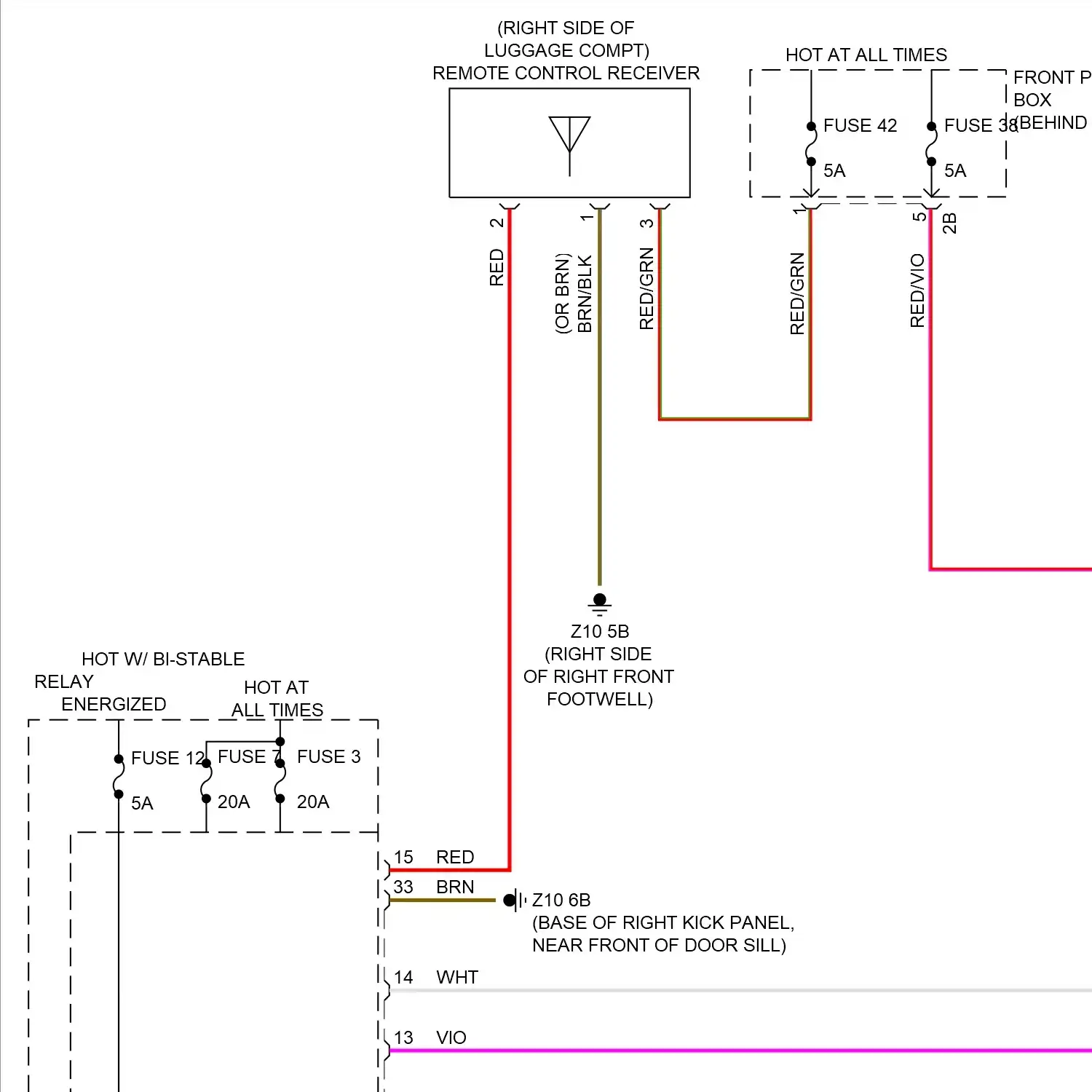

Access/start circuit Anti-theft & central locking circuit

Body control modules circuit

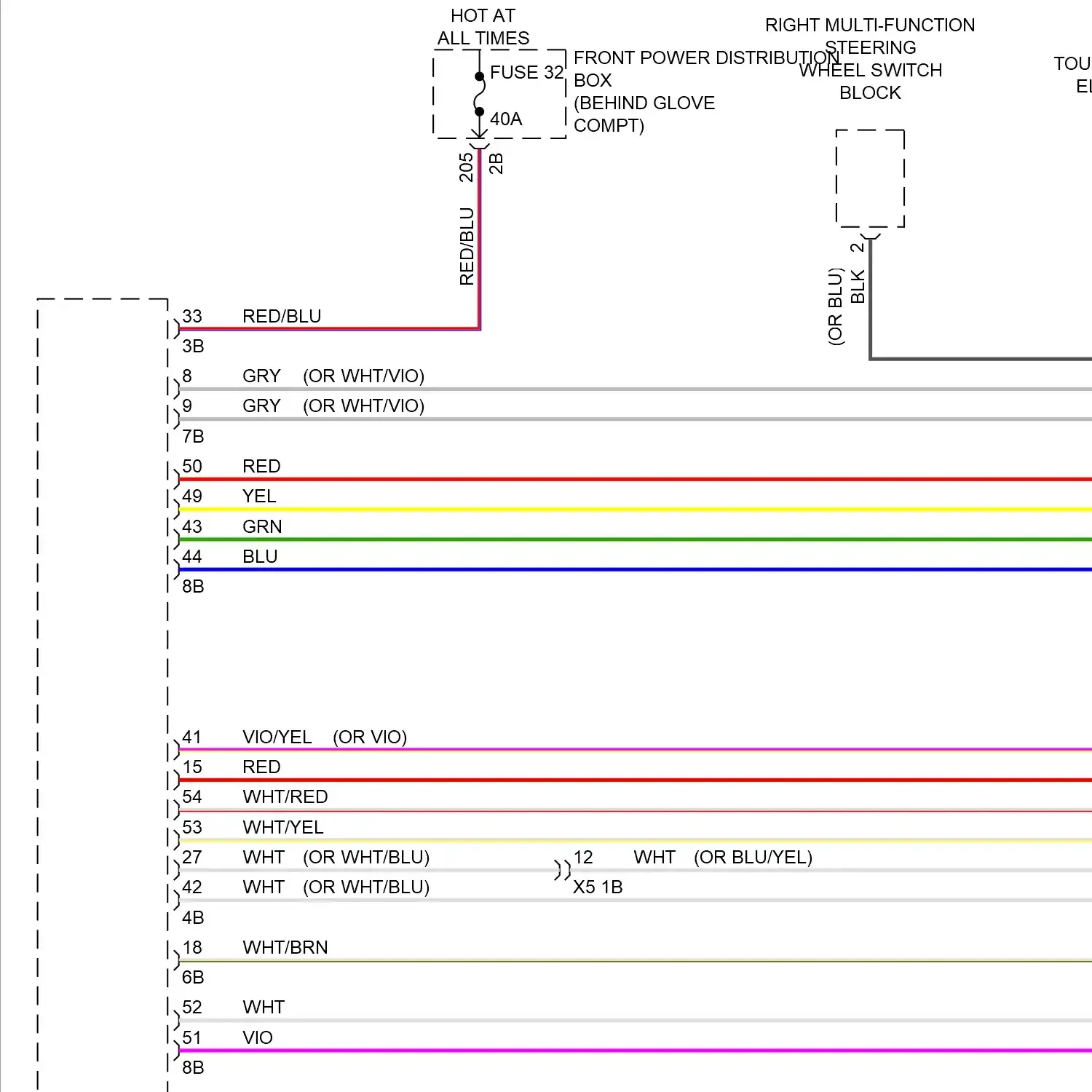

Data link connector circuit High/low bus circuit

Cooling fan circuit

Cruise control circuit

Heated mirrors circuit, w/ lin bus function Heated mirrors circuit, w/o lin bus function Rear defogger circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.0l turbo

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

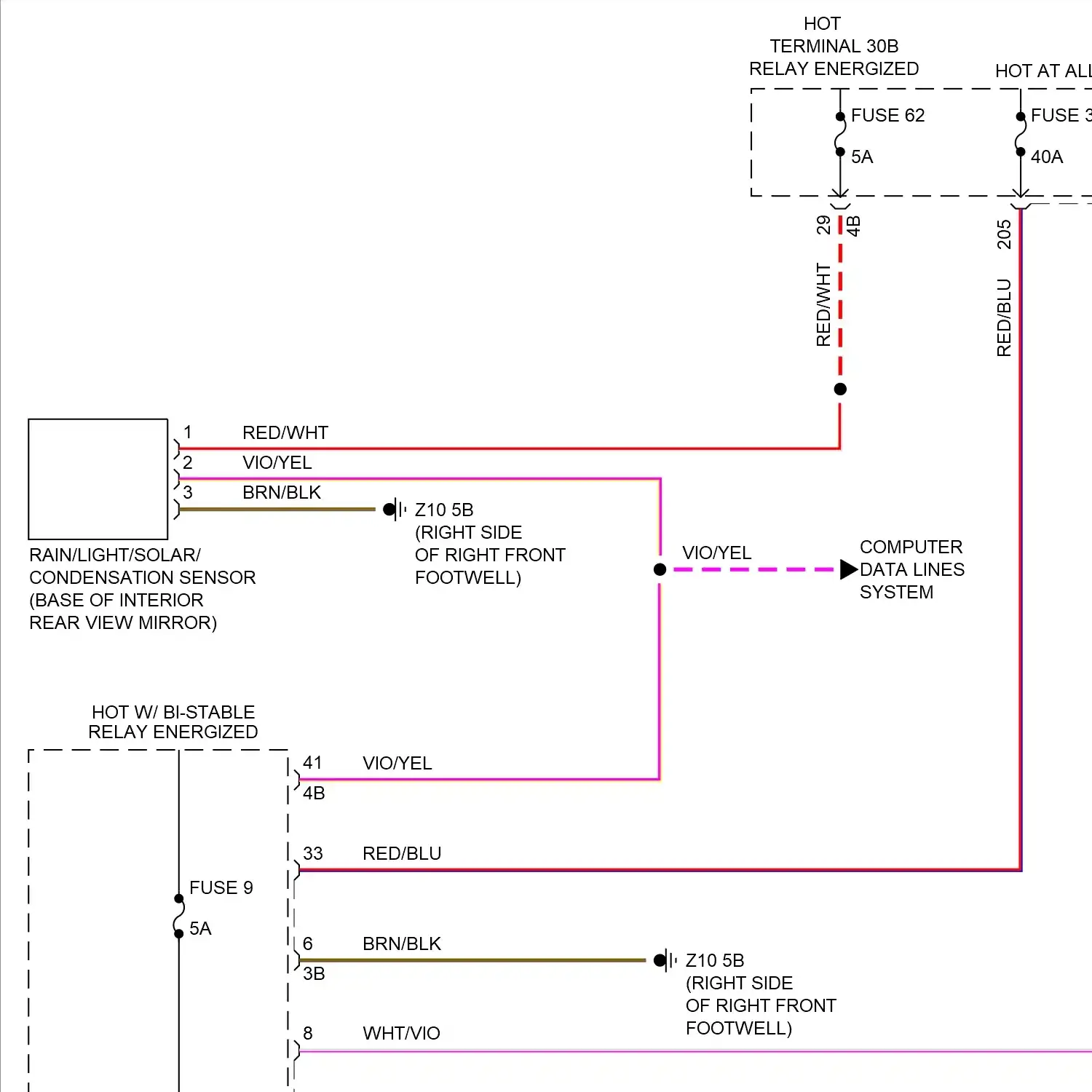

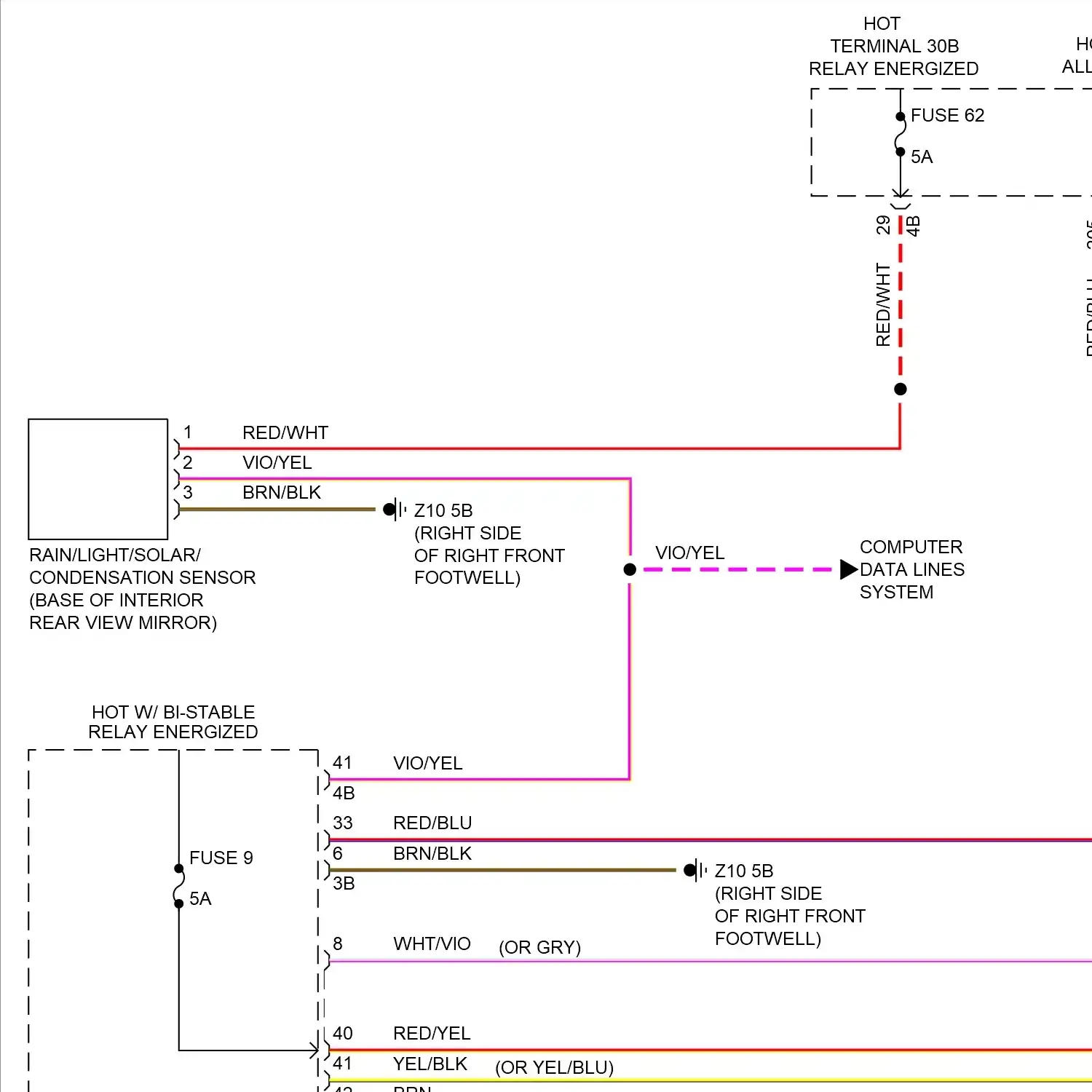

Headlights circuit, w/ led headlamps Headlights circuit, w/o led headlamps

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit, w/ lin bus function Memory mirrors circuit, w/o lin bus function

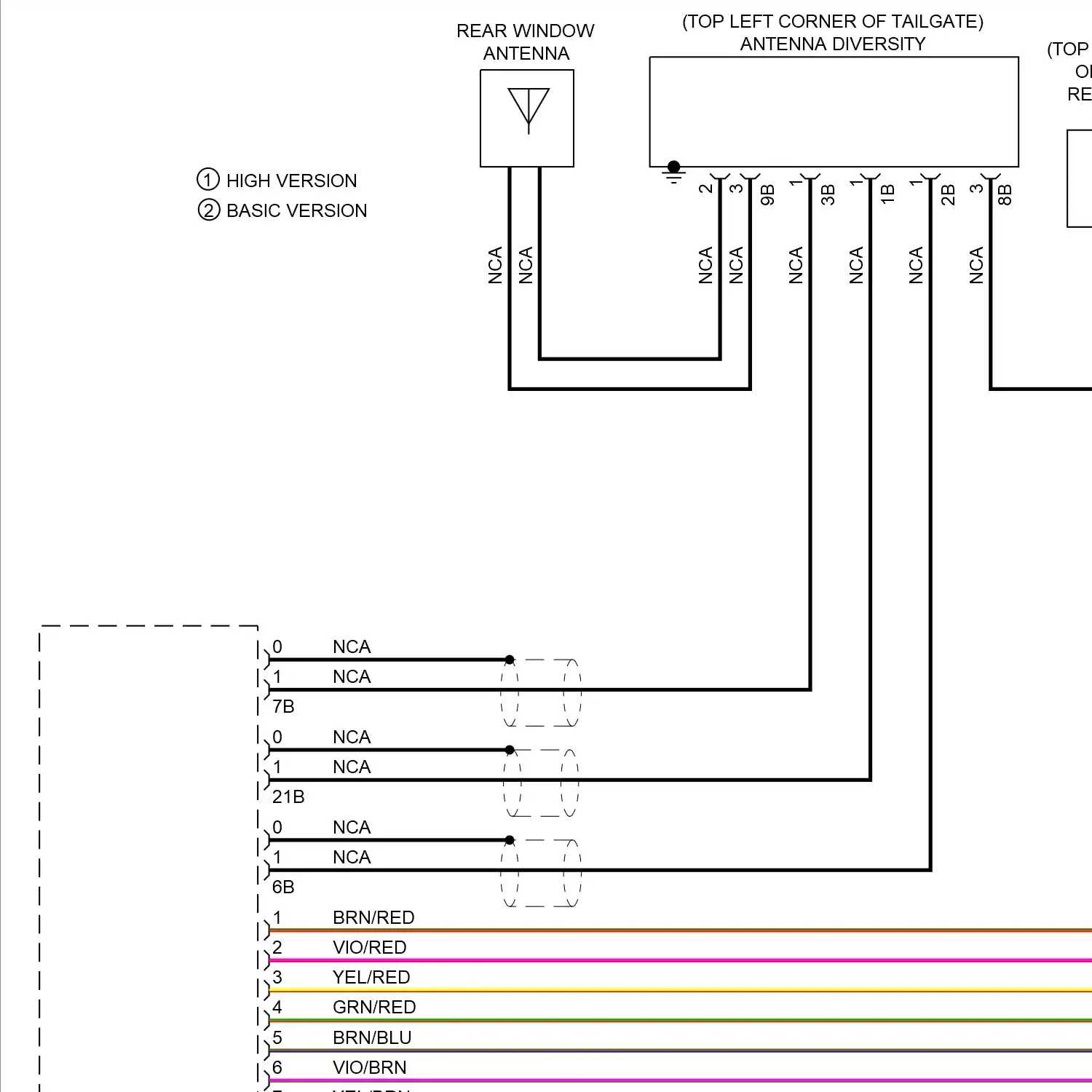

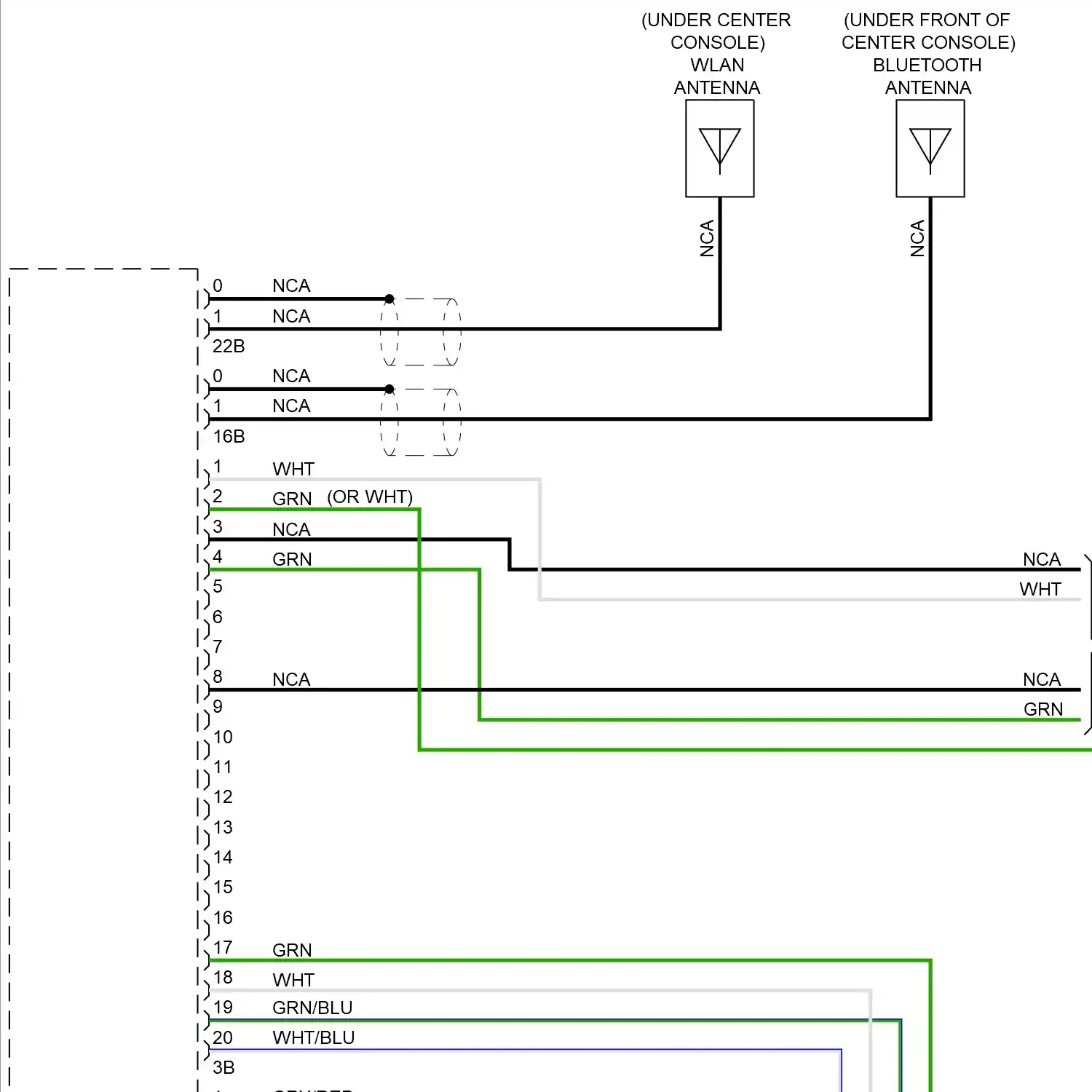

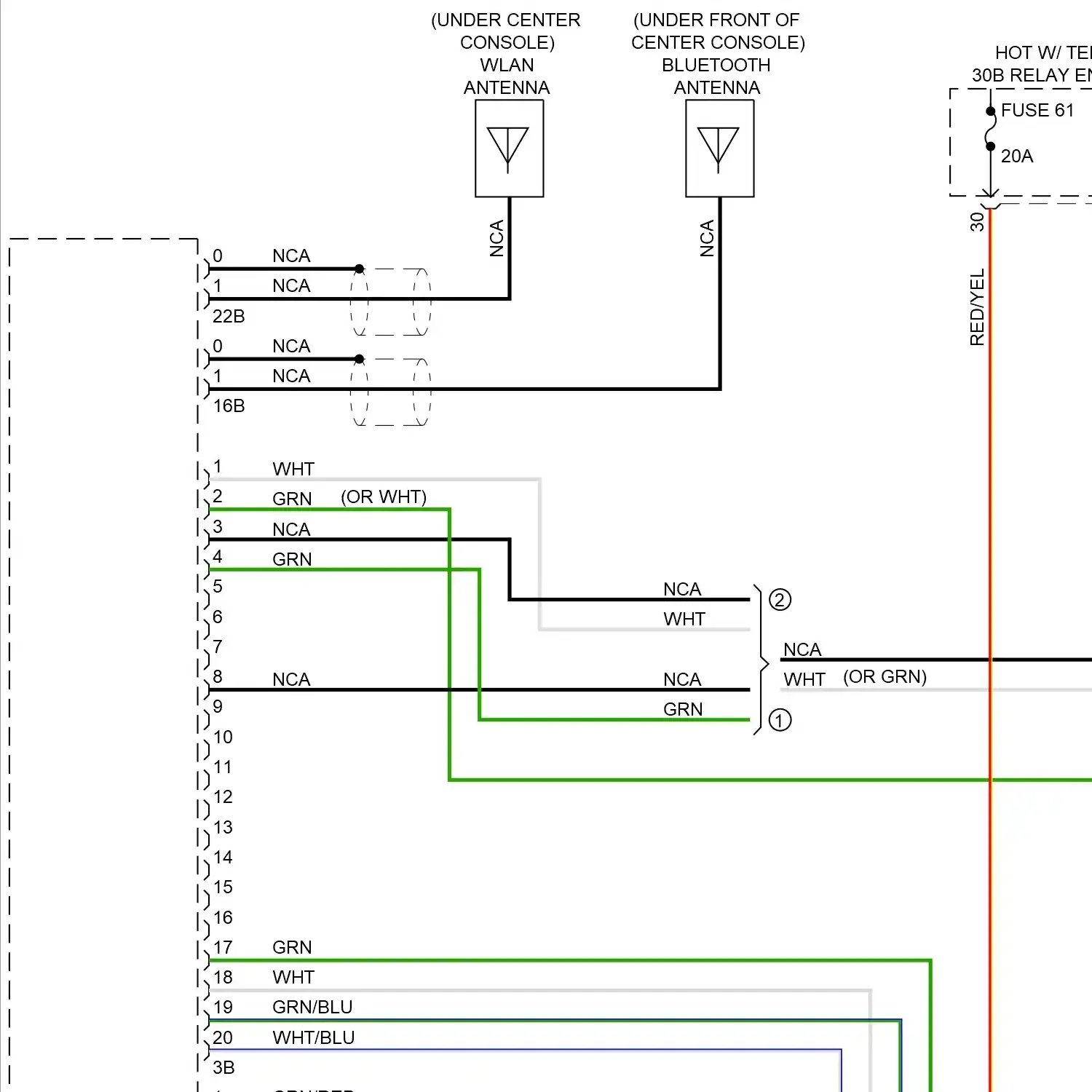

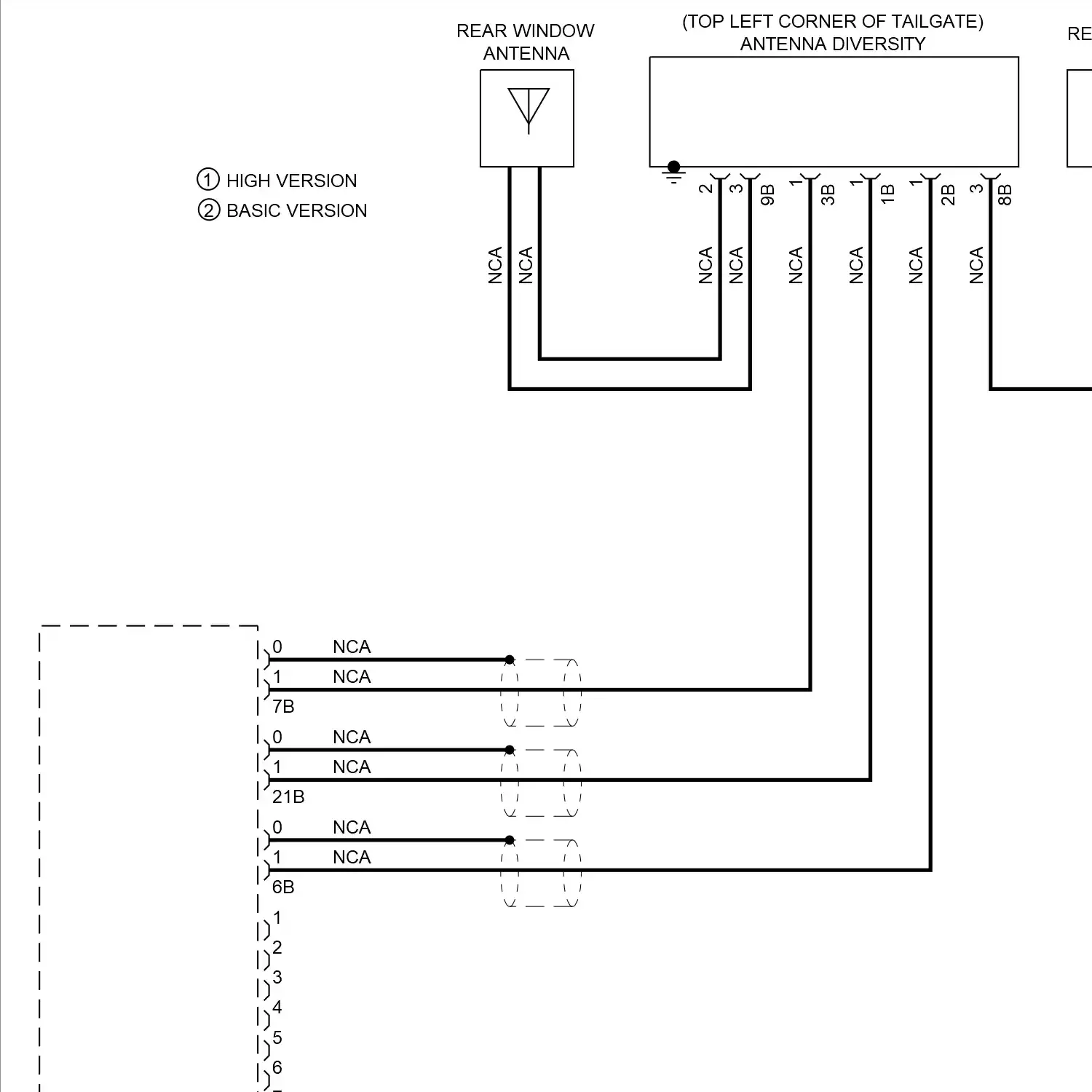

Lane departure warning circuit Navigation circuit, w/ hifi radio & active sound design Navigation circuit, w/ hifi radio w/o active sound design Navigation circuit, w/o hifi radio & active sound design Navigation circuit, w/o hifi radio w/ active sound design Parking assistant circuit Rear camera circuit

Power distribution circuit

Power door locks circuit

Power mirrors circuit

Heated seats circuit, w/ memory Heated seats circuit, w/o memory Heated steering wheel circuit Lumbar circuit, w/ electric seat adjustment Lumbar circuit, w/o electric seat adjustment Passenger power seat circuit Sport seats circuit, w/ electric seat adjustment Sport seats circuit, w/o electric seat adjustment

Power top/sunroof circuit

Power windows circuit

Base radio circuit, w/ active sound design Base radio circuit, w/o active sound design Hifi radio circuit, w/ active sound design Hifi radio circuit, w/o active sound design

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

Transmission circuit

Contact-free tailgate opening circuit Trunk & fuel door release circuit

Warning systems circuit

Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM POWER DISTRIBUTION SYSTEM BONNET CONTACT LOCK SIG BOOT LID/ TAILGATE LOCK BOOT LID/TAILGATE LOCK SIG CENTER WASHER NOZZLE HEATING DRIVER BELT FORCE LIMITED GAS GENERATOR DRIVER SIDE AIR BAG GAS GENERATOR DRIVER'S AIR BAG GAS GENERATOR DRIVER'S DOOR LOCK DRIVER'S KNEE AIR BAG GAS GENERATOR DRIVER'S SIDE REAR DOOR LOCK ELECTRIC STEERING LOCK FRONT PASSENGER BELT FORCE LIMITED GAS GENERATOR FRONT PASSENGER DOOR LOCK FRONT PASSENGER SIDE AIR BAG GAS GENERATOR FRONT PASSENGER'S AIR BAG GAS GENERATOR FRONT PASSENGER'S KNEE AIR BAG GAS GENERATOR HI-FI AMPLIFIER HIGH RANGE HORN ACT IGNITION COIL CYLINDER 1 IGNITION COIL CYLINDER 2 IGNITION COIL CYLINDER 3 IGNITION COIL CYLINDER 4 LEFT FRONT VALVE COIL LEFT HEAD AIR BAG GAS GENERATOR LEFT REAR VALVE COIL LEFT WASHER NOZZLE HEATING LOW RANGE HORN ACT PASSENGER'S SIDE REAR DOOR LOCK RIGHT FRONT VALVE COIL RIGHT HEAD AIR BAG GAS GENERATOR RIGHT REAR VALVE COIL RIGHT WASHER NOZZLE HEATING SUBWOOFER FANFARE HORN TERMINATING RESISTOR 2 TWEETER FANFARE HORN W/ TERMINATING RESISTOR W/O TERMINATING RESISTOR

(RIGHT FRONT OF ENGINE (RIGHT SIDE OF ENGINE AIR DISTRIBUTION FLAP MOTOR DEFROSTER FLAP MOTOR DIGITAL MOTOR ELECTRONICS ELECTROMOTIVE THROTTLE ACTUATOR ENGINE CONTROLS SYSTEM ENGINE START SIG ENGINE VENTILATION HEATING EXHAUST VANOS SOLENOID ACTUATOR FOOTWELL FLAP MOTOR FRESH AIR/RECIRCULATED AIR FLAP MOTOR INTAKE VANOS SOLENOID ACTUATOR LEFT FRONT PEDESTRIAN PROTECTION ACTUATOR LEFT MIXED AIR FLAP MOTOR LEFT REAR PEDESTRIAN PROTECTION ACTUATOR MIXED AIR FLAP MOTOR PUMP MOTOR RIGHT FRONT PEDESTRIAN PROTECTION ACTUATOR RIGHT MIXED AIR FLAP MOTOR RIGHT REAR PEDESTRIAN PROTECTION ACTUATOR SLIDING VISOR MOTOR STARTER MOTOR VIBRATION ACTUATOR

ANTENNA SIG BLUETOOTH ANTENNA BUMPER ANTENNA DRIVER SIDE EXTERNAL ANTENNA FRONT CENTER CONSOLE INTERIOR ANTENNA LUGGAGE COMPARTMENT ANTENNA PASSENGER SIDE EXTERNAL ANTENNA REAR CENTER CONSOLE INTERIOR ANTENNA REAR SPOILER ANTENNA REAR WINDOW ANTENNA RING ANTENNA ROOF ANTENNA SDARS, TELEPHONE, DABL, GPS AERIALS W/ ANTENNA AMPLIFIER W/O ANTENNA AMPLIFIER WIRELESS CHARGING SHELF ANTENNA AMPLIFIER WLAN ANTENNA

DRIVER'S DOOR CENTRAL LOCKING ACT BUTTON DRIVER'S DOOR CENTRAL LOCKING BUTTON EMERGENCY CALL BUTTON EMERGENCY CALL BUTTON FUNCTION INDICATOR LIGHT EXTERIOR BOOT LID BUTTON SIG FANFARE HORN BUTTON FRONT PASS DOOR CENTRAL LOCKING ACT BUTTON LF DOOR CONTACT SIG FRONT PASSENGER DOOR CENTRAL LOCKING BUTTON FRONT PASSENGER'S DOOR CENTRAL LOCKING BUTTON INTERIOR LIGHT BUTTON INTERIOR LIGHTS BUTTON INTERIOR LIGHTS LOCATOR LIGHTING BUTTON LEFT READING LAMP BUTTON OUTER TAILGATE BUTTON PARKING BRAKE BUTTON REAR LID BUTTON INSIDE ACT REFUELING BUTTON RIGHT READING LAMP BUTTON START-STOP BUTTON START-STOP BUTTON SIG TAILGATE BUTTON TRUNK LID TAILGATE BUTTON VEHICLE INTERIOR TAILGATE BUTTON

CAMERA-BASED DRIVER ASSISTANCE SYSTEMS KAFAS CAMERA HEATING LANE DEPARTURE WARNING CAMERA REAR VIEW CAMERA REVERSING CAMERA

12 POWER SOCKET 1 DIAGNOSTIC SOCKET TRAILER SOCKET USB CHARGING SOCKET 3 USB CHARGING SOCKET 4

AUXILIARY CONTROL UNIT DRIVER ASSISTANCE SYSTEM OPERATING UNIT W/ HAZARD WARNING SWITCH DRIVER'S SEAT ANGLE ADJUSTMENT DRIVE UNIT DRIVER'S SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE UNIT DRIVER'S SEAT HEIGHT ADJUSTMENT DRIVE UNIT HEAD UNIT HEAD UNIT BASIC W/ HEAD UNIT BASIS W/ INSTRUMENT CLUSTER CONTROL UNIT LIGHT OPERATING UNIT RADIATOR SHUTTER DRIVE UNIT USB/ETHERNET SELECTOR SWITCH HEAD UNIT BASIC W/ USB/ETHERNET SELECTOR SWITCH HEAD UNIT BASIC W/ NAVIGATION

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 18 FUSE 32 FUSE 34 FUSE 35 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 49 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 58 FUSE 59 FUSE 60 FUSE 61 FUSE 62 FUSE 63 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 71 FUSE 72 FUSE 73 FUSE 74 FUSE 75 FUSE 79 FUSE 80 FUSE 81 FUSE 82 FUSE 83 FUSE 90 FUSE 91 FUSE 92 FUSE 95 FUSE 96 FUSE 101 FUSE 107 FUSE 109 FUSE 110 FUSE 111 FUSE 119 FUSE 120 FUSE 121 FUSE 127 FUSE 128 FUSE 129 FUSE 131 FUSE 132 FUSE 400 FUSE 401 FUSE 402 FUSE 403 FUSE 404 FUSE 405 FUSE BOX

HEADLIGHT BEAM THROW ADJUSTMENT DRIVE HEADLIGHT CLEANING SYSTEM WASHER PUMP LEFT HEADLIGHT RIGHT HEADLIGHT TERMINAL 30 SPLY HIGH BEAM HEADLIGHT ACT

DRIVER MIRROR HEATER ACT DRIVER THIGH SUPPORT HEATING DRIVER'S SEAT BACKREST HEATING DRIVER'S SEAT HEATING ELECTRONICS DRIVER'S SEAT SURFACE HEATING FRONT ELECTRIC AUXILIARY HEATER FRONT PASS MIRROR HEATER ACT FRONT PASSENGER SEAT HEATING ELECTRONICS FRONT PASSENGER THIGH SUPPORT HEATING FRONT PASSENGER'S SEAT BACKREST HEATING HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL HEATING/ AIR CONDITIONING SYSTEM HEATING/AIR CONDITIONING SYSTEM MIRROR HEATING PASSENGER'S SEAT CUSHION HEATING STEERING WHEEL HEATER WATER JET HEATER ACT

AIR BAG INDICATOR LAMP FLASHING INDICATOR LAMP ACT GEAR INDICATOR LIGHT TURN INDICATOR

AUXILIARY TURN SIGNAL LAMP BACKUP LAMP BASIS INTERIOR LIGHTS SIGNAL DRIVER'S DOOR GROUND LIGHTS DRIVER'S SIDE REAR GROUND LIGHTS FLASHING IND LAMP ACT INTERIOR LIGHTS SIG LEFT LICENSE PLATE LAMP LT FOG LIGHTS ACT LUGGAGE COMPARTMENT LAMP PARKING LAMPS/ DAYTIME RUNNING LIGHTS LED MODULE PARKING LAMPS/DAYTIME RUNNING LIGHTS LED MODULE PARKING LIGHTS/ DAYTIME RUNNING LIGHT 2 LED MODULE PARKING LIGHTS/ DAYTIME RUNNING LIGHTS 2 LED MODULE PARKING LIGHTS/DAYTIME RUNNING LIGHT 2 LED MODULE RH FOG LIGHTS ACT RIGHT LICENSE PLATE LAMP SIDE LIGHTS/ DAYTIME DRIVING LIGHT SIDE LIGHTS/DAYTIME DRIVING LIGHT

DRIVER'S SEAT PNEUMATIC PUMP ELECTRIC FUEL PUMP ELECTRIC FUEL PUMP CONTROL ELECTRONICS ELECTRICAL FUEL PUMP CONTROL ELECTRONIC FRONT PASSENGER SEAT PNEUMATIC PUMP TURBOCHARGER COOLANT PUMP WASHER PUMP ACT WINDSCREEN WASHER PUMP ACT WINDSCREEN WASHER PUMP, REAR WASHER PUMP

BI-STABLE RELAY BISTABLE RELAY ACT DME MAIN RELAY ELECTRIC FAN CUT OUT RELAY ELECTRIC FAN CUT-OFF RELAY ELECTRIC FAN RELAY ENGAGE- MENT RELAY FANFARE HORN RELAY HEATED REAR WINDOW RELAY HOT W/ BI-STABLE RELAY ENERGIZED HOT W/ DME MAIN RELAY ENERGIZED HOT W/ TERMINAL BI-STABLE RELAY ENERGIZED IGNITION, FUEL INJECTION RELAY POWER SUPPLY SENSORS/ ACTUATORS RELAY REAR WIPER RELAY RELAY 2 ENERGIZED RELAY ENERGIZED VALVETRONIC RELAY

AUC SENSOR AUTOMATIC LUGGAGE COMPARTMENT LID ACTUATION ACOUSTIC SENSOR BRAKE VACUUM PRESSURE SENSOR CHARGE AIR TEMPERATURE BOOST PRESSURE SENSOR CONTACT-FREE TAILGATE OPENING LOWER SENSOR CONTACT-FREE TAILGATE OPENING UPPER SENSOR COOLANT TEMPERATURE SENSOR CRANKCASE TEMPERATURE SENSOR CRANKSHAFT SENSOR DRIVER SEAT POSITION SENSOR ENGINE OIL PRESSURE SENSOR ENVIRONMENTAL AIR CATALYST SENSOR ETHANOL SENSOR EVAPORATOR TEMPERATURE SENSOR EXHAUST CAMSHAFT SENSOR FOOTWELL TEMPERATURE SENSOR FRONT PASSENGER SEAT OCCUPANCY DETECTION SENSOR FRONT PASSENGER SEAT POSITION SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 GASOLINE PARTICULATE FILTER EXHAUST GAS PRESSURE SENSOR GEAR SENSOR HALL SENSOR HALL SENSOR GROUND HALL SENSOR SIG HIGH BEAM ASSISTANT SENSOR, CONTROL INTAKE CAMSHAFT SENSOR INTAKE-MANIFOLD PRESSURE SENSOR INTELLIGENT BATTERY SENSOR KNOCK SENSOR KNOCK SENSOR #2 LEFT "B" PILLAR AIR BAG SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT DOOR AIR BAG SENSOR LEFT FRONT OUTER ULTRASONIC SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT PEDESTRIAN PROTECTION SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR OUTER ULTRASONIC SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE FRONT PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR OIL LEVEL SENSOR OUTSIDE TEMP SENSOR SIG OUTSIDE TEMPERATURE SENSOR OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR BEFORE CATALYTIC CONVERTER POSITION SENSOR RADIATOR OUTLET TEMPERATURE SENSOR RAIL PRESSURE SENSOR RAIN/LIGHT/ SOLAR CONDENSATION SENSOR RAIN/LIGHT/SOLAR CONDENSATION SENSOR REFRIGERANT PRESSURE SENSOR RIGHT "B" PILLAR AIR BAG SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT DOOR AIR BAG SENSOR RIGHT FRONT OUTER ULTRASONIC SENSOR RIGHT FRONT RIDE HEIGHT SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT PEDESTRIAN PROTECTION SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR OUTER ULTRASONIC SENSOR RIGHT REAR RIDE HEIGHT SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE FRONT PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR ROTOR POSITION SENSOR RPM SENSOR RR LEVEL SENSOR SIG SENSOR GROUND SIREN W/ TILT ALARM SENSOR SPEED SENSOR STEERING TORQUE SENSOR TEMPERATURE SENSOR TOUCH DETECTION SENSOR TRANSMISSION POSITION SENSOR VENTILATION TEMPERATURE SENSOR VENTURI NOZZLE PRESSURE SENSOR WASHER FLUID LEVEL SENSOR

FRONT CENTER MID-RANGE SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT MID-RANGE SPEAKER LEFT REAR MID-RANGE SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR MID-RANGE SPEAKER

BRAKE FLUID LEVEL SWITCH BRAKE LIGHT SWITCH CHANGEOVER SWITCH DRIVER ASSISTANCE SYSTEM OPERATING FACILITY W/ HAZARD WARNING SWITCH DRIVER SEAT LUMBAR SUPPORT SWITCH DRIVER'S DOOR SWITCH BLOCK DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT SWITCH DRIVER'S SIDE REAR POWER WINDOW SWITCH DRIVER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK FRONT PASSENGER LUMBAR SUPPORT SWITCH FRONT PASSENGER SEAT BACKREST WIDTH ADJUSTMENT SWITCH FRONT PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK FRONT PASSENGER'S DOOR POWER WINDOW SWITCH GEAR SELECTOR SWITCH GLOVE BOX LIGHT SWITCH HOOD CONTACT SWITCH LEFT FRONT VANITY MIRROR SWITCH LEFT MULTI- FUNCTION STEERING WHEEL SWITCH BLOCK LEFT MULTI-FUNCTION STEERING COLUMN SWITCH CLUSTER LEFT MULTI-FUNCTION STEERING WHEEL SWITCH CLUSTER OIL PRESSURE SWITCH PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK PASSENGER'S DOOR POWER WINDOW SWITCH PASSENGER'S SIDE REAR POWER WINDOW SWITCH PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK PRESSURE SWITCH RIGHT FRONT VANITY MIRROR SWITCH RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH BLOCK RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH CLUSTER RIGHT STEERING WHEEL MULTI-FUNCTION SWITCH CLUSTER SELECTOR SWITCH STEERING COLUMN ADJUSTMENT, HEATED STEERING WHEEL SWITCH STEERING COLUMN SWITCH CLUSTER SWITCH SIGNAL

BLOW OFF VALVE CONTROL VALVE CONTROL VALVE ACT CRANKCASE COOLANT SHUTOFF VALVE DRIVER LUMBAR SUPPORT VALVE BLOCK DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK ELECTRICAL WASTEGATE VALVE FRONT PASSENGER LUMBAR SUPPORT VALVE BLOCK FRONT PASSENGER SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK FRONT PASSENGER SIDE SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK FUEL VENT VALVE OIL PRESSURE CONTROL VALVE PRESSURE CONTROL VALVE QUANTITY CONTROL VALVE SOLENOID VALVE SOLENOID VALVE SOLENOID VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE ORG/YEL WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE PNK/RED WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

(OR ACCELERATOR PEDAL MODULE ACCENT LIGHT ACTIVE SOUND DESIGN ADJUSTMENT DRIVE AIR CONDITIONING AIR CONDITIONING COMPRESSOR AIR CONDITIONING SYSTEM AIR DISTRIBUTION MICROSWITCH ALARM SYSTEM AMBIENT LIGHT ANTI-THEFT ALARM SYSTEM LED ANTI-THEFT SYSTEM AUC SENS SIG AUDIO CONTROL PANEL AUTOMATIC LUGGAGE COMPARTMENT LID ACTUATION AUX-IN CONNECTION AUXILIARY BRAKE LIGHT BACKREST ADJ BACKUP LAMPS CIRCUIT BASE PLATE BASE PLATE FAN BASIC VERSION BASIC VERSION HIGH VERSION BLOWER OUTPUT STAGE BODY CAN BUS SIG BODY DOMAIN CONTROLLER BOOT LID AUTOMATIC SOFT-CLOSE DRIVE BRAKE LIGHT BRAKE LIGHT ACT BRAKE LIGHT SW SIG BRK LIGHT ACT BRK LIGHT SW SIG BUS DIAGNOSIS SIG BUS SIG CAR SHARING MODULE CENTER CONSOLE CONTROL PANEL CENTER CONSOLE CONTROL PANEL GROUND CENTER CONSOLE CONTROL PANEL SIGNAL CENTER CONSOLE OPERATING FACILITY CENTER DASHBOARD LIGHTING CENTER REAR OF LUGGAGE COMPT) CENTRAL INFORMATION DISPLAY COMFORT ACCESS AERIAL SIG COMPUTER DATA LINES SYSTEM CONTACT FREE TAILGATE OPENING EVALUATION ELECTRONICS COOLING FANS SYSTEM CORNERING LIGHT CORNERING LIGHT LED MODULE CRASH SAFETY MODULE CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR DATA BUS SIG DEFOGGER SYSTEM DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVER ELECTRONIC OUTER DOOR HANDLE MODULE DRIVER EXTERIOR MIRROR DRIVER LOCKING DRIVE ACT DRIVER MODULE PWR SPLY DRIVER POWER WINDOW DRIVE DRIVER RETRACTOR TENSIONER DRIVER SIDE DOOR CONTACT SIG DRIVER SIDE LOCKING DRIVE ACT DRIVER SIDE REAR INTERIOR TRIM LIGHTING DRIVER VEHICLE EXTERIOR MIRROR DRIVER'S DOOR DOOR TRIM PANEL LIGHTING DRIVER'S DOOR ENTRY LIGHTING DRIVER'S DOOR TRIM PANEL LIGHTING DRIVER'S PWR WINDOW DRIVE ACT DRIVER'S SEAT BACKREST ANGLE ADJUSTMENT DRIVE DRIVER'S SEAT BELT BUCKLE CONTACT DRIVER'S SEAT MODULE DRIVER'S SIDE INTERIOR TRIM LIGHTING DRIVER'S SIDE REAR DOOR SILL COURTESY LIGHT DRIVER'S SIDE REAR DOOR TRIM PANEL LIGHTING DRIVER'S SIDE REAR FOOTWELL LIGHT DRIVER'S SIDE REAR INTERIOR TRIM LIGHTING DRIVER'S SIDE REAR POWER WINDOW DRIVE DRIVING LIGHT ACT DRV ADJ SW DRV ANGLE ADJ DRV HEIGHT ADJ ELECTRIC FAN ELECTRICAL EXHAUST FLAP ELECTRO- CHROMIC INTERIOR MIRROR ELECTRO- MECHANICAL POWER STEERING ELECTROCHROMIC INTERIOR MIRROR ELECTROCHROMIC INTERIOR REAR VIEW MIRROR ELECTROCHROMIC MIRROR ELECTROMECHANICAL POWER STEERING ELECTRONIC OUTER DOOR HANDLE MODULE SIG ELECTRONIC POWER STEERING SYSTEM ELECTRONIC STEERING WHEEL MODULE ELECTRONIC SUSPENSION SYSTEM ELECTRONIC TRANSMISSION CONTROL ELECTRONICS JUNCTION BOX ELECTRONICS TOUCH DETECTION EMERGENCY LOUDSPEAKER ETHERNET DATA LINE FAN BASE PLATE FLASHING IND LMP ACT FLEX RAY BUS SIG FLEXRAY BUS SIG FRONT CENTER TWEETER FRONT INTERIOR LIGHT FRONT PASSENGER DOOR ENTRY LIGHTING FRONT PASSENGER DOOR TRIM PANEL LIGHTING FRONT PASSENGER EXTERIOR MIRROR FRONT PASSENGER POWER WINDOW DRIVE FRONT PASSENGER RETRACTOR TENSIONER FRONT PASSENGER SEAT ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT BACKREST ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT FORWARD/ BACK ADJUSTMENT DRIVE FRONT PASSENGER SEAT HEIGHT ADJUSTMENT DRIVE FRONT PASSENGER SEAT OCCUPANCY DETECTION FRONT PASSENGER VEHICLE EXTERIOR MIRROR FRONT PASSENGER'S DOOR GROUND LIGHT FRONT PASSENGER'S DOOR TRIM PANEL LIGHTING FRONT POWER DISTRIBUTION BOX FT PASS LOCKING DRIVE ACT FUEL FILLER FLAP CENTRAL LOCKING DRIVE FUEL FILLER LOCKING DRIVE ACT FUEL LEVEL SENS SIG FWD/BWD ADJ GLOVE COMPARTMENT LIGHT HALL SENS GND HALL SENS GROUND HALL SENS SIG HALL SENS SIG RR PASSENGER'S PWR WINDOW SW ACT HALL SENS SPLY HAZARD WARNING LIGHT SW SIG HDC SIG HEAD-UP DISPLAY HEADLIGHTS SYSTEM HEAT MANAGEMENT MODULE HIGH BEAM HIGH BEAM HEADLIGHTS ACT HIGH BEAM LIGHT ACT HIGH VERSION HIGH VERSION BASIC VERSION HORNS SYSTEM HOT AT ALL TIMES HOT FILM AIR MASS METER HOT W/ HOT W/ TERMINAL ID READER INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INSTRUMENT PANEL INTEGRATED SUPPLY MODULE INTERFERENCE SUPPRESSOR FILTER INTERIOR LIGHT ACT INTERIOR LIGHTING JUNCTION BOX ELECTRONICS K CAN BUS K-CAN BUS SIG K-CAN BUS SIGNAL K-LIN K-LIN BUS SIG LED ACT LED ACTIVATION LED ANTI-THEFT LED ANTI-THEFT K CAN BUS SIG LEFT FOG LIGHT LEFT FRONT ELECTRONIC WHEEL SYSTEM LEFT FRONT FOOTWELL LIGHT LEFT FRONT TWEETER LEFT FRONT VANITY MIRROR LIGHT LEFT FRONT WOOFER LEFT FRONTAL LIGHT ELECTRONICS LEFT INNER TAILGATE LEFT INNER TAILLIGHT LEFT LICENSE PLATE LIGHT LEFT OUTER TAILLIGHT LEFT PARKING BRAKE DRIVE LEFT REAR ELECTRONIC WHEEL SYSTEM LEFT REAR INTERIOR LIGHT LEFT REAR LID LIFT DRIVE LEFT REAR RETRACTOR TENSIONER LEFT REAR TWEETER LEFT SHIFT PADDLE LEFT SIDE READING LIGHT LEFT TAILLIGHT ACT LEFT TURN SIGNAL LIGHT ACT LHZ LED LHZ S LHZ- LICENSE PLATE LIGHT ACT LIGHT SOURCE 1 LIGHT SOURCE 2 LIGHT SOURCE 2 LIGHT SOURCE 3 LIGHT SOURCE 3 LIGHT SOURCE 5 LIGHT SOURCE 4 LIGHT SOURCE 4 LIGHT SOURCE 6 LIGHT SOURCE 4 LIGHT SOURCE 7 LIGHT SOURCE 5 LIGHT SOURCE 9 LIGHT SOURCE 8 LIN BUS SIG LIN BUS SIGNAL LOCAL INTERCONNECT N/W DATA BUS LOCATOR LIGHT, AMBIENT LIGHT SIG LOCATOR LIGHT, AMBIENT LIGHT SIG COURTESY LIGHTING ACT LOCATOR LIGHTING LONGITUDINAL TORQUE DISTRIBUTION LOW BEAM LOW BEAM LIGHT ACT LT TURN SIG LIGHT ACT LUMBAR CIRCUIT MAGNETIC CLUTCH ACT MAGNETIC COUPLING MIRROR ELECTRONICS MIRROR FOLD- IN DRIVE NATURAL VACUUM LEAK DETECTION NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NOISE SUPPRESSION FILTER OPTIONAL EQUIPMENT SYSTEM OPTIONAL EXTRA SYSTEM OUTSIDE TEMP SIG PARKING MANEUVERING ASSISTANT PASS DASHBOARD DEACTIVATED STRIP LIGHT PASS SIDE DOOR CONTACT SIG PASS SIDE LOCKING DRIVE ACT PASSENGER ELECTRONIC OUTER DOOR HANDLE MODULE PASSENGER POWER WINDOW DRIVE PASSENGER'S DOOR SW SIG PASSENGER'S SEAT BELT BUCKLE CONTACT PASSENGER'S SIDE DASHBOARD DECORATIVE STRIP LIGHTING PASSENGER'S SIDE INTERIOR TRIM LIGHTING PASSENGER'S SIDE REAR COURTESY LIGHT PASSENGER'S SIDE REAR COURTESY LIGHTING PASSENGER'S SIDE REAR DOOR TRIM PANEL LIGHTING PASSENGER'S SIDE REAR FOOTWELL LIGHT PASSENGER'S SIDE REAR INTERIOR TRIM LIGHTING PASSENGER'S SIDE REAR POWER WINDOW DRIVE PASSENGER'S SIDE REAR SILL COURTESY LIGHT PASSENGER'S SIDE REAR SILL COURTESY LIGHTING PMW-BFI POWER DISTRIBUTION SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS, DOOR LOCKS, ANTI-THEFT SYSTEMS PT CAN BUS PT CAN H PT CAN L PT-CAN BUS SIG PWR BFI PWR SPLY PWR WINDOW DRIVE ACT RADIATOR BLIND DRIVE REAR FOG LIGHT ACT REAR FOG LIGHT/ DYNAMIC BRAKE LIGHT REAR INTERIOR LIGHT REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER REJECTOR CIRCUIT 2 REAR WIPER REFRIGERANT PRESS SENS SIG REFRIGERANT PRESS SENS SPLY REMOTE CONTROL RECEIVER RESET CONTACT SIG REVERSING LIGHT ACT RF DOOR CONTACT SIG RIGHT FOG LIGHT RIGHT FRONT ELECTRONIC WHEEL SYSTEM RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT TWEETER RIGHT FRONT VANITY MIRROR LIGHT RIGHT FRONT WOOFER RIGHT FRONTAL LIGHT ELECTRONICS RIGHT INNER TAILLIGHT RIGHT LICENSE PLATE LIGHT RIGHT OUTER TAILLIGHT RIGHT PARKING BRAKE DRIVE RIGHT READING LIGHT RIGHT REAR ELECTRONIC WHEEL SYSTEM RIGHT REAR INTERIOR LIGHT RIGHT REAR RETRACTOR TENSIONER RIGHT REAR TWEETER RIGHT SHIFT PADDLE RIGHT SIDE OF RADIATOR) RIGHT SIDE READING LIGHT RIGHT TAIL LIGHT ACT RIGHT TRUNK LID LIFTING DRIVE RIGHT TURN SIG LIGHT ACT ROOF AERIAL ROOF FUNCTION CENTER RR FOG LIGHT ACT RR PASSENGER'S PWR WINDOW DRIVE ACT RR PASSENGER'S PWR WINDOW SW ACT RR WINDOW DEFOGGER ACT RR WIPER ACT RR WIPER ACT RR PASSENGER'S PWR WINDOW DRIVE ACT RT TAILLIGHT ACT RT TURN SIG LIGHT ACT SEAT BACKREST) SEAT CUSHION) SEATS SYSTEM SELECTOR LEVER SENS GROUND SHIFT PADDLES SIG SIDE MARKER LIGHT SOUND SYSTEMS SPARK PLUG SPORT SEAT CIRCUIT SPORT SEATS CIRCUIT START SIG START STOP STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STARTING/CHARGING, POWER DISTRIBUTION, ANTI-THEFT SYSTEMS STEERING WHEEL MODULE SUPPLEMENTAL RESTRAINTS SYSTEM SUPPLY TERM 30 T LHZ- TAIL LIGHT ACT TAILGATE FUNCTION MODULE TAILLIGHT/ SIDE MARKER LIGHT TELEMATIC COMMUNICATION BOX TELEPHONE, DABL, SDARS AERIALS TEMP SENS SIG TERM 30 SPLY TERM 31 TERMINAL 15 SPLY TERMINAL 15 WAKE-UP SIG TERMINAL 30 TERMINAL 30 SPLY THIRD ROW SEATS INTERIOR LIGHT TOP OF TRANSMISSION) TOUCH BOX TOUCH DETECTION ELECTRONICS TRAILER MODULE TRAILER TOW CIRCUIT TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM USB CHARGING PORT 4 USB CONNECTION 2 USB PORT USB PORT 2 USB- HUB W/ CONTACT- FREE TAILGATE W/ EXTENDABLE THIGH SUPPORT W/ INTERFERENCE SUPPRESSION FILTER W/ INTERIOR TRIM LIGHTING W/ LED W/ LED HEADLAMPS W/ LUMBAR SUPPORT W/ MEMORY W/ PANORAMA GLASS ROOF W/ TELEMATICS W/ TRAILER MODULE W/ WIRELESS CHARGING STORAGE W/O EXTENDABLE THIGH SUPPORT W/O INTERIOR TRIM LIGHTING W/O LED W/O LUMBAR SUPPORT W/O MEMORY W/O TELEMATICS W/O TRAILER MODULE W/O WIRELESS CHARGING STORAGE WAKE UP SIG WASHER FLUID LEVEL SENS SIG WINDSCREEN WIPER ACT WIPER DRIVE WIPER/WASHER SYSTEM WIRELESS CHARGING STORAGE
