Wiring Diagrams for BMW 7 series G11/G12 facelift (2019-2023)

Trailer tow hitch circuit

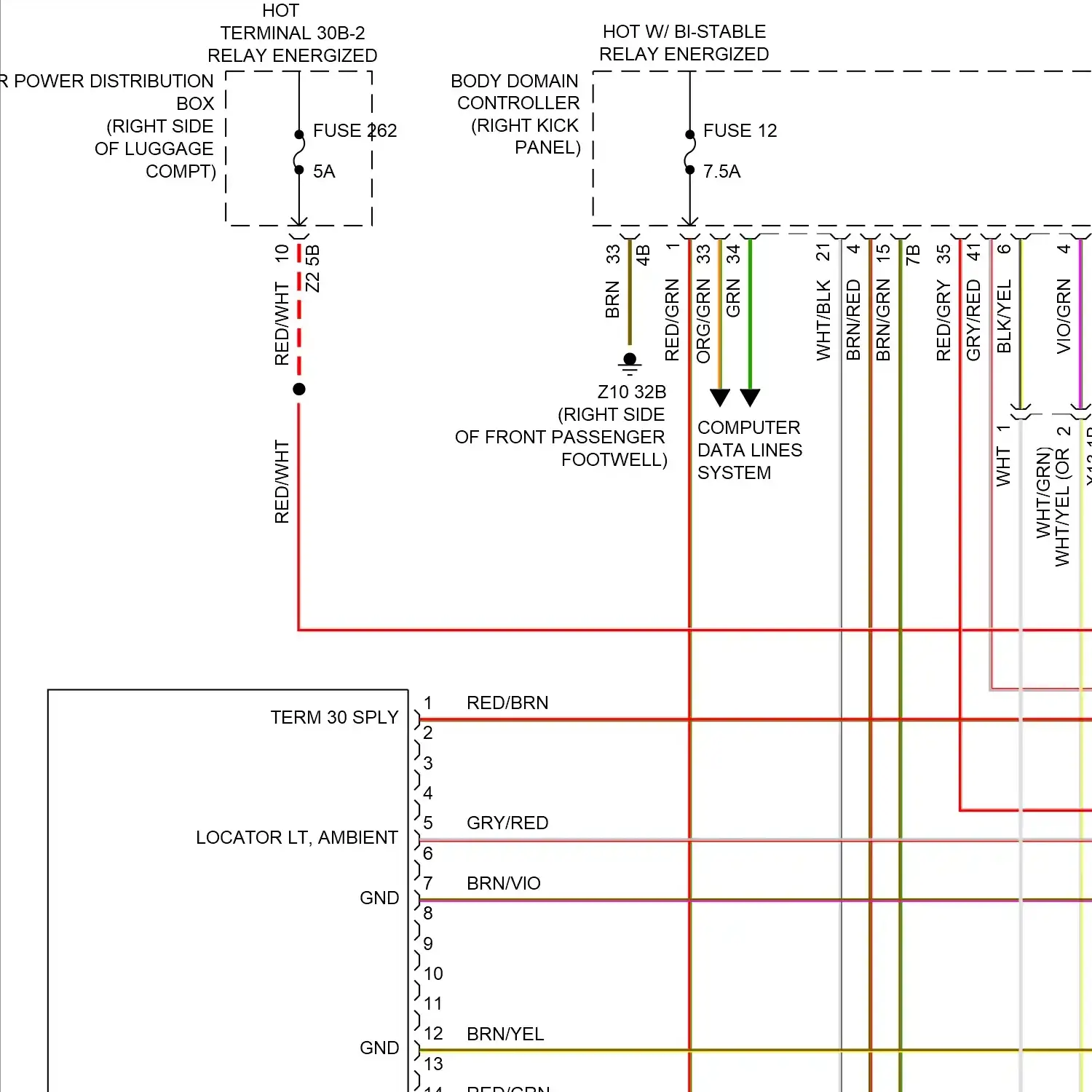

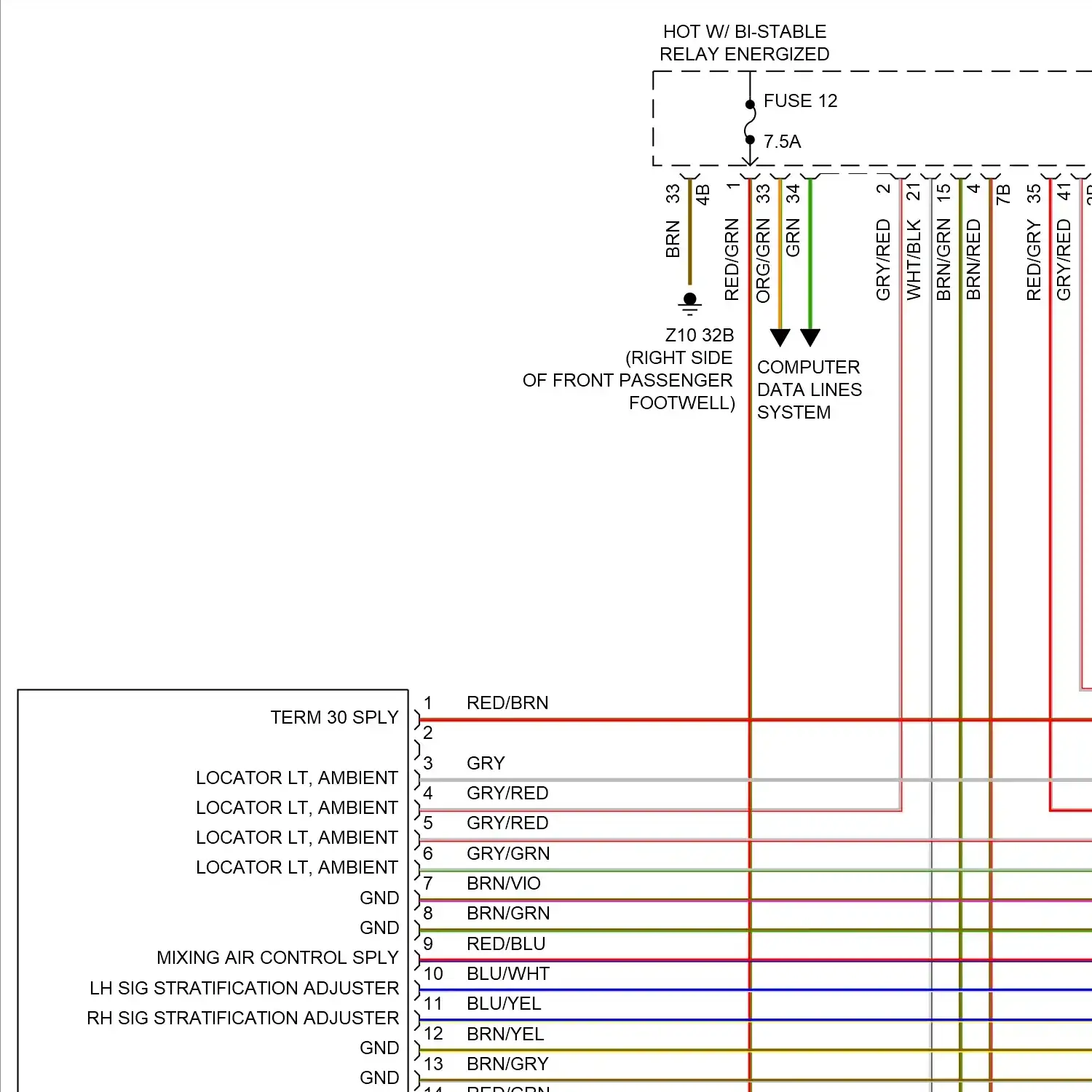

Automatic a/c circuit, w/o rear automatic climate control Automatic a/c circuit, w/ rear automatic climate control Cool box circuit Independent heating circuit Rear heater & a/c circuit

Anti-lock brakes circuit

Access/start circuit Anti-theft & central locking circuit

Body control modules circuit

Data link connector circuit High/low bus circuit

Cooling fan circuit

Cruise control circuit

Heated mirrors circuit Rear defogger circuit

Electronic power steering circuit

Dynamic drive suspension circuit Electric active roll stabilization circuit

Wiring diagram engine performance 3.0l turbo

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Electronic night vision circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Left memory rear seat circuit Memory mirrors circuit Passenger"s memory seat circuit Right memory rear seat circuit Steering column memory circuit

All around vision camera circuit Blind spot monitoring circuit, w/ front & rear radar sensors Blind spot monitoring circuit, w/ rear radar sensors Driver camera circuit Lane departure warning circuit, w/ camera Lane departure warning circuit, w/o camera w/ front & rear lane change sensors Lane departure warning circuit, w/o camera w/ rear lane change sensors Navigation circuit, base w/ receiver audio module Navigation circuit, high level w/ receiver audio module Navigation circuit, mid level w/ receiver audio module Navigation circuit, w/ active sound design Navigation circuit, w/o active sound design Parking assistant circuit Rear camera circuit

Passive restraints circuit

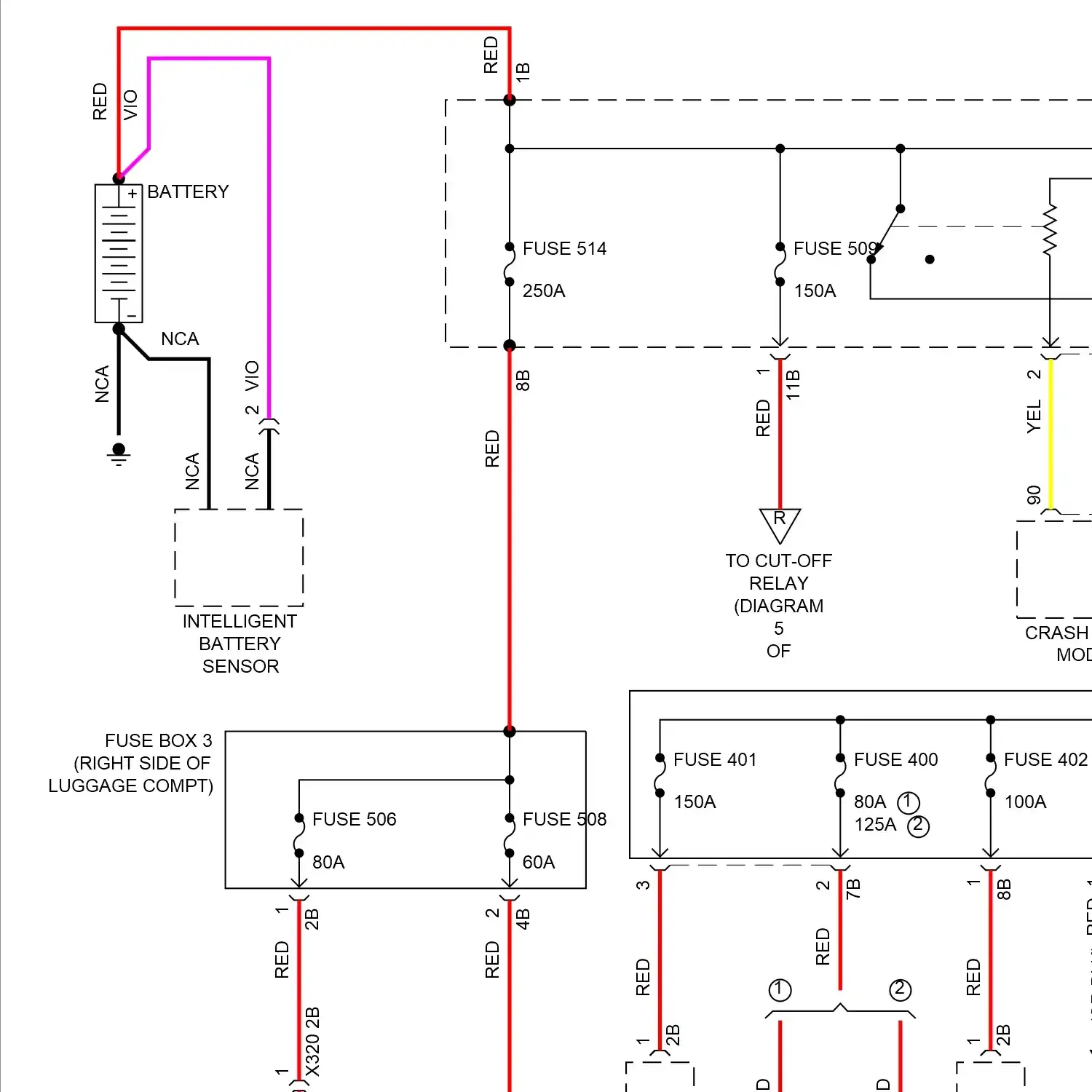

Power distribution circuit

Power door locks circuit

Power mirrors circuit

Front armrest heating circuit Front heated seats circuit Front lumbar circuit Front seat ventilation circuit Heated steering wheel circuit Pneumatics seat circuit, w/o rear pneumatics seats Pneumatics seat circuit, w/ rear pneumatics seats Rear armrest heating circuit Rear heated seats circuit, w/ memory Rear heated seats circuit, w/o memory Rear lumbar circuit Rear seat ventilation circuit

Panoramic roof circuit Sunroof circuit

Power windows circuit Roller sun blind circuit

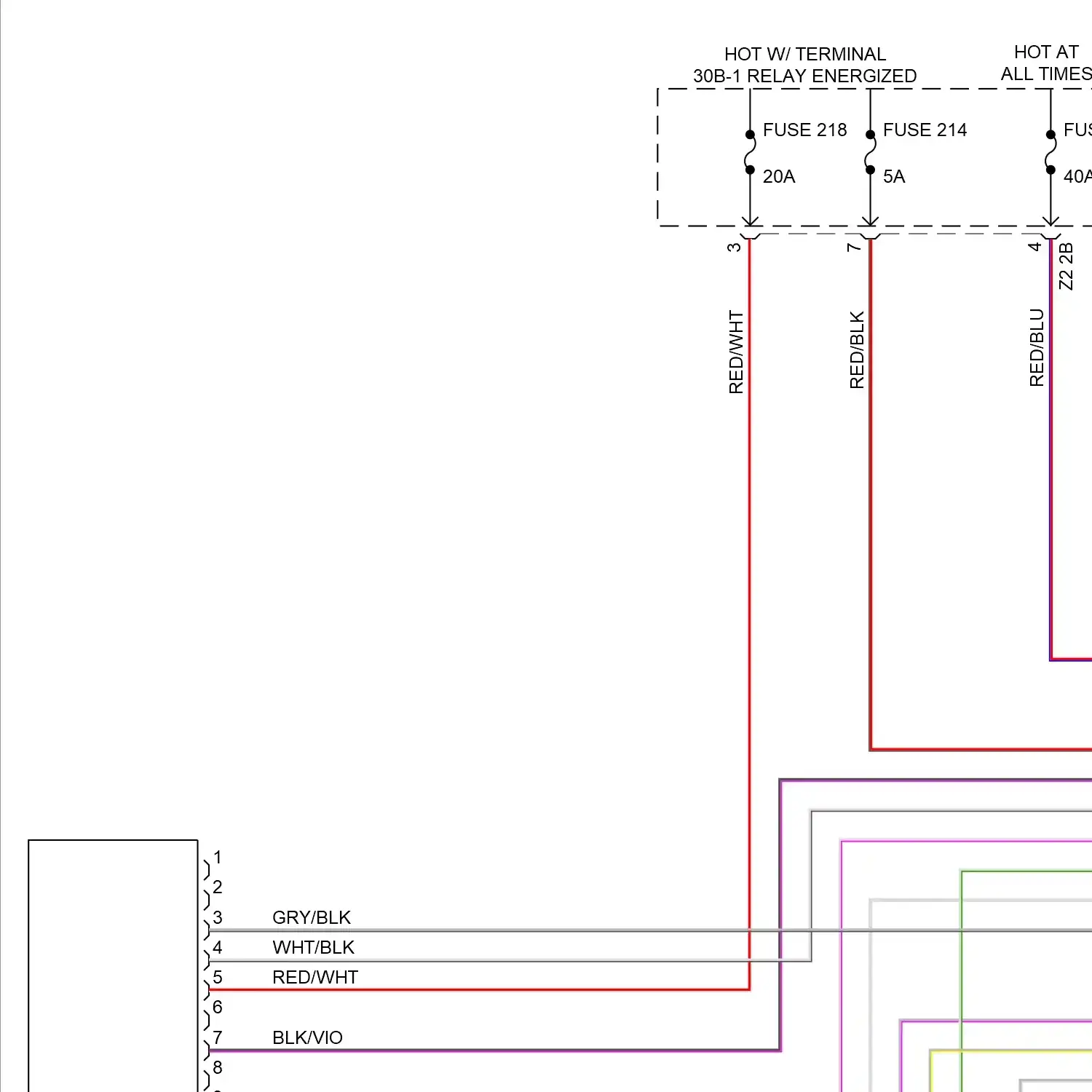

Hifi radio circuit, w/ active sound design Hifi radio circuit, w/o active sound design Most data bus circuit Rear seat entertainment circuit, early production Rear seat entertainment circuit, late production Receiver audio module circuit, base Receiver audio module circuit, high level Receiver audio module circuit, mid level Top hifi radio circuit, except premium Top hifi radio circuit, premium Video system circuit

Shift interlock circuit

Charging circuit, w/ dual storage system Charging circuit, w/o dual storage system Starting circuit

Supplemental restraints circuit

A/t circuit Rear axle circuit

Contact-free tailgate opening circuit Trunk & fuel door release circuit

Warning systems circuit

Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM AUXILIARY BATTERY AUXILIARY BATTERY CHARGING CONTROLLER BATTERY ELECTRONICS BOOT LID/ TAILGATE LOCK BOOT LID/TAILGATE LOCK CAN BUS TERMINAL RESISTOR 2 CAN BUS TERMINAL RESISTOR 3 CAN BUS TERMINAL RESISTOR 4 CAN BUS TERMINAL RESISTOR 5 CAN BUS TERMINAL RESISTOR 6 CAN BUS TERMINAL RESISTOR 9 CAN BUS TERMINAL RESISTOR 11 CENTER WASHER NOZZLE HEATER CONTACT LOCK SIGNAL DRIVER ACTIVE HEAD RESTRAINT GAS GENERATOR DRIVER BELT FORCE LIMITER GAS GENERATOR DRIVER KNEE AIR BAG GAS GENERATOR DRIVER SIDE AIR BAG GAS GENERATOR DRIVER'S DOOR LOCK FRONT PASSENGER ACTIVE HEAD RESTRAINT GAS GENERATOR FRONT PASSENGER BELT FORCE LIMITER GAS GENERATOR FRONT PASSENGER DOOR LOCK FRONT PASSENGER KNEE AIR BAG GAS GENERATOR FRONT PASSENGER SIDE AIR BAG GAS GENERATOR HI-FI AMPLIFIER HIFI AMPLIFIER IGNITION COIL CYLINDER 1 IGNITION COIL CYLINDER 2 IGNITION COIL CYLINDER 3 IGNITION COIL CYLINDER 4 IGNITION COIL CYLINDER 5 IGNITION COIL CYLINDER 6 IGNITION COIL CYLINDER 7 IGNITION COIL, CYLINDER 8 LEFT FRONT VALVE COIL LEFT HEAD AIR BAG GAS GENERATOR LEFT REAR VALVE COIL LEFT ROOF OUTLET NOZZLE LEFT WASHER NOZZLE HEATER PREMIUM TOP HIFI AMPLIFIER REAR DRIVERS SIDE DOOR LOCK REAR PASSENGER'S SIDE DOOR LOCK RIGHT FRONT VALVE COIL RIGHT HEAD AIR BAG GAS GENERATOR RIGHT REAR VALVE COIL RIGHT ROOF OUTLET NOZZLE RIGHT WASHER NOZZLE HEATER STARTER ACTIVATION SUBWOOFER FANFARE HORN TAILGATE LOCK TOP HIFI AMPLIFIER TWEETER FANFARE HORN

(RIGHT FRONT OF ENGINE BLOWER MOTOR BLOWER MOTOR W/ OUTPUT STAGE DEFROSTER FLAP MOTOR DIGITAL ENGINE ELECTRONICS 2 DIGITAL MOTOR ELECTRONICS DIGITAL MOTOR ELECTRONICS 2 DRIVER'S SEAT BACKREST UPPER SECTION ADJUSTMENT MOTOR ELECTROMOTIVE THROTTLE ACTUATOR ENGINE COMPARTMENT POWER DISTRIBUTION BOX ENGINE CONTROLS SYSTEM ENGINE VENTILATION HEATING EXHAUST VANOS SOLENOID ACTUATOR FRESH AIR FLAP MOTOR FRESH AIR/RECIRCULATED AIR FLAP MOTOR INDIRECT VENTILATION FLAP MOTOR INTAKE VANOS SOLENOID ACTUATOR LASER MOTOR WAY BEAM PATTERN LEFT FRONT FOOTWELL FLAP MOTOR LEFT FRONT PEDESTRIAN PROTECTION ACTUATOR LEFT FRONT STRATIFICATION FLAP MOTOR LEFT REAR AIR CONDITIONER AIR VENTILATION FLAP MOTOR LEFT REAR AIR CONDITIONER MIXING AIR FLAP MOTOR LEFT REAR AIR DISTRIBUTION FLAP MOTOR LEFT REAR PEDESTRIAN PROTECTION ACTUATOR LEFT VENTILATION FLAP MOTOR REAR AIR CONDITIONER BLOWER MOTOR REAR COMPARTMENT BLOWER MOTOR REAR COMPARTMENT BLOWER MOTOR OUTPUT STAGE REAR COMPARTMENT FLAP MOTOR RECIRCULATED AIR FLAP MOTOR RIGHT FRONT FOOTWELL FLAP MOTOR RIGHT FRONT PEDESTRIAN PROTECTION ACTUATOR RIGHT FRONT STRATIFICATION FLAP MOTOR RIGHT REAR AIR CONDITIONER AIR VENTILATION FLAP MOTOR RIGHT REAR AIR CONDITIONER MIXING AIR FLAP MOTOR RIGHT REAR AIR DISTRIBUTION FLAP MOTOR RIGHT REAR PEDESTRIAN PROTECTION ACTUATOR RIGHT VENTILATION FLAP MOTOR STARTER MOTOR STEERING COLUMN EXTENSION ADJUSTMENT MOTOR STEERING COLUMN HEIGHT ADJUSTMENT MOTOR VIBRATION ACTUATOR

ANTENNA AMPLIFIER ANTENNA DIVERSITY ANTENNA SIG BLUETOOTH ANTENNA BUMPER ANTENNA 3 FRONT CENTER CONSOLE INTERIOR ANTENNA GPS ANTENNA LEFT EXTERIOR ANTENNA LUGGAGE COMPARTMENT ANTENNA REAR BUMPER ANTENNA REAR BUMPER ANTENNA 2 REAR CENTER CONSOLE INTERIOR ANTENNA REAR WINDOW ANTENNA RIGHT EXTERIOR ANTENNA RING ANTENNA ROOF ANTENNA SDARS ANTENNA TELEPHONE ANTENNA TV ANTENNA SIGNAL AMPLIFIER 3 WIRELESS CHARGING SHELF ANTENNA AMPLIFIER WLAN ANTENNA WLAN HOTSPOT, TELEMATICS, GPS ANTENNA

DRIVER DOOR CENTRAL LOCKING BUTTON DRIVER'S DOOR CENTRAL LOCKING BUTTON DTC BUTTON FANFARE HORN BUTTON FRONT PASSENGER DOOR CENTRAL LOCKING BUTTON FRONT PASSENGER'S DOOR CENTRAL LOCKING BUTTON FULLY AUTOMATIC TOWING HITCH BUTTON HILL DESCENT CONTROL BUTTON HORN BUTTON INTERIOR LIGHT BUTTON INTERIOR LIGHTS BUTTON INTERIOR LIGHTS LOCATOR LIGHTING BUTTON INTERIOR REAR LID BUTTON LEFT READING LAMP BUTTON LEFT READING LAMP LOCATOR LIGHTING BUTTON NUMBER PLATE LIGHT W/ REAR LID BUTTON PARKING ASSISTANCE BUTTON PARKING BRAKE BUTTON READING LAMP BUTTON READING LAMP LOCATOR LIGHTING BUTTON REAR LID BUTTON ON INSIDE OF REAR LID REAR WINDOW HEATING BUTTON REFUELING BUTTON RIGHT READING LAMP BUTTON RIGHT READING LAMP LOCATOR LIGHTING BUTTON SELF- LEVELING SUSPENSION BUTTON START-STOP BUTTON TAILGATE BUTTON TAILGATE BUTTON ON INSIDE OF REAR LID TAILGATE BUTTON ON INSIDE OF TRUNK LID VEHICLE INTERIOR TAILGATE BUTTON

ALL ROUND VISION CAMERA CAMERA-BASED DRIVER ASSISTANCE SYSTEMS DATA LINE W/ OMNIDIRECTIONAL CAMERA ETHERNET DATA LINE DRIVER CAMERA SYSTEM EXTERIOR MIRROR CAMERA FRONT CAMERA GESTURE RECOGNITION CAMERA HEADLIGHT WASHER PUMP CLEANING SYSTEM/ NIGHT VISION CAMERA HEADLIGHT WASHER PUMP CLEANING SYSTEM/NIGHT VISION CAMERA KAFAS CAMERA HEATING NIGHT VISION CAMERA REAR VIEW CAMERA REVERSING CAMERA W/ ALL ROUND VISION CAMERA W/ DRIVER CAMERA W/ OMNIDIRECTIONAL CAMERA ETHERNET DATA LINE W/ REVERSING CAMERA W/O DRIVER CAMERA W/O REVERSING CAMERA W/O SURROUND VIEW CAMERA

DIAGNOSIS SOCKET DIAGNOSTIC SOCKET TRAILER SOCKET TRAILER SOCKET SWITCH

DRIVER ASSISTANCE SYSTEM OPERATING UNIT W/ HAZARD WARNING SWITCH DRIVER'S DOOR AUTOMATIC SOFT CLOSE SYSTEM DRIVE UNIT DRIVER'S SEAT ANGLE ADJUSTMENT DRIVE UNIT DRIVER'S SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE UNIT DRIVER'S SEAT HEIGHT ADJUSTMENT DRIVE UNIT FRONT PASSENGER'S DOOR AUTOMATIC SOFT CLOSE DRIVE UNIT HEAD UNIT HYBRID PRESSURE REFUELING ELECTRONIC CONTROL UNIT INSTRUMENT CLUSTER CONTROL UNIT LIGHT OPERATING UNIT POWER CONTROL UNIT

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 18 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 37 FUSE 39 FUSE 41 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 50 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 58 FUSE 60 FUSE 61 FUSE 62 FUSE 63 FUSE 64 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 71 FUSE 80 FUSE 83 FUSE 90 FUSE 91 FUSE 92 FUSE 93 FUSE 111 FUSE 112 FUSE 113 FUSE 118 FUSE 119 FUSE 201 FUSE 203 FUSE 204 FUSE 206 FUSE 208 FUSE 209 FUSE 210 FUSE 212 FUSE 214 FUSE 215 FUSE 216 FUSE 217 FUSE 218 FUSE 220 FUSE 223 FUSE 224 FUSE 225 FUSE 226 FUSE 230 FUSE 231 FUSE 232 FUSE 235 FUSE 240 FUSE 244 FUSE 249 FUSE 251 FUSE 252 FUSE 254 FUSE 255 FUSE 256 FUSE 257 FUSE 258 FUSE 262 FUSE 263 FUSE 264 FUSE 267 FUSE 269 FUSE 271 FUSE 273 FUSE 276 FUSE 277 FUSE 279 FUSE 282 FUSE 284 FUSE 289 FUSE 400 FUSE 401 FUSE 402 FUSE 404 FUSE 406 FUSE 407 FUSE 408 FUSE 409 FUSE 500 FUSE 501 FUSE 502 FUSE 504 FUSE 505 FUSE 506 FUSE 508 FUSE 509 FUSE 510 FUSE 514 FUSE BOX FUSE BOX 2 FUSE BOX 3

ACTIVATION WASHER PUMP FOR HEADLIGHT WASHER SYSTEM HEADLIGHT BEAM THROW ADJUSTMENT DRIVE HIGH BEAM HEADLIGHT LEFT HEADLIGHT LOW BEAM HEADLIGHT RIGHT HEADLIGHT

AUDIO MODE/ HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL AUDIO MODE/HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL DRIVER THIGH SUPPORT HEATING DRIVER'S DOOR ARMREST HEATING DRIVER'S SEAT BACKREST HEATING DRIVER'S SEAT SURFACE HEATING DRIVER'S SIDE CONTROL ELECTRONICS ARMREST HEATING DRIVER'S SIDE CONTROL ELECTRONICS FOR ARMREST HEATING DRIVER'S SIDE MIDDLE CONSOLE ARMREST HEATING DRV SEAT BACKREST HEATING DRV SEAT BACKREST HEATING ACT DRV SEAT BACKREST HEATING GND FRONT ELECTRIC AUXILIARY HEATER FRONT PASSENGER HEATING THIGH SUPPORT FRONT PASSENGER THIGH SUPPORT HEATING FRONT PASSENGER'S DOOR ARMREST HEATING FRONT PASSENGER'S SEAT BACKREST HEATING FRONT PASSENGER'S SIDE CONTROL ELECTRONICS ARMREST HEATING FRONT PASSENGER'S SIDE CONTROL ELECTRONICS FOR ARMREST HEATING FRONT PASSENGER'S SIDE MIDDLE CONSOLE ARMREST HEATING FRT PASS SEAT BACKREST HEATING FRT PASS SEAT BACKREST HEATING GND FRT PASS SEAT SURFACE HEATING FRT PASS SEAT SURFACE HEATING GND FUEL FILTER HEATING HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL AUDIO MODE HEATING/ AIR CONDITIONING SYSTEM HEATING/AIR CONDITIONING SYSTEM INDEPENDENT AUXILIARY HEATER MIRROR HEATING PASS SEAT BACKREST HEATING ACT REAR DRIVER'S SIDE ARMREST HEATING CONTROL ELECTRONICS REAR DRIVER'S SIDE BACKREST HEATING REAR DRIVER'S SIDE CONTROL ELECTRONICS ARMREST HEATING REAR DRIVER'S SIDE CONTROL ELECTRONICS FOR ARMREST HEATING REAR DRIVER'S SIDE DOOR ARMREST HEATING REAR DRIVER'S SIDE MIDDLE CONSOLE ARMREST HEATING REAR DRIVER'S SIDE SEAT CUSHION HEATING REAR DRIVER'S SIDE SEAT HEATING MODULE REAR FRONT PASSENGER'S SIDE CONTROL ELECTRONICS ARMREST HEATING REAR FRONT PASSENGER'S SIDE DOOR ARMREST HEATING REAR FRONT PASSENGER'S SIDE MIDDLE CONSOLE ARMREST HEATING REAR PASSENGER'S SIDE ARMREST HEATING CONTROL ELECTRONICS REAR PASSENGER'S SIDE BACKREST HEATING REAR PASSENGER'S SIDE CONTROL ELECTRONICS FOR ARMREST HEATING REAR PASSENGER'S SIDE SEAT CUSHION HEATER REAR PASSENGER'S SIDE SEAT HEATING MODULE SEAT BACKREST HEATING SEAT BACKREST HEATING GND SEAT SURFACE HEATING STEERING WHEEL HEATER TEMP SENS SIG PASS SEAT CUSHION HEATING ACT TEMP SENS SIG PASS SEAT HEATING GND PASS SEAT BACKREST HEATING WATER JET HEATER ACTUATION

AIR BAG OFF INDICATOR LAMP AIR BAG ON INDICATOR LAMP FLASHING INDICATOR LAMP ACTIVATION TURN INDICATOR

AUXILIARY STOP LAMP AUXILIARY TURN SIGNAL LAMP BACKUP LAMP DOOR LOCKS, ANTI-THEFT SYSTEM, EXTERIOR LIGHTS SYSTEMS DRIVER'S DOOR GROUND LIGHTS FLASHING IND LAMP FOG LIGHTS ACTIVATION FRONT PASSENGER DOOR GROUND LIGHTS INNER PARKING LIGHTS/ DAYTIME DRIVING LIGHTS INNER PARKING LIGHTS/DAYTIME DRIVING LIGHTS OUTER SIDE LIGHTS/ DAYTIME DRIVING LIGHTS OUTER SIDE LIGHTS/DAYTIME DRIVING LIGHTS REAR DRIVER'S SIDE AMBIENT ACCENT LIGHTS REAR DRIVER'S SIDE COURTESY LIGHTS REAR PASSENGER'S SIDE AMBIENT ACCENT LIGHTS SIDE LIGHTS/ DAYTIME DRIVING LIGHT SIDE LIGHTS/ DAYTIME DRIVING LIGHTS TAIL LAMP TURN SIGNALS/ SIDE MARKER LIGHTS LED MODULE TURN SIGNALS/SIDE MARKER LIGHTS LED MODULE

ACT SEAT PNEUMATICS MODULE PUMP SPLY SEAT PNEUMATICS MODULE PUMP ACTIVATION AUXILIARY WATER PUMP ACTIVATION WINDSCREEN WASHER PUMP AUXILIARY HEATER FUEL METERING PUMP AUXILIARY WATER PUMP COOLANT PUMP SHIFT ELEMENT DRIVER'S SEAT PNEUMATIC PUMP ELECTRIC FUEL PUMP CONTROL ELECTRONICS FRONT PASSENGER SEAT PNEUMATIC PUMP FRONT PASSENGER'S SEAT PNEUMATIC PUMP GND ACT SEAT PNEUMATICS MODULE PUMP INDEPENDENT HEATER CIRCULATING PUMP INDEPENDENT HEATING FUEL METERING PUMP LEFT FRONT SEAT PNEUMATICS MODULE PUMP LEFT REAR SEAT PNEUMATICS MODULE PUMP LF PUMP ACT LF PUMP SPLY LOW TEMPERATURE COOLANT CIRCUIT COOLANT PUMP LR ACT PUMP REAR DRIVER'S SIDE LUMBAR SUPPORT PUMP REAR PASSENGER'S SIDE LUMBAR SUPPORT PUMP RF PUMP ACT RF PUMP SPLY RIGHT FRONT SEAT PNEUMATICS MODULE PUMP RIGHT REAR SEAT PNEUMATICS MODULE PUMP RR ACT PUMP RR PUMP SPLY SPLY SEAT PNEUMATICS MODULE PUMP TURBOCHARGER COOLANT PUMP WINDSHIELD WASHER PUMP

BI-STABLE RELAY COMPRESSOR RELAY CUT-OFF RELAY DME MAIN RELAY ELECTRIC FAN CUT OUT RELAY ELECTRIC FAN CUT-OFF RELAY HORN RELAY HOT W/ BI-STABLE RELAY ENERGIZED HOT W/ DME MAIN RELAY ENERGIZED HOT W/ POWER SUPPLY SENSORS/ ACTUATORS RELAY ENERGIZED HOT W/ VALVETRONIC RELAY ENERGIZED IGNITION, FUEL INJECTION RELAY IGNITION, FUEL INJECTION RELAY 2 POWER SUPPLY SENSORS/ ACTUATORS RELAY POWER SUPPLY SENSORS/ACTUATORS RELAY REAR WINDOW HEATING RELAY RELAY ENERGIZED VALVETRONIC RELAY

AUC SENSOR AUC SENSOR SIG BOOST PRESSURE SENSOR CHARGE AIR TEMPERATURE/ INTAKE MANIFOLD PRESSURE SENSOR COMPRESSOR TEMPERATURE SENSOR CONTACT-FREE TAILGATE OPENING LOWER SENSOR CONTACT-FREE TAILGATE OPENING UPPER SENSOR COOLANT LEVEL SENSOR COOLANT TEMPERATURE SENSOR CRANKCASE TEMPERATURE SENSOR CRANKSHAFT SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL PRESSURE SENSOR EVAPORATOR TEMPERATURE SENSOR EXHAUST CAMSHAFT SENSOR FRONT PASSENGER SEAT OCCUPANCY DETECTION SEAT CUSHION HEATER/SENSOR FRONT PASSENGER SEAT OCCUPANCY DETECTION SEAT CUSHION HEATING/SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 GASOLINE PARTICULATE FILTER EXHAUST GAS PRESSURE SENSOR HALL SENSOR SIGNAL HIGH BEAM ASSISTANT SENSOR, CONTROL INTAKE AIR TEMPERATURE SENSOR INTAKE CAMSHAFT SENSOR INTELLIGENT BATTERY SENSOR KNOCK SENSOR KNOCK SENSOR #2 LEFT "B" PILLAR AIR BAG SENSOR LEFT FOOTWELL TEMPERATURE SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT BRAKE PRESSURE SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT DOOR AIR BAG SENSOR LEFT FRONT NEAR RANGE SIDE RADAR SENSOR LEFT FRONT OUTER ULTRASONIC SENSOR LEFT FRONT RIDE HEIGHT SENSOR LEFT FRONT SIDE PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR LEFT FRONT VENTILATION TEMPERATURE SENSOR LEFT FRONT VERTICAL-ACCELERATION SENSOR LEFT FRONT WHEEL RPM SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR NEAR RANGE RADAR SENSOR LEFT REAR OUTER ULTRASONIC SENSOR LEFT REAR RADAR SENSOR NEAR RANGE LEFT REAR RIDE HEIGHT SENSOR LEFT REAR SEAT FOOTWELL TEMPERATURE SENSOR LEFT REAR ULTRASONIC SENSOR LEFT REAR VERTICAL ACCELERATION SENSOR LEFT REAR WHEEL RPM SENSOR LONG-DISTANCE RANGE FRONT RADAR SENSOR MEMORY FUNCTION HALL SENSOR OIL LEVEL SENSOR OUTSIDE TEMPERATURE SENSOR OUTSIDE TEMPERATURE SENSOR SIG OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR BEFORE CATALYTIC CONVERTER POSITION SENSOR POWER TAILGATE ACOUSTIC SENSOR PRESSURE SENSOR SIG RADIATOR OUTLET TEMPERATURE SENSOR RAIL PRESSURE SENSOR RAIN/LIGHT/ SOLAR CONDENSATION SENSOR RAIN/LIGHT/SOLAR CONDENSATION SENSOR REAR EVAPORATOR TEMPERATURE SENSOR REFRIGERANT PRESSURE SENSOR REFRIGERANT PRESSURE SENSOR SUPPLY RIGHT "B" PILLAR AIR BAG SENSOR RIGHT FOOTWELL TEMPERATURE SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT BRAKE PRESSURE SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT DOOR AIR BAG SENSOR RIGHT FRONT NEAR RANGE SIDE RADAR SENSOR RIGHT FRONT OUTER ULTRASONIC SENSOR RIGHT FRONT RIDE HEIGHT SENSOR RIGHT FRONT SIDE PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR RIGHT FRONT VENTILATION TEMPERATURE SENSOR RIGHT FRONT VERTICAL-ACCELERATION SENSOR RIGHT FRONT WHEEL RPM SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR NEAR RANGE RADAR SENSOR RIGHT REAR OUTER ULTRASONIC SENSOR RIGHT REAR RADAR SENSOR NEAR RANGE RIGHT REAR RIDE HEIGHT SENSOR RIGHT REAR SEAT FOOTWELL TEMPERATURE SENSOR RIGHT REAR ULTRASONIC SENSOR RIGHT REAR VERTICAL ACCELERATION SENSOR RIGHT REAR WHEEL RPM SENSOR ROTARY STRIKER SWITCH HALL EFFECT SENSOR ROTOR POSITION SENSOR SENSOR GROUND SENSOR SIG SIREN W/ TILT ALARM SENSOR STEERING TORQUE SENSOR TEMP SENSOR SIG FRT PASS SEAT HEATING GND TOUCH DETECTION SENSOR VENTURI NOZZLE PRESSURE SENSOR WASHER FLUID LEVEL SENSOR

DASHBOARD LOUDSPEAKER SPEAKER EMERGENCY SPEAKER FRONT CENTER MID-RANGE SPEAKER INSTRUMENT PANEL SPEAKER LIGHTING LEFT FRONT BASS SPEAKER LEFT FRONT MID- RANGE SPEAKER LIGHTING LEFT FRONT MID-RANGE SPEAKER LEFT REAR MID- RANGE SPEAKER 2 LEFT REAR MID-RANGE SPEAKER LEFT REAR SPEAKER LIGHTING RIGHT FRONT BASS SPEAKER RIGHT FRONT MID- RANGE SPEAKER LIGHTING RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR MID- RANGE SPEAKER 2 RIGHT REAR MID-RANGE SPEAKER RIGHT REAR SPEAKER LIGHTING

BRAKE FLUID LEVEL SWITCH BRAKE LIGHT SWITCH BRAKE LIGHT SWITCH SIGNAL CENTRAL LOCKING DRIVE ACTUATION SWITCH SIG DRIVE EXPERIENCE SWITCH DRIVER'S DOOR SEAT SWITCH CLUSTER DRIVER'S DOOR SWITCH BLOCK DRIVER'S SIDE REAR POWER WINDOW SWITCH DRIVER'S SIDE REAR ROLLER SUNBLIND SWITCH BLOCK DRIVER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK FRONT PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK GEAR SELECTOR SWITCH GLOVE BOX COMPARTMENT LIGHT SWITCH GLOVE BOX LIGHT SWITCH GLOVE COMPARTMENT LIGHT SWITCH HAZARD WARNING LIGHT SWITCH SIG HOOD CONTACT SWITCH HOTEL POSITION SWITCH INTERIOR LIGHTING SWITCH SIG LEFT FRONT VANITY MIRROR SWITCH LEFT MULTI- FUNCTION STEERING WHEEL SWITCH BLOCK LEFT MULTI-FUNCTION STEERING COLUMN SWITCH BLOCK LEFT REAR SEAT HEATING SWITCH PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK PASSENGER'S DOOR POWER WINDOW SWITCH PASSENGER'S DOOR SEAT SWITCH CLUSTER PASSENGER'S SIDE REAR POWER WINDOW SWITCH PASSENGER'S SIDE REAR ROLLER SUNBLIND SWITCH BLOCK PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK PRESSURE SWITCH REAR CONSOLE CAPTAIN'S CHAIR SWITCH LIGHTING 2 REAR DRIVER'S SIDE DOOR SEAT SWITCH BLOCK REAR DRIVER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK REAR DRIVER'S SIDE SEAT ADJUSTMENT SWITCH CLUSTER REAR PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK REAR PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH CLUSTER REAR PASSENGER'S SIDE SEAT SWITCH BLOCK RIGHT FRONT VANITY MIRROR SWITCH RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH BLOCK RIGHT REAR SEAT HEATING SWITCH SLIDING/ TILTING SUNROOF SWITCH SLIDING/TILTING SUNROOF SWITCH STEERING COLUMN SWITCH CLUSTER STEERING WHEEL HEATED, STEERING COLUMN ADJUSTMENT SWITCH STEERING WHEEL HEATER, STEERING COLUMN ADJUSTMENT SWITCH SWITCH SIG SWITCH SIGNAL SWITCH SIGNAL SHIFT PADDLES

AUXILIARY HEATER COOLANT CHANGEOVER VALVE CONTROL VALVE CONTROL VALVE ACTUATION CRANKCASE COOLANT SHUTOFF VALVE DISCHARGE VALVE DRIVER LUMBAR SUPPORT VALVE BLOCK DRIVER'S LUMBAR SUPPORT VALVE BLOCK ELECTRICAL WASTEGATE VALVE FRONT PASSENGER LUMBAR SUPPORT VALVE BLOCK FRONT REFRIGERANT SHUTOFF VALVE FUEL VENT VALVE INDEPENDENT HEATING COOLANT CHANGEOVER VALVE LEFT REAR SOLENOID VALVE OIL PRESSURE CONTROL VALVE QUANTITY CONTROL VALVE REAR DRIVER'S SIDE LUMBAR SUPPORT VALVE BLOCK REAR PASSENGER'S SIDE LUMBAR SUPPORT VALVE BLOCK REAR REFRIGERANT SHUTOFF VALVE RIGHT FRONT SOLENOID VALVE RIGHT REAR SOLENOID VALVE

(OR GRN/GRY WIRE (OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRN/YEL WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/VIO/WHT WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/BLU/YEL WIRE BRN/GRN WIRE BRN/GRN/YEL WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE FLEXRAY BUS SIG PNK FLEXRAY BUS SIG WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLK/YEL WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/RED/YEL WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/GRN WIRE ORG/WHT WIRE ORG/YEL WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE PNK/RED WIRE PNK/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BLU/YEL WIRE RED/BRN WIRE RED/GRN WIRE RED/GRN/YEL WIRE RED/GRY WIRE RED/VIO WIRE RED/VIO/YEL WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/WHT/YEL WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BLU/YEL WIRE WHT/BRN WIRE WHT/BRN/YEL WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/RED/YEL WIRE WHT/VIO WIRE WHT/VIO/YEL WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

3.0L TURBO 4.4L TURBO 4.4L TURBO 3.0L TURBO (OR (RIGHT SIDE OF TRANSMISSION A/C COMPRESSOR ACCELERATOR PEDAL MODULE ACTIVATION FANFARES ACTIVE BODYWORKS SYSTEM ACTIVE CRUISE CONTROL ACTIVE SOUND DESIGN ADJUSTMENT DRIVE AERIAL SIG AERIAL SIGNAL AIR CONDITIONING AIR CONDITIONING SYSTEM AIR FRESHENER AIR SUPPLY SYSTEM ALARM SYSTEM AMBIENT LIGHT ANGLE ACT ANTI- THEFT ALARM LED ANTI-THEFT ALARM SYSTEM LED ANTI-THEFT SYSTEM ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS AUTOMATIC AIR CONDITIONING CIRCUIT AUTOMATIC REAR AIR CONDITIONING OPERATING FACILITY AUTOMATIC TOWING HITCH BACK ANGLE ACT BACK FAN ACT BACK FAN GND BACK HEAD ACT BACK WIDTH ACT BACKREST ANGLE HEADREST HEIGHT ADJ RESTRAINT FOLDING ADJ BACKREST FAN ACT BACKREST FAN GND BACKREST FAN VOLT SPLY BACKREST GND BACKREST ACT BACKREST HEAD ACT BACKREST HEAD ADJ MONITOR ANGLE ADJ BACKREST WIDTH ADJ FOOTREST ANGLE ADJ BACKUP LAMPS CIRCUIT BAND ELIMINATION CIRCUIT BASE PLATE BODY DOMAIN CONTROLLER BOOT LID CONT BOOT LID CONTACT SIG BOOT LID CONTACT SW BOOT LID/ TAILGATE COMPARTMENT LIGHT BOOT LID/ TAILGATE LUGGAGE COMPARTMENT LIGHT BOTTOM CENTER DASH BOARD LIGHTING BOTTOM CENTER DASHBOARD LIGHTING BOTTOM DRIVER'S SIDE DASH BOARD LIGHTING BOTTOM DRIVER'S SIDE DASHBOARD LIGHTING BOTTOM FRONT PASSENGER'S SIDE DASH BOARD LIGHTING BOTTOM FRONT PASSENGER'S SIDE DASHBOARD LIGHTING BOTTOM RADIATOR BLIND DRIVE BRAKE LIGHT ACTIVATION BRAKE LIGHT/ TURN SIGNAL BRK LIGHT BRK LIGHT SW SIG BUS SIG BUS SIGNAL DIAGNOSIS CAN BUS SIG CAN L CAPACITOR BOX CAR SHARING MODULE CARD READER CEN LK DRV CENTER CONSOLE CONTROL PANEL CENTER CONSOLE OPERATING FACILITY CENTER DRIVER'S DOOR TRIM PANEL LIGHTING CENTER DRIVER'S SIDE REAR DOOR TRIM PANEL LIGHTING CENTER FRONT PASSENGER DOOR TRIM PANEL LIGHTING CENTER FRONT PASSENGER'S DOOR TRIM PANEL LIGHTING CENTER REAR DRIVER'S SIDE DOOR TRIM PANEL LIGHTING CENTER REAR DRIVER'S SIDE REAR DOOR TRIM PANEL LIGHTING CENTER REAR PASSENGER'S SIDE DOOR TRIM PANEL LIGHTING CENTRAL INFORMATION DISPLAY CENTRAL LOCKING DRIVE CENTRAL LOCKING DRIVE ACTUATION CHARGING CIRCUIT COMPRESSION STAGE COMPRESSOR) COMPUTER DATA COMPUTER DATA LINES SYSTEM CONT LK SIG CONTACT FREE TAILGATE OPENING EVALUATION ELECTRONICS COOLER BOX COOLING FANS SYSTEM COOLING FANS, STARTING/CHARGING SYSTEMS CORNERING LIGHT COURTESY LIGHTING ACTIVATION CRASH SAFETY MODULE DASHBOARD LOUDSPEAKER LIGHTING DATA BUS - DATA LINE DC/DC - DEADLOCKING DRIVE DEPTH ACT DOOR CONTACT SIG DOOR CONTACT SIGNAL DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVEN VEHICLE EXTERIOR MIRROR DRIVER OUTSIDE DOOR HANDLE ELECTRONICS DRIVER RETRACTOR TENSIONER DRIVER SEAT MODULE DRIVER SIDE DASH BOARD LIGHTING DRIVER VEHICLE EXTERIOR MIRROR DRIVER'S AIR BAG GAS GENERATORS DRIVER'S DOOR AUTOMATIC SOFT-CLOSE DRIVE DRIVER'S DOOR COURTESY LIGHT DRIVER'S DOOR ENTRY LIGHTING DRIVER'S DOOR POCKET LIGHTING DRIVER'S DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS DRIVER'S SEAT BACKREST ANGLE ADJUSTMENT DRIVE DRIVER'S SEAT BACKREST FAN 1 DRIVER'S SEAT BACKREST FAN 2 DRIVER'S SEAT BACKREST FAN 3 DRIVER'S SEAT BACKREST FAN 4 DRIVER'S SEAT BACKREST REAR PANEL LIGHTING DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT DRIVE DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT DRIVE 2 DRIVER'S SEAT BELT BUCKLE CONTACT DRIVER'S SEAT CUSHION FAN 1 DRIVER'S SEAT CUSHION FAN 2 DRIVER'S SEAT CUSHION FAN 3 DRIVER'S SEAT CUSHION FAN 4 DRIVER'S SEAT DEPTH ADJUSTMENT DRIVE DRIVER'S SEAT HEADREST HEIGHT ADJUSTMENT DRIVE DRIVER'S SEAT MODULE DRIVER'S SIDE DASHBOARD LIGHTING DRIVER'S SIDE REAR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS DRIVER'S SIDE REAR ROLLER SUNBLIND DRIVE DRV FAN ACT 1 DRV FAN ACT 4 DRV FAN GND 1 DRV FAN GND 4 DRV FAN SIG 1 DRV FAN SIG 4 DRV SEAT CUSHION ACT DRV SEAT CUSHION GND DRV SEAT SURFACE ACT DRV SEAT SURFACE GND DYNAMIC BRAKE LIGHT EARLY PRODUCTION ELECTRIC FAN ELECTRIC STEERING COLUMN ADJUSTMENT ELECTRICAL EXHAUST FLAP ELECTRICAL EXHAUST FLAP 2 ELECTRICAL STEERING COLUMN ADJUSTMENT ELECTRO- MECHANICAL POWER STEERING ELECTROCHROMIC INTERIOR MIRROR ELECTROCHROMIC INTERIOR REAR VIEW MIRROR ELECTROCHROMIC MIRROR ELECTROMECHANICAL POWER STEERING ELECTRONIC NIGHT VISION MODULE ELECTRONIC STEERING WHEEL MODULE ELECTRONIC SUSPENSION SYSTEM ELECTRONIC TRANSMISSION CONTROL ELECTRONICS JUNCTION BOX EMERGENCY LOUDSPEAKER EMITTER 2 ETHERNET DATA LINE EXCEPT PREMIUM EXTENDED EQUIPMENT FAN 2 FLEXRAY BUS SIG FLEXRAY TERMINATION FOOTREST ANGLE ADJUSTMENT DRIVE FOR/BACK ACT FRONT CENTER ARMREST LIGHT FRONT CENTER TWEETER FRONT CENTER VENTILATION GRILLE FRONT ELECTRIC ACTIVE ROLL STABILIZATION FRONT PASSENGER AIR BAG GAS GENERATORS FRONT PASSENGER BACKREST UPPER SECTION ADJUSTMENT DRIVE FRONT PASSENGER DOOR ENTRY LIGHTING FRONT PASSENGER DOOR POCKET LIGHTING FRONT PASSENGER DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS FRONT PASSENGER RETRACTOR TENSIONER FRONT PASSENGER SEAT ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT BACKREST ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT BACKREST REAR PANEL LIGHTING FRONT PASSENGER SEAT FORWARD/BACKWARD SEAT ADJUSTMENT FRONT PASSENGER SEAT HEIGHT ADJUSTMENT DRIVE FRONT PASSENGER SEAT MODULE FRONT PASSENGER SEAT OCCUPANCY DETECTION EVALUATION ELECTRONICS FRONT PASSENGER VEHICLE EXTERIOR MIRROR FRONT PASSENGER'S DOOR AUTOMATIC SOFT-CLOSE DRIVE FRONT PASSENGER'S DOOR COURTESY LIGHT FRONT PASSENGER'S DOOR POCKET LIGHTING FRONT PASSENGER'S DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS FRONT PASSENGER'S SEAT BACKREST WIDTH ADJUSTMENT DRIVE FRONT PASSENGER'S SEAT BELT BUCKLE CONTACT FRONT PASSENGER'S SEAT DEPTH ADJUSTMENT DRIVE FRONT PASSENGER'S SEAT HEADREST HEIGHT ADJUSTMENT DRIVE FRONT PASSENGER'S SEAT MODULE FUEL FILLER FLAP CENTRAL LOCKING DRIVE FUEL INJECTOR CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR CYLINDER 5 FUEL INJECTOR CYLINDER 6 FULLY AUTOMATIC TOWING HITCH DRIVE GLOVE COMPARTMENT LIGHT HALL SENS GND HALL SENS GND BACKREST HEAD ADJ MONITOR ANGLE ADJ HALL SENS SIG HAZARD WARNING SW HEAD RESTRAINT FOLDING ADJUSTMENT DRIVE HEAD-UP DISPLAY HEADLIGHTS SYSTEM HEADREST ACT HEADREST HEIGHT ACT HEIGHT ACT HORNS SYSTEM HOT AT ALL TIMES HOT FILM AIR MASS METER HOT W/ HOT W/ TERMINAL INFOTAINMENT FAN INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INSTRUMENT PANEL INT LT ACT INTEGRATED SUPPLY MODULE INTERFERENCE SUPPRESSION FILTER INTERIOR LIGHT ACTIVATION INTERIOR LIGHT) INTERIOR LIGHTING JUMP START TERMINAL JUNCTION BOX ELECTRONICS K CAN BUS K LIN 16 K-CAN 2-H K-CAN 2-L K-CAN BUS SIG K-CAN BUS SIGNAL LAN BUS SIG LANE CHANGE WARNING IND LANE CHANGE WARNING LED LATE PRODUCTION LED ACTIVATION LED ANTI-THEFT LED LANE CHANGE WARNING IND DRIVER VEHICLE EXTERIOR MIRROR LED LANE CHANGE WARNING IND FRONT PASSENGER VEHICLE EXTERIOR MIRROR LEFT "B" PILLAR VENTILATION GRILLE LEFT "C" PILLAR) LEFT ACTIVATION ILLUMINATED CARPET LEFT CONTACT PIN LEFT FOG LIGHT LEFT FRONT DOOR SILL LIGHT STRIP LEFT FRONT ELECTRONIC WHEEL MODULE LEFT FRONT ENTRANCE LIGHT LEFT FRONT FOOTWELL LIGHT LEFT FRONT GLASS SUNROOF LIGHTING LEFT FRONT LANE CHANGE WARNING SLAVE LEFT FRONT MIXING FLAP DRIVE LEFT FRONT POWER DISTRIBUTION BOX LEFT FRONT REAR GLASS SUNROOF LIGHTING LEFT FRONT SEAT PNEUMATICS MODULE LEFT FRONT SLAVE LANE CHANGE WARNING LEFT FRONT TWEETER LEFT FRONT TWEETER LIGHTING LEFT FRONT VANITY MIRROR LIGHT LEFT FRONT VENTILATION GRILLE LEFT FRONTAL LIGHT ELECTRONICS LEFT ILLUMINATED CARPET LEFT INNER TAILLIGHT LEFT MAP READING LIGHT LEFT OUTER TAILLIGHT LEFT PARKING BRAKE DRIVE LEFT REAR AIR CONDITIONER CONTROL PANEL LEFT REAR DOOR SILL LIGHT STRIP LEFT REAR ELECTRONIC WHEEL MODULE LEFT REAR FRONT GLASS SUNROOF LIGHTING LEFT REAR GLASS SUNROOF LIGHTING LEFT REAR INTERIOR LIGHT LEFT REAR LANE CHANGE WARNING SLAVE LEFT REAR MIXING FLAP DRIVE LEFT REAR RETRACTOR TENSIONER LEFT REAR SEAT PNEUMATICS MODULE LEFT REAR TWEETER LEFT REAR TWEETER 2 LEFT REAR VANITY MIRROR LIGHT LEFT REVERSIBLE ELECTROMOTIVE AUTOMATIC REEL LEFT REVERSIBLE ELECTROMOTIVE AUTOMATIC WHEEL LEFT SHIFT PADDLE LEFT SIDE READING LIGHT LEFT TAILLIGHT LEFT TURN SIG LIGHT LH SIG STRATIFICATION ADJUSTER LICENSE PLATE LIGHT LICENSE PLATE LIGHT ACTIVATION LIGHT EFFECT MANAGER LIGHT SOURCE 1 LIGHT SOURCE 2 LIGHT SOURCE 3 LIGHT SOURCE 4 LIGHT SOURCE 5 LIGHT SOURCE 6 LIGHT SOURCE 7 LIGHT SOURCE 8 LIGHT SOURCE 9 LIGHT SOURCE 11 LIGHT SOURCE 16 LIN 6 LIN BUS SIG LIN BUS SIGNAL LIN POWER DISTRIBUTION BOX LINES SYSTEM LOCATING LIGHT LOCATOR LIGHT AND AMBIENT LIGHT LOCATOR LT LOCATOR LT, AMBIENT LT LUGGAGE COMPARTMENT LIGHT MAGNETIC CLUTCH MAGNETIC CLUTCH ACTUATION MICROPHONE 2 + MIRROR ELECTRONICS MIRROR FOLD- IN DRIVE MIXING AIR CONTROL SPLY MIXING AIR CONTROL SUPPLY MONITOR TILT ADJUSTMENT DRIVE MOST DATA BUS CIRCUIT NATURAL VACUUM LEAK DETECTION NAVIGATION SYSTEM NFC READER NFC READER AERIAL NIGHT VISION ELECTRONICS NIGHT VISION ELECTRONICS MODULE NOT USED OPTIONAL EQUIPMENT SYSTEM PANORAMA ROOF ROLLER BLIND DRIVE PANORAMA ROOF ROLLER BLIND DRIVE 2 PARKING MANEUVERING ASSISTANT PASS FAN ACT 1 PASS FAN ACT 4 PASS FAN GND 1 PASS FAN GND 4 PASS FAN SIG 1 PASS FAN SIG 4 PASS SEAT BACKREST GND PASS SEAT CUSHION GND PASSENGER OUTSIDE DOOR HANDLE ELECTRONICS PASSENGER SEAT BACKREST WIDTH ADJUSTMENT DRIVE 2 PASSENGER'S SEAT BACKREST FAN 1 PASSENGER'S SEAT BACKREST FAN 2 PASSENGER'S SEAT BACKREST FAN 3 PASSENGER'S SEAT BACKREST FAN 4 PASSENGER'S SEAT CUSHION FAN 1 PASSENGER'S SEAT CUSHION FAN 2 PASSENGER'S SEAT CUSHION FAN 3 PASSENGER'S SEAT CUSHION FAN 4 PASSENGER'S SIDE REAR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS PASSENGER'S SIDE REAR ROLLER SUNBLIND DRIVE PASSIVE RESTRAINTS SYSTEM POWER DISTRIBUTION SYSTEM POWER SUPPLY POWER WINDOWS CIRCUIT PS CAN-H PS CAN-L PT CAN H PT CAN L PT-CAN BUS SIG PWR SPLY READING LIGHT REAR AIR CONDITIONER REAR AIR CONDITIONER BLOWER OUTPUT STAGE REAR AIR VENT GRILLE REAR AXLE KING PIN INCLINATION CONTROL REAR AXLE SLIP ANGLE CONTROL REAR BASE PLATE REAR BASE PLATE 2 REAR CENTER ARMREST LIGHT REAR CENTER SEAT BELT BUCKLE CONTACT REAR COMPARTMENT AIR CONDITIONING REAR COMPARTMENT AIR CONDITIONING SYSTEM REAR COMPARTMENT DISPLAY 2 REAR COMPARTMENT MONITOR 2 REAR CONSOLE CAPTAIN'S CHAIR LIGHTING REAR CONSOLE CAPTAIN'S CHAIR LIGHTING 2 REAR DRIVER'S SIDE AUTOMATIC SOFT-CLOSE DRIVE REAR DRIVER'S SIDE BACKREST ANGLE ADJUSTMENT DRIVE REAR DRIVER'S SIDE BACKREST UPPER SECTION ADJUSTMENT DRIVE REAR DRIVER'S SIDE COURTESY LIGHTING REAR DRIVER'S SIDE DOOR POCKET LIGHTING REAR DRIVER'S SIDE DOOR SILL COURTESY LIGHT REAR DRIVER'S SIDE ENTRY LIGHT REAR DRIVER'S SIDE FOOTWELL LIGHT REAR DRIVER'S SIDE HEADREST HEIGHT ADJUSTMENT DRIVE REAR DRIVER'S SIDE OUTSIDE DOOR HANDLE ELECTRONICS REAR DRIVER'S SIDE SEAT ANGLE ADJUSTMENT DRIVE REAR DRIVER'S SIDE SEAT BACKREST FAN REAR DRIVER'S SIDE SEAT BELT BUCKLE CONTACT REAR DRIVER'S SIDE SEAT CUSHION FAN REAR DRIVER'S SIDE SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE REAR DRIVER'S SIDE SEAT MODULE REAR ELECTRIC ACTIVE ROLL STABILIZATION REAR FOG LIGHT REAR FOG LIGHT ACTIVATION REAR FRONT PASSENGER SIDE SEAT MODULE REAR FRONT PASSENGER'S SIDE SEAT MODULE REAR INTERIOR LIGHT REAR MONITOR REAR PASSENGER'S SIDE AUTOMATIC SOFT CLOSE SYSTEM DRIVE REAR PASSENGER'S SIDE AUTOMATIC SOFT-CLOSE DRIVE REAR PASSENGER'S SIDE BACKREST ANGLE ADJUSTMENT DRIVE REAR PASSENGER'S SIDE BACKREST HEAD ADJUSTMENT DRIVE REAR PASSENGER'S SIDE BELT BUCKLE CONTACT REAR PASSENGER'S SIDE COURTESY LIGHT REAR PASSENGER'S SIDE DOOR POCKET LIGHTING REAR PASSENGER'S SIDE ENTRY LIGHT REAR PASSENGER'S SIDE FOOTWELL LIGHT REAR PASSENGER'S SIDE HEADREST HEIGHT ADJUSTMENT DRIVE REAR PASSENGER'S SIDE OUTSIDE DOOR HANDLE ELECTRONICS REAR PASSENGER'S SIDE SEAT BACKREST FAN REAR PASSENGER'S SIDE SEAT BELT BUCKLE CONTACT REAR PASSENGER'S SIDE SEAT CUSHION FAN REAR PASSENGER'S SIDE SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE REAR PASSENGER'S SIDE SEAT MODULE REAR PASSENGER'S SIDE SEAT TILT ADJUSTMENT DRIVE REAR PASSENGER'S SIDE SILL COURTESY LIGHT REAR POWER DISTRIBUTION BOX REAR SEAT ENTERTAINMENT REAR SEAT ENTERTAINMENT CIRCUIT REAR WINDOW DEFROSTER REAR WINDOW HEATED BAND ELIMINATION CIRCUIT 2 REAR WINDOW ROLLER SUNBLIND DRIVE REBOUND STAGE RECEIVER AUDIO MODULE REMOTE CONTROL RECEIVER REV LIGHT ACTIVATION REVERSING LIGHT REVERSING LIGHT ACTIVATION RH SIG STRATIFICATION ADJUSTER RH TURN SIG LIGHT RIGHT "B" PILLAR VENTILATION GRILLE RIGHT ACTIVATION ILLUMINATED CARPET RIGHT CONTACT PIN RIGHT END OF DASH) RIGHT FOG LIGHT RIGHT FRONT DOOR SILL LIGHT STRIP RIGHT FRONT ELECTRONIC WHEEL MODULE RIGHT FRONT ENTRANCE LIGHT RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT GLASS SUNROOF LIGHTING RIGHT FRONT LANE CHANGE WARNING SLAVE RIGHT FRONT MIXING FLAP DRIVE RIGHT FRONT POWER DISTRIBUTION BOX RIGHT FRONT REAR GLASS SUNROOF LIGHTING RIGHT FRONT SEAT PNEUMATIC MODULE RIGHT FRONT SEAT PNEUMATICS MODULE RIGHT FRONT SLAVE LANE CHANGE WARNING RIGHT FRONT TWEETER RIGHT FRONT TWEETER LIGHTING RIGHT FRONT VANITY MIRROR LIGHT RIGHT FRONT VENTILATION GRILLE RIGHT FRONTAL LIGHT ELECTRONICS RIGHT ILLUMINATED CARPET RIGHT INNER TAILLIGHT RIGHT MAP READING LIGHT RIGHT OUTER TAILLIGHT RIGHT PARKING BRAKE DRIVE RIGHT READING LIGHT RIGHT REAR AIR CONDITIONER CONTROL PANEL RIGHT REAR DOOR SILL LIGHT STRIP RIGHT REAR ELECTRONIC WHEEL MODULE RIGHT REAR ENTRANCE LIGHT RIGHT REAR FRONT GLASS SUNROOF LIGHTING RIGHT REAR GLASS SUNROOF LIGHTING RIGHT REAR INTERIOR LIGHT RIGHT REAR LANE CHANGE WARNING MASTER RIGHT REAR MIXING FLAP DRIVE RIGHT REAR RETRACTOR TENSIONER RIGHT REAR SEAT PNEUMATICS MODULE RIGHT REAR TWEETER RIGHT REAR TWEETER 2 RIGHT REAR VANITY MIRROR LIGHT RIGHT REVERSIBLE ELECTROMOTIVE AUTOMATIC REEL RIGHT SHIFT PADDLE RIGHT SIDE OF RADIATOR) RIGHT TRUNK LID LIFTING DRIVE RIGHT TURN SIGNAL LIGHT ACTUATION ROOF AERIAL ROOF FUNCTION CENTER SEAT ADJUSTMENT SW SEAT ADJUSTMENT SW BLOCK SEAT ADJUSTMENT SW BLOCK SHIELD SEAT BACKREST ACT SEAT BACKREST GND SEAT BACKREST) SEAT CUSHION ACT SEAT CUSHION GND SEAT FAN ACT SEAT FAN GND SEAT FAN VOLT SPLY SEAT GND SEAT SURFACE ACT SEAT SURFACE GND SEAT SW GND SEAT SW SPLY SEATS SYSTEM SENS GND SIDE MARKER LIGHT SOUND SYSTEMS SOUND, NAVIGATION SYSTEMS SOURCE 4 SOURCE 5 SOURCE 6 SOURCE 7 SOURCE 8 SOURCE 10 SOURCE 12 SOURCE 13 SOURCE 14 SOURCE 15 SOURCE 17 SOURCE 18 SOURCE 19 SOURCE 20 SOURCE 21 SOURCE 22 SOURCE 23 SOURCE 24 SPARK PLUG SPLY SIG STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STARTING/CHARGING SYSTEMS SUNROOF SHADE DRIVE SW SIG SW SIGNAL SWIVEL MODULE TAIL LIGHT ACTIVATION TAIL LIGHT/ SIDE MARKER LIGHT TELEMATIC COMMUNICATION BOX TEMP SENS SIG TEMP SENS SIG SEAT BACKREST GND TERM 30 TERM 30 SPLY TERMINAL 15 SUPPLY TERMINAL 30 SPLY TERMINAL 30 SUPPLY TOP CENTER DASH BOARD LIGHTING TOP CENTER DASHBOARD LIGHTING TOP DRIVER'S DOOR TRIM PANEL LIGHTING TOP FRONT PASSENGER DOOR TRIM PANEL LIGHTING TOP FRONT PASSENGER'S SIDE DASH BOARD LIGHTING TOP FRONT PASSENGER'S SIDE DASHBOARD LIGHTING TOP RADIATOR BLIND DRIVE TOP REAR DRIVER'S SIDE DOOR TRIM PANEL LIGHTING TOP REAR PASSENGER DOOR TRIM PANEL LIGHTING TOP REAR PASSENGER'S DOOR TRIM PANEL LIGHTING TOUCH COMAND SNAP IN ADAPTER TOUCH COMMAND TOUCH COMMAND SNAP-IN ADAPTER TOUCH COMMAND TOUCH COMMAND SNAP-IN ADAPTER TOUCH DETECTION ELECTRONICS TOWING HITCH TRAILER MODULE TRANSFER BOX TRANSMISSIONS SYSTEM TRUNK COMPARTMENT LIGHT TRUNK LID POWERTRAIN AUTOMATIC SOFT CLOSE SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM UNLOCKING, LOCKING MECHANISM DRIVE USB CONNECTION USB PORT 2 USB- HUB VERTICAL DYNAMICS PLATFORM VIDEO MODULE VOLT SPLY W/ ADAPTIVE CRUISE CONTROL W/ ADAPTIVE HEADLIGHTS W/ AUTOMATIC REAR CLIMATE CONTROL W/ AUTOMATIC SOFT CLOSE SYSTEM W/ EXTENDABLE THIGH SUPPORT W/ HIGH END SURROUND SOUND SYSTEM W/ HOT FILM AIR MASS METER W/ INTERIOR LIGHT PACKAGE W/ MULTI- FUNCTION SEAT W/ OPTIONAL EQUIPMENT W/ OPTIONAL EQUIPMENT SYSTEM W/ PANORAMIC ROOF W/ PANORAMIC ROOF, ELECTRIC ROLLER SUNBLINDS W/ PARKING ASSISTANT W/ REAR AIR CONDITIONER W/ REAR COMFORT SEAT W/ REAR SEAT ENTERTAINMENT W/ RECEIVER AUDIO MODULE W/ REMOTE-CONTROLLED PARKING AERIAL SIG W/ SEAT MODULE W/ SEAT PNEUMATICS MODULE W/ TELEMATICS W/ TOUCH COMMAND W/ USB HUB W/ WIRELESS CHARGING STORAGE W/O 4-ZONE AIR CONDITIONING W/O ADAPTIVE CRUISE CONTROL W/O AUTOMATIC REAR CLIMATE CONTROL W/O AUTOMATIC SOFT CLOSE SYSTEM W/O EXTENDABLE THIGH SUPPORT W/O HIGH END SURROUND SOUND SYSTEM W/O HOT FILM AIR MASS METER W/O INTERIOR LIGHT PACKAGE W/O LASER LED W/O MULTI- FUNCTION SEAT W/O OPTIONAL EQUIPMENT W/O OPTIONAL EQUIPMENT SYSTEM W/O OPTIONAL EQUIPMENT SYSTEM FLEXRAY TERMINATION W/O OPTIONAL EQUIPMENT SYSTEM FLEXRAY TERMINATION FLEXRAY BUS SIG W/O PANORAMIC ROOF W/O PANORAMIC ROOF, ELECTRIC ROLLER SUNBLINDS W/O PARKING ASSISTANT W/O REAR COMFORT SEAT W/O RECEIVER AUDIO MODULE W/O REMOTE PARKING AERIAL SIG W/O REMOTE PARKING AERIAL SIG W/ REMOTE-CONTROLLED PARKING AERIAL SIG W/O SEAT MODULE W/O TELEMATICS W/O USB HUB W/O WIRELESS CHARGING STORAGE WAKE UP SIG WAKE-UP SIG ETHERNET DATA LINE WIPER MODULE WIPER/WASHER SYSTEM WIRELESS CHARGING STORAGE WLAN AERIAL
