BMW 6 series F06/F13/F12 (2011-2015) basic w/ dvd changer w/ video switch Wiring diagram
This page shows the only wiring diagram for the component.basic w/ dvd changer w/ video switch, which is found in the car BMW 6 series F06/F13/F12 (2011-2015). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

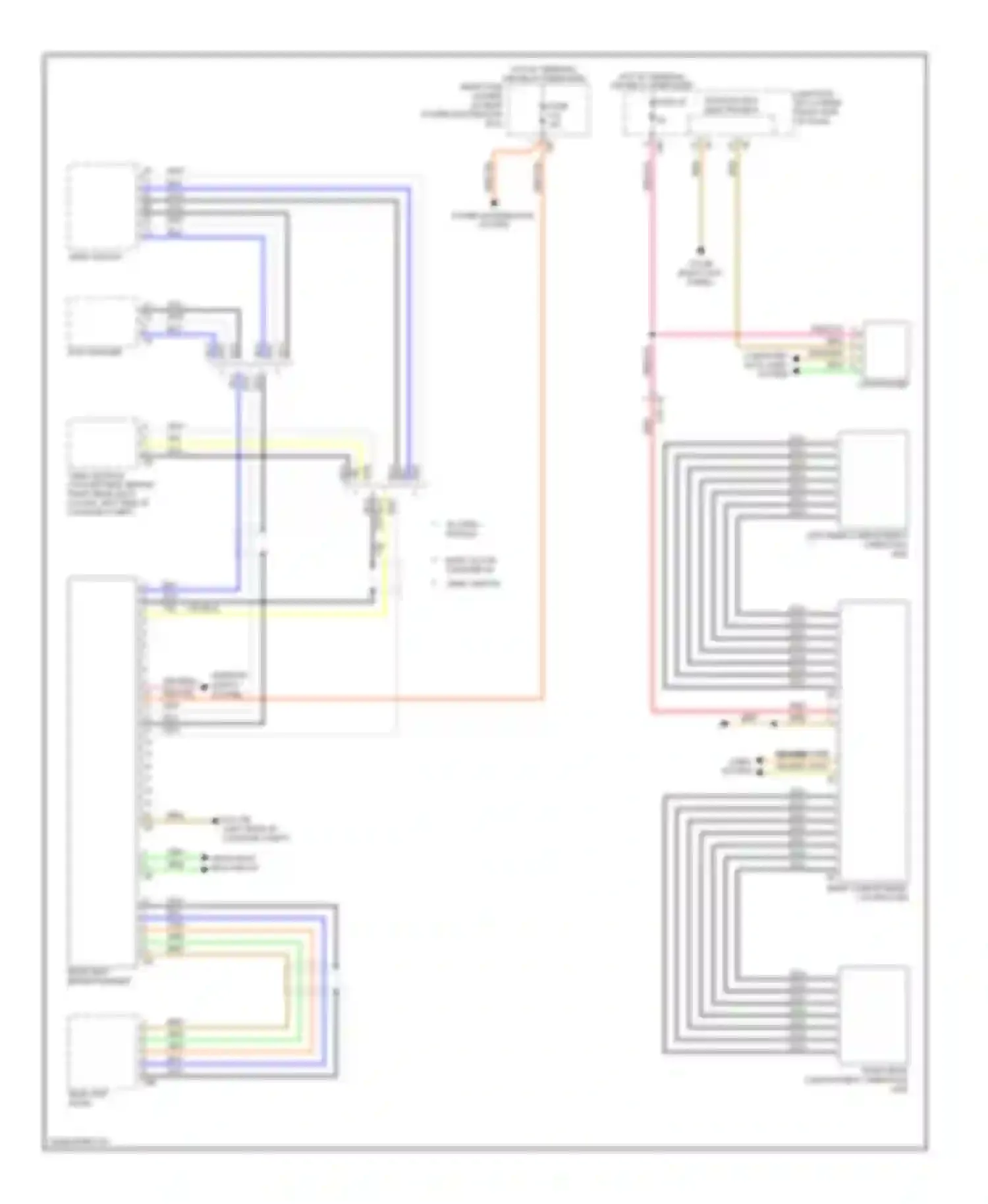

Wiring diagram basic w/ dvd changer w/ video switch (1 of 1)
3 4 COMPUTER DATA LINES SYSTEM
BASIC W/ DVD CHANGER W/ VIDEO SWITCH
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
CONTROLLER
DVD CHANGER
FUSE
FUSE 29
GRN WIRE
GRY/RED WIRE
HEAD UNIT (HIGH)
HOT W/ TERMINAL
JUNCTION BOX (UNDER RIGHT SIDE OF DASH)
JUNCTION BOX ELECTRONICS
LEFT REAR COMPARTMENT OPERATING UNIT
MOST DATA BUS CIRCUIT
NCA WIRE
ORG/ WIRE
ORG/GRN WIRE
POWER DISTRIBUTION SYSTEM
REAR COMPARTMENT CONTROLLER
REAR FUSE HOLDER (IN REAR POWER DISTRIBUTION BOX)
REAR SEAT ENTERTAINMENT
RED WIRE
RED/VIO WIRE
RED/YEL WIRE
RIGHT REAR COMPARTMENT OPERATING UNIT
VIDEO SWITCH
W/ VIDEO MODULE
WHT WIRE
YEL WIRE
YEL/BRN WIRE
YEL/RED WIRE
Go to component -> Rear seat entertainment circuit -> BASIC W/ DVD CHANGER W/ VIDEO SWITCH
