BMW 6 series F06/F13/F12 (2011-2015) adjustment drive Wiring diagram
This page shows the only wiring diagram for the component.adjustment drive, which is found in the car BMW 6 series F06/F13/F12 (2011-2015). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

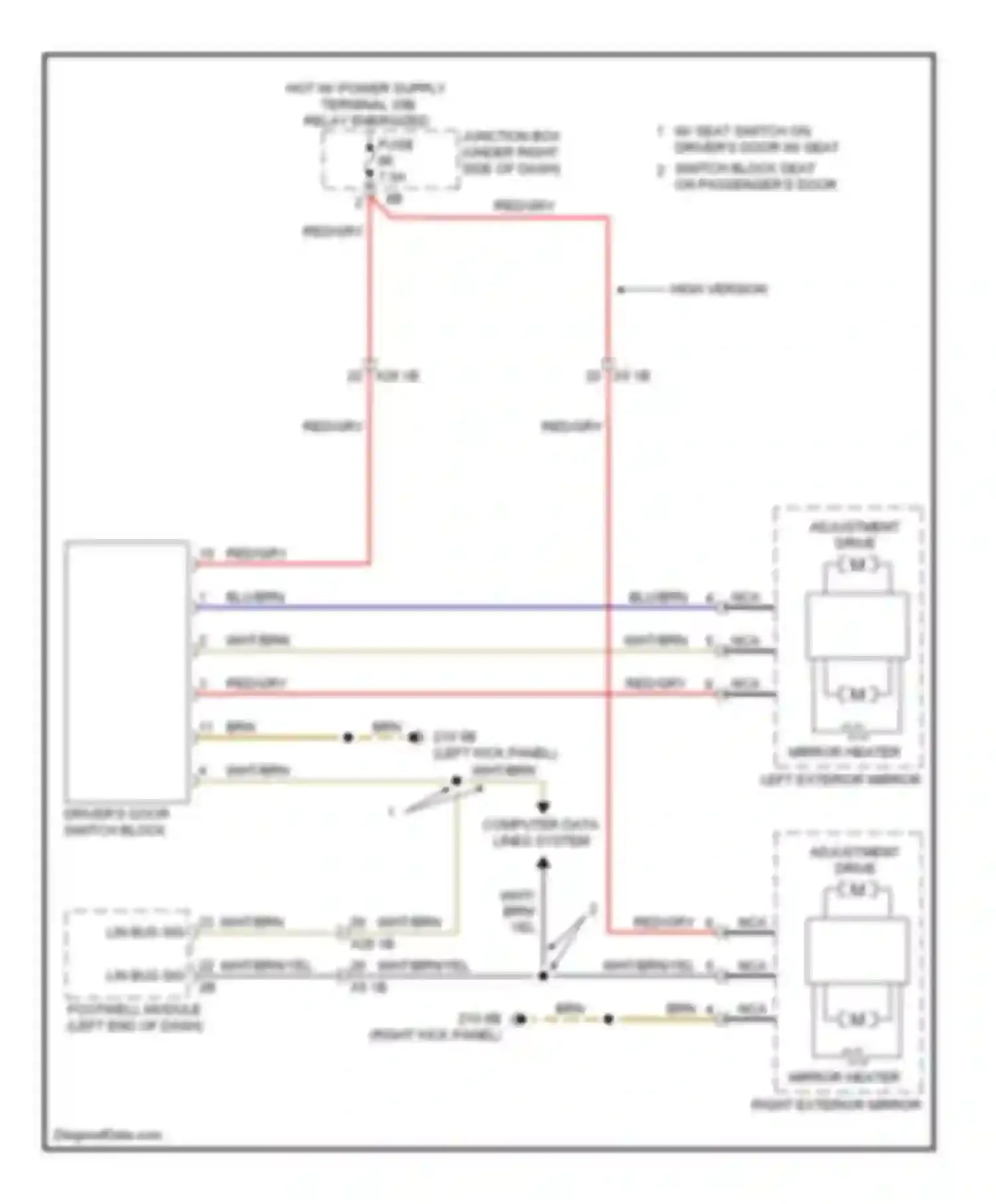

Wiring diagram adjustment drive (1 of 1)
ADJUSTMENT DRIVE
BLU/BRN WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DRIVER'S DOOR SWITCH BLOCK
FOOTWELL MODULE (LEFT END OF DASH)
HIGH VERSION
HOT W/ POWER SUPPLY
JUNCTION BOX (UNDER RIGHT SIDE OF DASH)
LEFT EXTERIOR MIRROR
LIN BUS SIG
MIRROR HEATER
NCA WIRE
RED/GRY WIRE
RELAY ENERGIZED FUSE
RIGHT EXTERIOR MIRROR
W/ SEAT SWITCH ON DRIVER'S DOOR W/ SEAT SWITCH BLOCK SEAT ON PASSENGER'S DOOR
WHT WIRE
WHT/BRN WIRE
WHT/BRN/YEL WIRE
YEL WIRE
Go to component: -> Heated mirrors circuit -> ADJUSTMENT DRIVE
