Trunk & fuel door release circuit for BMW 6 series E63/E64 facelift (2007-2010)

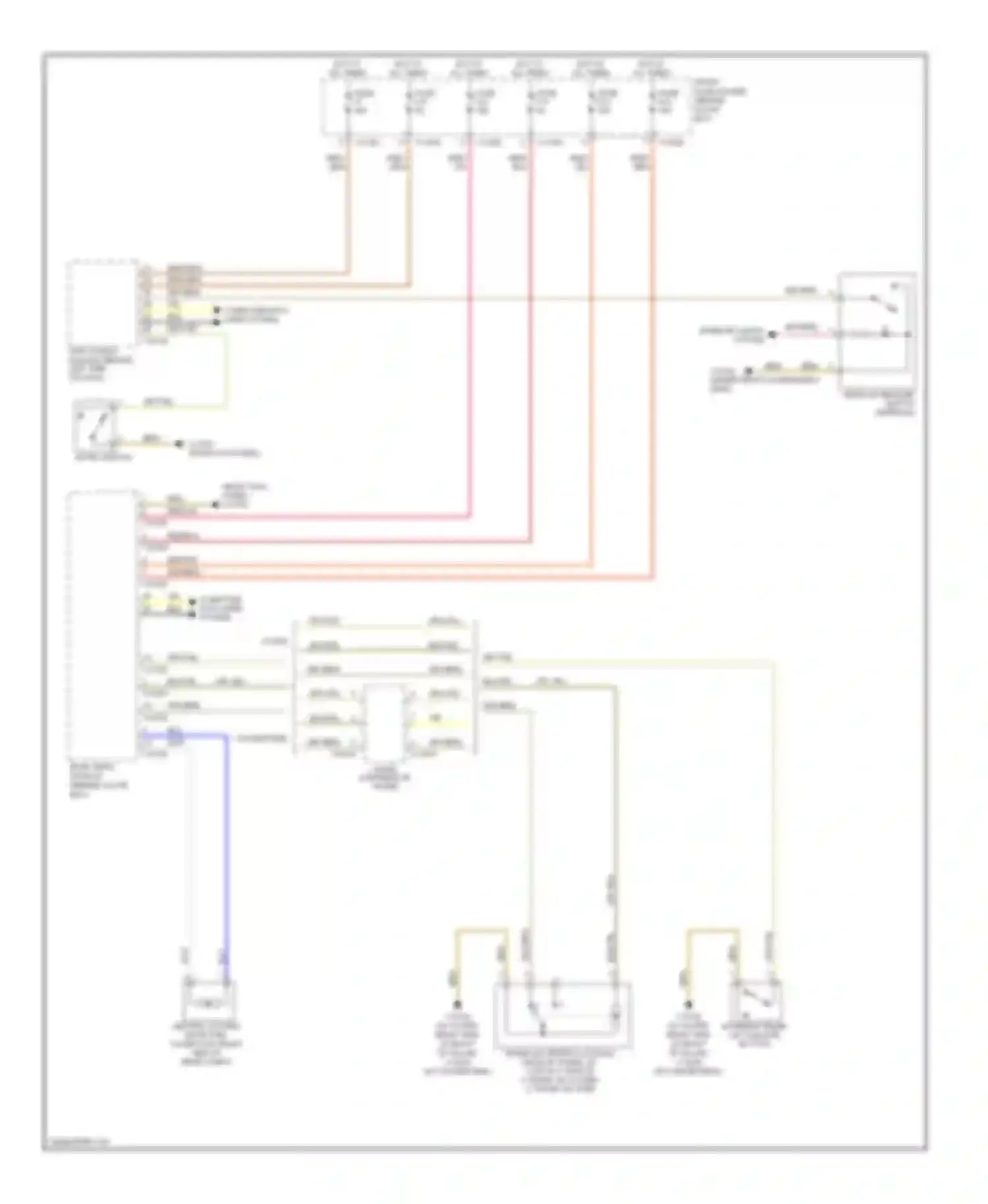

Trunk & fuel door release circuit
BASIC BODY MODULE (BEHIND GLOVE BOX)
BLK WIRE
BLK/YEL WIRE
BLU WIRE
BRN WIRE
CAR ACCESS MODULE (BEHIND LEFT SIDE OF DASH)
CENTRAL LOCKING DRIVE FUEL FILLER FLAP (RIGHT SIDE OF REAR COMPT)
COMPUTER DATA LINES SYSTEM
COUPE
EXTERIOR TRUNK LID/ TAILGATE BUTTON
FRONT FUSE HOLDER (BEHIND GLOVE BOX)
FUSE
GRN WIRE
GRY/BRN WIRE
GRY/RED WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
HOTEL SWITCH
NOISE SUPPRESSOR FILTER
REAR LID RELEASE SWITCH (INTERIOR)
RED WIRE
RED/BLK WIRE
RED/BRN WIRE
RED/GRN WIRE
RED/VIO WIRE
RED/YEL WIRE
VIO WIRE
W/ CONVERTIBLE
WHT WIRE
YEL WIRE
