Wiring Diagrams for BMW 6 series Gran Coupe F06 facelift (2015-2017)

Active bodyworks circuit

Automatic a/c circuit, w/o rear compartment blower Automatic a/c circuit, w/ rear compartment blower Independent heating circuit Rear heater & a/c circuit

Anti-lock brakes circuit

Access/start circuit Anti-theft & central locking circuit

Body control modules circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Heated mirrors circuit Rear defogger circuit

Active power steering circuit Electromechanical power steering circuit

Air suspension circuit Dynamic drive suspension circuit

Wiring diagram engine performance 3.0l turbo

Backup lamps circuit Exterior lamps & trailer connector circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Electronic night vision circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

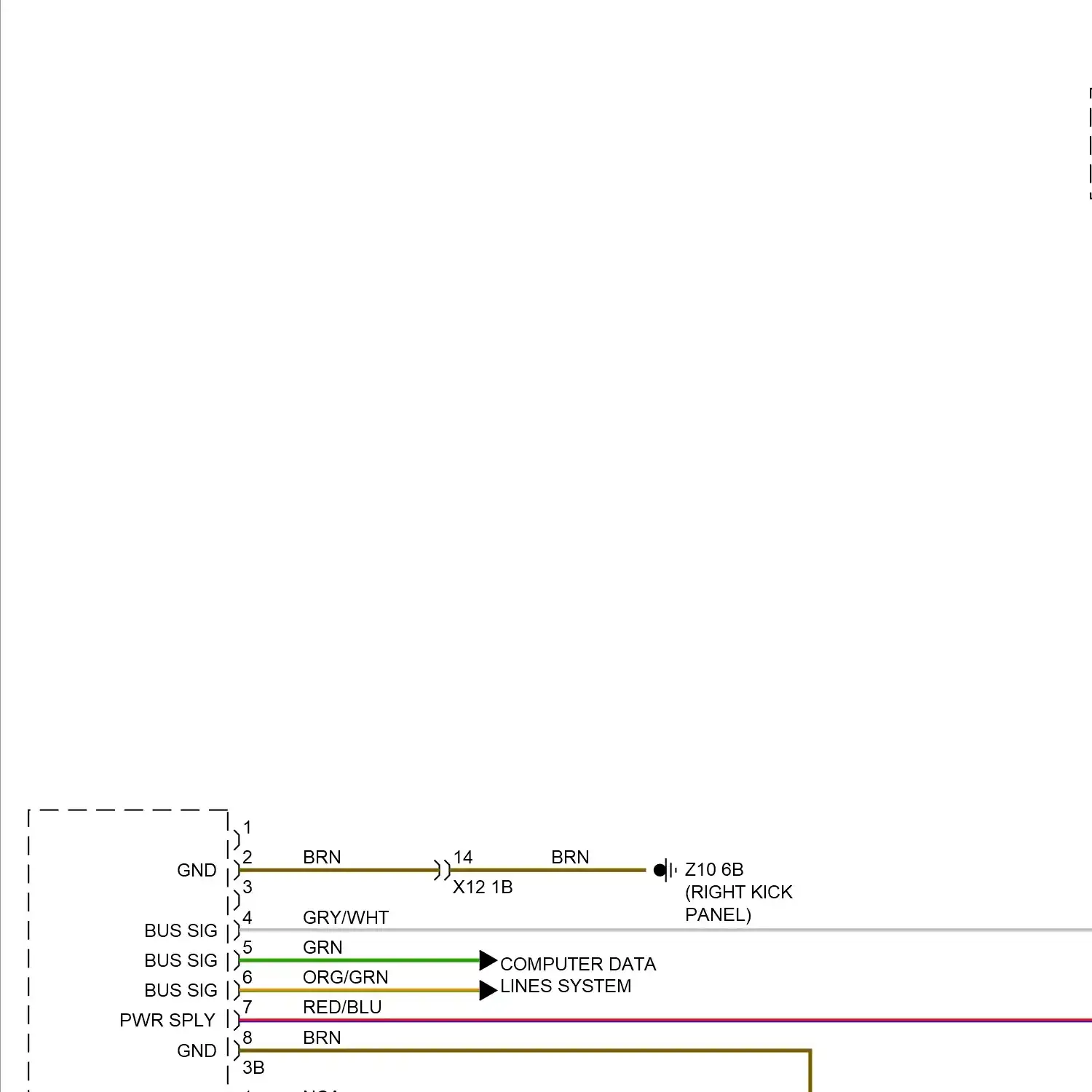

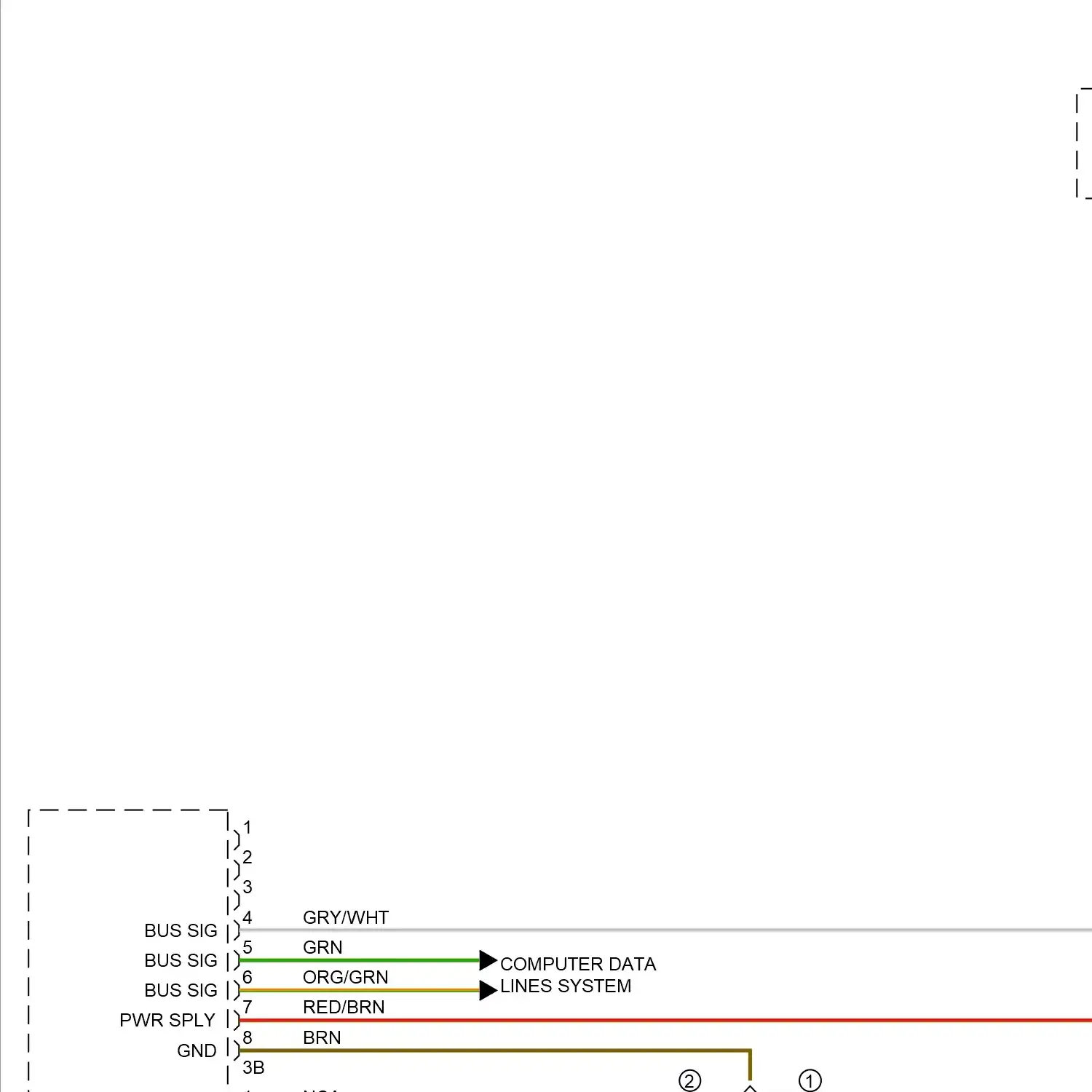

Driver"s memory seat circuit Memory mirrors circuit Passenger"s memory seat circuit Steering column memory circuit

All around vision camera circuit Lane departure warning circuit, w/ camera Lane departure warning circuit, w/o camera Navigation circuit, w/ active sound design Navigation circuit, w/o active sound design Parking assistant circuit, w/o parking maneuvering assistant Parking assistant circuit, w/ parking maneuvering assistant

Passive restraints circuit

Power distribution circuit

Power door locks circuit

Power mirrors circuit

Front heated seats circuit Front lumbar circuit, w/ active seats Front lumbar circuit, w/o active seats Heated steering wheel circuit Rear heated seats circuit Seat ventilation circuit

Sunroof circuit

Power windows circuit Roller sun blind circuit

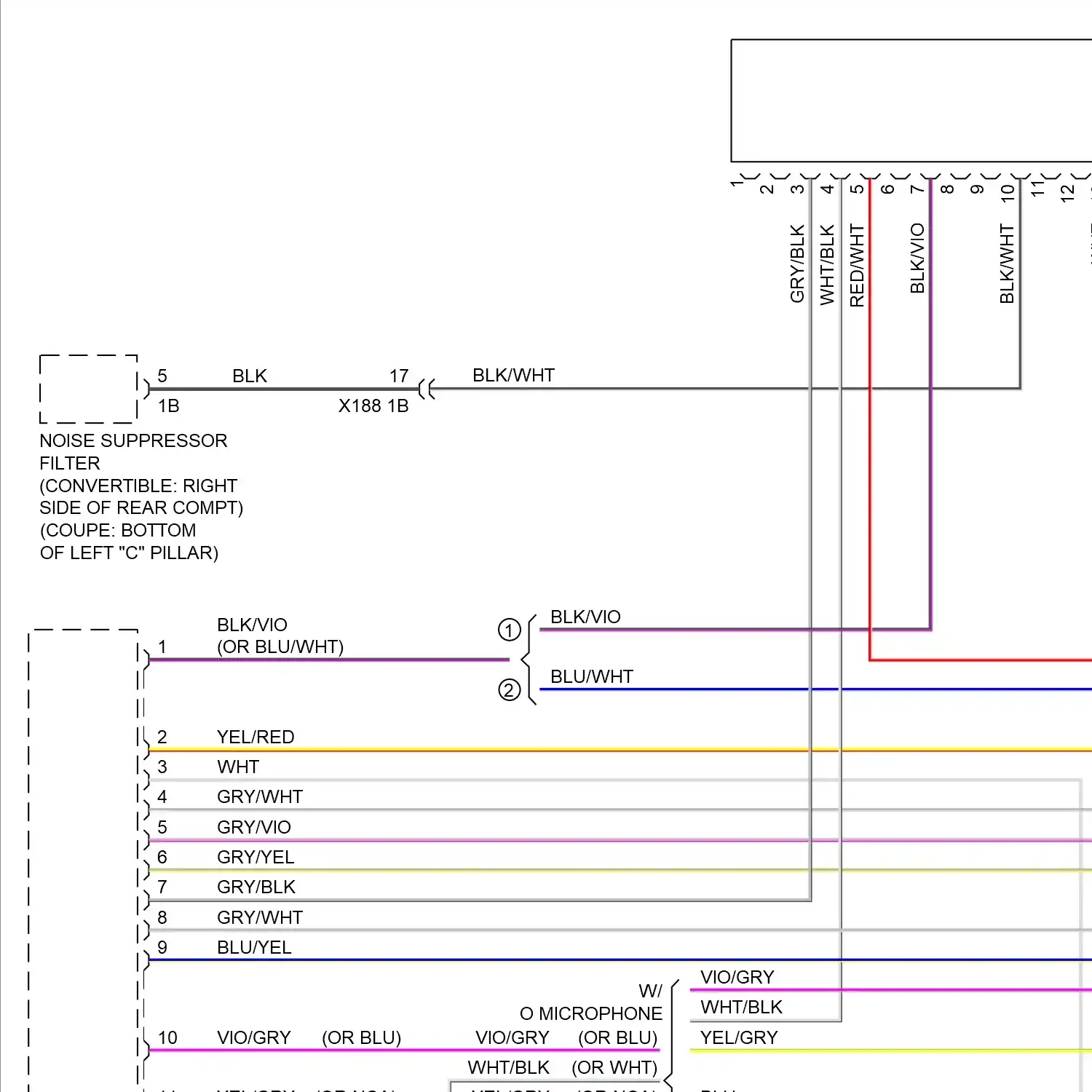

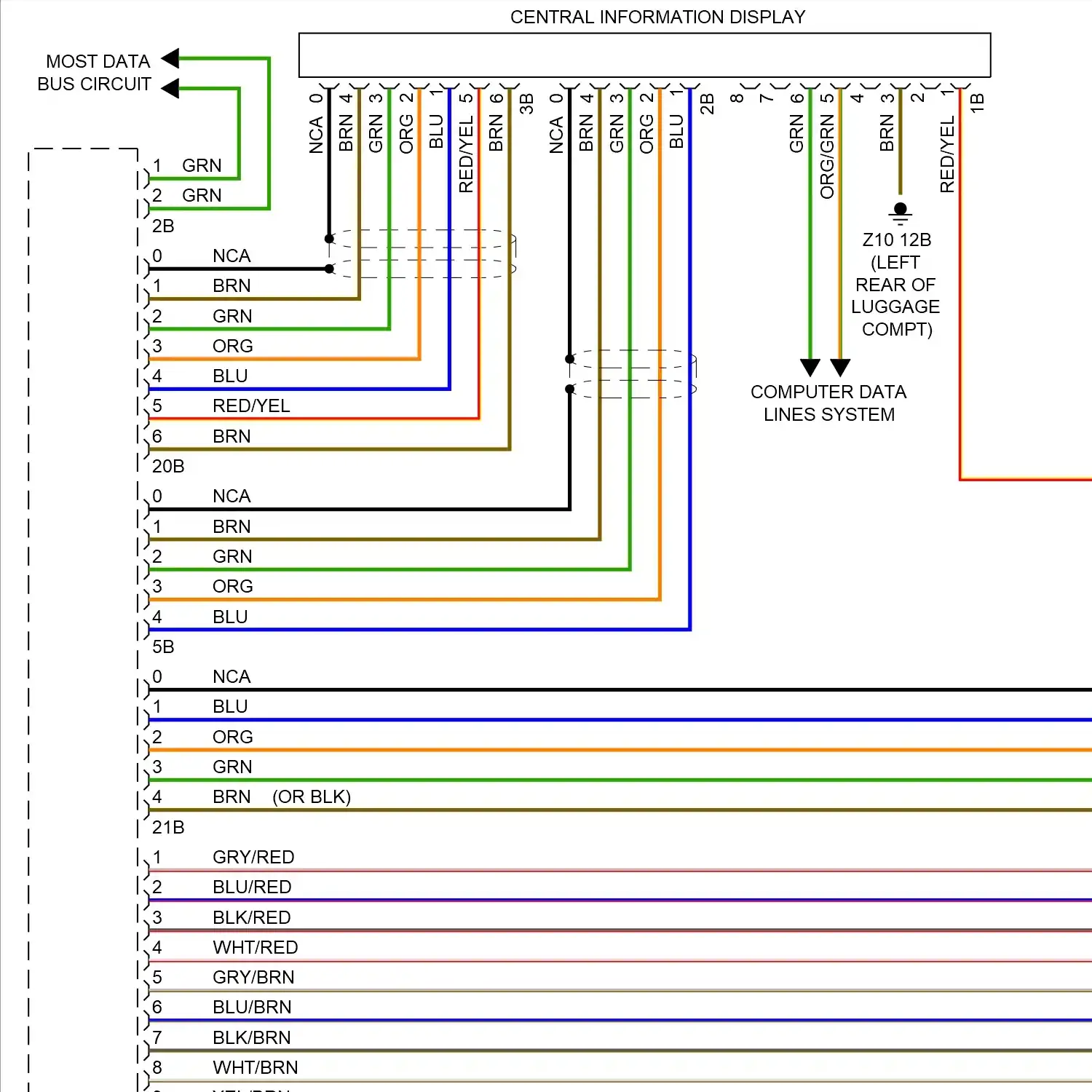

Hifi radio circuit, w/ active sound design Hifi radio circuit, w/o active sound design Most data bus circuit Rear seat entertainment circuit Top hifi radio circuit, except premium w/ active sound design Top hifi radio circuit, except premium w/o active sound design Top hifi radio circuit, premium Video system circuit

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Rear axle circuit

Trunk & fuel door release circuit

Warning systems circuit

Wiper/washer circuit

ACTIVATION SERVOMOTOR LOCK OUT BOOT LID/ TAILGATE LOCK BOOT LID/TAILGATE LOCK CENTER WASHER NOZZLE HEATER DIAGNOSIS PLUG TERMINATING RESISTOR DRIVER SEAT BELT TENSIONER GENERATOR DRIVER'S DOOR LOCK DRIVER'S SEAT ACTIVE HEAD RESTRAINT GENERATOR DRIVER'S SIDE REAR DOOR LOCK ELECTRIC SERVOMOTOR LOCK FRONT PASSENGER SIDE REAR DOOR LOCK FRONT PASSENGER'S DOOR LOCK HIFI AMPLIFIER HIGH HORN HIGH RANGE FANFARE HORN IGN COIL 1 ACTIVATION IGN COIL 1 SPLY IGN COIL 2 ACTIVATION IGN COIL 2 SPLY IGN COIL 3 ACTIVATION IGN COIL 3 SPLY IGN COIL 4 ACTIVATION IGN COIL 4 SPLY IGN COIL 5 ACTIVATION IGN COIL 5 SPLY IGN COIL 6 ACTIVATION IGN COIL 6 SPLY IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 IGNITION COIL CYLINDER 1 IGNITION COIL CYLINDER 2 IGNITION COIL CYLINDER 3 IGNITION COIL CYLINDER 4 IGNITION COIL CYLINDER 5 IGNITION COIL CYLINDER 6 IGNITION COIL CYLINDER 7 IGNITION COIL, CYLINDER 8 LEFT FRONT SEAT BELT FORCE LIMITER GENERATOR LEFT ROLLOVER ALTERNATOR PROTECTION LEFT WASHER NOZZLE HEATER LOCK ACT LOCK GND LOCK SPLY LOW HORN LOW RANGE FANFARE HORN PASSENGER SEAT BELT TENSIONER GENERATOR PASSENGER'S SEAT ACTIVE HEAD RESTRAINT GENERATOR PREMIUM TOP HIFI AMPLIFIER REAR DRIVERS SIDE DOOR LOCK REAR PASSENGER SIDE DOOR LOCK REGULATED REAR AXLE DIFFERENTIAL LOCK RIGHT FRONT SEAT BELT FORCE LIMITER GENERATOR RIGHT ROLLOVER ALTERNATOR PROTECTION RIGHT WASHER NOZZLE HEATER SAFETY BATTERY TERMINAL GAS GENERATOR SAFETY BATTERY TERMINAL GENERATOR STARTER ACT TERMINATING RESISTOR 2 TOP HIFI AMPLIFIER W/ HIFI AMPLIFIER W/ TOP HIFI AMPLIFIER WIRELESS CHARGING ODDMENTS TRAY AERIAL AMPLIFIER

(RIGHT SIDE OF ENGINE ACTIVATION ACTUATOR ACTIVE STEERING SERVO MOTOR SHIELD ACTUATOR DRIVE ACTUATOR MOTOR ACTUATOR SIG ACTUATOR SIG ACTIVATION SERVOMOTOR LOCK ACTUATOR SPLY BLOWER MOTOR DEFROSTER FLAP MOTOR DIGITAL MOTOR ELECTRONICS DIGITAL MOTOR ELECTRONICS 2 ELECTROMOTIVE THROTTLE ACTUATOR ENGINE COMPARTMENT POWER DISTRIBUTION BOX ENGINE COOLANT TEMP SENS GND ENGINE OIL PRES SENS GND ENGINE OIL PRES SENS SPLY ENGINE OIL TEMP SENS ENGINE START SIG ENGINE VENTILATION HEATING ENGINE VENTILATION HEATING GND ENGINE VENTILATION HEATING SPLY FRESH AIR FLAP MOTOR GND ACTUATOR LEFT FRONT FOOTWELL FLAP MOTOR LEFT FRONT PEDESTRIAN GUARD ACTUATOR LEFT FRONT STRATIFICATION FLAP MOTOR LEFT OUTER VENTILATION FLAP MOTOR LEFT REAR COMPARTMENT FOOTWELL FLAP MOTOR LEFT REAR COMPARTMENT STRATIFICATION ACTUATOR LEFT REAR PEDESTRIAN GUARD ACTUATOR LEFT REAR STRATIFYING AIR FLAP MOTOR LEFT STRATIFICATION ACTUATOR LEFT VENTILATION FLAP MOTOR REAR AXLE KING PIN INCLINATION CONTROL ACTUATOR REAR AXLE KING PIN INCLINATION CONTROL ACTUATOR SHIELD REAR COMPARTMENT BLOWER MOTOR REAR COMPARTMENT FAN MOTOR OUTPUT STAGE REAR COMPARTMENT FLAP MOTOR RECIRCULATED AIR FLAP MOTOR RIGHT FRONT FOOTWELL FLAP MOTOR RIGHT FRONT PASSENGER GUARD ACTUATOR RIGHT FRONT STRATIFICATION FLAP MOTOR RIGHT OUTER VENTILATION FLAP MOTOR RIGHT REAR COMPARTMENT FOOTWELL FLAP MOTOR RIGHT REAR PEDESTRIAN GUARD ACTUATOR RIGHT REAR STRATIFYING AIR FLAP MOTOR RIGHT VENTILATION FLAP MOTOR SIG ACTUATOR SPLY ACTUATOR STEERING COLUMN ADJUSTMENT MOTOR STEERING COLUMN INCLINATION MOTOR VALVETRONIC ACTUATOR MOTOR VIBRATION ACTUATOR W/ AUTOMATIC ENGINE START STOP W/O AUTOMATIC ENGINE START STOP W/ AUTOMATIC ENGINE START-STOP W/ AUTOMATIC ENGINE START-STOP FUNCTION W/O AUTOMATIC ENGINE START-STOP

CENTRAL LOCKING BUTTON HAZARD WARNING SWITCH OPERATING FACILITY DTC BUTTON SIG EXTERIOR BOOT LID BUTTON FULLY AUTOMATIC TOWING HITCH BUTTON HORN BUTTON INTERIOR REAR LID BUTTON LIGHT BUTTON PARKING BRAKE BUTTON REAR LID CENTRAL ARREST BUTTON START-STOP BUTTON

ALL ROUND VISION CAMERA CAMERA-BASED DRIVER ASSISTANCE SYSTEMS CAMERA-BASED DRIVER SUPPORT SYSTEMS CAMERA HEATING EXTERIOR MIRROR CAMERA LANE DEPARTURE WARNING CAMERA LEFT BUMPER CAMERA NIGHT VISION CAMERA REVERSING CAMERA RIGHT BUMPER CAMERA TRUNK LID ACTUATION W/ REVERSE CAMERA TRUNK LID ACTUATION W/ REVERSING CAMERA W/ ALL ROUND VISION CAMERA W/ ALL ROUND VISION CAMERA, NIGHT VISION CAMERA W/ ALL ROUND VISION CAMERA, W/O NIGHT VISION CAMERA W/ NIGHT VISION CAMERA W/ OMNIDIRECTIONAL CAMERA, W/O NIGHT VISION CAMERA W/ REVERSE CAMERA W/ REVERSING CAMERA W/O ALL ROUND VISION CAMERA W/O OMNIDIRECTIONAL CAMERA W/O REVERSE CAMERA W/O REVERSING CAMERA

TRAILER SOCKET TRAILER SOCKET SWITCH

PARKING BRAKE CONTROL MODULE

CAR ACCESS SYSTEM CONTROL UNIT CENTER CONSOLE OPERATING UNIT DRIVER ASSISTANCE SYSTEMS OPERATING UNIT DRIVER LUMBAR SUPPORT-ACTIVE SEAT DRIVE UNIT DRIVER'S SEAT ANGLE ADJUSTMENT DRIVE UNIT DRIVER'S SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE UNIT DRIVER'S SEAT HEIGHT ADJUSTMENT DRIVE UNIT FRONT PASSENGER LUMBAR SUPPORT-ACTIVE SEAT DRIVE UNIT HEAD UNIT HEADLIGHT BEAM HEIGHT CONTROL DRIVE UNIT HEADLIGHT RANGE CONTROL DRIVE UNIT INSTRUMENT CLUSTER CONTROL UNIT LEFT REAR COMPARTMENT OPERATING UNIT LIGHT SWITCH UNIT PARKING BRAKE CONTROL UNIT RADIATOR SHUTTER DRIVE UNIT REAR SCREEN POWER UNIT RELAY REAR SCREEN POWER UNIT RELAY 2 RIGHT REAR COMPARTMENT OPERATING UNIT SCR CONTROL UNIT SERVOTRONIC CONTROL UNIT TELEMATIC CONTROL UNIT TELEMATICS CONTROL UNIT

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 29 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 48 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 56 FUSE 57 FUSE 58 FUSE 59 FUSE 60 FUSE 61 FUSE 62 FUSE 63 FUSE 64 FUSE 65 FUSE 66 FUSE 67 FUSE 71 FUSE 72 FUSE 73 FUSE 100 FUSE 101 FUSE 105 FUSE 109 FUSE 110 FUSE 111 FUSE 113 FUSE 114 FUSE 117 FUSE 118 FUSE 119 FUSE 120 FUSE 121 FUSE 123 FUSE 124 FUSE 125 FUSE 131 FUSE 134 FUSE 135 FUSE 136 FUSE 137 FUSE 138 FUSE 139 FUSE 143 FUSE 144 FUSE 145 FUSE 147 FUSE 148 FUSE 149 FUSE 151 FUSE 152 FUSE 153 FUSE 154 FUSE 155 FUSE 167 FUSE 169 FUSE 172 FUSE 177 FUSE 178 FUSE 179 FUSE 180 FUSE 182 FUSE 184 FUSE 185 FUSE 186 FUSE 187 FUSE 188 FUSE 195 FUSE 198 FUSE 199 FUSE 200 FUSE 202 FUSE 203 FUSE 400 FUSE 500 FUSE 501 FUSE 502 FUSE 504 FUSE 505 FUSE 506 FUSE 509 FUSE BOX REAR FUSE HOLDER

HEADLIGHT DRIVER MODULE HEADLIGHT WASHER SYSTEM WASHER PUMP HIGH BEAM HEADLIGHT LEFT HEADLIGHT LH HEADLIGHT LOW BEAM HEADLIGHT RH HEADLIGHT RIGHT HEADLIGHT

DRIVER'S SEAT BACKREST HEATING ELEMENT DRIVER'S SEAT CUSHION HEATING ELEMENT DRIVER'S SEAT HEATING MODULE ENG BREATHER HEATER 1 SPLY HEATING/AIR CONDITIONING SYSTEM INDEPENDENT AUXILIARY HEATER INDEPENDENT HEATER COMBUSTION AIR BLOWER INDEPENDENT HEATER PLUG LEFT REAR ELECTRIC AUXILIARY HEATER MIRROR HEATER PASSENGER'S SEAT BACKREST HEATING ELEMENT PASSENGER'S SEAT CUSHION HEATING ELEMENT PASSENGER'S SEAT HEATING MODULE REAR DRIVER'S SIDE SEAT BACKREST HEATING ELEMENT REAR DRIVER'S SIDE SEAT CUSHION HEATING ELEMENT REAR DRIVER'S SIDE SEAT HEATING MODULE REAR PASSENGER'S SIDE SEAT BACKREST HEATING ELEMENT REAR PASSENGER'S SIDE SEAT CUSHION HEATING ELEMENT REAR PASSENGER'S SIDE SEAT HEATING MODULE RIGHT REAR ELECTRIC AUXILIARY HEATER STEERING WHEEL HEATER W/ 2 CIRCUIT SEAT HEATING SYSTEM

FLASHING INDICATOR LAMP LEFT FRONT DIRECTION INDICATOR REPEATER LIGHT RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER RIGHT FRONT DIRECTION INDICATOR REPEATER LIGHT TURN INDICATOR/SIDE MARKER LIGHT LED MODULE

ACT FLASHING IND LAMP AIR BAG IND LAMP DOOR LOCKS, EXTERIOR LIGHTS, ANTI-THEFT SYSTEMS EXTERIOR LIGHTS SYSTEMS EXTERIOR LIGHTS, HEADLIGHTS SYSTEMS HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS LOW BEAM ACT FLASHING IND LAMP RIGHT LICENSE PLATE LAMP SIDE LIGHTS/ DAYTIME DRIVING LIGHT SIDE LIGHTS/ DAYTIME DRIVING LIGHTS SIDE LIGHTS/DAYTIME DRIVING LIGHT XENON LAMP

ADDITIONAL COOLANT PUMP SPLY AIR COOLER CHARGE COOLANT PUMP AIR COOLER CHARGE COOLANT PUMP 2 AUXILIARY WATER PUMP BOSCH PUMP SPLY CHARGE AIR COOLER COOLANT PUMP CHARGE AIR COOLER COOLANT PUMP 2 COOLANT PUMP CHARGE AIR COOLER COOLANT PUMP SPLY ELECT FUEL PUMP ELECTRIC COOLANT PUMP HIGH PRES PUMP CTRL GND HIGH PRES PUMP CTRL SIG HIGH PRES PUMP CTRL SPLY INDEPENDENT HEATER CIRCULATION PUMP INDEPENDENT HEATING FUEL METERING PUMP INTERCOOLER COOLANT PUMP TRANSMISSION OIL PUMP TURBO- CHARGER COOLANT PUMP WINDSCREEN WASHER PUMP WINDSHIELD WASHER PUMP

ACTIVATION CUT-OUT RELAY BI-STABLE RELAY COMPRESSOR RELAY DME MAIN RELAY ELECTRIC FAN CUT OUT RELAY ELECTRIC FAN CUT-OFF RELAY HORN RELAY HOT W/ BI-STABLE RELAY ENERGIZED HOT W/ BI-STABLE RELAY ENERGIZED JUNCTION BOX HOT W/ BISTABLE RELAY ENERGIZED IGNITION, FUEL INJECTION LOAD SHEDDING RELAY IGNITION, FUEL INJECTION RELAY REAR WINDOW DEFOGGER RELAY RELAY ENERGIZED TRANSMISSION OIL PUMP RELAY VALVETRONIC RELAY VARIABLE VALVE GEAR RELAY WASHER PUMP RELAY

AUC SENSOR CENTER PEDESTRIAN SENSOR COOLANT TEMPERATURE SENSOR CRANKSHAFT POSITION SENSOR ENGINE OIL PRESSURE SENSOR ENGINE OIL TEMPERATURE SENSOR EVAPORATOR TEMPERATURE SENSOR EXHAUST CAMSHAFT SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 GEARBOX INPUT-SPEED SENSOR HALL SENSOR HALL SENSOR GND HALL SENSOR SIG HALL SENSOR SIGNAL HALL SENSOR SPLY HIGH BEAM ASSISTANT SENSOR, CONTROL HIGH PRESSURE PUMP POSITION SENSOR INTAKE AIR TEMPERATURE PRESSURE SENSOR INTAKE CAMSHAFT SENSOR INTAKE-MANIFOLD PRESSURE SENSOR INTELLIGENT BATTERY SENSOR KNOCK SENSOR LEFT "B" PILLAR AIR BAG SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT BREAK PAD WEAR SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT DOOR AIR BAG SENSOR LEFT FRONT LEVEL SENSOR LEFT FRONT MICROWAVE SENSOR LEFT FRONT OUTER ULTRASONIC SENSOR LEFT FRONT VENTILATION TEMPERATURE SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT HEATING HEAT EXCHANGER TEMPERATURE SENSOR LEFT PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR COMPARTMENT FOOTWELL TEMPERATURE SENSOR LEFT REAR LEVEL SENSOR LEFT REAR MICROWAVE SENSOR LEFT REAR OUTER ULTRASONIC SENSOR LEFT REAR WHEEL SPEED SENSOR LOW PRESSURE FUEL SENSOR MOTOR POSITION SENSOR OIL LEVEL SENSOR OUTSIDE TEMPERATURE SENSOR OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR BEFORE CATALYTIC CONVERTER PEDESTRIAN PROTECTION SENSOR RAIL PRESSURE SENSOR RAIN/ LIGHT/ SOLAR/ CONDENSATION SENSOR RAIN/LIGHT/ CONDENSATION/SOLAR SENSOR RAIN/LIGHT/ SOLAR/CONDENSATION SENSOR REFRIGERANT PRESSURE SENSOR RIGHT "B" PILLAR AIR BAG SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT DOOR AIR BAG SENSOR RIGHT FRONT LEVEL SENSOR RIGHT FRONT MICROWAVE SENSOR RIGHT FRONT OUTER ULTRASONIC SENSOR RIGHT FRONT VENTILATION TEMPERATURE SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT HEATING HEAT EXCHANGER TEMPERATURE SENSOR RIGHT PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR COMPARTMENT FOOTWELL TEMPERATURE SENSOR RIGHT REAR COMPARTMENT VENTILATION TEMPERATURE SENSOR RIGHT REAR LEVEL SENSOR RIGHT REAR MICROWAVE SENSOR RIGHT REAR OUTER ULTRASONIC SENSOR RIGHT REAR WHEEL SPEED SENSOR SENSOR GROUND SIREN W/ TILT ALARM SENSOR SIREN, TILT SENSOR STEERING TORQUE SENSOR TOUCH DETECTION SENSOR VENTURI NOZZLE PRESSURE SENSOR ZERO GEAR SENSOR

EXTENDABLE DASHBOARD SPEAKER FRONT CENTER MID-RANGE SPEAKER LEFT FRONT LIGHTING MID-RANGE SPEAKER LEFT FRONT MID- RANGE SPEAKER LIGHTING LEFT FRONT MID-RANGE SPEAKER LEFT REAR LIGHTING SPEAKER LEFT REAR LIGHTING SPEAKER 2 LEFT REAR MID- RANGE SPEAKER 2 LEFT REAR MID-RANGE SPEAKER LEFT REAR SPEAKER 2 LIGHTING LEFT REAR SPEAKER LIGHTING MID-RANGE SPEAKER RIGHT FRONT LIGHTING MID RANGE SPEAKER RIGHT FRONT MID- RANGE SPEAKER LIGHTING RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR LIGHTING SPEAKER RIGHT REAR LIGHTING SPEAKER 2 RIGHT REAR MID- RANGE SPEAKER 2 RIGHT REAR MID-RANGE SPEAKER RIGHT REAR SPEAKER 2 LIGHTING RIGHT REAR SPEAKER LIGHTING TWEETER SPEAKER

BASIC, W/ VIDEO SWITCH BASIC, W/O VIDEO SWITCH BONNET CONTACT SWITCH BRAKE FLUID LEVEL SWITCH BRAKE LIGHT SWITCH CLUTCH SWITCH CONVERTIBLE TOP COMPARTMENT FLOOR SWITCH CONVERTIBLE TOP CONTROL SWITCH COOLANT LEVEL SWITCH DRIVER BACKREST LOCKING SWITCH DRIVER EASY ENTRY SWITCH DRIVER'S DOOR SWITCH BLOCK DRIVER'S SIDE REAR POWER WINDOW SWITCH DRIVER'S SIDE SEAT ADJUSTMENT SWITCH CLUSTER FRONT PASSENGER BACKREST LOCKING SWITCH FRONT PASSENGER EASY ENTRY SWITCH GEAR SELECTOR SWITCH GLOVE COMPARTMENT LIGHT SWITCH HOTEL POSITION SWITCH LEFT FRONT VANITY MIRROR SWITCH LEFT MULTI- FUNCTION STEERING WHEEL SWITCH BLOCK LEFT STEERING WHEEL MULTI-FUNCTION SWITCH BLOCK OIL LEVEL SWITCH PASSENGER'S DOOR POWER WINDOW SWITCH PASSENGER'S REAR SIDE POWER WINDOW SWITCH PASSENGER'S SIDE REAR POWER WINDOW SWITCH PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH CLUSTER PRESSURE SWITCH REAR DRIVER'S SIDE POWER WINDOW SWITCH REAR DRIVER'S SIDE SEAT HEATING SWITCH REAR PASSENGER SIDE POWER WINDOW SWITCH REAR PASSENGER'S SIDE DOOR SEAT SWITCH CLUSTER REAR PASSENGER'S SIDE POWER WINDOW SWITCH REAR PASSENGER'S SIDE SEAT HEATING SWITCH REVERSE GEAR SWITCH RIGHT FRONT VANITY MIRROR SWITCH RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH BLOCK RIGHT STEERING WHEEL MULTI-FUNCTION SWITCH BLOCK STEERING COLUMN SWITCH CLUSTER STEERING WHEEL HEATER, STEERING COLUMN ADJUSTMENT SWITCH SWITCH OFF SIG SWITCH SIGNAL VIDEO SWITCH W/ DRIVER'S DOOR SEAT SWITCH CLUSTER W/ PASSENGER'S DOOR SEAT SWITCH CLUSTER W/ SEAT SWITCH CLUSTER ON DRIVER'S DOOR W/ SEAT SWITCH CLUSTER ON FRONT PASSENGER'S DOOR W/ VIDEO SWITCH W/O VIDEO SWITCH W/O VIDEO SWITCH, W/ ALL ROUND VISION CAMERA W/O VIDEO SWITCH, W/ ALL ROUND VISION CAMERA, NIGHT VISION CAMERA WASHER FLUID LEVEL SWITCH

ACT INTAKE THROTTLE VALVE ACT VALVE BLOCK BLOW OFF VALVE CONTROL VALVE DRIVER SIDE HEAT EXCHANGER WATER VALVE DRIVER'S LUMBAR SUPPORT VALVE BLOCK ELECTRICAL WASTEGATE VALVE EXHAUST FLAP ELECTRIC CHANGEOVER VALVE EXHAUST VANOS SOLENOID VALVE FRONT PASSENGER'S SIDE HEAT EXCHANGER WATER VALVE INDEPENDENT HEATING COOLANT CHANGE OVER VALVE INDEPENDENT HEATING COOLANT CHANGEOVER VALVE INLET VANOS SOLENOID VALVE INTAKE THROTTLE VALVE OIL PRESSURE CONTROL VALVE PASSENGER'S LUMBAR SUPPORT VALVE BLOCK QUALITY CONTROL VALVE TANK VENT VALVE TANK VENTILATION SHUT-OFF VALVE VALVE 1 VALVE 2 VALVE 3 VALVE 4 WASTEGATE VALVE PRESSURE CONVERTER

4.4L TURBO 3.0L TURBO W/ QUADRUPLE DRILLED WIRE (OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BLU/YEL WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLK/YEL WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRN/YEL WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/WHT/YEL WIRE BRN/YEL WIRE FLEXRAY SIG PNK FLEXRAY SIG WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLK/YEL WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/BRN/YEL WIRE GRY/GRN WIRE GRY/RED WIRE GRY/RED/YEL WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE PNK FLEXRAY BUS SIG WIRE PNK FLEXRAY BUS SIGNAL WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE PNK/RED WIRE PNK/WHT WIRE PT-CAN BUS SIGNAL PNK FLEXRAY BUS SIGNAL WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRN/YEL WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/WHT/YEL WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/BRN/YEL WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/RED/YEL WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

2.5 ZONE AIR CONDITIONING 3.0L TURBO 4-DR COUPE ACTIVATION LR AUX HTR 4-ZONE AIR CONDITIONING 4.4L TURBO 4.4L TURBO 3.0L TURBO 12 V CONNECTION 1 12 V CONNECTION 3 12 V CONNECTION 4 (FRONT BUMPER, (LEFT SIDE (OR (W/O ELECTRICALLY OPERATED ROLLER A/C COMPRESSOR AC LIN 2 ACCELERATOR PEDAL MODULE ACCENT LIGHT ACT DRV L/H ACT DRV R/H ACT SLIDE/TILT ACT SUNROOF ACTIVATION CHAR MAP THERMOSTAT ACTIVATION ELECT CHANGEOVER VLV ACTIVATION ELECTRIC FAN ACTIVATION OIL PRES CTRL VLV ACTIVATION TANK VENT VLV ACTIVATION THROTTLE VLV ACT ACTIVATION VLV ACTIVATION VOL CTRL VLV ACTIVE BODYWORKS SYSTEM ACTIVE CRUISE CONTROL ACTIVE SOUND DESIGN ACTIVE STEERING ACTUATION OF IND LP FRT PASS AIR BAG ACTIVATION ADJUSTMENT DRIVE AERIAL DIVERSITY AERIAL SIG AIR BAG AIR BAG ACTIVATION + AIR BAG SENS AIR CONDITIONING SYSTEM AMBIENT LIGHT AMBIENT LT ANTI-THEFT ALARM SYSTEM LED ANTI-THEFT SYSTEM ANTI-THEFT, HEADLIGHTS SYSTEMS AUTOMATIC TOWING HITCH AUTOMATIC TRANSMISSION AUX-IN CONNECTION AUXILIARY BRAKE LIGHT B-CAN SIG BACKREST ACT FAN BACKREST ANGLE BACKREST GND FAN BACKREST HEAD BACKREST WIDTH BASE PLATE BI-XENON BI-XENON SHUTTER BLOWER OUTPUT STAGE BLUETOOTH AERIAL BODY CAN BUS SIG BODY-CAN BUS SIGNAL BOOT LID AUTOMATIC SOFT-CLOSE DRIVE BOOT LID LIFT BOOT LID/ TAIL GATE LUGGAGE COMPARTMENT LIGHT BOOT LID/TAILGATE LUGGAGE COMPARTMENT LIGHT BOSCH GND BRAKE LIGHT BRAKE LIGHT ACTIVATION BRK LT BRK LT ACT BRK LT SW SIG BRK SW SIG BSD BUS SIG BUMPER AERIAL BUS SIG CAN 2 H CAN 2-L CAN BUS SIG CAN BUS SIGNAL CAPACITOR BOX CAR ACCESS SYSTEM CAS BUS CAS SUB BUS CENTER FRONT VENTILATION GRILLE CENTRAL GATEWAY MODULE CENTRAL INFORMATION DISPLAY CHAR MAP THERMOSTAT SPLY CHARACTERISTIC MAP THERMOSTAT CHARGING CIRCUIT CLUTCH MOD SIG COLUMN) COMPUTER DATA COMPUTER DATA LINES SYSTEM CONTACT FREE TAIL GATE OPENING EVALUATION ELECTRONICS CONTINENTAL ACT CONVERTIBLE COUPE, GRAN COUPE CONVERTIBLE EXCEPT CONVERTIBLE CONVERTIBLE TOP DRIVE CONVERTIBLE TOP MODULE CONVERTIBLE, COUPE, GRAN COUPE W/ ACTIVE STEERING OR INTELLIGENT CRUISE CONTROL CONVERTIBLE, GRAN COUPE COOLING FANS SYSTEM CORN LT CORNERING LIGHT MODULE COUPE CONVERTIBLE COUPE, CONVERTIBLE EXCEPT COUPE, CONVERTIBLE COUPE, GRAN COUPE COUPE, GRAN COUPE CONVERTIBLE COUPE, GRAN COUPE W/ BASIC VARIANT COUPE, GRAN COUPE W/ HIGH VARIANT COUPE, GRAN COUPE W/ HIGH VARIANT COUPE, GRAN COUPE W/ BASIC VARIANT CONVERTIBLE COURTESY LIGHTING COURTESY LT ACT CRANKSHAFT SENS GND CRANKSHAFT SENS SIG CRANKSHAFT SENS SPLY CRASH SAFETY MODULE CYLINDER 1-3 CYLINDER 4-6 DC/DC CONVERTER DIAGNOSIS BUS SIGNAL DIAGNOSIS PLUG DIRECTION IND DIRECTION LIGHT DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOUBLE CLUTCH TRANSMISSION DR CONTACT SIG DRIVE DYNAMIC CON SW SIG DRIVER ACTIVE SEAT PRESSURE DISTRIBUTOR DRIVER ACTIVE SEAT PRESSURE DISTRIBUTOR 2 DRIVER ASSISTANCE SYSTEMS CONTROL PANEL DRIVER ELECTRONIC OUTER DOOR HANDLE MODULE DRIVER POWER WINDOW DRIVE DRIVER RETRACTOR TENSIONER DRIVER SIDE AIR BAG INFLATOR ASSEMBLY DRIVER'S AIR BAG INFLATOR ASSEMBLY DRIVER'S DOOR AUTOMATIC SOFT-CLOSE DRIVE DRIVER'S DOOR ENTRANCE LIGHT DRIVER'S DOOR GROUND LIGHT DRIVER'S DOOR GROUND LIGHTING DRIVER'S DOOR PANEL LIGHTING DRIVER'S DOOR POCKET LIGHTING DRIVER'S DOOR REAR AUTOMATIC SOFT-CLOSE DRIVE DRIVER'S KNEE AIR BAG INFLATOR ASSEMBLY DRIVER'S SEAT BACKREST ANGLE ADJUSTMENT DRIVE DRIVER'S SEAT BACKREST FAN 1 DRIVER'S SEAT BACKREST FAN 2 DRIVER'S SEAT BACKREST FAN 3 DRIVER'S SEAT BACKREST FAN 4 DRIVER'S SEAT BACKREST HEAD ADJUSTMENT DRIVE DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT DRIVE DRIVER'S SEAT BELT BUCKLE CONTACT DRIVER'S SEAT CUSHION FAN 1 DRIVER'S SEAT CUSHION FAN 2 DRIVER'S SEAT CUSHION FAN 3 DRIVER'S SEAT CUSHION FAN 4 DRIVER'S SEAT DEPTH ADJUSTMENT DRIVE DRIVER'S SEAT HEADREST HEIGHT ADJUSTMENT DRIVE DRIVER'S SEAT LUMBAR SUPPORT DRIVE DRIVER'S SEAT MODULE DRIVER'S SIDE EXTERIOR AERIAL DRIVER'S SIDE REAR AUTOMATIC SOFT CLOSE DRIVE DRIVER'S SIDE REAR COURTESY LIGHTING DRIVER'S SIDE REAR DOOR PANEL LIGHTING DRIVER'S SIDE REAR DOOR POCKET LIGHTING DRIVER'S SIDE REAR ENTRY LIGHT DRIVER'S SIDE REAR POWER WINDOW DRIVE DRV ASSIST GROUND DRV MOD SPLY DRV SIG SW DVD CHANGER EJECT BOX ELEC THROTTLE ACT GND ELEC THROTTLE VLV ACT SIG ELECT CHANGEOVER VLV SPLY ELECT THROTTLE VLV ACT SPLY ELECTRIC FAN ELECTRICAL WASTEGATE VLV ACTIVATION ELECTRICAL WASTEGATE VLV GND ELECTRICAL WASTEGATE VLV SENS SIG ELECTRO- MECHANICAL POWER STEERING ELECTROCHROMIC INTERIOR REAR VIEW MIRROR ELECTROCHROMIC MIRROR ELECTROMECHANICAL POWER STEERING ELECTRONIC DAMPER CONTROL ELECTRONIC JUNCTION BOX ELECTRONIC JUNCTION BOX JUNCTION BOX ELECTRONIC NIGHT VISION MODULE ELECTRONIC RIDE HEIGHT CONTROL ELECTRONIC STEERING WHEEL MODULE ELECTRONIC TRANSMISSION CONTROL ELECTRONIC TRANSMISSION CONTROL AUTOMATIC TRANSMISSION ELECTRONICS JUNCTION BOX EMERGENCY CALL SIG ENERGIZED JUNCTION BOX ENG STRT SIG ENTRANCE LT ACT ETHERNET DATA LINE EXCEPT CONVERTIBLE EXCEPT COUPE, CONVERTIBLE COUPE, CONVERTIBLE EXCEPT PREMIUM EXHAUST ACTIVATION VANOS SOL VLV EXHAUST CAMSHAFT SENS SIG EXHAUST CAMSHAFT SENS SPLY EXHAUST SUPPLY VANOS SOL VLV FAN ACTIVATION FLASH LT ACT FLEXRAY BUS SIG FLEXRAY BUS SIGNAL FLEXRAY SIG FLEXRAY SIG SPD SIG FOG LT ACT FOG LTS ACT FOLD-IN MIRROR DRIVE FOOTWELL MODULE FRONT CENTER ARMREST LIGHT FRONT CENTER CONSOLE INTERIOR AERIAL FRONT CENTER TWEETER FRONT CENTER VENTILATION GRILLE FRONT PASSENGER ACTIVE SEAT PRESSURE DISTRIBUTOR 2 FRONT PASSENGER RETRACTOR TENSIONER FRONT PASSENGER'S DOOR GROUND LIGHTING FRONT PASSENGER'S SIDE EXTERIOR AERIAL FUEL FILLER FLAP CENTRAL LOCKING DRIVE FUEL INJ 1 ACTIVATION FUEL INJ 1 SPLY FUEL INJ 2 ACTIVATION FUEL INJ 2 SPLY FUEL INJ 3 ACTIVATION FUEL INJ 3 SPLY FUEL INJ 4 ACTIVATION FUEL INJ 4 SPLY FUEL INJ 5 ACTIVATION FUEL INJ 5 SPLY FUEL INJ 6 ACTIVATION FUEL INJ 6 SPLY FUEL INJ SPLY FUEL TANK LEAKAGE DIAGNOSIS MODULE FUEL TANK LEAKAGE DIAGNOSTIC MODULE FULLY AUTOMATIC TOWING HITCH DRIVE FUNCTION LIGHTING, HILL DSCNT CTRL FUNCTION LIGHTING, PARKING AID GLOVE COMPARTMENT LIGHT GLOVE COMPARTMENT USB CONNECTION GND EXHAUST CAMSHAFT SENS GPS AERIAL GRAN COUPE GRAN COUPE COUPE W/O LED W/ LED COUPE, GRAN COUPE CONVERTIBLE GRAN COUPE COUPE, CONVERTIBLE HALL SENS GND HALL SENS GROUND HALL SENS SIG HALL SENS SPLY HAZ SW SIG HEAD-UP DISPLAY HEADLIGHTS SYSTEM HI BEAM SW HI PRESSURE SIG HI PRESSURE SPLY HIGH INTERFACE BOX HIGH VERSION HOT AT ALL TIMES HOT FILM AIR MASS METER HOT W/ HOT W/ TERMINAL HOT-FILM AIR MASS METER GND HOT-FILM AIR MASS METER SIG HOT-FILM AIR MASS METER SPLY IND LP IND LP ACT IND LT INFOTAINMENT FAN INSTRUMENT ILLUMINATION CIRCUIT INT ACTIVATION VANOS SOL VLV INT AIR TEMP PRES SENS GND INT AIR TEMP PRES SENS SPLY INT CAMSHAFT SENS SIG INT CAMSHAFT SENS SPLY INT PIPE PRES SENS SPLY INT SPLY VANOS SOL VLV INTAKE CAMSHAFT SENS GND INTAKE PIPE PRES SENS GND INTEGRATED CHASSIS MANAGEMENT INTEGRATED SUPPLY MODULE INTERFACE BOX INTERFERENCE SUPPRESSOR FILTER 2 INTERIOR LIGHT) INTERIOR LT ACT INTR LT ACT INTR LT SW SIG JUMP START TERMINAL POINT JUNCTION BOX K CAN BUS H K CAN BUS L K-CAN BUS SIG K-CAN SIG KNOCK SENS SIG LANE CHANGE WARNING LED ACT LED ACTIVATION LED ANTI- THEFT ALARM SYSTEM LED IND LEFT "C" PILLAR) LEFT ADJUSTER SIG LEFT B- PILLAR LIGHTING LEFT EXTERIOR MIRROR LEFT FOG LIGHT LEFT FOOT LT LEFT FOOTWELL LT LEFT FRONT DAMPER SATELLITE LEFT FRONT ENTRANCE LIGHT LEFT FRONT FOOTWELL LIGHT LEFT FRONT LIGHTING TWEETER LEFT FRONT TWEETER LEFT FRONT TWEETER LIGHTING LEFT FRONT VANITY MIRROR LIGHT LEFT FRONT VENTILATION GRILLE LEFT FRONT WOOFER LEFT FRONTAL LIGHT ELECTRONICS LEFT HEAD AIR BAG INFLATOR ASSEMBLY LEFT HEAT EXCHANGER TEMP SENS LEFT INNER TAIL- LIGHT LEFT INNER TAILLIGHT LEFT LICENSE PLATE LIGHT LEFT MAP READING LIGHT LEFT OUTER TAIL LIGHT LEFT OUTER TAILLIGHT LEFT PARKING BRAKE DRIVE LEFT READING LEFT REAR DAMPER SATELLITE LEFT REAR ENTRANCE LIGHT LEFT REAR FOOTWELL LIGHT LEFT REAR SIDE TRIM PANEL LIGHTING LEFT REAR TWEETER LEFT REAR TWEETER 2 LEFT REVERSIBLE ELECTROMOTIVE ELECTRICALLY MOTORIZED REEL LEFT SHIFT PADDLE LEFT SIG STRATIFICATION LEFT SIG TEMP SENS LEFT TAILLIGHT LEFT TARGETED ILLUMINATION LEFT TURN SIGNAL LIGHT LF LVL SENS SPLY LF VENTILATION TEMP SENS LHZ- LICENSE PLATE LT LICENSE PLATE LT ACT LIGHT LOCATOR LIGHT MODULE LIN BUS SIG LINES SYSTEM LO BEAM LT ACT LO BEAM LT SIG LOAD SIG LOCATOR LIGHTING LOW BEAM LOW VERSION LR LEVEL SENS SIG LR LVL SENS SPLY LR TEMP SENS LT ACT LUGGAGE COMPARTMENT AERIAL LUGGAGE COMPARTMENT AERIAL 2 LUGGAGE COMPARTMENT LIGHT LUM SUP ACTIVATION LUM SUP ACTIVE LUM SUP GND LUM SUP VOLT MAGNETIC CLUTCH MEMORY SYSTEMS MOST BUS SIGNAL MOST DATA BUS CIRCUIT MTR ACTIVATION MTR POS SENS SPLY MTR POSITION SENS GND MTR POSITION SENS SIG NATURAL VACUUM LEAK DETECTION NAVIGATION SYSTEM NOISE SUPPRESSOR FILTER OIL CONDITION SENS GND OIL CONDITION SENS SPLY OIL LEVEL SW SIG OIL PRESS CTRL VLV SPLY OXY SENS AFT CAT CONV SPLY OXY SENS BEF CAT CONV SPLY OXY SENS SIG OXYGEN SENS GND OXYGEN SENS SIG PARK BRK SIG PARK DISTANCE CONTROL PARK DISTANCE WARNING SYSTEM PARKING MANEUVERING ASSISTANCE PARKING MANEUVERING ASSISTANT PASS ACTIVE SEAT PASS SEAT BACKREST PASS SEAT CUSHION PASS SEAT OCCUPANCY DETECTION SIG PASSENGER ACTIVE SEAT PRESSURE DISTRIBUTOR PASSENGER ELECTRONIC OUTER DOOR HANDLE MODULE PASSENGER POWER WINDOW DRIVE PASSENGER SIDE AIR BAG INFLATOR ASSEMBLY PASSENGER'S AIR BAG INFLATOR ASSEMBLY PASSENGER'S DOOR AUTOMATIC SOFT-CLOSE DRIVE PASSENGER'S DOOR ENTRANCE LIGHT PASSENGER'S DOOR GROUND LIGHT PASSENGER'S DOOR POCKET LIGHTING PASSENGER'S DOOR TRIM PANEL LIGHTING PASSENGER'S KNEE AIR BAG INFLATOR ASSEMBLY PASSENGER'S SEAT BACKREST ANGLE ADJUSTMENT DRIVE PASSENGER'S SEAT BACKREST FAN 1 PASSENGER'S SEAT BACKREST FAN 2 PASSENGER'S SEAT BACKREST FAN 3 PASSENGER'S SEAT BACKREST FAN 4 PASSENGER'S SEAT BACKREST HEAD ADJUSTMENT DRIVE PASSENGER'S SEAT BACKREST WIDTH ADJUSTMENT DRIVE PASSENGER'S SEAT BELT BUCKLE CONTACT PASSENGER'S SEAT CUSHION FAN 1 PASSENGER'S SEAT CUSHION FAN 2 PASSENGER'S SEAT CUSHION FAN 3 PASSENGER'S SEAT CUSHION FAN 4 PASSENGER'S SEAT DEPTH ADJUSTMENT DRIVE PASSENGER'S SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE PASSENGER'S SEAT HEADREST HEIGHT ADJUSTMENT DRIVE PASSENGER'S SEAT HEIGHT ADJUSTMENT DRIVE PASSENGER'S SEAT LUMBAR SUPPORT DRIVE PASSENGER'S SEAT MODULE PASSENGER'S SEAT OCCUPANCY DETECTION PASSENGER'S SEAT TILT ADJUSTMENT DRIVE PASSENGER'S SIDE REAR AUTOMATIC SOFT CLOSE DRIVE PASSENGER'S SIDE REAR COURTESY LIGHTING PASSENGER'S SIDE REAR DOOR PANEL LIGHTING PASSENGER'S SIDE REAR DOOR POCKET LIGHTING PASSENGER'S SIDE REAR ENTRY LIGHT PASSENGER'S SIDE REAR POWER WINDOW DRIVE PASSENGER'S SIDE REAR ROLLER SUNBLIND DRIVE PDSTRN SENS + PMW-BFI POWER DISTRIBUTION BOX POWER DISTRIBUTION SYSTEM POWER WINDOWS SYSTEM PRES SENS SIG PRESSURE GND PRESSURE SENS SIG PRK BK BUS SIG PT CAN PT CAN BUS PT CAN SIG PT-CAN BUS SIG PT-CAN BUS SIGNAL PWM BFI PWR SPLY PWR SUPLY PWR WIND DRIVE ACT PWR WIND DRV ACT RAIL PRES SENS GND RAIL PRES SENS SPLY REAR AERIAL REAR AERIAL 2 REAR AXLE KING PIN INCLINATION CONTROL REAR CENTER CONSOLE INTERIOR AERIAL REAR CIGARETTE LIGHTER 12 V CONNECTION REAR COMPARTMENT AIR CONDITIONING SYSTEM REAR COMPARTMENT AUTOMATIC CLIMATE CONTROL REAR COMPARTMENT CONTROL REAR COMPARTMENT CONTROLLER REAR COMPARTMENT VENTILATION GRILLE REAR DRIVER SIDE AUTOMATIC SOFT CLOSE DRIVE REAR DRIVER SIDE OUTER DOOR HANDLE ELECTRONIC MODULE REAR DRIVER'S SIDE COURTESY LIGHTING REAR DRIVER'S SIDE DOOR PANEL LIGHTING REAR DRIVER'S SIDE DOOR POCKET LIGHT REAR DRIVER'S SIDE ENTRY LIGHT REAR DRIVER'S SIDE OUTER DOOR HANDLE ELECTRONIC MODULE REAR DRIVER'S SIDE ROLLER SUNBLIND DRIVE REAR DRIVER'S SIDE SEAT MODULE REAR EJECT BOX REAR EJECT BOX 2 REAR FOG LIGHT REAR INTERIOR LIGHT REAR PASSENGER SIDE AUTOMATIC SOFT CLOSE DRIVE REAR PASSENGER SIDE COURTESY LIGHTING REAR PASSENGER SIDE DOOR PANEL LIGHTING REAR PASSENGER SIDE DOOR POCKET LIGHTING REAR PASSENGER SIDE ENTRY LIGHT REAR PASSENGER'S SIDE OUTER DOOR HANDLE ELECTRONIC MODULE REAR PASSENGER'S SIDE SEAT MODULE REAR SEAT ENTERTAINMENT REAR SEAT ENTERTAINMENT CIRCUIT REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER REJECTOR CIRCUIT 2 REAR WINDOW ROLLER SUNBLIND DRIVE REMOTE CONTROL RECEIVER REV LIGHT ACTIVATION REV LT ACT REVERSE LT ACT REVERSING LIGHT RF LEVEL SENS SIG RF LEVEL SENS SPLY RF VENTILATION TEMP SENS RIGHT "B" PILLAR LIGHT RIGHT "B" PILLAR LIGHTING RIGHT END OF DASH) RIGHT EXTERIOR MIRROR RIGHT FOG LIGHT RIGHT FOOT LT RIGHT FOOTWELL LT RIGHT FRONT DAMPER SATELLITE RIGHT FRONT ENTRANCE LIGHT RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT LIGHTING TWEETER RIGHT FRONT TWEETER RIGHT FRONT TWEETER LIGHTING RIGHT FRONT VANITY MIRROR LIGHT RIGHT FRONT VENTILATION GRILLE RIGHT FRONT WOOFER RIGHT FRONTAL LIGHT ELECTRONICS RIGHT HEAD AIR BAG INFLATOR ASSEMBLY RIGHT HEAT EXCHANGER TEMP SENS RIGHT INNER TAIL LIGHT RIGHT INNER TAILLIGHT RIGHT LICENSE PLATE LIGHT RIGHT MAP READING LIGHT RIGHT OUTER TAIL LIGHT RIGHT OUTER TAILLIGHT RIGHT PARKING BRAKE DRIVE RIGHT REAR DAMPER SATELLITE RIGHT REAR ENTRANCE LIGHT RIGHT REAR FOOTWELL LIGHT RIGHT REAR SIDE TRIM PANEL LIGHTING RIGHT REAR TWEETER RIGHT REAR TWEETER 2 RIGHT REVERSIBLE ELECTROMOTIVE ELECTRICALLY MOTORIZED REEL RIGHT SHIFT PADDLE RIGHT SIG STRATIFICATION RIGHT SIG TEMP SENS RIGHT TAILLIGHT RIGHT TARGETED ILLUMINATION RIGHT TURN SIGNAL LIGHT RING AERIAL RMTE CTRL SIG ROOF FUNCTION CENTER ROOF FUNCTIONS CENTER RR AUX HTR RR FOG LT RR FOG LT ACT RR LEVEL SENS SPLY RR LVL SENS SIG LF LVL SENS SIG RR TEMP SENS S-CAN BUS SIG S-CAN BUS SIG GND SEAT ACT FAN SEAT BACKREST) SEAT BELT BUCKLE CONTACT SIG SEAT CUSHION) SEAT DRV SEAT GND SEAT GND FAN SEAT PASS SEAT SW SIG SEATS SYSTEM SENS GND SENS GROUND SENS SIG SERIAL SIG SIDE MARKER SIDE MARKER LIGHT SIG EVAPORATOR TEMP SENS SIG TEMP SENS SLAVE LANE CHANGE WARNING SOUND SYSTEMS SPD SIG SPD SIG SPD SIG SPEED SIG SPLY TERMINAL 15 SPLY TERMINAL 30 SPLY VOLT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING CLMN ADJ ACT SUNROOF SHADE DRIVE SUPPLY MIXING AIR CTRL SW SIG SW SIG REV LIGHT ACTIVATION SWIVEL MODULE T LHZ- TAIL LT TAIL LT ACT TELEMATIC COMMUNICATION BOX TELEMATICS COMMUNICATION BOX TELEMATICS COMMUNICATIONS BOX TEMP SENS TEMP SENS SIG TENSIONER + TENSIONER - TENSIONER + TER 15 WAKE UP SIG TERM 15 TERM 15 SIG TERM 15 SPLY TERM 15 WAKE UP SIG TERM 30 TERM 30 SPLY TERMINAL 15 TERMINAL 15 SPLY TERMINAL 30 TERMINAL 30 SPLY THROTTLE VLV ACTIV THROTTLE VLV GND THROTTLE VLV SIG THROTTLE VLV SPLY TIRE PRESSURE CONTROL TOUCH BOX TOUCH DETECTION ELECTRONICS TRAILER MODULE TRANSFER BOX TRANSFER TERMINAL POINT TRIGGERING + TRIGGERING + AIR BAG + TRUNK LID ACTUATION TRUNK, TAILGATE, FUEL DOORS SYSTEM USB CONNECTION USB- HUB VALVETRONIC SPLY VENT GRILLE SPLY VENTILATION ACTIVATION VERTICAL DYNAMICS MANAGEMENT VIDEO MODULE VLV BLOCK GND VOL CTRL VLV SPLY VOLT SPLY VOLT SUPPLY VOLTAGE SUPPLY W/ ACTIVE SEAT, MULTI-FUNCTION SEAT W/ ACTIVE STEERING W/ AUTOMATIC GEAR BOX W/ AUTOMATIC START-STOP FUNCTION W/ BASIC VARIANT W/ BOSCH W/ COMBOX W/ ELECTRICALLY OPERATED ROLLER W/ ELECTRICALLY OPERATED ROLLER SUN BLINDS W/ EXHAUST EMISSION STANDARD EURO 6 W/ EXHAUST EMISSIONS STANDARD EURO 6 W/ HIGH VARIANT W/ INTERIOR LIGHT PACKAGE W/ LANE CHANGE W/O LANE CHANGE W/ TWIN-CLUTCH GEAR BOX W/ LED W/ LUMBAR SUPPORT W/ MICROPHONE W/ MULTI- FUNCTION SEAT W/ NECK WARMER W/ PHASE DIVERSITY W/ REAR COMPARTMENT AUTOMATIC CLIMATE CONTROL W/ REAR FOOTWELL LIGHT W/ REAR KEY PAD HAND SET W/ REAR KEYPAD HANDSET W/ TELEMATIC COMMUNICATIONS BOX W/ COMBOX W/ TELEMATICS W/ TWIN CLUTCH GEAR BOX W/ TWIN-CLUTCH GEAR BOX W/O TWIN-CLUTCH GEAR BOX W/ USB CONNECTION W/ VERTICAL DYNAMICS MANAGEMENT W/ VIDEO MODULE W/ XENON W/O XENON W/O ACTIVE SEAT, W/ MULTI-FUNCTION SEAT W/O ACTIVE STEERING W/O AUTOMATIC GEAR BOX W/O AUTOMATIC SOFT CLOSE SYSTEM W/ AUTOMATIC SOFT CLOSE SYSTEM W/O BOSCH W/O BOSCH W/ BOSCH W/O ELECTRIC ROLLER SUN BLINDS W/O ELECTRICALLY OPERATED ROLLER SUN BLINDS W/O ELECTRONIC DAMPER CONTROL W/O INTERIOR LIGHT PACKAGE W/O LED W/O LED W/ LED W/O LUMBAR SUPPORT W/O LUMBAR SUPPORT W/ LUMBAR SUPPORT W/O LUMBAR SUPPORT W/O INTERIOR LIGHT PACKAGE W/ INTERIOR LIGHT PACKAGE W/O MICROPHONE W/O MULTI- FUNCTION SEAT W/O MULTI- FUNCTION SEATS W/O NECK WARMER W/O PARKING MANEUVERING ASSISTANT W/ LANE CHANGE W/O REAR COMPARTMENT AUTOMATIC CLIMATE CONTROL W/O REAR FOOTWELL LIGHT W/O REAR KEYPAD HANDSET W/O REAR SEAT ENTERTAINMENT W/O SEAT MODULE W/O SMART PHONE VIDEO INTEGRATION W/ SMART PHONE VIDEO INTEGRATION W/O TELEMATIC COMMUNICATION BOX W/ TELEMATIC COMMUNICATION BOX W/O TELEMATICS W/O TELEMATICS, COMBOX W/O TWIN-CLUTCH GEAR BOX WAKE UP SIG WAKE UP SIGNAL WAKE-UP SIG TERM 15 TERM 30 WAKEUP SIG WARN LT SW SIG WASTEGATE VLV SPLY PRES CONV WATER VALVES ASSEMBLY WEAR SIG WHEEL SPD SIG WHL SPD SIG WIPER MODULE WIRELESS CHARGING ODDMENTS TRAY WK UP SIG TERM 15 WLAN AERIAL XENON LIGHT MODULE
