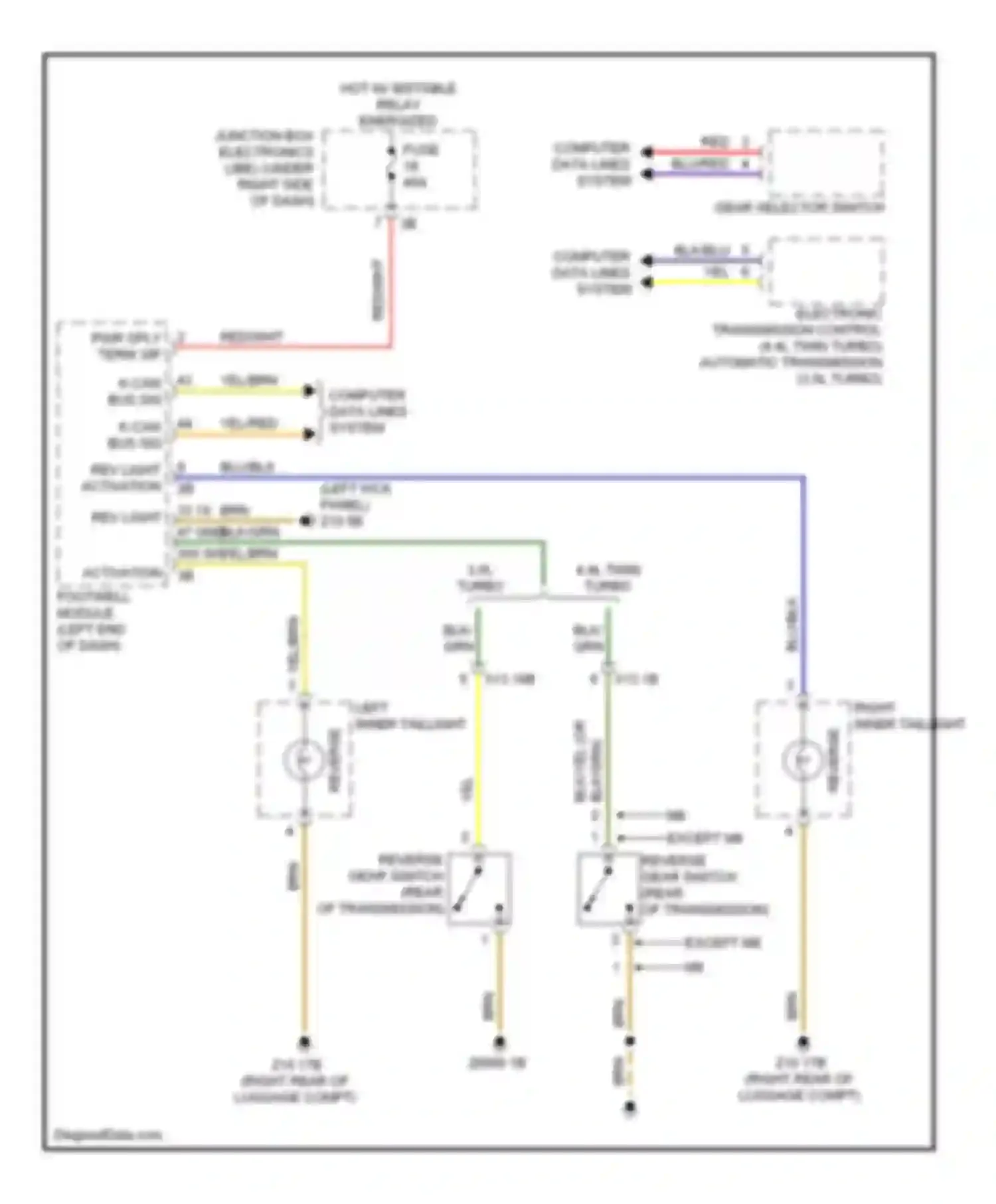

Backup lamps circuit, coupe for BMW 6 series Gran Coupe F06 (2011-2015)
Backup lamps circuit, coupe
3.0L TURBO
4.4L TWIN TURBO
ACTIVATION
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/YEL (OR BLK/GRN) WIRE
BLU/BLK WIRE
BLU/RED WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
FOOTWELL MODULE (LEFT END OF DASH)
FUSE
GEAR SELECTOR SWITCH
GRN WIRE
HOT W/ BISTABLE RELAY ENERGIZED
JUNCTION BOX ELECTRONICS (JBE) (UNDER RIGHT SIDE OF DASH)
K-CAN BUS SIG
LEFT INNER TAILLIGHT
PWR SPLY
RED WIRE
RED/WHT WIRE
REV LIGHT ACTIVATION 33 19 47 GND SW SIG REV LIGHT
REVERSE
REVERSE GEAR SWITCH (REAR OF TRANSMISSION)
RIGHT INNER TAILLIGHT
YEL WIRE
YEL/BRN WIRE
YEL/RED WIRE
