BMW 5 series F10/F11 (2009-2013) w/o xenon headlight, vertical dynamics management Wiring diagram
This page shows the only wiring diagram for the component.w/o xenon headlight, vertical dynamics management, which is found in the car BMW 5 series F10/F11 (2009-2013). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

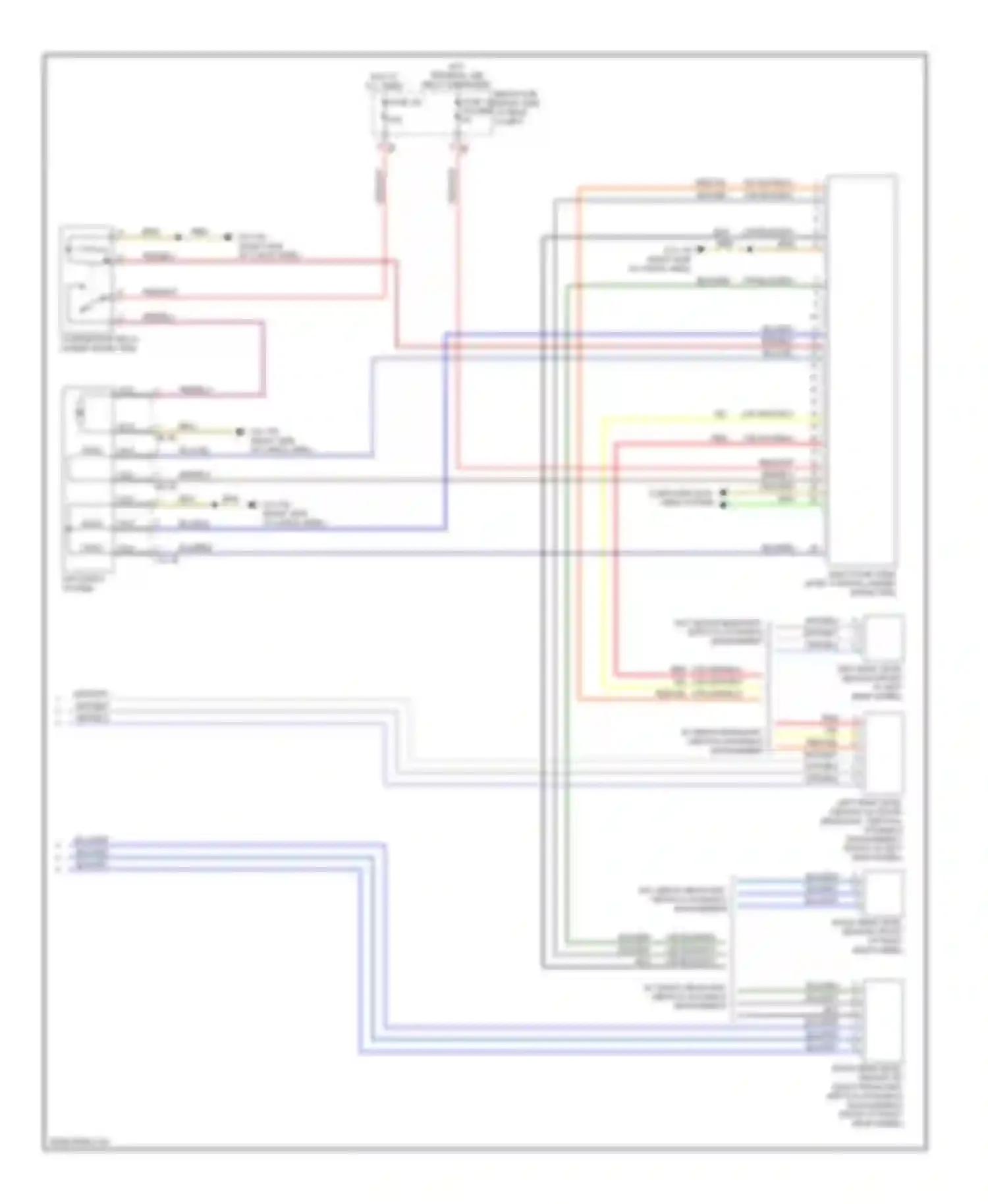

Wiring diagram w/o xenon headlight, vertical dynamics management (1 of 1)
AIR SUPPLY SYSTEM
BLK WIRE
BLK/GRN WIRE
BLK/GRY WIRE
BLU/BLK WIRE
BLU/BRN WIRE
BLU/GRN WIRE
BLU/GRY WIRE
BLU/WHT WIRE
BLU/YEL WIRE
BRN WIRE
BRN/BLU WIRE
COMPRESSOR RELAY (UNDER SPARE TIRE)
COMPUTER DATA LINES SYSTEM
ELECTRONIC RIDE LEVEL CONTROL (UNDER SPARE TIRE)
FUSE 152 HOLDER (RIGHT SIDE OF REAR COMPT)
FUSE 182
GRN WIRE
HOT AT ALL TIMES
HOT W/
LEFT REAR LEVEL SENSOR (FRONT OF LEFT REAR WHEEL)
LEFT REAR LEVEL SENSOR (W/ XENON HEADLIGHT, VERTICAL DYNAMICS
MANAGEMENT) (FRONT OF LEFT REAR WHEEL)
NCA WIRE
ORG/GRN WIRE
REAR FUSE
REAR WHEEL)
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/WHT WIRE
RED/YEL WIRE
RELAY ENERGIZED
RIGHT REAR LEVEL SENSOR (FRONT OF RIGHT
RIGHT REAR LEVEL SENSOR (W/ XENON HEADLIGHT,
VERTICAL DYNAMICS MANAGEMENT) (FRONT OF RIGHT REAR WHEEL)
W/ XENON HEADLIGHT, VERTICAL DYNAMICS MANAGEMENT
W/O XENON HEADLIGHT, VERTICAL DYNAMICS MANAGEMENT
WHT/BLK WIRE
WHT/BLU WIRE
WHT/GRY WIRE
YEL WIRE
Go to component: -> Air suspension circuit (2 of 2) -> W/O XENON HEADLIGHT, VERTICAL DYNAMICS MANAGEMENT
