BMW 5 series F10/F11 (2009-2013) trunk lid/ tailgate lock system Wiring diagram
This page shows the only wiring diagram for the component.trunk lid/ tailgate lock system, which is found in the car BMW 5 series F10/F11 (2009-2013). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

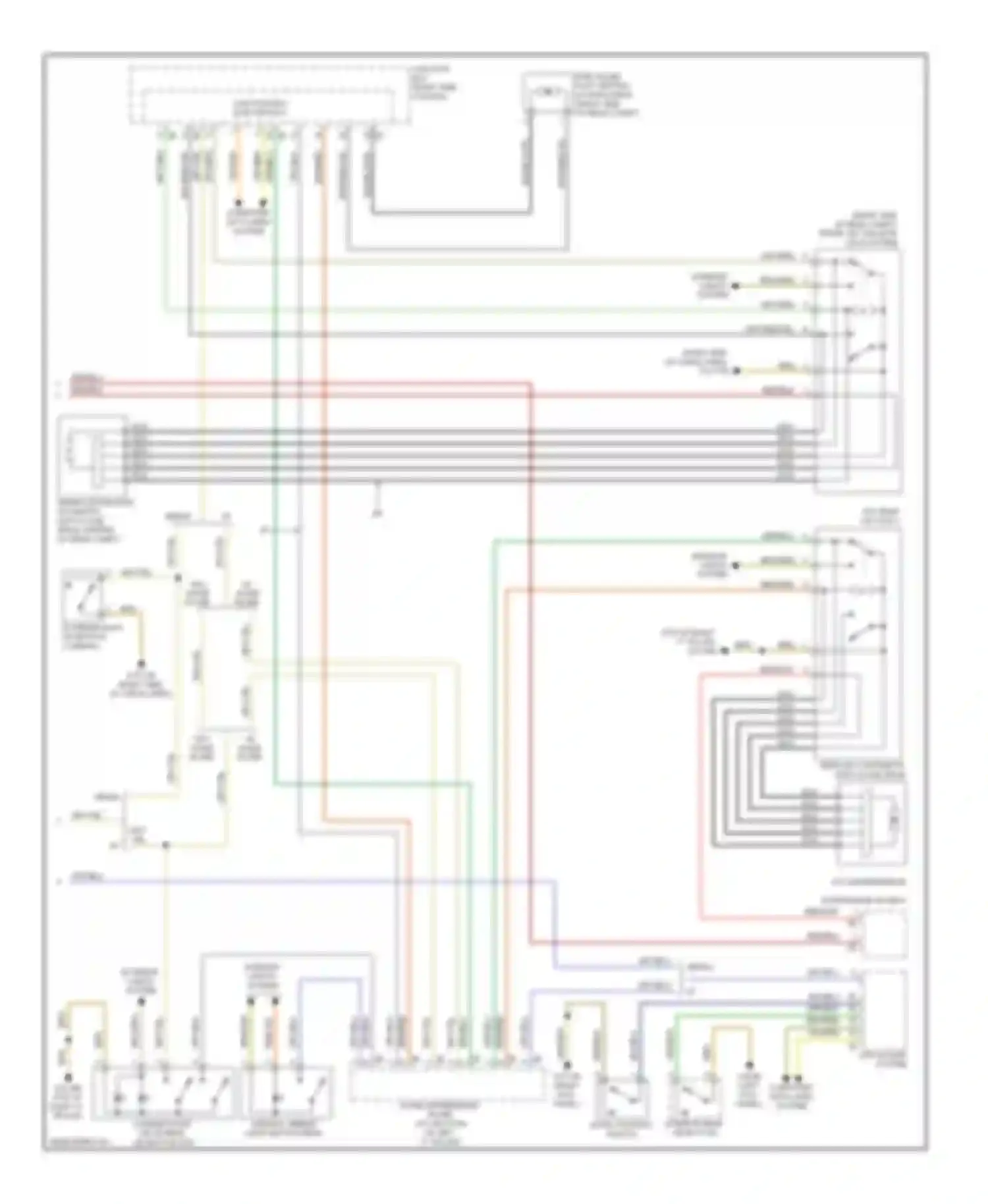

Wiring diagram trunk lid/ tailgate lock system (1 of 1)
BLK/BLU WIRE
BLK/BLU/YEL WIRE
BRN WIRE
BRN/BLK WIRE
BRN/GRN WIRE
BRN/RED WIRE
CAR ACCESS SYSTEM
CENTRAL ARREST LICENSE PLATE LIGHT BUTTON REAR LID W/ REAR LID BUTTON (GT)
COMPUTER DATA LINES SYSTEM
EXTERIOR BOOT LID BUTTON 2 (SEDAN)
FUEL FILLER FLAP CENTRAL LOCKING DRIVE
GRN/BLK WIRE
GRN/BLU WIRE
GRN/RED WIRE
GRY WIRE
GRY/BLK WIRE
GRY/BLU WIRE
GRY/BRN WIRE
GRY/GRN WIRE
GRY/RED/YEL WIRE
GRY/YEL WIRE
GT GT
HOTEL POSITION SWITCH
INTERIOR REAR LID BUTTON
JUNCTION BOX
JUNCTION BOX ELECTRONICS
NCA WIRE
NOISE SUPPRESSION FILTER (GT) (BOTTOM OF LEFT "C" PILLAR)
REAR LID 2 AUTOMATIC SOFT-CLOSE DRIVE
RED/BLK WIRE
RED/WHT WIRE
RED/YEL WIRE
SEDAN
SUPPRESSOR FILTER 4
TRUNK LID/ TAILGATE LOCK SYSTEM
TRUNK LID/TAILGATE AUTOMATIC SOFT-CLOSE DRIVE (CENTER OF REAR COMPT)
W/O W/ NOISE NOISE FILTER FILTER
WHT/RED/YEL WIRE
YEL WIRE
YEL/BRN WIRE
YEL/RED WIRE
Go to component: -> Trunk & fuel door release circuit (2 of 2) -> TRUNK LID/ TAILGATE LOCK SYSTEM
