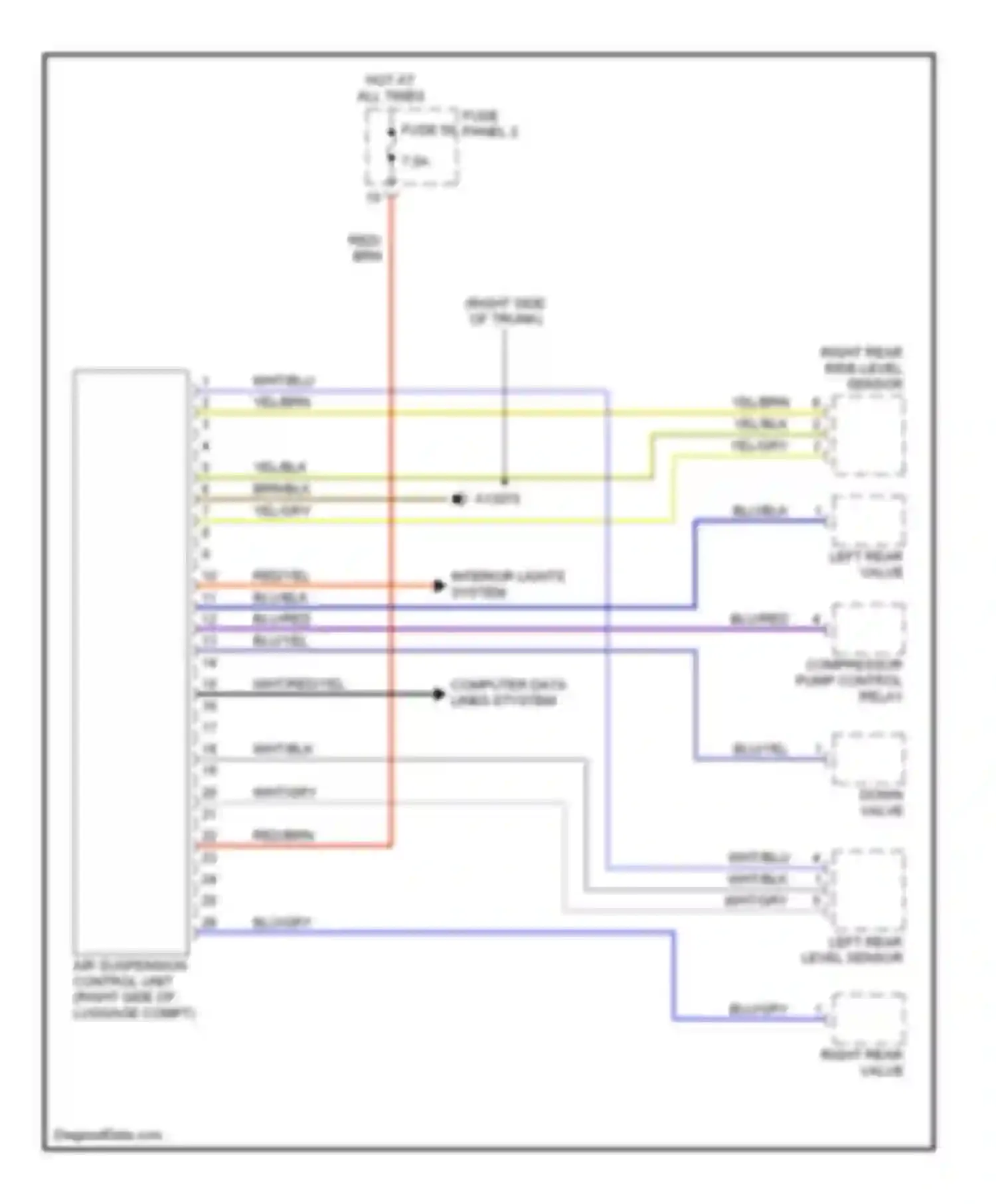

Electronic air suspension circuit for BMW 5 series E39 (1995-2000)
Electronic air suspension circuit
AIR SUSPENSION CONTROL UNIT (RIGHT SIDE OF LUGGAGE COMPT)
BLU/BLK WIRE
BLU/GRY WIRE
BLU/RED WIRE
BLU/YEL WIRE
BRN WIRE
BRN/BLK WIRE
COMPRESSOR PUMP CONTROL RELAY
COMPUTER DATA LINES STYSTEM
DOWN VALVE
FUSE 50
FUSE PANEL 2
HOT AT ALL TIMES
LEFT REAR LEVEL SENSOR
LEFT REAR VALVE
RED WIRE
RED/BRN WIRE
RED/YEL WIRE
RIGHT REAR RIDE-LEVEL SENSOR
RIGHT REAR VALVE
WHT/BLK WIRE
WHT/BLU WIRE
WHT/GRY WIRE
WHT/RED/YEL WIRE
YEL/BLK WIRE
YEL/BRN WIRE
YEL/GRY WIRE
