Wiring diagrams for BMW 5 series E39 (1995-2000)

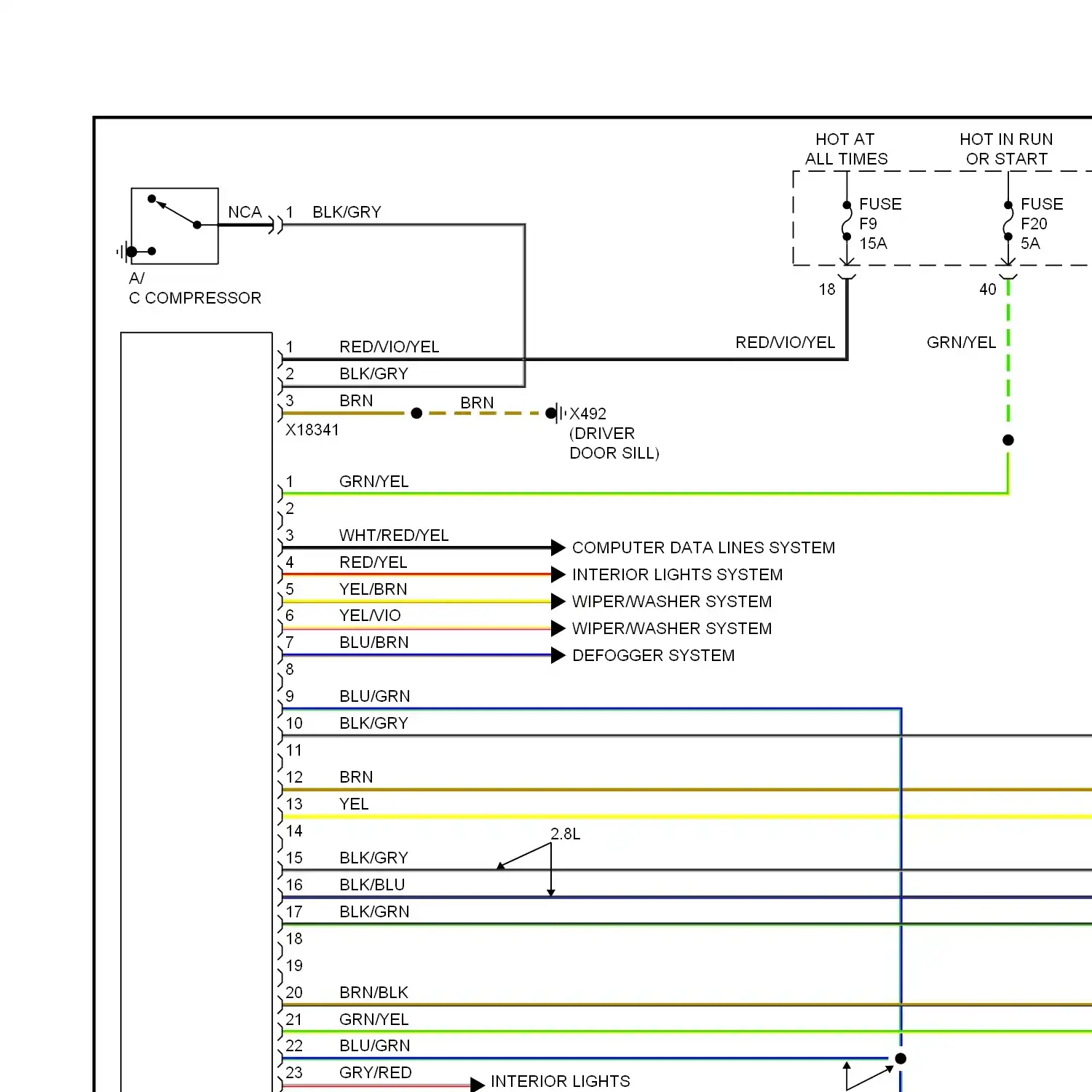

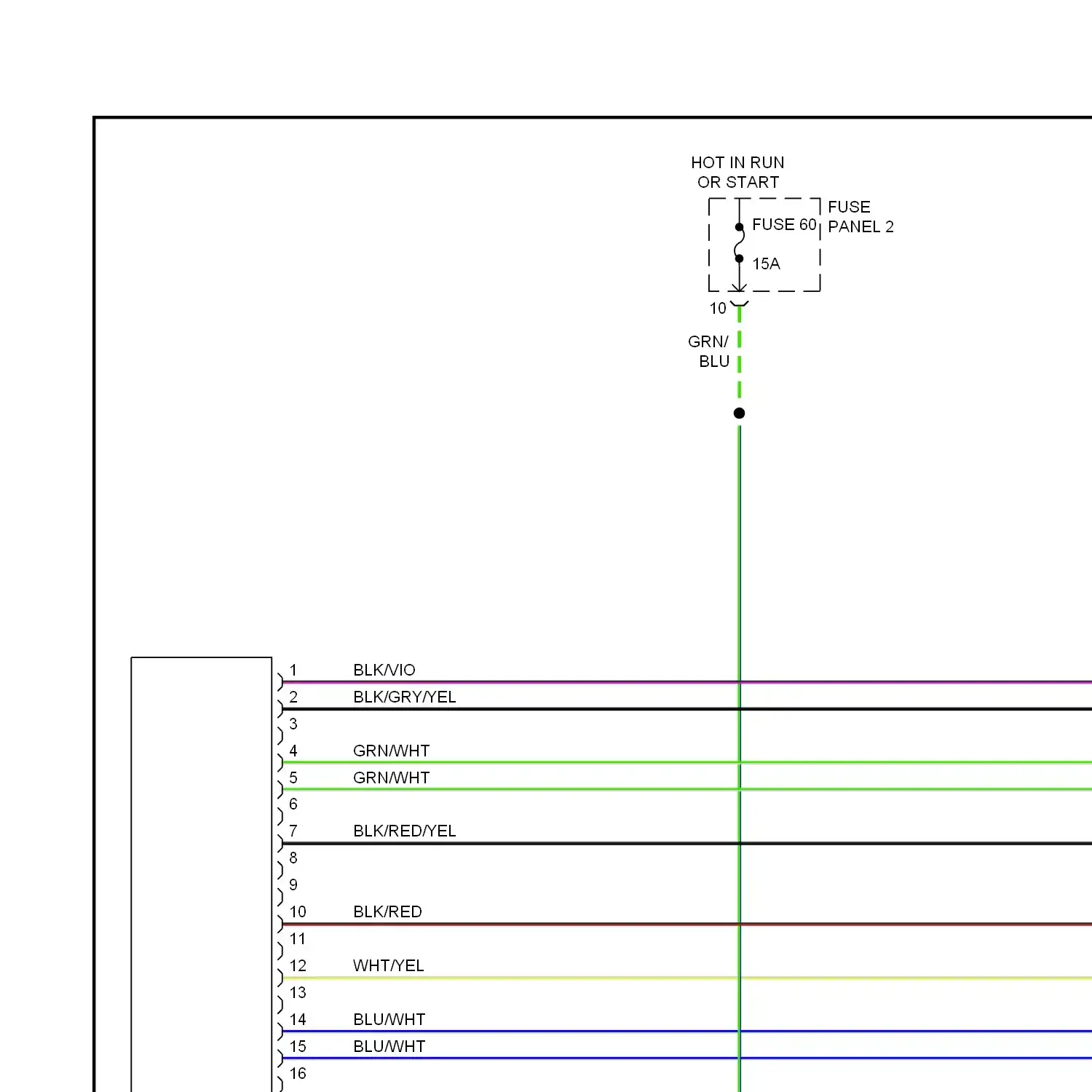

Automatic a/c circuit

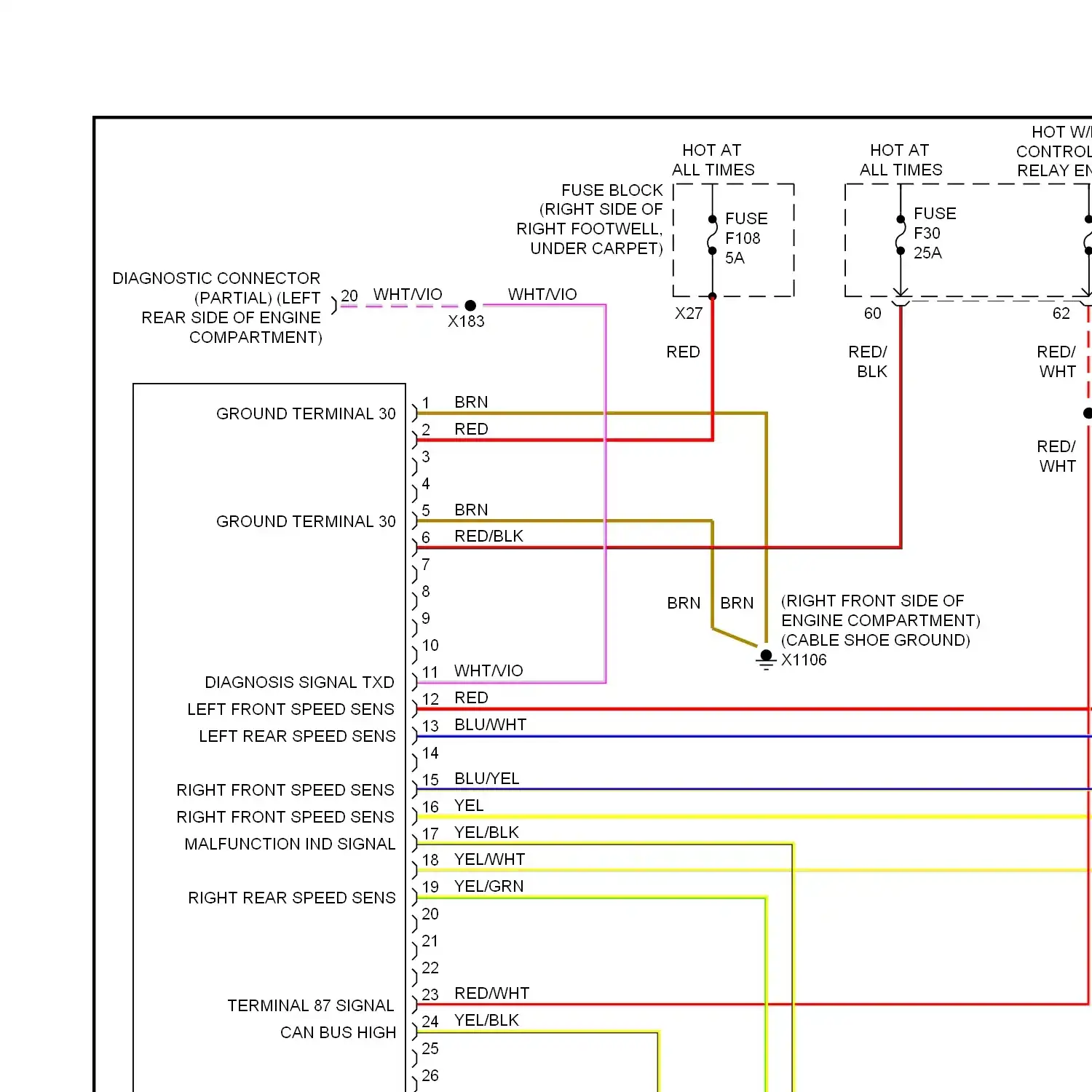

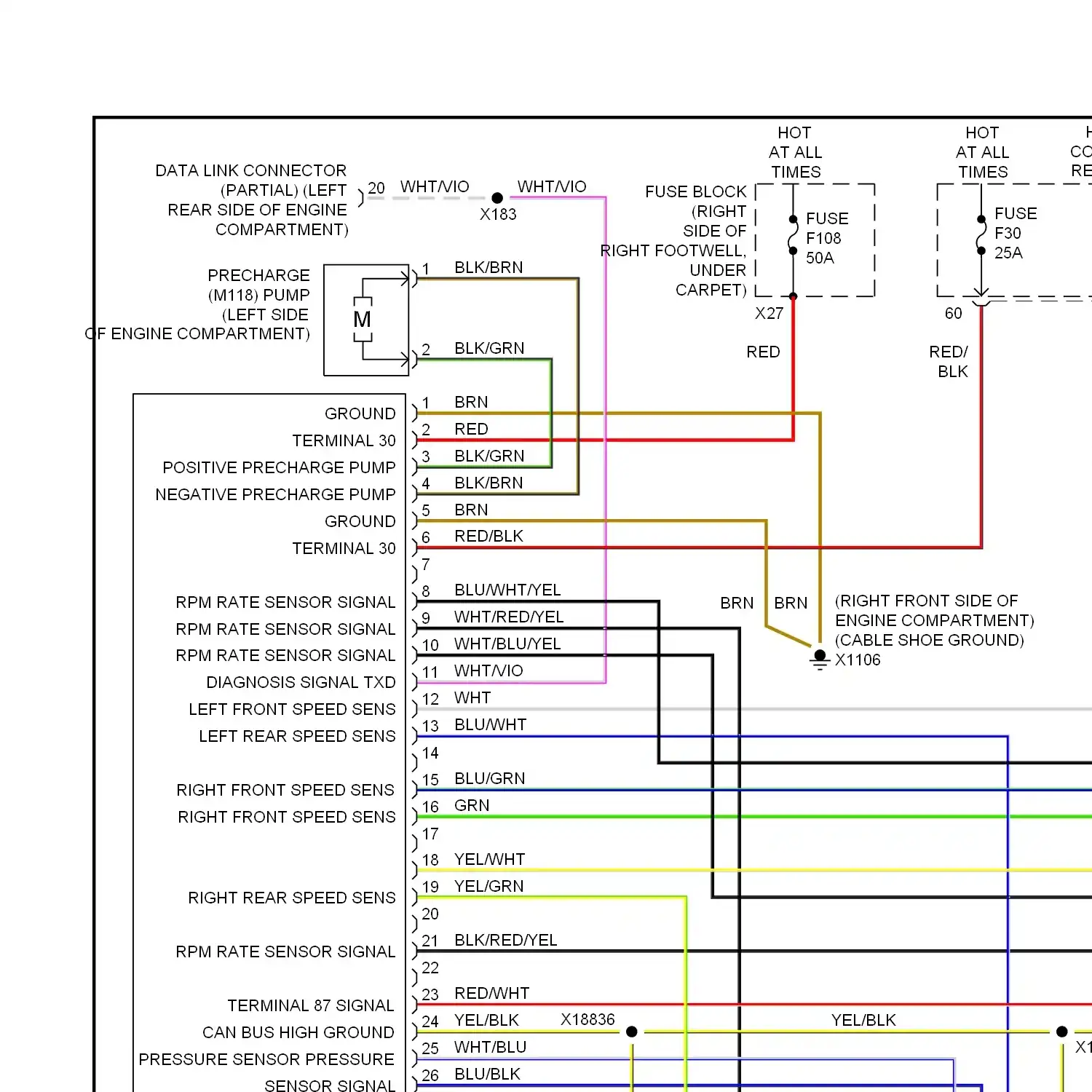

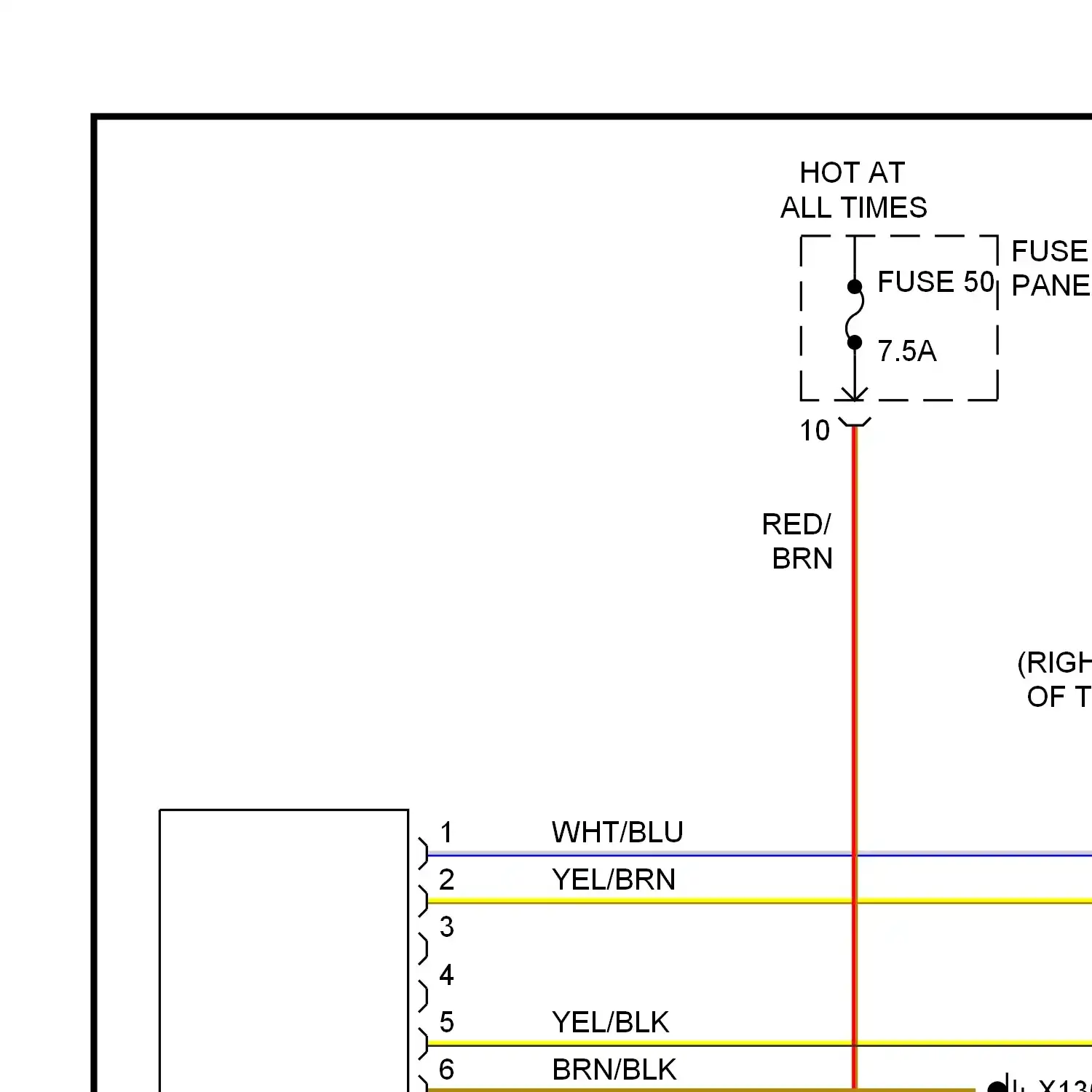

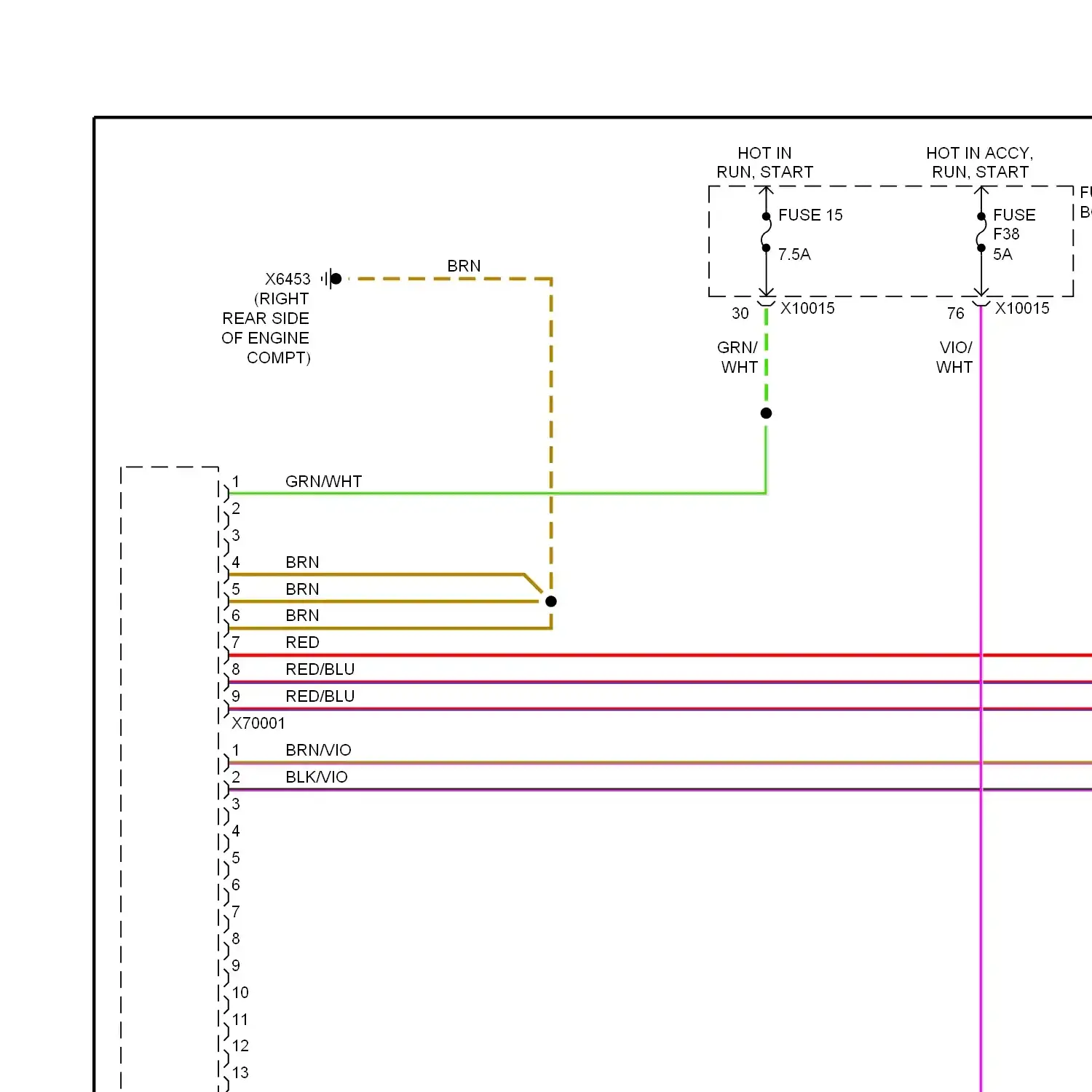

Anti-lock brakes circuit, with automatic stability control Anti-lock brakes circuit, with dynamic stability control

Forced entry circuit Immobilizer circuit

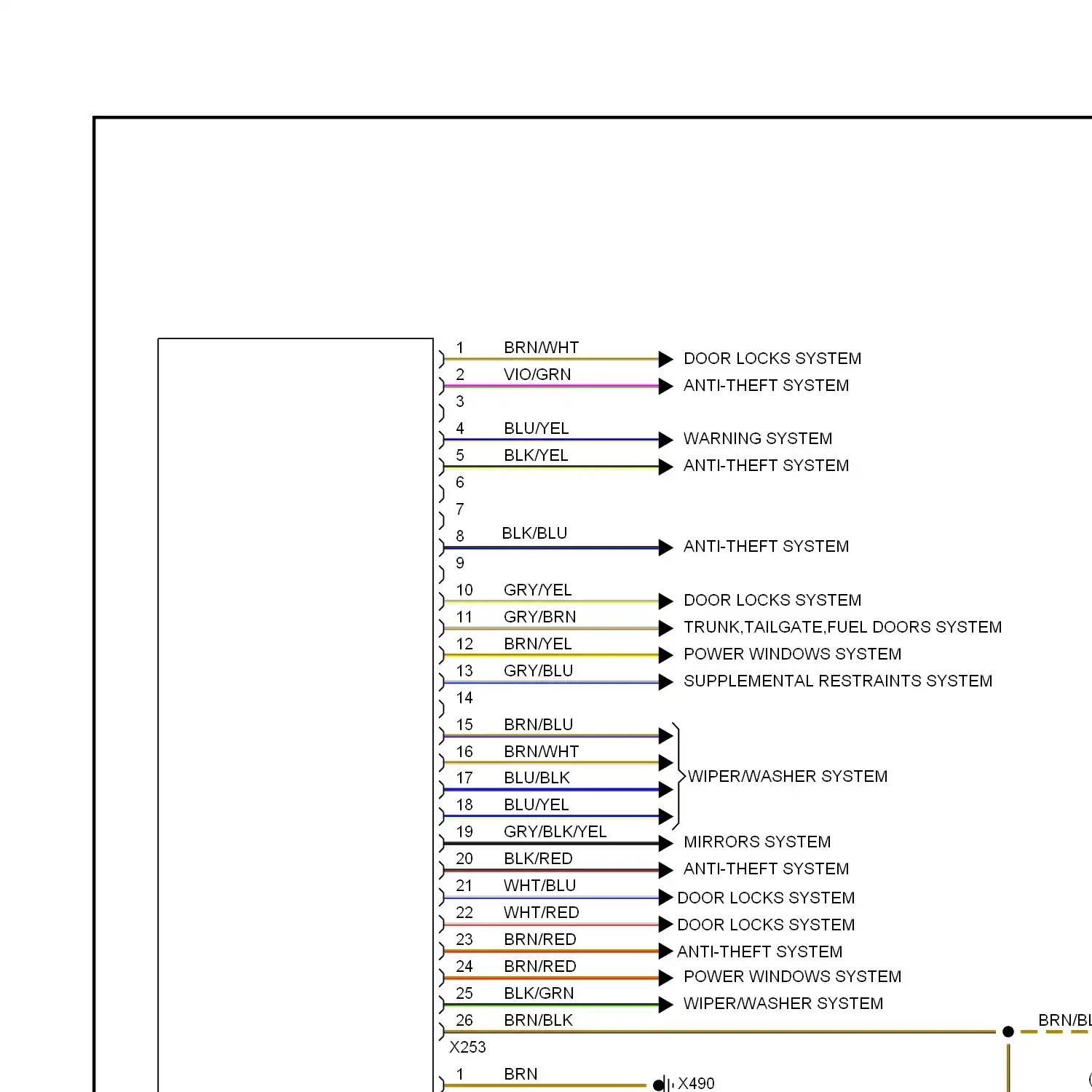

General module circuit

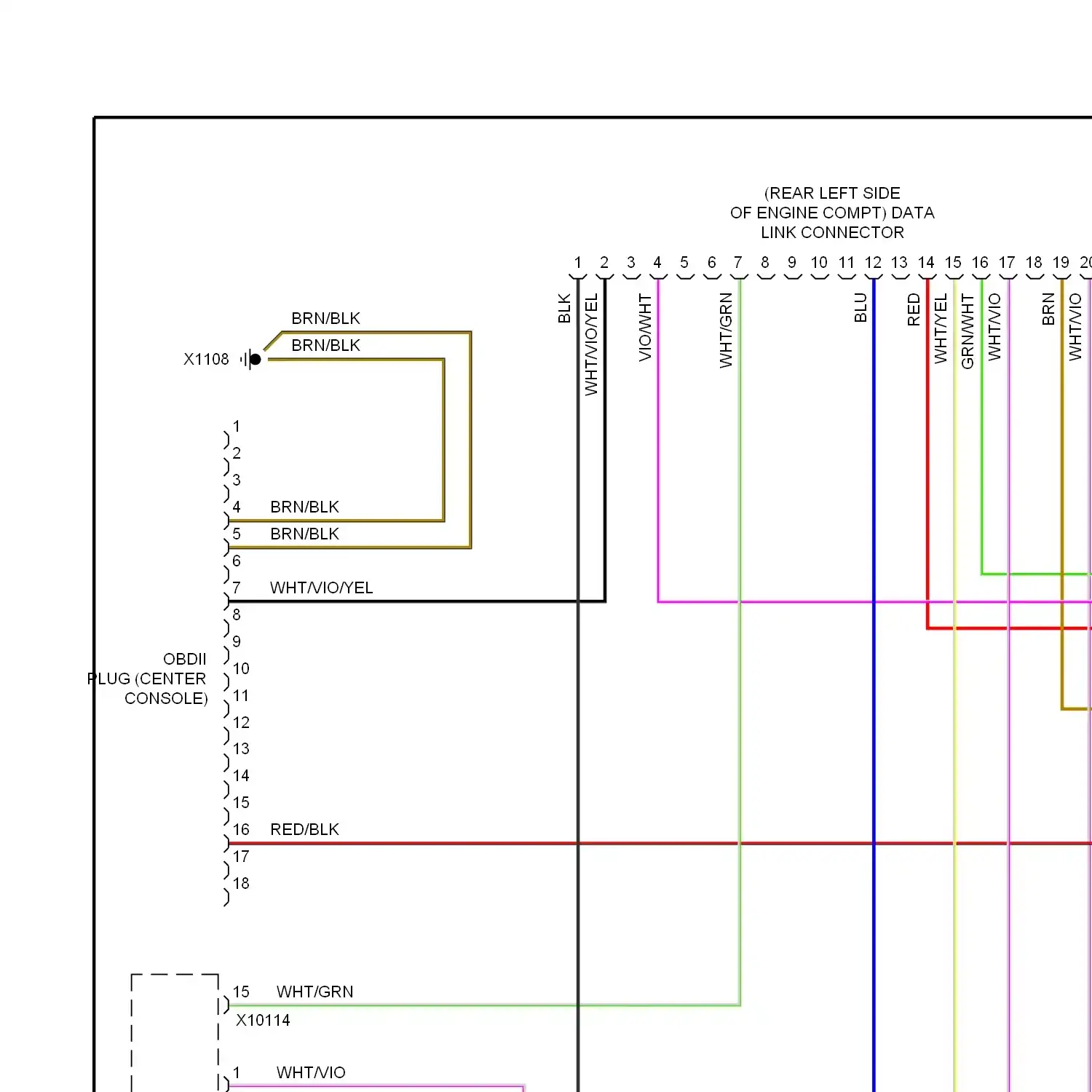

Computer data lines circuit

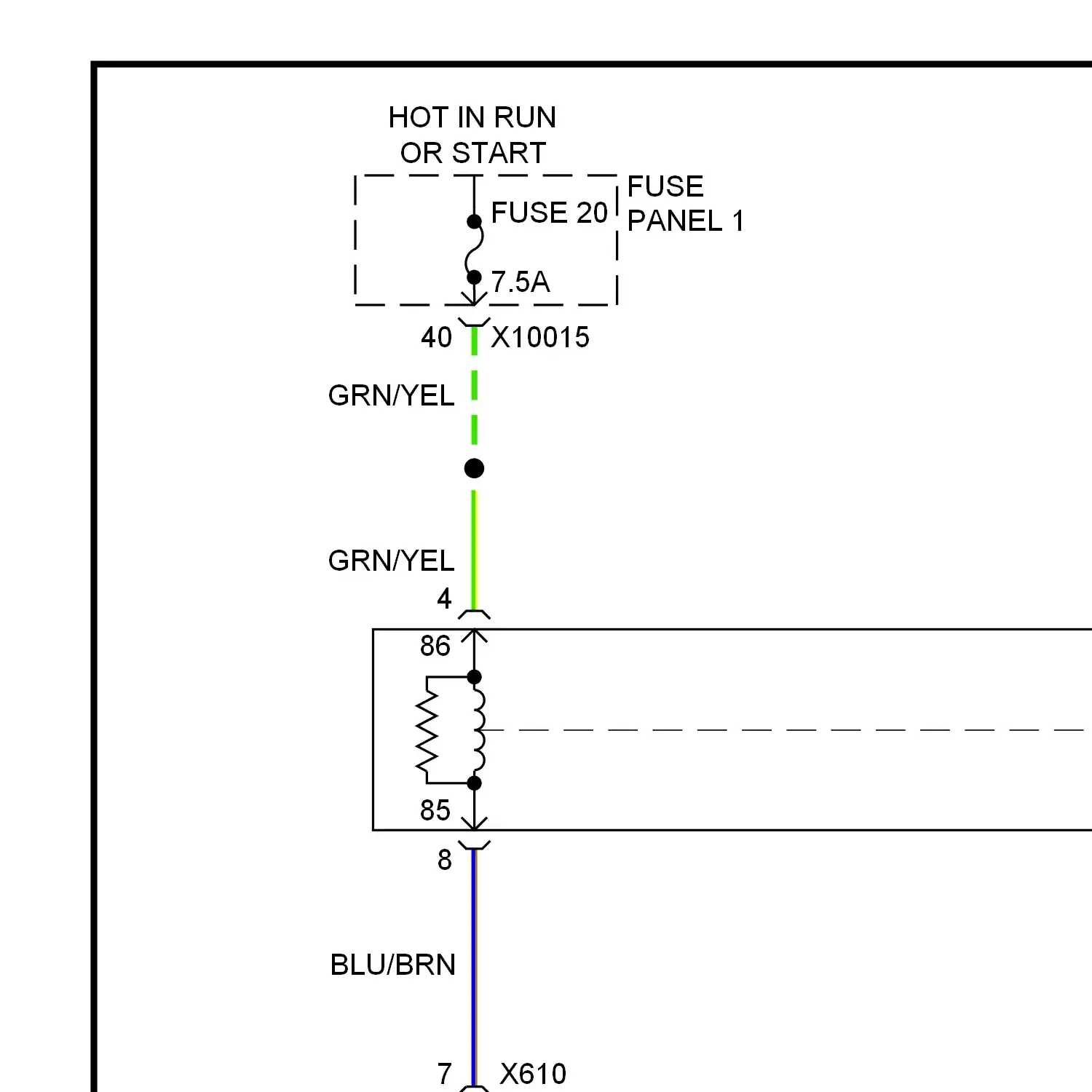

Defoggers circuit

Electronic air suspension circuit Electronic damper control circuit

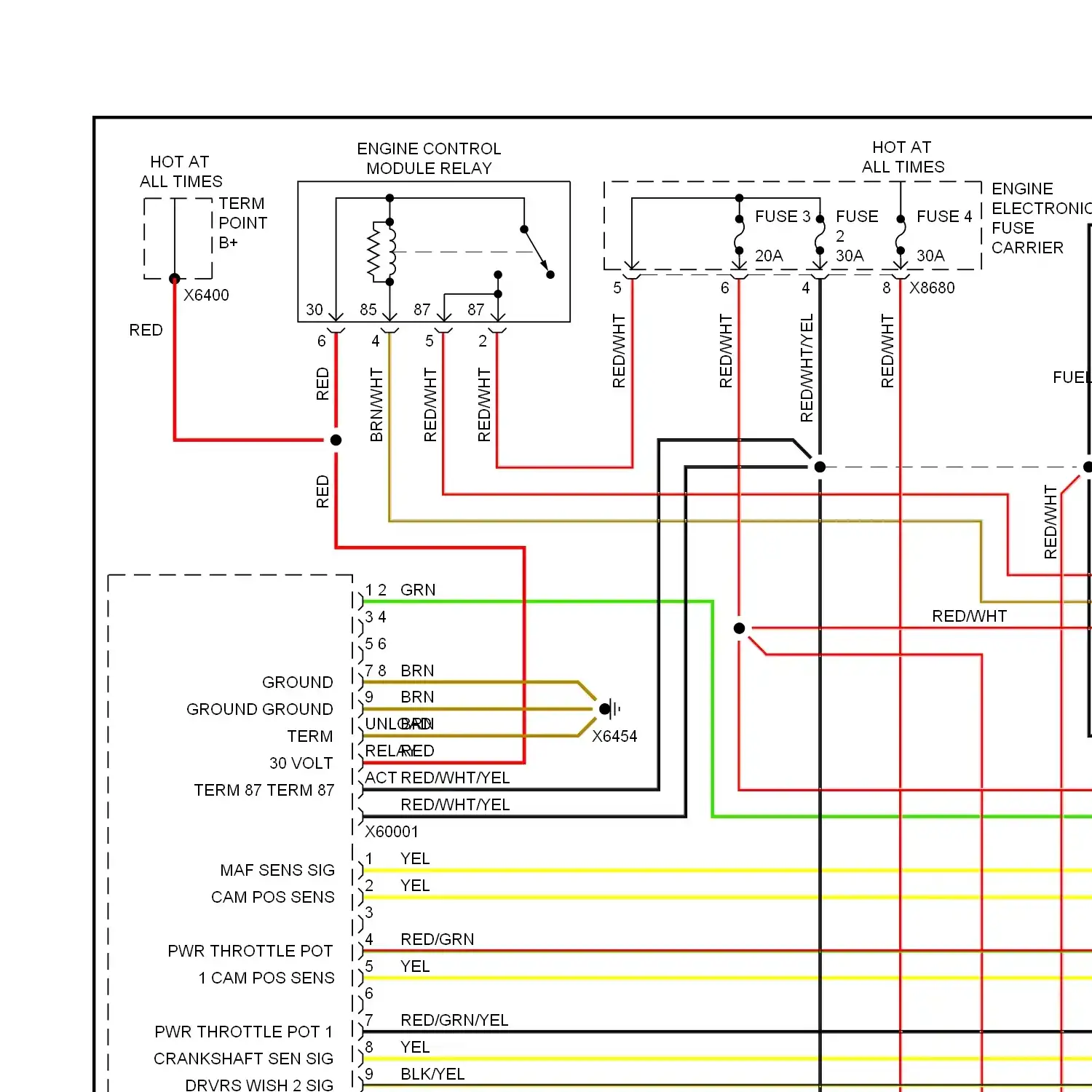

Wiring diagram engine performance 2.8l

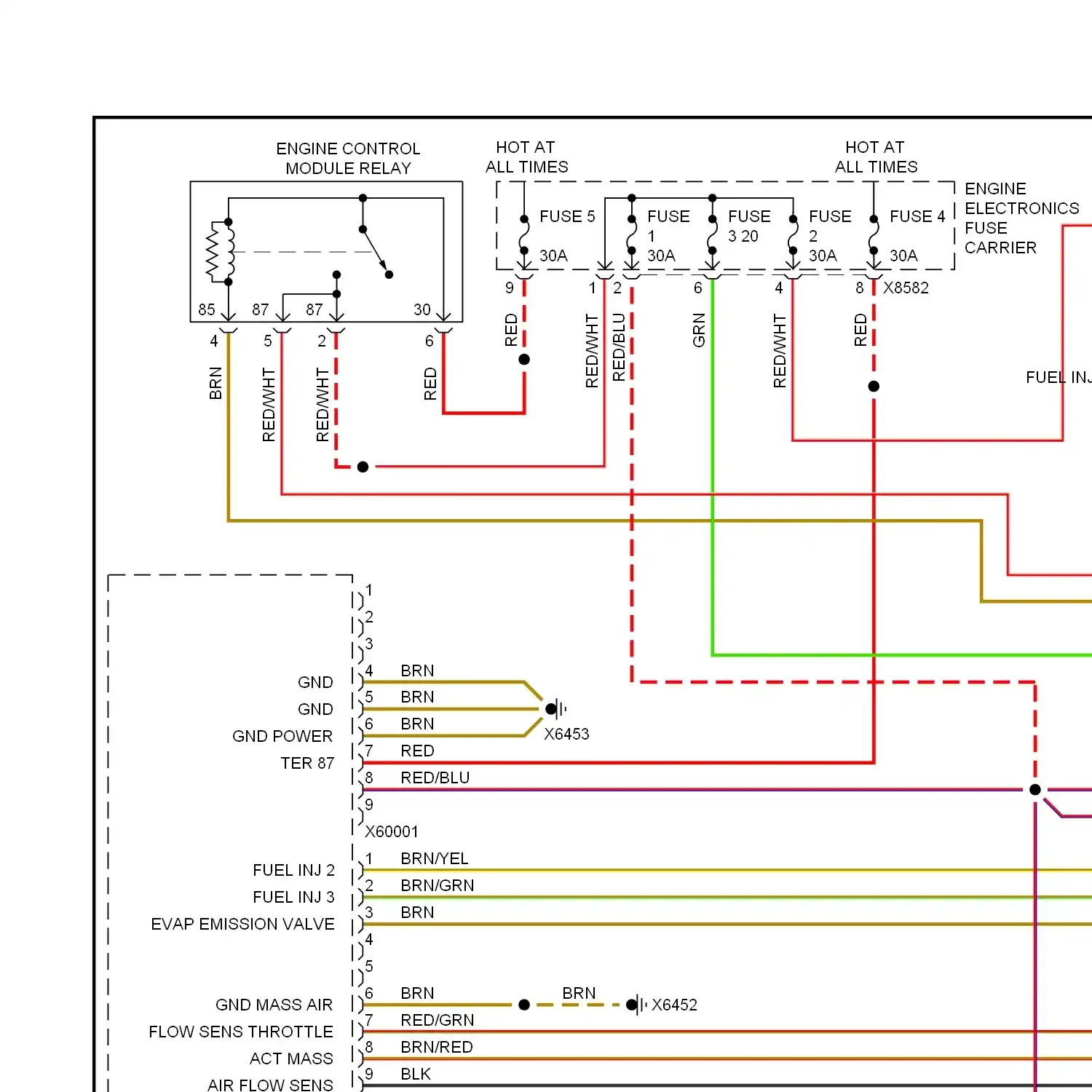

Wiring diagram engine performance 4.4l

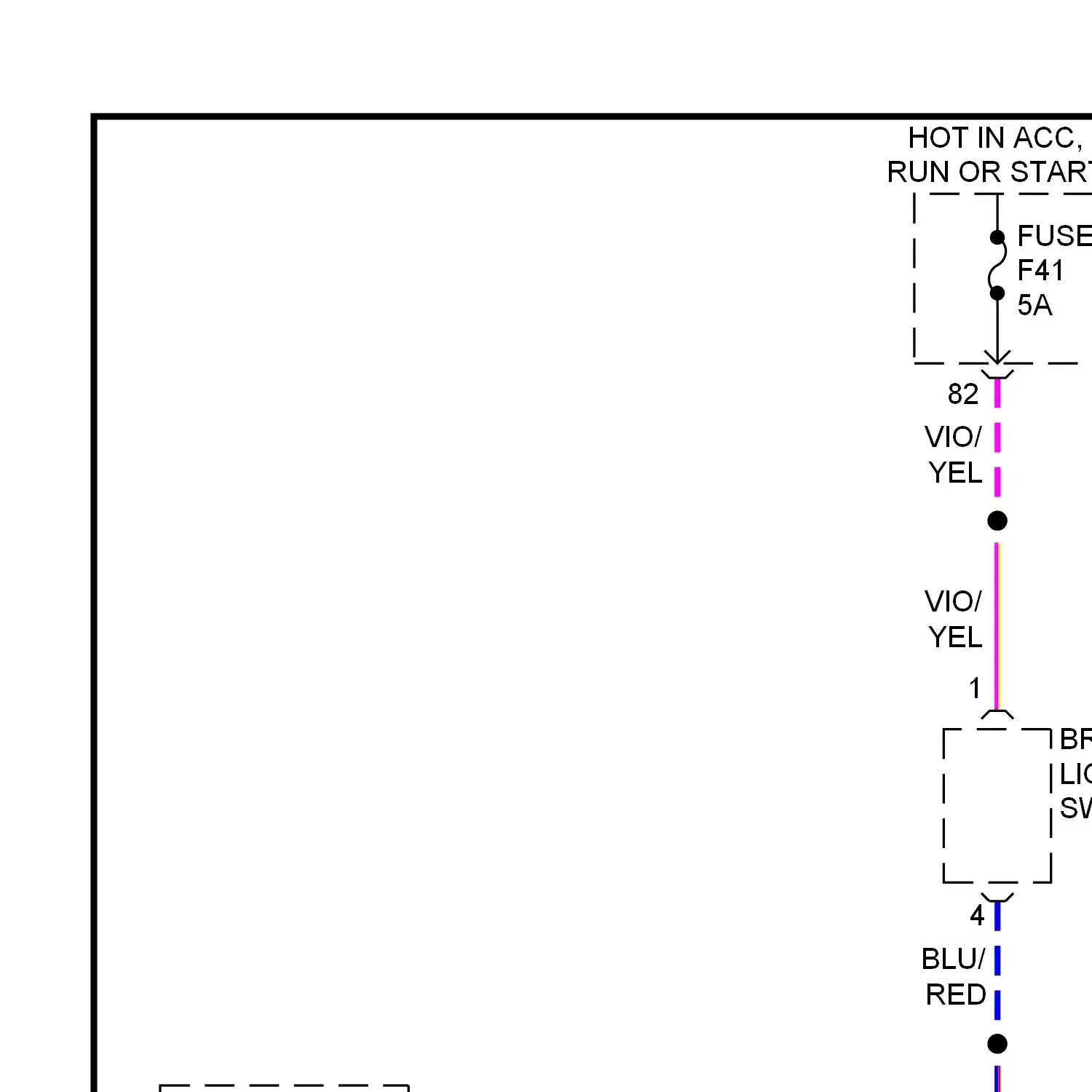

Backup lamps circuit Exterior lamps circuit

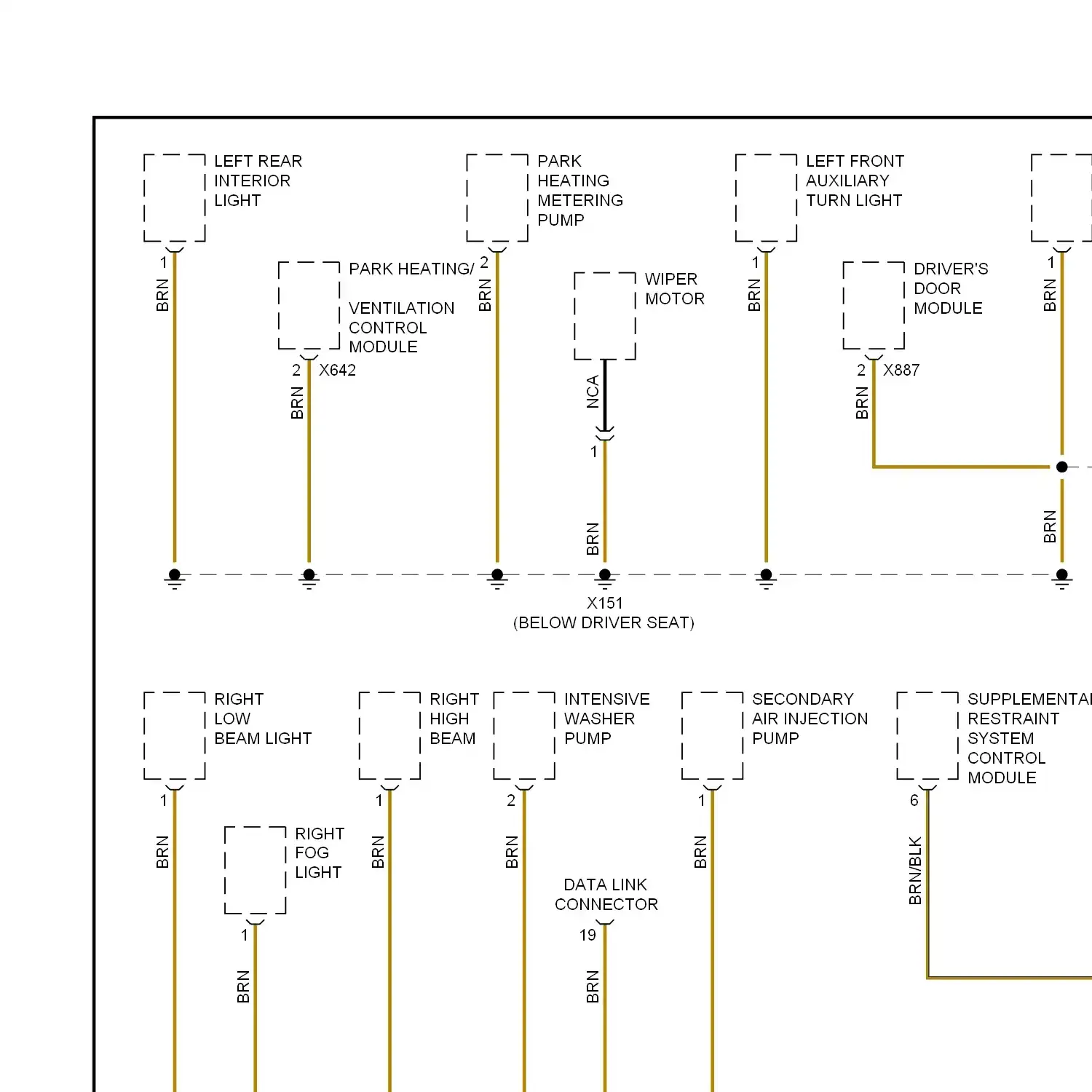

Ground distribution circuit

Headlamps & fog lamps circuit Headlamps leveling circuit

Horn circuit

Instrument cluster circuit, with ike Instrument cluster circuit, without ike

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit Steering column memory circuit

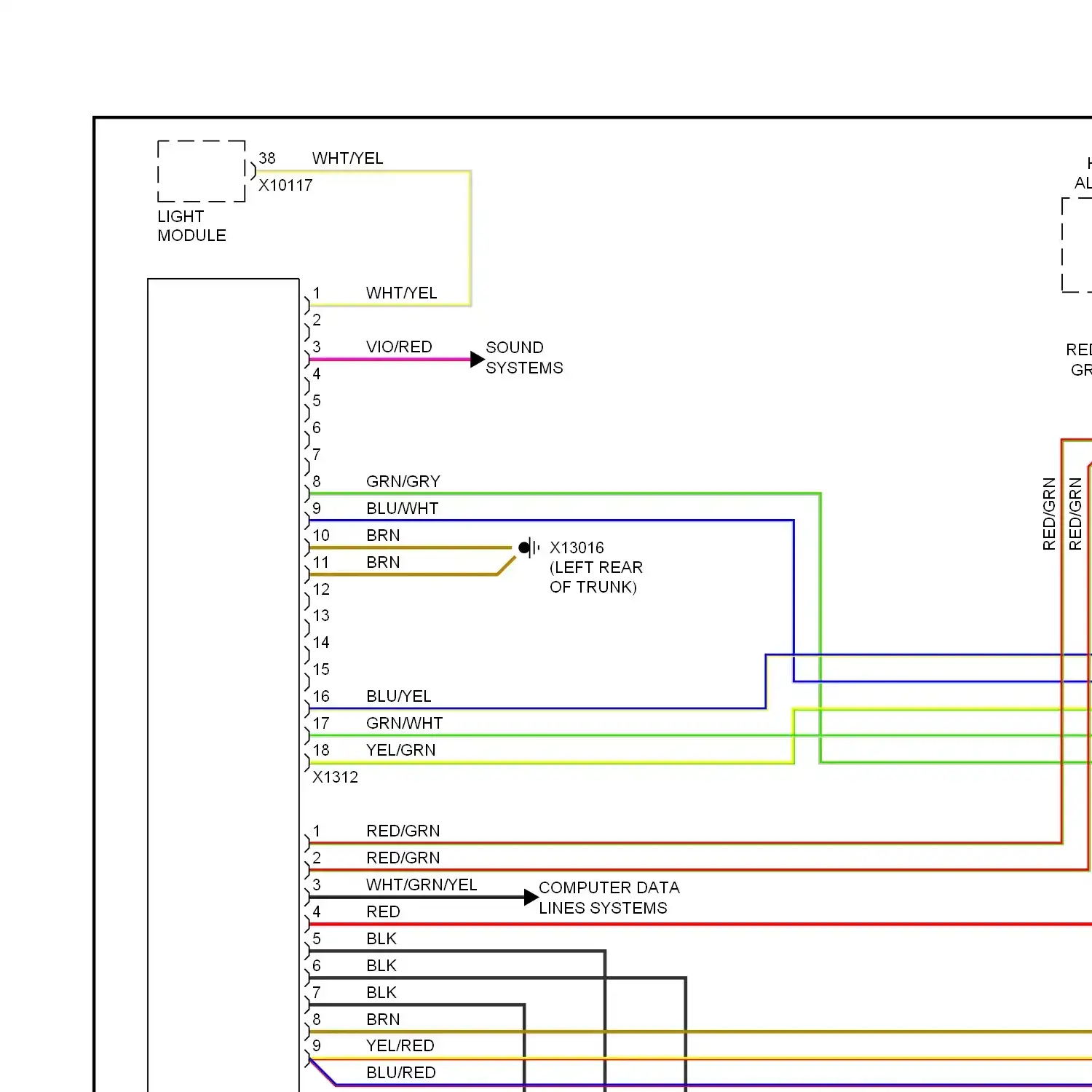

Navigation circuit Parking assistant circuit

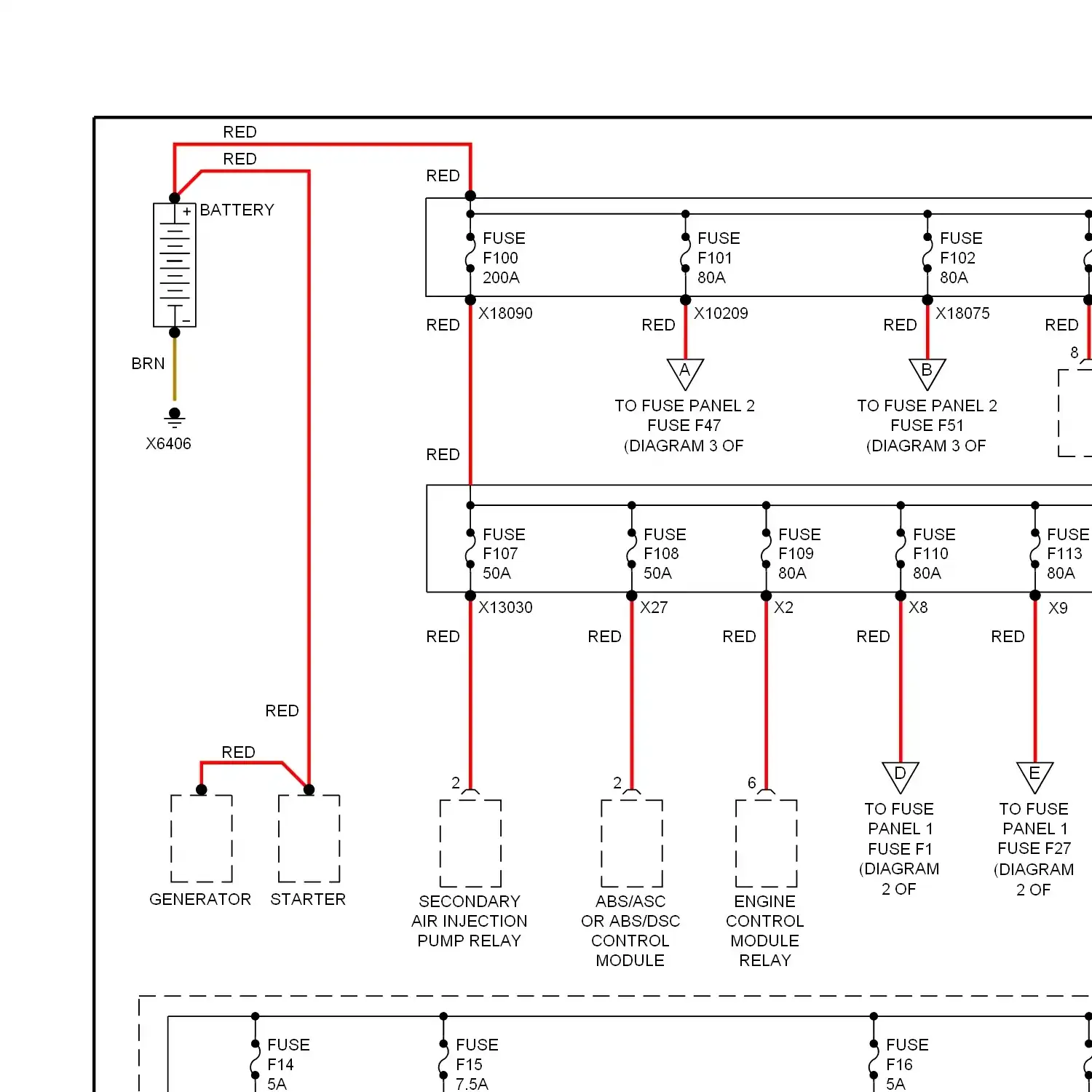

Power distribution circuit

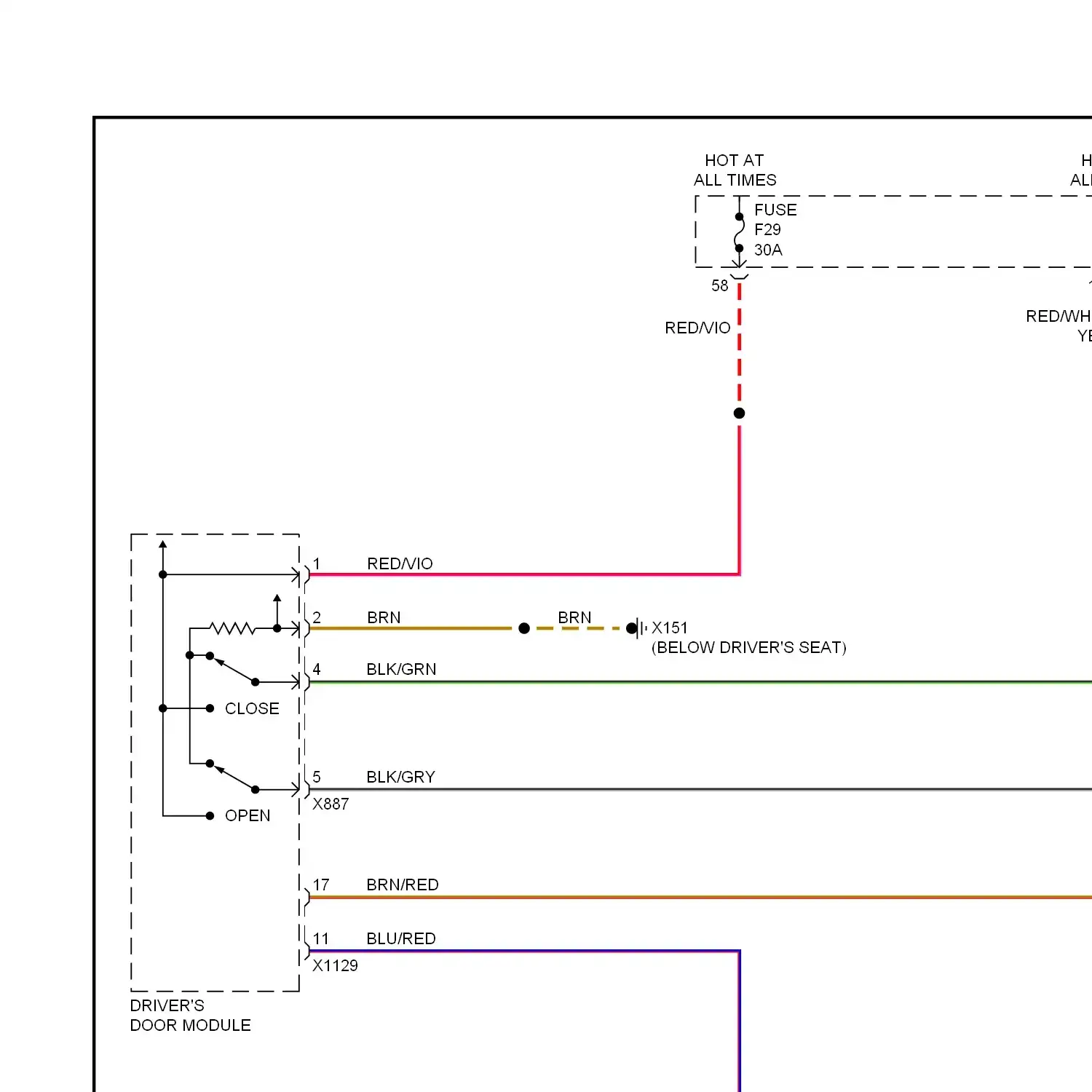

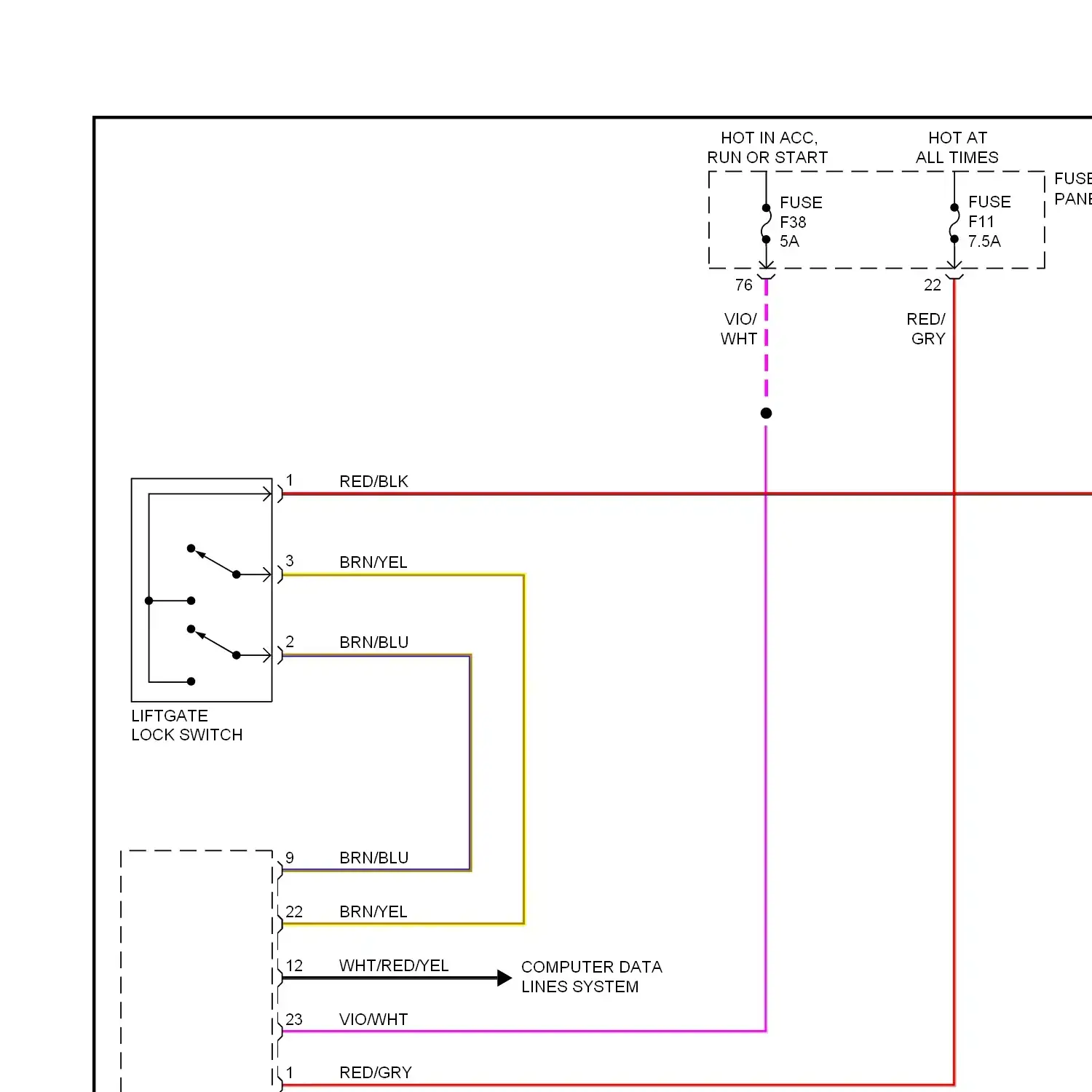

Power door locks circuit

Electrochromic mirror circuit

Heated seats circuit Heated steering wheel circuit Lumbar circuit Passenger"s power seat circuit

Sunroof circuit

Power windows circuit Rear window sun shade circuit

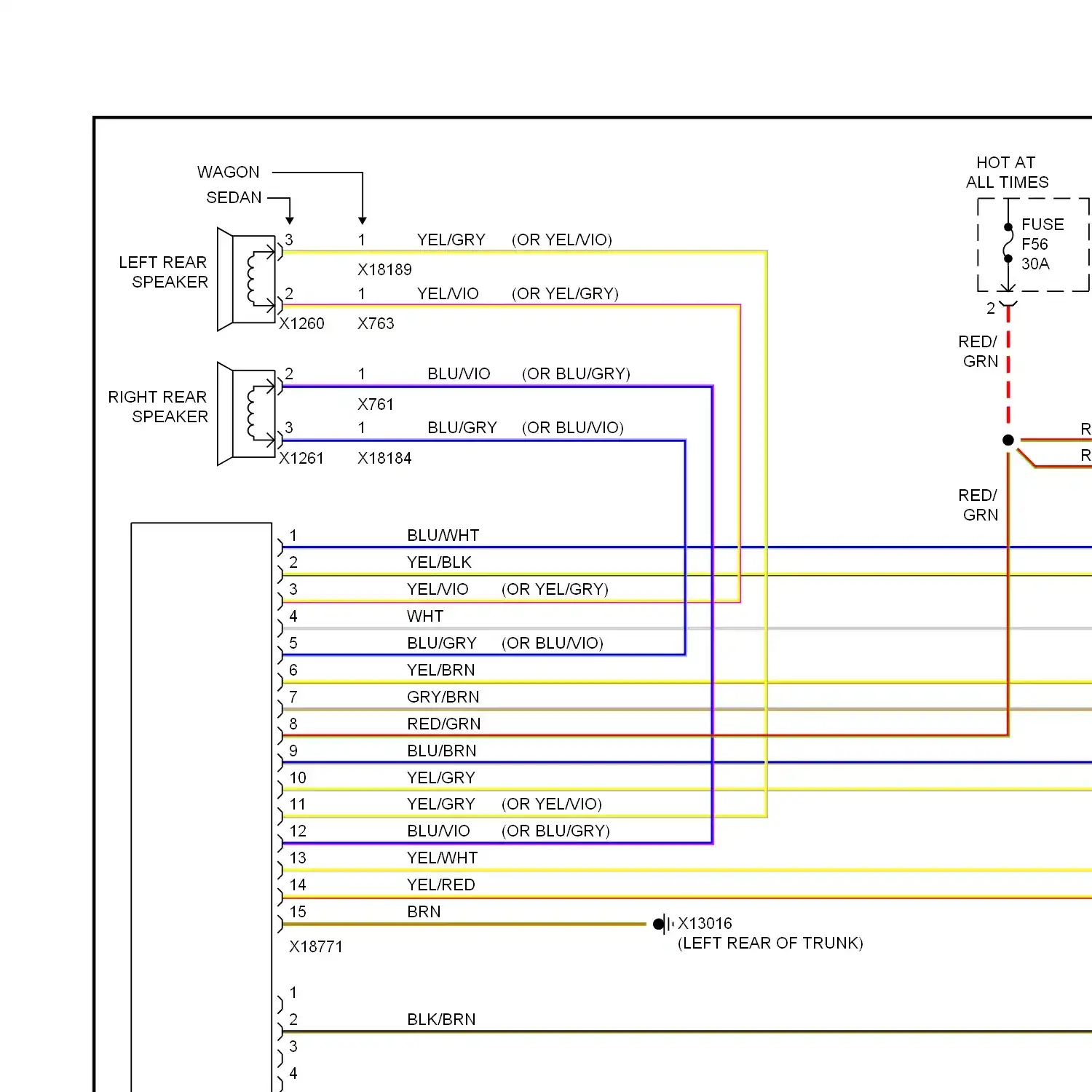

Radio circuit

Shift interlock circuit

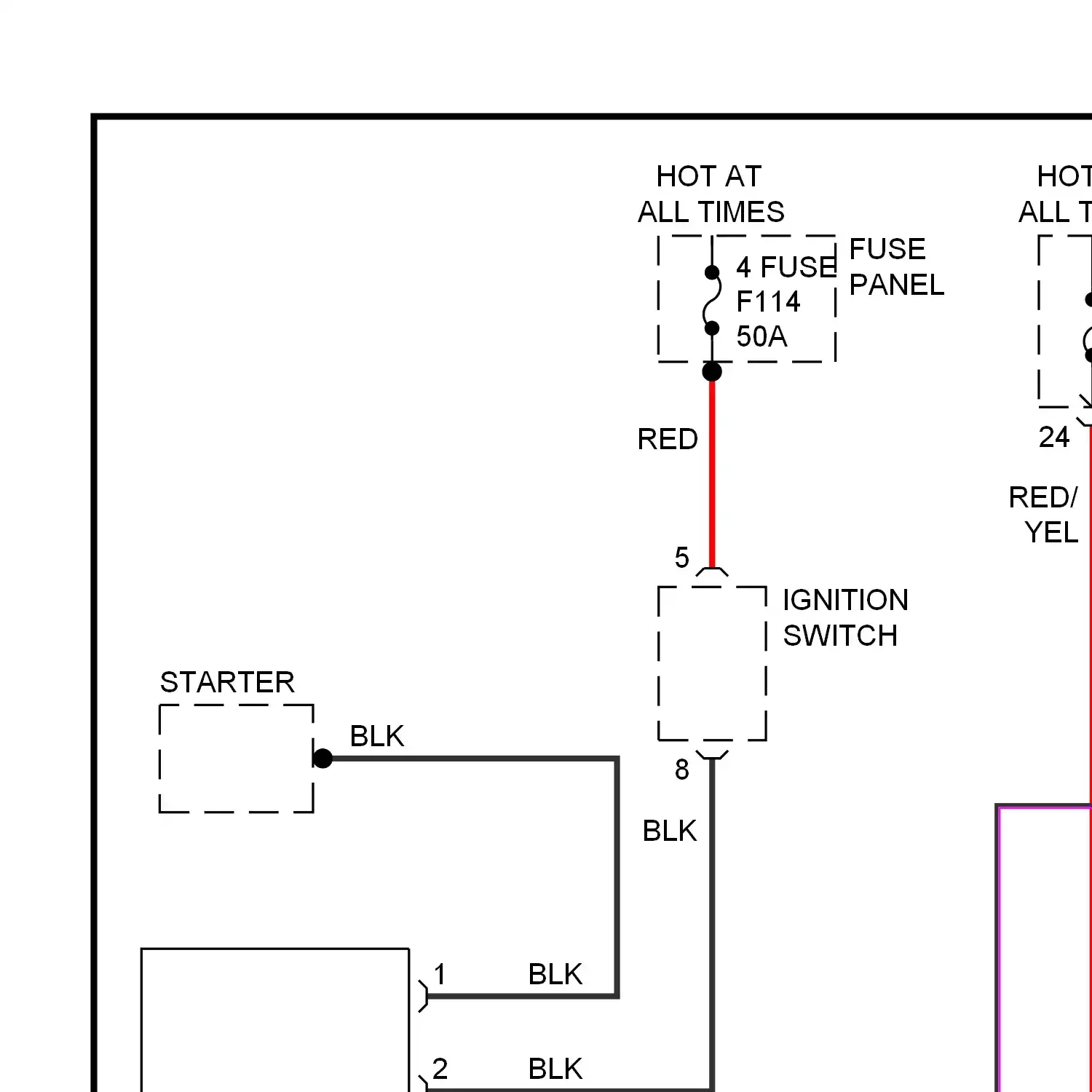

Charging circuit Starting circuit

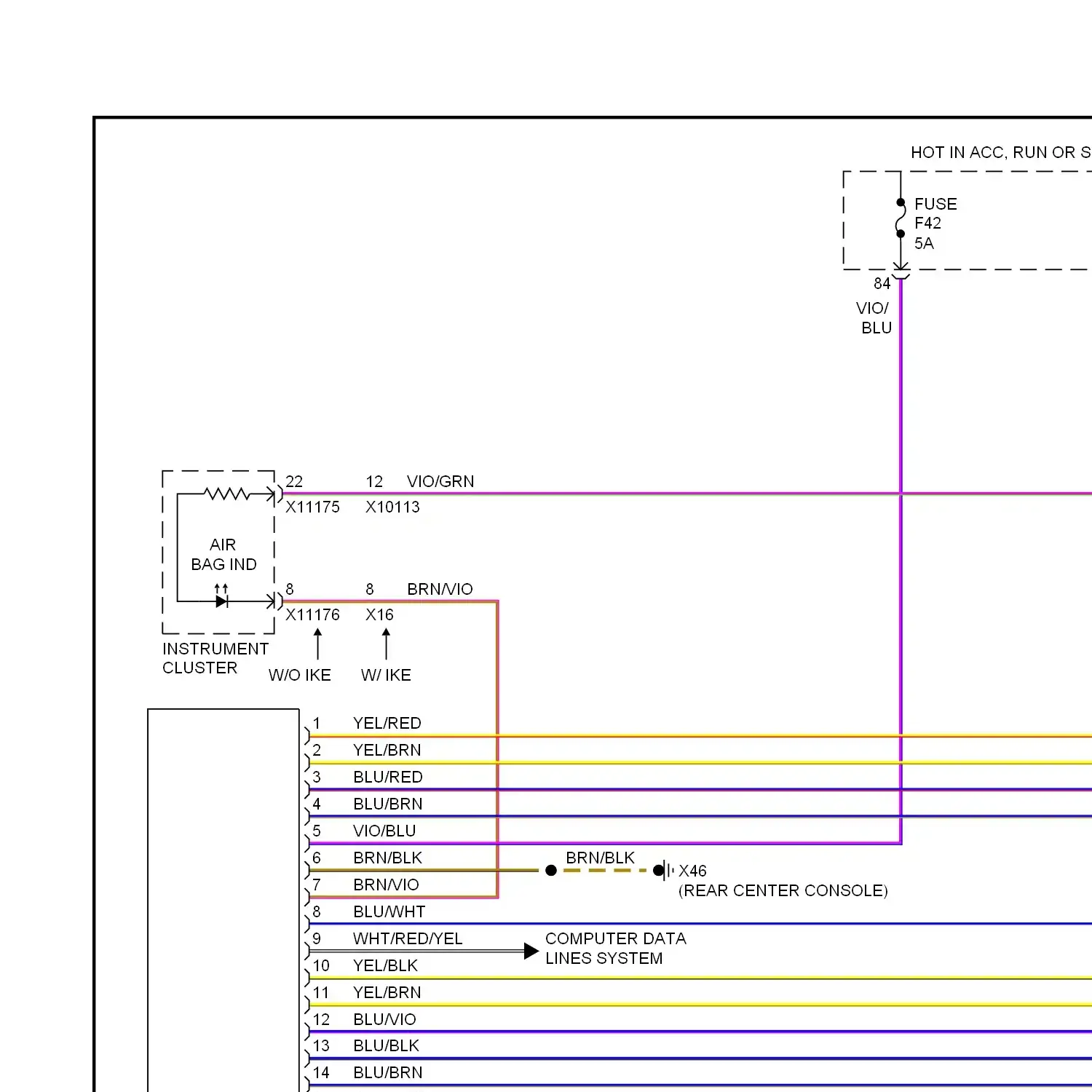

Supplemental restraints circuit

Transmission circuit

Trunk & fuel door release circuit

Chime circuit Tire pressure monitoring circuit

Headlamp washer circuit Washer jet heater circuit Wiper/washer circuit

1 2 3 4 5 6 7 8 9 IGN COIL 3 SIG IGN COIL 2 SIG IGN COIL 1 SIG ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM COMPUTER DATA LINES SYSTEM BATTERY SAFETY TERMINAL GENERATOR CD CHANGER AMPLIFIER COIL SPRING CYLINDER 1 IGNITION COIL CYLINDER 3 IGNITION COIL CYLINDER 2 IGNITION COIL CYLINDER 4 IGNITION COIL CYLINDER 5 IGNITION COIL CYLINDER 6 IGNITION COIL DRIVER AIR BAG HEAD AREA GENERATOR DRIVER'S AIR BAG GAS GENERATOR DRIVER'S SEAT BELT TENSION GENERATOR FM AMPLIFIER LOCKOUT CIRCUIT IGN COIL 6 SIG IGN COIL 5 SIG IGN COIL 4 SIG LEFT HORN LEFT REAR DOOR SIDE AIR BAG GENERATOR LEFT TV AMPLIFIER PASSENGER AIR BAG HEAD AREA GENERATOR PASSENGER'S AIR BAG GAS GENERATOR PASSENGER'S SEAT BELT TENSION GENERATOR RADIO, AMPLIFIER RIGHT HORN RIGHT REAR DOOR SIDE AIR BAG GENERATOR RIGHT TV AMPLIFIER RING COIL TRANSCEIVER/ CHARGING ELECTRONICS VIDEO MODULE TRANSCEIVER/ CHARGING ELECTRONICS

BLOWER MOTOR DEFROSTER FLAP MOTOR DRIVER'S HEADREST MOTOR DRIVER'S SEAT BACK HEAD RECLINER MOTOR DRIVER'S SEAT BACK HEAD RECLINER MOTOR DRIVER'S THIGH SUPPORT MOTOR DRIVER'S SEAT BACK RECLINER MOTOR DRIVER'S SEAT CUSHION TILT MOTOR DRIVER'S SEAT CUSHION TILT MOTOR DRIVER'S SEAT BACK RECLINER MOTOR DRIVER'S SEAT CUSHION TILT MOTOR DRIVER'S SEATBACK RECLINER MOTOR DRIVER'S SEAT HEIGHT MOTOR DRIVER'S SEAT LUMBAR SUPPORT MOTOR DRIVER'S SEAT MOVEMENT MOTOR DRIVER'S SEAT MOVEMENT MOTOR DRIVER'S SEAT HEIGHT MOTOR DRIVER'S SEATBACK HEAD RECLINER MOTOR DRIVER'S THIGH SUPPORT MOTOR DRIVER'S WINDOW MOTOR DRIVERS DOOR LOCK MOTOR ENGINE CONTROLS SYSTEM FOOTWELL FLAP ACTUATOR FOOTWELL/REAR COMPARTMENT ACTUATOR MOTOR FRESH AIR FLAP MOTOR FUEL TANK ACCESS FLAP LOCK MOTOR LEFT ACTUATOR FOR HEADLIGHT BEAM THROW CONTROL LEFT REAR DOOR LOCK MOTOR LEFT REAR WINDOW MOTOR LID SERVO MOTOR PASSENGER'S SEAT CUSHION TILT MOTOR PASSENGER'S SEAT HEADREST MOTOR PASSENGER'S SEAT HEIGHT MOTOR PASSENGER'S SEAT LUMBAR SUPPORT MOTOR PASSENGER'S SEAT MOVEMENT MOTOR PASSENGER'S SEATBACK HEAD RECLINER MOTOR PASSENGER'S SEATBACK RECLINER MOTOR PASSENGER'S THIGH SUPPORT MOTOR PASSENGER'S WINDOW MOTOR PASSENGERS DOOR LOCK MOTOR REAR COMPARTMENT BLOWER MOTOR REAR WINDOW SERVO MOTOR RECIRCULATION FLAP MOTOR RIGHT ACTUATOR FOR HEADLIGHT BEAM THROW CONTROL RIGHT REAR DOOR LOCK MOTOR RIGHT REAR WINDOW MOTOR STEERING COLUMN ANGLE ADJUST MOTOR STEERING COLUMN ANGLE ADJUST MOTOR STEERING COLUMN LENGTH ADJUST MOTOR STEERING COLUMN LENGTH ADJUST MOTOR STEERING COLUMN LENGTH ADJUST MOTOR STEERING COLUMN ANGLE ADJUST MOTOR SUN BLIND MOTOR VENTILATION FLAP ACTUATOR WIPER MOTOR

ANTENNA AMPLIFIER GPS ANTENNA RADIO REAR WINDOW ANTENNA/ DEFROSTER REAR WINDOW ANTENNA/ DEFROSTER

PRESSURE REGULATOR 1 PRESSURE REGULATOR 2 PRESSURE REGULATOR 3 PRESSURE REGULATOR 4 PRESSURE REGULATOR 5

CHARGING SOCKET DATA LINK CONNECTOR OBD II CONNECTOR OBD II SOCKET

ABS/ASC CONTROL MODULE ABS/ASC CONTROL MODULE FUEL PUMP RELAY ABS/ASC OR ABS/DSC CONTROL MODULE ENGINE CONTROL MODULE RELAY ABS/DSC CONTROL MODULE DDE CONTROL MODULE ELECTRONIC SHOCK ABSORBER CONTROL MODULE ENGINE CONTROL MODULE ENGINE CONTROL MODULE RELAY GENERAL MODULE AGS TRANSMISSION CONTROL MODULE HEADLIGHT WIDENING CONTROL MODULE HEATING AND A/C CONTROL MODULE HEATING, A/C CONTROL MODULE HOT W/ENGINE CONTROL MODULE RELAY ENERGIZED INTEGRATED INSTRUMENT CLUSTER CONTROL MODULE INTERIOR PROTECTION CONTROL MODULE NAVIGATION CONTROL MODULE PARK DISTANCE CONTROL MODULE CIGAR LIGHTER RELAY PARK HEATING/ VENTILATION CONTROL MODULE RDC CONTROL MODULE REAR DEFOGGER RELAY RDC CONTROL MODULE SEAT/ STEERING COLUMN MEMORY CONTROL MODULE SEAT/ STEERING COLUMN MEMORY CONTROL MODULE DRIVER'S HEADREST MOTOR SUPPLEMENTAL RESTRAINT SYSTEM CONTROL MODULE TRANSMISSION CONTROL MODULE

AIR SUSPENSION CONTROL UNIT ELECTRONIC DRIVE AWAY PROTECTION CONTROL UNIT FINAL STAGE UNIT REAR INTERMITTENT WIPE/WASH CONTROL UNIT FUEL PUMP RELAY STEERING WHEEL HEATING CONTROL UNIT WINDOW HEATING CONTROL UNIT XENON LIGHT CONTROL UNIT

ENGINE ELECTRONICS FUSE CARRIER FROM FUSE PANEL 1 FROM FUSE PANEL 4 FROM FUSE PANEL 5 FUSE 1 FUSE 3 20 FUSE 2 FUSE 4 FUSE 3 FUSE 4 FUSE 5 FUSE 11 FUSE 14 FUSE 15 FUSE 18 FUSE 20 FUSE 24 FUSE 27 FUSE 31 FUSE 38 FUSE 40 FUSE 41 FUSE 50 FUSE 54 FUSE 60 FUSE 66 FUSE 107 FUSE BOX FUSE BOX FUSE 31 FUSE FUSE FUSE PANEL 1 FUSE PANEL 1 FUSE FUSE PANEL 2 FUSE PANEL 2 FUSE FUSE PANEL 4 FUSE PANEL 4 FUSE FUSE PANEL 5 FUSE PANEL 6 HOT AT ALL TIMES FUSE HOT AT ALL TIMES FUSE PANEL 1 FUSE HOT AT ALL TIMES FUSE PANEL 4 FUSE TO FUSE PANEL 1 TO FUSE PANEL 2

HEADLIGHT WASHER MODULE HEADLIGHT WASHER PUMP HEADLIGHT WIDENING POTENTIOMETER

DRIVER'S SEAT HEATER DRIVER'S SEATBACK HEATER INDEPENDENT HEATING RECEIVER INDEPENDENT PARK/ AUXILIARY HEATING LEFT REAR SEAT HEATER LEFT REAR SEATBACK HEATER LEFT WASHER JET HEATER PASSENGER'S SEAT HEATER PASSENGER'S SEATBACK HEATER RIGHT WASHER JET HEATER STEERING WHEEL HEATER

CHARGE INDICATOR GEAR INDICATOR LIGHT TRANSMISSION RANGE INDICATOR LIGHT XENON LIGHT INDICATOR LAMP

COMPUTER DATA LINES SYSTEM INTERIOR LIGHTS SYSTEM FRONT INTERIOR/ READING LAMP INTERIOR LAMP INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEMS LEFT FRONT TURN SIGNAL LAMP LIGHTS ON 3) REAR FOG LIGHTS ON 4) FRONT, REAR FOG LIGHTS ON READING LAMP RIGHT FRONT TURN SIGNAL LAMP TRUNK LID LAMP

A/C COMP SIG LEAKAGE PUMP AUXILIARY WATER PUMP AUXILIARY WATER PUMP SLIP RING COMPRESSOR PUMP ELECTRICAL FUEL PUMP FUEL PUMP INTENSIVE WASHER PUMP LEAK DIAG PUMP SIG LEAKAGE PUMP PARK HEATING METERING PUMP RIGHT LICENSE PLATE LIGHT WASHER PUMP SECONDARY AIR INJECTION PUMP WASHER PUMP

1 2 3 4 5 6 7 8 9 UNLOAD RELAY ACT 2 30 SECONDARY AIR INJECTION PUMP RELAY 6 30 UNLOADER RELAY ANTENNA AMPLIFIER DIVERSITY MOTOR RELAY AUXILIARY FAN HIGH SPEED RELAY AUXILIARY FAN NORMAL SPEED RELAY CENTRAL LOCKING FUEL TANK ACCESS FLAP RELAY CENTRAL LOCKING FUEL TANK ACCESS FLAP RELAY REAR LID MOTOR RELAY CLOSED CIRCUIT CURRENT CUTOFF RELAY CLOSEDCIRCUIT CURRENT CUTOFF RELAY COMPRESSOR PUMP CONTROL RELAY FUEL PUMP RELAY GARAGE DOOR OPENER UNLOADER RELAY TERMINAL 15 HORN RELAY HOT WITH ENGINE RELAY ENERGIZED PEDAL POS SENS SIG PEDAL POS SENS PWR FUEL PUMP RELAY REAR DEFOGGER RELAY REAR LID MOTOR RELAY SECONDARY AIR INJECTION PUMP RELAY STANDBY CURRENT CUTOFF RELAY UNLOADER RELAY TERMINAL 15 WINDOW MOTOR RELAY WIPER RELAY WIPER RELAY RIGHT FRONT AUXILIARY TURN LIGHT

ASC PASSIVE SENSOR SIG LEFT FRONT SPEED SENS AUTOMATIC AIR RECIRCULATION SENSOR CAMSHAFT POSITION SENSOR 1 CAMSHAFT POSITION SENSOR 2 CRANKSHAFT POSITION/RPM SENSOR CYL 1-2 CYL 3-4 KNOCK SENSOR CYL 5-6 KNOCK SENSOR DUAL TEMPERATURE SENSOR EVAPORATOR TEMPERATURE SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR I FUEL LEVEL SENSOR II HALL EFFECT CAMSHAFT POSITION SENSOR 1 HALL EFFECT CAMSHAFT POSITION SENSOR 2 INTAKE AIR TEMPERATURE SENSOR KNOCK SENSOR LEFT FRONT BRAKE PAD SENSOR LEFT FRONT RDC SENSOR LEFT FRONT SPEED SENSOR LEFT REAR LEVEL SENSOR LEFT REAR RDC SENSOR LEFT REAR SPEED SENSOR OIL LEVEL SENSOR OIL TEMPERATURE SENSOR OUTPUT SHAFT SPEED SENSOR PEDAL POSITION SENSOR PRESSURE SENSOR RAIN SENSOR RAIN SENSOR SHIFT LOCK SWITCH RIGHT FRONT ACCELERATION SENSOR RIGHT FRONT LEVEL SENSOR RIGHT FRONT SPEED SENSOR RIGHT REAR ACCELERATION SENSOR RIGHT REAR BRAKE PAD SENSOR RIGHT REAR LEVEL SENSOR RIGHT REAR RDC SENSOR RIGHT REAR RIDE-LEVEL SENSOR RIGHT REAR SPEED SENSOR RPM RATE SENSOR RPM RATE SENSOR SIGNAL SIGNAL RATE SENS CAN BUS LOW RPM RATE SIGNAL SENSOR POWER PRESSURE SENSOR STEERING ANGLE SENSOR TEMPERATURE SENSOR TEMPERATURE SENSOR LATENT HEAT ACCUMULATOR TERMINAL 87 SIGNAL CAN BUS HIGH GROUND PRESSURE SENSOR PRESSURE SENSOR SIGNAL TILT SENSOR TURBINE SHAFT SPEED SENSOR

LEFT FRONT HIGH RANGE SPEAKER LEFT FRONT MID-RANGE SPEAKER LEFT FRONT SPEAKER LEFT MEDIUM/HIGH RANGE SPEAKER LEFT REAR SPEAKER PARK DISTANCE CONTROL LOUD SPEAKER RIGHT FRONT HIGH RANGE SPEAKER RIGHT FRONT MID-RANGE SPEAKER RIGHT FRONT SPEAKER RIGHT MEDIUM/HIGH RANGE SPEAKER RIGHT REAR SPEAKER SUBWOOFER SPEAKER

AUTOMATIC TRANSMISSION RANGE SWITCH AUTOMATIC TRANSMISSION RANGE SWITCH 0 OFF 1 ON BRAKE FLUID LEVEL SWITCH BRAKE LIGHT SWITCH BRAKE LIGHT SWITCH LIGHT MODULE CLUTCH PEDAL POSITION SWITCH COMBINATION SWITCH DRIVER'S DOOR JAMB SWITCH LEFT REAR WINDOW PRESSURE SENSITIVE FINGER GUARD DRIVER'S DOOR LOCK SWITCH DRIVER'S MAKEUP MIRROR SWITCH DRIVER'S SEAT BELT SWITCH DRIVER'S SEAT LUMBAR SUPPORT SWITCH DRIVER'S SETBACK HEAD ADJUSTMENT SWITCH DRIVER'S SIDE MAKEUP MIRROR SWITCH DRIVER'S THIGH SUPPORT SWITCH DRIVERS DOOR JAMB SWITCH DUAL TEMPERATURE SWITCH ENGINE COOLANT LEVEL SWITCH FOG LIGHT SWITCH FOG LIGHT SWITCH 1) OFF 2) FRONT FOG GLOBAL LOCKING SWITCH GLOVE BOX LIGHT SWITCH HAZARD SWITCH HIGH PRESSURE SWITCH HORN SWITCH IGNITION SWITCH LEFT REAR DOOR JAMB SWITCH LEFT REAR POWER WINDOW SWITCH LIFTGATE LOCK SWITCH LIGHT SWITCH MEMORY SWITCH OIL PRESSURE SWITCH PARK/NEUTRAL POSITION SWITCH PASSENGER'S DOOR JAMB SWITCH PASSENGER'S MAKEUP MIRROR SWITCH PASSENGER'S POWER WINDOW SWITCH PASSENGER'S SEAT BELT SWITCH PASSENGER'S SEAT BELT SWITCH SEAT LOAD ASSEMBLY PASSENGER'S SEAT CONTROL SWITCH PASSENGER'S SEAT LUMBAR SUPPORT SWITCH PASSENGER'S SEATBACK HEAD ADJUSTMENT SWITCH PASSENGER'S THIGH SUPPORT SWITCH RDC SWITCH REAR GRILLE RIGHT REAR POWER WINDOW SWITCH REAR WINDOW SERVO OPENING SWITCH REVERSING LIGHT SWITCH RIGHT REAR ACCESS LIGHT PASSENGER'S POWER WINDOW SWITCH RIGHT REAR DOOR JAMB SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR SEAT HEATER SWITCH SHIFTLOCK SWITCH STEERING COLUMN POSITION SWITCH STEPTRONIC SWITCH SUN BLIND REMOTE CONTROL SWITCH SUN BLIND SWITCH SUNROOF SWITCH TEMPERATURE SWITCH TRUNK LID LOCKING SWITCH TRUNK LID RELEASE SWITCH UNDERHOOD LIGHT SWITCH UNDERHOOD LIGHT SWITCH DRIVER'S SEAT LUMBAR SUPPORT VALVE BLOCK WASHER FLUID LEVEL SWITCH WIPER/ WASHER SWITCH WIPER/WASHER SWITCH

CHANGEOVER VALVE LWS CHANGEOVER VALVE LWS SHUTOFF VALVE LWS DOWN VALVE DOWN VALVE LEFT REAR VALVE DRIVER'S SEAT LUMBAR SUPPORT VALVE BLOCK IDLE SPEED CONTROL VALVE INDIVIDUAL CONTROL INTAKE SYSTEM VALVE INLET VALVE LEFT REAR VALVE LEFT VALVE OUTLET VALVE PASSENGER'S SEAT LUMBAR SUPPORT VALVE BLOCK RIGHT REAR VALVE SECONDARY AIR INJECTION PUMP VALVE SHUTOFF VALVE SOLENOID VALVE 1 SOLENOID VALVE 2 SOLENOID VALVE 3 THROTTLE VALVE WATER VALVE ASSEMBLY RIGHT VALVE

BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/GRY/YEL WIRE BLK/RED WIRE BLK/RED/WHT WIRE BLK/RED/YEL WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/WHT/YEL WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLK/WHT WIRE BRN/BLK/YEL WIRE BRN/BLU WIRE BRN/BLU/YEL WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE CLR/BLK WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLK/YEL WIRE GRY/BLU WIRE GRY/BLU/YEL WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE PEDAL POS SENS GRN WIRE PNK WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/BRN/YEL WIRE RED/GRN WIRE RED/GRN/YEL WIRE RED/GRY WIRE RED/VIO WIRE RED/VIO/YEL WIRE RED/WHT WIRE RED/WHT/YEL WIRE RED/YEL WIRE RED/YEL/WHT WIRE RUN WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BLU/YEL WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRN/YEL WIRE WHT/GRY WIRE WHT/GRY/YEL WIRE WHT/RED WIRE WHT/RED/YEL WIRE WHT/VIO WIRE WHT/VIO/YEL WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

1 2 3 SOLID STATE 2.8L 3 4 CAN LOW DATA CAN HIGH DATA 3 15 RADIO/HIFI TOP HIFI 4.4L 2.8L 36 37 CAN HIGH DATA CAN LOW DATA 86 85 CAN HIGH DATA CAN LOW DATA A/C COMP SIG GROUND A/C COMPRESSOR ACC/ RUN/ RUN/ AIR BAG CONTACT PLATE AIR BAG IND AIR CONDITIONING SYSTEM ANGLE ADJUST DOWN OFF UP ANTI-THEFT SYSTEM ANTI-THEFT SYSTEM WIPER/WASHER SYSTEM AUTO CLOSE AUTO OPEN BACK OFF FRONT LENGTH ADJUST BACK- UP LIGHT BACKUP LIGHT SIG BODY COMPUTER SYSTEM BRAKE LIGHT CAN BUS LOW CAN HIGH DATA CAN LOW DATA TXD CAN LOW DATA CAN HIGH DATA CAN-HIGH CAN-LOW CASSETTE BOX LIGHT CD CHANGER CHARACTERISTIC MAP COOLING THERMOSTAT CHIME MODULE COMPUTER DATA LINES COMPUTER DATA LINES STYSTEM COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM CAN-LOW CAN-HIGH COMPUTER DATA LINES SYSTEMS COOLING MAP CRANKSHAFT SEN SIG CPP SW CRANKSHAFT SEN GND CRANKSHAFT SEN CUSHION TILT CYL 7-8 DATA LINK TXD DIAGNOSIS SIG TXD DIAGNOSIS SIGNAL TXD LEFT FRONT SPEED SENS LEFT REAR SPEED SENS DN FRONT DOOR LOCKS SYSTEM DOOR LOCKS SYSTEM ANTI-THEFT SYSTEM DOOR LOCKS SYSTEM COMPUTER DATA LINES SYSTEM POWER WINDOW SYSTEM DOOR LOCKS SYSTEM DOOR LOCKS SYSTEM ANTI-THEFT SYSTEM DOOR LOCKS SYSTEM WIPER/WASHER SYSTEM DOOR LOCKS SYSTEM ANTI-THEFT SYSTEM DOWN SHIFT DRIVER'S DOOR ACCESS LIGHT DRIVER'S DOOR FOR SIDE AIR BAG INFLATOR ASSEMBLY DRIVER'S DOOR MODULE DRIVER'S MAKEUP MIRROR LIGHT DRIVER'S MAKEUP MIRROR LIGHT PASSENGER'S MAKEUP MIRROR LIGHT DRIVER'S SIDE ELECTROCHROMIC SIDE MIRROR DRIVER'S SIDE MIRROR DRIVER'S SIDE PRESSURE, SENSITIVE FINGER GUARD E-BOX FAN ELECTROCHROMIC REAR VIEW MIRROR FLASH NORMAL HIGH BEAM FRONT CIGAR LIGHTER FRONT CIGAR LIGHTER REAR CIGAR LIGHTER FRONT LIGHTER FUEL CHANGEOVER CRT FUEL INJ 7 FUEL INJ 6 VANOS INLET FUEL INJ 8 FUEL INJ 5 VANOS INLET FUEL INJECTION VALVES GARAGE DOOR OPENER GENERAL MODULE GLOVE BOX LIGHT GND GND GND POWER TER 87 GND MASS AIR FLOW SENS THROTTLE ACT MASS AIR FLOW SENS THROTTLE ACT GPS RECEIVER GPS RECIEVER GROUND GROUND GROUND TERM 30 VOLT TERM 87 TERM 87 GROUND TERMINAL 30 HIGH LEVEL STOP LIGHT HIGH LEVEL STOPLIGHT HOT AT ALL TIMES HOT IN ACC, RUN OR START HOT IN ACCY, RUN, OR START HOT IN ACCY, RUN, START HOT IN ALL TIMES HOT IN RUN OR START HOT IN RUN, ACC OR START HOT IN RUN, START HOT W/ RETAINED ACCESSORY POWER IGNITION COILS IGNITION COILS 1-4 IGNITION COILS 5-8 ILLUMINATION CIRCUIT INSTRUMENT CLUSTER INSTRUMENT CLUSTER W/O IKE INTEGRATED INSTRUMENT CLUSTER INTERFERENCE SUPPRESSION CAPACITOR INTERIOR LIGHT) INTERIOR PROTECTION CONTROL LEFT FOG LIGHT LEFT FRONT AUXILIARY TURN LIGHT LEFT FRONT EDC VALVES LEFT FRONT FENDER) LEFT FRONT SPEED SENS LEFT REAR SPEED SENS RIGHT REAR SPEED SENS LEFT HEAT EXCHANGER TEMPERATURE LEFT HIGH BEAM LEFT LICENSE PLATE LIGHT LEFT LOW BEAM LIGHT LEFT REAR ACCESS LIGHT LEFT REAR CENTER CONVERTER LEFT REAR CONVERTER LEFT REAR EDC VALVES LEFT REAR INTERIOR LIGHT LEFT REAR LIGHT ASSEMBLY 1 LEFT REAR LIGHT ASSEMBLY 1 REAR FOG LIGHT LEFT REAR LIGHT ASSEMBLY I LEFT REAR SPEED SENS LEFT REAR SPEED SENS RIGHT REAR SPEED SENS LEFT REAR WINDOW PRESSURE SENSITIVE FINGER GUARD LEFT SIDE STEERING WHEEL ELECTRONICS LIGHT MODULE LOWER CHAMBER MANUAL GEARSHIFT MAP READING LIGHT MEM 1 MEM 2 MEM 3 MIRRORS SYSTEM ANTI-THEFT SYSTEM MULTIFUNCTION STEERING WHEEL NAVIGATION SYSTEM NEGATIVE ACT OFF BACK OFF BACKWARD OFF CLOSE OFF OPEN ONBOARD MONITOR OPEN AUTO OUTPUT STAGE REAR COMPARTMENT BLOWER PASSENGER'S DOOR ACCESS LIGHT PASSENGER'S DOOR FOR SIDE AIR BAG INFLATOR ASSEMBLY PASSENGER'S DOOR MODULE PASSENGER'S MAKEUP MIRROR LIGHT PASSENGER'S SEAT BACK HEAD ADJUSTMENT PASSENGER'S SIDE ELECTROCHROMIC SIDE MIRROR PASSENGER'S SIDE MIRROR PASSENGER'S SIDE PRESSURE- SENSITIVE FINGER GUARD PEDAL POS SENS SIG PEDAL POS SENS PLUG 1 PLUG 2 PLUG 2 PLUG 1 PLUG 3 PLUG 4 PLUG 5 PLUG 5 PLUG 6 PLUG 6 PLUG 7 PLUG 8 POWER WINDOWS SYSTEM POWER WINDOWS SYSTEM DOOR LOCKS SYSTEM POWER WINDOWS SYSTEM DOOR LOCKS SYSTEM DOOR LOCKS SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS SYSTEM WIPER/WASHER SYSTEM PWR THROTTLE POT 1 CAM POS SENS PWR THROTTLE POT 1 CRANKSHAFT SEN SIG DRVRS WISH 2 SIG THROTTLE POS SENS 1 REAR ASHTRAY LIGHT REAR CIGAR LIGHTER REAR COMPARTMENT BLOWER REAR COMPARTMENT BLOWER OUTPUT STAGE REAR GRILLE REAR WINDOW REVERSING LIGHT SIG SEC AIR INJ ACT RIGHT FOG LIGHT RIGHT FRONT AUXILIARY TURN LIGHT RIGHT FRONT EDC VALVES RIGHT FRONT FIXED RDC AERIAL RIGHT FRONT SPEED SENS RIGHT FRONT SPEED SENS RIGHT FRONT SPEED SENS RIGHT FRONT SPEED SENS MALFUNCTION IND SIGNAL RIGHT HEAT EXCHANGER TEMPERATURE RIGHT HIGH BEAM RIGHT LICENSE PLATE LIGHT RIGHT LOW BEAM LIGHT RIGHT REAR ACCESS LIGHT RIGHT REAR CENTER CONVERTER RIGHT REAR CONVERTER RIGHT REAR EDC VALVES RIGHT REAR INTERIOR LIGHT RIGHT REAR LIGHT ASSEMBLY 1 RIGHT REAR LIGHT ASSEMBLY 1 REAR FOG LIGHT RIGHT REAR LIGHT ASSEMBLY I RIGHT REAR SPEED SENS RIGHT REAR WINDOW PRESSURE- SENSITIVE FINGER GUARD RIGHT SIDE STEERING WHEEL ELECTRONICS RR ENG SPD SIG CPP SW SIG SEAT LOAD ASSEMBLY SEC AIR INJ PMP VLV SEC AIR PMP RLY ACT SES LANGUAGE INPUT SYSTEM SINGLE OFF INT NORMAL FAST SOLID STATE SOUND SYSTEMS STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING ANGLE STEERING COLUMN ADJUSTMENT CIRCUIT SUNROOF MODULE SUPPLEMENTAL RESTRAINTS SYSTEM SWITCHING CENTER SWITCHING CENTER LIGHT MODULE SWITCHING CENTRE TAIL- LIGHT TER 15 VLOTAGE TERM 15 VOLT SUPPLY TERM POINT B+ TERMINAL 87 SIGNAL CAN BUS HIGH TRANSMISSION CONTROL TRANSMISSION CONTROLS SYSTEM TRANSMISSIONS SYSTEM TRUNK COMPARTMENT LIGHT TURN LIGHT UP SHIFT UPPER CHAMBER VIDEO MODULE VOICE INPUT W/ DIVERSITY W/ IKE W/ INFRARED REMOTE CONTROL W/ LATENT HEAT ACCUMULATOR W/ LUMBAR SUPPORT W/ MEMORY W/ RADIO REMOTE CONTROL W/O DIVERSITY W/O DIVERSITY W/ DIVERSITY W/O LUMBAR SUPPORT W/O MEMORY WAGON SEDAN WARNING SYSTEM ANTI-THEFT SYSTEM WIPER/WASHER SYSTEM ZV DRIVE REAR LID
