BMW 5 series E34 (1988-1996) shift lock solenoid ground Wiring diagram
This page shows the only wiring diagram for the component.shift lock solenoid ground, which is found in the car BMW 5 series E34 (1988-1996). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

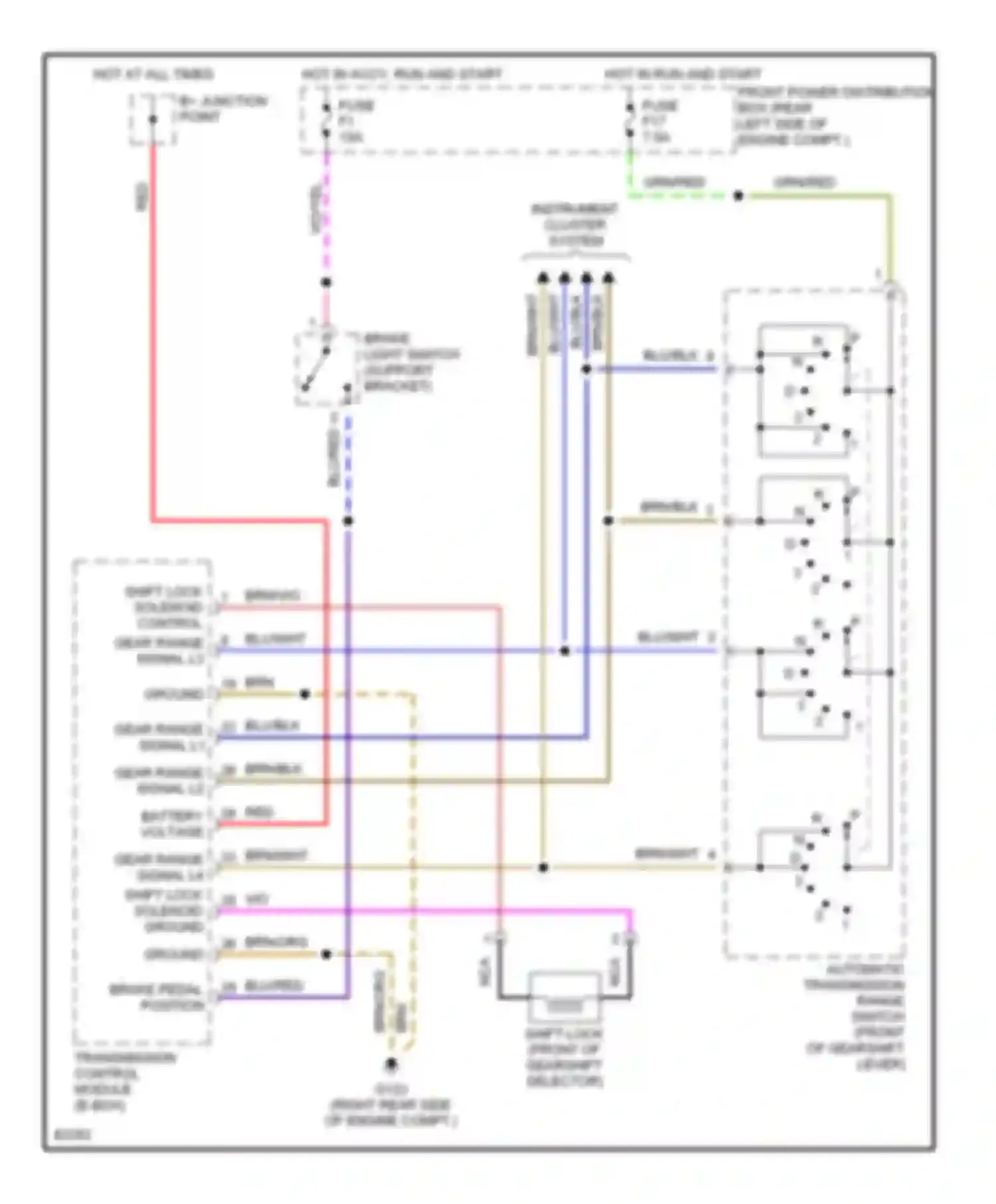

Wiring diagram shift lock solenoid ground (1 of 1)
AUTOMATIC TRANSMISSION RANGE SWITCH (FRONT OF GEARSHIFT LEVER)
B+ JUNCTION POINT
BATTERY VOLTAGE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BRAKE LIGHT SWITCH (SUPPORT BRACKET)
BRAKE PEDAL POSITION
BRN WIRE
BRN/BLK WIRE
BRN/ORG WIRE
BRN/VIO WIRE
BRN/WHT WIRE
FRONT POWER DISTRIBUTION BOX (REAR LEFT SIDE OF ENGINE COMPT)
FUSE
GEAR RANGE
GRN/RED WIRE
GROUND
HOT AT ALL TIMES
HOT IN ACCY, RUN AND START
HOT IN RUN AND START
INSTRUMENT CLUSTER SYSTEM
NCA WIRE
RED WIRE
SHIFT LOCK SOLENOID CONTROL GEAR RANGE
SHIFT LOCK SOLENOID GROUND
SHIFT-LOCK (FRONT OF GEARSHIFT SELECTOR)
TRANSMISSION CONTROL MODULE (E-BOX)
VIO WIRE
VIO/YEL WIRE
