BMW 5 series E34 (1988-1996) seat movement back tilt up height down gnd illum - illum + Wiring diagram
This page shows the only wiring diagram for the component.seat movement back tilt up height down gnd illum - illum +, which is found in the car BMW 5 series E34 (1988-1996). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

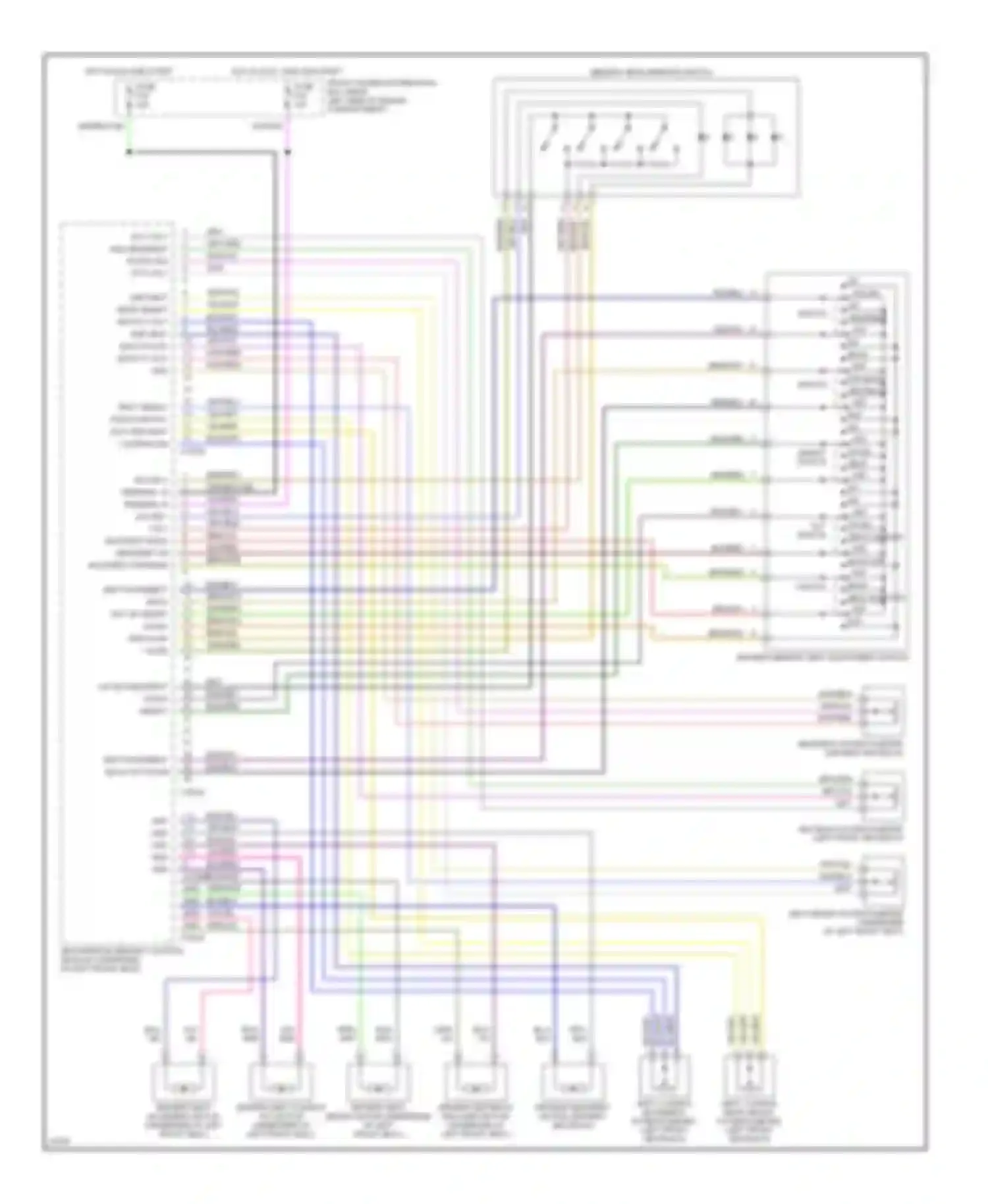

Wiring diagram seat movement back tilt up height down gnd illum - illum + (1 of 1)
1 2 3 4 5 6 7 8 9 10 GND GND GND GND GND GND GND GND GND GND
BLK WIRE
BLK/BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/GRY WIRE
BLK/RED WIRE
BLK/VIO WIRE
BLK/WHT WIRE
BLU WIRE
BLU/BLK WIRE
BLU/BRN WIRE
BLU/GRY WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
BRN/BLK WIRE
BRN/GRN WIRE
BRN/GRY WIRE
BRN/ORG WIRE
BRN/VIO WIRE
BRN/WHT WIRE
BRN/YEL WIRE
DRIVERS HEADREST MOTOR (DRIVERS SEATBACK)
DRIVERS MEMORY SEAT ADJUSTMENT SWITCH
DRIVERS SEAT CUSHION TILT MOTOR (UNDERSIDE OF LEFT FRONT SEAT)
DRIVERS SEAT HEIGHT MOTOR (UNDERSIDE OF LEFT FRONT SEAT)
DRIVERS SEAT MOVEMENT MOTOR (UNDERSIDE OF LEFT FRONT SEAT)
DRIVERS SEATBACK RECLINER MOTOR (UNDERSIDE OF LEFT FRONT SEAT)
FRONT POWER DISTRIBUTION BOX (REAR LEFT SIDE OF ENGINE COMPARTMENT)
FUSE
GND SEAT REAR HEIGHT SIG POT VOLT GND SEAT BACK POSTN SIG POT VOLT GND
GRN WIRE
GRN/BLK/YEL WIRE
GRN/BRN WIRE
GRN/RED WIRE
GRN/VIO WIRE
GRN/WHT WIRE
GRY WIRE
GRY/BLK WIRE
GRY/BLU WIRE
GRY/GRN WIRE
GRY/RED WIRE
GRY/VIO WIRE
HEADREST POTENTIOMETER (DRIVERS SEATBACK)
HOT IN ACCY, RUN AND START
HOT IN RUN AND START
MEMORY SEAT MIRRORS SWITCH
OFF BACK OFF FNT BACK SEAT POSITION SWITCH
OFF DN BACK
OFF FNT
OFF FNT BACK SEATBACK SWITCH
OFF FNT DN
OFF UP DN
OFF UP DN SEAT CUSHION TILT SWITCH
OFF UP DN SEAT HEIGHT SWITCH
POT VOLT GND HEADREST POSTN SIG POT VOLT
RED WIRE
SEAT CUSHION MOVEMENT POTENTIOMETER (LEFT FRONT SEATBACK)
SEAT CUSHION REAR HEIGHT POTENTIOMETER (LEFT FRONT SEATBACK)
SEAT HEIGHT POSTN SIG POT VOLT GND SEAT CUSHION SIG
SEAT HEIGHT POTENTIOMETER (UNDERSIDE OF LEFT FRONT SEAT)
SEAT MOVEMENT BACK TILT DOWN
SEAT MOVEMENT BACK TILT UP HEIGHT DOWN GND ILLUM - ILLUM +
SEAT/MIRROR MEMORY CONTROL MODULE (UNDERSIDE OF LEFT FRONT SEAT)
SEATBACK POTENTIOMETER (LEFT FRONT SEATBACK)
SW SIG HEADREST DOWN HEIGHT UP
UP OFF DN UP HEADREST SWITCH
VIO WIRE
VIO/RED WIRE
VIO/WHT WIRE
VIO/YEL WIRE
WHT WIRE
WHT/BLU WIRE
WHT/BRN WIRE
WHT/RED WIRE
WHT/VIO WIRE
WHT/YEL WIRE
YEL WIRE
YEL/BRN WIRE
YEL/GRY WIRE
YEL/WHT WIRE
Go to component -> Memory seat circuit -> SEAT MOVEMENT BACK TILT UP HEIGHT DOWN GND ILLUM - ILLUM +
