Wiring Diagrams for BMW 4 series G22/G23 (2020-2024)

Active bodyworks circuit

Automatic a/c circuit Independent heating circuit

Anti-lock brakes circuit

Access/start circuit Anti-theft & central locking circuit

Body control modules circuit

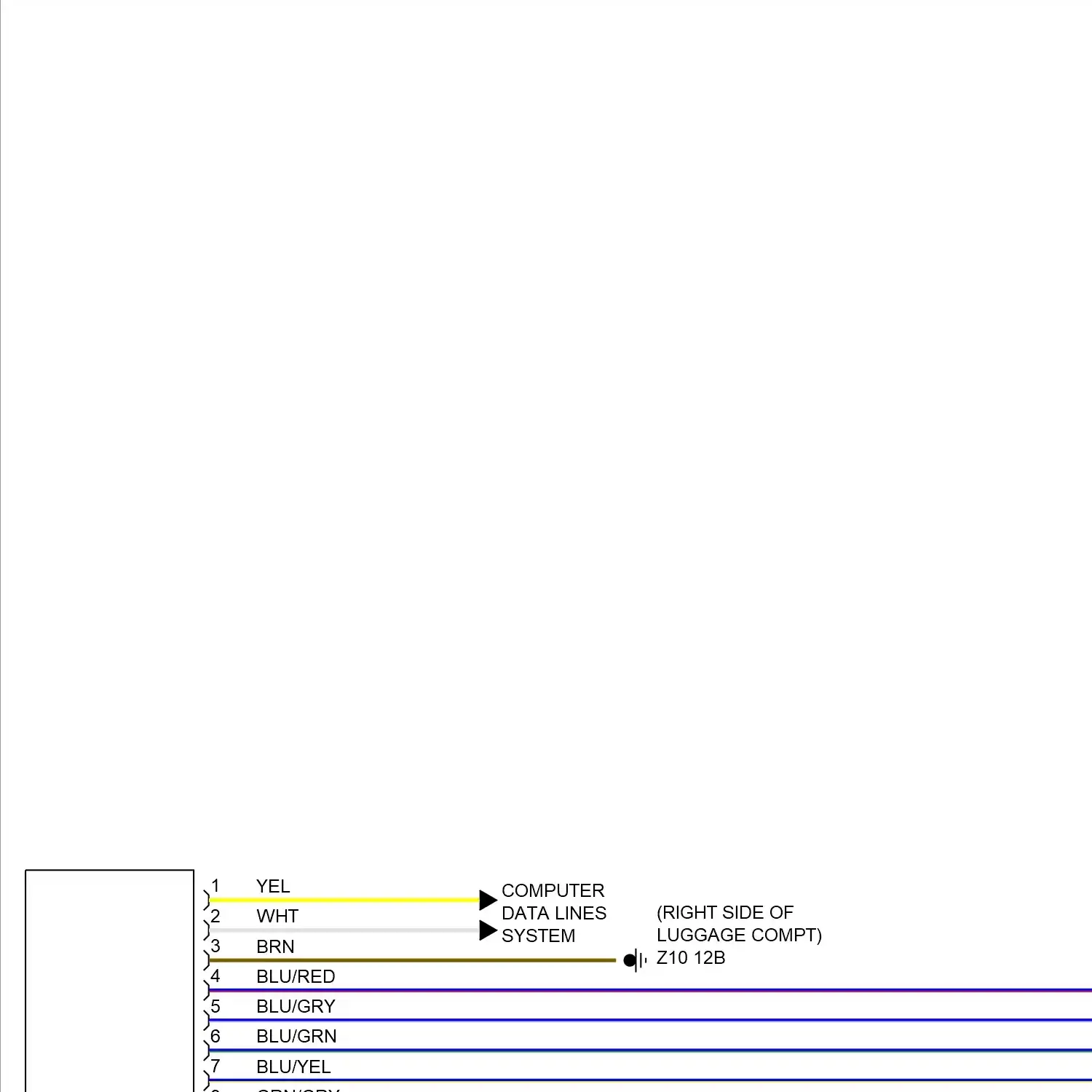

Data link connector circuit High/low bus circuit

Cooling fan circuit

Cruise control circuit

Heated mirrors circuit, w/ lin bus function Heated mirrors circuit, w/o lin bus function Rear defogger circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.0l turbo

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit, w/ lin bus function Memory mirrors circuit, w/o lin bus function Passenger"s memory seat circuit

All around vision camera circuit Blind spot monitoring circuit Driver camera circuit Lane departure warning circuit Navigation circuit, base Navigation circuit, high level Navigation circuit, mid level Parking assistant circuit Rear camera circuit

Reversible electrically motorized reel circuit Seat belt extender circuit

Power distribution circuit

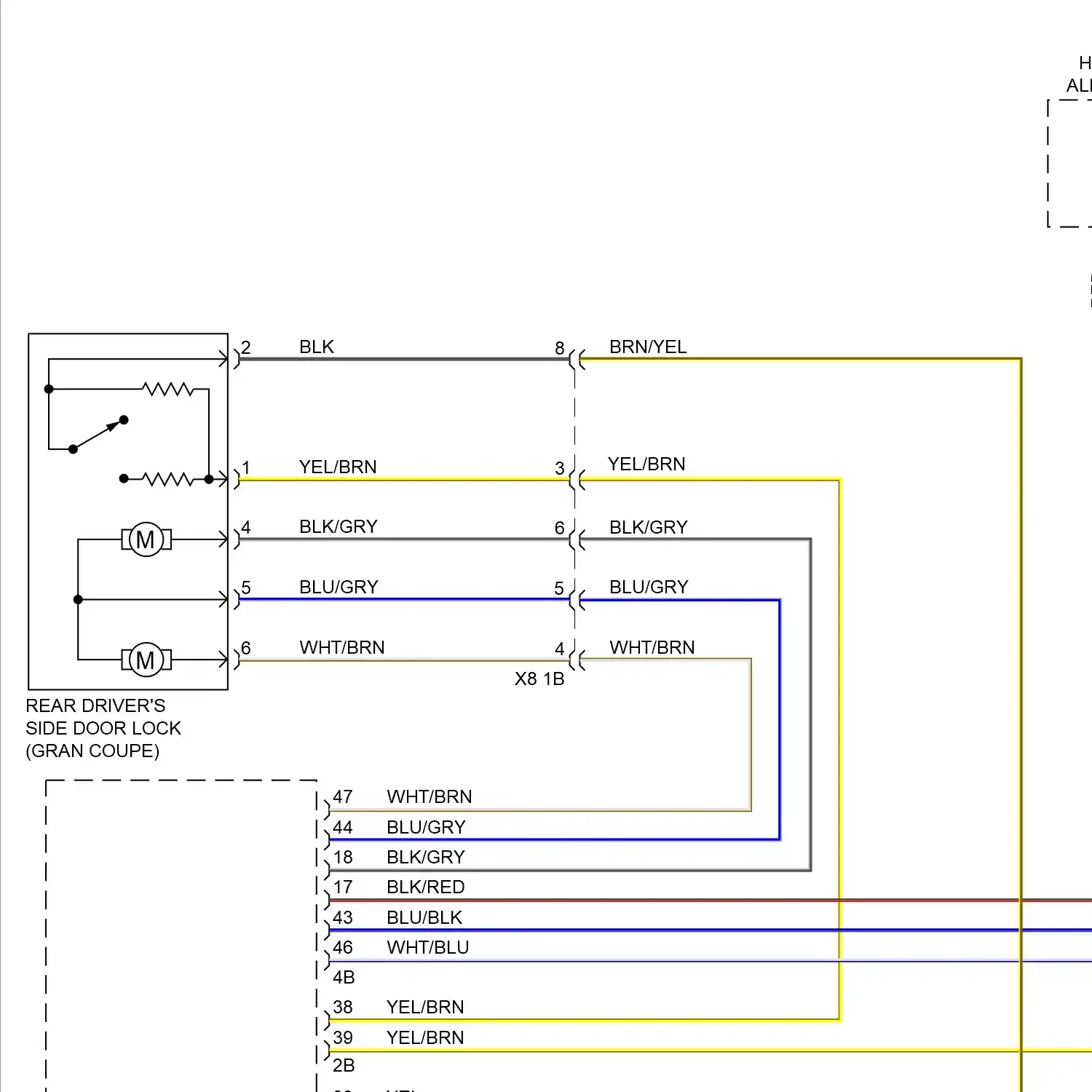

Power door locks circuit

Power mirrors circuit

Front heated seats circuit, w/ memory Front heated seats circuit, w/o memory Heated steering wheel circuit Lumbar circuit, w/ backrest Lumbar circuit, w/o backrest Neck warmer circuit Seat ventilation circuit Sport seats circuit, w/ lumbar Sport seats circuit, w/o lumbar

Convertible top circuit Sunroof circuit

Power windows circuit

Radio circuit, base Radio circuit, high level Radio circuit, mid level

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit Rear axle circuit

Contact-free tailgate opening circuit Trunk & fuel door release circuit, convertible Trunk & fuel door release circuit, coupe

Warning systems circuit

Wiper/washer circuit

48 VOLT BATTERY AUXILIARY BATTERY BATTERY ELECTRONICS BATTERY ELECTRONICS MODULE CAN BUS TERMINAL RESISTOR 11 CAN BUS TERMINAL RESISTOR 33 CHARGING CONTROLLER FOR AUXILIARY BATTERY DRIVER BELT FORCE LIMITER GAS GENERATOR DRIVER KNEE AIR BAG GAS GENERATOR DRIVER SIDE AIR BAG GAS GENERATOR DRIVER'S DOOR LOCK FRONT PASSENGER BELT FORCE LIMITER GAS GENERATOR FRONT PASSENGER DOOR LOCK FRONT PASSENGER KNEE AIR BAG GAS GENERATOR FRONT PASSENGER SIDE AIR BAG GAS GENERATOR IGNITION COIL CYLINDER 1 IGNITION COIL CYLINDER 2 IGNITION COIL CYLINDER 3 IGNITION COIL CYLINDER 4 LEFT HEAD AIR BAG GAS GENERATOR LEFT REAR SIDE AIR BAG GAS GENERATOR PASSENGER'S SIDE REAR DOOR LOCK REAR DRIVERS SIDE DOOR LOCK REAR WINDOW LOCK REGULATED DIFFERENTIAL LOCK RIGHT HEAD AIR BAG GAS GENERATOR RIGHT REAR SIDE AIR BAG GAS GENERATOR RIGHT REAR VALVE COIL SAFETY BATTERY TERMINAL GAS GENERATOR SUBWOOFER FANFARE HORN SUPPLEMENTAL RESTRAINTS, ANTI-LOCK BRAKES SYSTEMS TAILGATE LOCK TWEETER FANFARE HORN W/ REGULATED REAR AXLE DIFFERENTIAL LOCK W/O REGULATED REAR AXLE DIFFERENTIAL LOCK

(RIGHT SIDE OF ENGINE AIR DISTRIBUTION FLAP MOTOR BLOWER MOTOR W/ OUTPUT STAGE DEFROSTER FLAP MOTOR DIGITAL MOTOR ELECTRONICS ELECTRIC MOTOR COWL PANEL LOCK DRIVE ELECTRIC MOTOR OF DRIVER SEAT BELT EXTENDER ELECTRIC MOTOR OF FRONT PASSENGER SEAT BELT EXTENDER ENGINE COMPARTMENT POWER DISTRIBUTION BOX ENGINE CONTROLS SYSTEM ENGINE VENTILATION HEATING EXHAUST VANOS SOLENOID ACTUATOR EXTERIOR LIGHTS, ANTI-LOCK BRAKES, ENGINE CONTROLS, CRUISE CONTROL SYSTEMS FRESH AIR/ RECIRCULATED AIR FLAP MOTOR FULLY AUTOMATIC TRAILER TOW HITCH ELECTRIC MOTOR INTAKE VANOS SOLENOID ACTUATOR LASER MOTOR WAY BEAM PATTERN LEFT AIR DISTRIBUTION FLAP MOTOR LEFT BACKREST REMOTE UNLOCKING ELECTRIC MOTOR LEFT FRONT PEDESTRIAN PROTECTION ACTUATOR LEFT FRONT STRATIFICATION FLAP MOTOR LEFT REAR PEDESTRIAN PROTECTION ACTUATOR MIXED AIR FLAP MOTOR REAR COMPARTMENT FLAP MOTOR REAR MIXED AIR FLAP MOTOR REGULATED DIFFERENTIAL LOCK SERVO MOTOR RIGHT AIR DISTRIBUTION FLAP MOTOR RIGHT BACKREST REMOTE UNLOCKING ELECTRIC MOTOR RIGHT FRONT PEDESTRIAN PROTECTION ACTUATOR RIGHT FRONT STRATIFICATION FLAP MOTOR RIGHT REAR PEDESTRIAN PROTECTION ACTUATOR SERVO MOTOR STARTER MOTOR STARTER MOTOR GENERATOR 48 VOLTS VIBRATION ACTUATOR

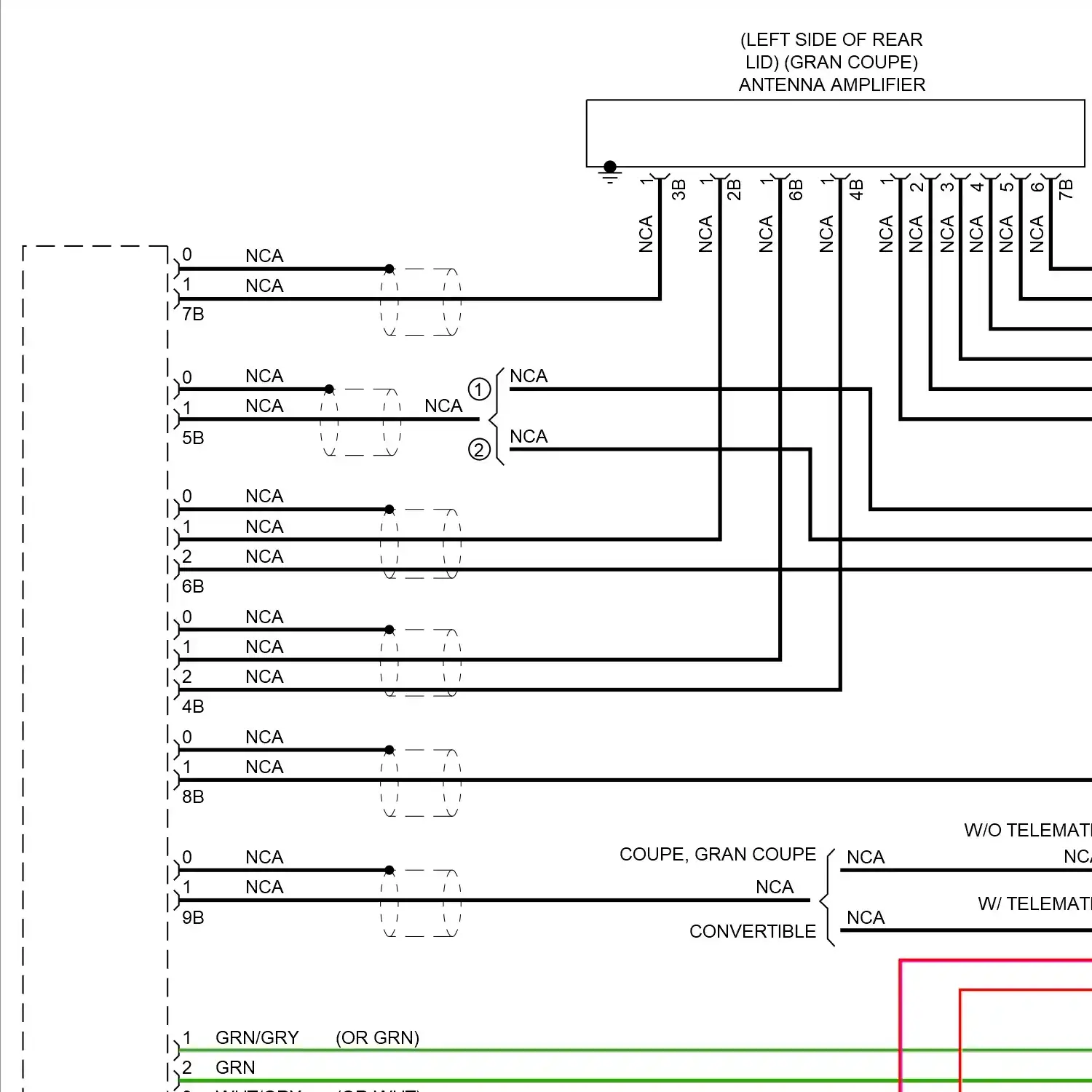

BLUETOOTH ANTENNA BUMPER ANTENNA DABL ANTENNA EMERGENCY GSM ANTENNA FRONT CENTER CONSOLE INTERIOR ANTENNA GPS ANTENNA LEFT EXTERIOR ANTENNA LUGGAGE COMPARTMENT ANTENNA REAR ANTENNA REAR ANTENNA 2 REAR CENTER CONSOLE INTERIOR ANTENNA RIGHT EXTERIOR ANTENNA RING ANTENNA SDARS ANTENNA TELEMATICS ANTENNA TELEPHONE ANTENNA TV ANTENNA 3 W/ ANTENNA AMPLIFIER W/O ANTENNA AMPLIFIER WIRELESS CHARGING SHELF ANTENNA AMPLIFIER WLAN ANTENNA

AUTOMATIC HOLD BUTTON DRIVER'S DOOR CENTRAL LOCKING BUTTON DTC BUTTON EMERGENCY CALL BUTTON EMERGENCY CALL BUTTON FUNCTION INDICATOR LIGHT FANFARE HORN BUTTON FRONT PASSENGER DOOR CENTRAL LOCKING BUTTON FULLY AUTOMATIC TRAILER TOW HITCH BUTTON HILL DESCENT CONTROL BUTTON LEFT BUTTON NECK-WARMER MSA BUTTON OUTER TAILGATE BUTTON PARKING ASSISTANCE BUTTON PARKING BRAKE BUTTON REAR WINDOW HEATING BUTTON REFUELING BUTTON RIGHT BUTTON NECK-WARMER START STOP BUTTON IND START-STOP BUTTON TAILGATE BUTTON TAILGATE BUTTON ON INSIDE TRUNK LID VEHICLE INTERIOR TAILGATE BUTTON

ALL ROUND VISION CAMERA CAMERA BASED DRIVER SUPPORT SYSTEMS DRIVER CAMERA SYSTEM EXTERIOR MIRROR CAMERA FRONT CAMERA KAFAS CAMERA HEATING REAR VIEW CAMERA REAR VIEW CAMERA SHIELD W/ ALL ROUND VISION CAMERA W/ DRIVER CAMERA SYSTEM W/ DRIVER CAMERA SYSTEM W/O DRIVER CAMERA SYSTEM W/O ALL ROUND VISION CAMERA W/O DRIVER CAMERA SYSTEM W/O SURROUND VIEW CAMERA

DIAGNOSTIC SOCKET PREPARATION CONNECTOR ELECTRONIC TOLL TAG PREPARATION OF CONNECTOR FOR ELECTRONIC TOLL TAG TRAILER SOCKET TRAILER SOCKET SWITCH USB CHARGING SOCKET 2 USB CHARGING SOCKET 3

AUXILIARY CONTROL UNIT CONVERTIBLE TOP CONTROL UNIT CONVERTIBLE TOP DRIVE UNIT RELAY 2 DRIVER'S SEAT ANGLE ADJUSTMENT DRIVE UNIT DRIVER'S SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE UNIT DRIVER'S SEAT HEIGHT ADJUSTMENT DRIVE UNIT HEAD UNIT HYBRID PRESSURE REFUELING ELECTRONIC CONTROL UNIT LIGHT OPERATING UNIT POWER CONTROL UNIT 48 VOLTS SCR CONTROL UNIT STARTER UNIT SAFETY BATTERY TERMINAL GAS GENERATOR TOP DRIVE UNIT RELAY TOP DRIVER UNIT RELAY

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 13 FUSE 14 FUSE 18 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 28 FUSE 29 FUSE 32 FUSE 33 FUSE 34 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 46 FUSE 48 FUSE 49 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 57 FUSE 59 FUSE 60 FUSE 61 FUSE 62 FUSE 63 FUSE 64 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 71 FUSE 72 FUSE 73 FUSE 74 FUSE 75 FUSE 76 FUSE 203 FUSE 204 FUSE 206 FUSE 208 FUSE 209 FUSE 210 FUSE 212 FUSE 215 FUSE 216 FUSE 217 FUSE 220 FUSE 225 FUSE 226 FUSE 227 FUSE 230 FUSE 231 FUSE 232 FUSE 240 FUSE 244 FUSE 250 FUSE 254 FUSE 255 FUSE 256 FUSE 257 FUSE 258 FUSE 259 FUSE 262 FUSE 264 FUSE 265 FUSE 266 FUSE 268 FUSE 269 FUSE 271 FUSE 273 FUSE 281 FUSE 284 FUSE 289 FUSE 291 FUSE 296 FUSE 400 FUSE 401 FUSE 402 FUSE 404 FUSE 406 FUSE 501 FUSE 502 FUSE 504 FUSE 701 FUSE BOX HOT AT ALL TIMES FUSE BOX

HEADLIGHT BEAM THROW ADJUSTMENT DRIVE LEFT HEADLIGHT RIGHT HEADLIGHT

DRIVER THIGH SUPPORT HEATING DRIVER'S SEAT BACKREST HEATING DRIVER'S SEAT HEATING ELECTRONICS DRIVER'S SEAT SURFACE HEATING ELECTRIC AUXILIARY HEATER FAN 2 HEATING FRONT ELECTRIC AUXILIARY HEATER FRONT PASSENGER SEAT ELECTRONICS HEATING FRONT PASSENGER SEAT HEATING ELECTRONICS FRONT PASSENGER THIGH SUPPORT HEATING FRONT PASSENGER'S SEAT BACKREST HEATING INDEPENDENT AUXILIARY HEATER MIRROR HEATING REAR DRIVER'S SIDE SEAT HEATING MODULE REAR PASSENGER'S SIDE SEAT HEATING MODULE STEERING WHEEL HEATING

AIR BAG OFF INDICATOR LAMP AIR BAG ON INDICATOR LAMP TURN INDICATOR

AUXILIARY STOP LAMP AUXILIARY TURN SIGNAL LAMP BACKUP LAMP DOOR LOCKS, ANTI-THEFT, EXTERIOR LIGHTS SYSTEM DRIVER'S DOOR COURTESY LIGHTS FRONT PASSENGER DOOR COURTESY LIGHTS FRONT PASSENGER'S DOOR COURTESY LIGHTS HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS INNER PARKING LIGHTS/ DAYTIME RUNNING LIGHTS INNER PARKING LIGHTS/DAYTIME RUNNING LIGHTS INNER PARKING LIGHTS/DAYTIME RUNNING LIGHTS LED MODULE LEFT LICENSE PLATE LAMP LUGGAGE COMPARTMENT LAMP OUTER SIDE LIGHTS/ DAYTIME RUNNING LIGHTS OUTER SIDE LIGHTS/DAYTIME RUNNING LIGHTS REAR DRIVER'S SIDE COURTESY LIGHTS REAR PASSENGER SIDE COURTESY LIGHTS REAR PASSENGER'S SIDE COURTESY LIGHTS REAR PASSENGER'S SIDE SILL COURTESY LIGHTS RIGHT LICENSE PLATE LAMP TAIL LAMP

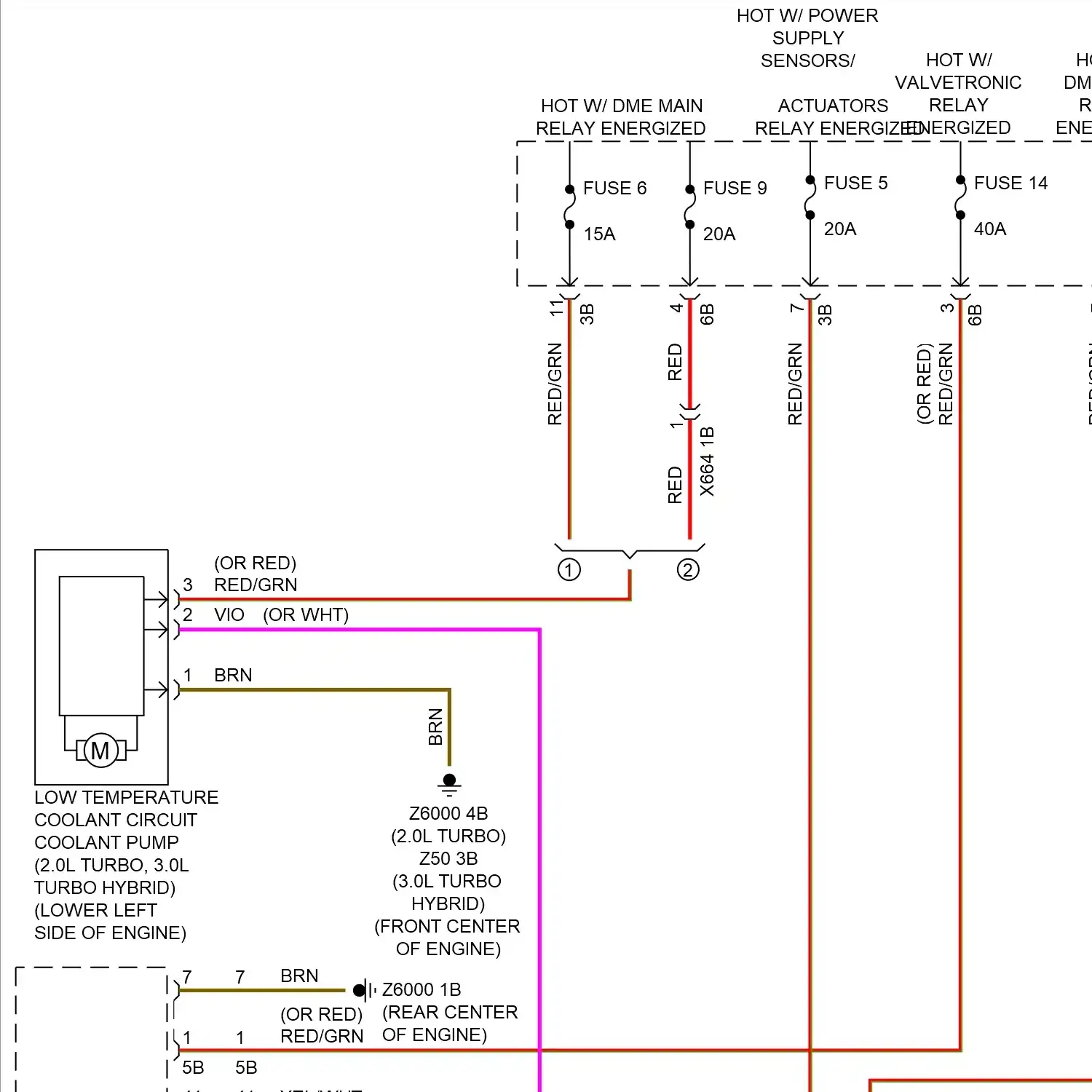

AUXILIARY HEATER FUEL METERING PUMP AUXILIARY HEATER RECIRCULATING PUMP AUXILIARY WATER PUMP DRIVER'S SEAT PNEUMATIC PUMP ELECTRIC FUEL PUMP CONTROL ELECTRONICS FRONT PASSENGER SEAT PNEUMATIC PUMP LOW TEMPERATURE COOLANT CIRCUIT COOLANT PUMP LOW TEMPERATURE COOLANT CIRCUIT COOLANT PUMP 2 TURBOCHARGER COOLANT PUMP WINDSHIELD WASHER PUMP

BI-STABLE RELAY DEADLOCKING RELAY DME MAIN RELAY DRIVER'S DOOR LOCKING RELAY ELECTRIC FAN CUT-OFF RELAY HOT W/ BI-STABLE RELAY ENERGIZED HOT W/ DME MAIN RELAY ENERGIZED HOT W/ POWER SUPPLY SENSORS/ ACTUATORS RELAY ENERGIZED HOT W/ TERMINAL BI-STABLE RELAY ENERGIZED HOT W/ VALVETRONIC RELAY ENERGIZED IGNITION, FUEL INJECTION RELAY LOCKING RELAY POWER SUPPLY SENSORS/ ACTUATORS RELAY POWER SUPPLY SENSORS/ACTUATORS RELAY REAR WINDOW HEATING RELAY RELAY ENERGIZED UNLOCKING RELAY VALVETRONIC RELAY

AUTOMATIC AIR RECIRCULATION CONTROL SENSOR BOOST PRESSURE SENSOR BRAKE PEDAL TRAVEL SENSOR BRAKE VACUUM PRESSURE SENSOR CENTER PEDESTRIAN PROTECTION SENSOR CENTER POSITION CONVERTIBLE TOP HALL EFFECT SENSOR CHARGE AIR TEMPERATURE/ INTAKE MANIFOLD PRESSURE SENSOR CONTACT-FREE TAILGATE OPENING LOWER SENSOR CONTACT-FREE TAILGATE OPENING UPPER SENSOR CONVERTIBLE TOP BRACE DOWN HALL EFFECT SENSOR CONVERTIBLE TOP BRACE UP HALL EFFECT SENSOR CONVERTIBLE TOP COMPARTMENT LID LOCKED HALL EFFECT SENSOR COOLANT LEVEL SENSOR COOLANT TEMPERATURE SENSOR COWL PANEL LOCKED HALL EFFECT SENSOR CRANKCASE TEMPERATURE SENSOR CRANKSHAFT SENSOR DRIVER SEAT POSITION SENSOR ENGINE OIL PRESSURE SENSOR EVAPORATOR TEMPERATURE SENSOR EXHAUST CAMSHAFT SENSOR EXHAUST GAS PRESSURE SENSOR GASOLINE PARTICULATE FILTER FOOTWELL TEMPERATURE SENSOR FRONT PASSENGER SEAT OCCUPANCY DETECTION SEAT CUSHION HEATER/SENSOR FRONT PASSENGER SEAT OCCUPANCY DETECTION SEAT CUSHION HEATING/SENSOR FRONT PASSENGER SEAT POSITION SENSOR FRONT RADAR SENSOR FRONT RIGHT MICROWAVE SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 GEAR SENSOR GEARBOX OIL TEMPERATURE SENSOR HALL EFFECT SENSOR HALL EFFECTS SENSOR, POSITION HIGH BEAM ASSISTANT SENSOR, CONTROL INTAKE AIR TEMPERATURE SENSOR INTAKE CAMSHAFT SENSOR INTELLIGENT BATTERY SENSOR KNOCK SENSOR KNOCK SENSOR #2 LEFT "B" PILLAR AIR BAG SENSOR LEFT CLOSED CONVERTIBLE TOP COMPARTMENT LID HALL EFFECT SENSOR LEFT CONVERTIBLE TOP LOCKED, CLOSED HALL EFFECT SENSOR LEFT FOOTWELL TEMPERATURE SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT BRAKE PRESSURE SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT DOOR AIR BAG SENSOR LEFT FRONT MICROWAVE SENSOR LEFT FRONT OUTER ULTRASONIC SENSOR LEFT FRONT RIDE HEIGHT SENSOR LEFT FRONT SIDE NEAR RANGE RADAR SENSOR LEFT FRONT SIDE PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR LEFT FRONT VENTILATION TEMPERATURE SENSOR LEFT FRONT VERTICAL-ACCELERATION SENSOR LEFT FRONT WHEEL RPM SENSOR LEFT PEDESTRIAN PROTECTION SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR MICROWAVE SENSOR LEFT REAR NEAR RANGE RADAR SENSOR LEFT REAR OUTER ULTRASONIC SENSOR LEFT REAR RIDE HEIGHT SENSOR LEFT REAR ULTRASONIC SENSOR LEFT REAR VERTICAL ACCELERATION SENSOR LEFT REAR WHEEL RPM SENSOR LONG- DISTANCE RANGE FRONT RADAR SENSOR HEATING LONG-DISTANCE RANGE FRONT RADAR SENSOR MEMORY FUNCTION HALL SENSOR OIL LEVEL SENSOR OPEN SOFT TOP COMPARTMENT LID HALL EFFECT SENSOR OUTSIDE TEMPERATURE SENSOR OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR BEFORE CATALYTIC CONVERTER POSITION SENSOR VALVETRONIC ACTUATOR MOTOR POWER TAILGATE ACOUSTIC SENSOR RADIATOR OUTLET TEMPERATURE SENSOR RAIL PRESSURE SENSOR RAIN/ LIGHT/ SOLAR/ CONDENSATION SENSOR RAIN/LIGHT/ SOLAR CONDENSATION SENSOR RAIN/LIGHT/SOLAR CONDENSATION SENSOR REAR SEAT FOOTWELL TEMPERATURE SENSOR REAR SEAT VENTILATION TEMPERATURE SENSOR REFRIGERANT PRESSURE SENSOR RIGHT "B" PILLAR AIR BAG SENSOR RIGHT CLOSED CONVERTIBLE TOP COMPARTMENT LID HALL EFFECT SENSOR RIGHT FOOTWELL TEMPERATURE SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT BRAKE PRESSURE SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT DOOR AIR BAG SENSOR RIGHT FRONT MICROWAVE SENSOR RIGHT FRONT OUTER ULTRASONIC SENSOR RIGHT FRONT SIDE NEAR RANGE RADAR SENSOR RIGHT FRONT SIDE PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR RIGHT FRONT VENTILATION TEMPERATURE SENSOR RIGHT FRONT VERTICAL-ACCELERATION SENSOR RIGHT FRONT WHEEL RPM SENSOR RIGHT PEDESTRIAN PROTECTION SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR MICROWAVE SENSOR RIGHT REAR NEAR RANGE RADAR SENSOR RIGHT REAR OUTER ULTRASONIC SENSOR RIGHT REAR ULTRASONIC SENSOR RIGHT REAR VERTICAL ACCELERATION SENSOR RIGHT REAR WHEEL RPM SENSOR ROTOR POSITION SENSOR SIREN W/ TILT ALARM SENSOR SIREN, TILT SENSOR SOFT TOP STOWED HALL EFFECT SENSOR STEERING TORQUE SENSOR VENTILATION TEMPERATURE SENSOR VENTURI NOZZLE PRESSURE SENSOR WASHER FLUID LEVEL SENSOR WINDSHIELD PANEL SENSOR SYSTEM WINDSHIELD PANEL UNLOCKED HALL EFFECT SENSOR

FRONT CENTER MID-RANGE SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT MID-RANGE SPEAKER LEFT REAR MID- RANGE SPEAKER 2 LEFT REAR MID-RANGE SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR MID- RANGE SPEAKER 2 RIGHT REAR MID-RANGE SPEAKER SPEAKER 2 FOR ACOUSTIC PEDESTRIAN PROTECTION SPEAKER FOR ACOUSTIC PEDESTRIAN PROTECTION

BRAKE FLUID LEVEL SWITCH BRAKE LIGHT SWITCH CENTER STACK STORAGE COMPARTMENT LIGHTING SWITCH CONVERTIBLE TOP COMPARTMENT FLOOR SWITCH CONVERTIBLE TOP COMPARTMENT FLOOR SWITCH 2 DRIVE EXPERIENCE SWITCH DRIVER BACKREST LOCK SWITCH DRIVER SIDE SEAT ADJUSTMENT SWITCH BLOCK DRIVER'S DOOR SEAT SWITCH CLUSTER DRIVER'S DOOR SWITCH BLOCK DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT SWITCH DRIVER'S SEAT LUMBAR SUPPORT SWITCH DRIVER'S SIDE REAR POWER WINDOW SWITCH DRIVER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK ETHERNET SWITCH FRONT PASSENGER AIR BAG DEACTIVATION SWITCH FRONT PASSENGER BACKREST LOCK SWITCH FRONT PASSENGER DOOR POWER WINDOW SWITCH FRONT PASSENGER LUMBAR SUPPORT SWITCH FRONT PASSENGER SEAT BACKREST WIDTH ADJUSTMENT SWITCH FRONT PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK GEAR SELECTOR SWITCH GLOVE BOX LIGHT SWITCH HEATED STEERING WHEEL SWITCH HOOD CONTACT SWITCH HOTEL POSITION SWITCH LEFT FRONT VANITY MIRROR SWITCH LEFT MULTI-FUNCTION STEERING COLUMN SWITCH CLUSTER OPERATING FACILITY FOR DRIVER ASSISTANCE SYSTEM, HAZARD WARNING SWITCH PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK PASSENGER'S SIDE REAR POWER WINDOW SWITCH PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK PRESSURE SWITCH RIGHT FRONT VANITY MIRROR SWITCH RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH CLUSTER STEERING COLUMN SWITCH CLUSTER

AUXILIARY HEATER COOLANT CHANGEOVER VALVE CONTROL VALVE COOLANT EXPANSION TANK SHUTOFF VALVE COOLANT SHUTOFF VALVE CRANKCASE COOLANT SHUTOFF VALVE DRIVER LUMBAR SUPPORT VALVE BLOCK DRIVER LUMBAR SUPPORT/ BACKREST WIDTH ADJUSTMENT VALVE BLOCK DRIVER VALVE BLOCK FOR LUMBAR SUPPORT BACKREST W/ ADJUSTMENT DRIVER'S BACKREST WIDTH ADJUSTMENT VALVE BLOCK LUMBAR SUPPORT DRIVER'S SEAT ADJUSTMENT W/ VALVE BLOCK BACKREST DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK ELECTRICAL WASTEGATE VALVE FRONT PASSENGER LUMBAR SUPPORT VALVE BLOCK FRONT PASSENGER LUMBAR SUPPORT/ BACKREST WIDTH ADJUSTMENT VALVE BLOCK FRONT PASSENGER SEAT BACKREST ADJUSTMENT VALVE BLOCK FRONT PASSENGER SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK FUEL VENT VALVE OIL PRESSURE CONTROL VALVE PASSENGER BACKREST WIDTH ADJUSTMENT VALVE BLOCK LUMBAR SUPPORT QUANTITY CONTROL VALVE VALVE 1 VALVE 2 VALVE 3

(OR GRN/GRY WIRE (OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLK/YEL WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE ORG/YEL WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/WHT WIRE

2.0L TURBO 2.0L TURBO, 3.0L TURBO HYBRID 3.0L TURBO 3.0L TURBO EXCEPT 3.0L TURBO 3.0L TURBO HYBRID 48 VOLTS POWER DISTRIBUTION (OR ACCELERATOR PEDAL MODULE ACCENT LIGHT ACTIVE BODYWORKS SYSTEM ACTIVE SOUND DESIGN ADJUSTMENT DRIVE AIR CONDITIONING AIR CONDITIONING COMPRESSOR AIR CONDITIONING SYSTEM AIR DISTRIBUTION MICROSWITCH ANTI SLIP RAILS CONTROL ELECTRONICS ANTI-THEFT ALARM SYSTEM LED ANTI-THEFT SYSTEM ANTI-THEFT, DOOR LOCKS SYSTEMS AUDIO CONTROL PANEL AUTOMATIC A/C CIRCUIT AUTOMATIC REAR AIR CONDITIONING OPERATING FACILITY AUTOMATIC TRANSMISSION BACKUP LAMPS CIRCUIT BASIC VERSION BODY DOMAIN CONTROLLER BOTTOM RADIATOR BLIND DRIVE BRAKE LIGHT/ TURN SIGNAL LIGHT CAPACITOR BOX CAR SHARING MODULE CD DRIVE CD DRIVER CENTER CONSOLE CENTER CONSOLE CONTROL CENTER CONSOLE CONTROL CENTER CENTER CONSOLE CONTROL PANEL CENTER STACK LIGHTING CENTRAL INFORMATION DISPLAY CHARGING CIRCUIT CLUTCH MODULE COMPUTER DATA LINES SYSTEM CONTACT FREE TAILGATE OPENING EVALUATION ELECTRONICS CONVENIENCE CHARGING ELECTRONICS CONVERTIBLE GRAN COUPE, COUPE CONVERTIBLE TOP MODULE CONVERTIBLE, GRAN COUPE COOLING FANS SYSTEM CORNERING LIGHT COUPE CONVERTIBLE COUPE, GRAN COUPE CRASH SAFETY MODULE DASHBOARD LIGHTING DASHBOARD LIGHTING 2 DASHBOARD LIGHTING 3 DEFOGGER SYSTEM DEFOGGER, NAVIGATION SYSTEMS DOOR INSIDE DOOR HANDLE LIGHT DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DRIVER BACKREST TRIM LIGHTING DRIVER OUTSIDE DOOR HANDLE ELECTRONICS DRIVER REAR SIDE OUTSIDE DOOR HANDLE ELECTRONIC DRIVER RETRACTOR TENSIONER DRIVER SEAT BELT EXTENDER CONTROLLER DRIVER SEAT LUMBAR SUPPORT BLOCK DRIVER SEAT MODULE DRIVER VEHICLE EXTERIOR MIRROR DRIVER'S AIR BAG GAS GENERATORS DRIVER'S DOOR ENTRY LIGHTING DRIVER'S DOOR POCKET LIGHTING DRIVER'S DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS DRIVER'S DOOR TRIM PANEL LIGHTING DRIVER'S SEAT BACKREST ANGLE ADJUSTMENT DRIVE DRIVER'S SEAT BACKREST FAN 1 DRIVER'S SEAT BACKREST FAN 2 DRIVER'S SEAT BACKREST FAN 3 DRIVER'S SEAT BACKREST FAN 4 DRIVER'S SEAT BELT BUCKLE CONTACT DRIVER'S SEAT BUCKLE CONTACT DRIVER'S SEAT CUSHION FAN 1 DRIVER'S SEAT CUSHION FAN 2 DRIVER'S SEAT CUSHION FAN 3 DRIVER'S SEAT CUSHION FAN 4 DRIVER'S SEAT HEADREST HEIGHT ADJUSTMENT DRIVE DRIVER'S SEAT MODULE DRIVER'S SIDE CONTROL ELECTRONICS NECK WARMER DRIVER'S SIDE REAR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS EARLY PRODUCTION ELECTRIC FAN ELECTRIC STEERING COLUMN ADJUSTMENT ELECTRICAL EXHAUST FLAP ELECTRICAL EXHAUST FLAP 2 ELECTRICAL MACHINE ELECTRONICS ELECTRICAL STEERING COLUMN ADJUSTMENT ELECTROCHROMIC INTERIOR MIRROR ELECTROCHROMIC MIRROR ELECTROMECHANICAL POWER STEERING ELECTRONIC POWER STEERING SYSTEM ELECTRONIC SUSPENSION SYSTEM ELECTRONIC TRANSMISSION CONTROL ELECTRONICS TOUCH DETECTION EMERGENCY LOUDSPEAKER EVALUATION ELECTRONICS CONTACT FREE TAILGATE OPENING EXCEPT 3.0L TURBO EXCEPT CONVERTIBLE EXTERIOR LAMPS CIRCUIT FRONT CENTER ARMREST LIGHT FRONT CENTER TWEETER FRONT CENTER VENTILATION GRILLE FRONT INTERIOR LIGHT FRONT PASSENGER AIR BAG GAS GENERATORS FRONT PASSENGER BACKREST TRIM LIGHTING FRONT PASSENGER DOOR ENTRY LIGHTING FRONT PASSENGER DOOR INSIDE DOOR HANDLE LIGHT FRONT PASSENGER DOOR POCKET LIGHTING FRONT PASSENGER DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS FRONT PASSENGER DOOR TRIM PANEL LIGHTING FRONT PASSENGER RETRACTOR TENSIONER FRONT PASSENGER SEAT ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT BACKREST ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT BACKREST NEAR PANEL LIGHTING FRONT PASSENGER SEAT BELT EXTENDER FRONT PASSENGER SEAT BELT EXTENDER CONTROLLER FRONT PASSENGER SEAT FORWARD/ BACKWARD ADJUSTMENT FRONT PASSENGER SEAT HEADREST HEIGHT ADJUSTMENT DRIVE FRONT PASSENGER SEAT HEIGHT ADJUSTMENT DRIVE FRONT PASSENGER SEAT MODULE FRONT PASSENGER SEAT OCCUPANCY DETECTION EVALUATION ELECTRONICS FRONT PASSENGER SIDE CONTROL ELECTRONICS NECK WARMER FRONT PASSENGER VEHICLE EXTERIOR MIRROR FRONT PASSENGER'S DOOR POCKET LIGHTING FRONT PASSENGER'S SEAT BACKREST FAN 1 FRONT PASSENGER'S SEAT BACKREST FAN 2 FRONT PASSENGER'S SEAT BACKREST FAN 3 FRONT PASSENGER'S SEAT BACKREST FAN 4 FRONT PASSENGER'S SEAT BELT BUCKLE CONTACT FRONT PASSENGER'S SEAT CUSHION FAN 1 FRONT PASSENGER'S SEAT CUSHION FAN 2 FRONT PASSENGER'S SEAT CUSHION FAN 3 FRONT PASSENGER'S SEAT CUSHION FAN 4 FRONT REAR PASSENGER DOOR TRIM PANEL LIGHTING FUEL FILLER FLAP CENTRAL LOCKING DRIVE FUEL INJECTOR CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 GLOVE COMPARTMENT LIGHT GND ACC GRAN COUPE GROUND DISTRIBUTION SYSTEM HEAD-UP DISPLAY HEADLIGHTS SYSTEM HEADLIGHTS, WIPER/WASHER SYSTEMS HEAT MANAGEMENT MODULE HEATED REAR WINDOW BAND ELIMINATION CIRCUIT 2 HIGH BEAM HIGH VERSION HIGH W/O AMBIENT INTERIOR LIGHTING HORNS SYSTEM HOT AT ALL TIMES HOT FILM AIR MASS METER HOT W/ HOT W/ TERMINAL INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER, NAVIGATION SYSTEMS INSTRUMENT PANEL INTEGRATED SUPPLY MODULE INTERFERENCE SUPPRESSION FILTER INTERFERENCE SUPPRESSION FILTER 2 INTERFERENCE SUPPRESSION FILTER 3 JUMP START TERMINAL LANE CHANGE WARNING LED LATE PRODUCTION LED MODULE LEFT "C" PILLAR) LEFT FOG LIGHT LEFT FOOTWELL) LEFT FRONT DOOR SILL LIGHT STRIP LEFT FRONT FOOTWELL LIGHT LEFT FRONT MIXING FLAP DRIVE LEFT FRONT TWEETER LEFT FRONT VANITY MIRROR LIGHT LEFT FRONT VENTILATION GRILLE LEFT FRONT WHEEL ELECTRONICS SYSTEM LEFT FRONTAL LIGHT ELECTRONICS LEFT ILLUMINATED CARPET LEFT INNER TAIL- LIGHT LEFT INNER TAILLIGHT LEFT LICENSE PLATE LIGHT LEFT OUTER TAILLIGHT LEFT PARKING BRAKE DRIVE LEFT REAR DOOR SILL LIGHT STRIP LEFT REAR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS LEFT REAR RETRACTOR TENSIONER LEFT REAR SEAT BELT BUCKLE CONTACT LEFT REAR SEAT OCCUPANCY DETECTION LEFT REAR TWEETER LEFT REAR TWEETER 2 LEFT REAR WHEEL ELECTRONICS SYSTEM LEFT REVERSIBLE ELECTROMOTIVE ELECTRICALLY MOTORIZED REEL LEFT REVERSIBLE ELECTROMOTIVE MOTORIZED REEL LEFT SHIFT PADDLE LEFT WIND DEFLECTOR INSTALLED MICROSWITCH LIGHT SOURCE 1 LIGHT SOURCE 2 LIGHT SOURCE 3 LIGHT SOURCE 4 LIGHT SOURCE 5 LIGHT SOURCE 6 LIGHT SOURCE 7 LIGHT SOURCE 8 LIGHT SOURCE 9 LIGHT SOURCE 10 LIGHT SOURCE 11 LIGHT SOURCE 12 LIGHT SOURCE 13 LIGHT SOURCE 14 LIGHT SOURCE 22 LIN POWER DISTRIBUTION BOX LOW BEAM MAGNETIC COUPLING MIRROR ELECTRONICS MIRROR FOLD- IN DRIVE MIRRORS SYSTEM NATURAL VACUUM LEAK DETECTION NAVIGATION SYSTEM NFC READER PREPARATION NOT USED NOT USED OPTIONAL EQUIPMENT SYSTEM OPTIONAL W/ TERMINATION PLUG PARKING MANEUVERING ASSISTANT PASSENGER OUTSIDE DOOR HANDLE ELECTRONIC PASSENGER OUTSIDE DOOR HANDLE ELECTRONICS PASSENGER REAR SIDE OUTSIDE DOOR HANDLE ELECTRONIC PASSENGER'S SIDE REAR FOOTWELL LIGHT PASSENGER'S SIDE REAR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS PMW-BFI POWER DISTRIBUTION SYSTEM PREPARATION TRAILER MODULE PLUG CONNECTION PREPARING NFC READER PREPARING THE NFC READER PT-CAN HI PT-CAN LO REAR AIR CONDITIONING AUTOMATIC OPERATING FACILITY REAR AIR VENT GRILLE REAR CENTER SEAT BELT BUCKLE CONTACT REAR CENTER SEAT OCCUPANCY DETECTION REAR DRIVER SIDE FRONT DOOR TRIM PANEL LIGHTING REAR DRIVER SIDE REAR DOOR TRIM PANEL LIGHTING REAR DRIVER'S DOOR TRIM PANEL LIGHTING REAR DRIVER'S SIDE DOOR POCKET LIGHTING REAR DRIVER'S SIDE DOOR SILL COURTESY LIGHT REAR DRIVER'S SIDE DOOR TRIM PANEL LIGHTING REAR DRIVER'S SIDE FOOTWELL LIGHT REAR DRIVER'S SIDE FRONT DOOR TRIM PANEL LIGHTING REAR DRIVER'S SIDE INSIDE DOOR HANDLE LIGHT REAR DRIVER'S SIDE OUTSIDE DOOR HANDLE ELECTRONICS REAR DRIVER'S SIDE REAR DOOR TRIM PANEL LIGHTING REAR FRONT PASSENGER DOOR TRIM PANEL LIGHTING REAR INTERIOR LIGHT REAR OF DRIVER'S SIDE INSIDE DOOR HANDLE LIGHT REAR PASSENGER SIDE DOOR TRIM PANEL LIGHTING REAR PASSENGER SIDE SILL COURTESY LIGHT REAR PASSENGER'S SIDE DOOR POCKET LIGHTING REAR PASSENGER'S SIDE DOOR POCKET LIGHTING 2 REAR PASSENGER'S SIDE FOOTWELL LIGHT REAR PASSENGER'S SIDE FRONT DOOR TRIM PANEL LIGHTING REAR PASSENGER'S SIDE INSIDE DOOR HANDLE LIGHT REAR PASSENGER'S SIDE OUTSIDE DOOR HANDLE ELECTRONICS REAR PASSENGER'S SIDE REAR DOOR TRIM PANEL LIGHTING REAR POWER DISTRIBUTION BOX REAR POWER DISTRIBUTION BOX LIN POWER DISTRIBUTION BOX REAR WINDOW DEFROSTER REAR WIPER REBOUND STAGE RECEIVER AUDIO MODULE REMOTE CONTROL RECEIVER RIGHT FOG LIGHT RIGHT FRONT DOOR SILL LIGHT STRIP RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT MIXING FLAP DRIVE RIGHT FRONT POWER DISTRIBUTION BOX RIGHT FRONT TWEETER RIGHT FRONT VANITY MIRROR LIGHT RIGHT FRONT VENTILATION GRILLE RIGHT FRONT WHEEL ELECTRONICS SYSTEM RIGHT FRONTAL LIGHT ELECTRONICS RIGHT ILLUMINATED CARPET RIGHT INNER TAILLIGHT RIGHT LICENSE PLATE LIGHT RIGHT OUTER TAILLIGHT RIGHT PARKING BRAKE DRIVE RIGHT REAR DOOR SILL LIGHT STRIP RIGHT REAR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS RIGHT REAR RETRACTOR TENSIONER RIGHT REAR SEAT BELT BUCKLE CONTACT RIGHT REAR SEAT OCCUPANCY DETECTION RIGHT REAR TWEETER RIGHT REAR TWEETER 2 RIGHT REAR WHEEL ELECTRONICS SYSTEM RIGHT REVERSIBLE ELECTROMOTIVE AUTOMATIC REEL RIGHT REVERSIBLE ELECTROMOTIVE ELECTRICALLY MOTORIZED REEL RIGHT SHIFT PADDLE RIGHT TRUNK LID LIFTING DRIVE RIGHT WIND DEFLECTOR INSTALLED MICROSWITCH ROOF FUNCTION CENTER SEATS SYSTEM SIDE MARKER LIGHT SIG ACC SIG MTR SOFT TOP DRIVE SOUND SYSTEMS SOURCE 1 SOURCE 2 LIGHT SOURCE 3 LIGHT SOURCE 4 LIGHT SOURCE 5 LIGHT SOURCE 6 LIGHT SOURCE 7 SOURCE 7 LIGHT SOURCE 8 LIGHT SOURCE 10 SPARK PLUG SPLY ACC SPLY MTR STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING WHEEL MODULE SUNROOF SHADE DRIVE SUPPLEMENTAL RESTRAINTS SYSTEM SW SIG SWIVEL MODULE TAIL LIGHT/ SIDE MARKER LIGHT TELEMATIC COMMUNICATION BOX TELEMATIC COMMUNICATION BOX SHIELD TOP DRIVER'S DOOR TRIM PANEL LIGHTING TOP FRONT PASSENGER DOOR TRIM PANEL LIGHTING TOP RADIATOR BLIND DRIVE TOP REAR PASSENGER DOOR TRIM PANEL LIGHTING TRAILER BRAKE SYSTEM PLUG CONNECTION TRAILER MODULE TRANSFER BOX TRANSFER TERMINAL POINT TRANSMISSIONS SYSTEM TRUNK COMPARTMENT LIGHT 2 TRUNK LID POWERTRAIN AUTOMATIC SOFT CLOSE SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM USB CONNECTION USB PORT VERTICAL DYNAMICS PLATFORM W/ ADAPTIVE HEADLIGHTS W/ CAR SHARING MODULE W/ CFRP SEAT W/ ELECTRICAL SEAT ADJUSTMENT W/ ELECTRICAL SEAT ADJUSTMENT MODULE W/O ELECTRICAL SEAT ADJUSTMENT MODULE W/ EXTENDABLE THIGH SUPPORT W/ HOT FILM AIR MASS METER W/ M SPORTS STEERING WHEEL W/ NECK WARMER W/ SEAT MODULE W/ TELEMATICS W/ TRAILER MODULE W/ VERTICAL DYNAMICS MANAGEMENT W/O ACTIVE SEAT VENTILATION W/O CAR SHARING MODULE W/O CAR SHARING MODULE W/O TELEMATICS W/O CFRP SEAT W/O ELECTRICAL SEAT ADJUSTMENT W/O EXTENDABLE THIGH SUPPORT W/O HOT FILM AIR MASS METER W/O INTERIOR LIGHT PACKAGE W/O MEMORY W/O NECK WARMER W/O OPTIONAL EQUIPMENT SYSTEM W/ OPTIONAL EQUIPMENT SYSTEM W/O SEAT MODULE W/O TELEMATICS W/O TRAILER MODULE W/O VERTICAL DYNAMICS MANAGEMENT WIPER DRIVE WIPER/WASHER SYSTEM WIRELESS CHARGING STORAGE
