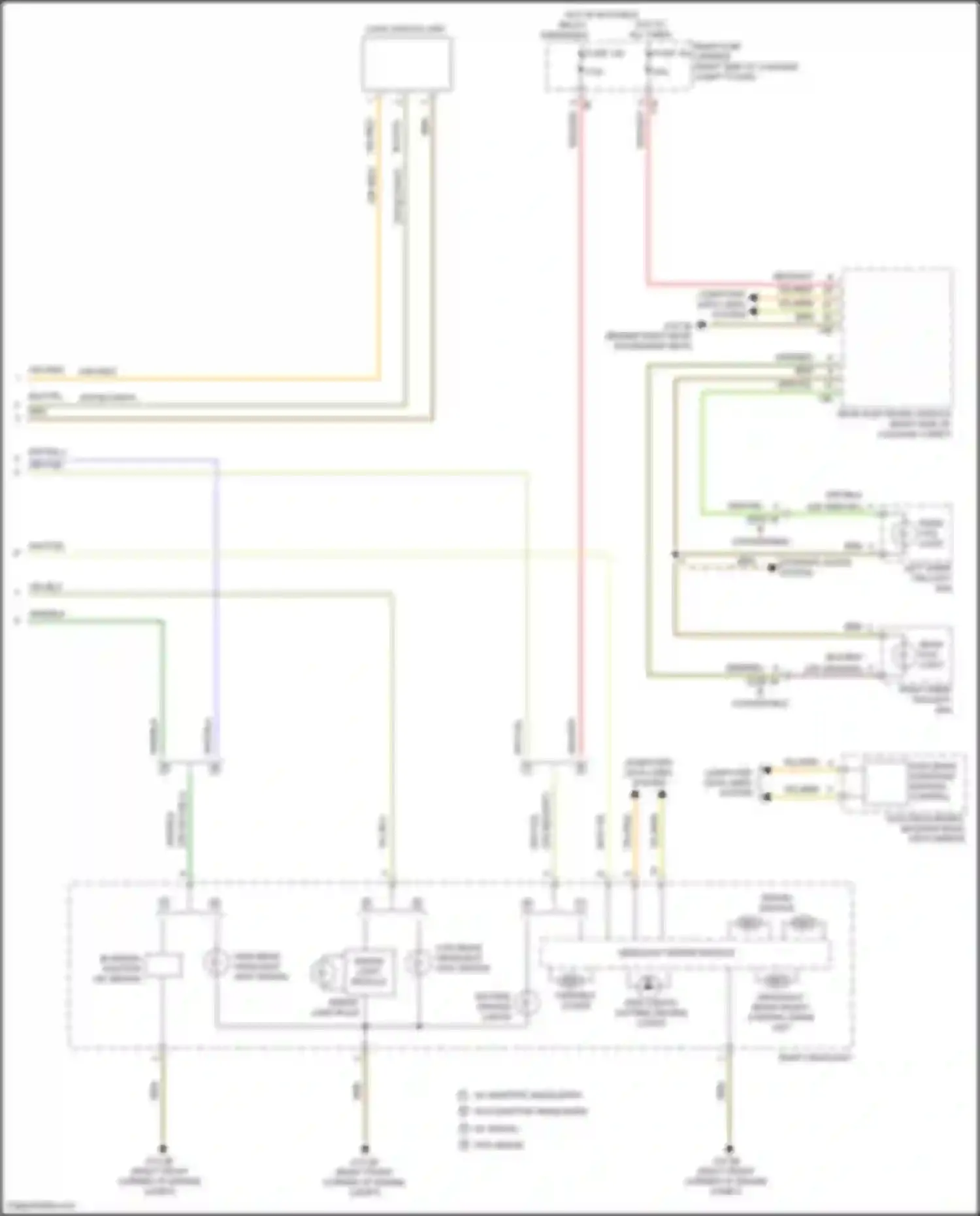

Car Wiring Diagrams for Headlights circuit, w/o led headlamps for BMW 4 series F32/F33 facelift (2017-2020)

BI-XENON SHUTTER BLK/YEL WIRE BLU/BLK WIRE BRN WIRE BRN/BLK WIRE BRN/YEL WIRE COMPUTER DATA LINES SYSTEM DAYTIME DRIVING LIGHTS FRONT ELECTRONIC MODULE FRONT POWER DISTRIBUTION BOX FUSE 10 FUSE 11 FUSE 28 FUSE 57 GRN/BLK WIRE GRY/VIO WIRE GRY/YEL WIRE HEADLIGHT HEADLIGHT BEAM HEIGHT CONTROL DRIVE UNIT HEADLIGHT DRIVER MODULE HIGH BEAM HOT AT ALL TIMES HOT W/ HOT W/ BI-STABLE RELAY ENERGIZED LEFT FOG LIGHT LEFT HEADLIGHT LOW BEAM PARKING BRAKE SWITCH RAIN/LIGHT/ SOLAR/CONDENSATION SENSOR RED/BLU WIRE RED/WHT WIRE RELAY ENERGIZED RIGHT FOG LIGHT SIDE LIGHTS/ DAYTIME DRIVING LIGHTS STEERING COLUMN SWITCH CLUSTER SWIVEL MODULE VARIABLE COVER W/ ADAPTIVE HEADLAMPS W/O ADAPTIVE HEADLAMPS W/ XENON W/ XENON W/O XENON WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE WHT/YEL WIRE XENON LAMP BULB XENON LIGHT MODULE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE

BI-XENON SHUTTER BLK/RED WIRE BLK/YEL WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DAYTIME DRIVING LIGHTS ELECTROCHROMIC INTERIOR REAR VIEW MIRROR FUSE 149 FUSE 161 GRN/BLK WIRE GRN/RED WIRE GRN/YEL WIRE GRY/BLK WIRE GRY/YEL WIRE HEADLIGHT BEAM HEIGHT CONTROL DRIVE UNIT HEADLIGHT DRIVER MODULE HIGH BEAM ASSISTANT SENSOR, CONTROL HIGH BEAM HEADLIGHT HOT AT ALL TIMES HOT W/ BI-STABLE RELAY ENERGIZED LEFT INNER TAILLIGHT LIGHT SWITCH UNIT LOW BEAM HEADLIGHT REAR ELECTRONIC MODULE REAR FOG LIGHT REAR FUSE CARRIER RED/GRY WIRE RED/WHT WIRE RIGHT HEADLIGHT RIGHT INNER TAILLIGHT SIDE LIGHTS/ DAYTIME DRIVING LIGHTS SWIVEL MODULE VARIABLE COVER W/ ADAPTIVE HEADLAMPS W/O ADAPTIVE HEADLAMPS W/ XENON W/ XENON W/O XENON WHT/BLU WIRE WHT/YEL WIRE XENON LAMP BULB XENON LIGHT MODULE YEL/BLU WIRE YEL/BRN WIRE YEL/RED WIRE
