BMW 3 series G20/G21 (2018-2023) heated rear window band elimination circuit 2 Wiring diagrams
This page contains all the electrical diagrams for the component. heated rear window band elimination circuit 2, in which he is found in the car BMW 3 series G20/G21 (2018-2023). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram heated rear window band elimination circuit 2 (1 of 7)
Go to component -> Navigation circuit, base w/ receiver audio module (1 of 6) -> HEATED REAR WINDOW BAND ELIMINATION CIRCUIT 2
Wiring diagram heated rear window band elimination circuit 2 (2 of 7)
Go to component -> Navigation circuit, high level w/ receiver audio module (1 of 6) -> HEATED REAR WINDOW BAND ELIMINATION CIRCUIT 2
Wiring diagram heated rear window band elimination circuit 2 (3 of 7)
Go to component -> Navigation circuit, mid level w/ receiver audio module (1 of 6) -> HEATED REAR WINDOW BAND ELIMINATION CIRCUIT 2

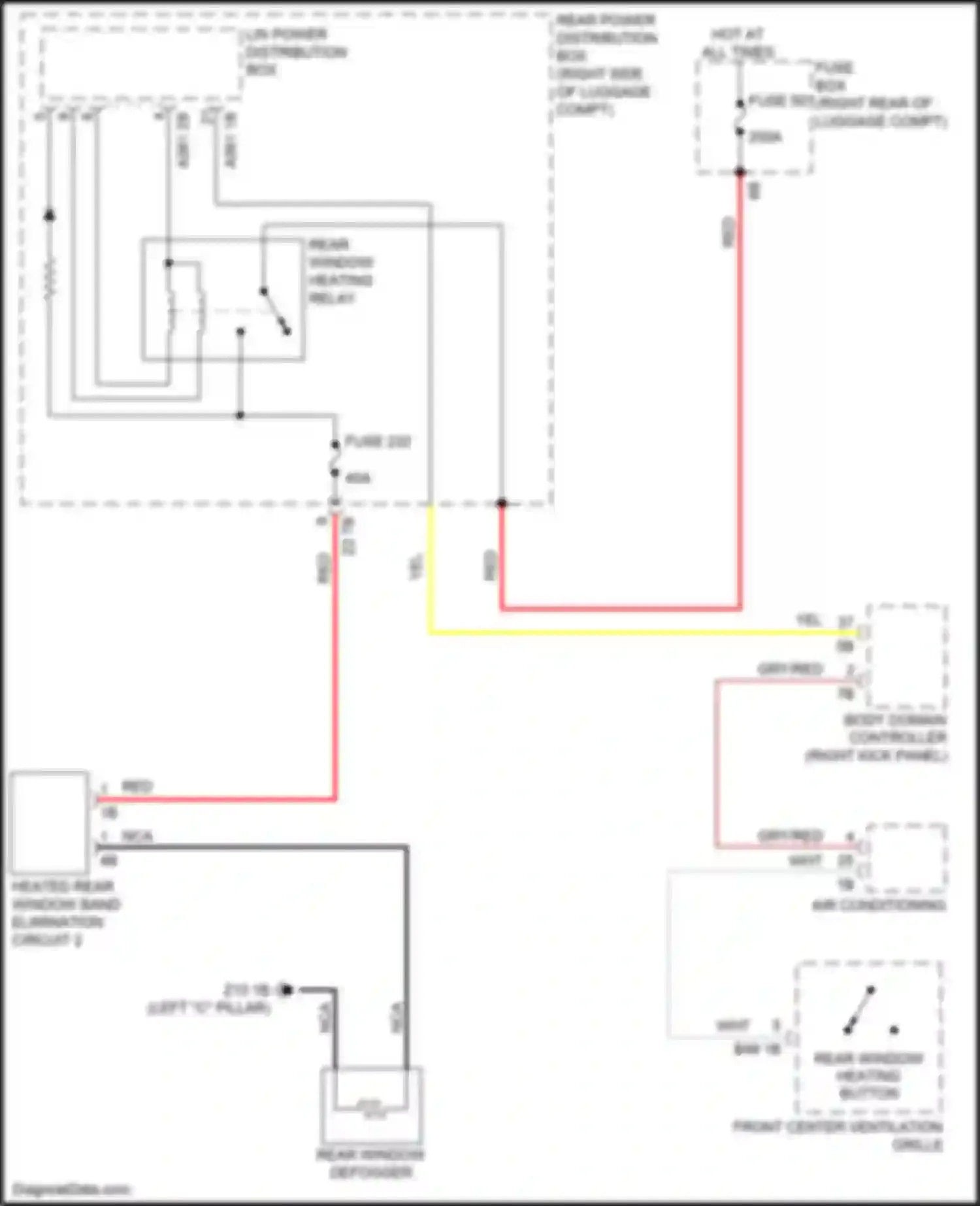

Wiring diagram heated rear window band elimination circuit 2 (4 of 7)
Go to component -> Rear defogger circuit -> HEATED REAR WINDOW BAND ELIMINATION CIRCUIT 2
Wiring diagram heated rear window band elimination circuit 2 (5 of 7)
Go to component -> Receiver audio module circuit, base (1 of 6) -> HEATED REAR WINDOW BAND ELIMINATION CIRCUIT 2
Wiring diagram heated rear window band elimination circuit 2 (6 of 7)
Go to component -> Receiver audio module circuit, high level (1 of 6) -> HEATED REAR WINDOW BAND ELIMINATION CIRCUIT 2
Wiring diagram heated rear window band elimination circuit 2 (7 of 7)
Go to component -> Receiver audio module circuit, mid level (1 of 6) -> HEATED REAR WINDOW BAND ELIMINATION CIRCUIT 2
