BMW 3 series E90/E91/E92/E93 facelift (2008-2013) right front direction indicator light repeater Wiring diagrams
This page contains all the electrical diagrams for the component. right front direction indicator light repeater, in which he is found in the car BMW 3 series E90/E91/E92/E93 facelift (2008-2013). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram right front direction indicator light repeater (1 of 5)
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BRN WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/YEL WIRE
BRN WIRE
BRN/BLK WIRE
BRN/BLU WIRE
COMPUTER DATA LINES SYSTEM
DIRECTION
FOOTWELL MODULE (UNDER LEFT SIDE OF DASH)
FUSE 31
FUSE 32
FUSE 41
FUSE 71
FUSE 81
FUSE 84
FUSE 86
GRN WIRE
GRN/YEL WIRE
GRY/BLU WIRE
GRY/BRN WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
HOT W/ BI-STABLE RELAY ENERGIZED
HOT W/ TERMINAL
JUNCTION BOX (UNDER RIGHT SIDE OF DASH)
JUNCTION BOX ELECTRONICS
LEFT FRONT DIRECTION INDICATOR LIGHT REPEATER
LEFT LICENSE PLATE LIGHT
ORG/GRN WIRE
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/VIO WIRE
RED/YEL WIRE
RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER
RIGHT HEADLIGHT
RIGHT LICENSE PLATE LIGHT
SIDE
YEL WIRE
YEL/BLK WIRE
YEL/VIO WIRE
YEL/WHT WIRE
Go to component -> Exterior lamps & trailer connector circuit (1 of 3) -> RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER

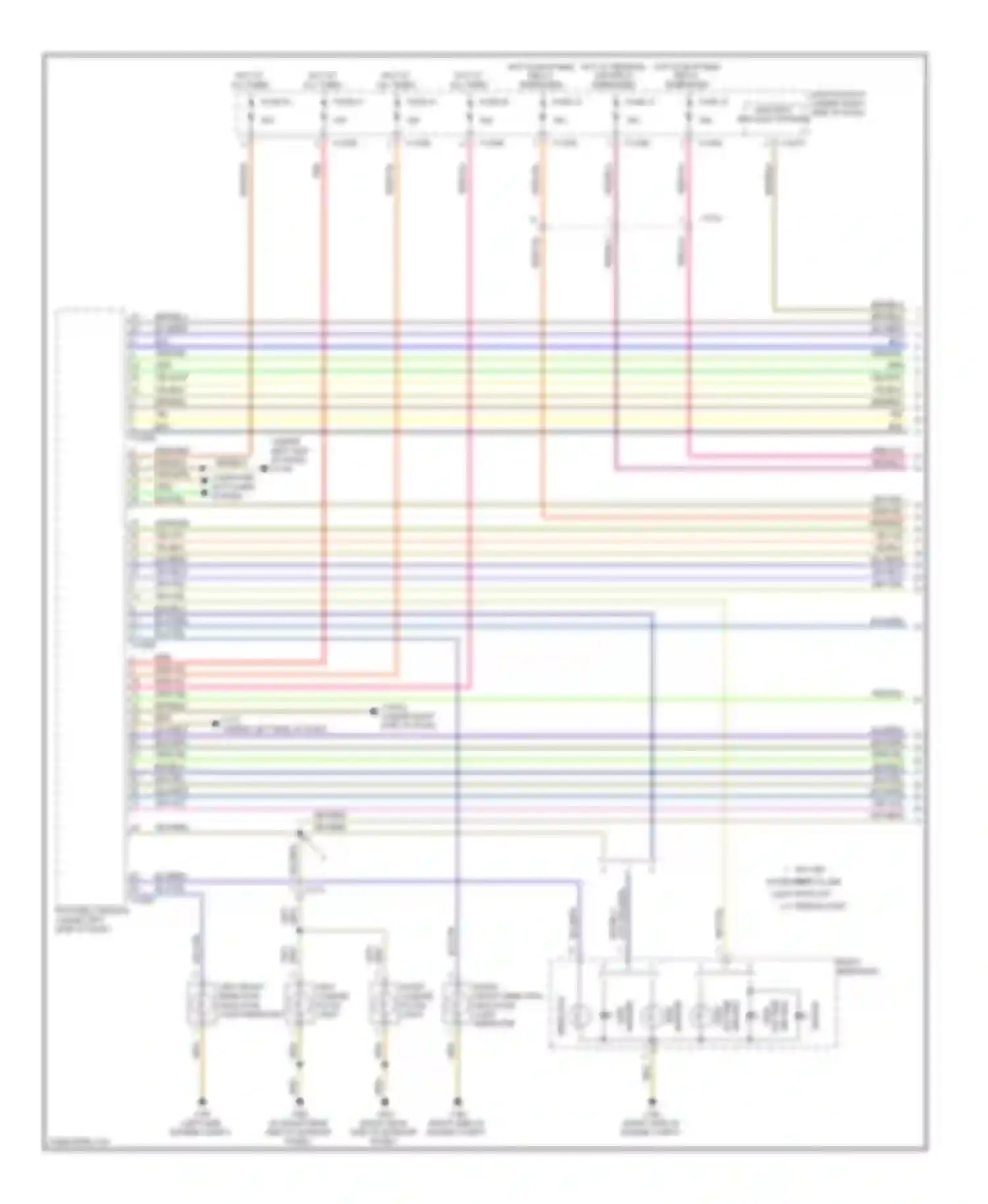

Wiring diagram right front direction indicator light repeater (2 of 5)
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BRN WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/YEL WIRE
BRN GRY/ WIRE
BRN WIRE
BRN/BLK WIRE
BRN/BLU WIRE
COMPUTER DATA LINES SYSTEM
DAYTIME SIDE/
DESIGN
DIRECTION
DRIVING
FOOTWELL MODULE (UNDER LEFT SIDE OF DASH)
FUSE 31
FUSE 32
FUSE 41
FUSE 71
FUSE 81
FUSE 84
FUSE 86
GRN WIRE
GRN/RED WIRE
GRN/YEL WIRE
GRY BRN/ WIRE
GRY/BLU WIRE
GRY/BRN WIRE
GRY/VIO WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
HOT W/ BI-STABLE RELAY ENERGIZED
HOT W/ TERMINAL
JUNCTION BOX (UNDER RIGHT SIDE OF DASH)
JUNCTION BOX ELECTRONICS
LEFT FRONT DIRECTION INDICATOR LIGHT REPEATER
LEFT LICENSE PLATE LIGHT
MARKER
ORG/GRN WIRE
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/VIO WIRE
RED/YEL WIRE
RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER
RIGHT HEADLIGHT
RIGHT LICENSE PLATE LIGHT
SIDE
SIDE/ DAYTIME DRIVING
W/O LED TYPE W/ LED TYPE W/O DESIGN LIGHT W/ DESIGN LIGHT 2 3 4
YEL WIRE
YEL/BLK WIRE
YEL/VIO WIRE
YEL/WHT WIRE
Go to component -> Exterior lamps & trailer connector circuit, convertible (1 of 3) -> RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER

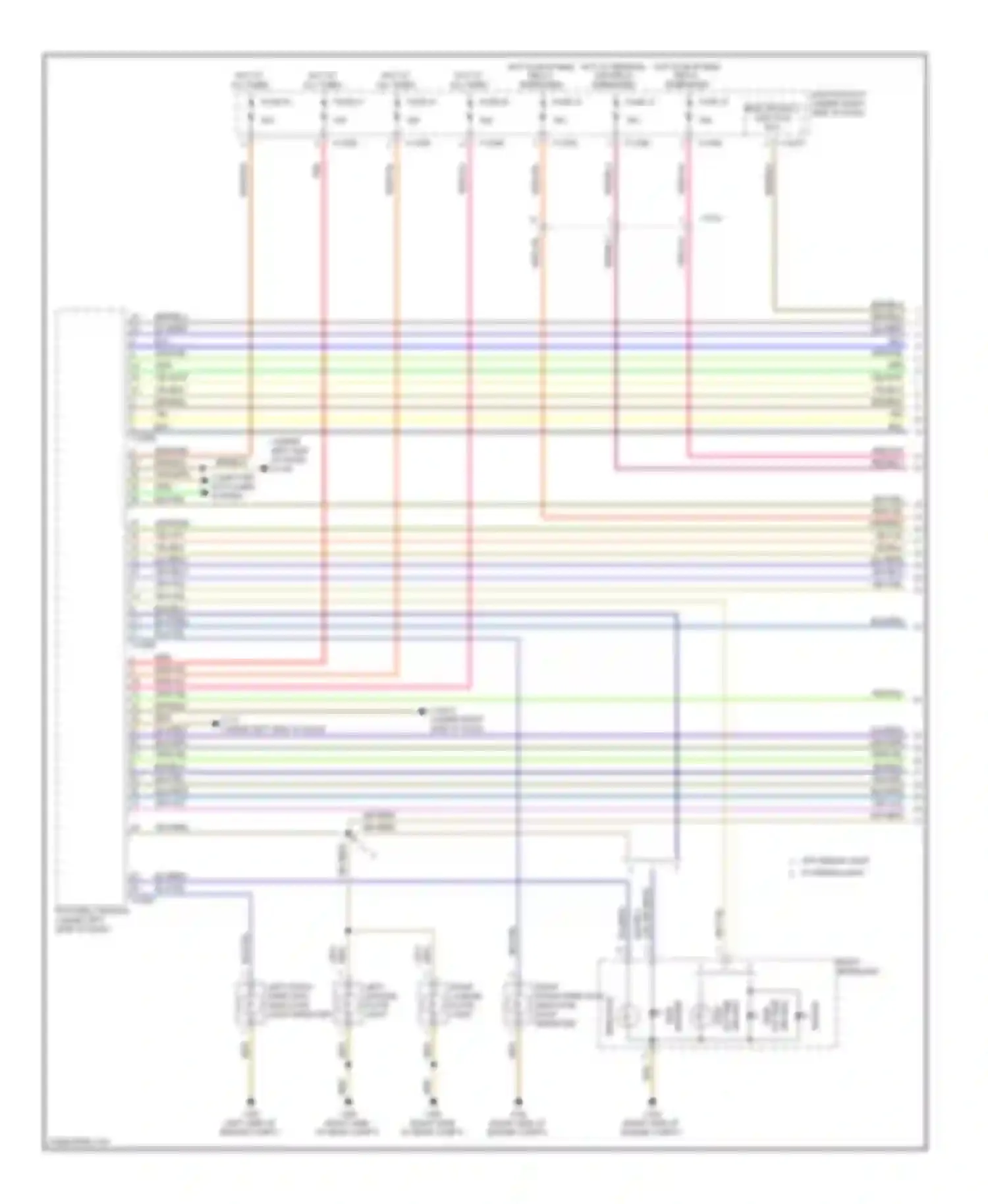

Wiring diagram right front direction indicator light repeater (3 of 5)
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BRN WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/YEL WIRE
BRN GRY/ WIRE
BRN WIRE
BRN/BLK WIRE
BRN/BLU WIRE
COMPUTER DATA LINES SYSTEM
DAYTIME SIDE/
DESIGN
DIRECTION
DRIVING
ELECTRONICS JUNCTION BOX
FOOTWELL MODULE (UNDER LEFT SIDE OF DASH)
FUSE 31
FUSE 32
FUSE 41
FUSE 71
FUSE 81
FUSE 84
FUSE 86
GRN WIRE
GRN/RED WIRE
GRN/YEL WIRE
GRY WIRE
GRY/BLU WIRE
GRY/BRN WIRE
GRY/VIO WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
HOT W/ BI-STABLE RELAY ENERGIZED
HOT W/ TERMINAL
JUNCTION BOX (UNDER RIGHT SIDE OF DASH)
LEFT FRONT DIRECTION INDICATOR LIGHT REPEATER
LEFT LICENSE PLATE LIGHT
MARKER
ORG/GRN WIRE
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/VIO WIRE
RED/YEL WIRE
RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER
RIGHT HEADLIGHT
RIGHT LICENSE PLATE LIGHT
SIDE
SIDE/ DAYTIME DRIVING
W/O DESIGN LIGHT W/ DESIGN LIGHT
YEL WIRE
YEL/BLK WIRE
YEL/VIO WIRE
YEL/WHT WIRE
Go to component -> Exterior lamps & trailer connector circuit, coupe (1 of 3) -> RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER
Wiring diagram right front direction indicator light repeater (4 of 5)
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BRN WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/YEL WIRE
BRN WIRE
BRN/BLK WIRE
BRN/BLU WIRE
COMPUTER DATA LINES SYSTEM
DIRECTION
FOOTWELL MODULE (UNDER LEFT SIDE OF DASH)
FUSE 31
FUSE 32
FUSE 41
FUSE 71
FUSE 81
FUSE 84
FUSE 86
GRN WIRE
GRN/YEL WIRE
GRY/BLU WIRE
GRY/BRN WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
HOT W/ BI-STABLE RELAY ENERGIZED
HOT W/ TERMINAL
JUNCTION BOX (UNDER RIGHT SIDE OF DASH)
JUNCTION BOX ELECTRONICS
LEFT FRONT DIRECTION INDICATOR LIGHT REPEATER
LEFT LICENSE PLATE LIGHT
ORG/GRN WIRE
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/VIO WIRE
RED/YEL WIRE
RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER
RIGHT HEADLIGHT
RIGHT LICENSE PLATE LIGHT
SIDE
YEL WIRE
YEL/BLK WIRE
YEL/VIO WIRE
YEL/WHT WIRE
Go to component -> Exterior lamps & trailer connector circuit, sedan (1 of 3) -> RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER
Wiring diagram right front direction indicator light repeater (5 of 5)
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BRN WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/YEL WIRE
BRN WIRE
BRN/BLK WIRE
BRN/BLU WIRE
COMPUTER DATA LINES SYSTEM
DIRECTION
FOOTWELL MODULE (UNDER LEFT SIDE OF DASH)
FUSE 31
FUSE 32
FUSE 41
FUSE 71
FUSE 81
FUSE 84
FUSE 86
GRN WIRE
GRN/YEL WIRE
GRY/BLU WIRE
GRY/BRN WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
HOT W/ BI-STABLE RELAY ENERGIZED
HOT W/ TERMINAL
JUNCTION BOX (UNDER RIGHT SIDE OF DASH)
JUNCTION BOX ELECTRONICS
LEFT FRONT DIRECTION INDICATOR LIGHT REPEATER
LEFT LICENSE PLATE LIGHT
ORG/GRN WIRE
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/VIO WIRE
RED/YEL WIRE
RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER
RIGHT HEADLIGHT
RIGHT LICENSE PLATE LIGHT
SIDE
YEL WIRE
YEL/BLK WIRE
YEL/VIO WIRE
YEL/WHT WIRE
Go to component -> Exterior lamps & trailer connector circuit, sedan & wagon (1 of 3) -> RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER
