BMW 3 series E90/E91/E92/E93 facelift (2008-2013) left side trim panel midrange speaker Wiring diagram
This page shows the only wiring diagram for the component.left side trim panel midrange speaker, which is found in the car BMW 3 series E90/E91/E92/E93 facelift (2008-2013). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

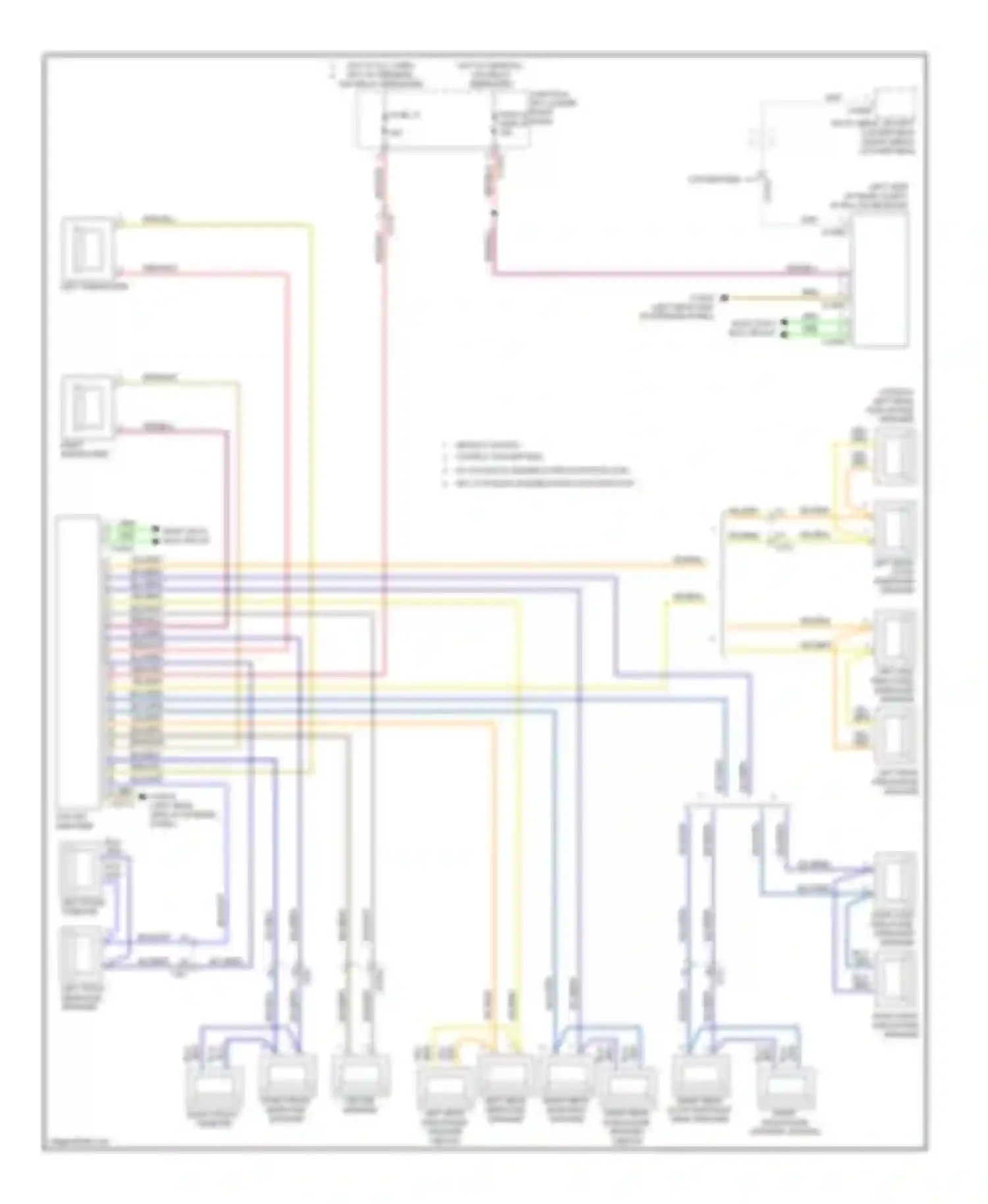

Wiring diagram left side trim panel midrange speaker (1 of 1)
BLK WIRE
BLK/BRN WIRE
BLK/WHT WIRE
BLU WIRE
BLU/ GRN WIRE
BLU/BLK WIRE
BLU/BRN WIRE
BLU/GRN WIRE
BLU/WHT WIRE
BRN BLU/ WIRE
BRN WIRE
BRN YEL/ WIRE
BRN/WHT WIRE
BRN/YEL WIRE
CENTER SPEAKER
FUSE 15
FUSE 18 SIDE OF DASH)
GRN WIRE
HOT AT ALL TIMES HOT W/ TERMINAL
HOT W/ TERMINAL
JUNCTION BOX (UNDER RIGHT
LEFT FRONT MIDRANGE SPEAKER
LEFT FRONT TWEETER
LEFT REAR DOOR MIDRANGE SPEAKER
LEFT REAR HIGH RANGE SPEAKER
LEFT SIDE TRIM PANEL MIDRANGE SPEAKER
LEFT SUBWOOFER
MOST DATA BUS CIRCUIT
RED WIRE
RED YEL/ WIRE
RED/BLU WIRE
RED/GRY WIRE
RED/WHT WIRE
RIGHT FRONT MIDRANGE SPEAKER
RIGHT FRONT TWEETER
RIGHT REAR DOOR MIDRANGE RIGHT REAR SPEAKER HIGH RANGE SPEAKER (WAGON)
RIGHT REAR HIGH RANGE SPEAKER
RIGHT REAR HIGH RANGE SPEAKER (SEDAN)
RIGHT SIDE TRIM PANEL MIDRANGE SPEAKER
RIGHT SUBWOOFER
ROOF AERIAL (EXCEPT CONVERTIBLE)
SATELLITE RECEIVER
SDARS AERIAL (CONVERTIBLE)
TOP HIFI AMPLIFIER
WHT WIRE
YEL WIRE
YEL/BRN WIRE
YEL/RED WIRE
Go to component -> Top hifi radio circuit -> LEFT SIDE TRIM PANEL MIDRANGE SPEAKER
