BMW 3 series E46 facelift (2001-2006) 30 rf whl spd rf whl spd Wiring diagrams
This page contains all the electrical diagrams for the component. 30 rf whl spd rf whl spd, in which he is found in the car BMW 3 series E46 facelift (2001-2006). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram 30 rf whl spd rf whl spd (1 of 2)
30 RF WHL SPD RF WHL SPD
ABS/ASC UNIT (LEFT REAR OF ENGINE COMPT)
ASC SWITCH
BLU WIRE
BLU/RED WIRE
BLU/VIO WIRE
BRAKE FLUID LEVEL SWITCH
BRAKELIGHT SWITCH (ON BRACKET, ABOVE BRAKE PEDAL)
BRN WIRE
BRN/BLK WIRE
BRN/GRN/YEL WIRE
BRN/RED WIRE
CAN LOW GROUND
DIGITAL MOTOR ELECTRONICS CONTROL UNIT
FUSE
FUSE HOLDER (GLOVE BOX)
GRN WIRE
GRN/BLU WIRE
GRN/BLU/YEL WIRE
GRY/BLK/YEL WIRE
HOT AT ALL TIMES
HOT IN RUN OR START
HOT IN RUN, ACCY OR START
INSTRUMENT CLUSTER CONTROL MODULE
LEFT FRONT SPEED SENSOR (WHEEL HUB)
LEFT REAR SPEED SENSOR (WHEEL HUB)
LR WHL SPD LR WHL SPD
MIRROR FOLD-IN CONTROL UNIT
NAVIGATION COMPUTER
NCA WIRE
RED WIRE
RED/BLU WIRE
RED/YEL WIRE
RIGHT FRONT SPEED SENSOR (WHEEL HUB)
RIGHT REAR SPEED SENSOR (WHEEL HUB)
RR WHL OUT BRAKE FLUID LR SPD OUT CAN HIGH
SWITCH CENTER
VIO WIRE
WHT/GRN WIRE
WHT/VIO WIRE
YEL WIRE
YEL/BLK WIRE
YEL/BRN WIRE
YEL/GRN WIRE
YEL/RED WIRE
Go to component -> Anti-lock brakes circuit, with automatic stability control -> 30 RF WHL SPD RF WHL SPD

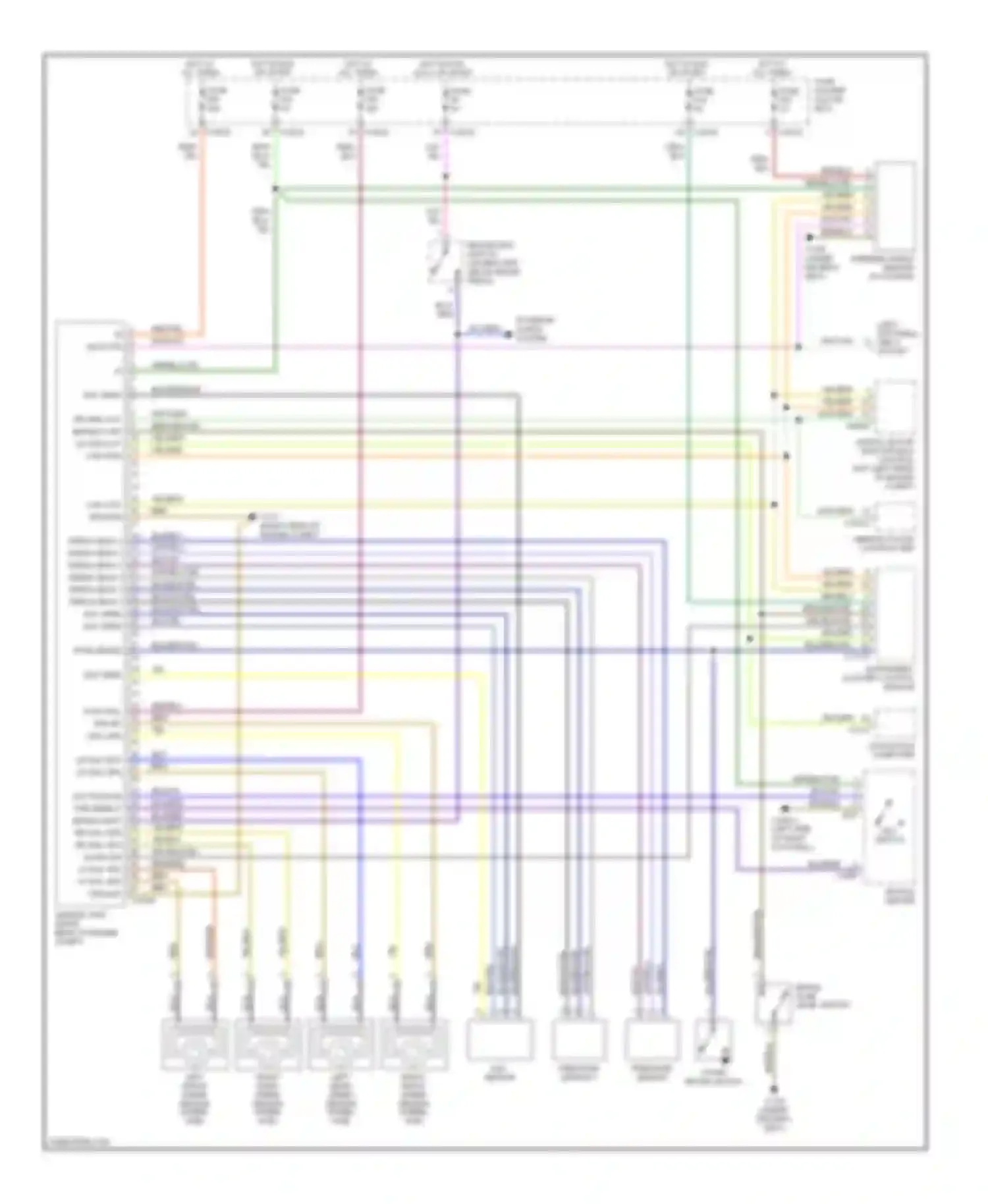

Wiring diagram 30 rf whl spd rf whl spd (2 of 2)
30 RF WHL SPD RF WHL SPD
ABS/DSC UNIT (RIGHT REAR OF ENGINE COMPT)
BLK WIRE
BLK/RED/WHT WIRE
BLK/VIO WIRE
BLK/VIO/YEL WIRE
BLU WIRE
BLU/BLK WIRE
BLU/BLK/YEL WIRE
BLU/BRN/YEL WIRE
BLU/RED WIRE
BLU/VIO WIRE
BLU/WHT/YEL WIRE
BLU/YEL WIRE
BRAKE FLUID LEVEL SWITCH
BRAKELIGHT SWITCH (ON BRACKET, ABOVE BRAKE PEDAL)
BRN WIRE
BRN/BLK WIRE
BRN/GRN/YEL WIRE
BRN/RED WIRE
CAN LOW GROUND
DIGITAL MOTOR ELECTRONICS CONTROL UNIT (LEFT REAR OF ENGINE COMPT)
DSC SENS
DSC SENSOR RIGHT FRONT SPEED SENSOR (WHEEL HUB)
DSC SWITCH
FUSE
FUSE HOLDER (GLOVE BOX)
GRN WIRE
GRN/BLU WIRE
GRN/BLU/YEL WIRE
GRY/BLK/YEL WIRE
HOT AT ALL TIMES
HOT IN RUN OR START
HOT IN RUN, ACCY OR START
INSTRUMENT CLUSTER CONTROL MODULE
LEFT FRONT SPEED SENSOR (WHEEL HUB)
LEFT REAR SPEED SENSOR (WHEEL HUB)
LR WHL SPD LR WHL SPD
MIRROR FOLD-IN CONTROL UNIT
NAVIGATION COMPUTER
NCA WIRE
PARK BRAKE
PRESSURE SENSOR 1
PRESSURE SENSOR 2 PARK BRAKE SWITCH
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/YEL WIRE
RIGHT REAR SPEED SENSOR (WHEEL HUB)
RR WHL OUT BRAKE FLUID LR SPD OUT CAN HIGH
STEERING ANGLE SENSOR (IN COLUMN)
SWITCH CENTER
VIO WIRE
WHT/BLU WIRE
WHT/BLU/YEL WIRE
WHT/GRN WIRE
WHT/VIO WIRE
YEL WIRE
YEL/BLK WIRE
YEL/BRN WIRE
YEL/GRN WIRE
YEL/RED WIRE
Go to component -> Anti-lock brakes circuit, with dynamic stability control -> 30 RF WHL SPD RF WHL SPD
