BMW 3 series E46 (1998-2003) driver's side front footwell light Wiring diagrams
This page contains all the electrical diagrams for the component. driver's side front footwell light, in which he is found in the car BMW 3 series E46 (1998-2003). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

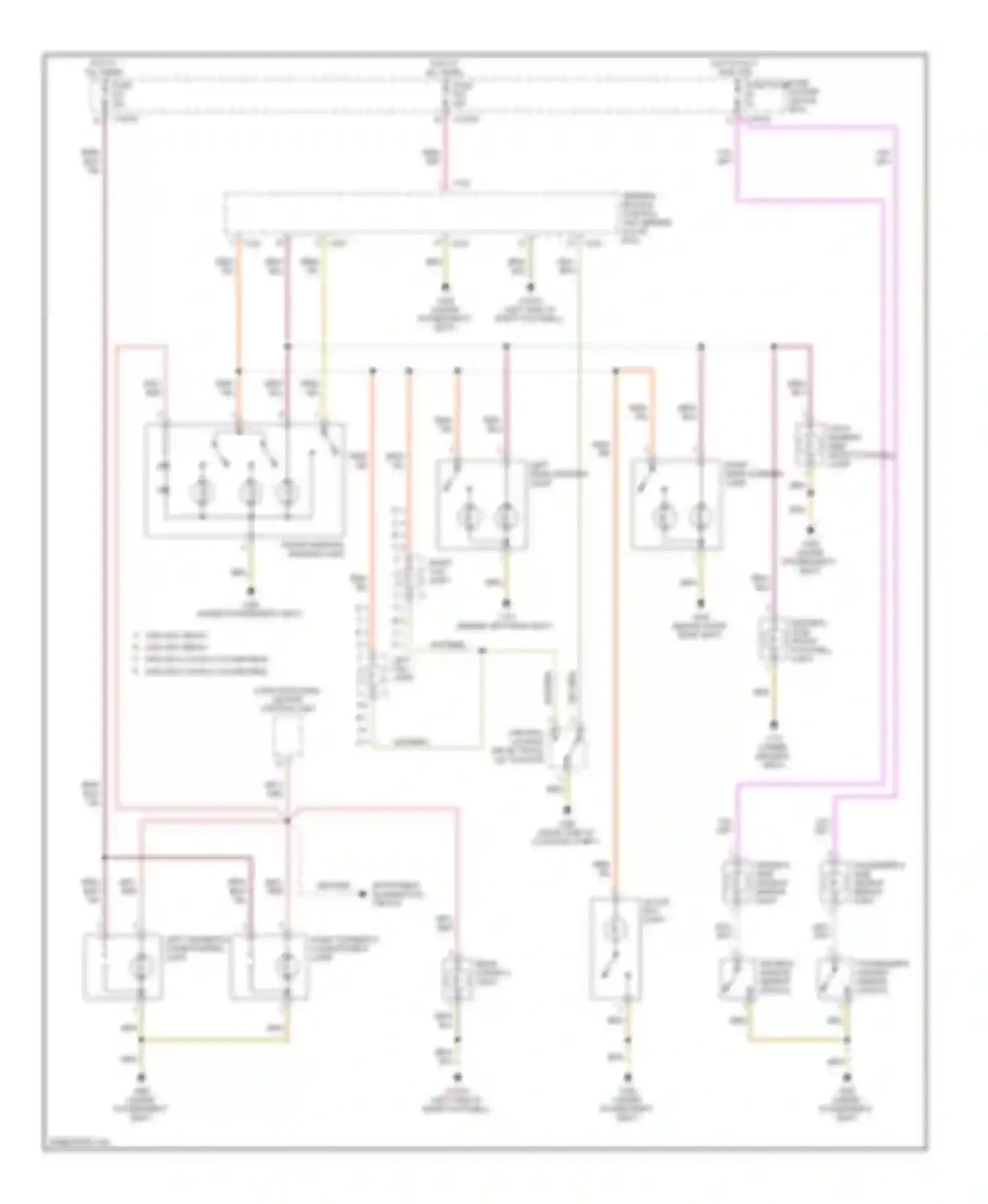

driver's side front footwell light wiring diagram (1 of 3)
BLK WIRE
BLU WIRE
BRN WIRE
CENTRAL LOCKING DRIVE, TRUNK LID/ TAILGATE
DRIVER'S MAKEUP MIRROR SWITCH
DRIVER'S SIDE FRONT FOOTWELL LIGHT
DRIVER'S SIDE MAKEUP MIRROR LIGHT
FRONT INTERIOR/ READING LAMP
FUSE HOLDER (GLOVE BOX)
GENERAL MODULE CONTROL UNIT (BEHIND GLOVE BOX)
GLOVE BOX LIGHT
GRY WIRE
GRY/BRN WIRE
GRY/RED WIRE
HOT AT ALL TIMES FUSE
HOT IN ACCY, RUN AND START FUSE
INSTRUMENT ILLUMINATION CIRCUIT
LEFT ODDMENTS COMPARTMENT LIGHT
LEFT REAR INTERIOR LIGHT
LEFT TAIL LIGHT
LIGHT SWITCHING CENTER CONTROL UNIT
PASS- ENGER'S SIDE FRONT FOOTWELL LIGHT
PASSENGER'S MAKEUP MIRROR SWITCH
PASSENGER'S SIDE MAKEUP MIRROR LIGHT
REAR ASHTRAY LIGHT
RED WIRE
RIGHT ODDMENTS COMPARTMENT LIGHT
RIGHT REAR INTERIOR LIGHT
RIGHT TAIL LIGHT
VIO WIRE
WHT WIRE
WHT/BRN WIRE
YEL WIRE
Go to component -> Courtesy lamp circuit -> DRIVER'S SIDE FRONT FOOTWELL LIGHT
driver's side front footwell light wiring diagram (2 of 3)
BLK WIRE
BLU WIRE
BRN WIRE
CENTRAL LOCKING DRIVE, TRUNK LID/ TAILGATE
DRIVER'S MAKEUP MIRROR SWITCH
DRIVER'S SIDE FRONT FOOTWELL LIGHT
DRIVER'S SIDE MAKEUP MIRROR LIGHT
FRONT INTERIOR/ READING LAMP
FUSE HOLDER (GLOVE BOX)
GENERAL MODULE CONTROL UNIT (BEHIND GLOVE BOX)
GLOVE BOX LIGHT
GRY WIRE
GRY/BRN WIRE
GRY/RED WIRE
HOT AT ALL TIMES FUSE
HOT IN ACCY, RUN AND START FUSE
INSTRUMENT ILLUMINATION CIRCUIT
LEFT ODDMENTS COMPARTMENT LIGHT
LEFT REAR INTERIOR LIGHT
LEFT TAIL LIGHT
LIGHT SWITCHING CENTER CONTROL UNIT
PASS- ENGER'S SIDE FRONT FOOTWELL LIGHT
PASSENGER'S MAKEUP MIRROR SWITCH
PASSENGER'S SIDE MAKEUP MIRROR LIGHT
REAR ASHTRAY LIGHT
RED WIRE
RIGHT ODDMENTS COMPARTMENT LIGHT
RIGHT REAR INTERIOR LIGHT
RIGHT TAIL LIGHT
VIO WIRE
WHT WIRE
WHT/BRN WIRE
YEL WIRE
Go to component -> Courtesy lamp circuit, except wagon -> DRIVER'S SIDE FRONT FOOTWELL LIGHT

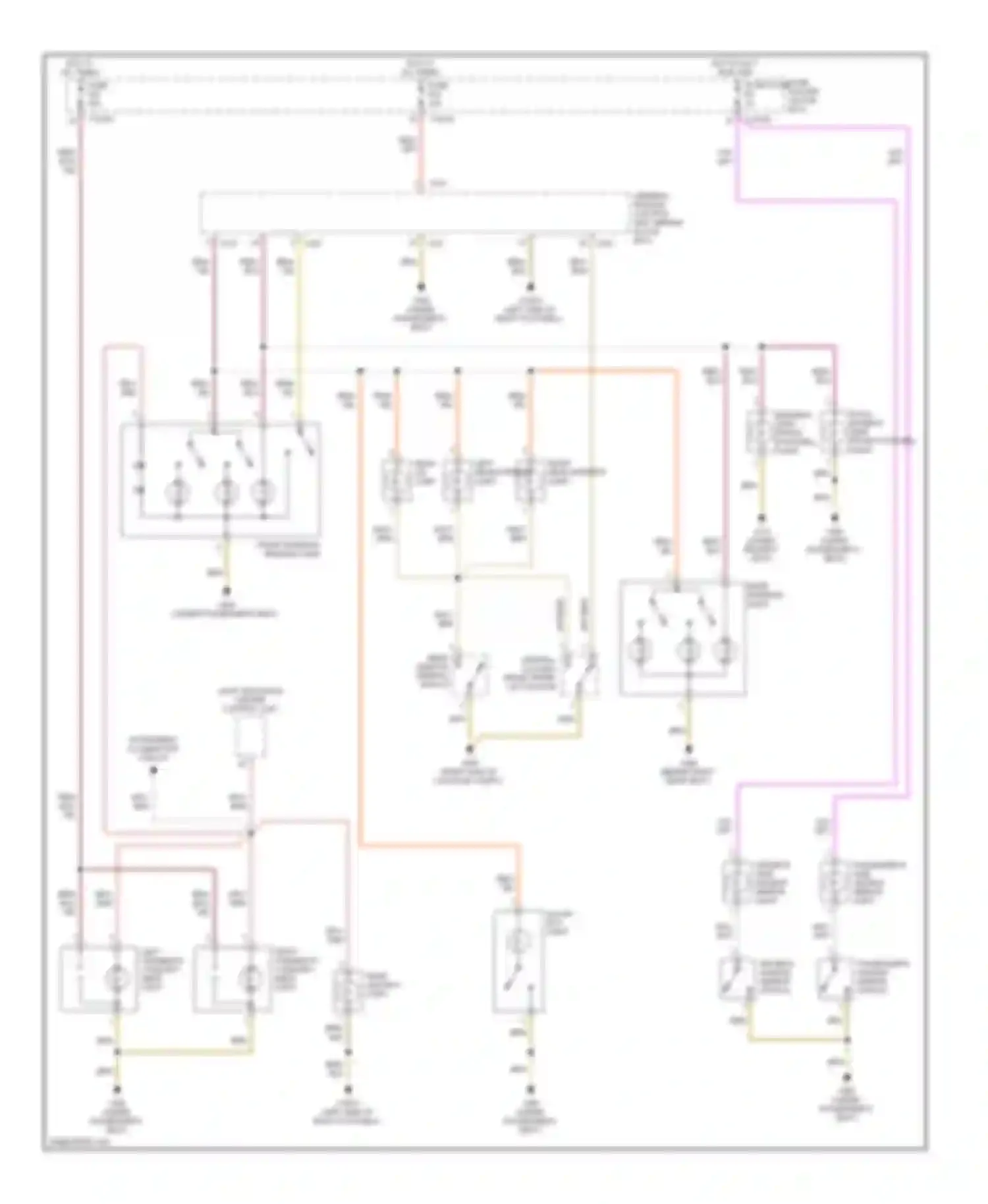

driver's side front footwell light wiring diagram (3 of 3)
