BMW 2 series F22/F23 facelift (2017-2021) driver's door switch block Wiring diagrams
This page contains all the electrical diagrams for the component. driver's door switch block, in which he is found in the car BMW 2 series F22/F23 facelift (2017-2021). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

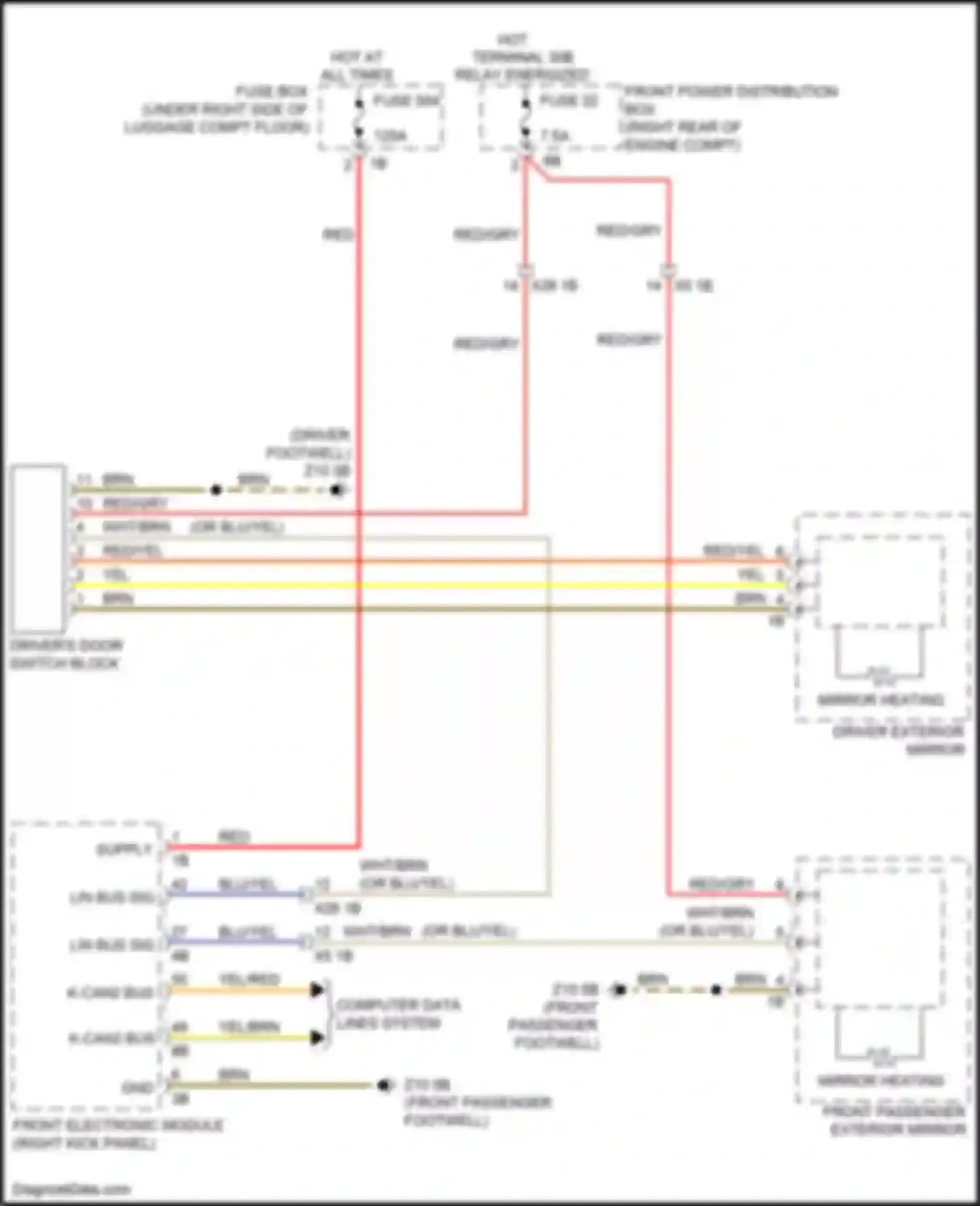

Wiring diagram driver's door switch block (1 of 9)
Go to component -> Computer data lines circuit (1 of 4) -> DRIVER'S DOOR SWITCH BLOCK
Wiring diagram driver's door switch block (2 of 9)
Go to component -> Ground distribution circuit (1 of 3) -> DRIVER'S DOOR SWITCH BLOCK
Wiring diagram driver's door switch block (3 of 9)

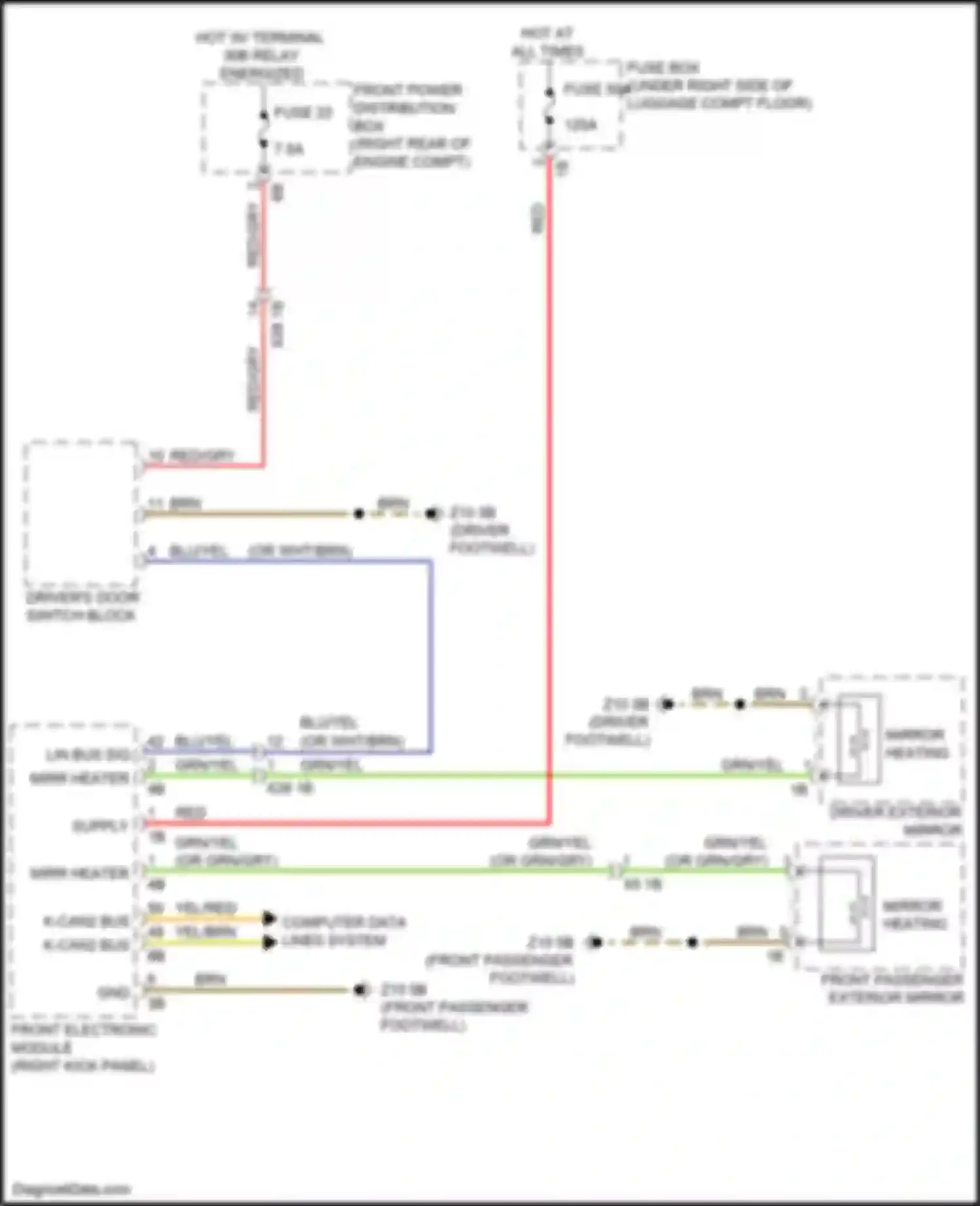

Go to component -> Heated mirrors circuit, w/ lin bus function -> DRIVER'S DOOR SWITCH BLOCK
Wiring diagram driver's door switch block (4 of 9)
Go to component -> Heated mirrors circuit, w/o lin bus function -> DRIVER'S DOOR SWITCH BLOCK

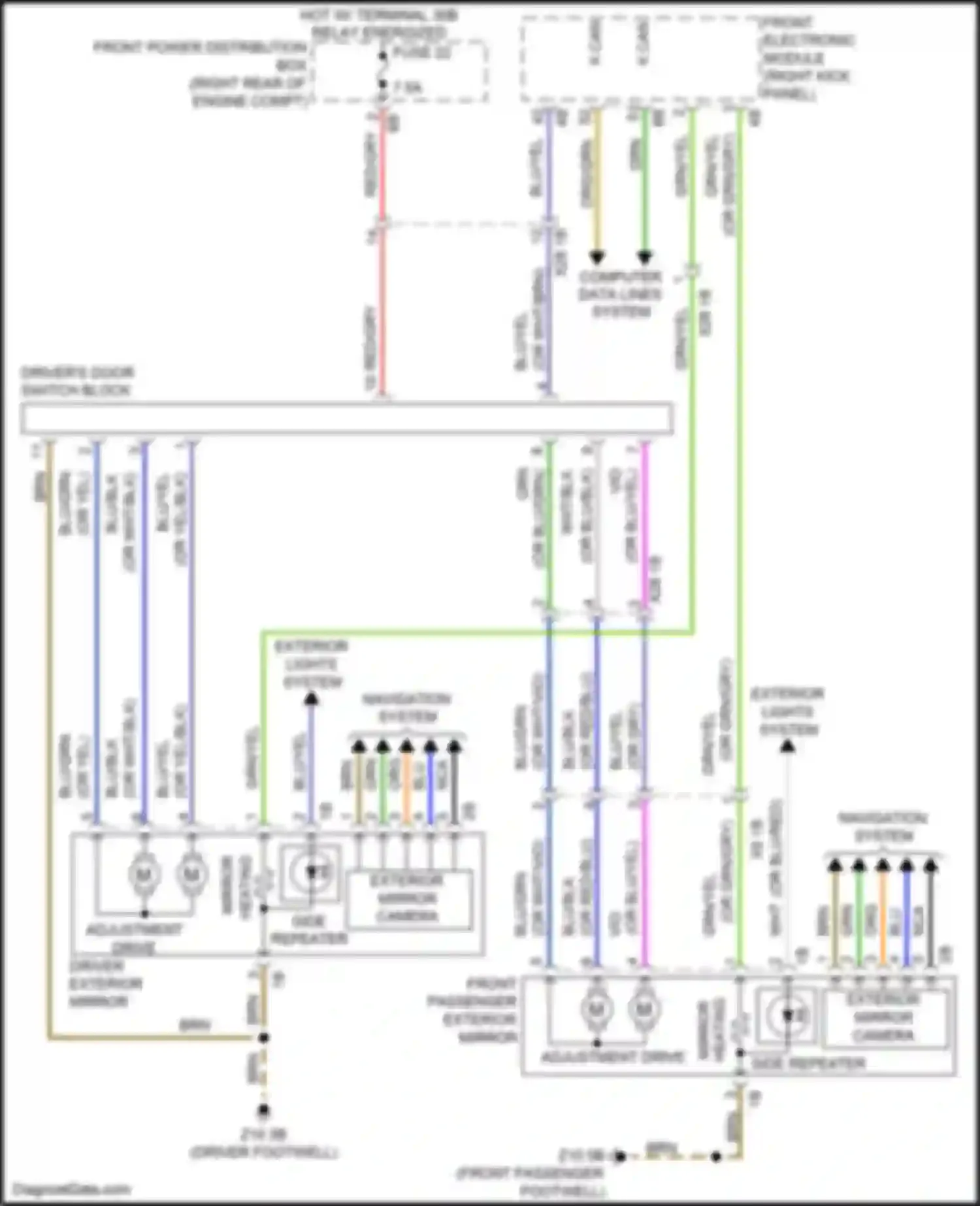

Wiring diagram driver's door switch block (5 of 9)
Go to component -> Lane departure warning circuit -> DRIVER'S DOOR SWITCH BLOCK
Wiring diagram driver's door switch block (6 of 9)
Go to component -> Memory mirrors circuit, w/ lin bus function -> DRIVER'S DOOR SWITCH BLOCK
Wiring diagram driver's door switch block (7 of 9)
Go to component -> Memory mirrors circuit, w/o lin bus function -> DRIVER'S DOOR SWITCH BLOCK
Wiring diagram driver's door switch block (8 of 9)
Go to component -> Power distribution circuit (1 of 4) -> DRIVER'S DOOR SWITCH BLOCK
Wiring diagram driver's door switch block (9 of 9)
Go to component -> Power windows circuit -> DRIVER'S DOOR SWITCH BLOCK
