BMW 1 series E81/E82/E87/E88 facelift (2007-2011) rear window defroster relay Wiring diagrams

This page contains all the electrical diagrams for the component. rear window defroster relay, in which he is found in the car BMW 1 series E81/E82/E87/E88 facelift (2007-2011). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

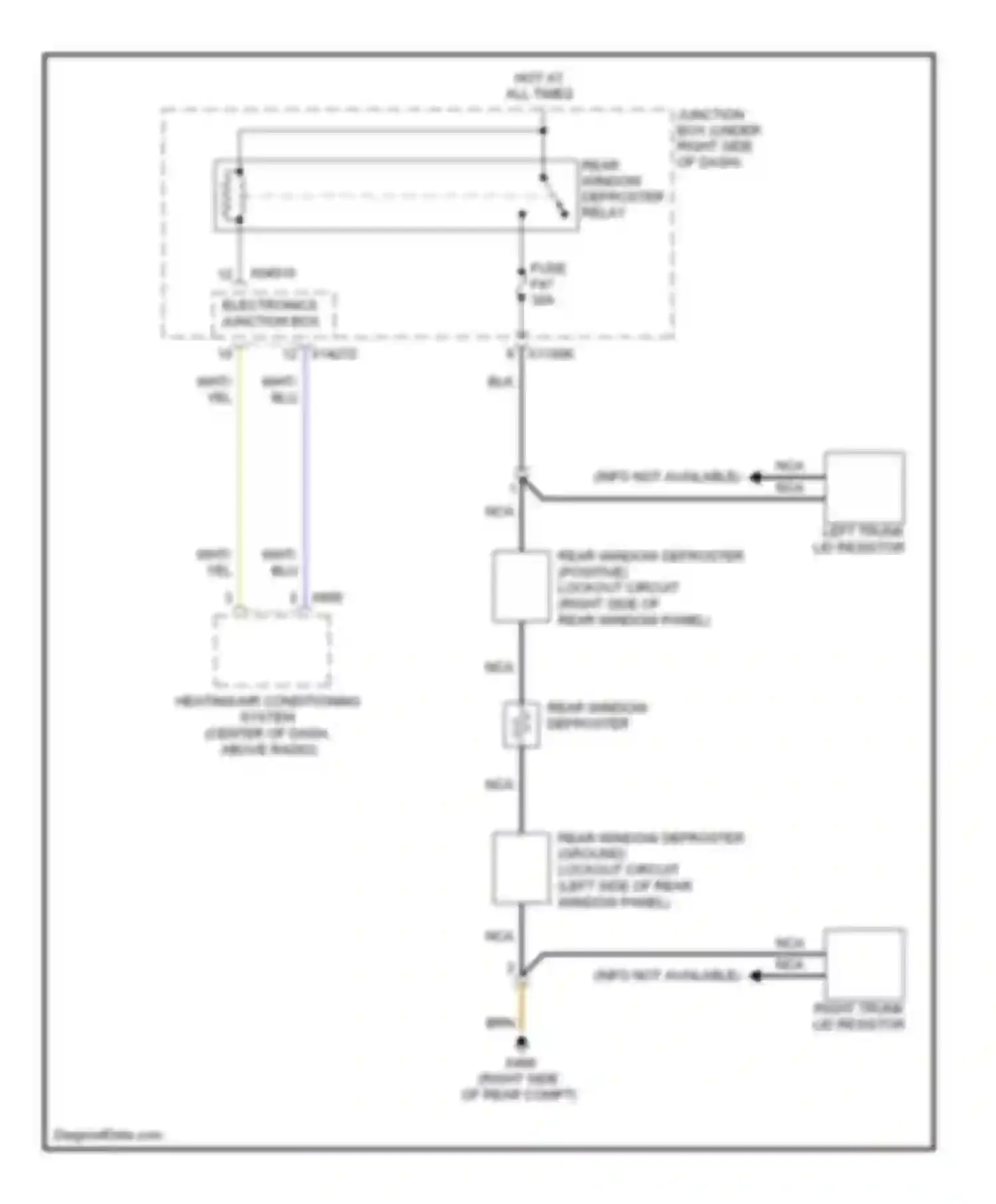

Wiring diagram rear window defroster relay (1 of 2)

Wiring diagram rear window defroster relay for BMW 1 series E81/E82/E87/E88 facelift (2007-2011)

Get access

BLK WIRE BLU WIRE BRN WIRE ELECTRONICS JUNCTION BOX FUSE HEATING/AIR CONDITIONING SYSTEM (CENTER OF DASH, ABOVE RADIO) HOT AT ALL TIMES JUNCTION BOX (UNDER RIGHT SIDE OF DASH) LEFT TRUNK LID RESISTOR NCA WIRE REAR WINDOW DEFROSTER REAR WINDOW DEFROSTER (GROUND) LOCKOUT CIRCUIT REAR WINDOW DEFROSTER (POSITIVE) LOCKOUT CIRCUIT REAR WINDOW DEFROSTER RELAY RIGHT TRUNK LID RESISTOR WHT WIRE YEL WIRE

Go to component: -> Defoggers circuit -> REAR WINDOW DEFROSTER RELAY

Wiring diagram rear window defroster relay (2 of 2)

Wiring diagram rear window defroster relay for BMW 1 series E81/E82/E87/E88 facelift (2007-2011)

Get access

B+ POTENTIAL DISTRIBUTOR BLK WIRE BLU WIRE BRN WIRE CAR ACCESS SYSTEM DME CONTROL MODULE DME CONTROL MODULE FUSE 09 DME RELAY DRIVER'S SEAT HEATING MODULE DYNAMIC STABILITY CONTROL (DSC) ELECTRONIC COOLANT PUMP ELECTRONICS JUNCTION BOX ENGINE ELECTRONIC FUSE CARRIER FUSE 05 FUSE 010 EXCEPT CONVERTIBLE FOOTWELL MODULE FROM FUSE 42 (DIAGRAM 1 OF 5) FROM FUSE 73 (DIAGRAM 2 OF 5) FUEL INJECTORS RELAY ENGINE BREATHER HEATING RELAY FUSE FUSE 35 FUSE 40 FUSE 41 FUSE 42 FUSE 44 FUSE 47 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 92 FUSE FUSE 88 FUSE 89 FUSE FUSE 78 FUSE 80 FUSE 72 FUSE 73 GRN WIRE INSTRUMENT CLUSTER CONTROL MODULE JUNCTION BOX (UNDER RIGHT SIDE OF DASH) LOCKOUT SIREN, TILT ALARM CIRCUIT FOR SENSOR REAR WINDOW DEFROSTER OBDII SOCKET REAR WINDOW DEFROSTER RELAY RED WIRE RED/BLK WIRE RIGHT REAR MICROWAVE SENSOR ROLLOVER PROTECTION CONTROLLER STEERING COLUMN SWITCH CLUSTER TO FUSE TO TERMINAL 15 RELAY (DIAGRAM 3 OF 5) TRAILER MODULE TRANSFER BOX CONTROL MODULE VIO WIRE W/O BOSCH W/ BOSCH WHT WIRE YEL WIRE

Go to component: -> Power distribution circuit (2 of 5) -> REAR WINDOW DEFROSTER RELAY
