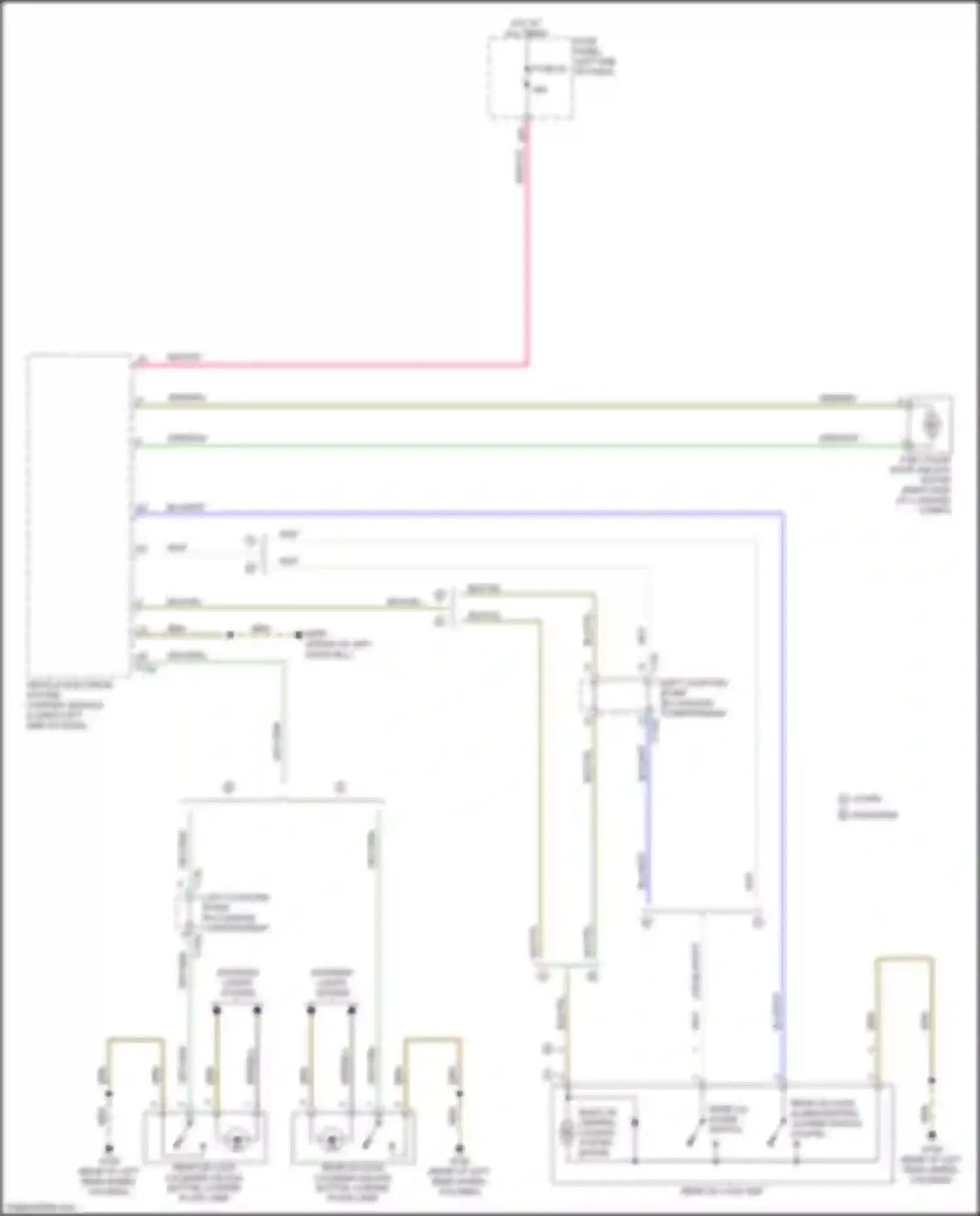

Trunk & fuel door release circuit for Audi TTS 8S (2014-2018)
Trunk & fuel door release circuit
BLK/YEL WIRE
BLU/WHT WIRE
BRN WIRE
BRN/BLU WIRE
COUPE
COUPE ROADSTER
FUEL FILLER DOOR UNLOCK MOTOR
FUSE 42
FUSE PANEL C
GRN/RED WIRE
GRN/WHT WIRE
GRY/GRN WIRE
HOT AT ALL TIMES
LEFT COUPLING POINT IN LUGGAGE COMPARTMENT
REAR LID ALARM SWITCH
REAR LID CENTRAL LOCKING SYSTEM MOTOR
REAR LID LOCK CYLINDER UNLOCK BUTTON, LICENSE PLATE LAMP
REAR LID LOCK UNIT
REAR LID LOCK/ ALARM/CENTRAL LOCKING SWITCH
RED/VIO WIRE
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
WHT WIRE
