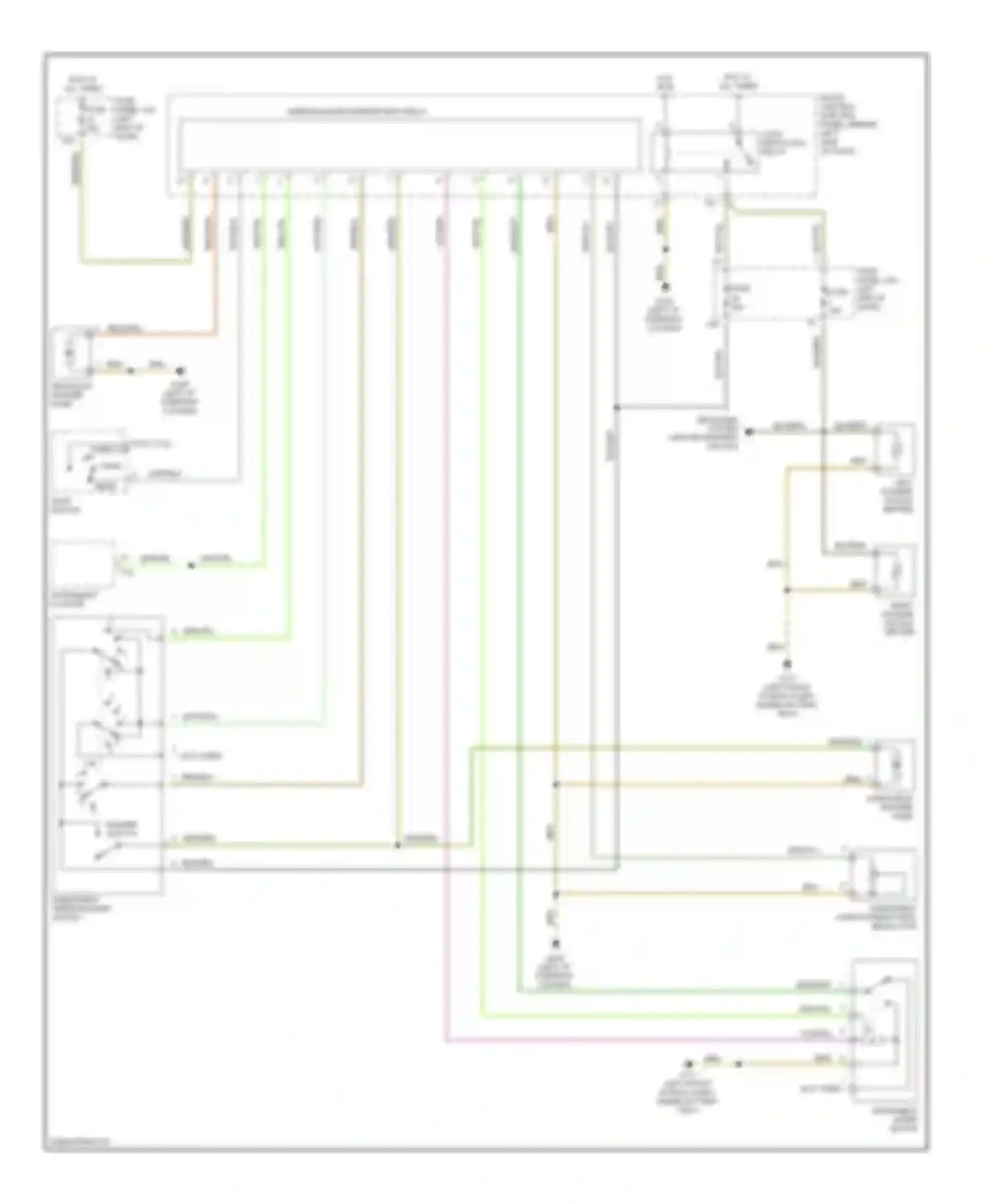

Front wiper/washer & headlamp washer circuit for Audi TT 8N (1998-2003)
Front wiper/washer & headlamp washer circuit
BLK/BRN WIRE
BLK/GRY WIRE
BLK/YEL WIRE
BRN WIRE
BRN/BLK WIRE
DEFOGGER SYSTEM (HEATED MIRRORS CIRCUIT)
FUSE
FUSE PANEL (ON LEFT END OF DASH)
FUSE PANEL (ON LEFT END OF DASH) FUSE
GRN/RED WIRE
GRN/VIO WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HEAD LIGHT SWITCH
HEADLIGHT WASHER PUMP
HOT AT ALL TIMES
HOT AT ALL TIMES OFF
HOT IN
INSTRUMENT CLUSTER
LEFT WASHER NOZZLE HEATER
LOAD REDUCTION RELAY
MICRO CENTRAL ELECTRIC PANEL (BEHIND LEFT SIDE OF DASH)
PARK
RED/GRN WIRE
RIGHT WASHER NOZZLE HEATER
RUN WIRE
VIO/GRN WIRE
WASHER SWITCH
WHT/BLK WIRE
WHT/GRN WIRE
WINDSHIELD WASHER PUMP
WINDSHIELD WIPER INTERMITTENT REGULATOR
WINDSHIELD WIPER MOTOR
WINDSHIELD WIPER/WASHER SWITCH
WIPER/WASHER INTERMITTENT RELAY
