Headlamps leveling circuit, with high intensity gas discharge headlights for Audi TT 8N (1998-2003)

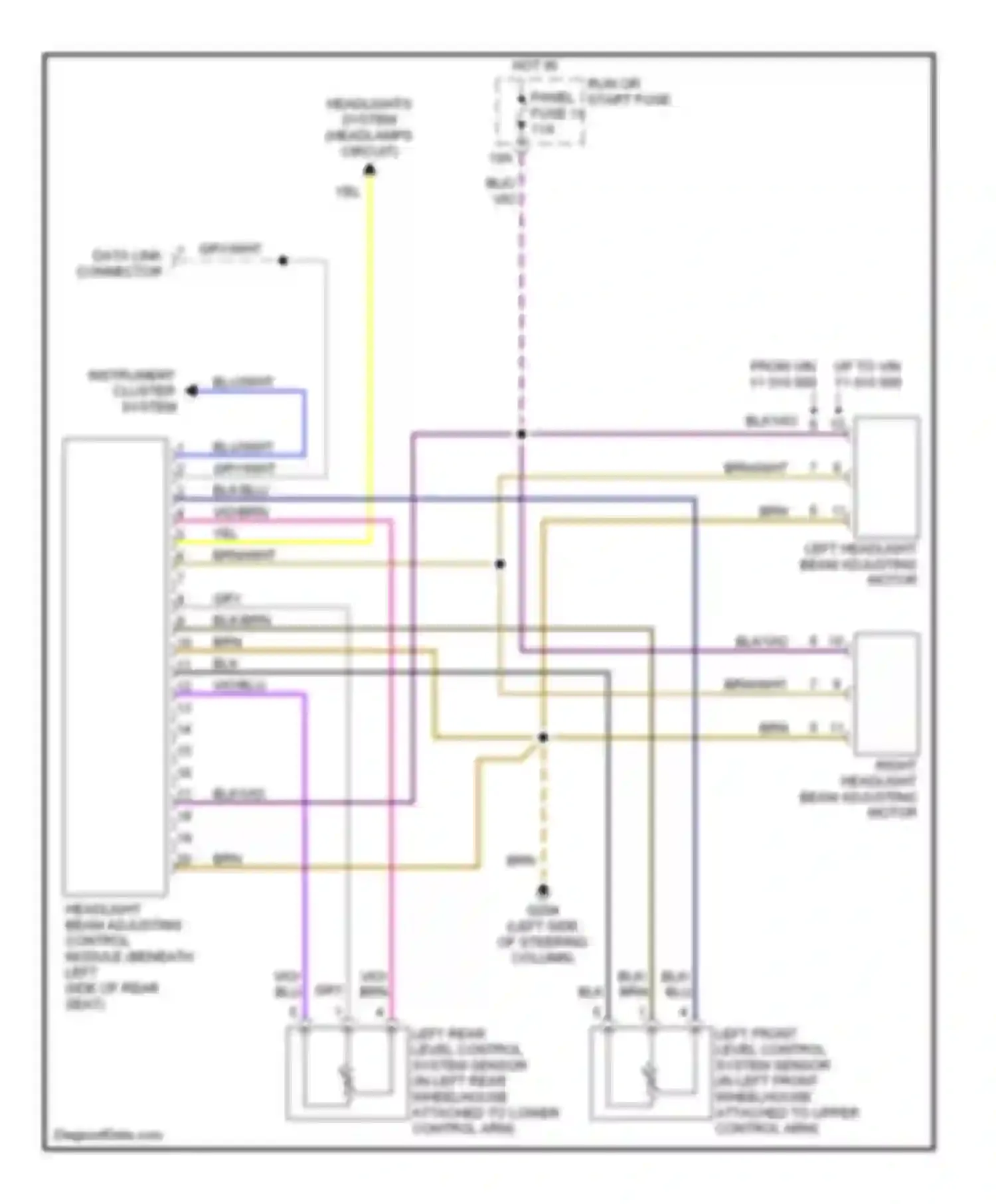

Headlamps leveling circuit, with high intensity gas discharge headlights
BLK WIRE
BLK/BLU WIRE
BLK/BRN WIRE
BLK/VIO WIRE
BLU WIRE
BLU/WHT WIRE
BRN WIRE
BRN/WHT WIRE
DATA LINK CONNECTOR
FROM VIN UP TO VIN
GRY WIRE
GRY/WHT WIRE
HEADLIGHT BEAM ADJUSTING CONTROL MODULE (BENEATH LEFT SIDE OF REAR SEAT)
HEADLIGHTS SYSTEM (HEADLAMPS CIRCUIT)
HOT IN RUN OR START FUSE PANEL FUSE 11
INSTRUMENT CLUSTER SYSTEM
LEFT HEADLIGHT BEAM ADJUSTING MOTOR
RIGHT HEADLIGHT BEAM ADJUSTING MOTOR
VIO WIRE
VIO/BLU WIRE
VIO/BRN WIRE
YEL WIRE
