Audi TT RS 8S facelift (2019-2024) sockets relay Wiring diagrams
This page contains all the electrical diagrams for the component. sockets relay, in which he is found in the car Audi TT RS 8S facelift (2019-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram sockets relay (1 of 2)
12 V SOCKET 2
ANTENNA AMPLIFIER 4 SHIELD
ANTI-THEFT ALARM SYSTEM SENSOR
BATTERY MONITORING CONTROL MODULE
BLK WIRE
BRN WIRE
CIGARETTE LIGHTER
CONVERTIBLE TOP FRONT LOCK SWITCH, LOCKING READINESS SWITCH
COUPE
DATA BUS ON BOARD DIAGNOSTIC INTERFACE
DIAGNOSTIC CONNECTION
DIGITAL SOUND SYSTEM CONTROL MODULE
DRIVER ASSISTANCE SYSTEMS FRONT CAMERA
DRIVER DOOR CONTROL MODULE
DRIVER EXTERIOR DOOR HANDLE SWITCH
DRIVER EXTERIOR DOOR HANDLE TOUCH SENSOR
DRIVER VANITY MIRROR LAMP
ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE
FRONT ROOF MODULE
GARAGE DOOR OPENER CONTROL HEAD
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER OPERATION BUTTON
INTERIOR REAR VIEW MIRROR
LEFT COUPLING POINT ON REAR LID
LEFT FRONT DOOR COUPLING POINT
LIGHT SWITCH
NECK HEATING RELAY
RAIN/LIGHT RECOGNITION SENSOR
REAR VIEW CAMERA SYSTEM CONTROL MODULE SHIELD
RIGHT FRONT SEAT COUPLING STATION
RIGHT NECK HEATING CONTROL MODULE
RIGHT NECK HEATING FAN
ROADSTER
SATELLITE TUNER ANTENNA SHIELD
SOCKETS RELAY
STEERING COLUMN ELECTRONICS CONTROL MODULE
TERMINAL 15 POWER SUPPLY RELAY
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
Go to component -> Ground distribution circuit (5 of 6) -> SOCKETS RELAY

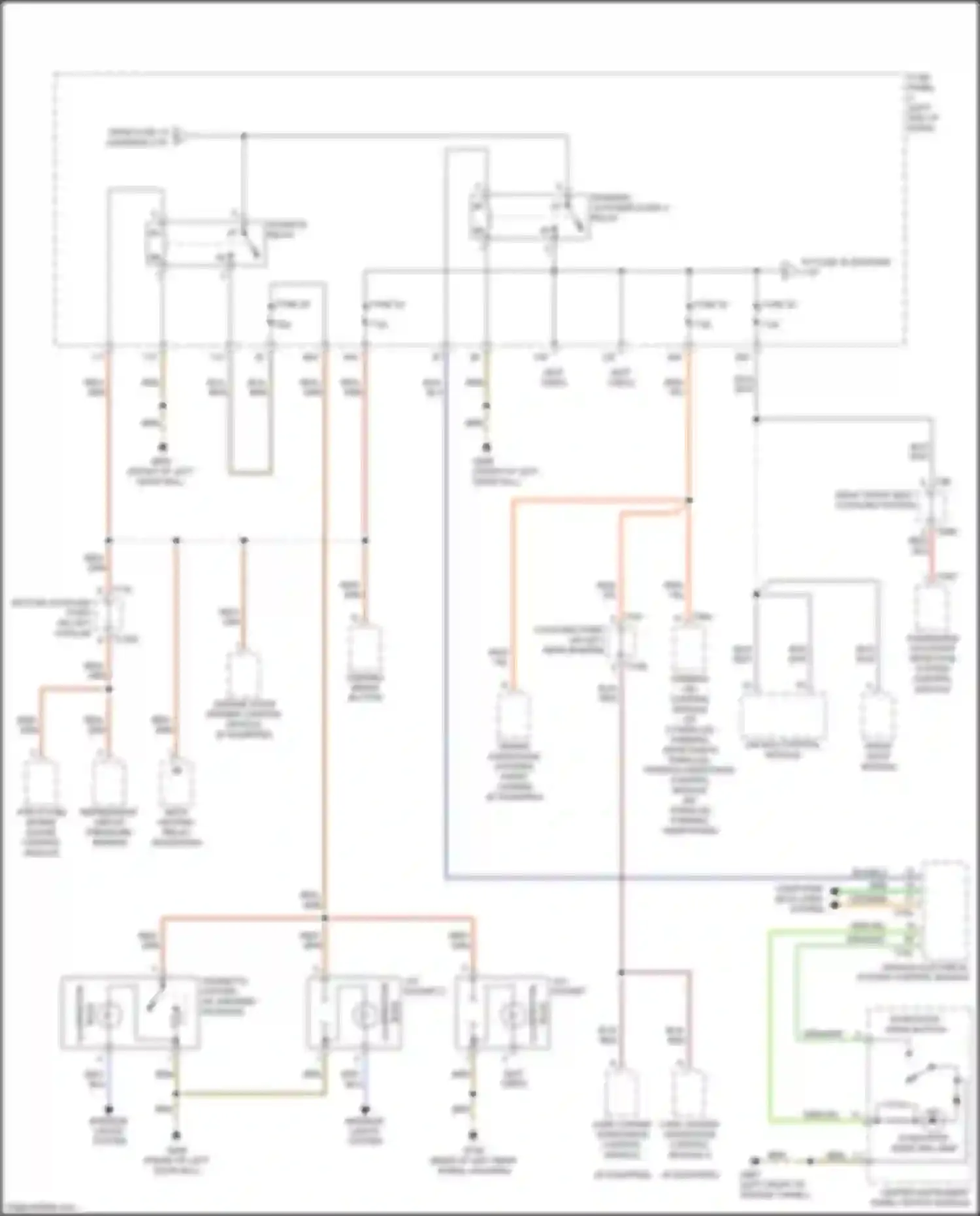

Wiring diagram sockets relay (2 of 2)
AIR BAG CONTROL MODULE
BLK WIRE
BLK/BLU WIRE
BLU WIRE
BOTTOM COUPLING POINT ON LEFT A-PILLAR
BRN WIRE
BULB
CENTER INSTRUMENT PANEL SWITCH MODULE
CIGARETTE LIGHTER
COMPUTER DATA LINES SYSTEM
COUPLING POINT ON LEFT REAR BUMPER
DRIVER ASSISTANCE SYSTEMS FRONT CAMERA
FROM FUSE 13 (DIAGRAM 2 OF 5)
FRONT ROOF MODULE
FUSE 32
FUSE 33
FUSE 34
FUSE 40
FUSE PANEL C
GARAGE DOOR OPENER CONTROL MODULE
GRN WIRE
GRN/WHT WIRE
GRN/YEL WIRE
GRY WIRE
ILLUMINATION
LANE CHANGE ASSISTANCE CONTROL MODULE
LANE CHANGE ASSISTANCE CONTROL MODULE 2
NECK HEATING RELAY
ORG/BRN WIRE
PARALLEL PARKING ASSISTANCE CONTROL MODULE
PARKING AID CONTROL MODULE
PARKING BRAKE BUTTON
PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE
RED WIRE
REFRIGERANT CIRCUIT PRESSURE SENSOR
RIGHT FRONT SEAT COUPLING STATION
ROADSTER
SOCKETS RELAY
START/STOP MODE BUTTON
START/STOP MODE IND LAMP
STRUCTURE BORNE SOUND CONTROL MODULE
TERMINAL 15 POWER SUPPLY RELAY
TO FUSE 35 (DIAGRAM 4 OF 5)
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
W/ PARALLEL PARKING ASSISTANCE
WHT WIRE
YEL WIRE
Go to component -> Power distribution circuit (3 of 5) -> SOCKETS RELAY
