Audi TT RS 8S facelift (2019-2024) digital sound system control module Wiring diagrams
This page contains all the electrical diagrams for the component. digital sound system control module, in which he is found in the car Audi TT RS 8S facelift (2019-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram digital sound system control module (1 of 5)
12 V SOCKET 2
ANTENNA AMPLIFIER 4 SHIELD
ANTI-THEFT ALARM SYSTEM SENSOR
BATTERY MONITORING CONTROL MODULE
BLK WIRE
BRN WIRE
CIGARETTE LIGHTER
CONVERTIBLE TOP FRONT LOCK SWITCH, LOCKING READINESS SWITCH
COUPE
DATA BUS ON BOARD DIAGNOSTIC INTERFACE
DIAGNOSTIC CONNECTION
DIGITAL SOUND SYSTEM CONTROL MODULE
DRIVER ASSISTANCE SYSTEMS FRONT CAMERA
DRIVER DOOR CONTROL MODULE
DRIVER EXTERIOR DOOR HANDLE SWITCH
DRIVER EXTERIOR DOOR HANDLE TOUCH SENSOR
DRIVER VANITY MIRROR LAMP
ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE
FRONT ROOF MODULE
GARAGE DOOR OPENER CONTROL HEAD
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER OPERATION BUTTON
INTERIOR REAR VIEW MIRROR
LEFT COUPLING POINT ON REAR LID
LEFT FRONT DOOR COUPLING POINT
LIGHT SWITCH
NECK HEATING RELAY
RAIN/LIGHT RECOGNITION SENSOR
REAR VIEW CAMERA SYSTEM CONTROL MODULE SHIELD
RIGHT FRONT SEAT COUPLING STATION
RIGHT NECK HEATING CONTROL MODULE
RIGHT NECK HEATING FAN
ROADSTER
SATELLITE TUNER ANTENNA SHIELD
SOCKETS RELAY
STEERING COLUMN ELECTRONICS CONTROL MODULE
TERMINAL 15 POWER SUPPLY RELAY
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
Go to component -> Ground distribution circuit (5 of 6) -> DIGITAL SOUND SYSTEM CONTROL MODULE

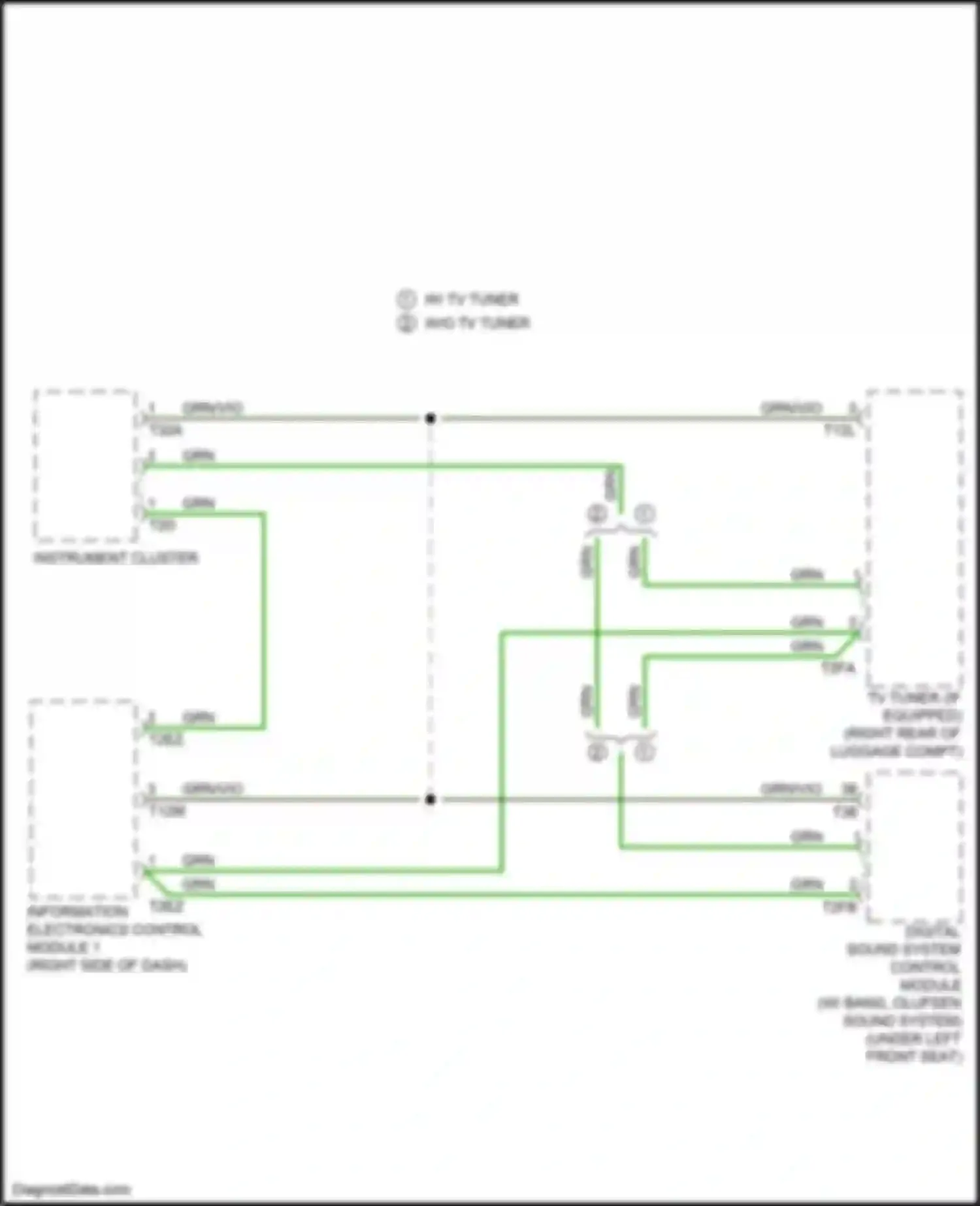

Wiring diagram digital sound system control module (2 of 5)
Go to component -> Most data bus circuit -> DIGITAL SOUND SYSTEM CONTROL MODULE
Wiring diagram digital sound system control module (3 of 5)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/GRY WIRE
BRN WIRE
CENTER SPEAKER
COMPUTER
COMPUTER DATA LINES SYSTEM
COUPE ROADSTER
DATA LINES
DIGITAL SOUND SYSTEM CONTROL MODULE
DRIVER VOLUME CONTROL
FUSE 12
FUSE 4
FUSE PANEL C
GRN WIRE
GRN/VIO WIRE
HOT AT ALL TIMES
INFORMATION ELECTRONICS CONTROL MODULE 1
INSTRUMENT CLUSTER
LTE ANTENNA 2
MICROPHONE UNIT
MOST DATA BUS CIRCUIT
MULTIMEDIA SYSTEM CONTROL HEAD
NCA WIRE
ORG/ WIRE
ORG/BRN WIRE
RED/BLK WIRE
RED/YEL WIRE
SOUND SYSTEMS
SYSTEM
TELEPHONE MICROPHONE
TV TUNER (IF EQUIPPED)
VIO WIRE
VIO/BLU WIRE
VIO/WHT WIRE
W/ BANG, OLUFSEN SOUND SYSTEM
WHT/BLU WIRE
WHT/YEL WIRE
YEL WIRE
Go to component -> Navigation circuit (4 of 4) -> DIGITAL SOUND SYSTEM CONTROL MODULE

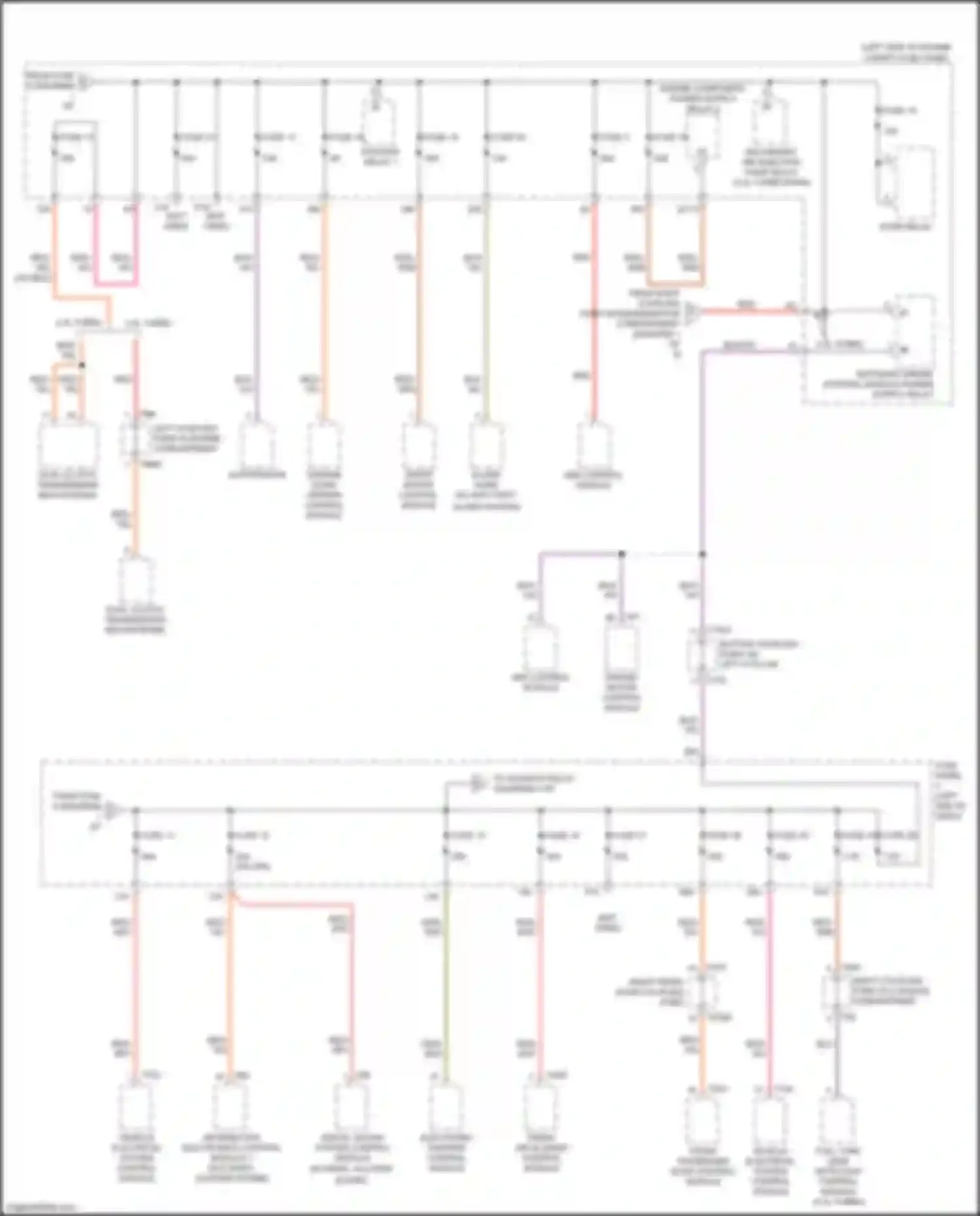

Wiring diagram digital sound system control module (4 of 5)
2.0L TURBO
ABS CONTROL MODULE
ALARM HORN
BLK WIRE
BLK/VIO WIRE
BOTTOM COUPLING POINT ON LEFT A-PILLAR
DIGITAL SOUND SYSTEM CONTROL MODULE
DUAL-CLUTCH TRANSMISSION MECHATRONIC
ELECTRONIC DAMPING CONTROL MODULE
ENGINE COMPONENT POWER SUPPLY RELAY 2
ENGINE/ MOTOR CONTROL MODULE
FRESH AIR BLOWER CONTROL MODULE
FROM FUSE 5 (DIAGRAM 1 OF 5)
FROM FUSE 8 (DIAGRAM 1 OF 5)
FROM RIGHT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT (DIAGRAM 1 OF 5)
FRONT PASSENGER DOOR CONTROL MODULE
FUEL TANK LEAK DETECTION CONTROL MODULE
FUSE 11
FUSE 12
FUSE 13
FUSE 14
FUSE 15
FUSE 16
FUSE 17
FUSE 18
FUSE 19
FUSE 2
FUSE 20
FUSE 21
FUSE 31
FUSE 38
FUSE 39
FUSE 41
FUSE 42
FUSE PANEL C
GARAGE DOOR OPENER CONTROL MODULE
GRN WIRE
GRY WIRE
HORN RELAY
INFORMATION ELECTRONICS CONTROL MODULE 1
LEFT COUPLING POINT IN ENGINE COMPARTMENT
MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY
N/A
RED WIRE
RIGHT COUPLING POINT IN LUGGAGE COMPARTMENT
RIGHT FRONT DOOR COUPLING POINT
SECONDARY AIR INJECTION PUMP RELAY
STARTER RELAY 1
SUPPRESSOR
TO SOCKETS RELAY (DIAGRAM 3 OF 5)
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
VIO WIRE
W/ BANG, OLUFSEN SOUND
WHT WIRE
WIPER MOTOR CONTROL MODULE
YEL WIRE
Go to component -> Power distribution circuit (2 of 5) -> DIGITAL SOUND SYSTEM CONTROL MODULE
Wiring diagram digital sound system control module (5 of 5)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/GRY WIRE
BRN WIRE
CENTER SPEAKER
COMPUTER
COMPUTER DATA LINES SYSTEM
COUPE ROADSTER
DATA LINES
DIGITAL SOUND SYSTEM CONTROL MODULE
DRIVER VOLUME CONTROL
FUSE 12
FUSE 4
FUSE PANEL C
GRN WIRE
GRN/VIO WIRE
HOT AT ALL TIMES
INFORMATION ELECTRONICS CONTROL MODULE 1
INSTRUMENT CLUSTER
LTE ANTENNA 2
MICROPHONE UNIT
MOST DATA BUS CIRCUIT
MULTIMEDIA SYSTEM CONTROL HEAD
NCA WIRE
ORG/ WIRE
ORG/BRN WIRE
RED/BLK WIRE
RED/YEL WIRE
SOUND SYSTEMS
SYSTEM
TELEPHONE MICROPHONE
TV TUNER (IF EQUIPPED)
VIO WIRE
VIO/BLU WIRE
VIO/WHT WIRE
W/ BANG, OLUFSEN SOUND SYSTEM
WHT/BLU WIRE
WHT/YEL WIRE
YEL WIRE
Go to component -> Radio circuit, w/ navigation (4 of 4) -> DIGITAL SOUND SYSTEM CONTROL MODULE
