Car Wiring Diagrams for Headlights circuit, w/ matrix beam for Audi SQ8 I facelift (2023-2024)

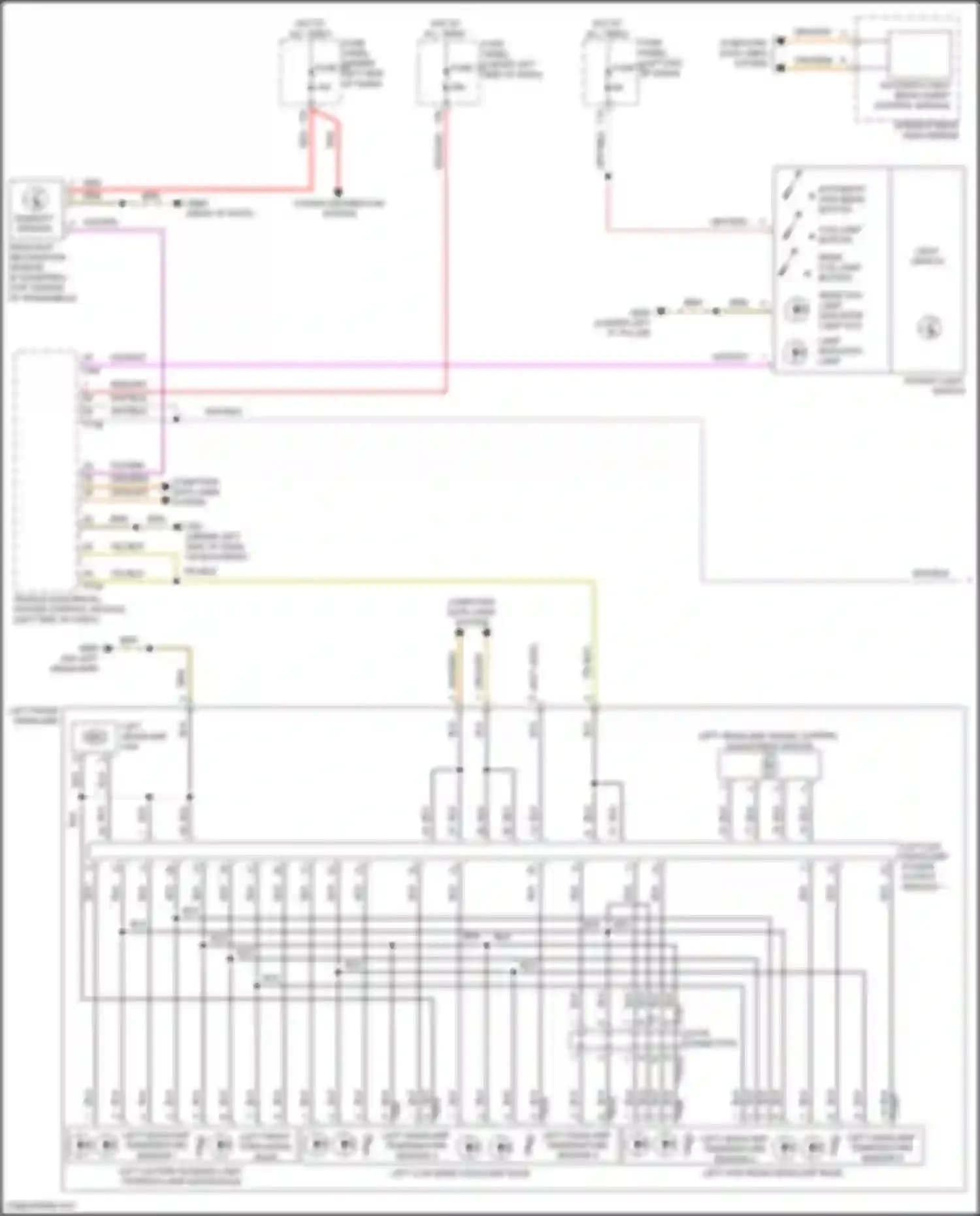

12-PIN CONNECTOR AUTOMATIC HIGH BEAM ASSIST CONTROL MODULE AUTOMATIC HIGH BEAM BUTTON BLK WIRE BRN WIRE COMPUTER DATA LINES SYSTEM FOG LAMP BUTTON FUSE 10 FUSE 11 FUSE 12 FUSE PANEL C FUSE PANEL E FUSE PANEL F GRY/RED WIRE HOT AT ALL TIMES HUMIDITY SENSOR INTERIOR REAR VIEW MIRROR LEFT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE LEFT FRONT HEADLAMP LEFT FRONT TURN SIGNAL BULB LEFT HEADLAMP FAN LEFT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR LEFT HEADLAMP TEMPERATURE SENSOR 1 LEFT HEADLAMP TEMPERATURE SENSOR 2 LEFT HEADLAMP TEMPERATURE SENSOR 3 LEFT HEADLAMP TEMPERATURE SENSOR 4 LEFT HEADLAMP TEMPERATURE SENSOR 5 LEFT HIGH BEAM HEADLAMP BULB LEFT LED HEADLAMP POWER OUTPUT MODULE 1 LEFT LOW BEAM HEADLAMP BULB LIGHT SWITCH ORG/BRN WIRE ORG/GRY WIRE POWER DISTRIBUTION SYSTEM RAIN/LIGHT RECOGNITION SENSOR REAR FOG LAMP BUTTON REAR FOG LAMP INDICATOR LAMP FOG LAMP INDICATOR LAMP RED WIRE RED/GRY WIRE ROTARY LIGHT SWITCH VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO/GRN WIRE VIO/WHT WIRE WHT/BLK WIRE YEL/BLK WIRE

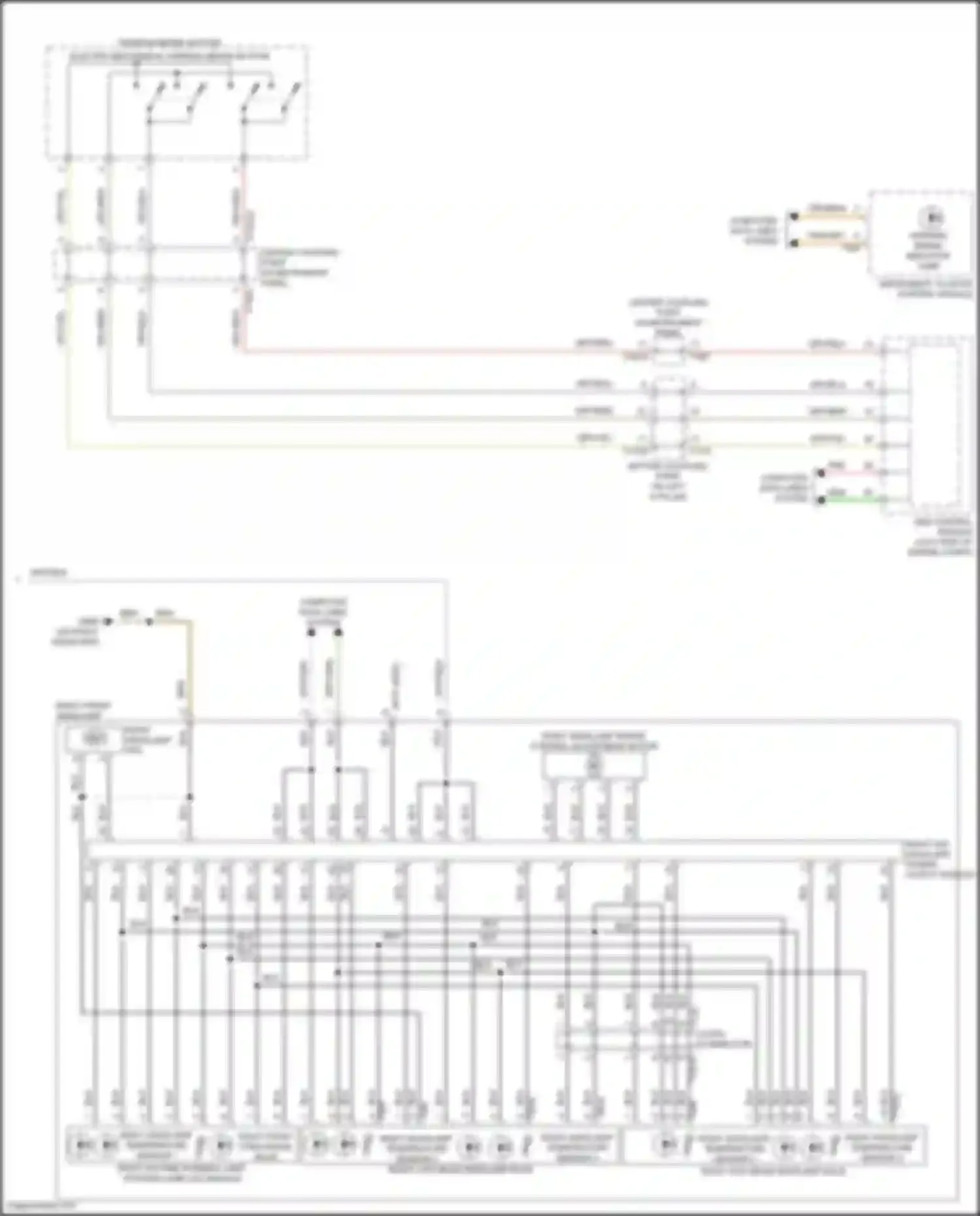

12-PIN CONNECTOR ABS CONTROL MODULE BLK WIRE BOTTOM COUPLING POINT ON LEFT A-PILLAR BRN WIRE CENTER COUPLING POINT ON INSTRUMENT PANEL COMPUTER DATA LINES SYSTEM ELECTRO- MECHANICAL PARKING BRAKE BUTTON GRN WIRE GRY/BLK WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/YEL WIRE INSTRUMENT CLUSTER CONTROL MODULE ORG/BRN WIRE ORG/GRY WIRE PARKING BRAKE BUTTON PARKING BRAKE INDICATOR LAMP PNK WIRE RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE RIGHT FRONT HEADLAMP RIGHT FRONT TURN SIGNAL BULB RIGHT HEADLAMP FAN RIGHT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR RIGHT HEADLAMP TEMPERATURE SENSOR 1 RIGHT HEADLAMP TEMPERATURE SENSOR 2 RIGHT HEADLAMP TEMPERATURE SENSOR 3 RIGHT HEADLAMP TEMPERATURE SENSOR 4 RIGHT HEADLAMP TEMPERATURE SENSOR 5 RIGHT HIGH BEAM HEADLAMP BULB RIGHT LED HEADLAMP POWER OUTPUT MODULE 1 RIGHT LOW BEAM HEADLAMP BULB WHT/BLK WIRE WHT/GRY WIRE
