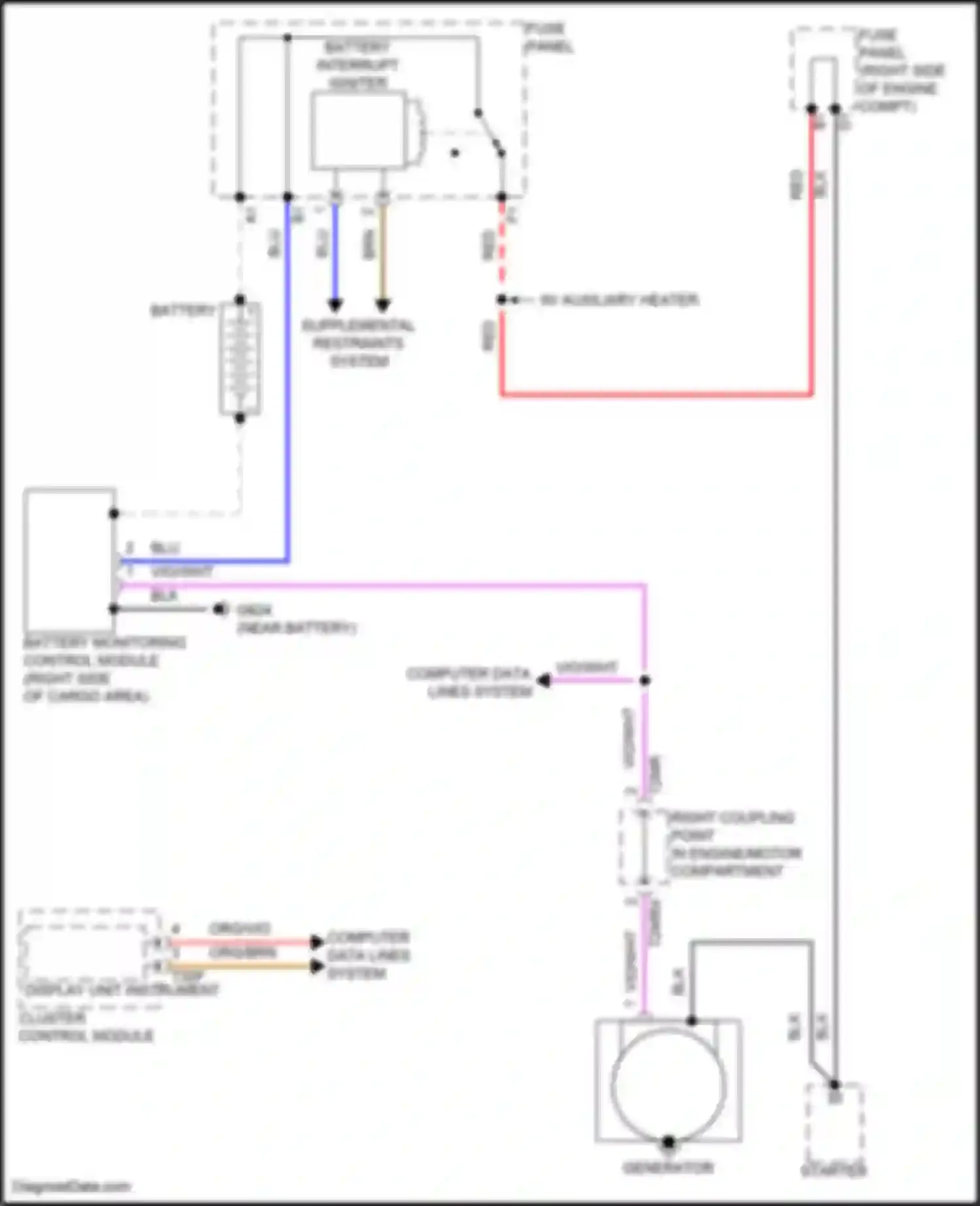

Audi SQ5 II facelift (2020-2024) Charging circuit

BATTERY BATTERY INTERRUPT IGNITER BATTERY MONITORING CONTROL MODULE BLK WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DISPLAY UNIT INSTRUMENT CLUSTER CONTROL MODULE FUSE PANEL FUSE PANEL A GENERATOR ORG/BRN WIRE ORG/VIO WIRE RED WIRE RIGHT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT STARTER SUPPLEMENTAL RESTRAINTS SYSTEM VIO/WHT WIRE W/ AUXILIARY HEATER
