Audi S7 4K (2019-2024) right side vent position sensor Wiring diagrams
This page contains all the electrical diagrams for the component. right side vent position sensor, in which he is found in the car Audi S7 4K (2019-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram right side vent position sensor (1 of 2)
BLK/BLU WIRE
BLK/BRN WIRE
BLK/GRN WIRE
BLU WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/VIO WIRE
BLU/WHT WIRE
BRN WIRE
BRN/BLK WIRE
CENTER INSTRUMENT PANEL VENT ILLUMINATION BULB
FRAGRANCE DIFFUSER SYSTEM ACTUATOR
FRAGRANCE DIFFUSER SYSTEM BLOWER
FRAGRANCE DIFFUSER SYSTEM CONTROL MODULE
FRAGRANCE DIFFUSER SYSTEM FUNCTIONAL UNIT
FRAGRANCE DIFFUSER SYSTEM TEMPERATURE SENSOR
FRONT HEATING, AIR CONDITIONING COUPLING POINT
GRN/BLK WIRE
GRN/BLU WIRE
GRN/YEL WIRE
GRY WIRE
GRY/BLU WIRE
GRY/BRN WIRE
GRY/RED WIRE
GRY/WHT WIRE
GRY/YEL WIRE
INSTRUMENT PANEL TEMPERATURE SENSOR
LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR
LEFT INSTRUMENT PANEL VENT ILLUMINATION BULB
LEFT SIDE VENT POSITION SENSOR
NCA WIRE
RED/BLK WIRE
RED/BRN WIRE
RED/YEL WIRE
RIGHT CENTER VENT POSITION SENSOR
RIGHT FRONT UPPER BODY VENT TEMPERATURE SENSOR
RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB
RIGHT SIDE VENT POSITION SENSOR
VIO/BLK WIRE
VIO/GRN WIRE
VIO/GRY WIRE
VIO/WHT WIRE
WHT/BRN WIRE
YEL/BLK WIRE
Go to component -> Automatic a/c circuit, w/o climatronic (2 of 5) -> RIGHT SIDE VENT POSITION SENSOR

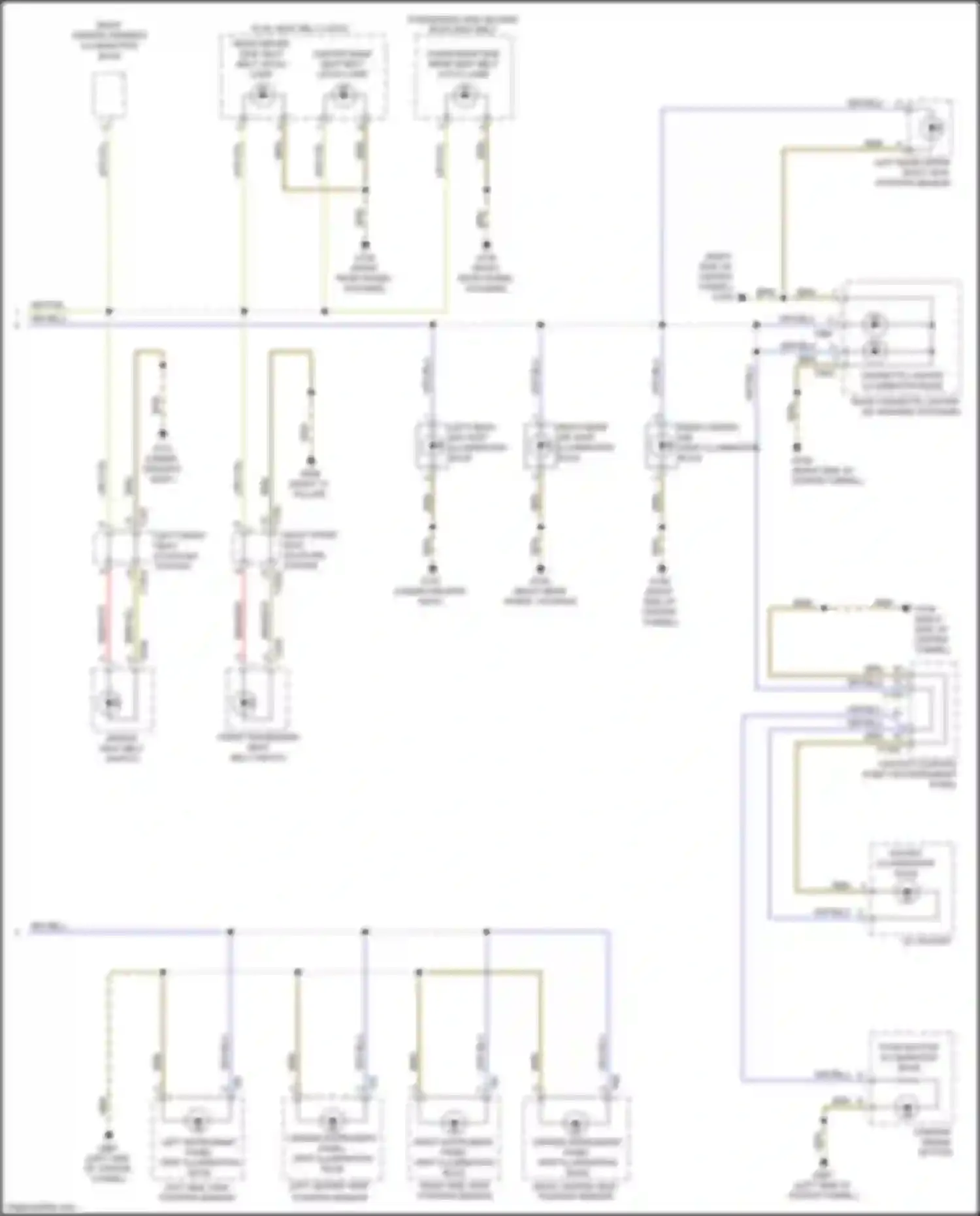

Wiring diagram right side vent position sensor (2 of 2)
BRN WIRE
BRN/WHT WIRE
BRN/YEL WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
CENTER INSTRUMENT PANEL VENT ILLUMINATION BULB
CENTER REAR SEAT BELT LATCH LAMP
CIGARETTE LIGHTER ILLUMINATION BULB
DRIVER SEAT BELT SWITCH
DUAL SEAT BELT LATCH
FRONT PASSENGER SEAT BELT SWITCH
GRY/BLU WIRE
GRY/YEL WIRE
LEFT CENTER VENT POSITION SENSOR
LEFT FRONT SEAT COUPLING STATION
LEFT INSTRUMENT PANEL VENT ILLUMINATION BULB
LEFT REAR AIR VENT ILLUMINATION BULB
LEFT REAR UPPER BODY VENT POSITION SENSOR
LEFT SIDE VENT POSITION SENSOR
PARKING BRAKE BUTTON
PASSENGER SIDE REAR SEAT BELT LATCH LAMP
PASSENGER SIDE SECOND ROW SEAT BELT
PUSH BUTTON ILLUMINATION BULB
REAR CENTER AIR VENT ILLUMINATION BULB
REAR CIGARETTE LIGHTER (W/ SMOKING PACKAGE)
REAR DRIVER SIDE SEAT BELT LATCH LAMP
RED/WHT WIRE
RIGHT CENTER ARMREST ILLUMINATION BULB
RIGHT CENTER VENT POSITION SENSOR
RIGHT FRONT SEAT COUPLING STATION
RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB
RIGHT REAR AIR VENT ILLUMINATION BULB
RIGHT SIDE VENT POSITION SENSOR
SOCKET ILLUMINATION BULB
Go to component -> Instrument illumination circuit (2 of 3) -> RIGHT SIDE VENT POSITION SENSOR
