Audi S7 4K (2019-2024) left headlamp fan Wiring diagrams
This page contains all the electrical diagrams for the component. left headlamp fan, in which he is found in the car Audi S7 4K (2019-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

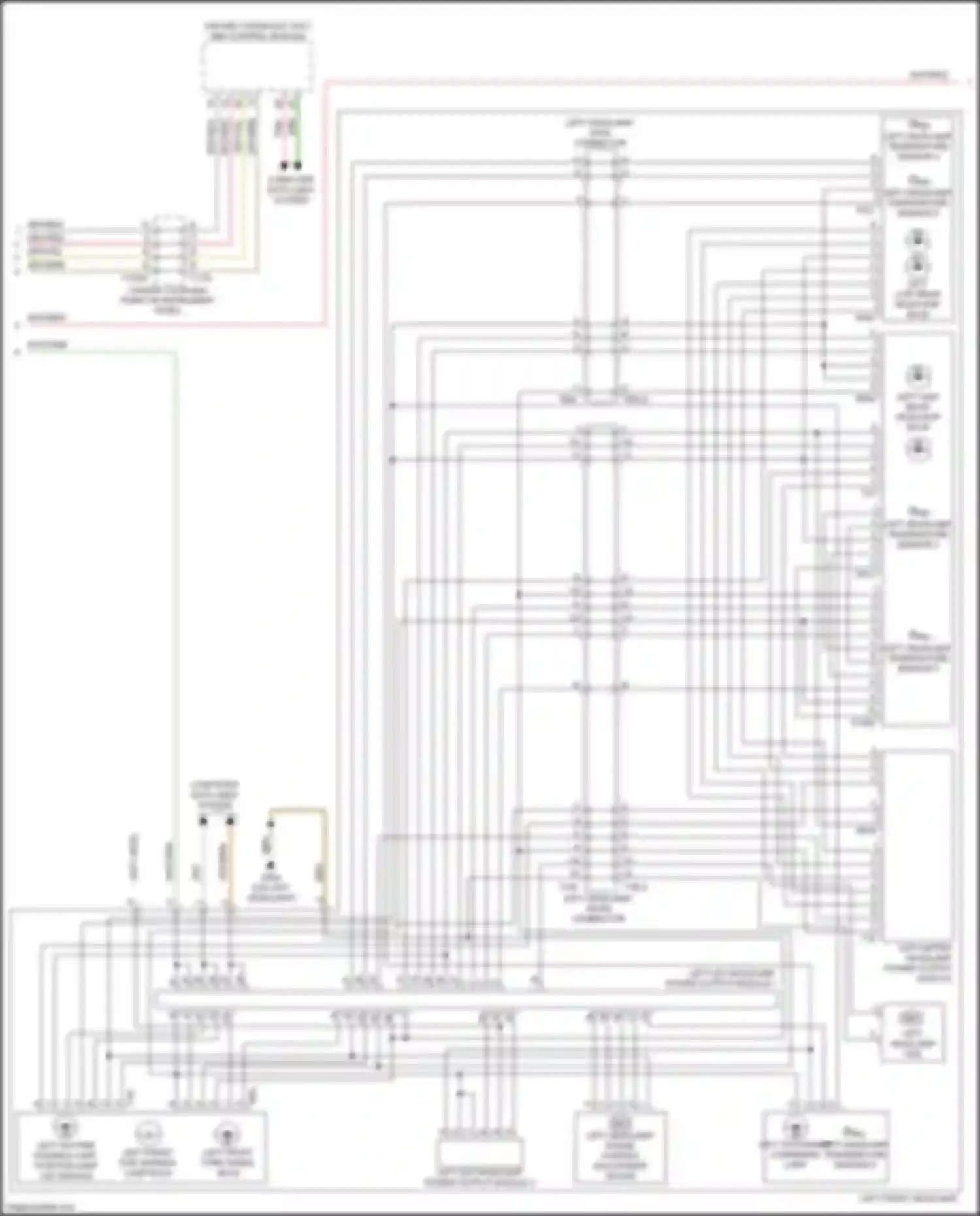

Wiring diagram left headlamp fan (1 of 2)
BRN WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
COMPUTER DATA LINES SYSTEM
GRN WIRE
GRY WIRE
GRY/BLK WIRE
GRY/BRN WIRE
GRY/RED WIRE
GRY/YEL WIRE
LEFT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE
LEFT FRONT HEADLAMP
LEFT FRONT SIDE MARKER LAMP BULB
LEFT FRONT TURN SIGNAL BULB
LEFT HEADLAMP 16-PIN CONNECTOR
LEFT HEADLAMP 8-PIN CONNECTOR
LEFT HEADLAMP FAN
LEFT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR
LEFT HEADLAMP TEMPERATURE SENSOR 2
LEFT HEADLAMP TEMPERATURE SENSOR 3
LEFT HEADLAMP TEMPERATURE SENSOR 4
LEFT HEADLAMP TEMPERATURE SENSOR 5
LEFT HEADLAMP TEMPERATURE SENSOR 6
LEFT HIGH BEAM HEADLAMP BULB
LEFT LED HEADLAMP POWER OUTPUT MODULE 1
LEFT LED HEADLAMP POWER OUTPUT MODULE 2
LEFT LOW BEAM HEADLAMP BULB
LEFT MATRIX HEADLAMP POWER OUTPUT MODULE
LEFT STATIONARY CORNERING LAMP
ORG/BRN WIRE
PNK WIRE
WHT/GRN WIRE
WHT/RED WIRE
Go to component -> Headlights circuit, w/ multiple matrix beam (2 of 3) -> LEFT HEADLAMP FAN

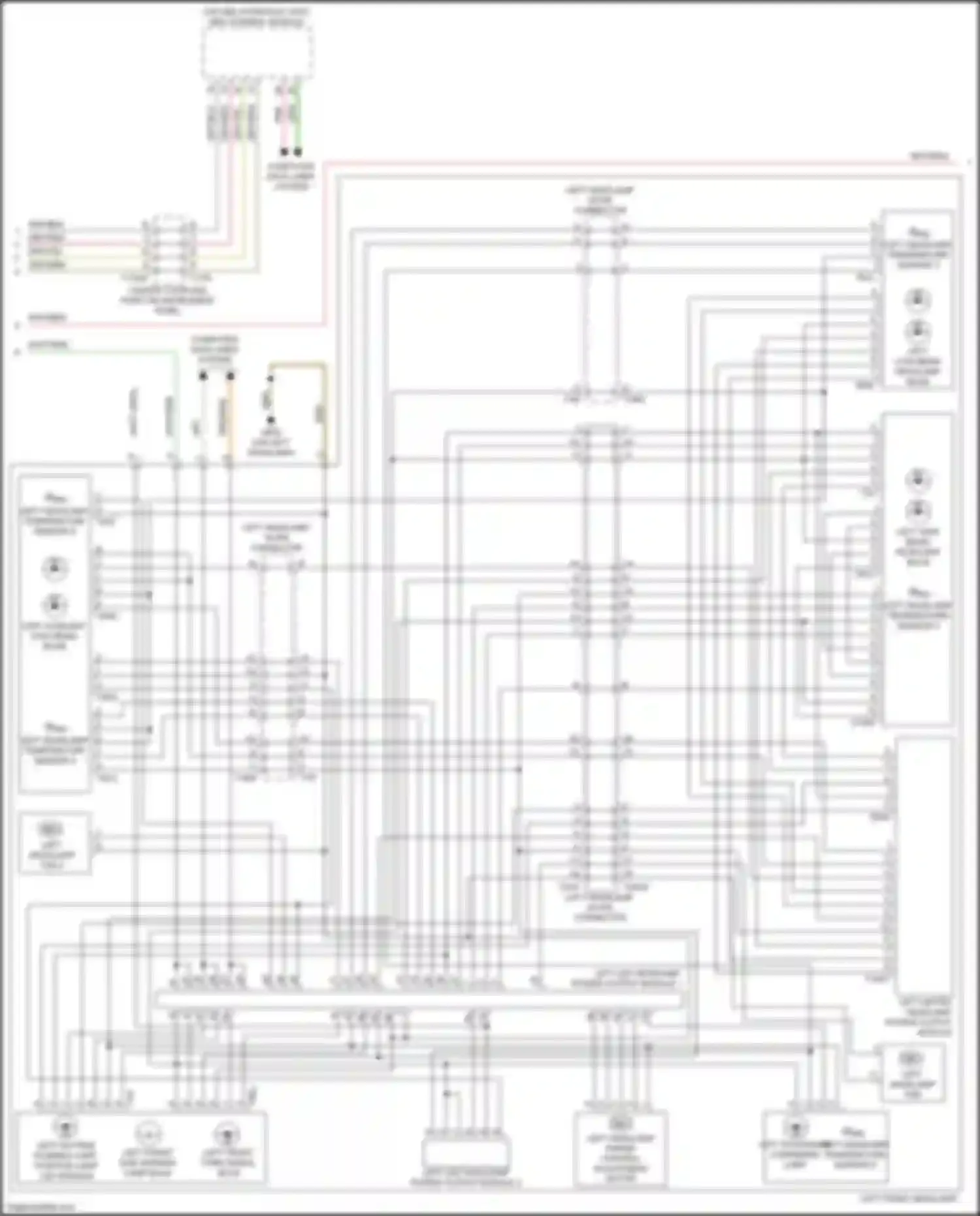

Wiring diagram left headlamp fan (2 of 2)
BRN WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
COMPUTER DATA LINES SYSTEM
GRN WIRE
GRY WIRE
GRY/BLK WIRE
GRY/BRN WIRE
GRY/RED WIRE
GRY/YEL WIRE
LEFT AUXILIARY HIGH BEAM BULB
LEFT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE
LEFT FRONT HEADLAMP
LEFT FRONT SIDE MARKER LAMP BULB
LEFT FRONT TURN SIGNAL BULB
LEFT HEADLAMP 16-PIN CONNECTOR
LEFT HEADLAMP 24-PIN CONNECTOR
LEFT HEADLAMP FAN
LEFT HEADLAMP FAN 2
LEFT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR
LEFT HEADLAMP TEMPERATURE SENSOR 2
LEFT HEADLAMP TEMPERATURE SENSOR 3
LEFT HEADLAMP TEMPERATURE SENSOR 4
LEFT HEADLAMP TEMPERATURE SENSOR 5
LEFT HEADLAMP TEMPERATURE SENSOR 6
LEFT HIGH BEAM HEADLAMP BULB
LEFT LED HEADLAMP POWER OUTPUT MODULE 1
LEFT LED HEADLAMP POWER OUTPUT MODULE 2
LEFT LOW BEAM HEADLAMP BULB
LEFT MATRIX HEADLAMP POWER OUTPUT MODULE
LEFT STATIONARY CORNERING LAMP
ORG/BRN WIRE
PNK WIRE
WHT/GRN WIRE
WHT/RED WIRE
Go to component -> Headlights circuit, w/o multiple matrix beam w/ additional laser high beam (2 of 3) -> LEFT HEADLAMP FAN
