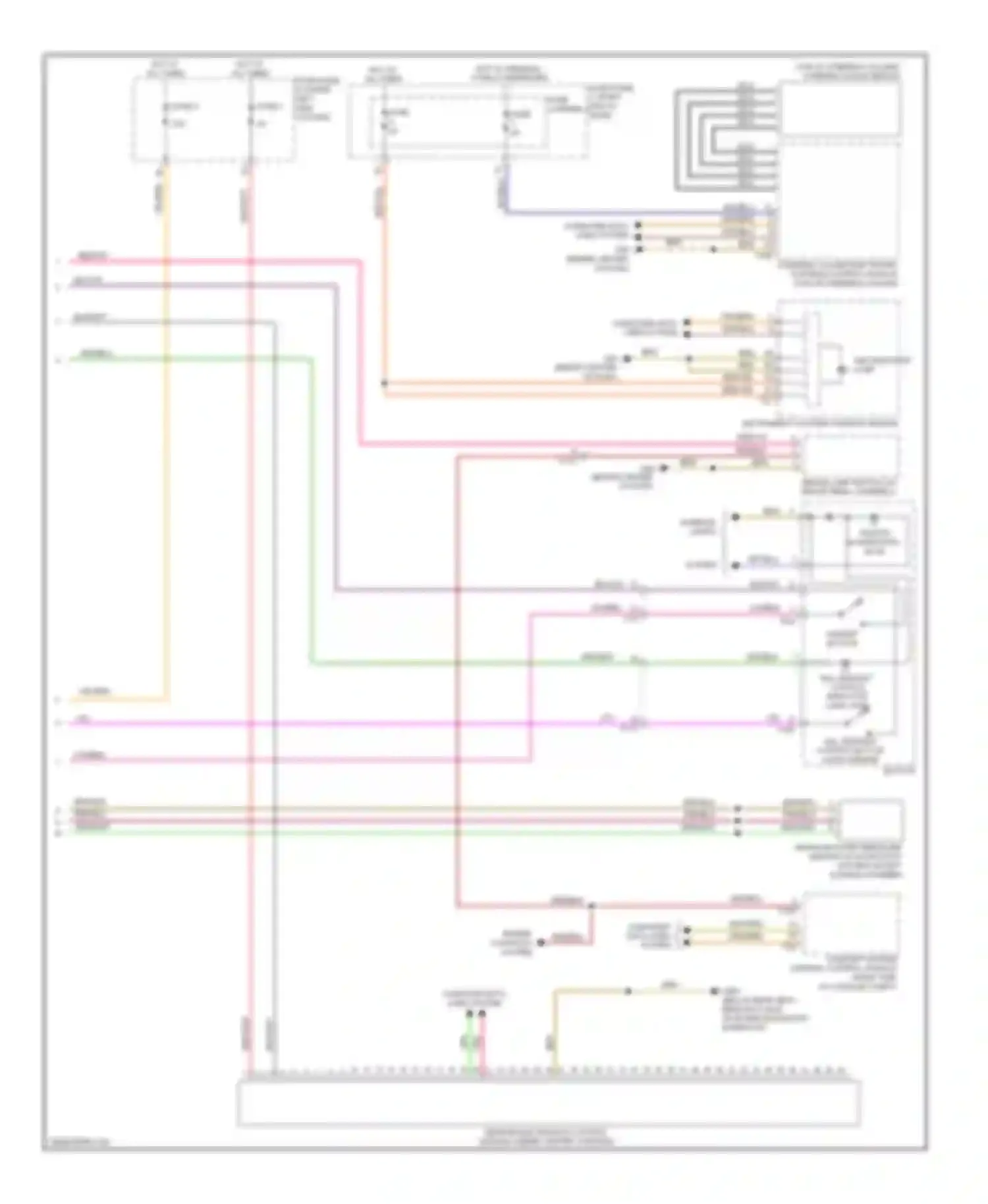

Audi S6 C7 (2012-2014) hot w/ terminal 15 relay energized Wiring diagrams

ABS CONTROL MODULE (LEFT SIDE OF ENGINE COMPT) ABS CONTROL MODULE FUSE 1 ABS HYDRAULIC PUMP ABS HYDRAULIC UNIT (NEAR ABS CONTROL MODULE) AUTO HOLD BUTTON BLK WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BRN WIRE BRN/BLK WIRE COMPUTER DATA LINES SYSTEM DRIVER CENTRAL LOCKING LOCK UNIT DRIVER DOOR CONTROL MODULE (IN DRIVER FRONT DOOR) DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 1 DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 2 DRIVING DYNAMICS REGULATION SWITCH VALVE 1 DRIVING DYNAMICS REGULATION SWITCH VALVE 2 ELECTRO- MECHANICAL PARKING BRAKE BUTTON FRONT END FUSE 1 FUSE 4 FUSE 5 FUSE CARRIER 1 FUSE CARRIER 2 FUSE 3 FUSE CARRIER 3 FUSE 3 FUSE PANEL B (LEFT END OF DASH) GRN WIRE GRN/BLK WIRE GRN/WHT WIRE HOT AT ALL TIMES HOT W/ TERMINAL 15 RELAY ENERGIZED LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE LEFT FRONT ABS WHEEL SPEED SENSOR (ON LEFT FRONT WHEEL HUB) LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE LEFT REAR ABS WHEEL SPEED SENSOR (ON LEFT REAR WHEEL HUB) ORG/BLK WIRE ORG/BRN WIRE PNK WIRE RED WIRE RED/BLU WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT FRONT ABS WHEEL SPEED SENSOR (ON RIGHT FRONT WHEEL HUB) RIGHT REAR ABS INLET VALVE RIGHT REAR ABS OUTLET VALVE RIGHT REAR ABS WHEEL SPEED SENSOR (ON RIGHT REAR WHEEL HUB) SAFETY FUSE FUSE CARRIER VIO WIRE VIO/BRN WIRE WHT WIRE WHT/RED WIRE WHT/YEL WIRE YEL WIRE YEL/RED WIRE

ABS INDICATOR LAMP ASR/ESP BUTTON BLK/BLU WIRE BLK/VIO WIRE BLK/WHT WIRE BRAKE BOOSTER PRESSURE SENSOR (W/ START/STOP SYSTEM) (IN LEFT PLENUM CHAMBER) BRAKE LAMP SWITCH (ON BRAKE PEDAL ASSEMBLY) BRN WIRE BRN/BLK WIRE COMFORT SYSTEM CENTRAL CONTROL MODULE (RIGHT SIDE OF LUGGAGE COMPT) COMPUTER DATA LINES SYSTEM ENGINE CONTROLS SYSTEM FUSE FUSE 3 FUSE 4 FUSE CARRIER 1 FUSE PANEL C (RIGHT END OF DASH) FUSE PANEL D (UNDER LEFT SIDE OF DASH) GRN WIRE GRN/BLK WIRE GRN/WHT WIRE GRY/BLU WIRE HILL DESCENT CONTROL BUTTON (AWD) ASR/ESP BUTTON HILL DESCENT CONTROL INDICATOR LAMP (AWD) HOT AT ALL TIMES HOT W/ TERMINAL 15 RELAY ENERGIZED INSTRUMENT CLUSTER CONTROL MODULE INTERIOR LIGHTS NCA WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE PNK WIRE RED/BLK WIRE RED/BLU WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE SENSOR ELECTRONICS CONTROL MODULE (UNDER CENTER CONSOLE) STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE (TOP OF STEERING COLUMN) SWITCH ILLUMINATION BULB SYSTEM VIO WIRE VIO/BRN WIRE YEL/RED WIRE
