Audi S6 C7 (2012-2014) driver multicontour seat control module Wiring diagrams
This page contains all the electrical diagrams for the component. driver multicontour seat control module, in which he is found in the car Audi S6 C7 (2012-2014). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram driver multicontour seat control module (1 of 2)
Go to component -> Computer data lines circuit (1 of 4) -> DRIVER MULTICONTOUR SEAT CONTROL MODULE

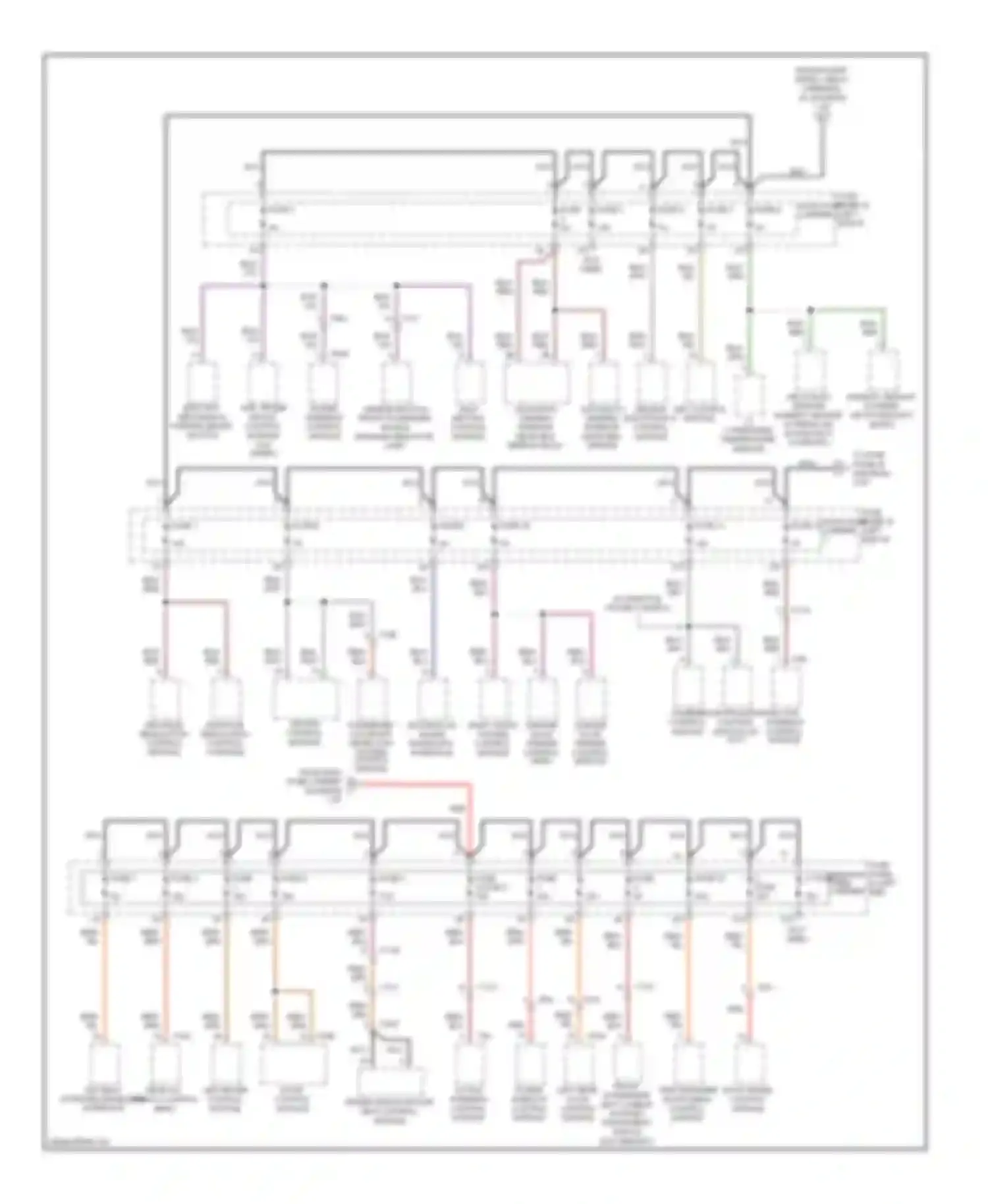

Wiring diagram driver multicontour seat control module (2 of 2)
Go to component -> Power distribution circuit (5 of 9) -> DRIVER MULTICONTOUR SEAT CONTROL MODULE
