Audi S6 C5 (1999-2004) left front headlight/ park light/ turn signal assembly Wiring diagrams
This page contains all the electrical diagrams for the component. left front headlight/ park light/ turn signal assembly, in which he is found in the car Audi S6 C5 (1999-2004). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

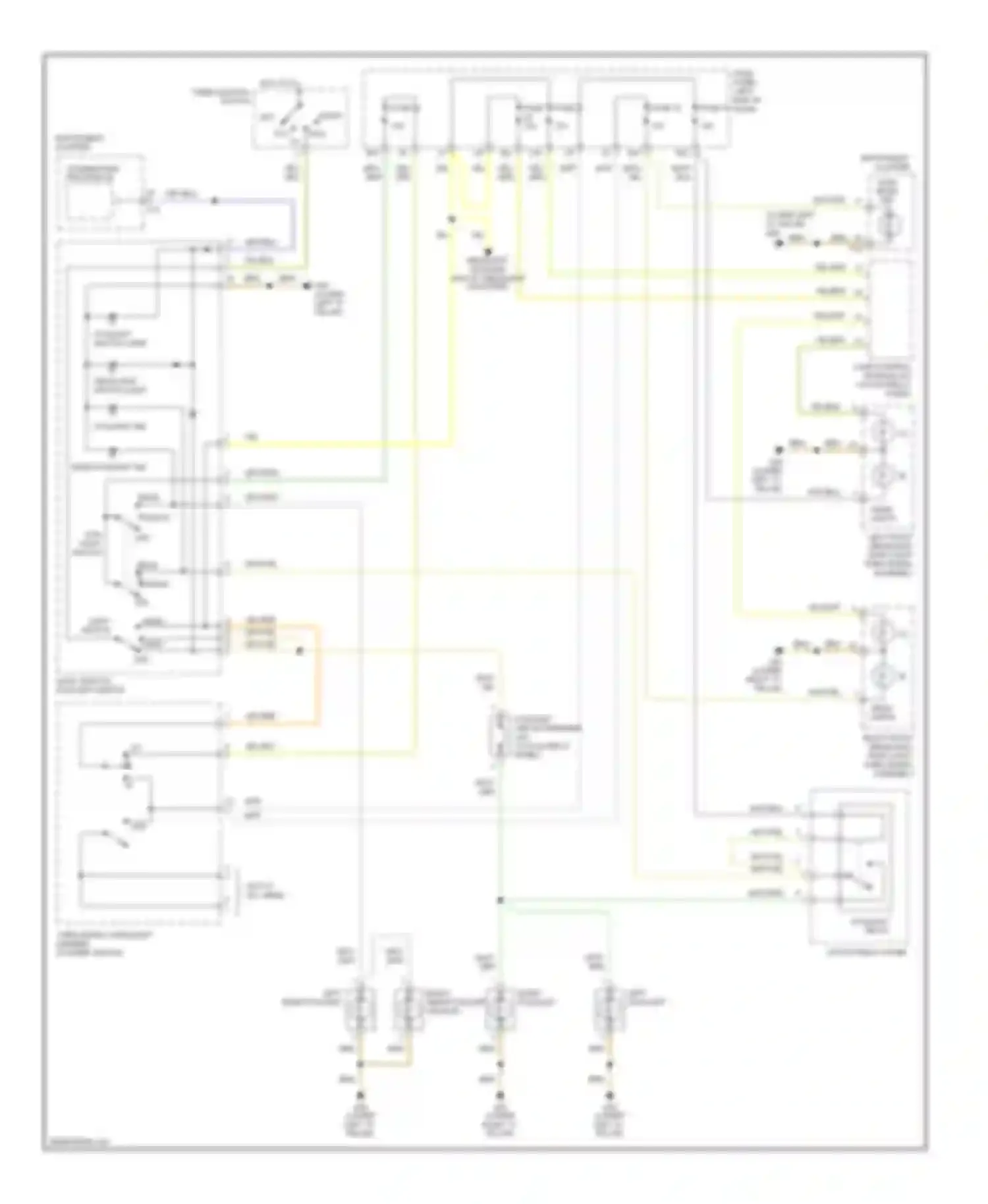

Wiring diagram left front headlight/ park light/ turn signal assembly (1 of 2)
Go to component -> Headlamps & fog lamps circuit, with drl, with driver information center -> LEFT FRONT HEADLIGHT/ PARK LIGHT/ TURN SIGNAL ASSEMBLY

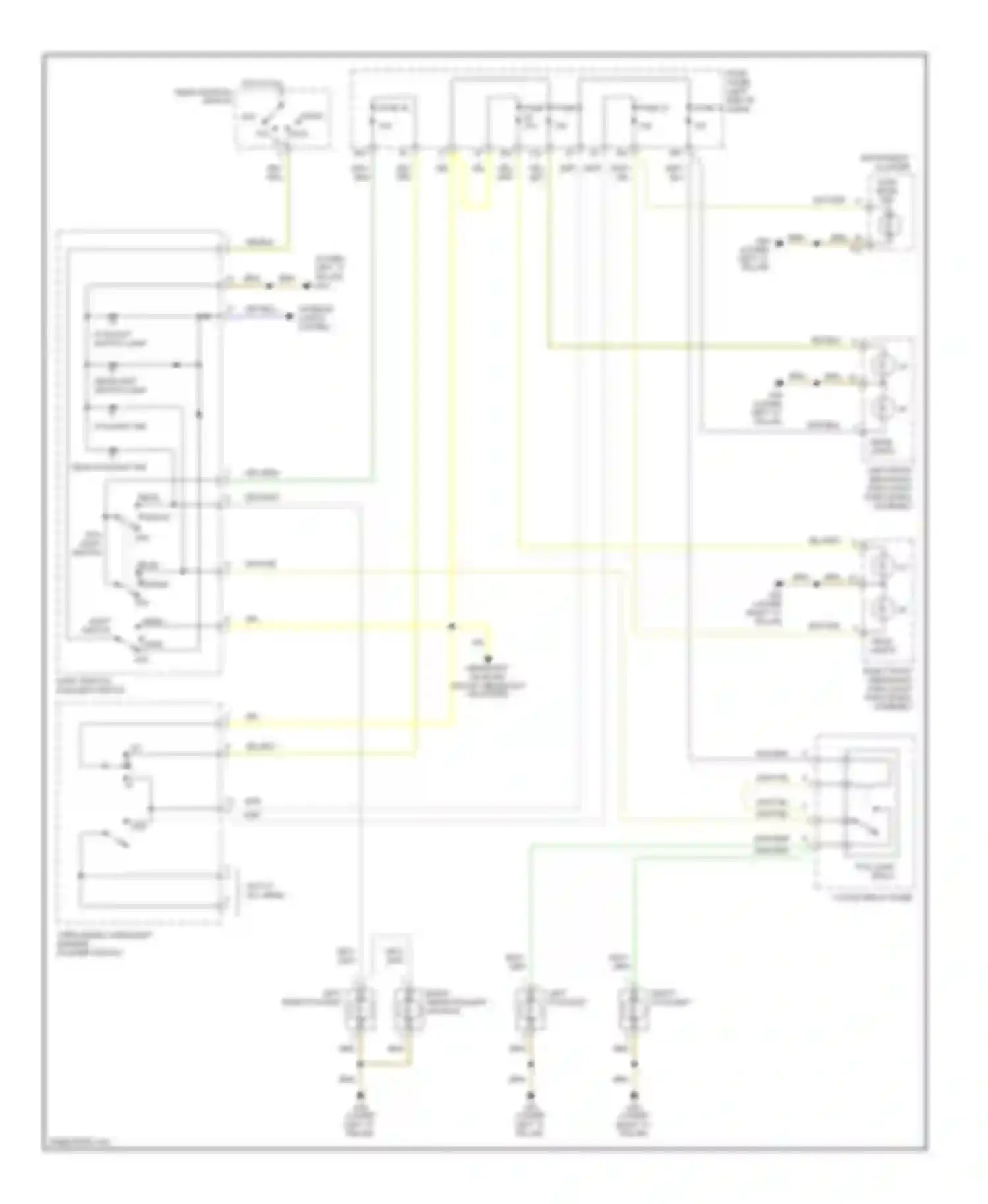

Wiring diagram left front headlight/ park light/ turn signal assembly (2 of 2)
Go to component -> Headlamps & fog lamps circuit, without drl, without driver information center -> LEFT FRONT HEADLIGHT/ PARK LIGHT/ TURN SIGNAL ASSEMBLY
