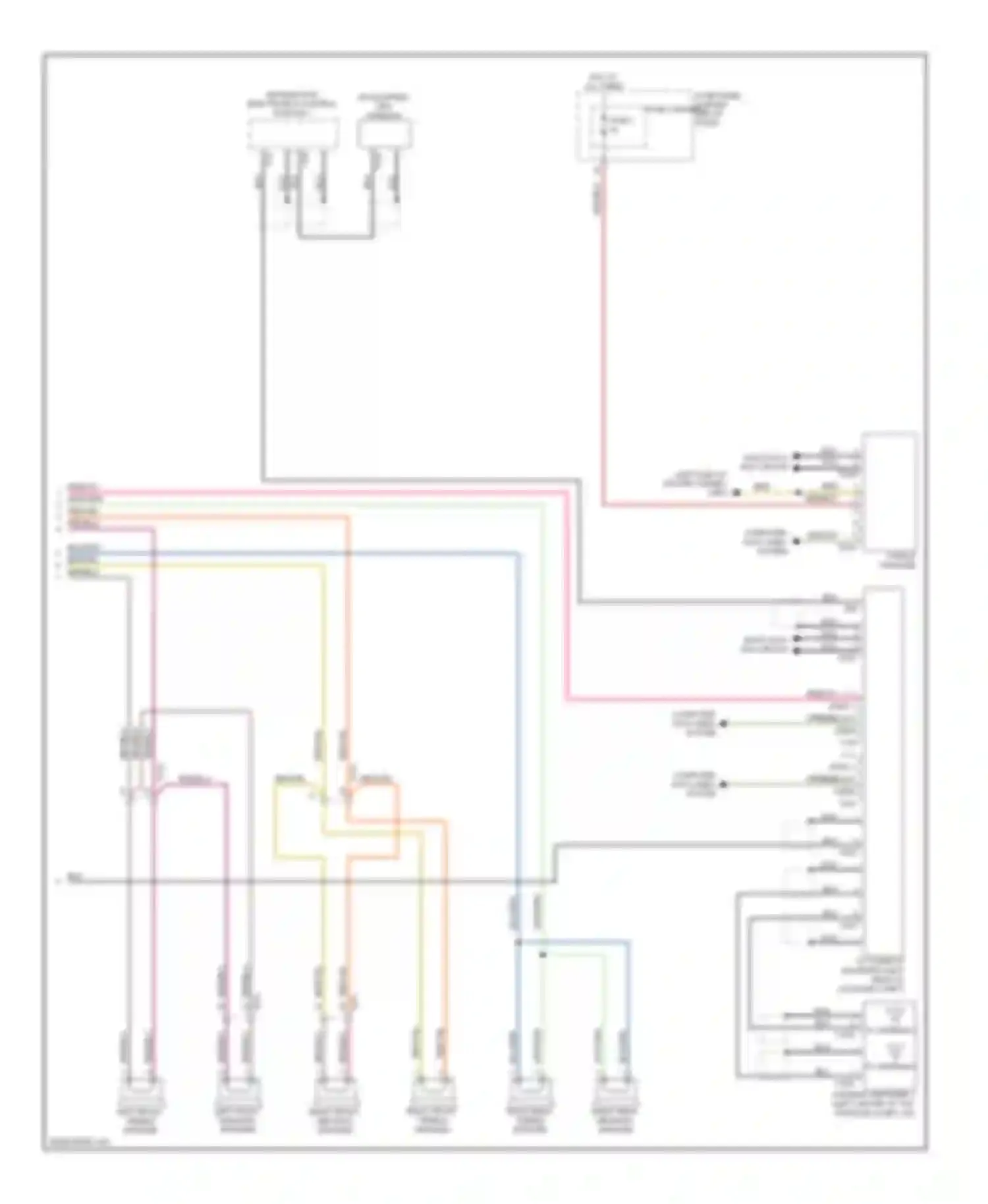

Radio circuit, convertible standard mmi & basic mmi for Audi S5 I facelift (2011-2016)

18 PIN CONNECTOR ANTENNA ANTENNA AMPLIFIER ANTENNA AMPLIFIER (RIGHT CENTER OF TOP STORAGE COMPT LID) ANTENNA AMPLIFIER 4 ANTENNA AMPLIFIER 4 (LEFT CENTER OF TOP STORAGE COMPT LID) BLK WIRE BLK/WHT WIRE BLU/GRN WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/VIO WIRE BRN/YEL WIRE CENTER MID- TREBLE SPEAKER CENTRAL LOCKING, ANTI-THEFT ALARM SYSTEM CENTRAL LOCKING, ANTI-THEFT ALARM SYSTEM ANTENNA COMFORT SYSTEM CENTRAL CONTROL MODULE COMFORT SYSTEM CENTRAL CONTROL MODULE (RIGHT REAR OF LUGGAGE COMPT) COMPUTER DATA LINES SYSTEM DIGITAL RADIO ANTENNA FUSE 4 FUSE 5 FUSE CARRIER 3 FUSE CARRIER 5 GRN/VIO WIRE HOT AT ALL TIMES LEFT ANTENNA MODULE LEFT REAR MID-BASS SPEAKER LEFT REAR TREBLE SPEAKER MOST DATA BUS CIRCUIT NCA WIRE POWER DISTRIBUTION SYSTEM RADIO RADIO ANTENNA 2 RADIO, TV ANTENNA RED/BLU WIRE RED/VIO WIRE RED/YEL WIRE RELAY/FUSE PANEL F RELAY/FUSE PANEL F (RIGHT SIDE OF LUGGAGE COMPT) SATELLITE ANTENNA SUBWOOFER (IF EQUIPPED) TV ANTENNA 3 WHT WIRE WHT/GRN WIRE WHT/RED WIRE WHT/YEL WIRE

1 2 3 (PINS: 4 TO 12 NOT USED) 1 2 3 (PINS: 4 TO 20 NOT USED) ANTENNA AMPLIFIER 2 (IN RIGHT "C" PILLAR) ANTENNA AMPLIFIER 2 (LEFT CENTER OF TOP STORAGE COMPT LID) BLK WIRE BLU/GRN WIRE BRN WIRE BRN/BLU WIRE BRN/YEL WIRE CD/DVD CHANGER COMPUTER DATA LINES SYSTEM FUSE 1 FUSE CARRIER 2 FUSE PANEL D FUSE PANEL D (RIGHT END OF DASH) GPS ANTENNA GRN/VIO WIRE HOT AT ALL TIMES INFORMATION ELECTRONICS CONTROL MODULE 1 LEFT FRONT MID-BASS SPEAKER LEFT FRONT TREBLE SPEAKER MOST DATA BUS CIRCUIT NCA WIRE RED/BLK WIRE RED/BLU WIRE RED/VIO WIRE RED/YEL WIRE RIGHT FRONT MID-BASS SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT REAR MID- BASS SPEAKER RIGHT REAR TREBLE SPEAKER TIM TV ANTENNA 1 TV ANTENNA 2 TV TUNER (IF EQUIPPED) TV TUNER (IF EQUIPPED) (LEFT REAR OF LUGGAGE COMPT) W/O REAR VIEW CAMERA WHT/GRN WIRE
