Audi S4 B7 (2004-2008) fuse holder Wiring diagrams
This page contains all the electrical diagrams for the component. fuse holder, in which he is found in the car Audi S4 B7 (2004-2008). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram fuse holder (1 of 35)
Go to component -> Anti-theft circuit -> FUSE HOLDER
Wiring diagram fuse holder (3 of 35)
Go to component -> Body control modules circuit -> FUSE HOLDER
Wiring diagram fuse holder (4 of 35)
Go to component -> Data link connector circuit -> FUSE HOLDER
Wiring diagram fuse holder (5 of 35)
Go to component -> Exterior lamps circuit, avant -> FUSE HOLDER
Wiring diagram fuse holder (6 of 35)
Go to component -> Exterior lamps circuit, sedan -> FUSE HOLDER
Wiring diagram fuse holder (7 of 35)
Go to component -> Headlights circuit, with standard headlights -> FUSE HOLDER

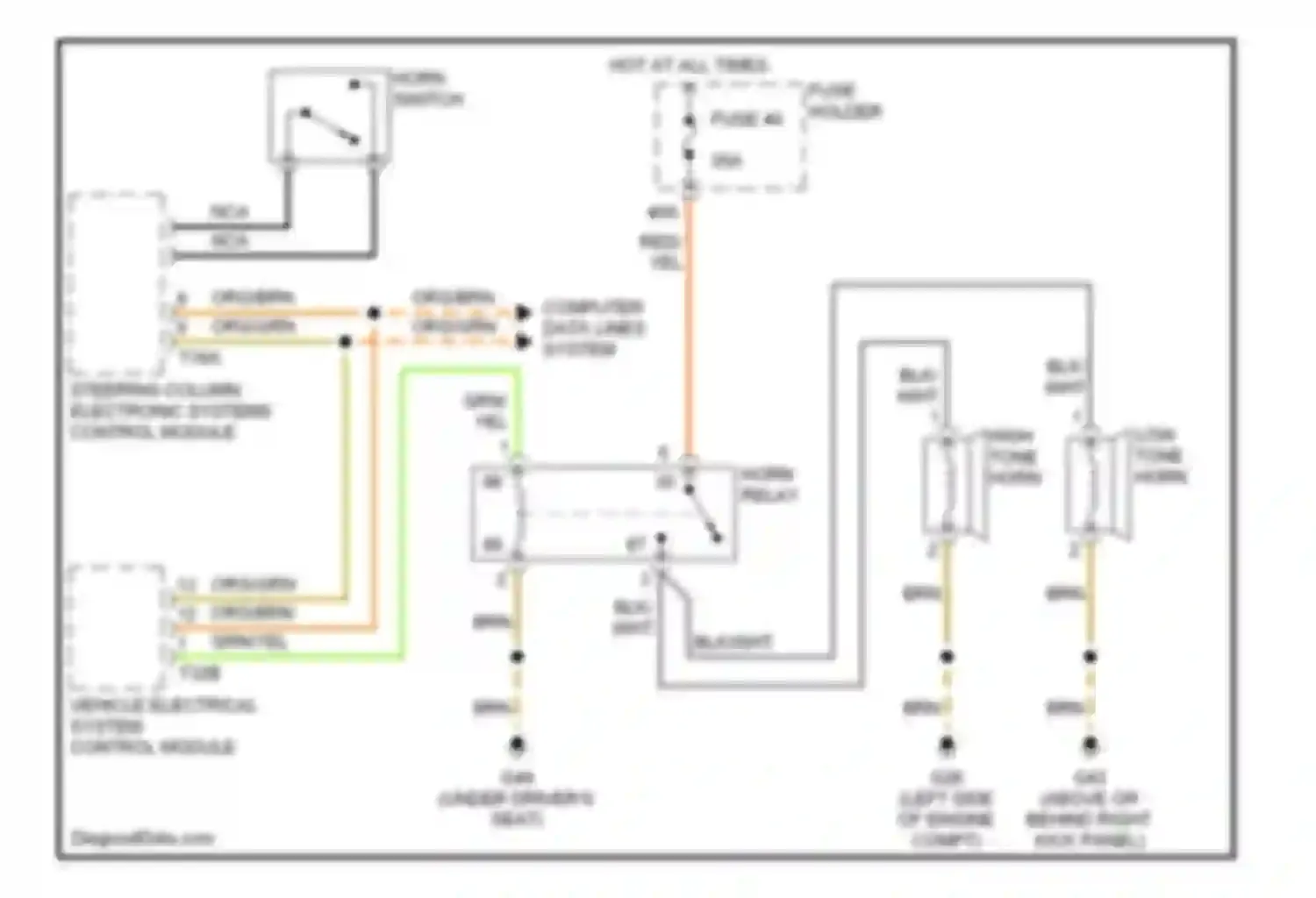

Wiring diagram fuse holder (9 of 35)
Go to component -> Horn circuit -> FUSE HOLDER
Wiring diagram fuse holder (10 of 35)
Go to component -> Instrument cluster circuit -> FUSE HOLDER
