Audi RS5 F5 facelift (2019-2024) grn Wiring diagrams

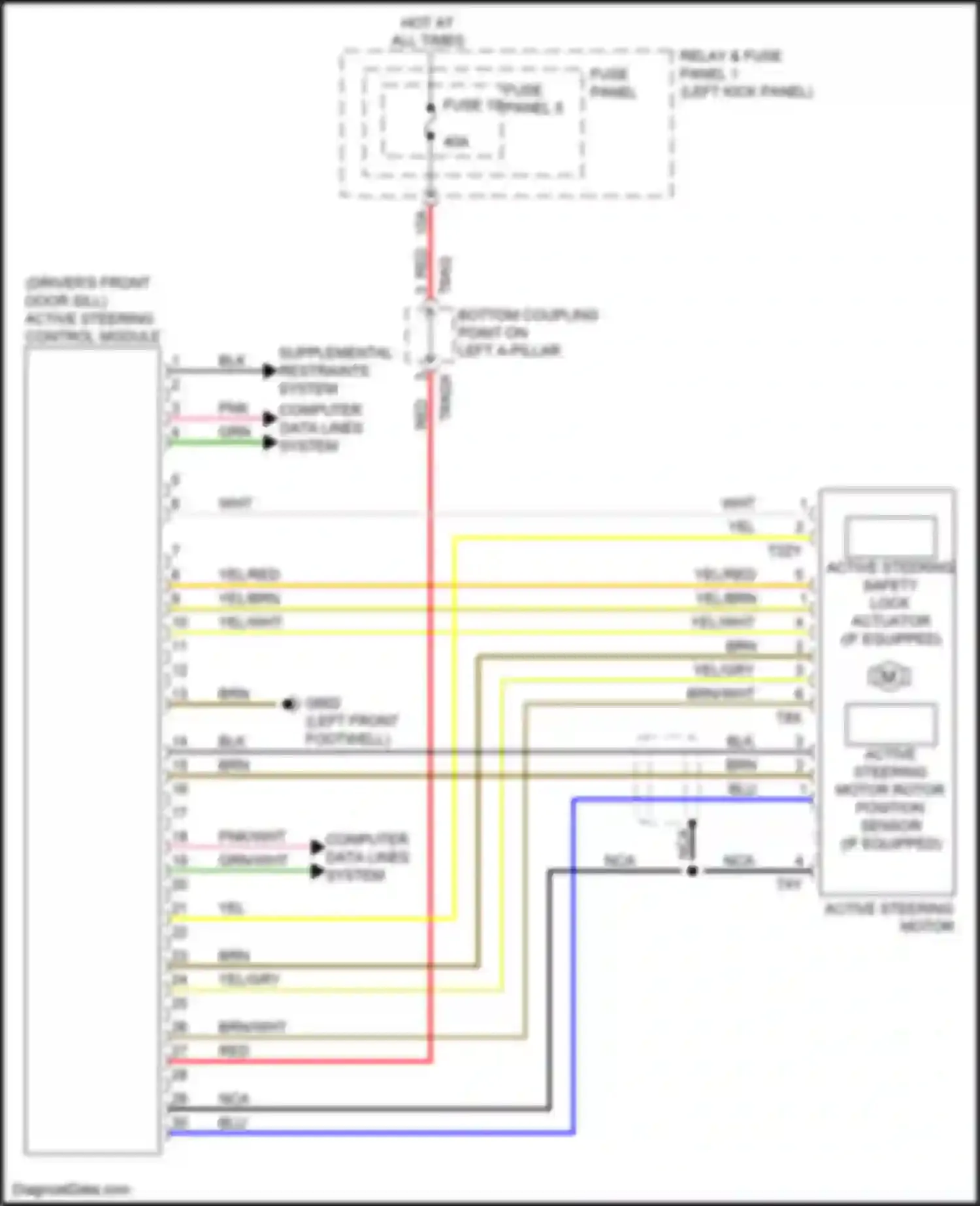

ACTIVE STEERING CONTROL MODULE ACTIVE STEERING MOTOR ACTIVE STEERING MOTOR ROTOR POSITION SENSOR ACTIVE STEERING SAFETY LOCK ACTUATOR BLK WIRE BLU WIRE BOTTOM COUPLING POINT ON LEFT A-PILLAR BRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM FUSE 10 FUSE PANEL 5 FUSE PANEL B GRN WIRE GRN/WHT WIRE HOT AT ALL TIMES NCA WIRE PNK WIRE PNK/WHT WIRE RED WIRE RELAY & FUSE PANEL 1 SUPPLEMENTAL RESTRAINTS SYSTEM WHT WIRE YEL WIRE YEL/BRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/WHT WIRE

4-PIN CONNECTOR IN THE STEERING WHEEL ACCUMULATOR SOLENOID AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 1 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 2 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 3 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 4 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 5 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 6 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 7 BLK/VIO WIRE BLU/GRY WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DISPLAY UNIT FUSE 12 FUSE 4 FUSE 6 FUSE PANEL 1 FUSE PANEL 2 FUSE PANEL B FUSE PANEL C FUSE PANEL F GRN WIRE HOT AT ALL TIMES INSTRUMENT CLUSTER CONTROL MODULE LEFT MULTI-FUNCTION BUTTONS ON STEERING WHEEL MULTI-FUNCTION STEERING WHEEL CONTROL MODULE NCA WIRE ORG/BRN WIRE PARKING LOCK SENSOR PARKING LOCK SOLENOID PNK WIRE RED WIRE RED/VIO WIRE RELAY & FUSE PANEL 1 RELAY & FUSE PANEL 2 RIGHT MULTI-FUNCTION BUTTONS ON STEERING WHEEL SOLENOID VALVE 1 STEERING COLUMN ELECTRONICS CONTROL MODULE TEMPERATURE SENSOR (IN CONTROL MODULE) TIPTRONIC DOWNSHIFT BUTTON TIPTRONIC UPSHIFT BUTTON TRANSMISSION CONTROL MODULE TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION INPUT SPEED SENSOR TRANSMISSION OUTPUT SPEED SENSOR VIO WIRE W/ STEERING WHEEL TOUCH RECOGNITION CONTROL MODULE

??? ??? BLK/VIO WIRE BLU/GRY WIRE BRN WIRE COMFORT SYSTEM CENTRAL CONTROL MODULE COMPUTER DATA LINES SYSTEM D/S ENGINE/MOTOR CONTROL MODULE GRN WIRE NCA WIRE ORG/BRN WIRE PARKING LOCK BUTTON PARKING LOCK INDICATOR LAMP RED/VIO WIRE SELECTOR LEVER SELECTOR LEVER POSITION SENSOR SELECTOR LEVER RELEASE BUTTON SELECTOR LEVER SENSOR SYSTEM CONTROL MODULE SELECTOR LEVER TRANSMISSION RANGE DISPLAY SHIFT LOCK SOLENOID SUPPLEMENTAL RESTRAINTS SYSTEM TRANSVERSE SELECTOR LEVER LOCK MOTOR TRANSVERSE SELECTOR LEVER LOCK SENSOR VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO WIRE

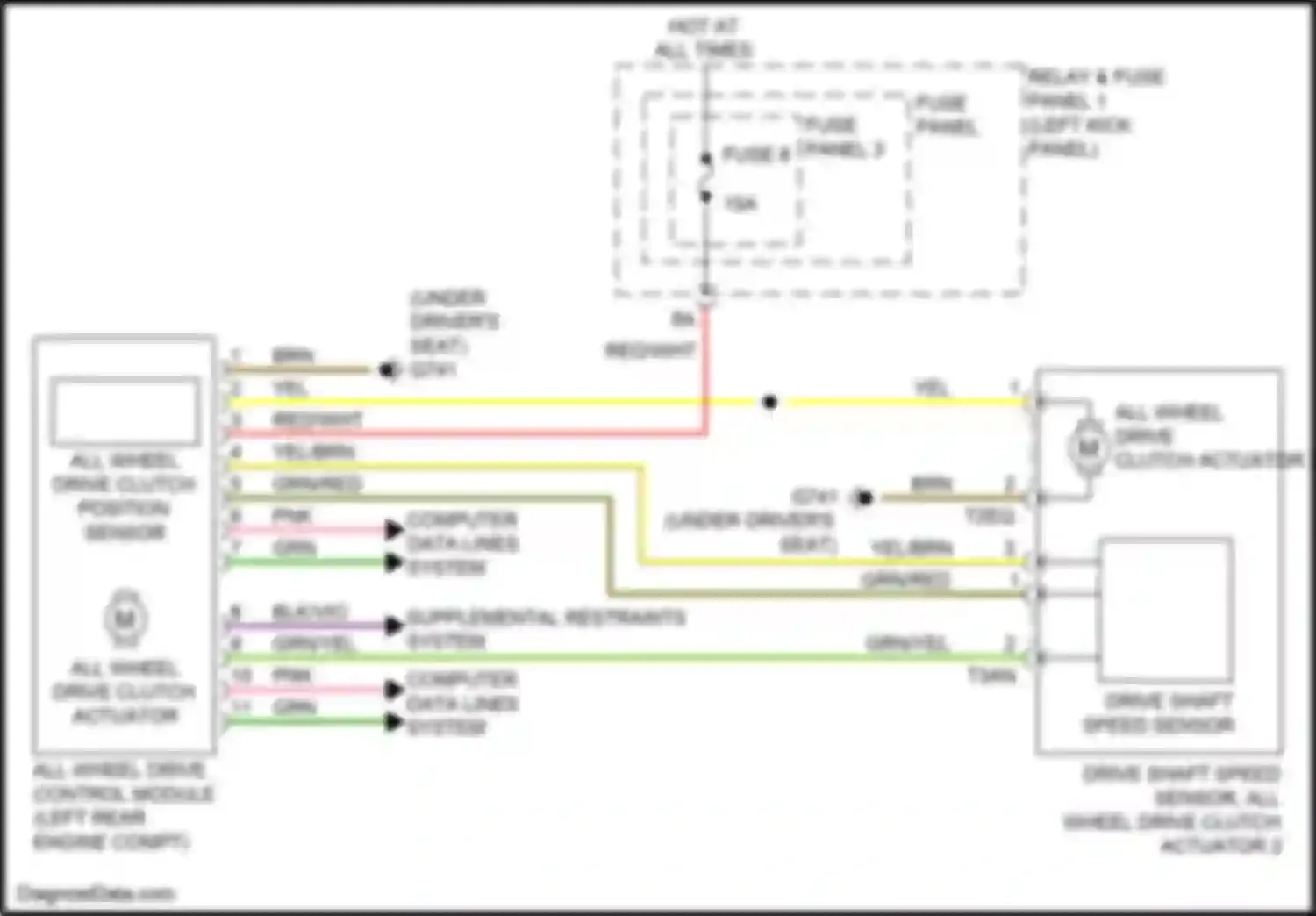

ALL WHEEL DRIVE CLUTCH ACTUATOR ALL WHEEL DRIVE CLUTCH ACTUATOR 2 ALL WHEEL DRIVE CLUTCH POSITION SENSOR ALL- WHEEL DRIVE CONTROL MODULE BLK/VIO WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DRIVE SHAFT SPEED SENSOR DRIVE SHAFT SPEED SENSOR, ALL WHEEL DRIVE CLUTCH ACTUATOR 2 FUSE 8 FUSE PANEL 3 FUSE PANEL B GRN WIRE GRN/RED WIRE GRN/YEL WIRE HOT AT ALL TIMES PNK WIRE RED/WHT WIRE RELAY & FUSE PANEL 1 SUPPLEMENTAL RESTRAINTS SYSTEM YEL WIRE YEL/BRN WIRE

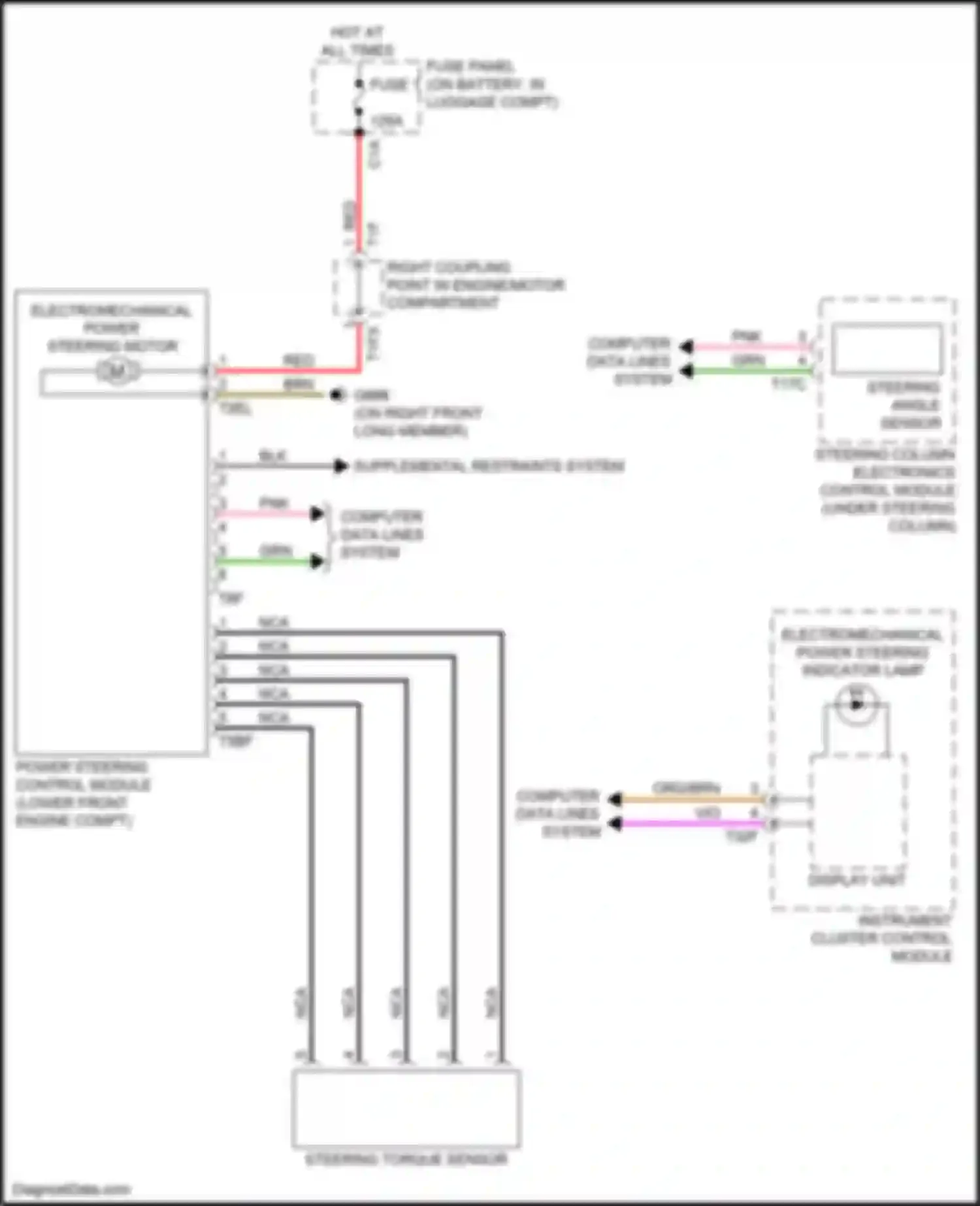

BLK WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DISPLAY UNIT ELECTROMECHANICAL POWER STEERING INDICATOR LAMP ELECTROMECHANICAL POWER STEERING MOTOR FUSE 1 FUSE PANEL S GRN WIRE HOT AT ALL TIMES INSTRUMENT CLUSTER CONTROL MODULE NCA WIRE ORG/BRN WIRE PNK WIRE POWER STEERING CONTROL MODULE RED WIRE RIGHT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT STEERING ANGLE SENSOR STEERING COLUMN ELECTRONICS CONTROL MODULE STEERING TORQUE SENSOR SUPPLEMENTAL RESTRAINTS SYSTEM VIO WIRE

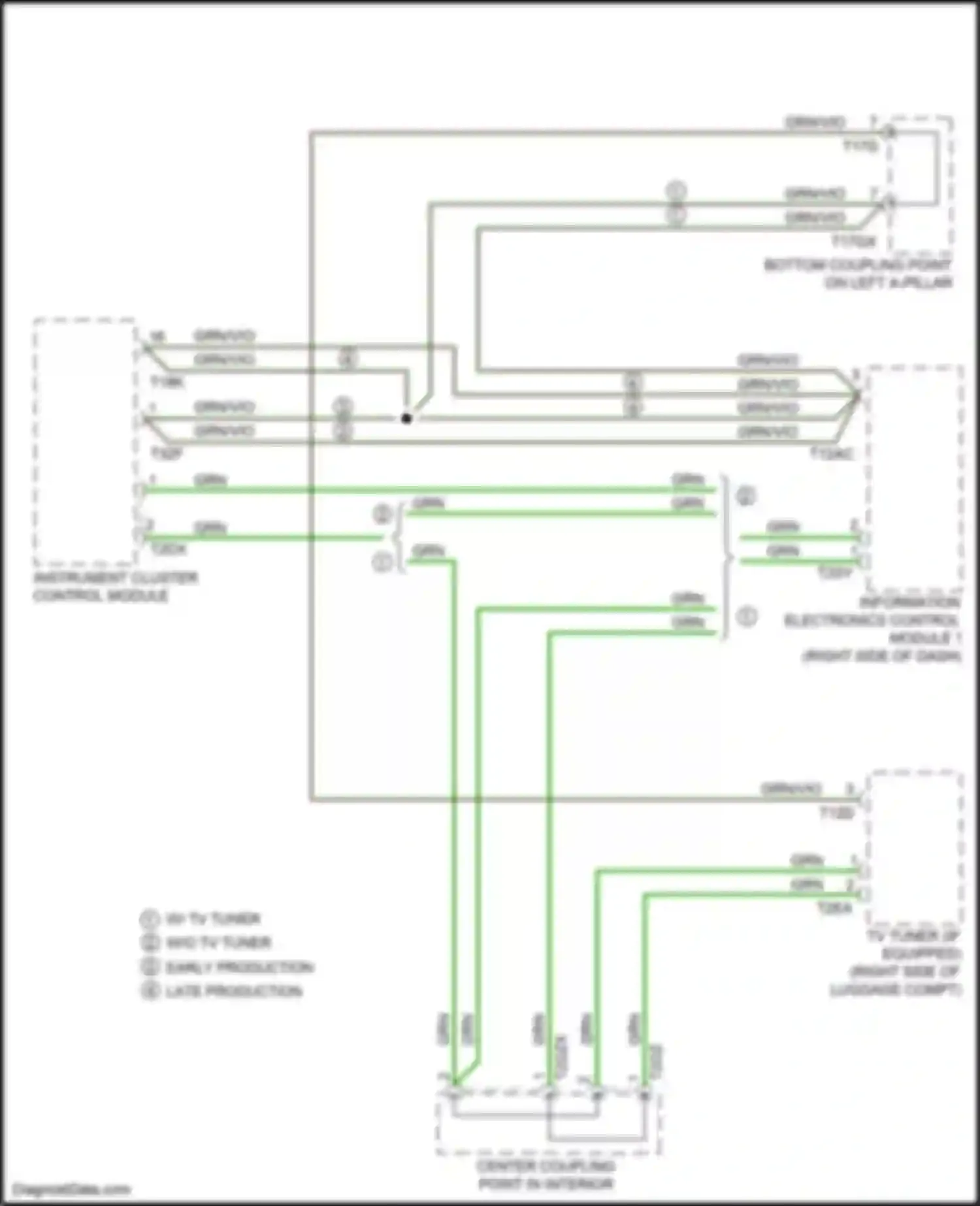

BOTTOM COUPLING POINT ON LEFT A-PILLAR CENTER COUPLING POINT IN INTERIOR EARLY PRODUCTION GRN WIRE GRN/VIO WIRE INFORMATION ELECTRONICS CONTROL MODULE 1 INSTRUMENT CLUSTER CONTROL MODULE LATE PRODUCTION TV TUNER (IF EQUIPPED) W/O TV TUNER

ANTENNA AMPLIFIER 2 BLK WIRE BLU WIRE BLU/GRN WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DRIVER VOLUME CONTROL FUSE 10 FUSE 14 FUSE 2 FUSE 5 FUSE 7 FUSE 8 FUSE PANEL 4 FUSE PANEL B FUSE PANEL C GRN WIRE GRN/VIO WIRE GRY/YEL WIRE HOT AT ALL TIMES HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED INFORMATION ELECTRONICS CONTROL MODULE 1 LEFT REAR SIDE PANEL COUPLING POINT ON LEFT C-PILLAR MOST DATA BUS CIRCUIT NAVIGATION SYSTEM NAVIGATION SYSTEM (REAR CAMERA CIRCUIT) NCA WIRE ORG/ WIRE ORG/BRN WIRE PNK WIRE RADIO ANTENNA 2 RED WIRE RED/BLK WIRE RED/WHT WIRE RED/YEL WIRE RELAY & FUSE PANEL 1 SOUND SYSTEMS USB USB CHARGING SOCKET 2 USB CONNECTION 1 USB DISTRIBUTOR VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO WIRE VIO/RED WIRE

BLK WIRE BLU WIRE BLU/WHT WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/VIO WIRE COUPE COUPE CONVERTIBLE DIGITAL SOUND SYSTEM FUSE GRN WIRE GRN/BLK WIRE HOT AT ALL TIMES LEFT FRONT TREBLE SPEAKER 2 LEFT REAR BASS SPEAKER LEFT REAR DOOR COUPLING POINT LEFT REAR SUBWOOFER LEFT REAR TREBLE SPEAKER LEFT REAR WHEEL HOUSING WIRING COUPLING POINT RED/BLU WIRE RED/GRN WIRE RED/WHT WIRE RELAY & FUSE CARRIER 2 RIGHT FRONT TREBLE SPEAKER +2 RIGHT REAR BASS SPEAKER RIGHT REAR DOOR COUPLING POINT RIGHT REAR TREBLE SPEAKER RIGHT REAR WHEEL HOUSING WIRING COUPLING POINT SPORTBACK YEL WIRE

BLK WIRE BLK/WHT WIRE BLU WIRE BLU/GRN WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE COMPUTER DATA LINES SYSTEM DIGITAL SOUND SYSTEM CONTROL MODULE DUAL SUBWOOFER SPEAKER 1 DUAL SUBWOOFER SPEAKER 2 GRN WIRE LEFT FRONT BASS SPEAKER LEFT FRONT DOOR COUPLING POINT PNK WIRE RED/BLU WIRE RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE RIGHT FRONT BASS SPEAKER RIGHT FRONT DOOR COUPLING POINT RIGHT REAR SUBWOOFER SUBWOOFER (COUPE, SPORTBACK) YEL WIRE YEL/GRN WIRE

BOTTOM COUPLING POINT ON LEFT A-PILLAR BRN/BLU WIRE BRN/GRN WIRE BRN/VIO WIRE COUPE GRN WIRE GRN/BLK WIRE GRY/BRN WIRE GRY/RED WIRE LEFT FRONT TREBLE SPEAKER LEFT REAR BASS SPEAKER LEFT REAR DOOR COUPLING POINT LEFT REAR TREBLE SPEAKER LEFT REAR WHEEL HOUSING WIRING COUPLING POINT RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE SPORTBACK VIO/BRN WIRE VIO/RED WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE
