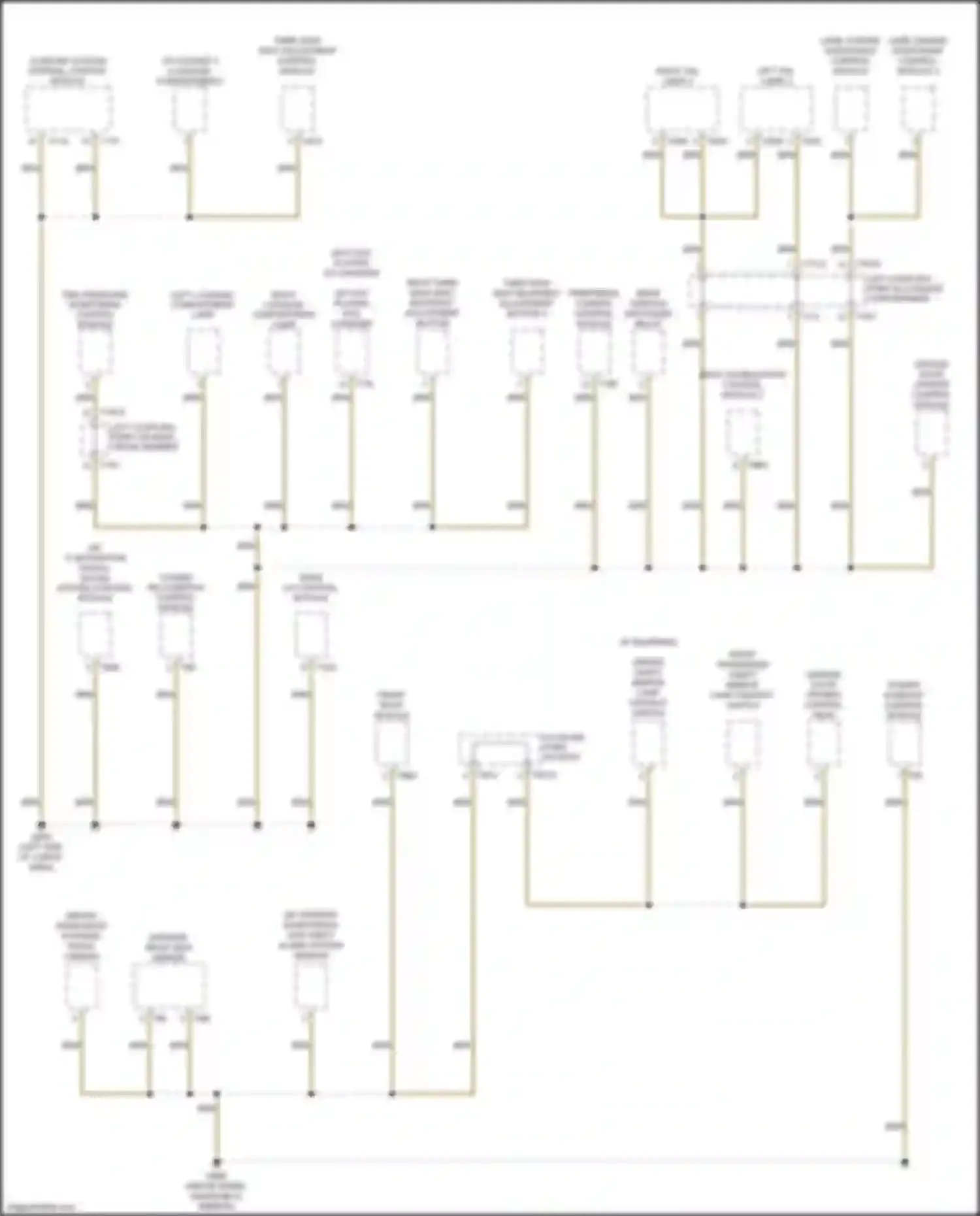

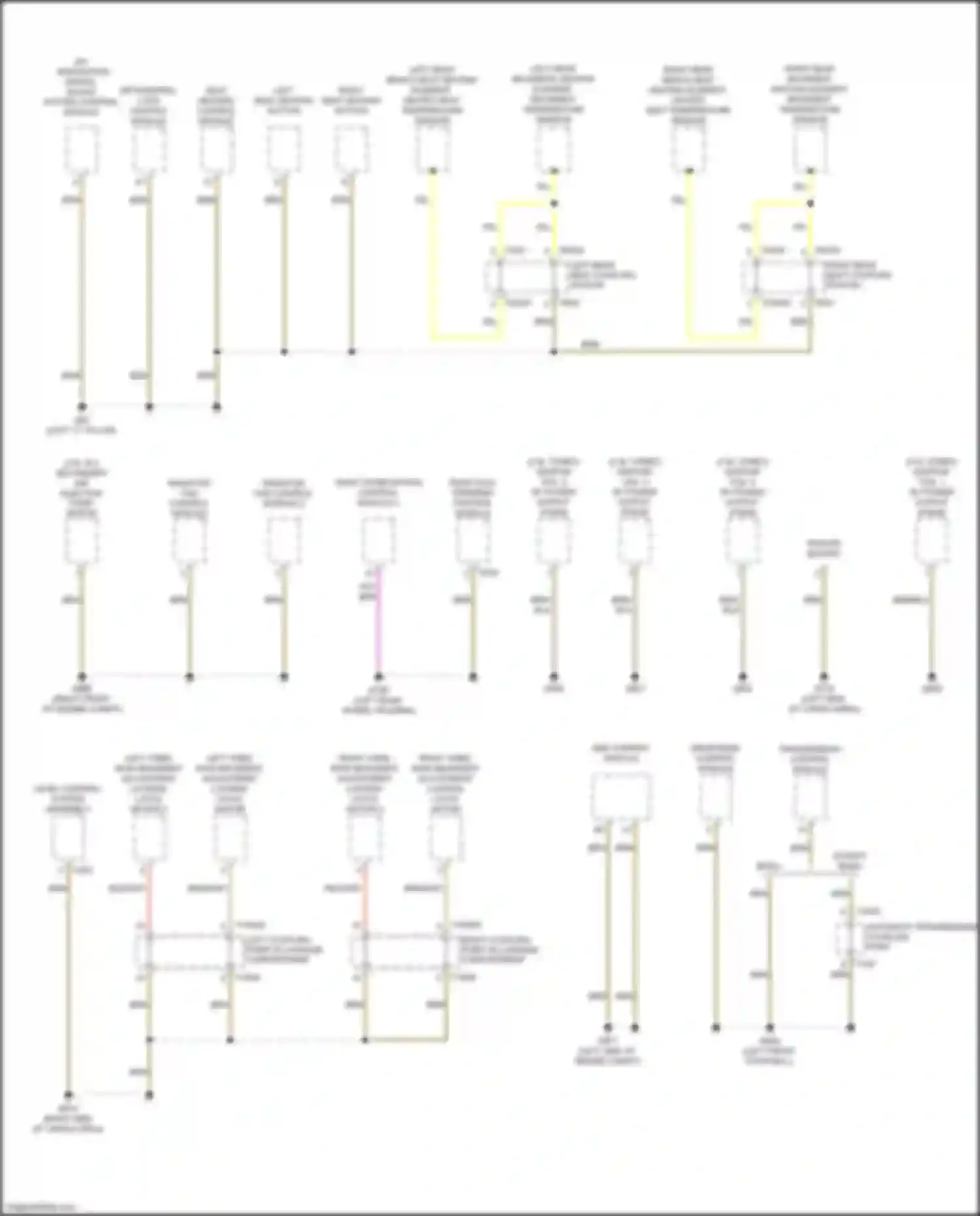

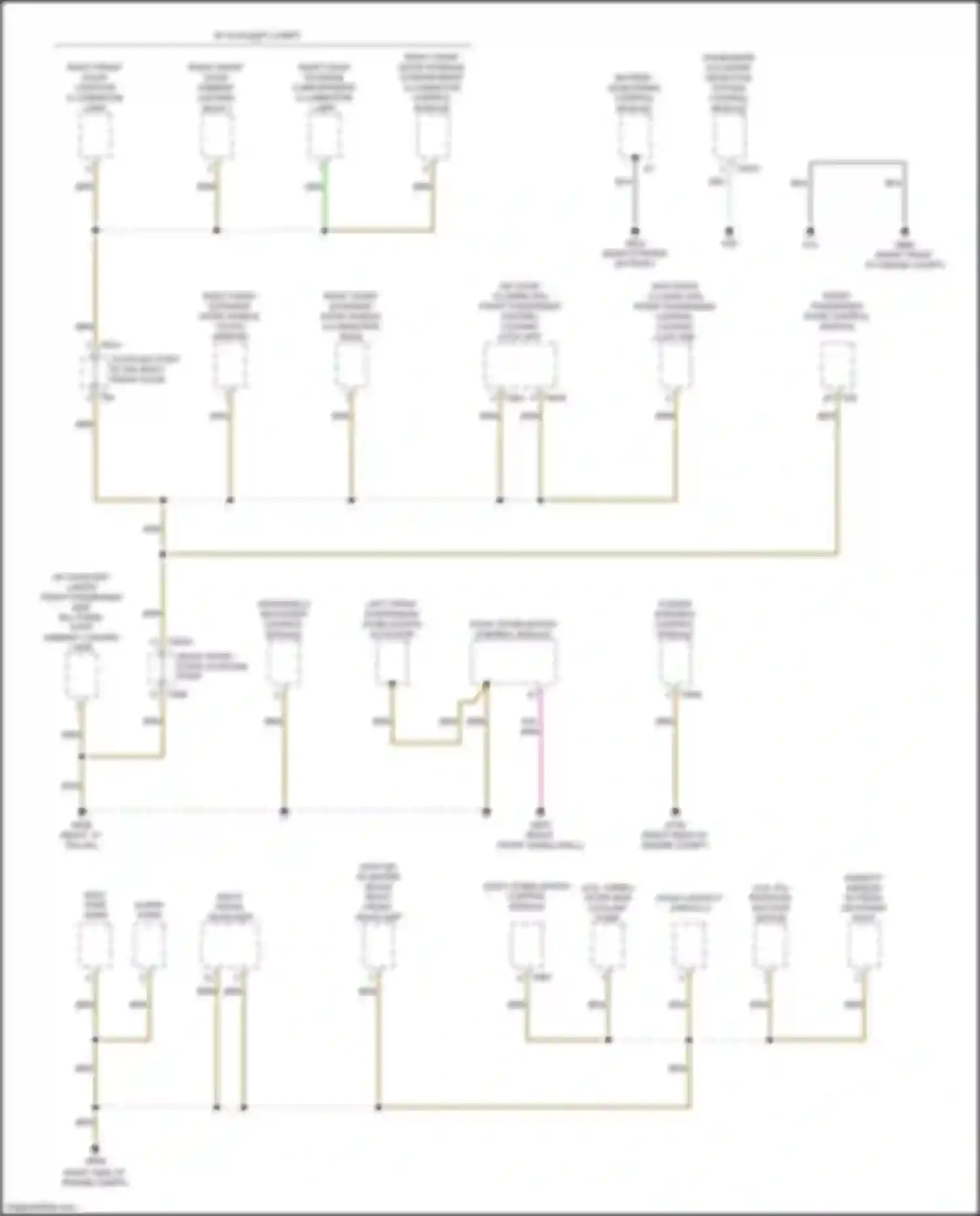

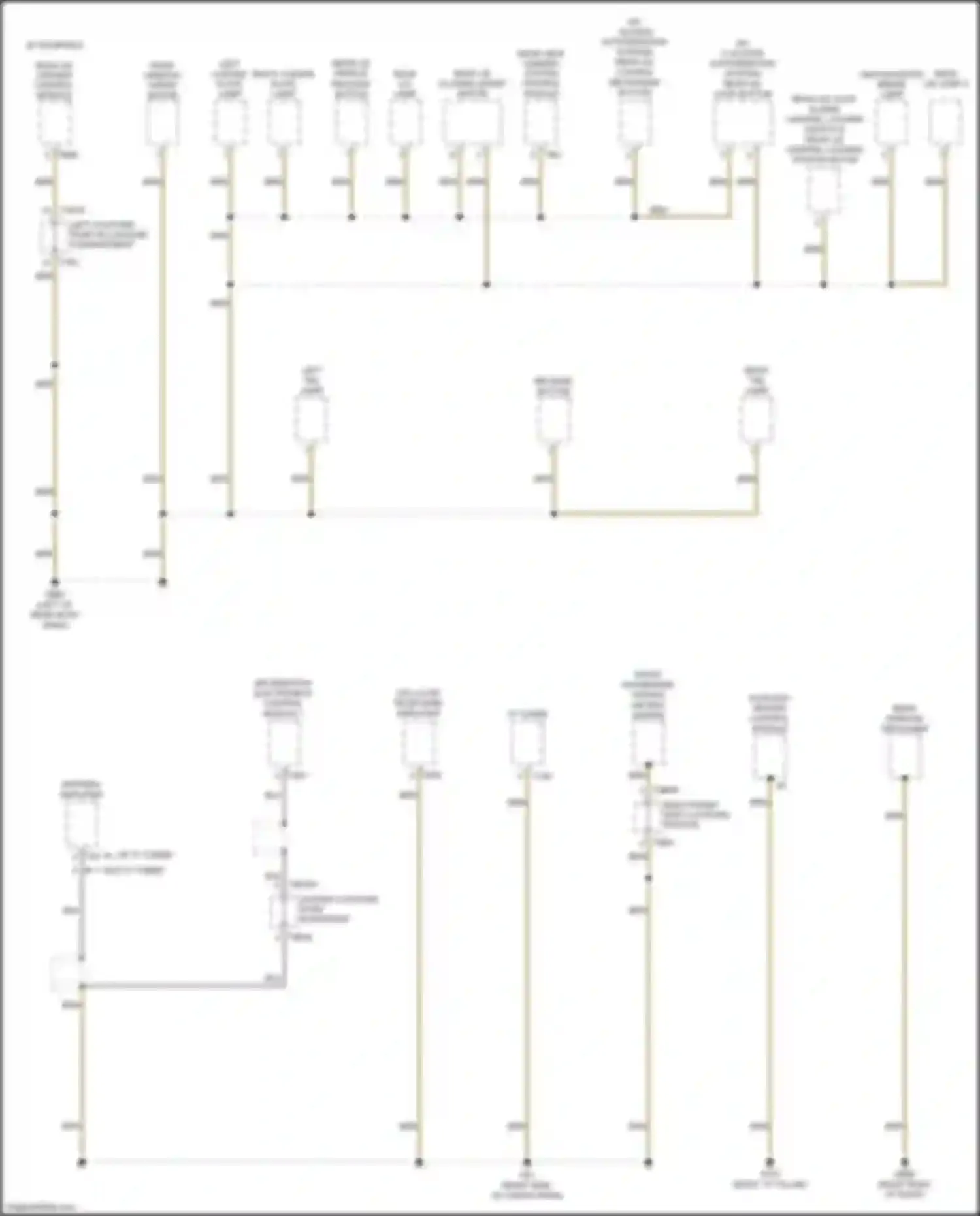

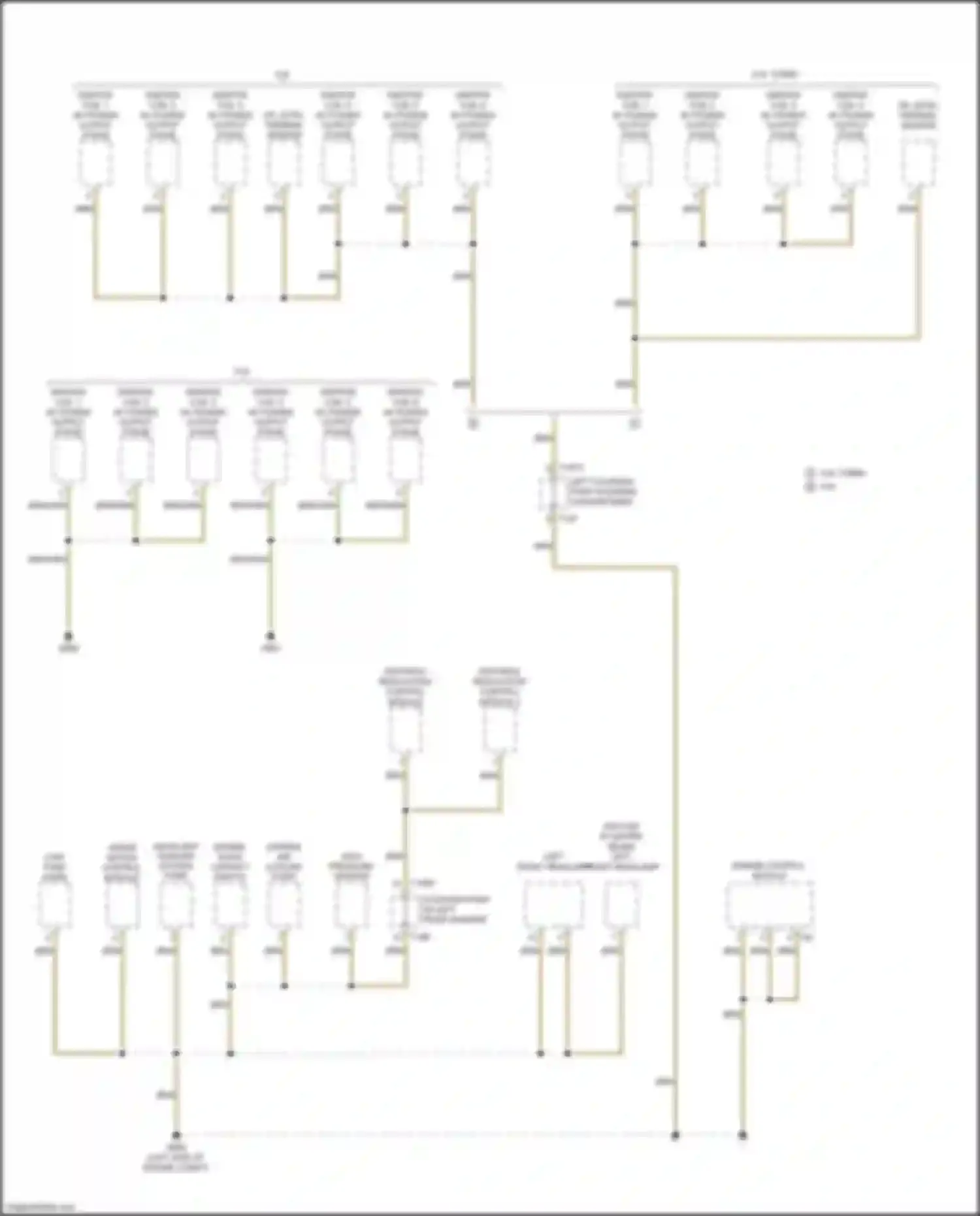

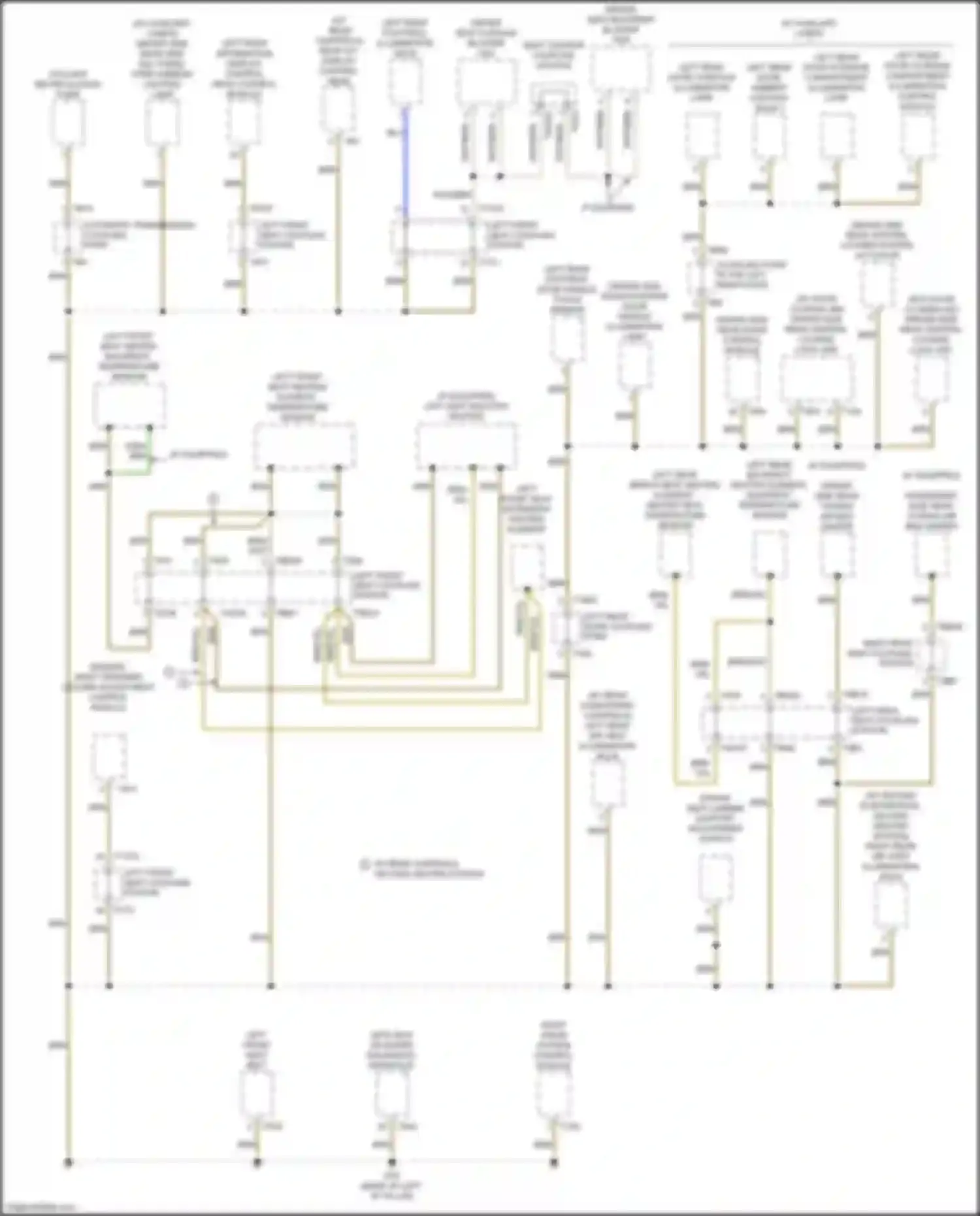

Ground distribution circuit for Audi Q7 4M (2015-2020)

ANTI-THEFT ALARM SYSTEM SENSOR BRN WIRE CD CHANGER COMFORT SYSTEM CENTRAL CONTROL MODULE COUPLING POINT ON ROOF DIGITAL SOUND SYSTEM CONTROL MODULE DRIVER ASSISTANCE SYSTEMS FRONT CAMERA DRIVER VANITY MIRROR LAMP CONTACT SWITCH DVD CHANGER FRONT PASSENGER VANITY MIRROR LAMP CONTACT SWITCH FRONT ROOF MODULE GARAGE DOOR OPENER CONTROL HEAD GARAGE DOOR OPENER CONTROL MODULE INTERIOR REAR VIEW MIRROR LANE CHANGE ASSISTANCE CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE 2 LEFT COUPLING POINT IN LUGGAGE COMPARTMENT LEFT COUPLING POINT ON REAR CROSS MEMBER LEFT LUGGAGE COMPARTMENT LAMP LEFT TAIL LAMP 2 PERIPHERAL CAMERA CONTROL MODULE POWER SUNROOF CONTROL MODULE REAR LID CONTROL MODULE REAR WINDOW DEFOGGER RELAY RIGHT LUGGAGE COMPARTMENT LAMP RIGHT TAIL LAMP 2 RIGHT THIRD ROW SEAT BACKREST ADJUSTMENT BUTTON SWAY STABILIZATION CONTROL MODULE 2 TBL THIRD ROW SEAT ADJUSTMENT CONTROL MODULE THIRD ROW SEAT BACKREST ADJUSTMENT BUTTON 3 TIRE PRESSURE MONITORING CONTROL MODULE TOWING RECOGNITION CONTROL MODULE W/ DVD PLAYER W/ INTERIOR MONITORING W/O DVD PLAYER W/O NAVIGATION

ANTENNA AMPLIFIER AUXILIARY HEATER CONTROL MODULE BLK WIRE BRN WIRE CELLULAR TELEPHONE AMPLIFIER CENTER COUPLING POINT IN INTERIOR FRONT PASSENGER THORAX AIR BAG IGNITER HIGH-MOUNTED BRAKE LAMP INFORMATION ELECTRONICS CONTROL MODULE 1 LEFT COUPLING POINT IN LUGGAGE COMPARTMENT LEFT LICENSE PLATE LAMP LEFT TAIL LAMP REAR LID CLOSING ASSIST MOTOR REAR LID HANDLE RELEASE BUTTON REAR LID LAMP REAR LID LAMP 2 REAR LID LOCK BUTTON REAR LID LOCKING MECHANISM BUTTON REAR LID OPENER CONTROL MODULE REAR VIEW CAMERA SYSTEM CONTROL MODULE REAR WINDOW DEFOGGER REAR WINDOW WIPER MOTOR RELEASE BUTTON RIGHT FRONT SEAT COUPLING STATION RIGHT LICENSE PLATE LAMP RIGHT TAIL LAMP TV TUNER W/O TV TUNER

2.0L TURBO BLK WIRE BRAKE LAMP SWITCH BRN WIRE CENTER WASHER NOZZLE HEATER COOLANT RECIRCULATION PUMP COUPLING POINT IN THE LEFT FRONT DOOR DIAGNOSTIC CONNECTOR DRIVER CENTRAL LOCKING LOCK UNIT DRIVER DOOR CONTROL MODULE DRIVER SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP ELECTROMECHANICAL BRAKE BOOSTER COUPLING POINT FUEL FILLER DOOR LOCK MOTOR GRN WIRE LEFT DOOR STORAGE COMPARTMENT ILLUMINATION LAMP LEFT FRONT DOOR AMBIENT LIGHTING BULB 1 LEFT FRONT DOOR CONTOUR ILLUMINATION LAMP LEFT FRONT DOOR COUPLING POINT LEFT FRONT DOOR STORAGE COMPARTMENT ILLUMINATION CONTROL MODULE LEFT FRONT EXTERIOR DOOR HANDLE ILLUMINATION BULB LEFT FRONT EXTERIOR DOOR HANDLE TOUCH SENSOR LEFT WASHER NOZZLE HEATER RED WIRE RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR WINDOW BREAKAGE SENSOR RIGHT THIRD ROW BACKREST ADJUSTMENT BUTTON 2 RIGHT WASHER NOZZLE HEATER TERMINAL 15 POWER SUPPLY RELAY TERMINAL 30 WIRE JUNCTION/ TERMINAL 30 WIRE JUNCTION 2 VEHICLE ELECTRICAL SYSTEM CONTROL MODULE W/ AUXILIARY LAMPS W/ DOOR CLOSING AID W/O DOOR CLOSING AID

2.0L TURBO AFTER-RUN COOLANT PUMP ALARM HORN BATTERY MONITORING CONTROL MODULE BLK WIRE BRN WIRE COUPLING POINT IN THE RIGHT FRONT DOOR FRONT PASSENGER CENTRAL LOCKING LOCK UNIT FRONT PASSENGER DOOR CONTROL MODULE FRONT PASSENGER SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP GRN WIRE GRY WIRE HIGH TONE HORN HOOD CONTACT SWITCH 2 HUMIDITY SENSOR IN FRESH AIR INTAKE DUCT LEFT FRONT SUSPENSION STABILIZATION ACTUATOR PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE POWER STEERING CONTROL MODULE RADIATOR SHUTTER MOTOR RIGHT DOOR STORAGE COMPARTMENT ILLUMINATION LAMP RIGHT FRONT DOOR AMBIENT LIGHTING BULB 1 RIGHT FRONT DOOR CONTOUR ILLUMINATION LAMP RIGHT FRONT DOOR COUPLING POINT RIGHT FRONT DOOR STORAGE COMPARTMENT ILLUMINATION CONTROL MODULE RIGHT FRONT EXTERIOR DOOR HANDLE ILLUMINATION BULB RIGHT FRONT EXTERIOR DOOR HANDLE TOUCH SENSOR RIGHT FRONT HEADLAMP SWAY STABILIZATION CONTROL MODULE VIO WIRE W/ AUXILIARY LAMPS W/ DOOR CLOSING AID W/O DOOR CLOSING AID W/O HID W/ MATRIX BEAM WINDSHIELD DEFOGGER CONTROL MODULE

BLU WIRE BRN WIRE BRN/WHT WIRE BRN/YEL WIRE COUPLING POINT IN THE RIGHT REAR DOOR FRONT PASSENGER MEMORY SEAT CONTROL MODULE FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD FRONT PASSENGER SEAT BACKREST BLOWER FAN FRONT PASSENGER SEAT CUSHION BLOWER FAN FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH GRN/BRN WIRE PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE PASSENGER SIDE REAR CENTRAL LOCKING LOCK UNIT PASSENGER SIDE REAR CENTRAL LOCKING SYSTEM ACTUATOR PASSENGER SIDE REAR DOOR CONTROL MODULE PASSENGER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP PASSENGER SIDE REAR IONIZER PASSENGER SIDE REAR SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP RIGHT FRONT SEAT BELT RIGHT FRONT SEAT COUPLING STATION RIGHT FRONT SEAT EXTENSION HEATING ELEMENT RIGHT FRONT SEAT HEATING BACKREST, TEMPERATURE SENSOR RIGHT FRONT SEAT HEATING ELEMENT, TEMPERATURE SENSOR RIGHT REAR AIR VENT ILLUMINATION BULB RIGHT REAR BACKREST HEATING ELEMENT, BACKREST TEMPERATURE SENSOR RIGHT REAR BENCH SEAT HEATING ELEMENT, HEATED SEAT TEMPERATURE SENSOR RIGHT REAR CENTRAL LOCKING LOCK UNIT RIGHT REAR DOOR AMBIENT LIGHTING BULB 1 RIGHT REAR DOOR CONTOUR ILLUMINATION LAMP RIGHT REAR DOOR COUPLING POINT RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION CONTROL MODULE RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LAMP RIGHT REAR EXTERIOR DOOR HANDLE TOUCH SENSOR RIGHT REAR FOOTWELL ILLUMINATION BULB RIGHT REAR INFORMATION DISPLAY CONTROL HEAD CONTROL MODULE RIGHT REAR SEAT COUPLING STATION RIGHT SEAT BOLSTER HEATING SEAT CUSHION COUPLING STATION SWAY STABILIZATION CONTROL MODULE W/ AUXILIARY LAMPS W/ DOOR CLOSING AID W/O DOOR CLOSING AID WHT WIRE YEL WIRE

BRN WIRE CENTER COUPLING POINT ON INSTRUMENT PANEL CENTER INSTRUMENT PANEL VENT ILLUMINATION BULB DISPLAY PIVOT MECHANISM FRESH AIR BLOWER CONTROL MODULE FRONT A/C DISPLAY CONTROL HEAD FRONT CENTER CONSOLE AMBIENT LIGHTING FIBER OPTIC CABLE FRONT PASSENGER AIR BAG UNIT GLOVE COMPARTMENT LAMP SWITCH INFORMATION ELECTRONICS CONTROL MODULE 1 INSTRUMENT PANEL CONTOUR ILLUMINATION LAMP 1 INSTRUMENT PANEL CONTOUR ILLUMINATION LAMP 2 INSTRUMENT PANEL CONTOUR ILLUMINATION LAMP 3 LEFT CENTER VENT POSITION SENSOR LEFT REAR AIR VENT ILLUMINATION BULB REAR CENTER AIR VENT ILLUMINATION BULB RIGHT CENTER VENT POSITION SENSOR RIGHT FRONT FOOTWELL LAMP RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB RIGHT REAR AIR VENT ILLUMINATION BULB RIGHT SIDE VENT POSITION SENSOR SUPPRESSOR W/ AMBIENT LIGHTING W/ SECOND EVAPORATION, SECOND HEATING SYSTEM W/O SECOND EVAPORATION, SECOND HEATING SYSTEM

12 V SOCKET 12 V SOCKET 2 (REAR CENTER CONSOLE) 12 V SOCKET 3 (REAR CENTER CONSOLE) ACCESS/START AUTHORIZATION BUTTON AUTO HOLD BUTTON BRN WIRE CENTER COUPLING POINT IN INTERIOR CIGARETTE LIGHTER DRIVER SIDE IONIZER DRIVER THORAX AIR BAG IGNITER DRIVER VOLUME CONTROL ELECTROMECHANICAL PARKING BRAKE BUTTON ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE EXTERNAL AUDIO SOURCE CONNECTION INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT CLUSTER OPERATION BUTTON LEFT FRONT FOOTWELL LAMP LEFT FRONT SEAT COUPLING STATION LEFT INSTRUMENT PANEL VENT ILLUMINATION BULB LEFT REAR AIR VENT ILLUMINATION BULB LEFT SIDE VENT POSITION SENSOR LIGHT SWITCH MULTIMEDIA SYSTEM CONTROL HEAD POWER ADJUSTABLE STEERING COLUMN CONTROL MODULE REAR A/C DISPLAY CONTROL HEAD REAR FRESH AIR BLOWER CONTROL MODULE SELECTOR LEVER STEERING COLUMN ELECTRONICS CONTROL MODULE TELEPHONE BASEPLATE W/ SECOND EVAPORATION, SECOND HEATING SYSTEM W/O AMPLIFIER W/ AMPLIFIER W/O SECOND EVAPORATION, SECOND HEATING SYSTEM WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE

AUTOMATIC TRANSMISSION COUPLING POINT BLU WIRE BRN WIRE BRN/WHT WIRE BRN/YEL WIRE COOLANT RECIRCULATION PUMP COUPLING POINT IN THE LEFT REAR DOOR DATA BUS ON BOARD DIAGNOSTIC INTERFACE DRIVER SEAT BACKREST BLOWER FAN DRIVER SEAT CUSHION BLOWER FAN DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER SIDE REAR CENTRAL LOCKING LOCK UNIT DRIVER SIDE REAR CENTRAL LOCKING SYSTEM ACTUATOR DRIVER SIDE REAR DOOR CONTROL MODULE DRIVER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP DRIVER SIDE REAR SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP DRIVER SIDE REAR THORAX AIR BAG IGNITER GRN WIRE LEFT FRONT SEAT BELT LEFT FRONT SEAT COUPLING STATION LEFT FRONT SEAT EXTENSION HEATING ELEMENT LEFT FRONT SEAT HEATED BACKREST, TEMPERATURE SENSOR LEFT FRONT SEAT HEATING ELEMENT, TEMPERATURE SENSOR LEFT REAR AIR VENT ILLUMINATION BULB LEFT REAR BACKREST HEATING ELEMENT, BACKREST TEMPERATURE SENSOR LEFT REAR BENCH SEAT HEATING ELEMENT, HEATED SEAT TEMPERATURE SENSOR LEFT REAR DOOR AMBIENT LIGHTING BULB 1 LEFT REAR DOOR CONTOUR ILLUMINATION LAMP LEFT REAR DOOR COUPLING POINT LEFT REAR DOOR STORAGE COMPARTMENT ILLUMINATION CONTROL MODULE LEFT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LAMP LEFT REAR EXTERIOR DOOR HANDLE TOUCH SENSOR LEFT REAR FOOTWELL ILLUMINATION BULB LEFT REAR INFORMATION DISPLAY CONTROL HEAD CONTROL MODULE LEFT REAR SEAT COUPLING STATION LEFT SEAT BOLSTER HEATING MEMORY SEAT/ STEERING COLUMN ADJUSTMENT CONTROL MODULE NIGHT VISION SYSTEM CONTROL MODULE PASSENGER SIDE REAR THORAX AIR BAG IGNITER REAR A/C DISPLAY CONTROL HEAD RIGHT REAR AIR VENT ILLUMINATION BULB RIGHT REAR SEAT COUPLING STATION SEAT CUSHION COUPLING STATION W/ AUXILIARY LAMPS W/ DOOR CLOSING AID W/ SECOND EVAPORATION, SECOND HEATING SYSTEM W/O DOOR CLOSING AID WHT WIRE WHT/BRN WIRE YEL WIRE

2.0L TURBO ABS CONTROL MODULE AUTOMATIC TRANSMISSION COUPLING POINT BASIC BLK WIRE BRN WIRE BRN/BLK WIRE BRN/WHT WIRE DIFFERENTIAL LOCK CONTROL MODULE DIGITAL SOUND SYSTEM CONTROL MODULE DRIVETRAIN CONTROL MODULE EXCEPT BASIC IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 W/ POWER OUTPUT STAGE LEFT "C" PILLAR) LEFT COUPLING POINT IN LUGGAGE COMPARTMENT LEFT REAR BACKREST HEATING ELEMENT, BACKREST TEMPERATURE SENSOR LEFT REAR BENCH SEAT HEATING ELEMENT, HEATED SEAT TEMPERATURE SENSOR LEFT REAR SEAT COUPLING STATION LEFT SEAT HEATING BUTTON LEFT THIRD ROW BACKREST ADJUSTMENT LOCKING LATCH MOTOR LEFT THIRD ROW BACKREST ADJUSTMENT LOCKING LATCH MOTOR 2 LEVEL CONTROL SYSTEM ASSEMBLY RADIATOR FAN CONTROL MODULE RADIATOR FAN CONTROL MODULE 2 REAR AXLE STEERING CONTROL MODULE RED/GRY WIRE RIGHT COUPLING POINT IN LUGGAGE COMPARTMENT RIGHT REAR BACKREST HEATING ELEMENT, BACKREST TEMPERATURE SENSOR RIGHT REAR BENCH SEAT HEATING ELEMENT, HEATED SEAT TEMPERATURE SENSOR RIGHT REAR SEAT COUPLING STATION RIGHT SEAT HEATING BUTTON RIGHT THIRD ROW BACKREST ADJUSTMENT LOCKING LATCH MOTOR RIGHT THIRD ROW BACKREST ADJUSTMENT LOCKING LATCH MOTOR 2 SEAT HEATING CONTROL MODULE SECONDARY AIR INJECTION PUMP MOTOR SWAY STABILIZATION CONTROL MODULE 2 TRAILER SOCKET TRANSMISSION CONTROL MODULE VIO WIRE W/ NAVIGATION YEL WIRE

2.0L TURBO 2.0L TURBO 3.0L SC BRN WIRE BRN/GRN WIRE CHARGE AIR COOLING PUMP COUPLING POINT ON LEFT FRONT BUMPER DISTANCE REGULATION CONTROL MODULE DISTANCE REGULATION CONTROL MODULE 2 ENGINE CONTROL MODULE ENGINE HOOD CONTACT SWITCH HEADLAMP WASHER SYSTEM PUMP HIGH PRESSURE SENSOR IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 W/ POWER OUTPUT STAGE IGNITION COIL 5 W/ POWER OUTPUT STAGE IGNITION COIL 6 W/ POWER OUTPUT STAGE LEFT COUPLING POINT IN ENGINE COMPARTMENT LEFT FRONT HEADLAMP LOW TONE HORN OIL LEVEL THERMAL SENSOR W/O HID W/ MATRIX BEAM WIPER MOTOR CONTROL MODULE
