Audi Q7 4L facelift (2009-2015) driver's window regulator motor (in driver Wiring diagram

This page shows the only wiring diagram for the component.driver's window regulator motor (in driver, which is found in the car Audi Q7 4L facelift (2009-2015). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

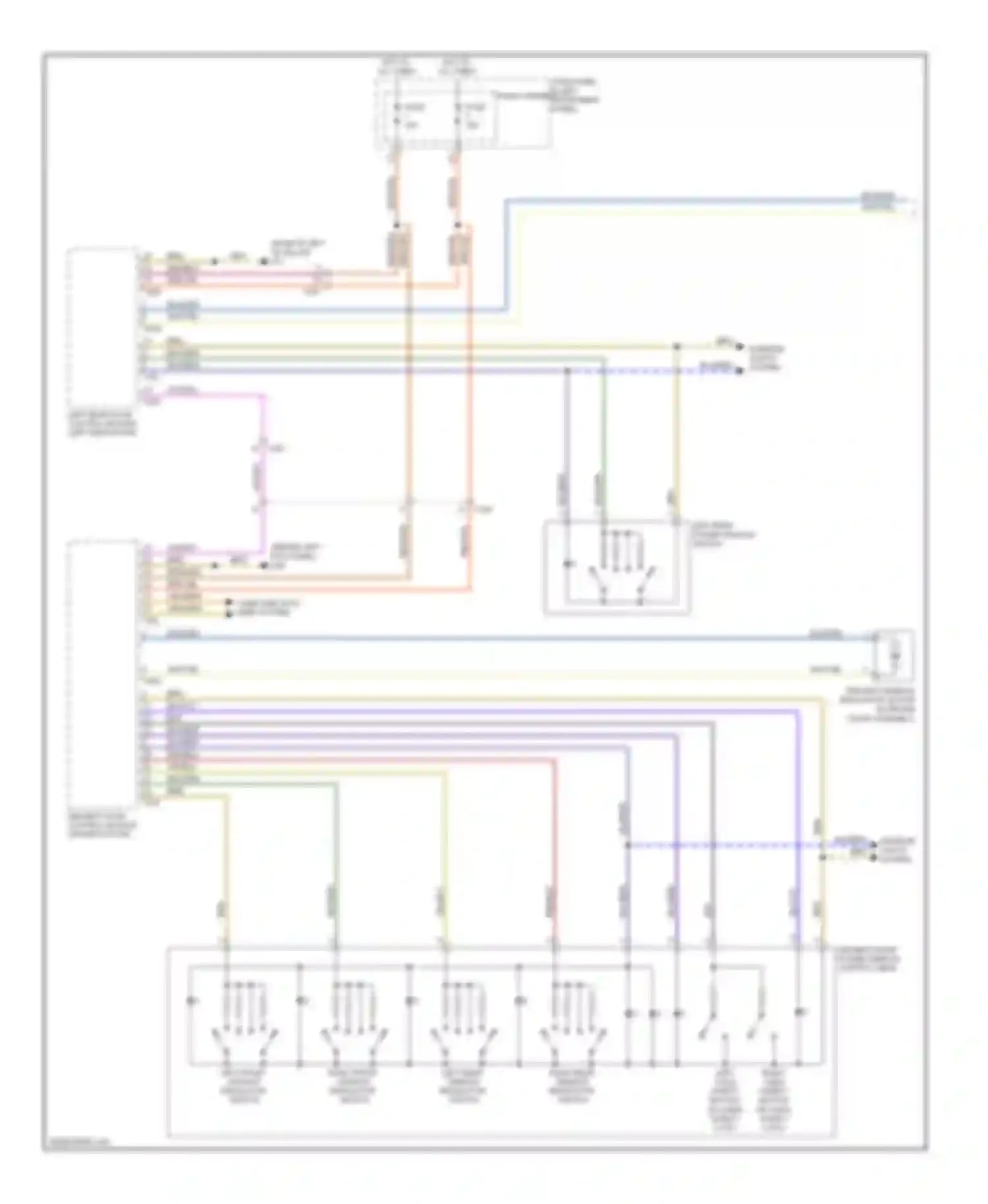

Wiring diagram driver's window regulator motor (in driver (1 of 1)

Wiring diagram driver's window regulator motor (in driver for Audi Q7 4L facelift (2009-2015)

Get access

BLK WIRE BLK/GRN WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/RED WIRE BLU/VIO WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DOOR ASSEMBLY) DRIVER'S DOOR CONTROL MODULE (DRIVER'S DOOR) DRIVER'S DOOR POWER WINDOW CONTROL HEAD DRIVER'S WINDOW REGULATOR MOTOR (IN DRIVER FUSE FUSE CARRIER 1 FUSE PANEL B (LEFT INSTRUMENT PANEL) HOT AT ALL TIMES LEFT FRONT WINDOW REGULATOR SWITCH LEFT REAR DOOR CONTROL MODULE (LEFT REAR DOOR) LEFT REAR POWER WINDOW SWITCH LEFT REAR WINDOW REGULATOR SWITCH ORG/BRN WIRE ORG/GRN WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/YEL WIRE RIGHT FRONT WINDOW REGULATOR SWITCH RIGHT REAR WINDOW REGULATOR SWITCH VIO/GRY WIRE WHT/YEL WIRE YEL/BLK WIRE

Go to component: -> Power windows circuit (1 of 2) -> DRIVER'S WINDOW REGULATOR MOTOR (IN DRIVER
