Audi e-tron GT I (2020-2024) interior rear view mirror Wiring diagrams
This page contains all the electrical diagrams for the component. interior rear view mirror, in which he is found in the car Audi e-tron GT I (2020-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

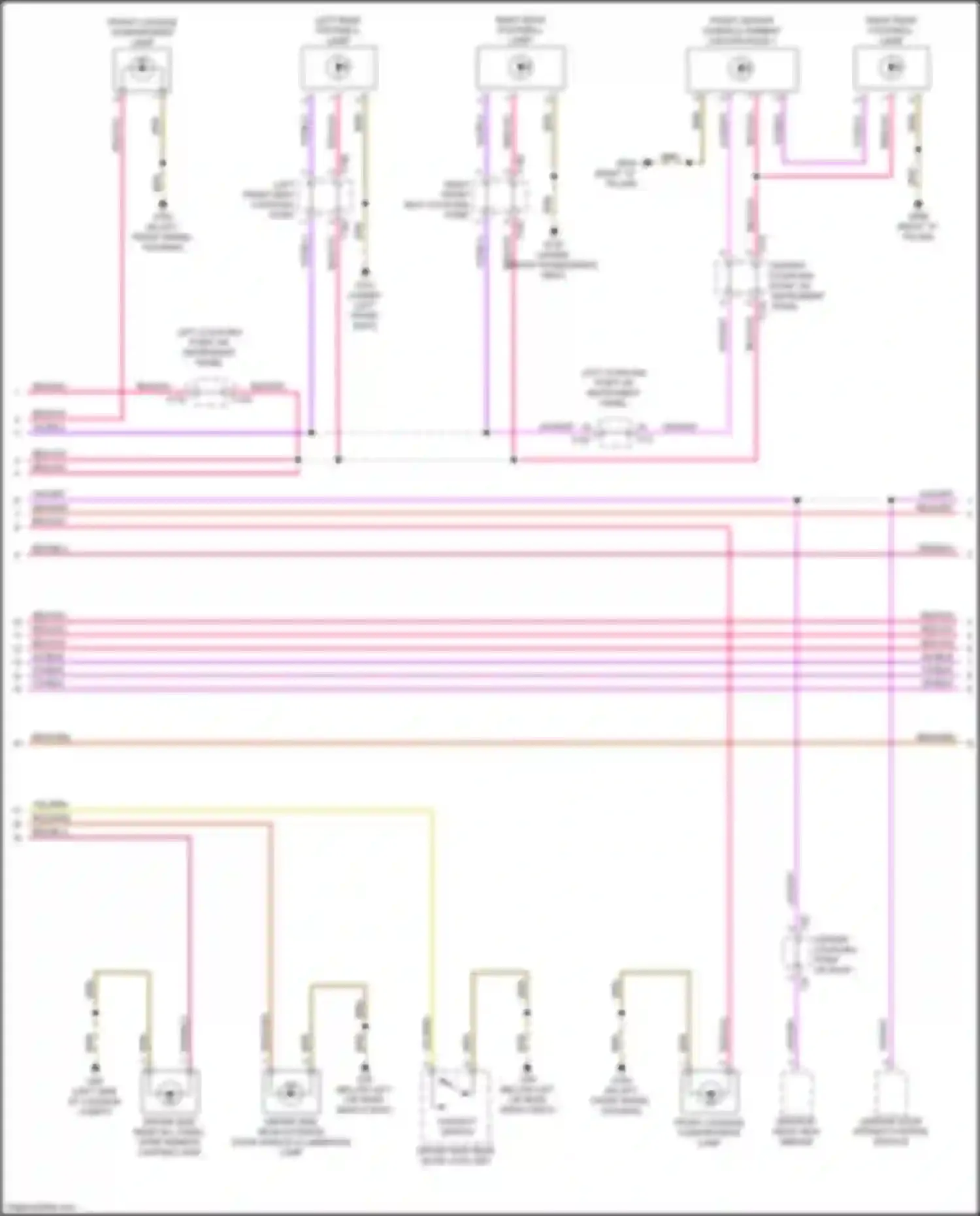

Wiring diagram interior rear view mirror (1 of 6)
BRN WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
CENTER COUPLING POINT ON ROOF
CONTACT SWITCH
DRIVER SIDE REAR DOOR LOCK UNIT
DRIVER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP
DRIVER SIDE REAR SILL PANEL STRIP AMBIENT LIGHTING LAMP
FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1
FRONT LUGGAGE COMPARTMENT LAMP
GARAGE DOOR OPENER CONTROL MODULE
INTERIOR REAR VIEW MIRROR
LEFT COUPLING POINT ON INSTRUMENT PANEL
LEFT FRONT SEAT COUPLING POINT
LEFT REAR FOOTWELL LAMP
RED/BLU WIRE
RED/GRN WIRE
RED/GRY WIRE
RED/VIO WIRE
RIGHT FRONT SEAT COUPLING POINT
RIGHT REAR FOOTWELL LAMP
VIO/BLK WIRE
VIO/BLU WIRE
VIO/GRY WIRE
VIO/WHT WIRE
YEL/BRN WIRE
Go to component -> Courtesy lamps circuit, w/ additional lights (2 of 6) -> INTERIOR REAR VIEW MIRROR

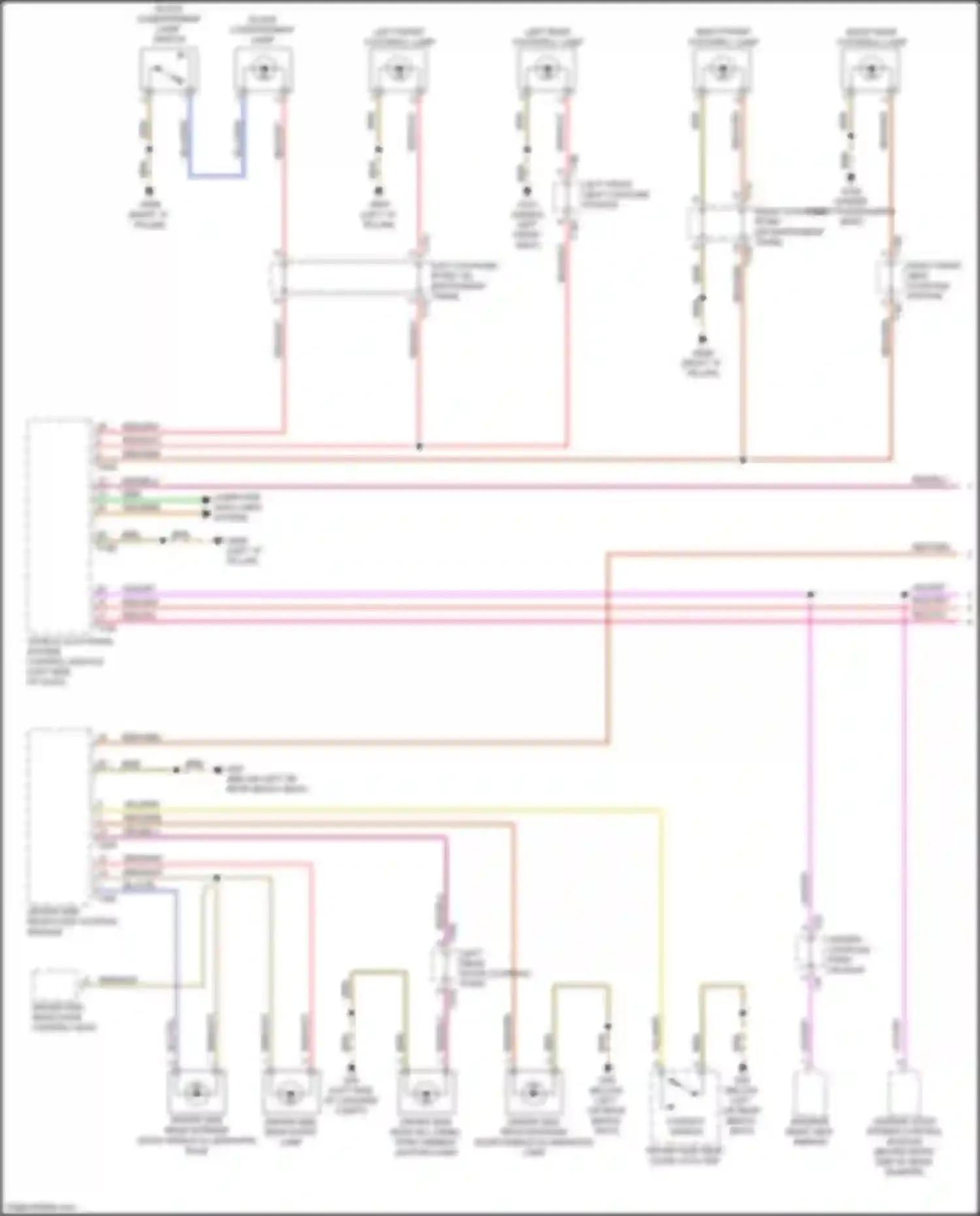

Wiring diagram interior rear view mirror (2 of 6)
BLU/GRN WIRE
BLU/YEL WIRE
BRN WIRE
BRN/WHT WIRE
CENTER COUPLING POINT ON ROOF
COMPUTER DATA LINES SYSTEM
CONTACT SWITCH
DRIVER SIDE REAR DOOR CONTROL HEAD
DRIVER SIDE REAR DOOR CONTROL MODULE
DRIVER SIDE REAR DOOR LOCK UNIT
DRIVER SIDE REAR ENTRY LAMP
DRIVER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP
DRIVER SIDE REAR INTERIOR DOOR HANDLE ILLUMINATION BULB
DRIVER SIDE REAR SILL PANEL STRIP AMBIENT LIGHTING LAMP
GARAGE DOOR OPENER CONTROL MODULE
GLOVE COMPARTMENT LAMP
GLOVE COMPARTMENT LAMP SWITCH
GRN WIRE
INTERIOR REAR VIEW MIRROR
LEFT COUPLING POINT ON INSTRUMENT PANEL
LEFT FRONT FOOTWELL LAMP
LEFT FRONT SEAT COUPLING STATION
LEFT REAR DOOR COUPLING POINT
LEFT REAR FOOTWELL LAMP
ORG/BRN WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/GRY WIRE
RED/VIO WIRE
RED/WHT WIRE
RIGHT COUPLING POINT ON INSTRUMENT PANEL
RIGHT FRONT FOOTWELL LAMP
RIGHT FRONT SEAT COUPLING STATION
RIGHT REAR FOOTWELL LAMP
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
VIO/GRY WIRE
YEL/BRN WIRE
Go to component -> Courtesy lamps circuit, w/o additional lights (1 of 4) -> INTERIOR REAR VIEW MIRROR

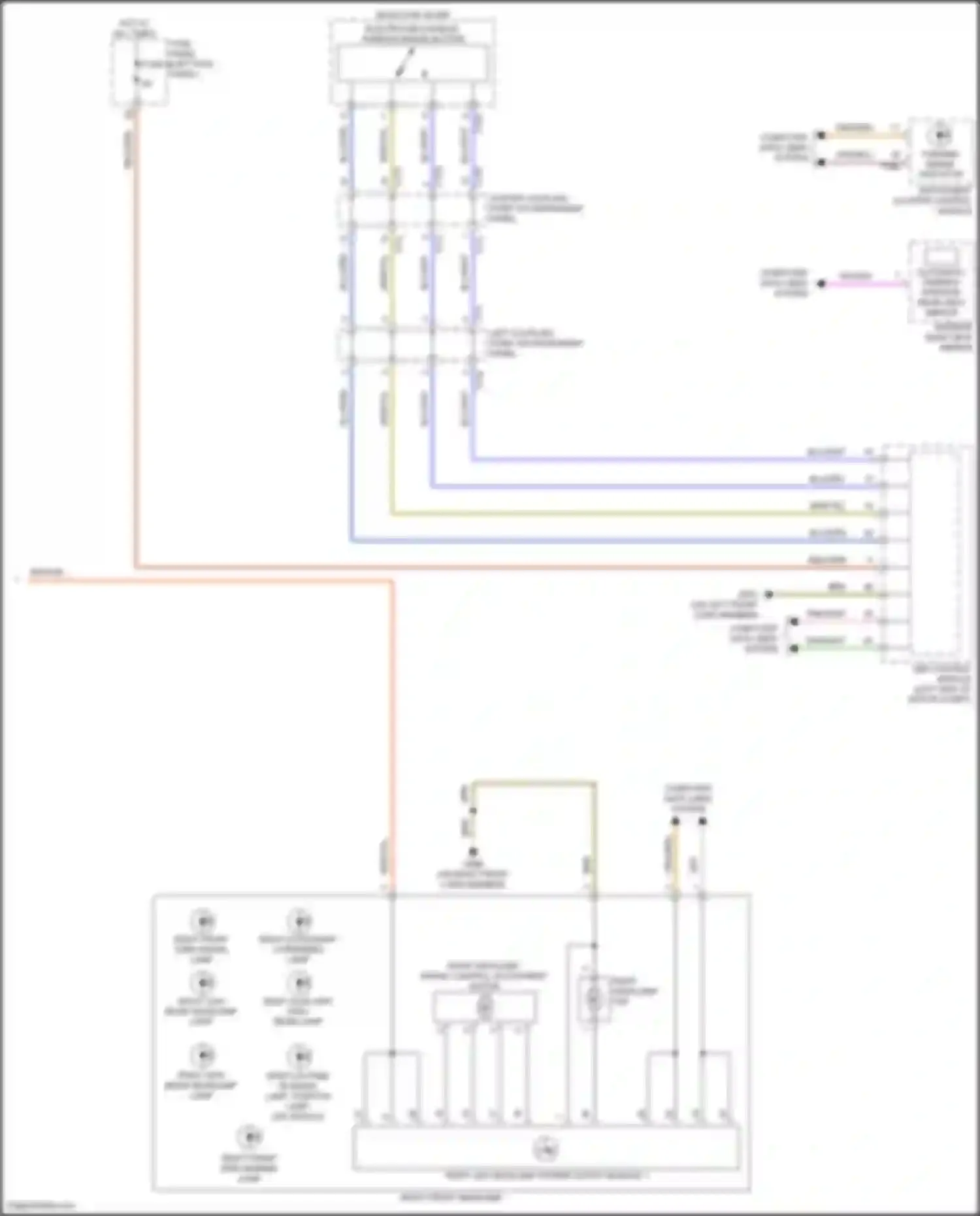

Wiring diagram interior rear view mirror (3 of 6)
ABS CONTROL MODULE
AUTOMATIC DIMMING INTERIOR REAR VIEW MIRROR
BLU/GRN WIRE
BLU/GRY WIRE
BLU/WHT WIRE
BRN WIRE
BRN/YEL WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
COMPUTER DATA LINES SYSTEM
ELECTRO- MECHANICAL PARKING BRAKE BUTTON
FUSE 5
FUSE PANEL C
GRN/WHT WIRE
GRY WIRE
HOT AT ALL TIMES
INSTRUMENT CLUSTER CONTROL MODULE
INTERIOR REAR VIEW MIRROR
LEFT COUPLING POINT ON INSTRUMENT PANEL
ORG/BLU WIRE
ORG/BRN WIRE
PARKING BRAKE INDICATOR
PNK/WHT WIRE
RED/GRN WIRE
RED/YEL WIRE
RIGHT AUXILIARY HIGH BEAM LAMP
RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE
RIGHT FRONT HEADLAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT FRONT TURN SIGNAL LAMP
RIGHT HEADLAMP FAN
RIGHT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR
RIGHT HIGH BEAM HEADLAMP LAMP
RIGHT LED HEADLAMP POWER OUTPUT MODULE 1
RIGHT LOW BEAM HEADLAMP LAMP
RIGHT STATIONARY CORNERING LAMP
SELECTOR LEVER
VIO/GRY WIRE
Go to component -> Headlights circuit, w/ lens (2 of 2) -> INTERIOR REAR VIEW MIRROR
Wiring diagram interior rear view mirror (4 of 6)
ABS CONTROL MODULE
AUTOMATIC DIMMING INTERIOR REAR VIEW MIRROR
BLU/GRN WIRE
BLU/GRY WIRE
BLU/WHT WIRE
BRN WIRE
BRN/YEL WIRE
CENTER COUPLING POINT ON INSTRUMENT PANEL
COMPUTER DATA LINES SYSTEM
ELECTRO- MECHANICAL PARKING BRAKE BUTTON
FUSE 10
FUSE 4
FUSE 5
FUSE PANEL C
FUSE PANEL G
GRN/WHT WIRE
GRY WIRE
HOT AT ALL TIMES
INSTRUMENT CLUSTER CONTROL MODULE
INTERIOR REAR VIEW MIRROR
LEFT COUPLING POINT ON INSTRUMENT PANEL
ORG/BLU WIRE
ORG/BRN WIRE
PARKING BRAKE INDICATOR
PNK/WHT WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/YEL WIRE
RIGHT AUXILIARY HIGH BEAM LAMP
RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE
RIGHT FRONT HEADLAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT FRONT TURN SIGNAL LAMP
RIGHT HEADLAMP FAN
RIGHT HEADLAMP FAN 2
RIGHT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR
RIGHT HIGH BEAM HEADLAMP LAMP
RIGHT LED HEADLAMP POWER OUTPUT MODULE 1
RIGHT LOW BEAM HEADLAMP LAMP
RIGHT STATIONARY CORNERING LAMP
SELECTOR LEVER
VIO/GRY WIRE
YEL WIRE
Go to component -> Headlights circuit, w/o lens (2 of 2) -> INTERIOR REAR VIEW MIRROR

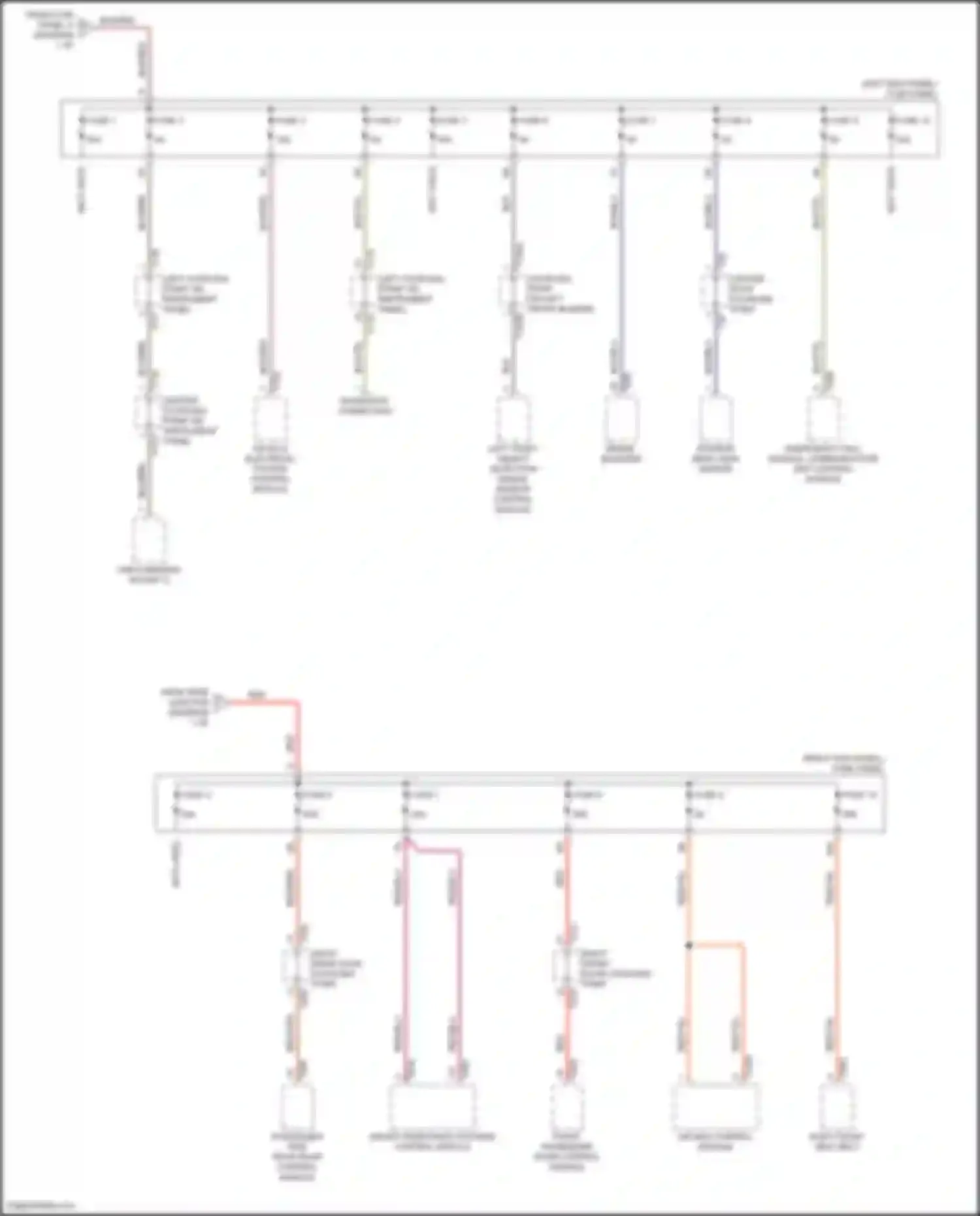

Wiring diagram interior rear view mirror (5 of 6)
AIR BAG CONTROL MODULE
BLK WIRE
BLK/BLU WIRE
BLK/BRN WIRE
BLK/RED WIRE
BLK/YEL WIRE
BRAKE BOOSTER
CENTER COUPLING POINT ON INSTRUMENT PANEL
CENTER ROOF COUPLING POINT
COUPLING POINT ON LEFT FRONT BUMPER
DIAGNOSTIC CONNECTION
DRIVER ASSISTANCE SYSTEMS CONTROL MODULE
EMERGENCY CALL MODULE, COMMUNICATION UNIT CONTROL MODULE
FROM FUSE PANEL H (DIAGRAM 1 OF 8)
FROM WIRE JUNCTION (DIAGRAM 1 OF 8)
FRONT PASSENGER DOOR CONTROL MODULE
FUSE 1
FUSE 10
FUSE 12
FUSE 2
FUSE 3
FUSE 4
FUSE 5
FUSE 6
FUSE 7
FUSE 8
FUSE 9
INTERIOR REAR VIEW MIRROR
LEFT COUPLING POINT ON INSTRUMENT PANEL
LEFT FRONT OBJECT DETECTION RADAR SENSOR CONTROL MODULE
N/A
PASSENGER SIDE REAR DOOR CONTROL MODULE
RED WIRE
RED/BLU WIRE
RED/BRN WIRE
RED/GRN WIRE
RED/YEL WIRE
RIGHT FRONT DOOR COUPLING POINT
RIGHT FRONT SEAT BELT
RIGHT REAR DOOR COUPLING POINT
USB CHARGING SOCKET 2
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
Go to component -> Power distribution circuit (5 of 8) -> INTERIOR REAR VIEW MIRROR

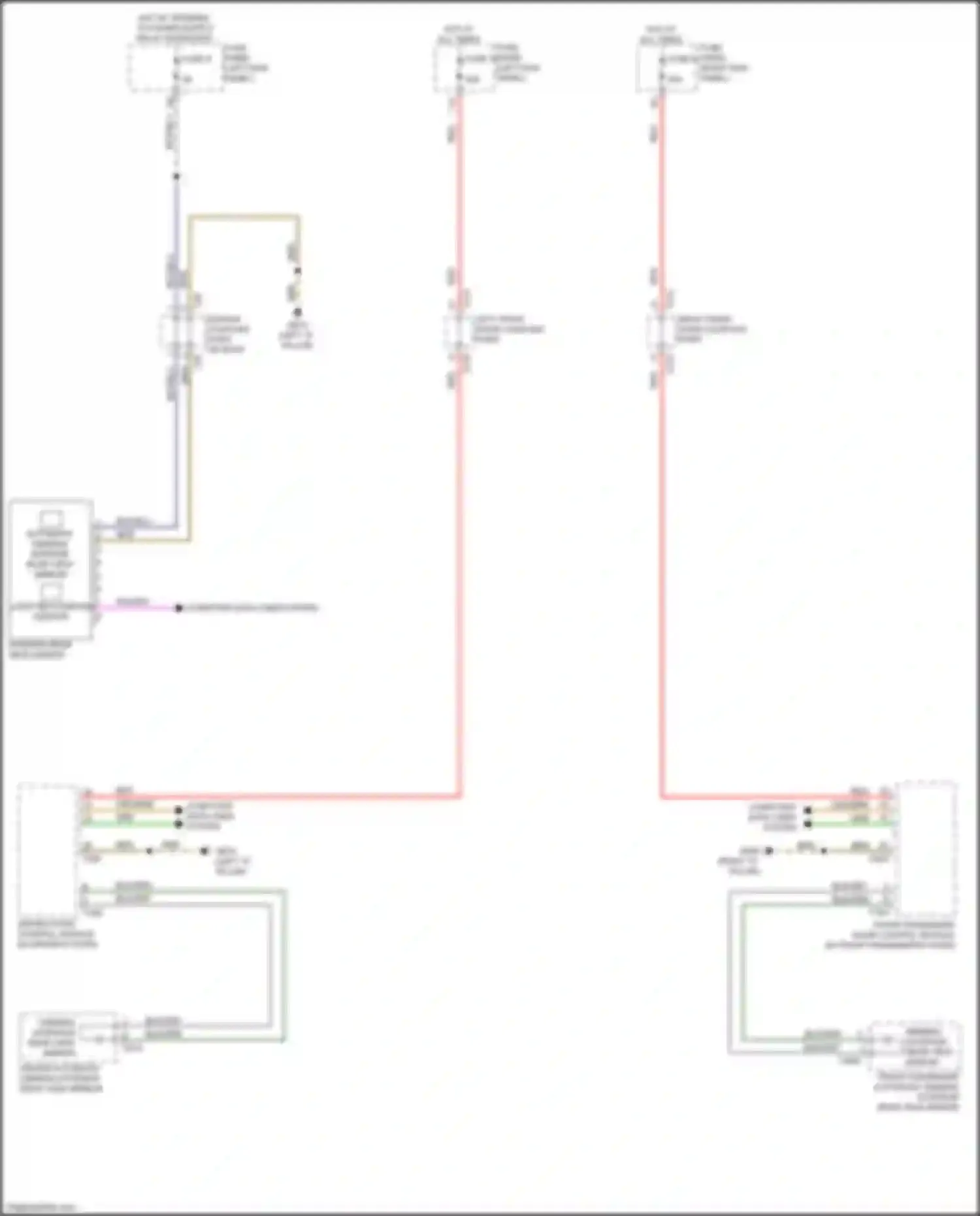

Wiring diagram interior rear view mirror (6 of 6)
AUTOMATIC DIMMING INTERIOR REAR VIEW MIRROR
BLK/BLU WIRE
BLK/GRN WIRE
BLK/GRY WIRE
BRN WIRE
CENTER COUPLING POINT ON ROOF
COMPUTER DATA LINES SYSTEM
DIMMING EXTERIOR REAR VIEW MIRROR
DRIVER AUTOMATIC DIMMING EXTERIOR REAR VIEW MIRROR
DRIVER DOOR CONTROL MODULE
FRONT PASSENGER AUTOMATIC DIMMING EXTERIOR REAR VIEW MIRROR
FRONT PASSENGER DOOR CONTROL MODULE
FUSE 11
FUSE 8
FUSE PANEL C
FUSE PANEL D
FUSE PANEL F
GRN WIRE
HOT AT ALL TIMES
HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED
INTERIOR REAR VIEW MIRROR
LEFT FRONT DOOR COUPLING POINT
LIGHT RECOGNITION SENSOR
ORG/BRN WIRE
RED WIRE
RIGHT FRONT DOOR COUPLING POINT
VIO/GRY WIRE
Go to component -> Power mirrors circuit -> INTERIOR REAR VIEW MIRROR
