Audi e-tron GT I (2020-2024) driver seat backrest coupling point Wiring diagrams
This page contains all the electrical diagrams for the component. driver seat backrest coupling point, in which he is found in the car Audi e-tron GT I (2020-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

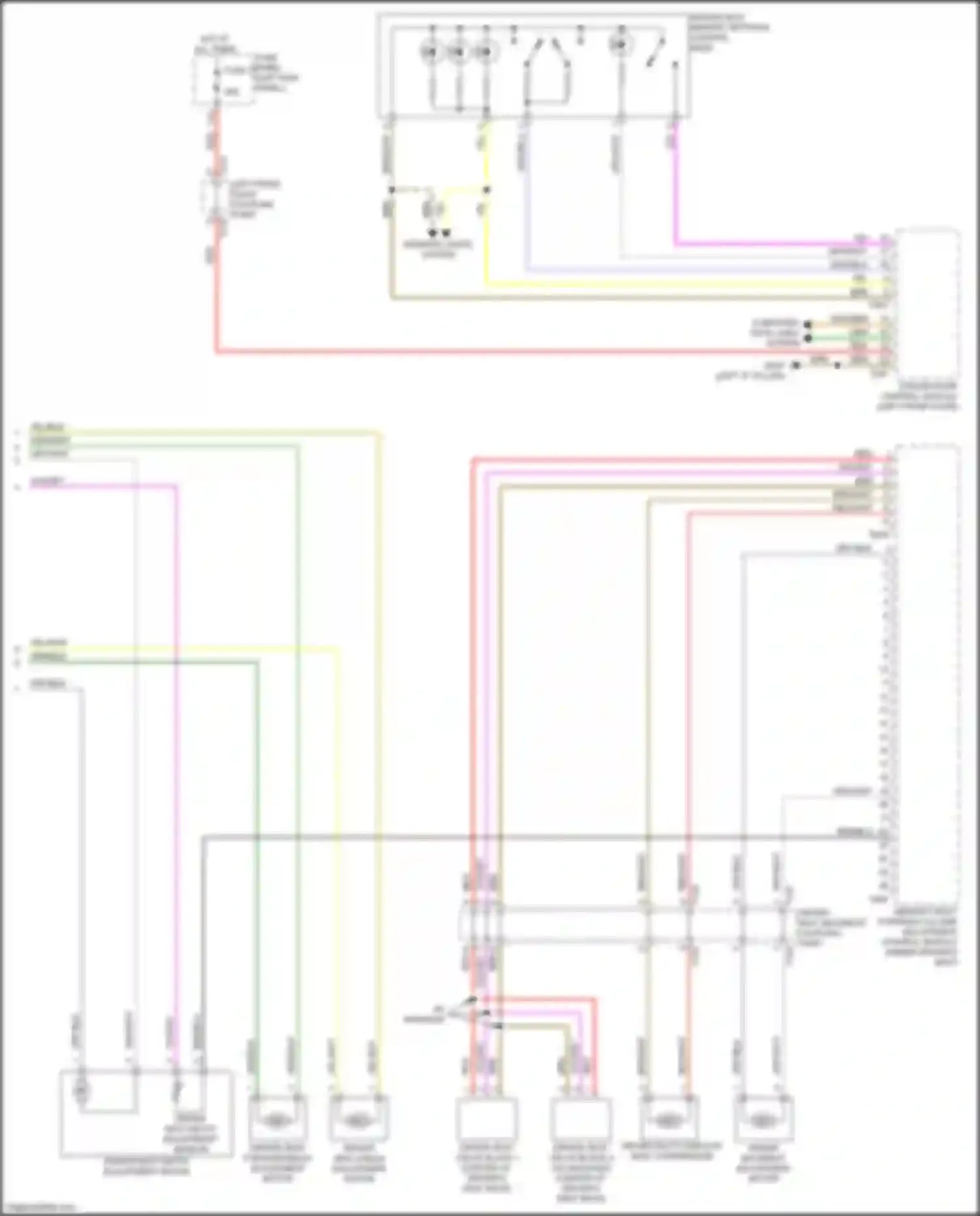

Wiring diagram driver seat backrest coupling point (1 of 6)
BRN WIRE
BRN/BLU WIRE
BRN/WHT WIRE
COMPUTER DATA LINES SYSTEM
DRIVER BACKREST ADJUSTMENT MOTOR
DRIVER DOOR CONTROL MODULE
DRIVER MULTI-CONTOUR SEAT COMPRESSOR
DRIVER SEAT ANGLE ADJUSTMENT MOTOR
DRIVER SEAT BACKREST COUPLING POINT
DRIVER SEAT DEPTH ADJUSTMENT MOTOR
DRIVER SEAT DEPTH ADJUSTMENT SENSOR
DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR
DRIVER SEAT MEMORY SETTINGS CONTROL HEAD
DRIVER SEAT VALVE BLOCK 1
DRIVER SEAT VALVE BLOCK 2
FUSE 11
FUSE PANEL C
GRN WIRE
GRN/BLK WIRE
GRN/WHT WIRE
GRY/BLK WIRE
GRY/WHT WIRE
HOT AT ALL TIMES
LEFT FRONT DOOR COUPLING POINT
MEMORY SEAT/ STEERING COLUMN ADJUSTMENT CONTROL MODULE
ORG/BRN WIRE
RED WIRE
RED/WHT WIRE
VIO WIRE
VIO/GRY WIRE
W/ MASSAGE
WHT/BLU WIRE
YEL WIRE
YEL/BLK WIRE
YEL/WHT WIRE
Go to component -> Driver"s memory seat circuit, w/ sport seats & comfort seats (2 of 2) -> DRIVER SEAT BACKREST COUPLING POINT

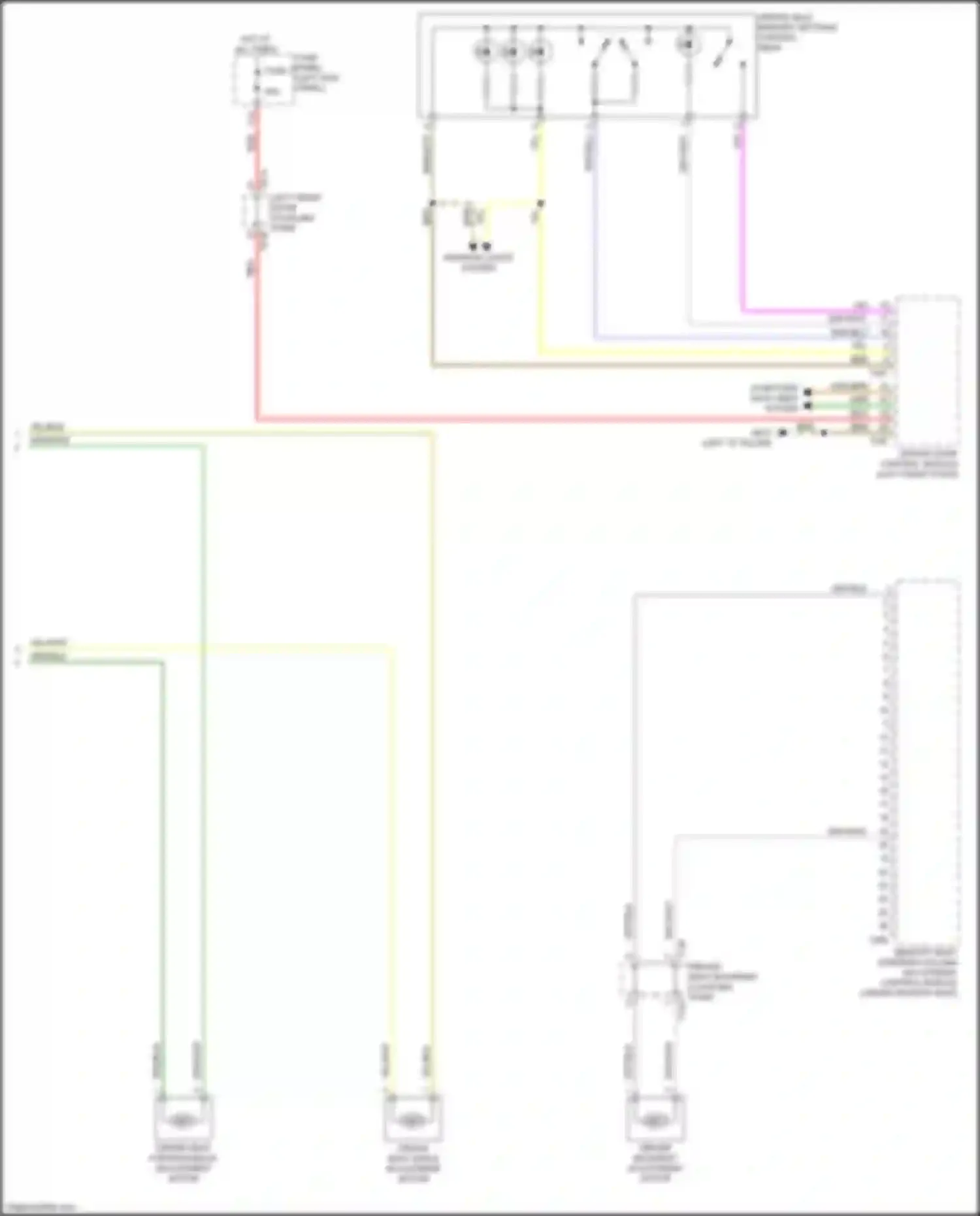

Wiring diagram driver seat backrest coupling point (2 of 6)
BRN WIRE
BRN/WHT WIRE
COMPUTER DATA LINES SYSTEM
DRIVER BACKREST ADJUSTMENT MOTOR
DRIVER DOOR CONTROL MODULE
DRIVER SEAT ANGLE ADJUSTMENT MOTOR
DRIVER SEAT BACKREST COUPLING POINT
DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR
DRIVER SEAT MEMORY SETTINGS CONTROL HEAD
FUSE 11
FUSE PANEL C
GRN WIRE
GRN/BLK WIRE
GRN/WHT WIRE
GRY/BLK WIRE
GRY/WHT WIRE
HOT AT ALL TIMES
LEFT FRONT DOOR COUPLING POINT
MEMORY SEAT/ STEERING COLUMN ADJUSTMENT CONTROL MODULE
ORG/BRN WIRE
RED WIRE
VIO WIRE
WHT/BLU WIRE
YEL WIRE
YEL/BLK WIRE
YEL/WHT WIRE
Go to component -> Driver"s memory seat circuit, w/ standard seats (2 of 2) -> DRIVER SEAT BACKREST COUPLING POINT

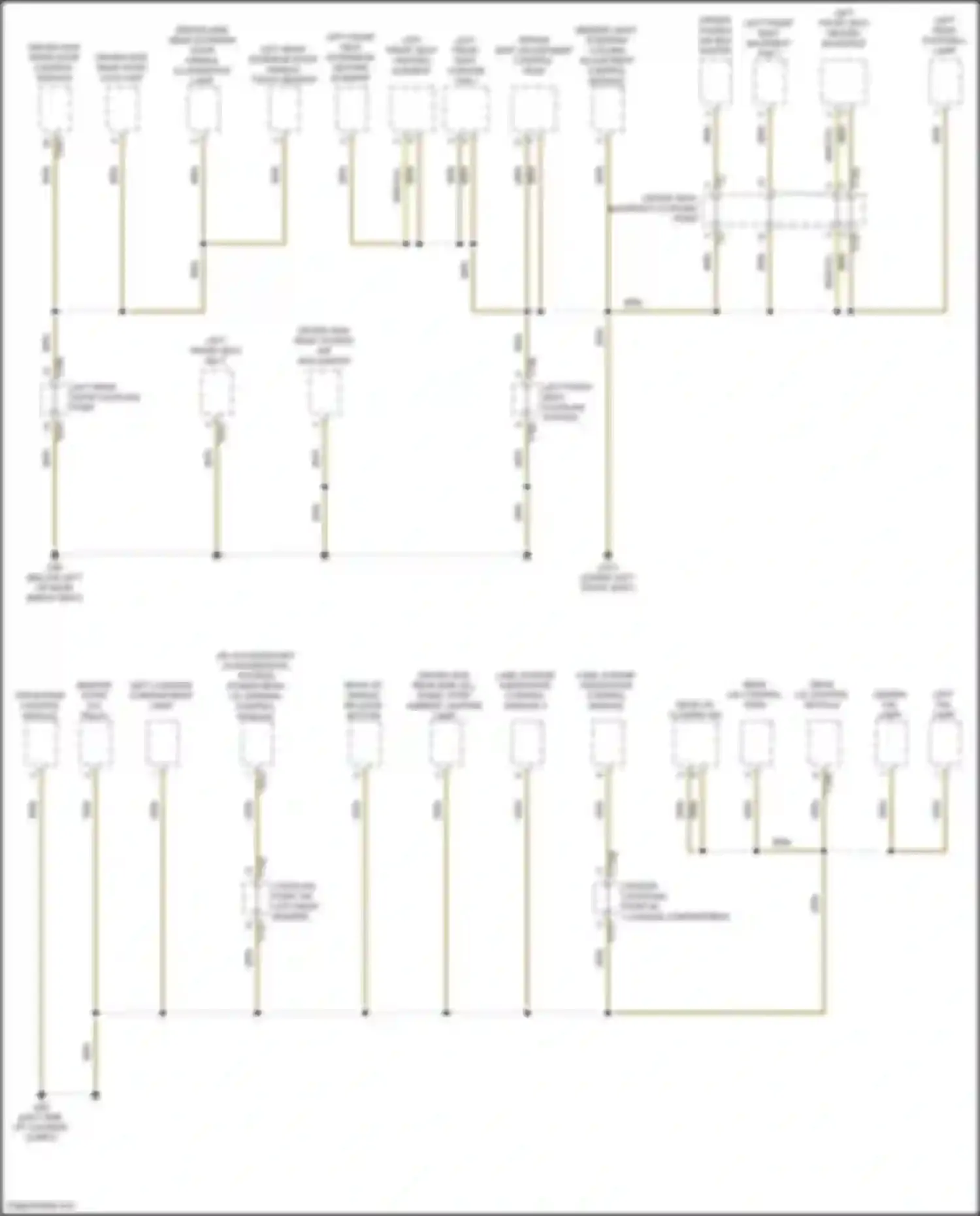

Wiring diagram driver seat backrest coupling point (3 of 6)
BRN WIRE
BRN/YEL WIRE
CENTER COUPLING POINT IN LUGGAGE COMPARTMENT
CENTER TAIL LAMP
COUPLING POINT ON LEFT REAR BUMPER
DRIVER SEAT ADJUSTMENT CONTROL HEAD
DRIVER SEAT BACKREST COUPLING POINT
DRIVER SIDE REAR DOOR CONTROL MODULE
DRIVER SIDE REAR DOOR LOCK UNIT
DRIVER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP
DRIVER SIDE REAR SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP
DRIVER SIDE REAR THORAX AIR BAG IGNITER
DRIVER THORAX AIR BAG IGNITER
DRIVETRAIN CONTROL MODULE
LANE CHANGE ASSISTANCE CONTROL MODULE
LANE CHANGE ASSISTANCE CONTROL MODULE 2
LEFT FRONT SEAT BACKREST FAN 1
LEFT FRONT SEAT BELT
LEFT FRONT SEAT COUPLING STATION
LEFT FRONT SEAT CUSHION FAN 1
LEFT FRONT SEAT EXTENSION HEATING ELEMENT
LEFT FRONT SEAT HEATED BACKREST
LEFT FRONT SEAT HEATING ELEMENT
LEFT LUGGAGE COMPARTMENT LAMP
LEFT REAR DOOR COUPLING POINT
LEFT REAR EXTERIOR DOOR HANDLE TOUCH SENSOR
LEFT REAR FOOTWELL LAMP
LEFT TAIL LAMP
MEMORY SEAT/ STEERING COLUMN ADJUSTMENT CONTROL MODULE
POWER REAR LID OPENING CONTROL MODULE
REAR LID CLOSING AID
REAR LID CONTROL HEAD
REAR LID CONTROL MODULE
REAR LID HANDLE RELEASE BUTTON
REMOTE START A/C RELAY
Go to component -> Ground distribution circuit (4 of 6) -> DRIVER SEAT BACKREST COUPLING POINT

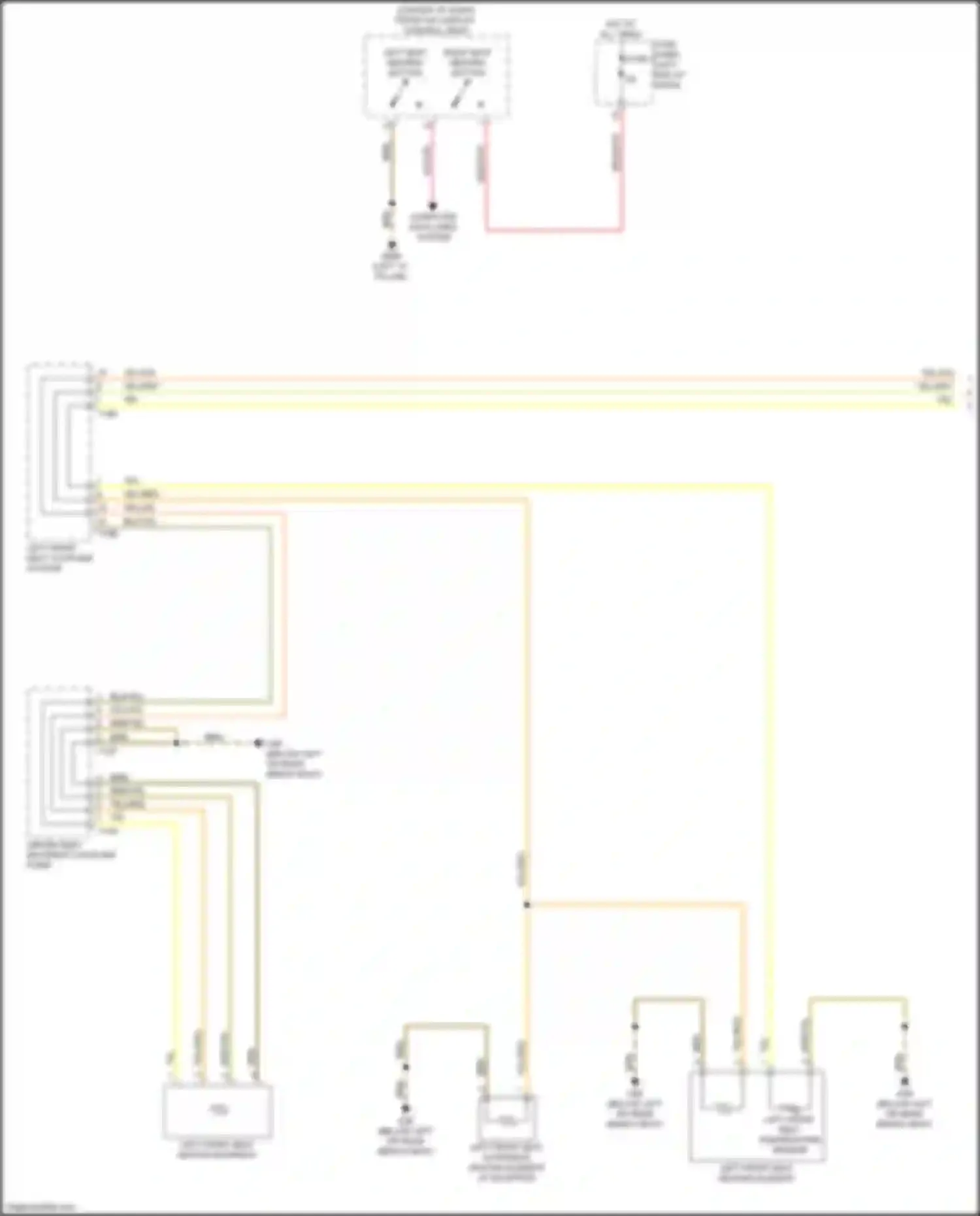

Wiring diagram driver seat backrest coupling point (4 of 6)
BLK/YEL WIRE
BRN WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
DRIVER SEAT BACKREST COUPLING POINT
FRONT A/C DISPLAY CONTROL HEAD
FUSE 1
FUSE PANEL O
HOT AT ALL TIMES
LEFT FRONT SEAT COUPLING STATION
LEFT FRONT SEAT EXTENSION HEATING ELEMENT
LEFT FRONT SEAT HEATED BACKREST
LEFT FRONT SEAT HEATING ELEMENT
LEFT FRONT SEAT TEMPERATURE SENSOR
LEFT SEAT HEATING BUTTON
RED/WHT WIRE
RIGHT SEAT HEATING BUTTON
VIO/YEL WIRE
YEL WIRE
YEL/GRY WIRE
YEL/RED WIRE
YEL/VIO WIRE
Go to component -> Heated seats circuit (1 of 2) -> DRIVER SEAT BACKREST COUPLING POINT

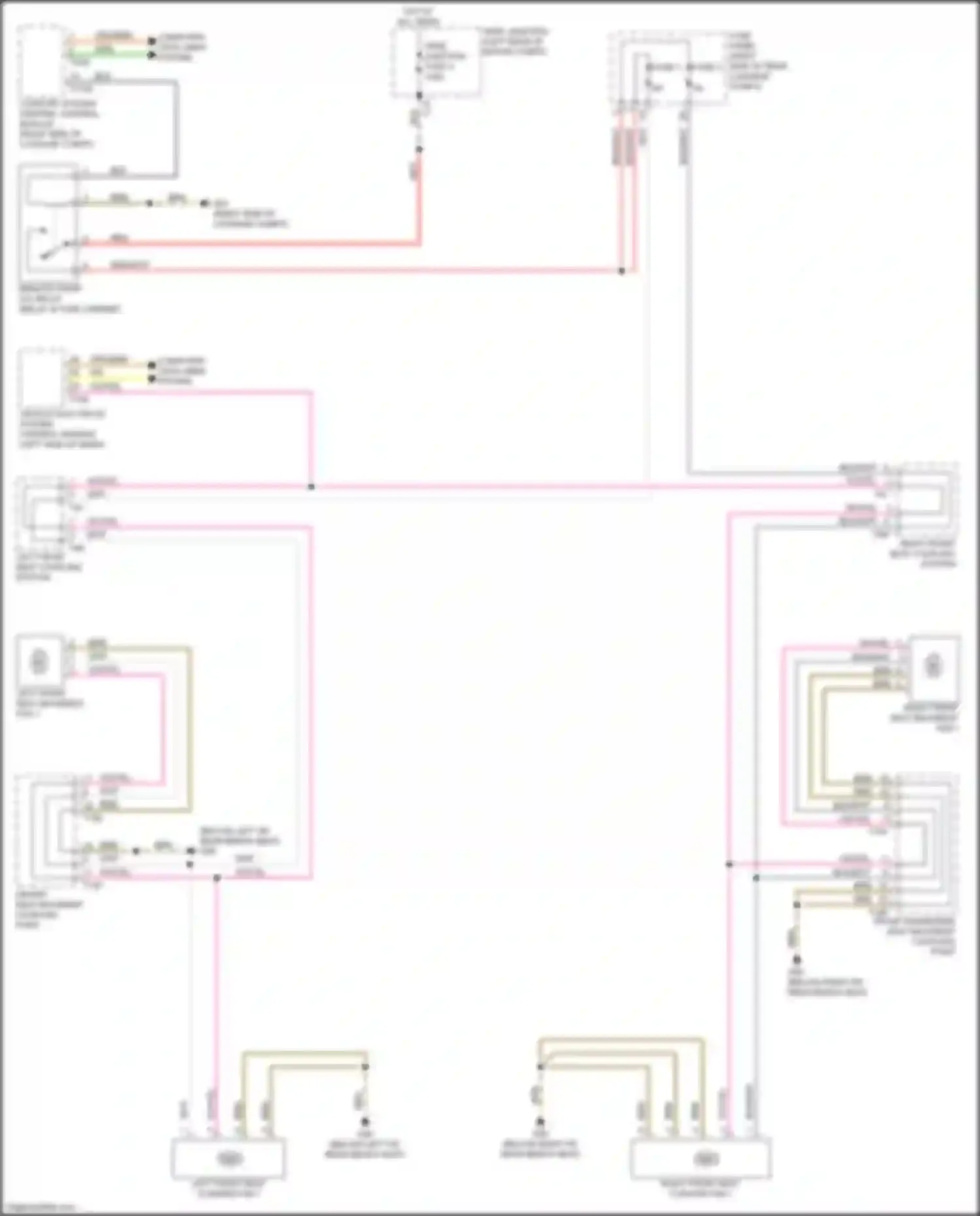

Wiring diagram driver seat backrest coupling point (5 of 6)
BLK WIRE
BLK/WHT WIRE
BRN WIRE
COMFORT SYSTEM CENTRAL CONTROL MODULE
COMPUTER DATA LINES SYSTEM
DRIVER SEAT BACKREST COUPLING POINT
FRONT PASSENGER SEAT BACKREST COUPLING POINT
FUSE 1
FUSE 2
FUSE PANEL M
GRN WIRE
HOT AT ALL TIMES
LEFT FRONT SEAT BACKREST FAN 1
LEFT FRONT SEAT COUPLING STATION
LEFT FRONT SEAT CUSHION FAN 1
ORG/BRN WIRE
RED WIRE
RED/WHT WIRE
RELAY & FUSE CARRIER 4
REMOTE START A/C RELAY
RIGHT FRONT SEAT BACKREST FAN 1
RIGHT FRONT SEAT COUPLING STATION
RIGHT FRONT SEAT CUSHION FAN 1
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
VIO/YEL WIRE
WHT WIRE
WIRE JUNCTION
WIRE JUNCTION FUSE 3
YEL WIRE
Go to component -> Seat ventilation circuit -> DRIVER SEAT BACKREST COUPLING POINT

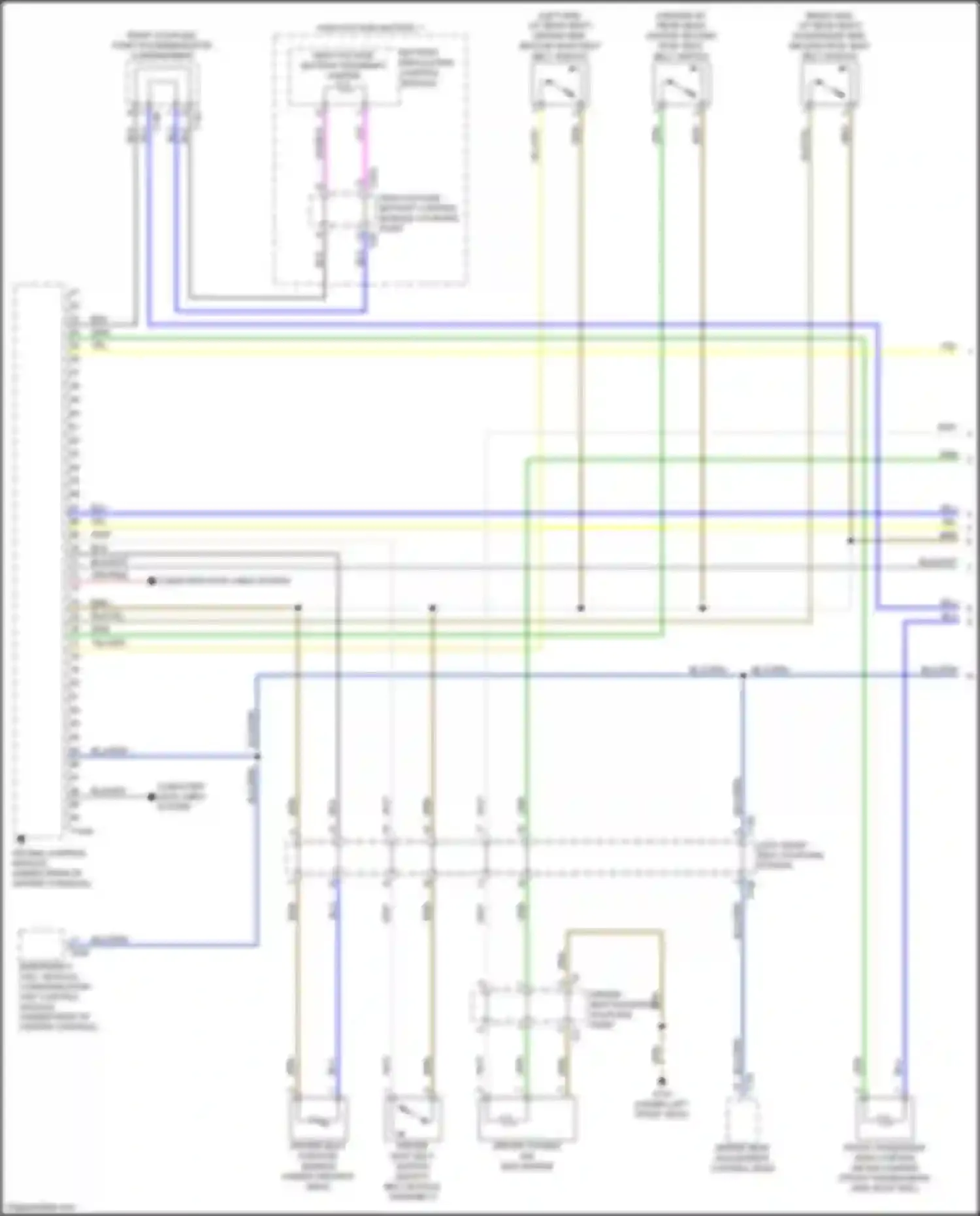

Wiring diagram driver seat backrest coupling point (6 of 6)
AIR BAG CONTROL MODULE
BATTERY REGULATION CONTROL MODULE
BLK WIRE
BLK/GRY WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
BLU/GRN WIRE
BRN WIRE
CENTER SECOND ROW SEAT BELT SWITCH
COMPUTER DATA LINES SYSTEM
DRIVER SEAT ADJUSTMENT CONTROL HEAD
DRIVER SEAT BACKREST COUPLING POINT
DRIVER SEAT BELT SWITCH
DRIVER SEAT POSITION SENSOR
DRIVER SIDE SECOND ROW SEAT BELT SWITCH
DRIVER THORAX AIR BAG IGNITER
EMERGENCY CALL MODULE, COMMUNICATION UNIT CONTROL MODULE
FRONT PASSENGER HEAD CURTAIN AIR BAG IGNITER
GRN WIRE
GRY/RED WIRE
HIGH VOLTAGE BATTERY 1
HIGH-VOLTAGE BATTERY CONTROL MODULE COUPLING POINT
HIGH-VOLTAGE BATTERY INTERRUPT IGNITER
LEFT FRONT SEAT COUPLING STATION
PASSENGER SIDE SECOND ROW SEAT BELT SWITCH
RIGHT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT
VIO WIRE
VIO/BLK WIRE
WHT WIRE
YEL WIRE
YEL/GRY WIRE
Go to component -> Supplemental restraints circuit (1 of 5) -> DRIVER SEAT BACKREST COUPLING POINT
