Wiring Diagrams for Audi e-tron GT I (2020-2024)

Active rear spoiler circuit Virtual engine sound system circuit

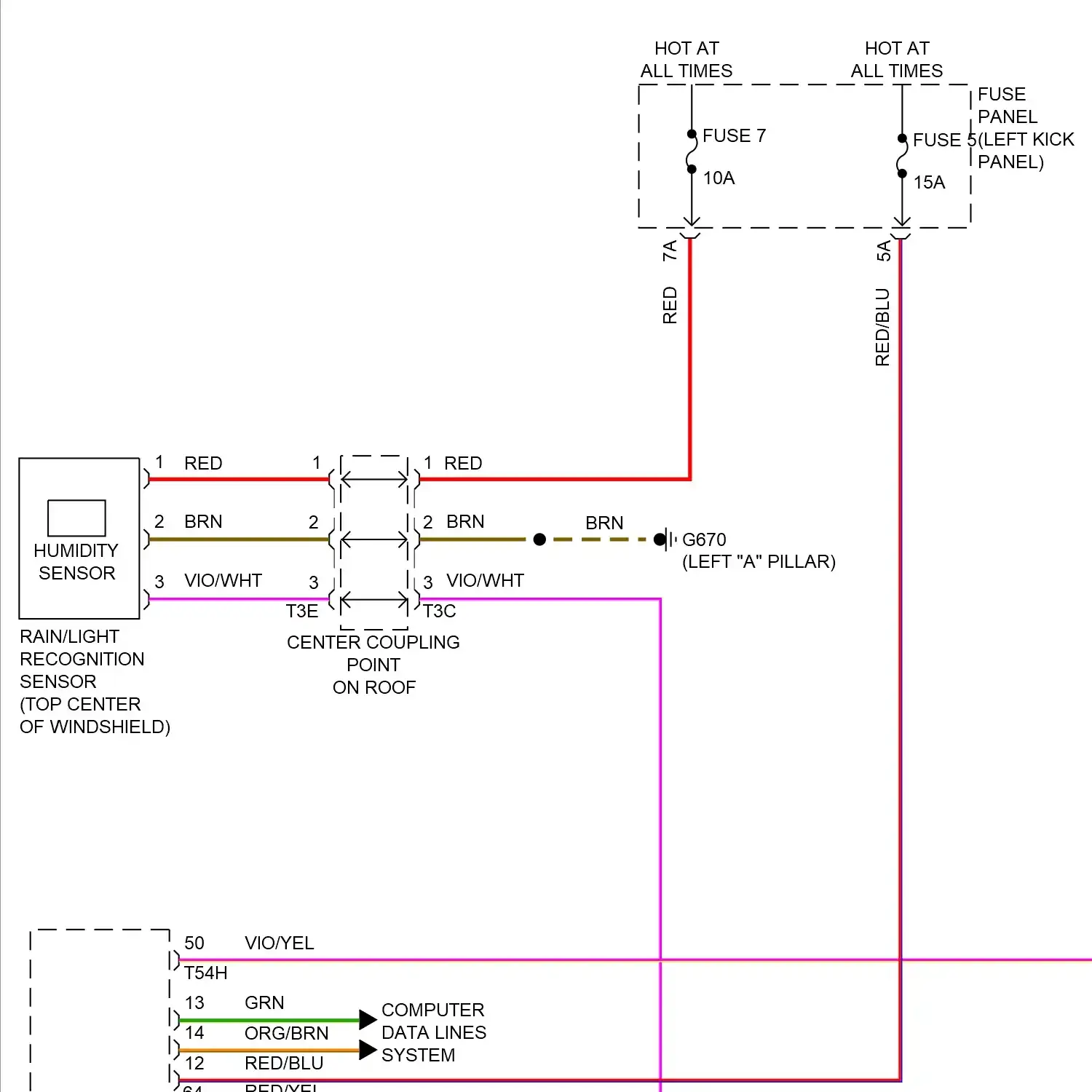

Automatic a/c circuit

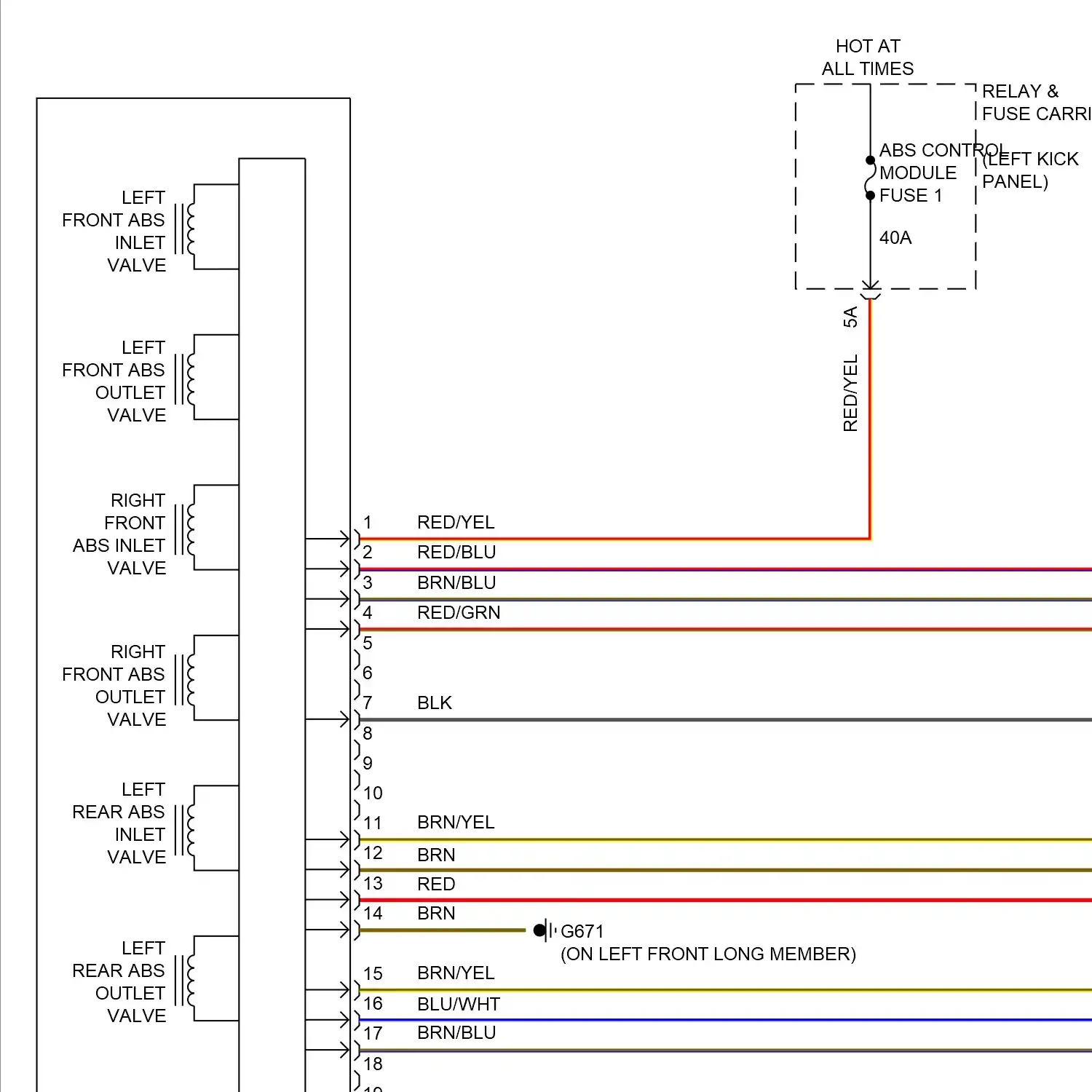

Anti-lock brakes circuit

Access/start circuit Forced entry circuit

Comfort system central control module circuit Steering column electronic systems control module circuit Vehicle electrical system control module circuit

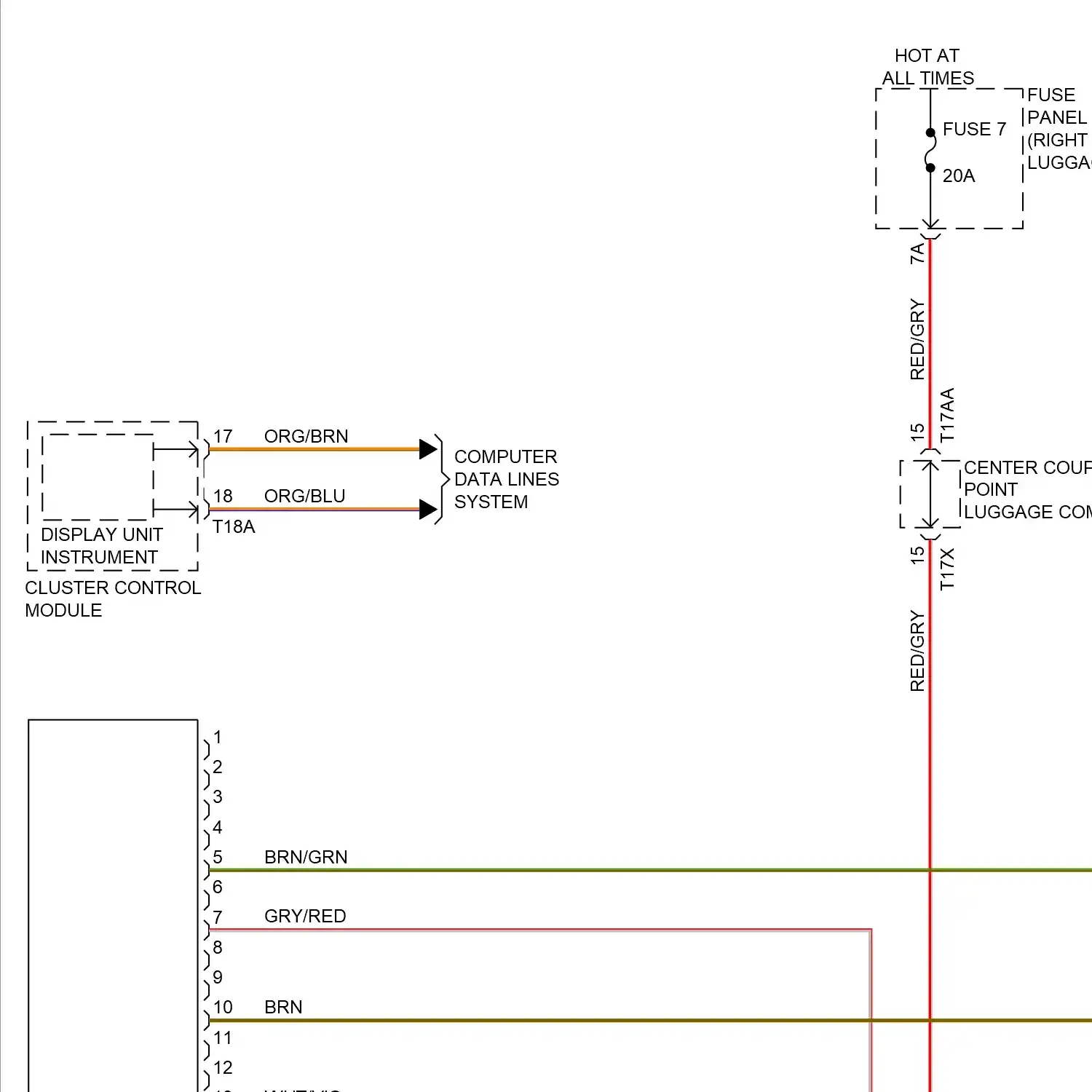

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

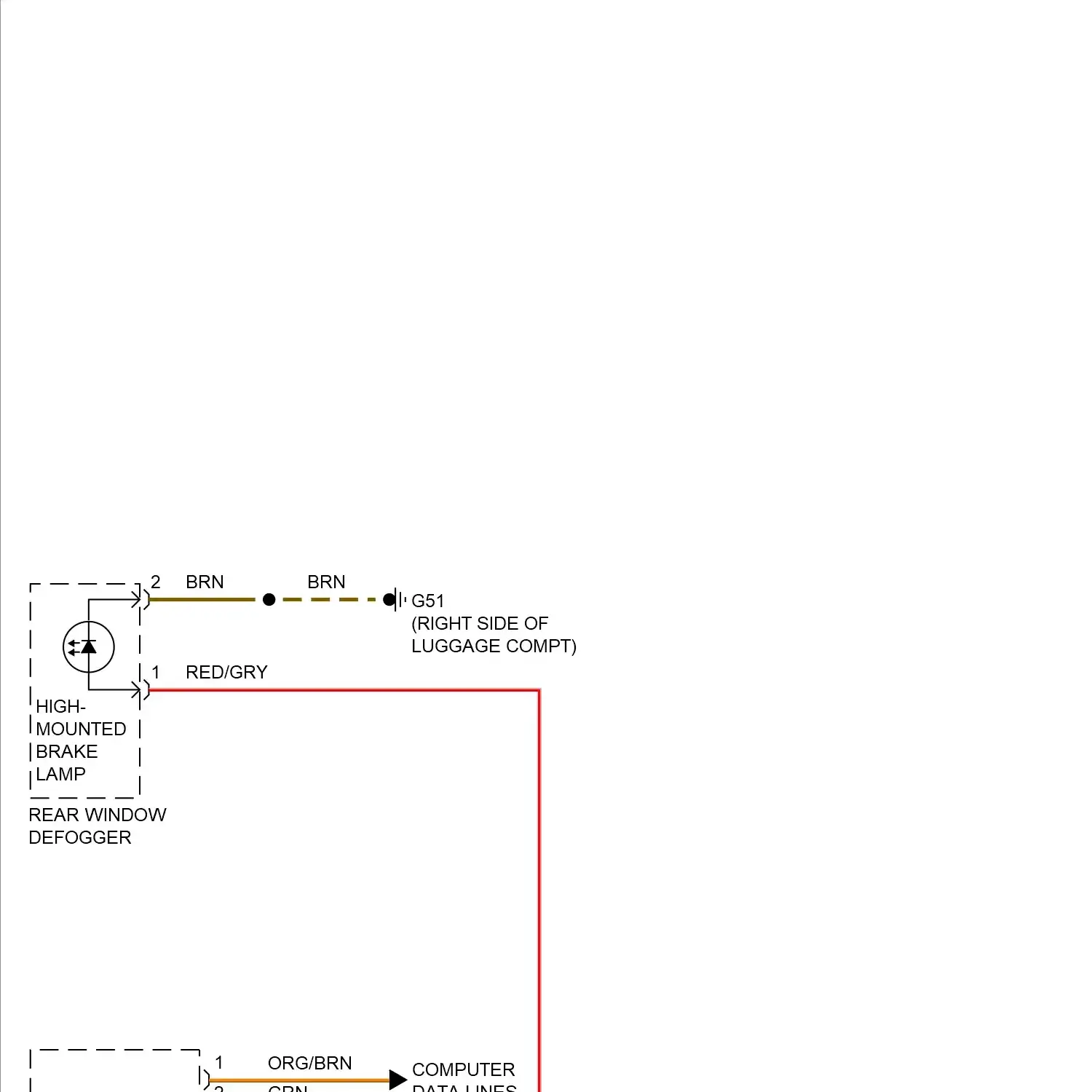

Defoggers circuit

Electromechanical power steering circuit Rear axle steering circuit

Electronic suspension circuit

Wiring diagram engine performance electric

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit, w/ lens Headlights circuit, w/o lens

Horn circuit

Instrument cluster circuit Night vision circuit

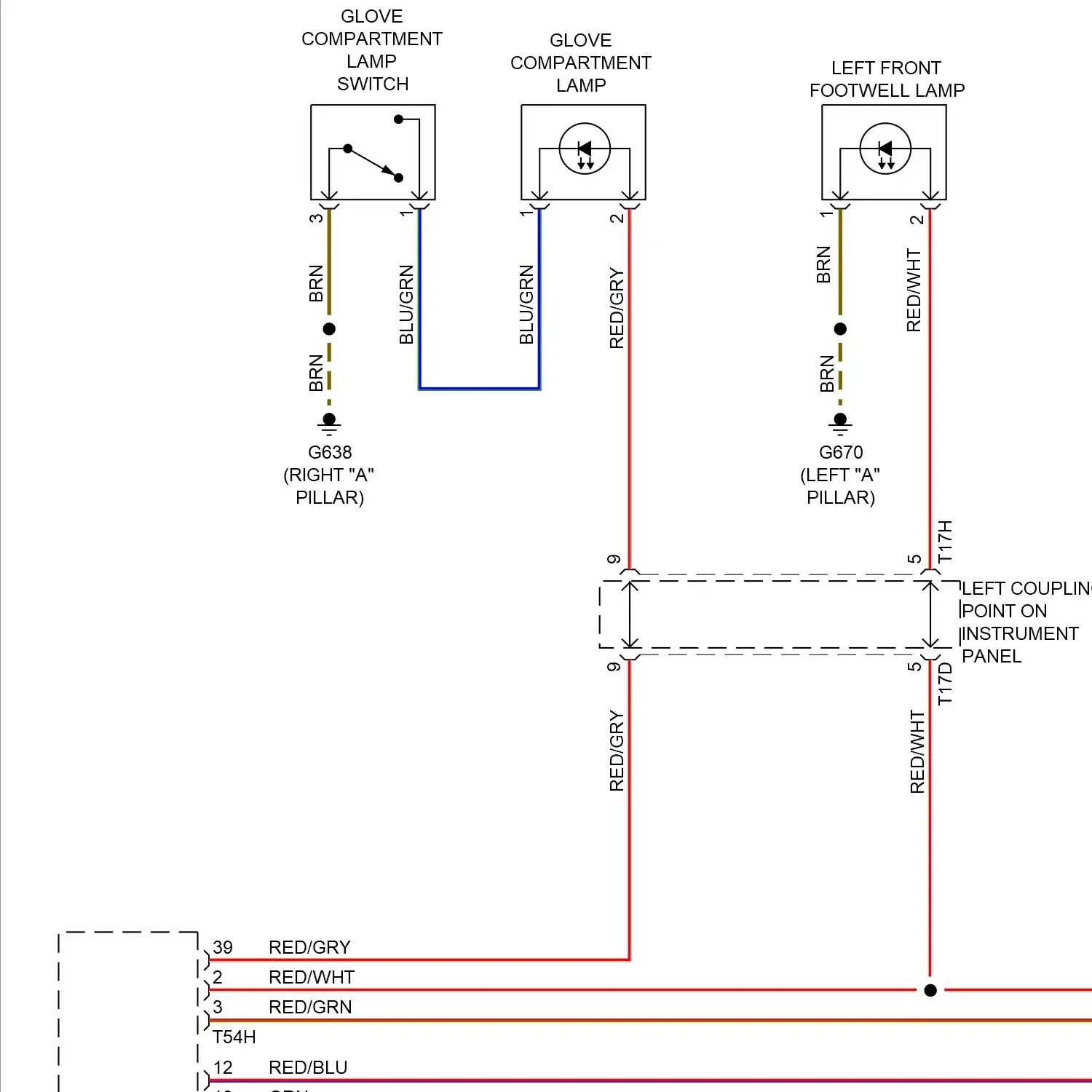

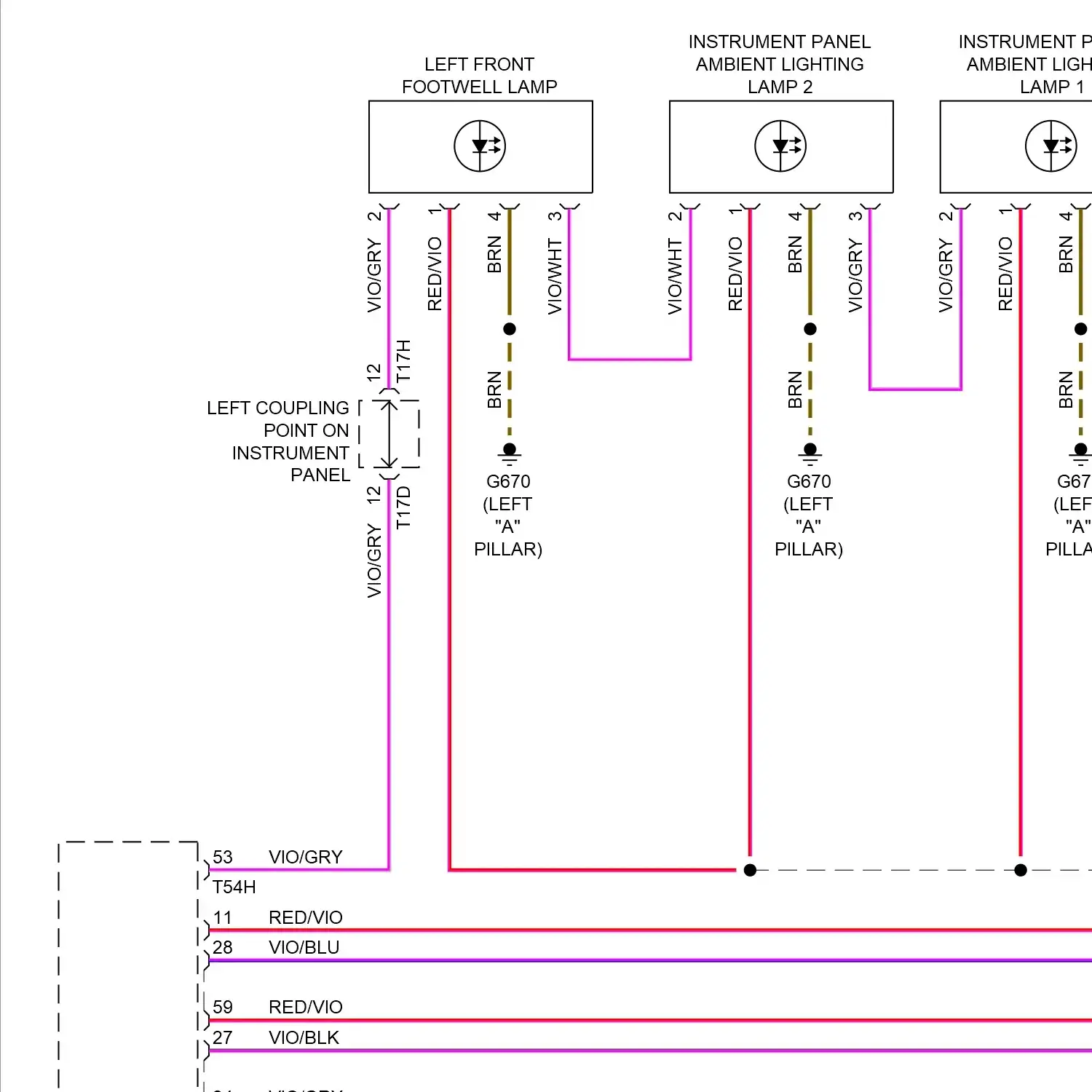

Courtesy lamps circuit, w/ additional lights Courtesy lamps circuit, w/o additional lights Instrument illumination circuit

Driver"s memory seat circuit, w/ sport seats & comfort seats Driver"s memory seat circuit, w/ standard seats Memory mirrors circuit Passenger"s memory seat circuit Steering column memory circuit

Emergency call circuit Lane change assistance circuit Lane departure warning circuit Navigation circuit, w/ amplifier Navigation circuit, w/o amplifier Object detection circuit Parking assistant circuit, w/o parallel parking Parking assistant circuit, w/ parallel parking Peripheral camera circuit Rear camera circuit

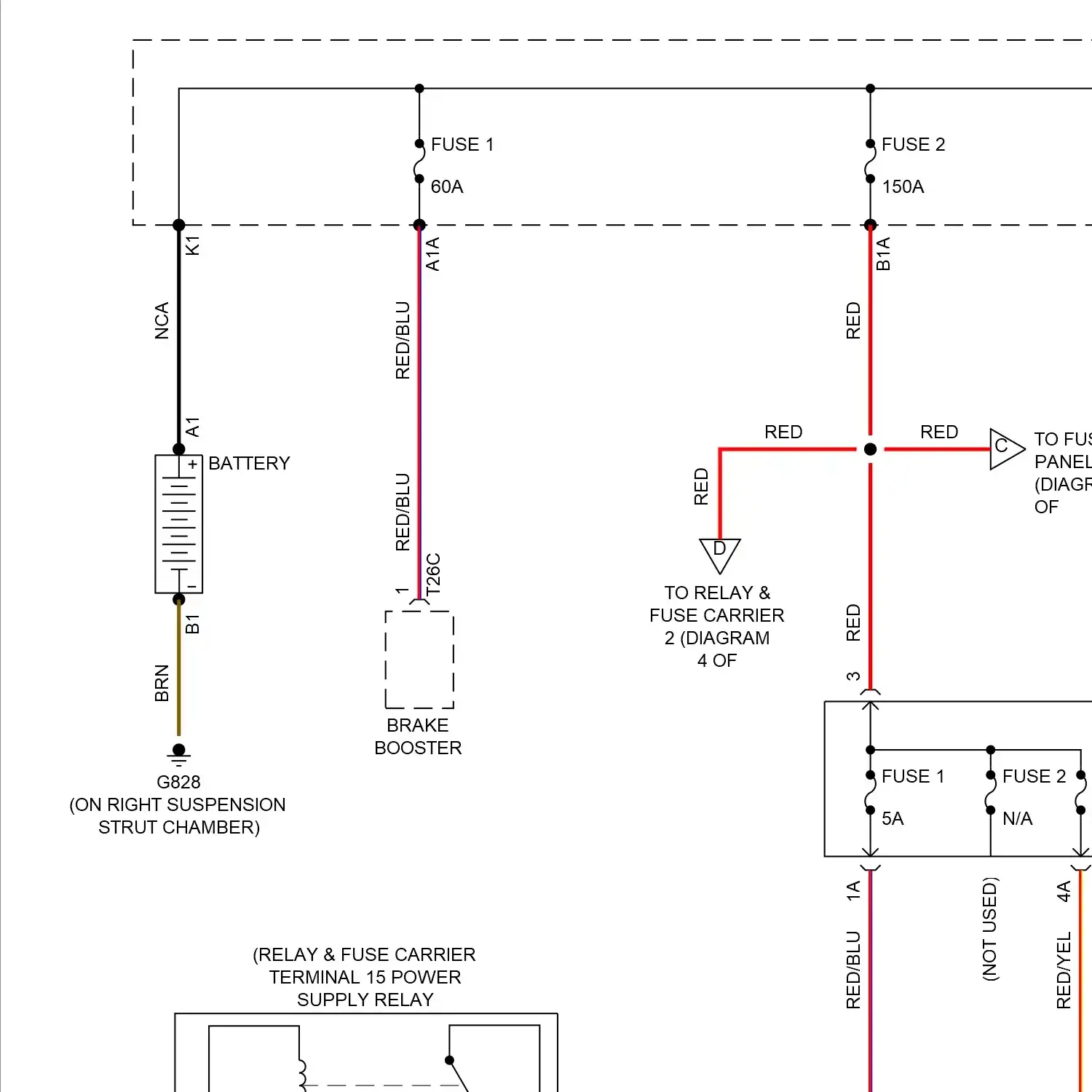

Power distribution circuit

Power door locks circuit

Power mirrors circuit

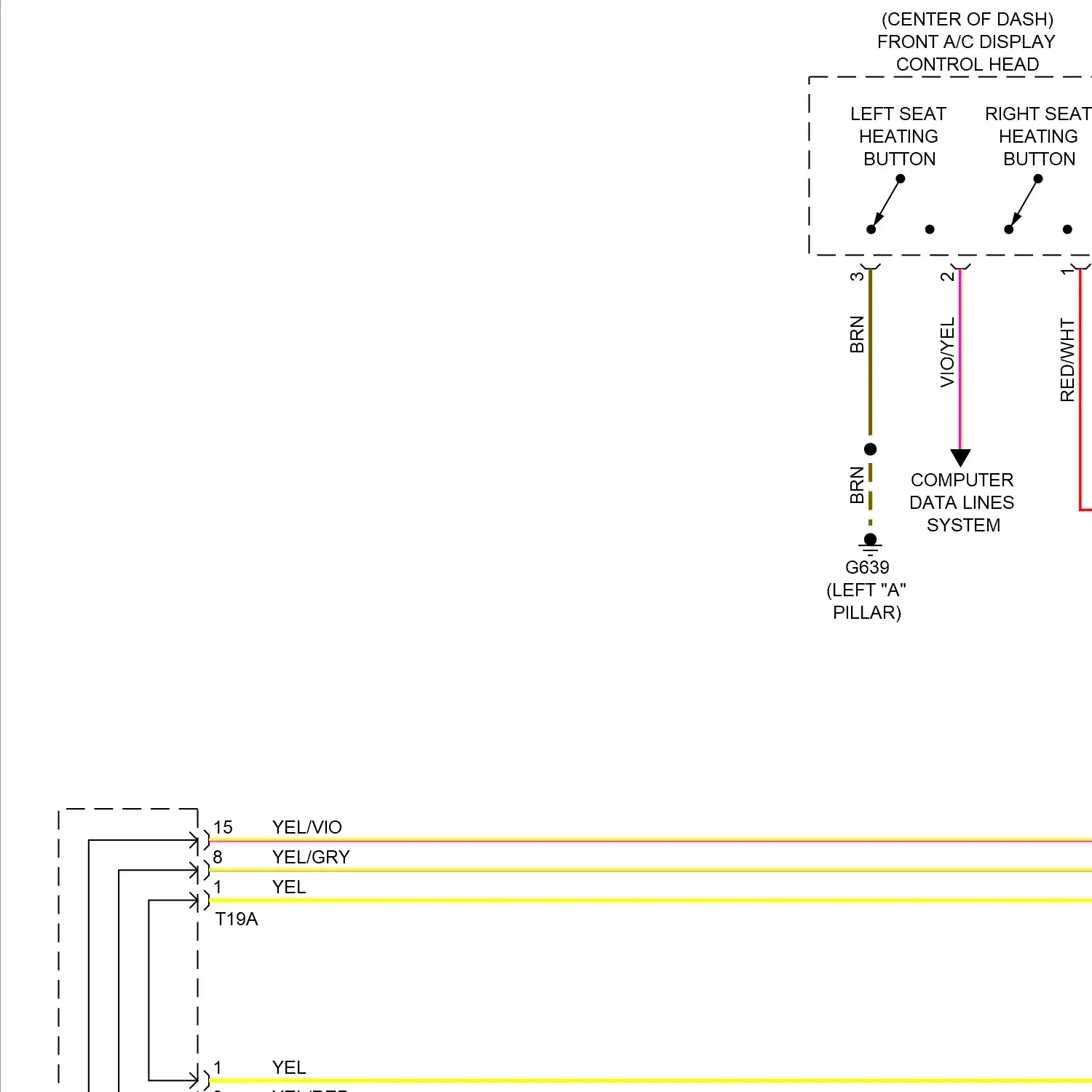

Heated seats circuit Rear heated seats circuit Seat ventilation circuit

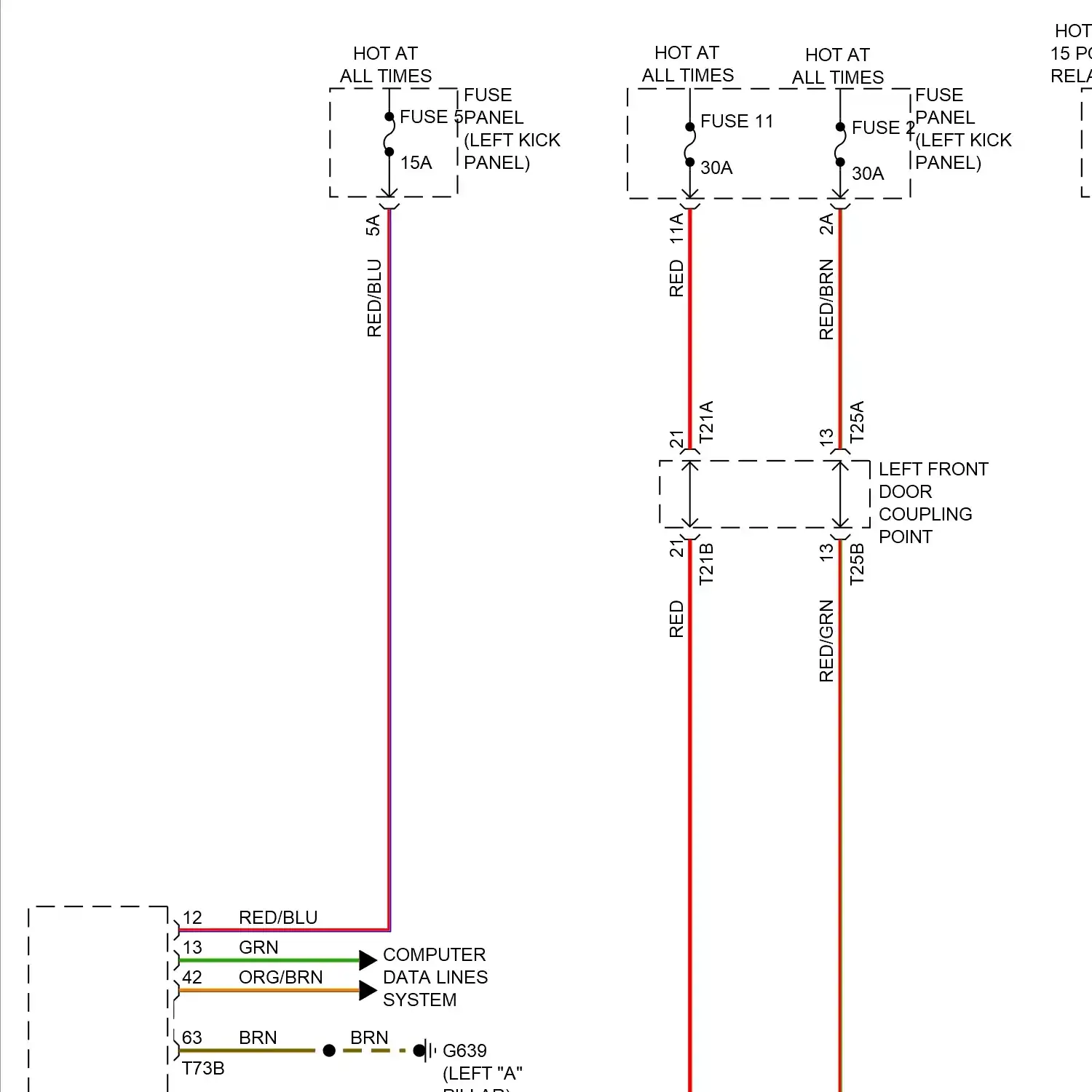

Power windows circuit

Radio circuit, w/ amplifier Radio circuit, w/o amplifier

Park brake release circuit Shift interlock circuit

Supplemental restraints circuit

A/t circuit Awd circuit Front axle circuit Rear axle circuit

Trunk & fuel door release circuit

Brake wear sensor circuit Chime circuit Tire pressure monitoring circuit

Wiper/washer circuit

ALARM HORN ANTI-LOCK BRAKES SYSTEM CELLULAR TELEPHONE AMPLIFIER COUPLING POINT IN HIGH-VOLTAGE BATTERY COUPLING POINT ON HIGH-VOLTAGE BATTERY DIFFERENTIAL LOCK COUPLING POINT DIFFERENTIAL LOCK) EXTERIOR LIGHTS SYSTEM ANTI-LOCK BRAKES SYSTEM HIGH TONE HORN HIGH VOLTAGE BATTERY 1 HIGH-VOLTAGE BATTERY CHARGER 1 HIGH-VOLTAGE BATTERY INTERRUPT IGNITER HIGH-VOLTAGE CHARGE DOOR LOCK 1 ADJUSTER HIGH-VOLTAGE CHARGE DOOR LOCK 2 ADJUSTER HORN SIGNAL ACTIVATION LOW TONE HORN SIGNAL HORN ACTIVATION W/ AMPLIFIER W/O AMPLIFIER

ADJUSTMENT MOTOR ADJUSTMENT MOTOR 2 DEFROSTER DOOR MOTOR DIFFERENTIAL LOCK MOTOR DRIVER BACKREST ADJUSTMENT MOTOR DRIVER DOOR CENTRAL LOCKING SAFE MOTOR DRIVER SEAT ANGLE ADJUSTMENT MOTOR DRIVER SEAT DEPTH ADJUSTMENT MOTOR DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR DRIVER SEAT HEIGHT ADJUSTMENT MOTOR DRIVER SIDE CENTRAL LOCKING MOTOR DRIVER SIDE REAR CENTRAL LOCKING SYSTEM MOTOR DRIVER SIDE REAR CHILD SAFETY LOCK MOTOR DRIVER SIDE REAR DOOR CENTRAL LOCKING SAFE MOTOR ENGINE CONTROLS SYSTEM ENGINE SOUND GENERATOR ACTUATOR 3 ENGINE SOUND GENERATOR ACTUATOR 4 FOLDING MOTOR FRESH AIR DOOR MOTOR FRONT AXLE ELECTRIC DRIVE MOTOR FRONT LUGGAGE COMPARTMENT EMERGENCY RELEASE ACTUATOR FRONT LUGGAGE COMPARTMENT RELEASE ACTUATOR FRONT PASSENGER BACKREST ADJUSTMENT MOTOR FRONT PASSENGER CENTRAL LOCKING SAFE MOTOR FRONT PASSENGER SEAT ANGLE ADJUSTMENT MOTOR FRONT PASSENGER SEAT DEPTH ADJUSTMENT MOTOR FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT MOTOR FRONT PASSENGER SEAT HEIGHT ADJUSTMENT MOTOR FRONT PASSENGER SIDE CENTRAL LOCKING MOTOR GEAR ACTUATOR INDIRECT VENTILATION DOOR MOTOR LEFT COUPLING POINT IN ENGINE/ MOTOR COMPARTMENT LEFT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT LEFT FOOTWELL DOOR MOTOR LEFT FOOTWELL TEMPERATURE CONTROL DOOR MOTOR LEFT FRONT UPPER BODY VENT ADJUSTMENT MOTOR LEFT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR LEFT PARKING BRAKE MOTOR LEFT REAR AIR DISTRIBUTION MOTOR LEFT REAR AIR DOOR MOTOR LEFT REAR TEMPERATURE CONTROL DOOR MOTOR LEFT SIDE VENT ADJUSTMENT MOTOR LEFT TEMPERATURE CONTROL DOOR MOTOR LEVEL CONTROL SYSTEM COMPRESSOR MOTOR PASSENGER SIDE REAR CENTRAL LOCKING SYSTEM MOTOR PASSENGER SIDE REAR CHILD SAFETY LOCK MOTOR PASSENGER SIDE REAR DOOR CENTRAL LOCKING SAFE MOTOR RADIATOR SHUTTER ADJUSTMENT MOTOR 2 RADIATOR SHUTTER MOTOR REAR AXLE ELECTRIC DRIVE MOTOR REAR LID CENTRAL LOCKING SYSTEM MOTOR REAR LID CLOSING AID MOTOR REAR LID MOTOR 1 REAR SPOILER MOTOR RECIRCULATION DOOR MOTOR RIGHT COUPLING POINT IN ENGINE/ MOTOR COMPARTMENT RIGHT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT RIGHT FOOTWELL DOOR MOTOR RIGHT FOOTWELL TEMPERATURE CONTROL DOOR MOTOR RIGHT FRONT UPPER BODY VENT ADJUSTMENT MOTOR RIGHT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR RIGHT PARKING BRAKE MOTOR RIGHT REAR AIR DISTRIBUTION MOTOR RIGHT REAR AIR DOOR MOTOR RIGHT REAR TEMPERATURE CONTROL DOOR MOTOR RIGHT SIDE VENT ADJUSTMENT MOTOR RIGHT TEMPERATURE CONTROL DOOR MOTOR STEERING COLUMN FORWARD/BACK ADJUSTMENT MOTOR STEERING COLUMN VERTICAL ADJUSTMENT MOTOR WINDSHIELD WIPER MOTOR

ANTENNA AMPLIFIER ANTENNA AMPLIFIER 2 RADIO ANTENNA 2 CENTER WINDSHIELD EMERGENCY CALL MODULE ANTENNA 3 EMERGENCY CALL MODULE ANTENNA 4 FRONT ACCESS/START AUTHORIZATION ANTENNA GPS ANTENNA LEFT ACCESS/START AUTHORIZATION ANTENNA LEFT EMERGENCY CALL MODULE ANTENNA LEFT EMERGENCY CALL MODULE ANTENNA 2 LUGGAGE COMPARTMENT ACCESS/START SYSTEM ANTENNA RADIO ANTENNA 2 ANTENNA AMPLIFIER 2 RADIO- CONTROLLED PARKING ANTENNA 3 RADIO-CONTROLLED PARKING ANTENNA 4 RIGHT ACCESS/START AUTHORIZATION ANTENNA RIGHT WIRELESS DATA TRANSFER ANTENNA 2 VEHICLE INTERIOR ACCESS/START SYSTEM ANTENNA 1 WINDSHIELD ANTENNA SUPPRESSION FILTER WIRELESS DATA TRANSFER ANTENNA

ACCESS START AUTHORIZATION BUTTON ACCESS/START AUTHORIZATION BUTTON ASR/ESP BUTTON AUTONOMOUS DRIVING BUTTON BATTERY CHARGING BUTTON MODULE BATTERY CHARGING BUTTON MODULE 2 CHILD SAFETY LOCK BUTTON DRIVER INTERIOR LOCKING BUTTON DRIVER INTERIOR LOCKING BUTTON DRIVER INTERIOR LOCKING INDICATOR LAMP DRIVER POWER WINDOW BUTTON DRIVER SIDE MASSAGE FUNCTION BUTTON DRIVER SIDE REAR POWER WINDOW BUTTON DRIVER SIDE REAR WINDOW REGULATOR MOTOR DRIVER WINDOW REGULATOR MOTOR DRIVING PROFILE SELECTION BUTTON ELECTRO- MECHANICAL PARKING BRAKE BUTTON ELECTRO-MECHANICAL PARKING LOCK BUTTON EMERGENCY CALL BUTTON EMERGENCY FLASHER BUTTON FOG LAMP BUTTON FRONT PASSENGER INTERIOR LOCKING BUTTON FRONT PASSENGER LUMBAR SUPPORT FORWARD/BACK ADJUSTMENT BUTTON FRONT PASSENGER LUMBAR SUPPORT HEIGHT ADJUSTMENT BUTTON FRONT PASSENGER MASSAGE FUNCTION BUTTON FRONT PASSENGER POWER WINDOW BUTTON FRONT PASSENGER SEAT DEPTH ADJUSTMENT BUTTON FRONT PASSENGER WINDOW REGULATOR MOTOR HOOD REMOTE RELEASE BUTTON LANE ASSISTANCE BUTTON LEFT CHILD SAFETY LOCK BUTTON LEFT FRONT READING LAMP BUTTON LEFT REAR HEATING BUTTON LEFT REAR SEAT HEATING BUTTON LEFT SEAT HEATING BUTTON LUMBAR SUPPORT FORWARD/BACK ADJUSTMENT BUTTON LUMBAR SUPPORT HEIGHT ADJUSTMENT BUTTON PARKING AID BUTTON PASSENGER SIDE REAR INTERIOR LOCKING BUTTON PASSENGER SIDE REAR POWER WINDOW BUTTON PASSENGER SIDE REAR WINDOW REGULATOR MOTOR REAR FOG LAMP BUTTON REAR LID HANDLE RELEASE BUTTON REAR LID LOCK BUTTON LUGGAGE COMPARTMENT REAR LID LOCKING MECHANISM BUTTON REAR LID REMOTE RELEASE BUTTON REAR WINDOW DEFOGGER BUTTON RIGHT CHILD SAFETY LOCK BUTTON RIGHT FRONT READING LAMP BUTTON RIGHT REAR HEATING BUTTON RIGHT REAR SEAT HEATING BUTTON RIGHT SEAT HEATING BUTTON ROAD SIDE ASSISTANCE BUTTON SEAT DEPTH ADJUSTMENT BUTTON STEERING WHEEL HEATING BUTTON

DRIVER ASSISTANCE SYSTEMS FRONT CAMERA FRONT PERIPHERAL CAMERA LEFT PERIPHERAL CAMERA NIGHT VISION SYSTEM CAMERA REAR PERIPHERAL CAMERA REAR VIEW CAMERA RIGHT PERIPHERAL CAMERA

4-PIN CONNECTOR 12 V SOCKET 2 CHARGING SOCKET 1 LED MODULE CHARGING SOCKET 1 LED MODULE 2 CHARGING SOCKET 2 LED MODULE CHARGING SOCKET 2 LED MODULE 2 DRIVER SIDE HIGH-VOLTAGE CHARGING CONNECTOR LOCK 2 ADJUSTER DRIVER SIDE HIGH-VOLTAGE CHARGING SOCKET COUPLING POINT 2 FRONT PASSENGER SIDE HIGH-VOLTAGE BATTERY CHARGING SOCKET 1 FRONT PASSENGER SIDE HIGH-VOLTAGE CHARGING CONNECTOR LOCK 1 ADJUSTER FRONT PASSENGER SIDE HIGH-VOLTAGE CHARGING SOCKET COUPLING POINT 1 HIGH-VOLTAGE SYSTEM MAINTENANCE CONNECTOR USB CHARGING SOCKET 2

A/C COMPRESSOR CONTROL MODULE ABS CONTROL MODULE ABS CONTROL MODULE FUSE 1 ABS CONTROL MODULE FUSE 2 ADAPTIVE CRUISE CONTROL MODULE AIR BAG CONTROL MODULE ANDROID OPERATING SYSTEM CONTROL MODULE BATTERY REGULATION CONTROL MODULE BATTERY REGULATION CONTROL MODULE HIGH-VOLTAGE BATTERY 1 BRAKE BOOSTER CONTROL MODULE COMFORT SYSTEM CENTRAL CONTROL MODULE DIFFERENTIAL LOCK CONTROL MODULE DIFFERENTIAL LOCKS CONTROL MODULE DIGITAL SOUND SYSTEM CONTROL MODULE DISPLAY UNIT INSTRUMENT CLUSTER CONTROL MODULE DRIVER ASSISTANCE SYSTEMS CONTROL MODULE DRIVER DOOR CONTROL MODULE DRIVER SIDE REAR DOOR CONTROL MODULE DRIVETRAIN CONTROL MODULE EMERGENCY CALL MODULE, COMMUNICATION UNIT CONTROL MODULE ENGINE SOUND GENERATOR CONTROL MODULE 2 ENGINE SOUND GENERATOR CONTROL MODULE 3 ENGINE/MOTOR CONTROL MODULE FRESH AIR BLOWER CONTROL MODULE FRONT AXLE ELECTRIC DRIVE CONTROL MODULE FRONT PASSENGER DOOR CONTROL MODULE FRONT PASSENGER MEMORY SEAT CONTROL MODULE GARAGE DOOR OPENER CONTROL MODULE HEATING, AIR CONDITIONING CONTROL MODULE HIGH-VOLTAGE BATTERY CONTROL MODULE HIGH-VOLTAGE BATTERY CONTROL MODULE COUPLING POINT HOT W/ VEHICLE ELECTRICAL SYSTEM CONTROL MODULE RELAY ENERGIZED INFORMATION ELECTRONICS CONTROL MODULE 1 INSTRUMENT CLUSTER CONTROL MODULE IONIZER CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE 2 LEFT FRONT SEAT BELT TENSIONER CONTROL MODULE MEMORY SEAT/ STEERING COLUMN ADJUSTMENT CONTROL MODULE MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE MULTI-FUNCTION STEERING WHEEL CONTROL MODULE NIGHT VISION SYSTEM CONTROL MODULE PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE PASSENGER SIDE REAR DOOR CONTROL MODULE POWER ADJUSTABLE STEERING COLUMN CONTROL MODULE POWER REAR LID OPENING CONTROL MODULE POWER STEERING CONTROL MODULE RADIATOR FAN CONTROL MODULE RADIATOR FAN CONTROL MODULE 2 RADIO-CONTROLLED PARKING CONTROL MODULE REAR AXLE ELECTRIC DRIVE CONTROL MODULE REAR AXLE STEERING CONTROL MODULE REAR LID CONTROL MODULE REAR SPOILER CONTROL MODULE REAR VIEW CAMERA SYSTEM CONTROL MODULE RIGHT FRONT SEAT BELT TENSIONER CONTROL MODULE ROOF ELECTRONICS CONTROL MODULE SPIRAL SPRING STEERING COLUMN ELECTRONICS CONTROL MODULE STEERING COLUMN ELECTRONICS CONTROL MODULE TELEMATICS INTERFACE CONTROL MODULE TELEPHONE/ TELEMATICS CONTROL MODULE THERMAL MANAGEMENT CONTROL MODULE TIRE PRESSURE MONITORING CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE RELAY W/ LANE CHANGE ASSISTANCE CONTROL MODULE W/O LANE CHANGE ASSISTANCE CONTROL MODULE WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE WIPER MOTOR CONTROL MODULE

DISPLAY UNIT DRIVER DOOR LOCK UNIT DRIVER SIDE REAR DOOR LOCK UNIT DRIVING, CONVENIENCE FUNCTIONS CONTROL UNIT 1 FRONT PASSENGER AIR BAG UNIT FRONT PASSENGER DOOR LOCK UNIT PASSENGER SIDE REAR DOOR LOCK UNIT REAR LID LOCK UNIT REAR SPOILER ADJUSTMENT DRIVE UNIT

COOLANT PUMP FUSE DIGITAL SOUND SYSTEM FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 26 FUSE 27 FUSE PANEL A FUSE PANEL B FUSE PANEL C FUSE PANEL D FUSE PANEL F FUSE PANEL G FUSE PANEL H FUSE PANEL K FUSE PANEL L FUSE PANEL M FUSE PANEL O FUSE PANEL P LEFT HEADLAMP FUSE LEFT HEADLAMP FUSE 3 RIGHT HEADLAMP FUSE WIRE JUNCTION FUSE 3 WIRE JUNCTION FUSE 4 WIRE JUNCTION FUSE 8

HIGH-VOLTAGE HEATER LEFT FRONT SEAT EXTENSION HEATING ELEMENT LEFT FRONT SEAT HEATING ELEMENT LEFT REAR BACKREST HEATING ELEMENT LEFT REAR BENCH SEAT HEATING ELEMENT RIGHT FRONT SEAT BOLSTER HEATING RIGHT FRONT SEAT EXTENSION HEATING ELEMENT RIGHT FRONT SEAT HEATING ELEMENT RIGHT REAR BACKREST HEATING ELEMENT RIGHT REAR BENCH SEAT HEATING ELEMENT

ABS INDICATOR AIR BAG INDICATOR LAMP BRAKE SYSTEM INDICATOR CENTRAL LOCKING SAFE INDICATOR LAMP CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP CRUISE CONTROL INDICATOR DRIVER INTERIOR LOCKING INDICATOR LAMP EMERGENCY FLASHER INDICATOR LAMP FOG LAMP INDICATOR LAMP FRONT PASSENGER AIR BAG DISABLED INDICATOR LAMP FRONT PASSENGER INTERIOR LOCKING INDICATOR LAMP LEFT CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP LEFT TURN SIGNAL INDICATOR PARKING AID INDICATOR LAMP PARKING ASSISTANCE SYSTEM INDICATOR LAMP PARKING BRAKE INDICATOR PARKING LOCK INDICATOR LAMP PARKING LOCK INDICATOR LAMP SELECTOR LEVER TRANSMISSION RANGE DISPLAY POSITION LAMP INDICATOR LAMP REAR FOG LAMP INDICATOR LAMP RIGHT CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP RIGHT EMERGENCY FLASHER INDICATOR RIGHT REAR INTERIOR LOCKING INDICATOR LAMP

CENTER TAIL LAMP DRIVER SIDE ENTRY LAMP DRIVER SIDE EXTERIOR DOOR HANDLE ILLUMINATION LAMP DRIVER SIDE INTERIOR DOOR HANDLE ILLUMINATION LAMP DRIVER SIDE REAR ENTRY LAMP DRIVER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP DRIVER SIDE REAR INTERIOR DOOR HANDLE ILLUMINATION BULB DRIVER SIDE REAR SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP DRIVER SIDE REAR SILL PANEL STRIP AMBIENT LIGHTING LAMP DRIVER SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP DRIVER VANITY MIRROR LAMP FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 2 FRONT LUGGAGE COMPARTMENT LAMP FRONT PASSENGER EXTERIOR DOOR HANDLE ILLUMINATION LAMP FRONT PASSENGER SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP FRONT PASSENGER VANITY MIRROR LAMP GLOVE COMPARTMENT LAMP HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH-MOUNTED BRAKE LAMP INSTRUMENT PANEL AMBIENT LIGHTING LAMP 1 INSTRUMENT PANEL AMBIENT LIGHTING LAMP 2 INSTRUMENT PANEL AMBIENT LIGHTING LAMP 3 LANE CHANGE ASSISTANCE WARNING LAMP LEFT AUXILIARY HIGH BEAM LAMP LEFT BACKUP LAMP LEFT BRAKE LAMP/ TURN SIGNAL LAMP LEFT BRAKE LAMP/ TURN SIGNAL LAMP 2 LEFT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE LEFT DOOR STORAGE COMPARTMENT ILLUMINATION LAMP LEFT FRONT DOOR AMBIENT LIGHTING BULB 1 LEFT FRONT FOOTWELL LAMP LEFT FRONT READING LAMP LEFT FRONT SIDE MARKER LAMP LEFT FRONT TURN SIGNAL LAMP LEFT HIGH BEAM HEADLAMP LAMP LEFT LICENSE PLATE LAMP LEFT LOW BEAM HEADLAMP LAMP LEFT LUGGAGE COMPARTMENT LAMP LEFT REAR DOOR AMBIENT LIGHTING BULB 1 LEFT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LAMP LEFT REAR FOOTWELL LAMP LEFT REAR INTERIOR LAMP LEFT REAR SIDE MARKER LAMP LEFT REAR TURN SIGNAL LAMP LEFT STATIONARY CORNERING LAMP LEFT TAIL LAMP PASSENGER SIDE ENTRY LAMP PASSENGER SIDE INTERIOR DOOR HANDLE ILLUMINATION LAMP PASSENGER SIDE REAR ENTRY LAMP PASSENGER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP PASSENGER SIDE REAR INTERIOR DOOR HANDLE ILLUMINATION BULB PASSENGER SIDE REAR SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP PASSENGER SIDE REAR SILL PANEL STRIP AMBIENT LIGHTING LAMP RIGHT AUXILIARY HIGH BEAM LAMP RIGHT BACKUP LAMP RIGHT BRAKE LAMP/ TURN SIGNAL LAMP RIGHT BRAKE LAMP/ TURN SIGNAL LAMP 2 RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE RIGHT DOOR STORAGE COMPARTMENT ILLUMINATION LAMP RIGHT FRONT DOOR AMBIENT LIGHTING BULB 1 RIGHT FRONT FOOTWELL LAMP RIGHT FRONT READING LAMP RIGHT FRONT SIDE MARKER LAMP RIGHT FRONT TURN SIGNAL LAMP RIGHT HIGH BEAM HEADLAMP LAMP RIGHT LICENSE PLATE LAMP RIGHT LOW BEAM HEADLAMP LAMP RIGHT LUGGAGE COMPARTMENT LAMP RIGHT REAR DOOR AMBIENT LIGHTING BULB 1 RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LAMP RIGHT REAR FOOTWELL LAMP RIGHT REAR INTERIOR LAMP RIGHT REAR SIDE MARKER LAMP RIGHT STATIONARY CORNERING LAMP RIGHT TAIL LAMP TURN SIGNAL BULB TURN SIGNAL LAMP

ABS HYDRAULIC PUMP HEADLAMP WASHER SYSTEM PUMP HIGH VOLTAGE BATTERY COOLANT PUMP THERMAL MANAGEMENT COOLANT PUMP 2 THERMAL MANAGEMENT COOLANT PUMP 4 TRANSMISSION FLUID AUXILIARY HYDRAULIC PUMP WINDSHIELD WASHER PUMP

COOLANT PUMP RELAY ENGINE COOLANT SHUT-OFF VALVE RELAY HIGH-VOLTAGE BATTERY COOLANT PUMP RELAY HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED POWER SUPPLY RELAY ENERGIZED RADIATOR FAN CONTROL RELAY RADIATOR FAN RELAY 2 REAR WINDOW DEFOGGER RELAY RELAY & FUSE CARRIER 1 RELAY & FUSE CARRIER 2 RELAY & FUSE CARRIER 3 FUSE PANEL A RELAY & FUSE CARRIER 4 RELAY & FUSE CARRIER 4 REAR WINDOW DEFOGGER RELAY RELAY & FUSE PANEL 3 REMOTE START A/C RELAY TERMINAL 15 POWER SUPPLY RELAY THERMAL MANAGEMENT COOLANT PUMP RELAY

A/C PRESSURE TEMPERATURE SENSOR 2 A/C PRESSURE TEMPERATURE SENSOR 3 A/C PRESSURE/ TEMPERATURE SENSOR A/C SYSTEM PARTICULATE MATTER CONCENTRATION SENSOR ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR PEDAL POSITION SENSOR 2 ANTI-THEFT ALARM SYSTEM SENSOR BRAKE PEDAL POSITION SENSOR BRAKE PEDAL POSITION SENSOR 2 CHARGING SOCKET TEMPERATURE SENSOR 1 CLUTCH DOG POSITION SENSOR CLUTCH POSITION SENSOR COOLANT TEMPERATURE SENSOR BEFORE HEAT EXCHANGER DIFFERENTIAL LOCK MOTOR TEMPERATURE SENSOR DIFFERENTIAL LOCK POSITION SENSOR 1 DIFFERENTIAL LOCK POSITION SENSOR 2 DRIVE MOTOR ROTOR POSITION SENSOR 1 DRIVER EXTERIOR DOOR HANDLE TOUCH SENSOR DRIVER FRONT AIR BAG CRASH SENSOR DRIVER SEAT DEPTH ADJUSTMENT SENSOR DRIVER SEAT POSITION SENSOR DRIVER SIDE B-PILLAR THORAX AIR BAG CRASH SENSOR DRIVER SIDE EXTERIOR DOOR HANDLE TOUCH SENSOR DRIVER SIDE REAR THORAX AIR BAG CRASH SENSOR DRIVER THORAX AIR BAG CRASH SENSOR ENGINE COOLANT LEVEL SENSOR 2 EVAPORATOR TEMPERATURE SENSOR EXTERIOR AIR QUALITY, HUMIDITY SENSOR FRONT DRIVE MOTOR TEMPERATURE SENSOR FRONT PASSENGER EXTERIOR DOOR HANDLE TOUCH SENSOR FRONT PASSENGER SEAT DEPTH ADJUSTMENT SENSOR FRONT PASSENGER SEAT POSITION SENSOR FRONT PASSENGER SIDE B-PILLAR THORAX AIR BAG CRASH SENSOR FRONT PASSENGER THORAX AIR BAG CRASH SENSOR FRONT SENSOR SYSTEM WINDOW DEFOGGER FRONT THREE-PHASE CURRENT DRIVE COOLANT TEMPERATURE SENSOR FRONT WINDOW DEFOGGER SENSOR SYSTEM HEATED STEERING WHEEL SENSOR HIGH-VOLTAGE BATTERY COOLANT TEMPERATURE SENSOR 1 HIGH-VOLTAGE BATTERY COOLANT TEMPERATURE SENSOR 2 HORIZONTAL POSITION SENSOR HUMIDITY SENSOR INSTRUMENT PANEL TEMPERATURE SENSOR INTERIOR MONITORING SENSOR LEFT CENTER VENT POSITION SENSOR LEFT COOLING AIR DOOR POSITION SENSOR LEFT FOOTWELL VENT TEMPERATURE SENSOR LEFT FRONT ABS WHEEL SPEED SENSOR LEFT FRONT BODY ACCELERATION SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT CENTER PARKING AID SENSOR LEFT FRONT LEVEL CONTROL SYSTEM SENSOR LEFT FRONT OBJECT DETECTION RADAR SENSOR CONTROL MODULE LEFT FRONT PARALLEL PARKING ASSISTANCE SENSOR LEFT FRONT PARKING AID SENSOR LEFT FRONT SEAT TEMPERATURE SENSOR LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR LEFT FRONT WHEEL ACCELERATION SENSOR LEFT REAR ABS WHEEL SPEED SENSOR LEFT REAR BODY ACCELERATION SENSOR LEFT REAR BRAKE PAD WEAR SENSOR LEFT REAR CENTER PARKING AID SENSOR LEFT REAR EXTERIOR DOOR HANDLE TOUCH SENSOR LEFT REAR FOOTWELL VENT TEMPERATURE SENSOR LEFT REAR HEATED SEAT TEMPERATURE SENSOR LEFT REAR LEVEL CONTROL SYSTEM SENSOR LEFT REAR PARALLEL PARKING ASSISTANCE SENSOR LEFT REAR PARKING AID SENSOR LEFT REAR WHEEL ACCELERATION SENSOR LEFT SIDE VENT POSITION SENSOR LEVEL CONTROL PRESSURE SENSOR LIGHT RECOGNITION SENSOR OUTSIDE AIR TEMPERATURE SENSOR PASSENGER SEAT OCCUPANT DETECTION SENSOR PASSENGER SIDE FRONT AIR BAG CRASH SENSOR PASSENGER SIDE REAR THORAX AIR BAG CRASH SENSOR POWER REAR LID OPENING SENSOR POWER REAR LID OPENING SENSOR 2 POWER, CONTROL ELECTRONICS CRASH SENSOR POWER, CONTROL ELECTRONICS CRASH SENSOR 2 RAIN/LIGHT RECOGNITION SENSOR REAR AXLE STEERING SENSOR 1, REAR AXLE STEERING SENSOR 2 REAR DRIVE MOTOR ROTOR POSITION SENSOR REAR DRIVE MOTOR TEMPERATURE SENSOR REAR LID MOTOR 1 SENSOR REAR LID MOTOR 1 SENSOR 2 REAR SPOILER POSITION SENSOR REAR SPOILER ADJUSTMENT DRIVE UNIT REAR THREE-PHASE CURRENT DRIVE COOLANT TEMPERATURE SENSOR RIGHT CENTER VENT POSITION SENSOR RIGHT COOLING AIR DOOR POSITION SENSOR RIGHT FOOTWELL VENT TEMPERATURE SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR RIGHT FRONT BODY ACCELERATION SENSOR RIGHT FRONT BRAKE PAD WEAR SENSOR RIGHT FRONT CENTER PARKING AID SENSOR RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR RIGHT FRONT OBJECT DETECTION RADAR SENSOR CONTROL MODULE RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR RIGHT FRONT PARKING AID SENSOR RIGHT FRONT SEAT TEMPERATURE SENSOR RIGHT FRONT UPPER BODY VENT TEMPERATURE SENSOR RIGHT FRONT WHEEL ACCELERATION SENSOR RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT REAR BODY ACCELERATION SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER PARKING AID SENSOR RIGHT REAR EXTERIOR DOOR HANDLE TOUCH SENSOR RIGHT REAR FOOTWELL VENT TEMPERATURE SENSOR RIGHT REAR HEATED SEAT TEMPERATURE SENSOR RIGHT REAR LEVEL CONTROL SYSTEM SENSOR RIGHT REAR PARALLEL PARKING ASSISTANCE SENSOR RIGHT REAR PARKING AID SENSOR RIGHT REAR WHEEL ACCELERATION SENSOR RIGHT SIDE VENT POSITION SENSOR SELECTOR LEVER POSITION SENSOR SELECTOR LEVER SENSOR SYSTEM CONTROL MODULE STEERING ANGLE SENSOR STEERING COLUMN AXIAL ADJUSTMENT SENSOR STEERING COLUMN VERTICAL ADJUSTMENT SENSOR STEERING RACK POSITION SENSOR STEERING TORQUE SENSOR SUNLIGHT PHOTO SENSOR THERMAL MANAGEMENT COOLANT TEMPERATURE SENSOR 1 THERMAL MANAGEMENT COOLANT TEMPERATURE SENSOR 2 THERMAL MANAGEMENT COOLANT TEMPERATURE SENSOR 3 THERMAL MANAGEMENT COOLANT TEMPERATURE SENSOR 4 THERMAL MANAGEMENT COOLANT TEMPERATURE SENSOR 5 THERMAL MANAGEMENT COOLANT TEMPERATURE SENSOR 7 THERMAL MANAGEMENT COOLANT TEMPERATURE SENSOR 8 THERMAL MANAGEMENT COOLANT TEMPERATURE SENSOR 9 TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION VEHICLE SPEED SENSOR VEHICLE INCLINATION SENSOR VERTICAL POSITION SENSOR WINDSHIELD WASHER FLUID LEVEL SENSOR

CENTER SPEAKER DUAL SUBWOOFER SPEAKER 1 DUAL SUBWOOFER SPEAKER 2 EMERGENCY CALL MODULE SPEAKER LEFT EFFECTS SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT MIDRANGE SPEAKER LEFT FRONT TREBLE SPEAKER LEFT FRONT TREBLE SPEAKER 2 LEFT REAR BASS SPEAKER LEFT REAR MIDRANGE SPEAKER W/ AUXILIARY INTERIOR SPEAKER LEFT REAR TREBLE SPEAKER PARKING AID SPEAKER RIGHT EFFECTS SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT MIDRANGE SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT FRONT TREBLE SPEAKER +2 RIGHT REAR BASS SPEAKER RIGHT REAR MIDRANGE SPEAKER W/ AUXILIARY INTERIOR SPEAKER RIGHT REAR TREBLE SPEAKER

BRAKE FLUID LEVEL WARNING SWITCH CENTER INSTRUMENT PANEL SWITCH MODULE CENTER SECOND ROW SEAT BELT SWITCH CONTACT SWITCH CRUISE CONTROL SWITCH DOWNSHIFT PADDLE SWITCH DRIVER BACKREST ADJUSTMENT SWITCH DRIVER DOOR CONTACT SWITCH DRIVER DOOR EMERGENCY UNLOCK SWITCH DRIVER LOCK CYLINDER CONTACT SWITCH DRIVER SEAT ANGLE ADJUSTMENT SWITCH DRIVER SEAT BELT SWITCH DRIVER SEAT FORWARD/BACK ADJUSTMENT SWITCH DRIVER SEAT HEIGHT ADJUSTMENT SWITCH DRIVER SIDE EXTERIOR DOOR HANDLE SWITCH DRIVER SIDE INTERIOR DOOR HANDLE SWITCH DRIVER SIDE REAR CHILD SAFETY LOCK CONTACT SWITCH DRIVER SIDE REAR DOOR CONTACT SWITCH DRIVER SIDE REAR DOOR EMERGENCY UNLOCK SWITCH DRIVER SIDE REAR EXTERIOR DOOR HANDLE SWITCH DRIVER SIDE REAR INTERIOR DOOR HANDLE SWITCH DRIVER SIDE SECOND ROW SEAT BELT SWITCH DRIVER VANITY MIRROR LAMP CONTACT SWITCH DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 1 DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 2 DRIVING DYNAMICS REGULATION SWITCH VALVE 1 DRIVING DYNAMICS REGULATION SWITCH VALVE 2 ENGINE HOOD CONTACT SWITCH FRONT PASSENGER AIR BAG DEACTIVATION KEY SWITCH FRONT PASSENGER BACKREST ADJUSTMENT SWITCH FRONT PASSENGER DOOR CONTACT SWITCH FRONT PASSENGER DOOR EMERGENCY UNLOCK SWITCH FRONT PASSENGER DOOR POWER WINDOW SWITCH FRONT PASSENGER EXTERIOR DOOR HANDLE SWITCH FRONT PASSENGER SEAT ANGLE ADJUSTMENT SWITCH FRONT PASSENGER SEAT BELT SWITCH FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT SWITCH FRONT PASSENGER SEAT HEIGHT ADJUSTMENT SWITCH FRONT PASSENGER SIDE INTERIOR DOOR HANDLE SWITCH FRONT PASSENGER VANITY MIRROR LAMP CONTACT SWITCH GLOVE COMPARTMENT LAMP SWITCH HEADLAMP SWITCH ILLUMINATION BULB HEADLAMP SWITCH ILLUMINATION LAMP LEFT REAR READING LAMP SWITCH LIGHT SWITCH LOCK PAWL CONTACT SWITCH MIRROR ADJUSTING SWITCH MIRROR SELECTOR SWITCH PASSENGER SIDE REAR CHILD SAFETY LOCK CONTACT SWITCH PASSENGER SIDE REAR DOOR CONTACT SWITCH PASSENGER SIDE REAR DOOR EMERGENCY UNLOCK SWITCH PASSENGER SIDE REAR EXTERIOR DOOR HANDLE SWITCH PASSENGER SIDE REAR INTERIOR DOOR HANDLE SWITCH PASSENGER SIDE SECOND ROW SEAT BELT SWITCH REAR LID CONTACT SWITCH REAR SPOILER STOP SWITCH 1 RIGHT REAR READING LAMP SWITCH STEERING COLUMN ADJUSTMENT SWITCH SWITCH ILLUMINATION BULB TURN SIGNAL SWITCH UPSHIFT PADDLE SWITCH WINDSHIELD WIPER INTERMITTENT MODE SWITCH WINDSHIELD WIPER SWITCH

COOLANT CHANGE-OVER VALVE 1 COOLANT CHANGE-OVER VALVE 2 DRIVER AIR BAG RELEASE VALVE IGNITER DRIVER SEAT VALVE BLOCK 1 DRIVER SEAT VALVE BLOCK 2 FRONT PASSENGER SEAT VALVE BLOCK 1 FRONT PASSENGER SEAT VALVE BLOCK 2 LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE LEFT FRONT AIR SPRING ADDITIONAL VOLUME VALVE 1 LEFT FRONT AIR SPRING ADDITIONAL VOLUME VALVE 2 LEFT FRONT DAMPING ADJUSTMENT VALVE LEFT FRONT SUSPENSION STRUT VALVE LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE LEFT REAR AIR SPRING ADDITIONAL VOLUME VALVE 1 LEFT REAR AIR SPRING ADDITIONAL VOLUME VALVE 2 LEFT REAR DAMPING ADJUSTMENT VALVE LEFT REAR SUSPENSION STRUT VALVE LEVEL CONTROL ACCUMULATOR VALVE LEVEL CONTROL SYSTEM SOLENOID PARKING LOCK SOLENOID REFRIGERANT EXPANSION VALVE 2 REFRIGERANT EXPANSION VALVE 3 REFRIGERANT SHUT-OFF VALVE 2 REFRIGERANT SHUT-OFF VALVE 3 REFRIGERANT SHUT-OFF VALVE 5 RELEASE VALVE IGNITER RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT FRONT AIR SPRING ADDITIONAL VOLUME VALVE 1 RIGHT FRONT AIR SPRING ADDITIONAL VOLUME VALVE 2 RIGHT FRONT DAMPING ADJUSTMENT VALVE RIGHT FRONT SUSPENSION STRUT VALVE RIGHT REAR ABS INLET VALVE RIGHT REAR ABS OUTLET VALVE RIGHT REAR AIR SPRING ADDITIONAL VOLUME VALVE 1 RIGHT REAR AIR SPRING ADDITIONAL VOLUME VALVE 2 RIGHT REAR DAMPING ADJUSTMENT VALVE RIGHT REAR SUSPENSION STRUT VALVE THERMAL MANAGEMENT CHANGE- OVER, MIXING VALVE THERMAL MANAGEMENT CHANGE-OVER, MIXING VALVE 2 THERMAL MANAGEMENT CHANGE-OVER, MIXING VALVE 4 THERMAL MANAGEMENT CHANGE-OVER, MIXING VALVE 7

BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/WHT) BRN WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/WHT WIRE PNK WIRE PNK/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE WIRE JUNCTION YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

(OR ABS IND. ACCELERATOR PEDAL MODULE AIR BAG IND AIR COMPRESSOR RIDE CONTROL AIR CONDITIONING SYSTEM AMBIENT LIGHTING EMBLEM IN FRONT PASSENGER SIDE INSTRUMENT PANEL ANTI-THEFT SYSTEM ASSISTANCE) AUTOMATIC DIMMING INTERIOR REAR VIEW MIRROR BACKUP LAMPS CIRCUIT BOTTOM RIGHT COUPLING POINT IN INTERIOR BRAKE BOOSTER BRAKE SYSTEM IND CAN BUS WIRES, RESISTANCE CENTER COUPLING POINT IN LUGGAGE COMPARTMENT CENTER COUPLING POINT LUGGAGE COMPARTMENT CENTER COUPLING POINT ON INSTRUMENT PANEL CENTER COUPLING POINT ON ROOF CENTER INSTRUMENT PANEL COUPLING POINT CENTER LUGGAGE COMPARTMENT COUPLING POINT CENTER ROOF COUPLING POINT CIGARETTE LIGHTER COMPUTER DATA LINES SYSTEM COUPLING POINT IN LEFT FRONT DOOR COUPLING POINT IN LEFT REAR DOOR COUPLING POINT IN RIGHT FRONT DOOR COUPLING POINT IN RIGHT REAR DOOR COUPLING POINT ON LEFT FRONT BUMPER COUPLING POINT ON LEFT REAR BUMPER COUPLING POINT ON RIGHT C-PILLAR COUPLING POINT ON RIGHT FRONT BUMPER COURTESY LAMPS CIRCUIT CRUISE CONTROL IND DATA BUS ON BOARD DIAGNOSTIC INTERFACE DC- DEFOGGER SYSTEM DIAGNOSTIC CONNECTION DIMMING EXTERIOR REAR VIEW MIRROR DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVER AIR BAG IGNITER DRIVER AUTOMATIC DIMMING EXTERIOR REAR VIEW MIRROR DRIVER BELT FORCE LIMITER DRIVER DOOR POWER WINDOW CONTROL HEAD DRIVER EXTERIOR REAR VIEW MIRROR DRIVER HEAD CURTAIN AIR BAG IGNITER DRIVER KNEE AIR BAG IGNITER DRIVER MULTI-CONTOUR SEAT COMPRESSOR DRIVER POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 DRIVER SEAT ADJUSTMENT CONTROL HEAD DRIVER SEAT BACKREST COUPLING POINT DRIVER SEAT BELT TENSIONER IGNITER 1 DRIVER SEAT MEMORY SETTINGS CONTROL HEAD DRIVER SIDE IONIZER DRIVER SIDE REAR DOOR CONTROL HEAD DRIVER SIDE REAR SEAT BELT TENSIONER IGNITER DRIVER SIDE REAR THORAX AIR BAG IGNITER DRIVER THORAX AIR BAG IGNITER DRIVER VOLUME CONTROL EARLY PRODUCTION ELECTRICAL A/C COMPRESSOR ELECTRONIC POWER STEERING SYSTEM EMERGENCY POWER SUPPLY CONNECTION EXTERIOR REAR VIEW MIRROR ADJUSTER FRESH AIR BLOWER FRONT A/C DISPLAY CONTROL HEAD FRONT INFORMATION DISPLAY CONTROL HEAD FRONT PASSENGER AUTOMATIC DIMMING EXTERIOR REAR VIEW MIRROR FRONT PASSENGER BELT FORCE LIMITER FRONT PASSENGER EXTERIOR REAR VIEW MIRROR FRONT PASSENGER HEAD CURTAIN AIR BAG IGNITER FRONT PASSENGER KNEE AIR BAG IGNITER FRONT PASSENGER MULTI-CONTOUR SEAT COMPRESSOR FRONT PASSENGER POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD FRONT PASSENGER SEAT BACKREST COUPLING POINT FRONT PASSENGER SEAT BELT TENSIONER IGNITER 1 FRONT PASSENGER SIDE INSTRUMENT PANEL AMBIENT LIGHTING EMBLEM FRONT PASSENGER SIDE IONIZER FRONT PASSENGER THORAX AIR BAG IGNITER FRONT ROOF MODULE FRONT THREE-PHASE CURRENT DRIVE HEADLIGHTS, WIPER/WASHER SYSTEMS HEATED STEERING WHEEL HORNS SYSTEM HOT AT ALL TIMES HOT W/ TERMINAL 15 HOUSING) (IN RIGHT FRONT WHEEL IGNITER 1 IGNITER 2 INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER, WIPER/WASHER SYSTEMS INTERIOR MICROPHONE INTERIOR REAR VIEW MIRROR INTERIOR REARVIEW MIRROR LANE DEPARTURE WARNING CIRCUIT LEFT "C" PILLAR) LEFT COUPLING POINT IN LUGGAGE COMPARTMENT LEFT COUPLING POINT ON INSTRUMENT PANE LEFT COUPLING POINT ON INSTRUMENT PANEL LEFT FRONT DOOR COUPLING POINT LEFT FRONT HEADLAMP LEFT FRONT SEAT BACKREST FAN 1 LEFT FRONT SEAT BELT LEFT FRONT SEAT COUPLING POINT LEFT FRONT SEAT COUPLING STATION LEFT FRONT SEAT CUSHION FAN 1 LEFT FRONT SEAT HEATED BACKREST LEFT FRONT WHEEL HOUSING WIRING COUPLING POINT LEFT HEADLAMP FAN LEFT HEADLAMP FAN 2 LEFT INSTRUMENT PANEL COUPLING POINT LEFT LED HEADLAMP POWER OUTPUT MODULE 1 LEFT MULTI-FUNCTION BUTTONS LEFT MULTI-FUNCTION BUTTONS ON STEERING WHEEL LEFT REAR BUMPER COUPLING POINT LEFT REAR DOOR COUPLING POINT LEFT REAR WHEEL HOUSING WIRING COUPLING POINT LEFT TURN SIG IND LEVEL CONTROL SYSTEM COMPRESSOR ELECTRONICS MEMORY SYSTEMS MOBILE DEVICE CHARGER 1 N/A N/A NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NIGHT VISION CIRCUIT NOT USED PARKING BRAKE IND. PASSENGER REAR THORAX AIR BAG IGNITER PASSENGER SIDE REAR DOOR CONTROL HEAD PASSENGER SIDE REAR SEAT BELT TENSIONER IGNITER PASSENGER SIDE REAR THORAX AIR BAG IGNITER POWER DISTRIBUTION SYSTEM POWER OUTPUT PROTECTION W/ BOOST FUNCTION RADIATOR FAN RADIATOR FAN 2 REAR A/C DISPLAY CONTROL HEAD REAR LID CLOSING AID REAR LID CONTROL HEAD REAR LID WARNING BUZZER REAR THREE-PHASE CURRENT DRIVE REAR WINDOW DEFOGGER RIDE CONTROL AIR COMPRESSOR RIGHT COUPLING POINT IN INSTRUMENT PANEL RIGHT COUPLING POINT IN LUGGAGE COMPARTMENT RIGHT COUPLING POINT IN LUGGAGE COMPT RIGHT COUPLING POINT ON INSTRUMENT CLUSTER RIGHT COUPLING POINT ON INSTRUMENT PANEL RIGHT EMERGENCY FLASHER IND RIGHT END OF DASH) RIGHT FRONT DOOR COUPLING POINT RIGHT FRONT HEADLAMP RIGHT FRONT SEAT BACKREST FAN 1 RIGHT FRONT SEAT BELT RIGHT FRONT SEAT COUPLING POINT RIGHT FRONT SEAT COUPLING STATION RIGHT FRONT SEAT CUSHION FAN 1 RIGHT FRONT SEAT HEATED BACKREST RIGHT FRONT WHEEL HOUSING WIRING COUPLING POINT RIGHT HEADLAMP FAN RIGHT HEADLAMP FAN 2 RIGHT INSTRUMENT PANEL COUPLING POINT RIGHT LED HEADLAMP POWER OUTPUT MODULE 1 RIGHT MULTI-FUNCTION BUTTONS RIGHT MULTI-FUNCTION BUTTONS ON STEERING WHEEL RIGHT REAR DOOR RIGHT REAR DOOR COUPLING POINT RIGHT REAR WHEEL HOUSING WIRING COUPLING POINT SEATS SYSTEM SEATS, SUPPLEMENTAL RESTRAINTS SYSTEMS SELECTOR LEVER SELECTOR LEVER TRANSMISSION RANGE DISPLAY SOUND SYSTEMS SPIRAL SPRING STEERING COUPLING POINT 1 SUPPLEMENTAL RESTRAINTS SYSTEM SUPPRESSION FILTER TO VEHICLE ELECTRICAL SYSTEM TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM USB CONNECTION 1 USB DISTRIBUTOR W/ AIR SUSPENSION W/ AUXILIARY LAMPS W/ HEATED STEERING WHEEL W/ LENS W/ MASSAGE W/ SPORT SEATS W/ VEHICLE INLET COMBO 2 W/O AUXILIARY LAMPS W/O LENS W/O SPORT SEATS W/O VEHICLE INLET COMBO 2 W/O VEHICLE INLET COMBO 2 LATE PRODUCTION WINDSHIELD WIPER WIPER/WASHER SYSTEM
