Audi Cabriolet I (1991-2000) fuse/relay panel (left side plenum tray) wiring diagram
This page shows the only wiring diagram for the component.fuse/relay panel (left side plenum tray), which is found in the car Audi Cabriolet I (1991-2000). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

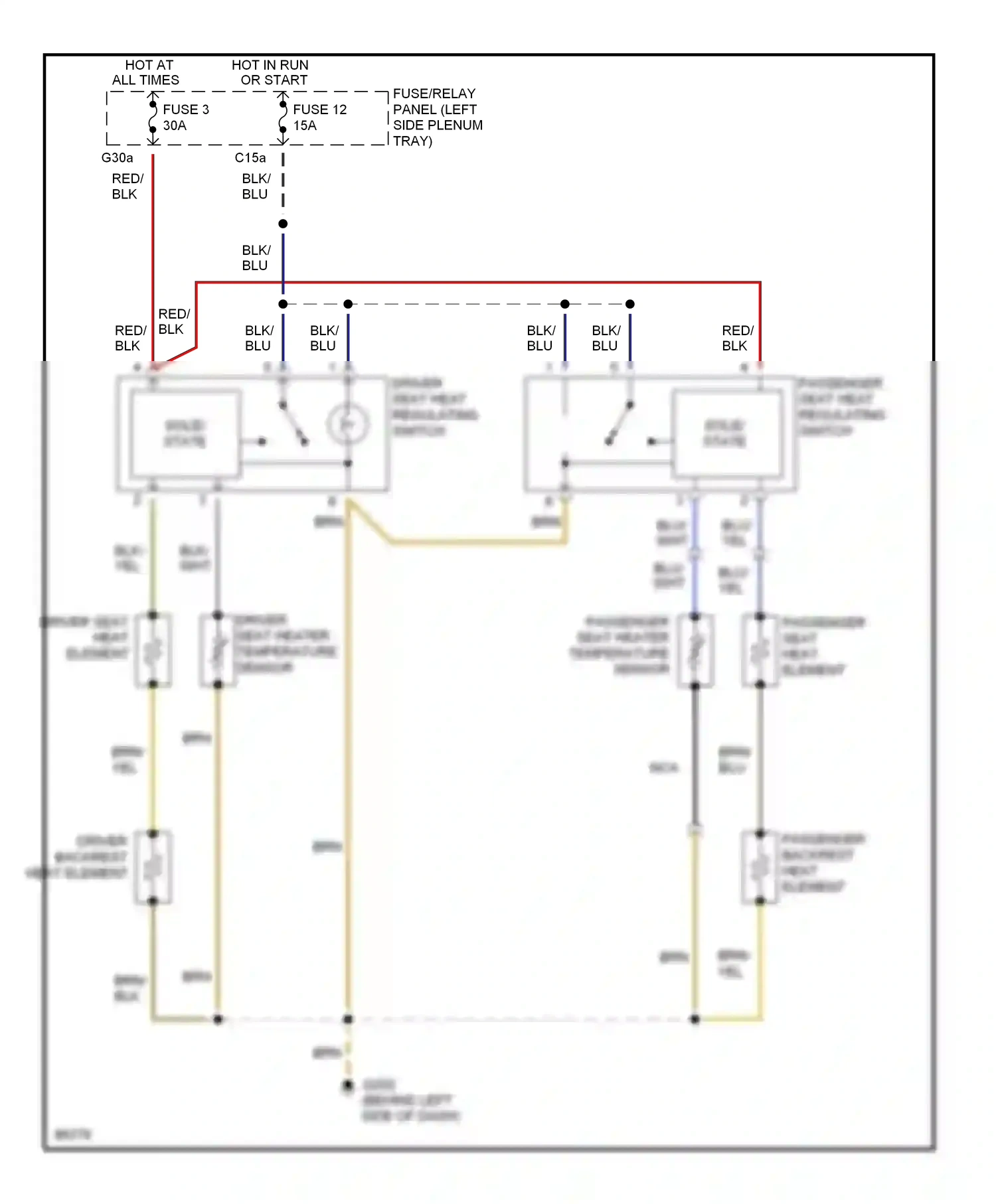

fuse/relay panel (left side plenum tray) wiring diagram (1 of 1)
BLK WIRE
BLU WIRE
BRN WIRE
DRIVER BACKREST HEAT ELEMENT
DRIVER SEAT HEAT REGULATING SWITCH
DRIVER SEAT HEATER TEMPERATURE SENSOR DRIVER SEAT HEAT ELEMENT
FUSE 12
FUSE 3
FUSE/RELAY PANEL (LEFT SIDE PLENUM TRAY)
HOT AT ALL TIMES
HOT IN RUN OR START
NCA WIRE
PASSENGER BACKREST HEAT ELEMENT
PASSENGER SEAT HEAT ELEMENT
PASSENGER SEAT HEAT REGULATING SWITCH
PASSENGER SEAT HEATER TEMPERATURE SENSOR
RED WIRE
SOLID STATE
WHT WIRE
YEL WIRE
Go to component -> Heated seats circuit -> FUSE/RELAY PANEL (LEFT SIDE PLENUM TRAY)
