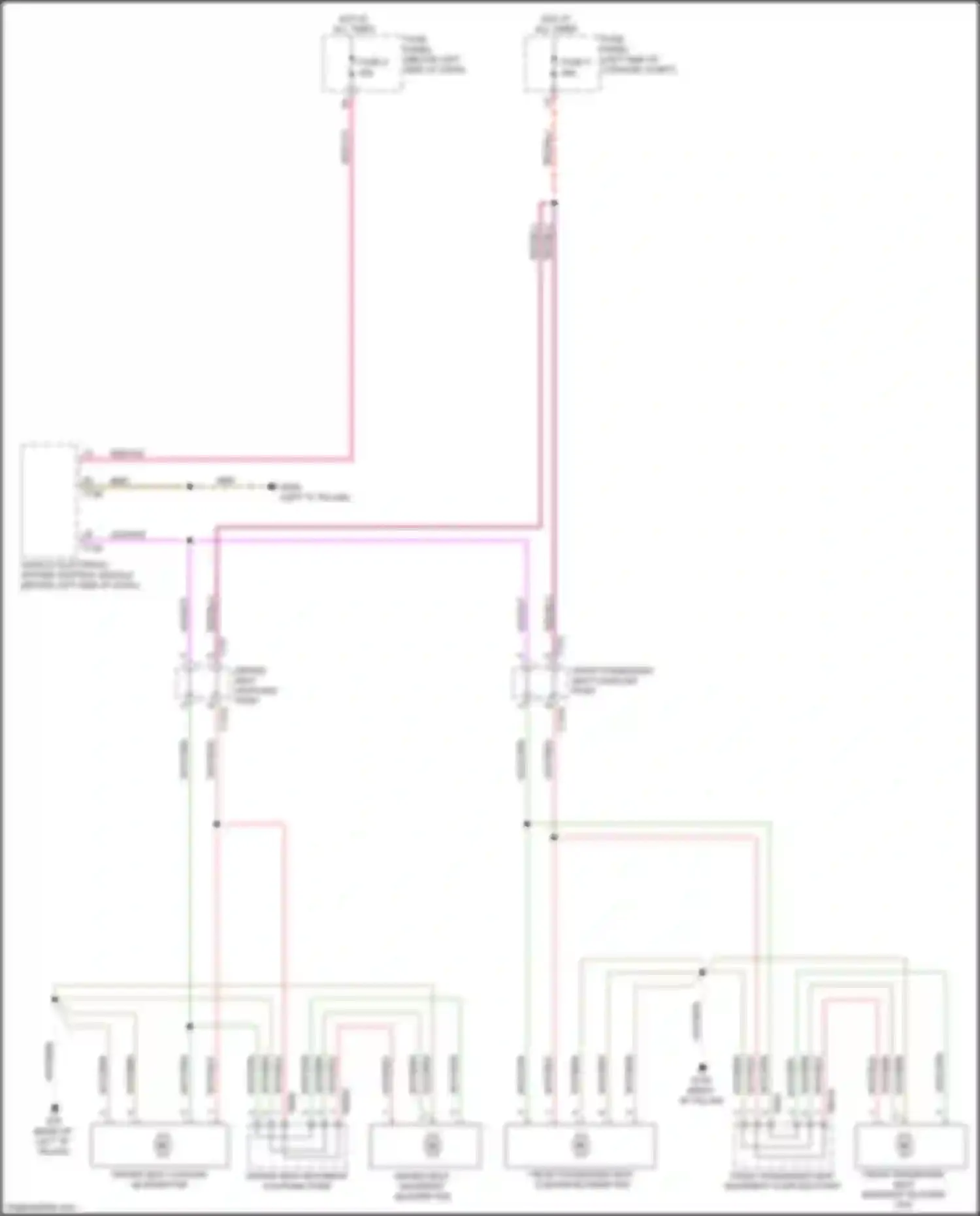

Car Wiring Diagrams for Seat ventilation circuit for Audi A8 D5 (2017-2022)

BRN WIRE DRIVER SEAT BACKREST BLOWER FAN DRIVER SEAT BACKREST COUPLING POINT DRIVER SEAT COUPLING POINT DRIVER SEAT CUSHION BLOWER FAN FRONT PASSENGER SEAT BACKREST BLOWER FAN FRONT PASSENGER SEAT BACKREST COUPLING POINT FRONT PASSENGER SEAT COUPLING POINT FRONT PASSENGER SEAT CUSHION BLOWER FAN FUSE 5 FUSE PANEL C FUSE PANEL D HOT AT ALL TIMES RED/BLU WIRE RED/VIO WIRE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO/WHT WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/RED WIRE
