Audi A8 D3 facelift (2005-2007) tire pressure sensor Wiring diagram

This page shows the only wiring diagram for the component.tire pressure sensor, which is found in the car Audi A8 D3 facelift (2005-2007). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

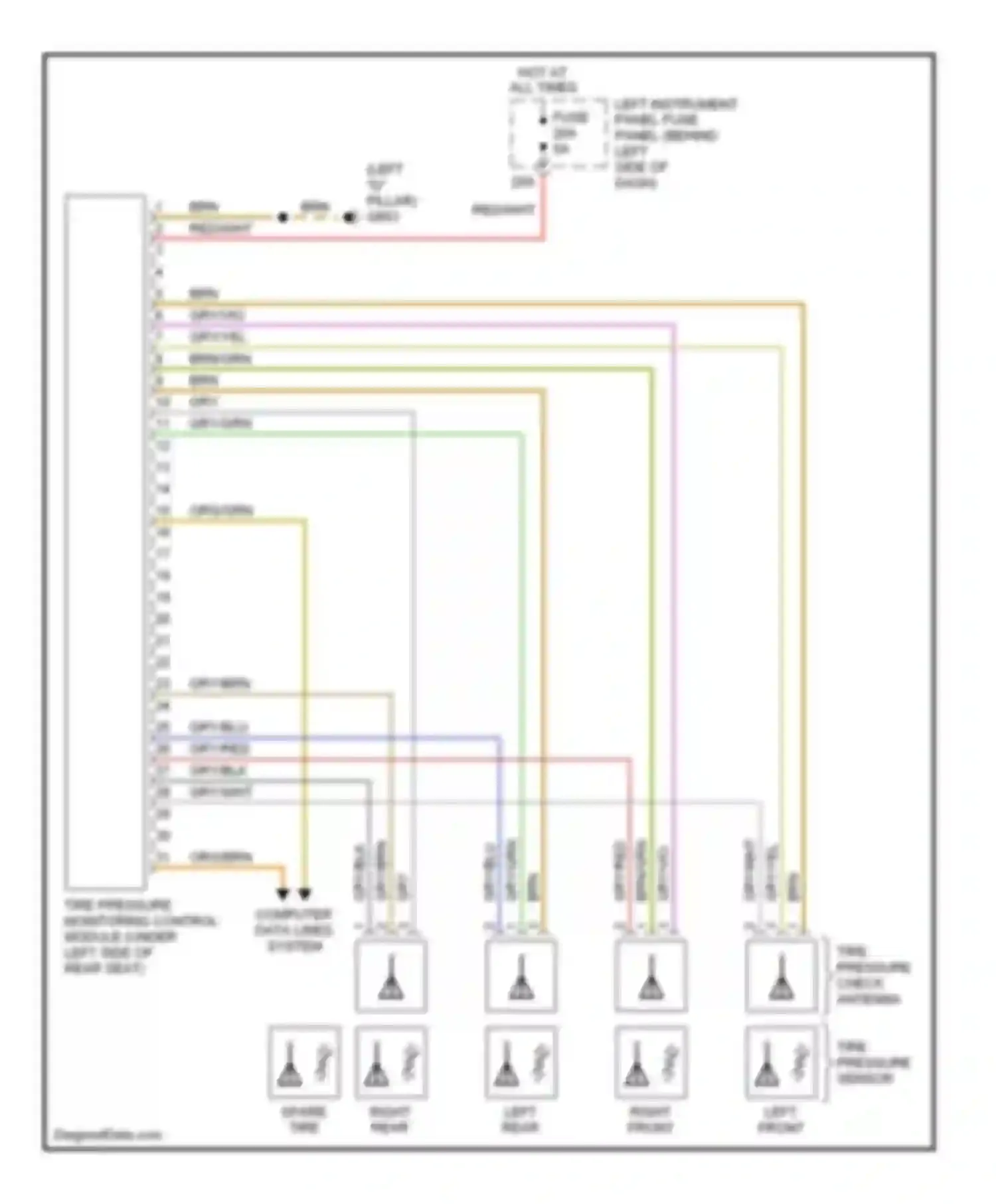

Wiring diagram tire pressure sensor (1 of 1)

Wiring diagram tire pressure sensor for Audi A8 D3 facelift (2005-2007)

Get access

BRN WIRE BRN/GRN WIRE COMPUTER DATA LINES SYSTEM FUSE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE HOT AT ALL TIMES LEFT FRONT LEFT INSTRUMENT PANEL FUSE PANEL (BEHIND LEFT SIDE OF DASH) LEFT REAR ORG/BRN WIRE ORG/GRN WIRE RED/WHT WIRE RIGHT FRONT RIGHT REAR SPARE TIRE TIRE PRESSURE CHECK ANTENNA TIRE PRESSURE MONITORING CONTROL MODULE (UNDER LEFT SIDE OF REAR SEAT) TIRE PRESSURE SENSOR

Go to component: -> Tire pressure monitoring circuit -> TIRE PRESSURE SENSOR
