Audi A8 D3 facelift (2005-2007) fuse 6 Wiring diagrams

ABS CONTROL MODULE (LEFT SIDE OF ENGINE COMPT) ABS CONTROL MODULE FUSE 1 (ON RELAY & FUSE PANEL, LEFT I/P) FUSE 123 ABS RETURN FLOW PUMP ACCESS/ ASR/ESP BUTTON (PART OF FRONT/ CENTER CONSOLE CONTROL HEAD) BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/RED WIRE BLU/YEL WIRE BRAKE BOOSTER SENDER (ON ABS HYDRAULIC CONTROL UNIT) BRAKE LIGHT SWITCH BRN WIRE CENTRAL CONTROL MODULE (IN LUGGAGE COMPT, BEHIND BATTERY) COMPUTER DATA LINES SYSTEM CONTROL MODULE (UNDER DRIVER'S SEAT) CRUISE CONTROL SYSTEM DIAGNOSTIC CONNECTION (AT FRONT RELAY PANEL, IN LEFT FOOTWELL) FUSE 12 FUSE 22 FUSE 6 FUSE 9 GRY/BLU WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE HIGH PRESSURE SWITCH VALVE 1 HIGH PRESSURE SWITCH VALVE 2 HOT AT ALL TIMES HOT W/ ECM POWER SUPPLY RELAY ENERGIZED HOT W/ VOLTAGE SUPPLY TERMINAL 15 RELAY ENERGIZED LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE LEFT FRONT ABS WHEEL SPEED SENSOR LEFT INSTRUMENT PANEL FUSE PANEL (BEHIND LEFT SIDE OF DASH) FUSE 27 LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE LEFT REAR ABS WHEEL SPEED SENSOR NCA WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE RED/BLU WIRE RED/BRN WIRE RED/WHT WIRE RED/YEL WIRE RETURN FLOW PUMP RELAY RETURN FLOW PUMP RELAY 2 RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT INSTRUMENT PANEL FUSE PANEL (BEHIND RIGHT SIDE OF DASH) RIGHT REAR ABS INLET VALVE RIGHT REAR ABS OUTLET VALVE RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR STEERING ANGLE SENSOR (BEHIND STEERING WHEEL) STEERING COLUMN ELECTRONICS SYSTEM CONTROL MODULE TRACTION CONTROL PILOT VALVE 1 TRACTION CONTROL PILOT VALVE 2 WHT WIRE WHT/BLU WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE

ABS CONTROL MODULE (LEFT SIDE OF ENGINE COMPT) ACCESS/START CONTROL MODULE (UNDER DRIVER'S SEAT) ANTI-LOCK BRAKES SYSTEM BLK WIRE BLK/GRN WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/YEL WIRE BRAKE LIGHT SWITCH BRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM CRUISE CONTROL SWITCH ENGAGE OFF DIAGNOSTIC CONNECTION (AT FRONT RELAY PANEL, IN LEFT FOOTWELL) DISTANCE DISTANCE REGULATION CONTROL MODULE ENGINE CONTROL MODULE (IN PASSENGER'S SIDE PLENUM CHAMBER E-BOX) FUSE 12 FUSE 133 FUSE 17 FUSE 22 FUSE 6 FUSE 9 GRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRY WIRE GRY/WHT WIRE HOT AT ALL TIMES HOT W/ ECM POWER SUPPLY RELAY ENERGIZED LEFT INSTRUMENT PANEL FUSE PANEL (BEHIND LEFT SIDE OF DASH) NCA WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/VIO WIRE RED WIRE RED/BLK WIRE RED/BRN WIRE RED/YEL WIRE RIGHT LUGGAGE COMPARTMENT FUSE PANEL (RIGHT SIDE OF LUGGAGE COMPT) SET SOFT OFF/ RESUME GRA STEERING COLUMN ELECTRONICS SYSTEM CONTROL MODULE THROTTLE POSITION SENSOR (ON ACCELERATOR PEDAL) VIO/RED WIRE VOLTAGE SUPPLY TERMINAL 15 RELAY (ON RELAY & FUSE PANEL, AT LEFT SIDE OF DASH) WHT WIRE WHT/YEL WIRE YEL WIRE YEL/BRN WIRE YEL/RED WIRE YEL/WHT WIRE

ABS CONTROL MODULE (LEFT SIDE OF ENGINE COMPT) ABS CONTROL MODULE FUSE 1 (ON RELAY & FUSE PANEL, LEFT I/P) FUSE 123 ABS RETURN FLOW PUMP ACCESS/ ASR/ESP BUTTON (PART OF FRONT/ CENTER CONSOLE CONTROL HEAD) BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/RED WIRE BLU/YEL WIRE BRAKE BOOSTER SENDER (ON ABS HYDRAULIC CONTROL UNIT) BRAKE LIGHT SWITCH BRN WIRE CENTRAL CONTROL MODULE (IN LUGGAGE COMPT, BEHIND BATTERY) COMPUTER DATA LINES SYSTEM CONTROL MODULE (UNDER DRIVER'S SEAT) CRUISE CONTROL SYSTEM DIAGNOSTIC CONNECTION (AT FRONT RELAY PANEL, IN LEFT FOOTWELL) FUSE 12 FUSE 22 FUSE 6 FUSE 9 GRY/BLU WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE HIGH PRESSURE SWITCH VALVE 1 HIGH PRESSURE SWITCH VALVE 2 HOT AT ALL TIMES HOT W/ ECM POWER SUPPLY RELAY ENERGIZED HOT W/ VOLTAGE SUPPLY TERMINAL 15 RELAY ENERGIZED LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE LEFT FRONT ABS WHEEL SPEED SENSOR LEFT INSTRUMENT PANEL FUSE PANEL (BEHIND LEFT SIDE OF DASH) FUSE 27 LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE LEFT REAR ABS WHEEL SPEED SENSOR NCA WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE RED/BLU WIRE RED/BRN WIRE RED/WHT WIRE RED/YEL WIRE RETURN FLOW PUMP RELAY RETURN FLOW PUMP RELAY 2 RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT INSTRUMENT PANEL FUSE PANEL (BEHIND RIGHT SIDE OF DASH) RIGHT REAR ABS INLET VALVE RIGHT REAR ABS OUTLET VALVE RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR STEERING ANGLE SENSOR (BEHIND STEERING WHEEL) STEERING COLUMN ELECTRONICS SYSTEM CONTROL MODULE TRACTION CONTROL PILOT VALVE 1 TRACTION CONTROL PILOT VALVE 2 WHT WIRE WHT/BLU WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE

ABS CONTROL MODULE (LEFT SIDE OF ENGINE COMPT) ACCESS/START CONTROL MODULE (UNDER DRIVER'S SEAT) ANTI-LOCK BRAKES SYSTEM BLK WIRE BLK/GRN WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/YEL WIRE BRAKE LIGHT SWITCH BRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM CRUISE CONTROL SWITCH ENGAGE OFF DIAGNOSTIC CONNECTION (AT FRONT RELAY PANEL, IN LEFT FOOTWELL) DISTANCE DISTANCE REGULATION CONTROL MODULE ENGINE CONTROL MODULE (IN PASSENGER'S SIDE PLENUM CHAMBER E-BOX) FUSE 12 FUSE 133 FUSE 17 FUSE 22 FUSE 6 FUSE 9 GRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRY/BLK WIRE GRY/RED WIRE GRY/WHT WIRE GRY/YEL WIRE HOT AT ALL TIMES HOT W/ ECM POWER SUPPLY RELAY ENERGIZED LEFT INSTRUMENT PANEL FUSE PANEL (BEHIND LEFT SIDE OF DASH) NCA WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/VIO WIRE RED WIRE RED/BLK WIRE RED/BRN WIRE RED/YEL WIRE RIGHT LUGGAGE COMPARTMENT FUSE PANEL (RIGHT SIDE OF LUGGAGE COMPT) SET SOFT OFF/ RESUME GRA STEERING COLUMN ELECTRONICS SYSTEM CONTROL MODULE THROTTLE POSITION SENSOR (ON ACCELERATOR PEDAL) VIO/YEL WIRE VOLTAGE SUPPLY TERMINAL 15 RELAY (ON RELAY & FUSE PANEL, AT LEFT SIDE OF DASH) WHT WIRE YEL WIRE YEL/BRN WIRE YEL/RED WIRE YEL/WHT WIRE

ACCESS/ ANTI-LOCK BRAKES SYSTEM ANTI-THEFT SYSTEM BLK WIRE BLK/BLU WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLU WIRE BLU/GRN WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE COMFORT SYSTEM CENTRAL CONTROL MODULE (IN LUGGAGE COMPT, BEHIND THE BATTERY) COMPUTER DATA LINES SYSTEM CONTROL MODULE (UNDER DRIVER'S SEAT) DEFOGGER SYSTEM DOOR LOCKS SYSTEM ELECTRONIC SUSPENSION SYSTEM FUSE 3 FUSE 5 FUSE 6 FUSE 7 GRN/GRY WIRE GRN/WHT WIRE HOT AT ALL TIMES ORG/BRN WIRE ORG/GRN WIRE POWER WINDOWS SYSTEM RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRY WIRE RED/VIO WIRE RIGHT INSTRUMENT PANEL FUSE PANEL (BEHIND RIGHT SIDE OF DASH) RIGHT LUGGAGE COMPARTMENT FUSE PANEL (RIGHT SIDE OF LUGGAGE COMPT) SUPPLEMENTAL RESTRAINTS SYSTEM VIO WIRE VIO/BLU WIRE VIO/GRN WIRE VIO/RED WIRE VIO/WHT WIRE VOLTAGE SUPPLY TERMINAL 15 RELAY (ON RELAY & FUSE PANEL, AT LEFT SIDE OF DASH) WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/RED WIRE WHT/VIO WIRE YEL WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

ABS CONTROL MODULE ACCESS/START CONTROL MODULE (UNDER DRIVER'S SEAT) BLK WIRE BLK/GRN WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/WHT WIRE BRN WIRE BRN/YEL WIRE COMPUTER DATA LINES SYSTEM EMERGENCY FLASHER SWITCH FRONT/CENTER CONSOLE CONTROL HEAD FUSE 3 FUSE 38 FUSE 40 FUSE 31 FUSE 6 FUSE 9 GRN WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/GRN WIRE GRY/RED WIRE GRY/YEL WIRE HEADLIGHTS SYSTEM HORNS SYSTEM HOT AT ALL TIMES IGNITION OUTPUT LEFT CAN-BUS DISCONNECTION PLUG LEFT FRONT SIDE MARKER LIGHT LEFT HEADLIGHT ASSEMBLY LEFT INSTRUMENT PANEL FUSE PANEL (BEHIND LEFT SIDE OF DASH) LEFT SIDE TURN SIGNAL LIGHT LIGHT SWITCH NCA WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE PARK POWER DISTRIBUTION SYSTEM RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRY WIRE RED/YEL WIRE RIGHT FRONT SIDE MARKER LIGHT RIGHT HEADLIGHT ASSEMBLY RIGHT LUGGAGE COMPARTMENT FUSE PANEL (RIGHT SIDE OF LUGGAGE COMPT) RIGHT SIDE TURN SIGNAL LIGHT TURN TURN SIGNAL SWITCH VEHICLE ELECTRICAL SYSTEM CONTROL MODULE (BEHIND LEFT SIDE OF DASH) VIO/BLU WIRE VIO/WHT WIRE VOLTAGE SUPPLY TERMINAL 15 RELAY (ON RELAY & FUSE PANEL, AT LEFT OF DASH) WHT WIRE WHT/BLK WIRE WHT/YEL WIRE WIPER/ WASHER SYSTEM YEL WIRE YEL/BLK WIRE YEL/WHT WIRE

ABS CONTROL MODULE ACCESS/ BACK- UP STOP TAIL FOG BACK-UP BLK WIRE BLK/BLU WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLU WIRE BLU/WHT WIRE BLU/YEL WIRE BRAKE LIGHT SWITCH (ABOVE BRAKE PEDAL, ON BRACKET) BRN WIRE COMFORT SYSTEM CENTRAL CONTROL MODULE (IN LUGGAGE COMPT, BEHIND BATTERY) CONTROL MODULE ENGINE CONTROL MODULE FUSE 12 FUSE 5 FUSE 7 FUSE 6 GRN WIRE GRY WIRE GRY/GRN WIRE HIGH MOUNT BRAKE LIGHT HOT AT ALL TIMES LEFT INSTRUMENT PANEL FUSE PANEL (BEHIND LEFT SIDE OF DASH) LEFT REAR LID TAILLAMP ASSEMBLY LEFT REAR LID TAILLAMP CONTROL MODULE LEFT REAR TAILLAMP CONTROL MODULE LEFT TAILLAMP ASSEMBLY LICENSE PLATE LIGHT ORG/BRN WIRE ORG/GRN WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRY WIRE RIGHT LUGGAGE COMPARTMENT FUSE PANEL (RIGHT SIDE OF LUGGAGE COMPT) RIGHT REAR LID TAILLAMP ASSEMBLY RIGHT REAR LID TAILLAMP CONTROL MODULE RIGHT REAR TAILLAMP CONTROL MODULE RIGHT TAILLAMP ASSEMBLY STOP TAIL FOG STOP TAIL TURN VIO WIRE VIO/BLU WIRE VIO/GRN WIRE WHT WIRE WHT/BRN WIRE WHT/GRN WIRE YEL WIRE

ABS CONTROL MODULE ACCESS/START CONTROL MODULE (UNDER DRIVER'S SEAT) BLK WIRE BLK/GRN WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/WHT WIRE BRN WIRE BRN/YEL WIRE COMPUTER DATA LINES SYSTEM FUSE 38 FUSE 40 FUSE 31 FUSE 6 FUSE 9 GRN WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/GRN WIRE GRY/RED WIRE GRY/YEL WIRE HEADLIGHT FLASHER SWITCH HEADLIGHTS SYSTEM (W/ BI-XENON) HIGH BEAM PARK LAMP HORNS SYSTEM HOT AT ALL TIMES IGNITION OUTPUT LEFT FRONT FOG LIGHT LEFT HEADLIGHT ASSEMBLY LEFT INSTRUMENT PANEL FUSE PANEL (BEHIND LEFT SIDE OF DASH) LOW BEAM NCA WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRY WIRE RED/YEL WIRE STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE TURN LAMP VEHICLE ELECTRICAL SYSTEM CONTROL MODULE (BEHIND LEFT SIDE OF DASH) VIO/BLU WIRE VIO/WHT WIRE WHT WIRE WHT/BLK WIRE WHT/YEL WIRE WIPER/ WASHER SYSTEM YEL WIRE YEL/BLK WIRE YEL/WHT WIRE

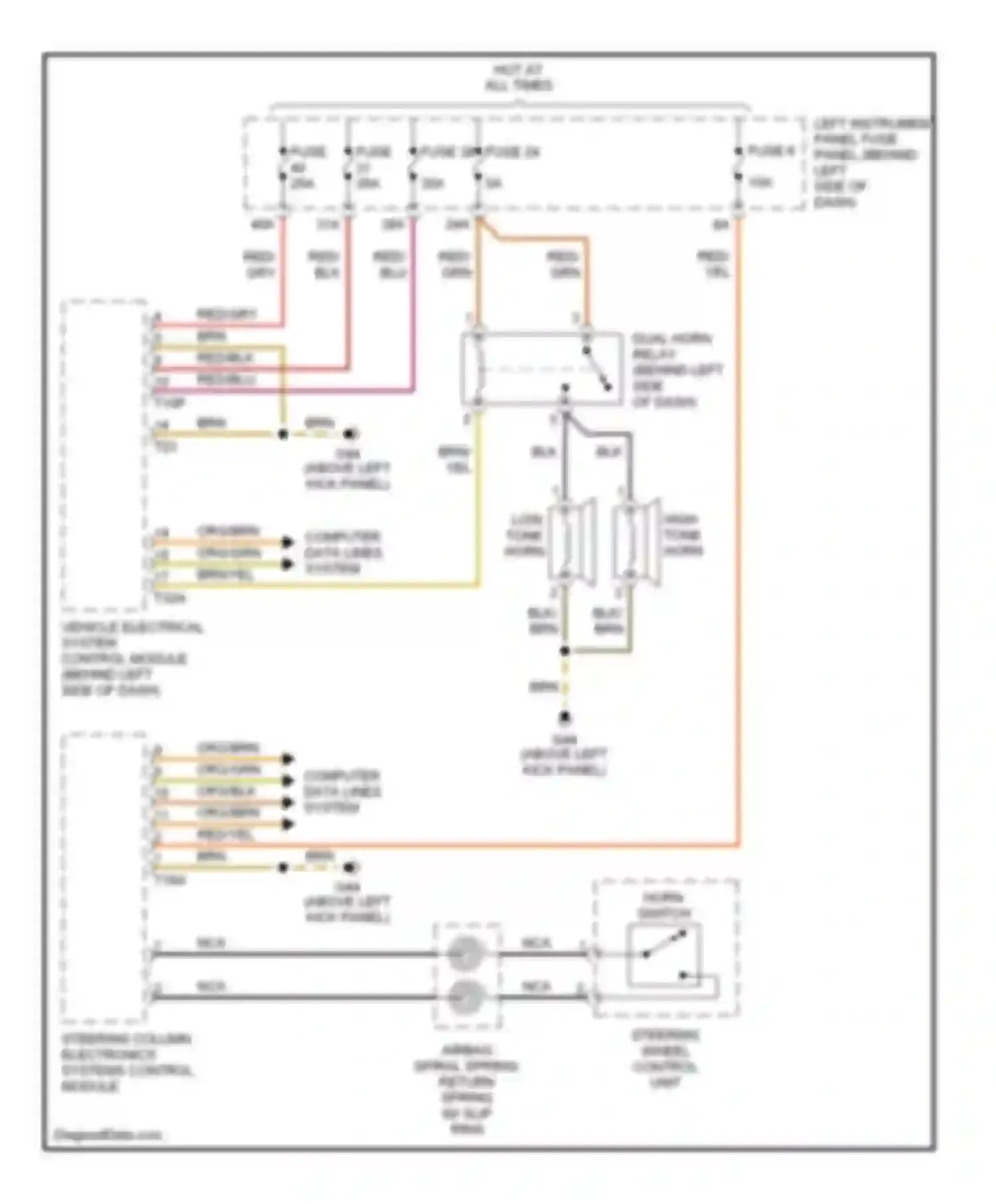

AIRBAG SPIRAL SPRING/ RETURN SPRING W/ SLIP RING BLK WIRE BLU WIRE BRN WIRE BRN/YEL WIRE COMPUTER DATA LINES SYSTEM DUAL HORN RELAY (BEHIND LEFT SIDE OF DASH) FUSE 24 FUSE 40 FUSE 31 FUSE 38 FUSE 6 GRN WIRE GRY WIRE HIGH TONE HORN HORN SWITCH HOT AT ALL TIMES LEFT INSTRUMENT PANEL FUSE PANEL (BEHIND LEFT SIDE OF DASH) LOW TONE HORN NCA WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRY WIRE RED/YEL WIRE STEERING COLUMN ELECTRONICS SYSTEMS CONTROL MODULE STEERING WHEEL CONTROL UNIT VEHICLE ELECTRICAL SYSTEM CONTROL MODULE (BEHIND LEFT SIDE OF DASH) YEL WIRE

BLK WIRE BLK/BLU WIRE BLK/YEL WIRE BLU WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/VIO WIRE BRN/WHT WIRE CAMSHAFT ADJUSTMENT VALVE 1 CAMSHAFT ADJUSTMENT VALVE 1 (EXHAUST) CAMSHAFT ADJUSTMENT VALVE 2 CAMSHAFT ADJUSTMENT VALVE 2 (EXHAUST) FUSE 28 FUSE 5 FUSE 29 FUSE 31 FUSE 7 FUSE 6 GRN WIRE GRN/YEL WIRE GRY WIRE GRY/BRN WIRE GRY/RED WIRE GRY/WHT WIRE HOT WITH VOLTAGE SUPPLY TERMINAL 15 RELAY ENERGIZED IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 MAP CONTROLLED ENGINE COOLING THERMOSTAT NCA WIRE PLUG PLUG SPARK RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/GRY WIRE RED/WHT WIRE RED/YEL WIRE RIGHT INSTRUMENT PANEL FUSE PANEL (BEHIND RIGHT SIDE OF DASH) RIGHT KICK PANEL RELAY PANEL (RIGHT FRONT KICK PANEL) FUEL PUMP RELAY SPARK SPARK PLUG TORQUE SUPPORT VALVE VIO WIRE VIO/GRN WIRE WHT WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/RED WIRE
