Audi A8 D3 facelift 2 (2007-2010) low windshield washer fluid level ind light Wiring diagram
This page shows the only wiring diagram for the component.low windshield washer fluid level ind light, which is found in the car Audi A8 D3 facelift 2 (2007-2010). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

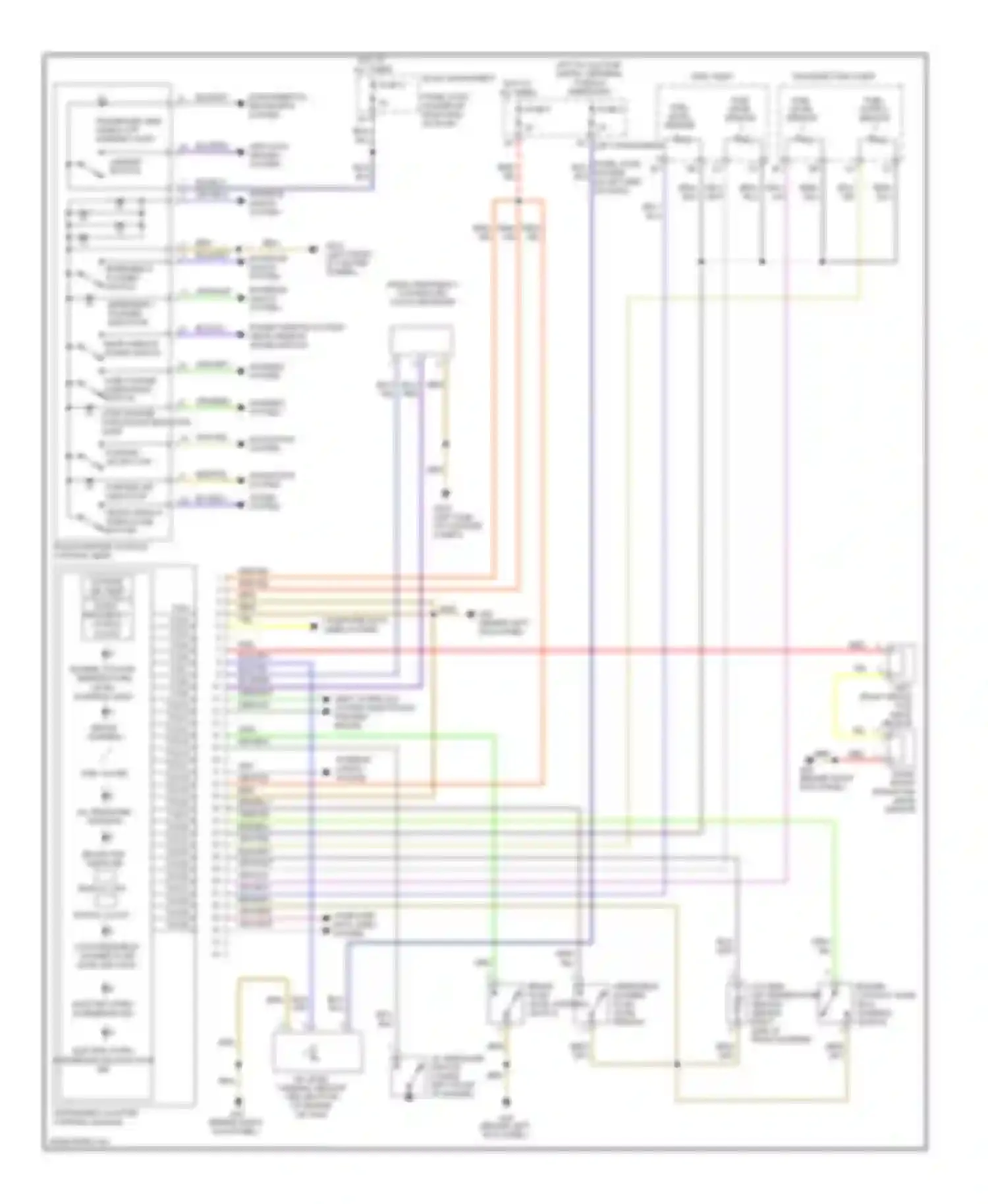

Wiring diagram low windshield washer fluid level ind light (1 of 1)
ANTI-LOCK BRAKES SYSTEM
ASR/ESP BUTTON
BLK WIRE
BLK/BLU WIRE
BLK/WHT WIRE
BLU WIRE
BLU/BLK WIRE
BLU/GRY WIRE
BLU/RED WIRE
BLU/VIO WIRE
BLU/WHT WIRE
BLU/YEL WIRE
BRAKE FLUID LEVEL WARNING SWITCH
BRAKE PAD WEAR IND
BRAKE WARNING
BRN WIRE
BRN/BLU WIRE
BRN/GRY WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
DIGITAL CLOCK
DISPLAY UNIT
ELECTRIC PARK/ HANDBRAKE IND
ELECTRIC PARK/ HANDBRAKE MALFUNCTION IND
EMERGENCY FLASHER INDICATOR
EMERGENCY FLASHER SWITCH
ENGINE COOLANT LEVEL (ECL) WARNING SWITCH
ENGINE COOLANT TEMPERATURE LEVEL/ WARNING LIGHT
EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM
FRONT DISPLAY OPEN/CLOSE BUTTON
FRONT/CENTER CONSOLE CONTROL HEAD
FUEL FUEL LEVEL LEVEL SENSOR SENDER
FUEL GAUGE
FUEL LEVEL SENSOR
FUEL PUMP
FUEL SUPPLY SENSOR
FUSE 5
FUSE 8
FUSE 9
GRN WIRE
GRN/BRN WIRE
GRN/GRY WIRE
GRN/VIO WIRE
GRN/WHT WIRE
GRN/YEL WIRE
GRY WIRE
GRY/BLK WIRE
GRY/BLU WIRE
GRY/RED WIRE
GRY/VIO WIRE
GRY/WHT WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
HOT W/ VOLTAGE SUPPLY TERMINAL 15 RELAY ENERGIZED
INSTRUMENT CLUSTER CONTROL MODULE
LANE CHANGE ASSISTANCE BUTTON
LANE CHANGE ASSISTANCE INDICATOR LAMP
LEFT FRONT BRAKE PAD WEAR SENSOR
LEFT INSTRUMENT
LOW WINDSHIELD WASHER FLUID LEVEL IND LIGHT
NAVIGATION SYSTEM
NAVIGATION SYSTEM SOUND SYSTEM
OIL LEVEL THERMAL SENSOR (SRI) (BOTTOM OF ENGINE OIL PAN)
OIL PRESSURE SWITCH (LOWER LEFT FRONT OF ENGINE)
OIL PRESSURE WARNING
OUTSIDE AIR TEMP
OUTSIDE AIR TEMPERATURE SENSOR (BEHIND RIGHT SIDE OF FRONT BUMPER)
PANEL FUSE HOLDER (IN LEFT END OF DASH)
PANEL FUSE HOLDER (IN RIGHT END OF DASH)
PARKING AID BUTTON
PARKING AID INDICATOR
PASSENGER SIDE AIRBAG OFF WARNING LIGHT
POWER WINDOW SYSTEM (REAR WINDOW SHADE SWITCH)
RADIO FREQUENCY CNTRLD CLOCK
RADIO FREQUENCY CONTROLLED CLOCK RECEIVER
REAR WINDOW SHADE SWITCH
RED WIRE
RED/YEL WIRE
RIGHT FRONT BRAKE PAD WEAR SENSOR
RIGHT INSTRUMENT
SHIFT INTERLOCK SYSTEM (ELECTRONIC PARKING BRAKE)
SUPPLEMENTAL RESTRAINTS SYSTEM
TRANSFER FUEL PUMP
VIO WIRE
WARNING SYSTEM
WHT WIRE
WHT/YEL WIRE
WINDSHIELD WASHER FLUID LEVEL SENSOR
YEL WIRE
Go to component -> Instrument cluster circuit -> LOW WINDSHIELD WASHER FLUID LEVEL IND LIGHT
